Tech developer the Bosch Group and bicycle maker Cannondale are collaborating on a new electric drive system for bikes. According to our friends at Wikipedia, Bosch is the world’s largest producer of auto parts, so there’s reason to think that this system might actually be half-way legit. Read on to learn more about it.

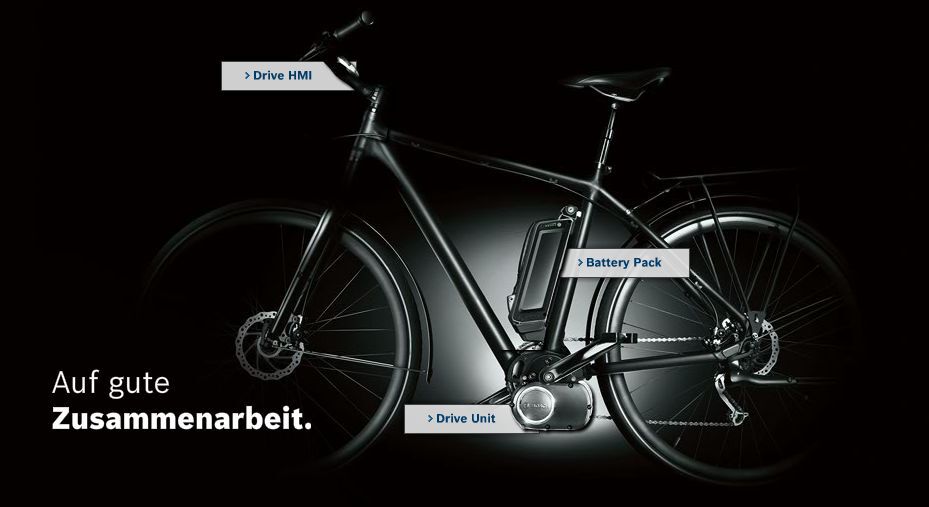

The motor itself is rated at 250 watts, with a peak power of 350 watts. It’s powered by a 36-volt lithium-ion battery pack, which is good for 288 watt-hours, 500 charge cycles, and recharges in no more than 2.5 hours. The system also features a bar-mounted control unit, or HMI (Human-Machine Interface). It displays the battery status and allows users to choose between up to four power settings, offering electrical pedaling assistance from levels of 0 to 150 percent. The power settings are: Eco (maximum range), Tour (standard setting), Sports ("dynamic riding") and Speed (maximum setting). Individual bicycle manufacturers will be able to choose which of these levels are enabled, depending on the type of bike into which they're incorporating the system.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE
Depending on the level selected, a range of 35 to 80 kilometers (22 to 50 miles) is possible on one charge. The system only provides power when the rider is pedaling, and will not assist at speeds over 25 km/h (15.5 mph), as anything faster will cause the ebike to legally be considered a motor vehicle.
One of the things that makes the Bosch system special is its three sensors in the motor. Several times a second, these measure the cyclist’s pedaling force and frequency, and the speed at which the bike is traveling. When the HMI’s processor detects that the same amount of pedaling is resulting in less speed, such as would be the result of a headwind or a hill, it automatically compensates by increasing the amount of pedaling assistance.
While the system was developed with Cannondale, it should start showing up on various brands of ebikes next spring. It will only be available as original equipment, and not as an upgrade kit.View gallery - 10 images
