"Econtainer" bridge to rehabilitate 25-million ton waste mountainView gallery - 6 images
Yoav Messer Architects' competition-winning "Econtainer Bridge" will become what could well be the first bridge to be made from disused shipping containers. The bridge will cross the Ayalon River granting entry to the planned Ariel Sharon Park which will transform 2,000 acres of the Hiriya waste dump into a nature reserve to the southeast of Tel Aviv.
The designers of the 160-m bridge intend the reuse of shipping containers to mirror the reuse of the land itself. After developing into a 25 million-ton mountain of waste, Hiriya was closed in 1998. In 2004, a scheme was hatched to rehabilitate the land, and prevent collapse into the Ayalon river.
Sick of Ads?
More than 700 New Atlas Plus subscribers read our newsletter and website without ads.
Join them for just US$19 a year.More Information
A Yoav Messer spokesperson informed Gizmag that when complete, the bridge will connect Lod road from east Tel Aviv directly to Hiriya mountain at the park's center. The bridge will carry bicycle and foot traffic, and though closed to cars, will see some form of public shuttle vehicle ferry people from car parking into Ariel Sharon Park itself.

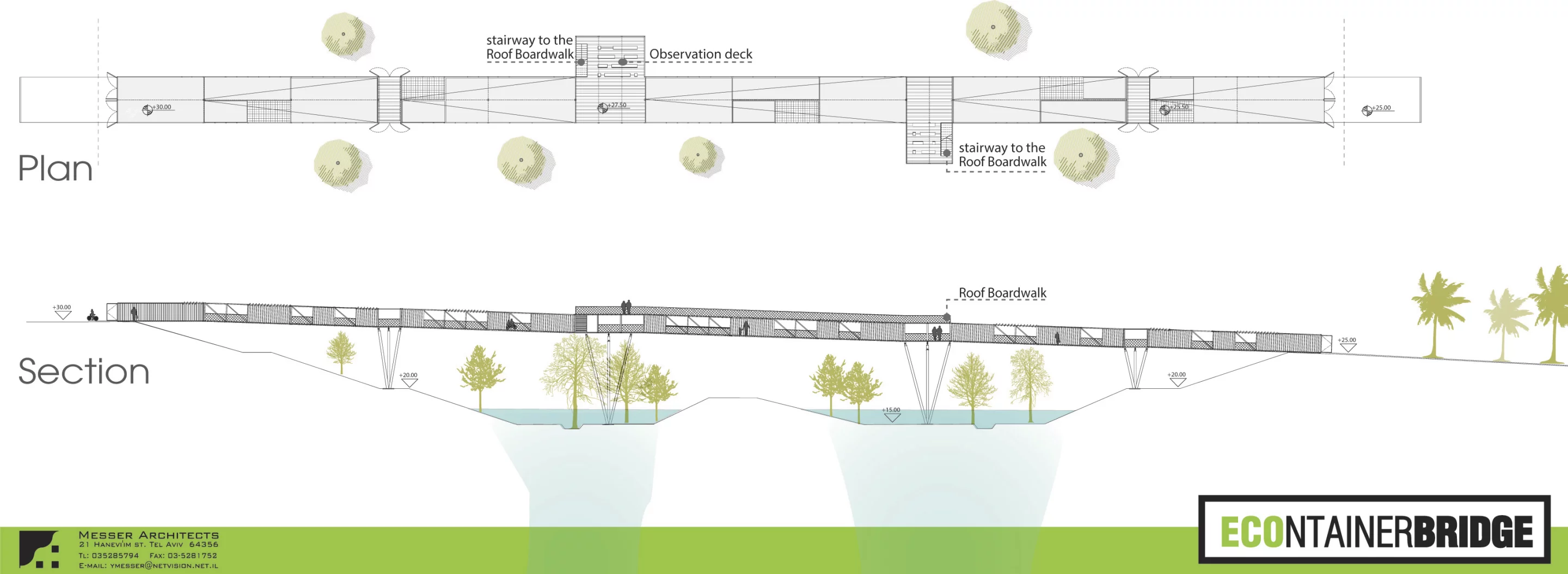

Clearly the most notable feature of the bridge is the use of shipping containers, which the project images show being joined two-abreast and end to end with little or no horizontal reinforcement. The conceptual design does depict three vertical legs, each comprised of four uprights arranged in an inverted pyramid. The bridge is currently undergoing detail design ahead of construction, and it will be interesting to see how the scheme adapts to see off the problems posed by the real world.
The designers have address ventilation, as it seems many of the containers will have sides removed to open up the inside of the bridge. Yoav Messer Architects intends that solar PV will provide the electricity required to illuminate the bridge. The concept design suggests that the bridge will include a number of observation points jutting out from the main body. It appears pedestrians will be able to walk about through and on top of the containers.
The company claims that, thanks to the use of shipping containers, 70 percent of the construction work can be carried out at the factory.
Source: Yoav Messer ArchitectsView gallery - 6 images
