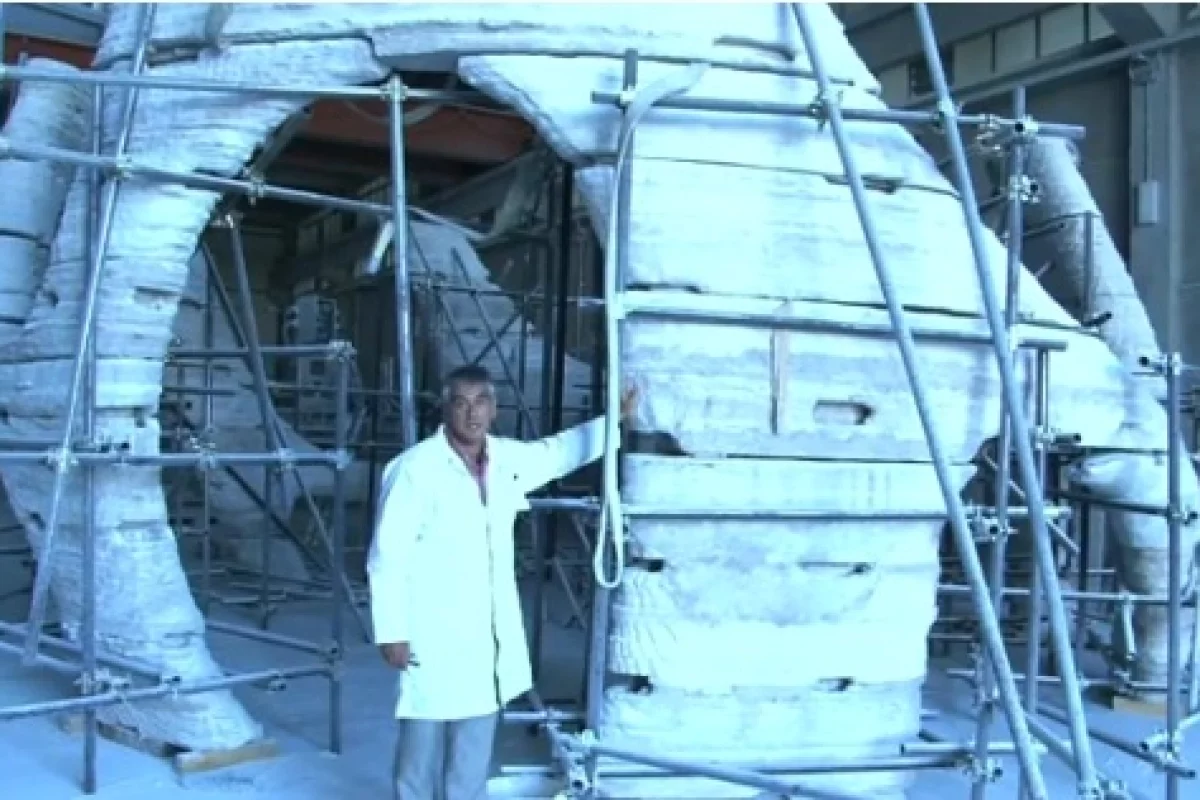

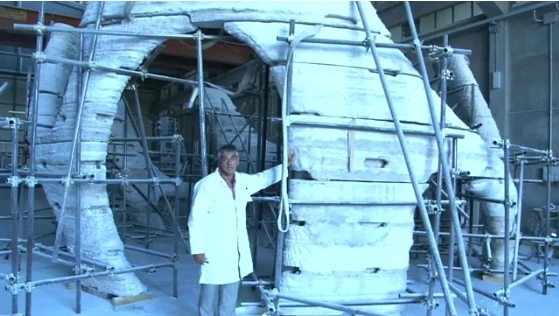

The growing popularity of 3D printers, such as the Printbot or MakerBot's Thing-o-Matic, testify to the fact that additive manufacturing is slowly entering the mainstream. The devices are now small enough to fit on a desk and they can make all sorts of stuff, such as toys, chess figures, or spare door knobs. But what if you want to make something slightly bigger - say, a house? Then you need to turn to Enrico Dini, the founder of Monolite UK and the inventor of the D-Shape "robotic building system."

The D-Shape is potentially capable of printing a two story building - complete with stairs, partition walls, columns, domes, and piping cavities - using only ordinary sand and an inorganic binder. The resulting material is said to be indistinguishable from marble, and exhibits the same physical properties, with durability highly superior to that of masonry and reinforced concrete.


Read the site and newsletter without ads. Use the coupon code EOFY before June 30 for 30% off the usual price.

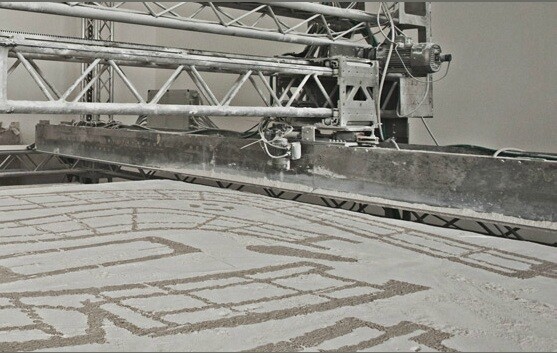

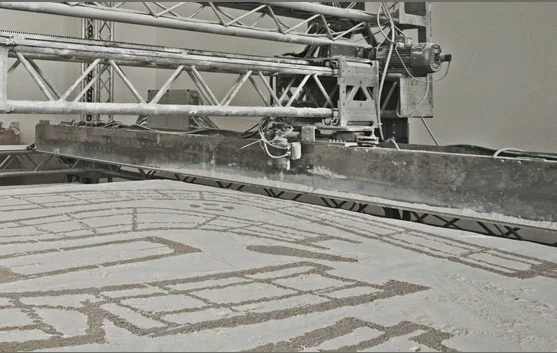

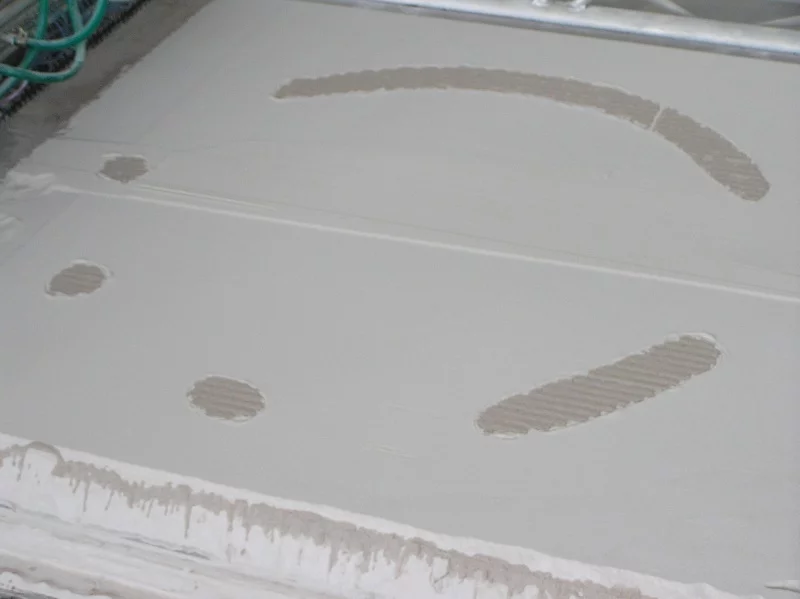

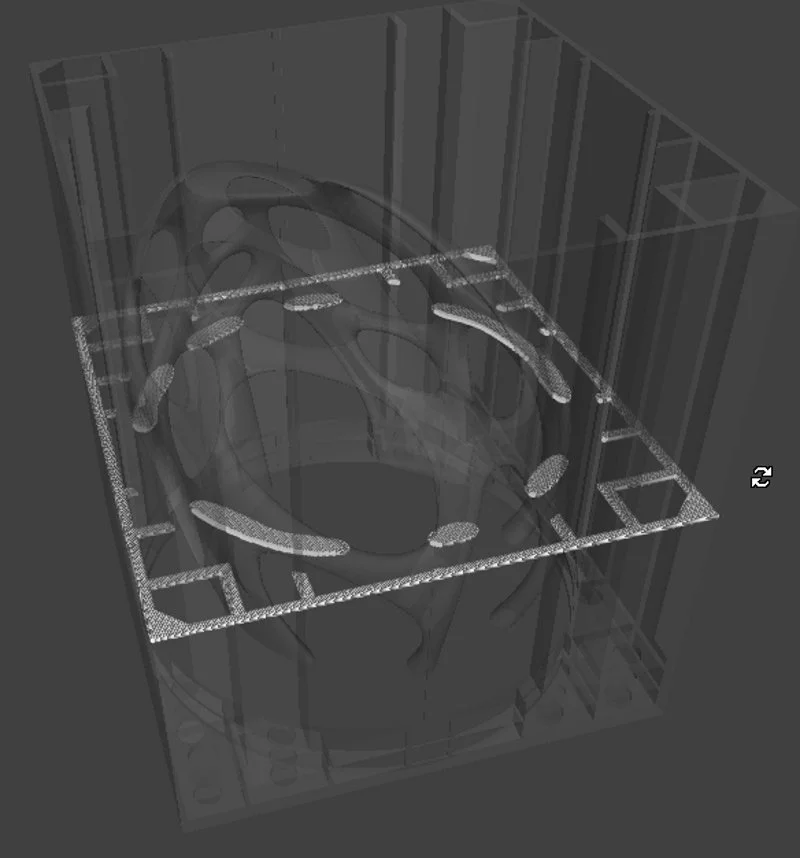

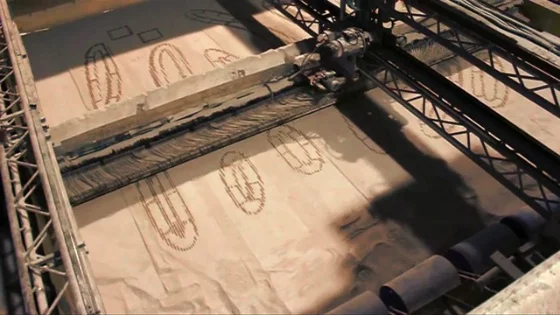

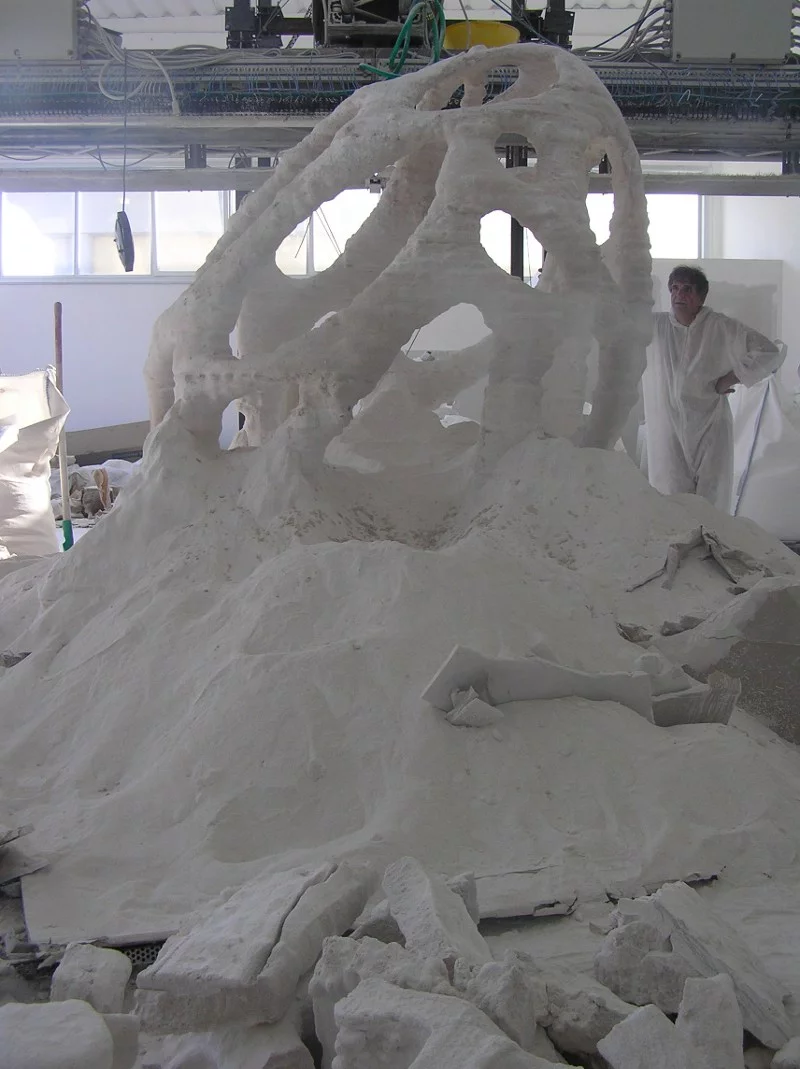

The building process is very close to what we'd expect of a huge 3D printer. A nozzle moves along a pre-programmed path, extruding a liquid adhesive compound on a bed of sand with a solid catalyst mixed in. The binding agent reacts with the catalyst, and the solidifying process begins. Meanwhile, the remaining sand serves to support the structure. Then, another layer of sand is added and the whole process is repeated. Since it's computer assisted, no specialist knowledge is required to use the printer. All that's needed is a CAD design file.

The desired structure is erected in a single work session, starting from the bottom up. The solidification process takes 24 hours to complete, but subsequent layers, 5-10 mm in thickness, may be added without delay. The annual output of the current model of D-Shape is estimated at 2,500 square meters (26,910 sq ft), which is equal to 12 two-story buildings. Reportedly, the building process takes a quarter of the time required to build an equivalent structure with traditional means.

The time gap widens in the case of structures with custom shapes. Traditionally, Portland cement is used to achieve concave or convex forms. The process is extremely time-consuming, as it often involves manual casting, intricate scaffolding, and other steps. D-Shape, by contrast, can handle such designs just as quickly as it handles regular walls.

This all sounds very promising. However, since the inventors themselves haven't yet managed to print a proper house using their machine, we expect it may take some time for this technology to prove itself. Still, it seems like it already has a lot to offer, especially to those who value creativity over practicality.

Once it's ready, be sure to watch the documentary by Marc Webb and Jack Wake Walker titled The Man Who Prints Houses. As you can see on the teaser below, It puts Dini's efforts to revolutionize the construction industry into a broader perspective.

Source: Monolite UK via The Verge
