Human-powered Gamera helicopter hovers its way into the record books

Human-powered Gamera helicopter hovers its way into the record books
Hovering for 11.4 seconds has secured a place in the record books for the Gamera team, and for its pilot Judy Wexler, who made the longest human-powered flight by a female U.S. pilot
Hovering for 11.4 seconds has secured a place in the record books for the Gamera team, and for its pilot Judy Wexler, who made the longest human-powered flight by a female U.S. pilot
View 16 Images
Pilot Judy Wexler gets ready for a sudden burst of hand and foot pedaling
1/16
Pilot Judy Wexler gets ready for a sudden burst of hand and foot pedaling
Diagram of Gamera - each crossbar of the frame is 60 feet long, and has a 42-foot rotor at each of the four points of the cross
2/16
Diagram of Gamera - each crossbar of the frame is 60 feet long, and has a 42-foot rotor at each of the four points of the cross
Getting ready for the record attempt in May 2011
3/16
Getting ready for the record attempt in May 2011
Close up of the lightweight rotor mechanism
4/16
Close up of the lightweight rotor mechanism
Inside Maryland University's Reckord Armory ahead of the record attempt recently
5/16
Inside Maryland University's Reckord Armory ahead of the record attempt recently
Hovering for 11.4 seconds has secured a place in the record books for the Gamera team, and for its pilot Judy Wexler, who made the longest human-powered flight by a female U.S. pilot
6/16
Hovering for 11.4 seconds has secured a place in the record books for the Gamera team, and for its pilot Judy Wexler, who made the longest human-powered flight by a female U.S. pilot
Final checks on the structure of Gamera, which had to undergo emergency repair the night before the record attempt due to crashing during testing
7/16
Final checks on the structure of Gamera, which had to undergo emergency repair the night before the record attempt due to crashing during testing
The lightweight yet strong rotor
8/16
The lightweight yet strong rotor
The lightweight yet strong rotor
9/16
The lightweight yet strong rotor
Gamera's main structure is made from carbon fiber using a specially-developed truss construction method that allows highly optimized composite trusses to be created very quickly
10/16
Gamera's main structure is made from carbon fiber using a specially-developed truss construction method that allows highly optimized composite trusses to be created very quickly
Judy Wexler straps in for the record-breaking flight
11/16
Judy Wexler straps in for the record-breaking flight
The team of graduate and undergraduate students from the Alfred Gessow Rotorcraft Center at the University of Maryland's Department of Aerospace Engineering responsible for designing, building and tweaking a lightweight, four-rotor helicopter that's powered by the human pilot suspended at its center
12/16
The team of graduate and undergraduate students from the Alfred Gessow Rotorcraft Center at the University of Maryland's Department of Aerospace Engineering responsible for designing, building and tweaking a lightweight, four-rotor helicopter that's powered by the human pilot suspended at its center
The four-rotor helicopter is powered by hand and foot pedals
13/16
The four-rotor helicopter is powered by hand and foot pedals
Close up of the very light rotor mechanism
14/16
Close up of the very light rotor mechanism
A National Aeronautic Association official watches the action closely
15/16
A National Aeronautic Association official watches the action closely
1994's Yuri I human-powered helicopter - the current record holder (19.46 seconds at an altitude of 0.2 meters) (Photo: Japan Aeronautic Association)
16/16
1994's Yuri I human-powered helicopter - the current record holder (19.46 seconds at an altitude of 0.2 meters) (Photo: Japan Aeronautic Association)
View gallery - 16 images

A biology student has just hovered her way into the record books in a four-rotor, human-powered helicopter named after a giant flying turtle from Japanese kaiju movies. Gamera was built to try and claim the American Helicopter Society's Sikorsky Prize, that was set up in 1980 and has yet to be claimed. The team's first flights in May resulted in a 4.2-second U.S. national record, and now the record page has had to be rewritten again after the young pilot's frantic combination of hand and foot pedaling action kept Gamera in the air for nearly three times longer, during the recent summer flight sessions.

For the last two years, a team of 50 graduate and undergraduate students from the Alfred Gessow Rotorcraft Center at the University of Maryland's Department of Aerospace Engineering has been designing, building and tweaking a lightweight, four-rotor helicopter that's powered by the human pilot suspended at its center. The hope is to build a craft capable of walking away with the American Helicopter Society's Sikorsky Prize of US$250,000.

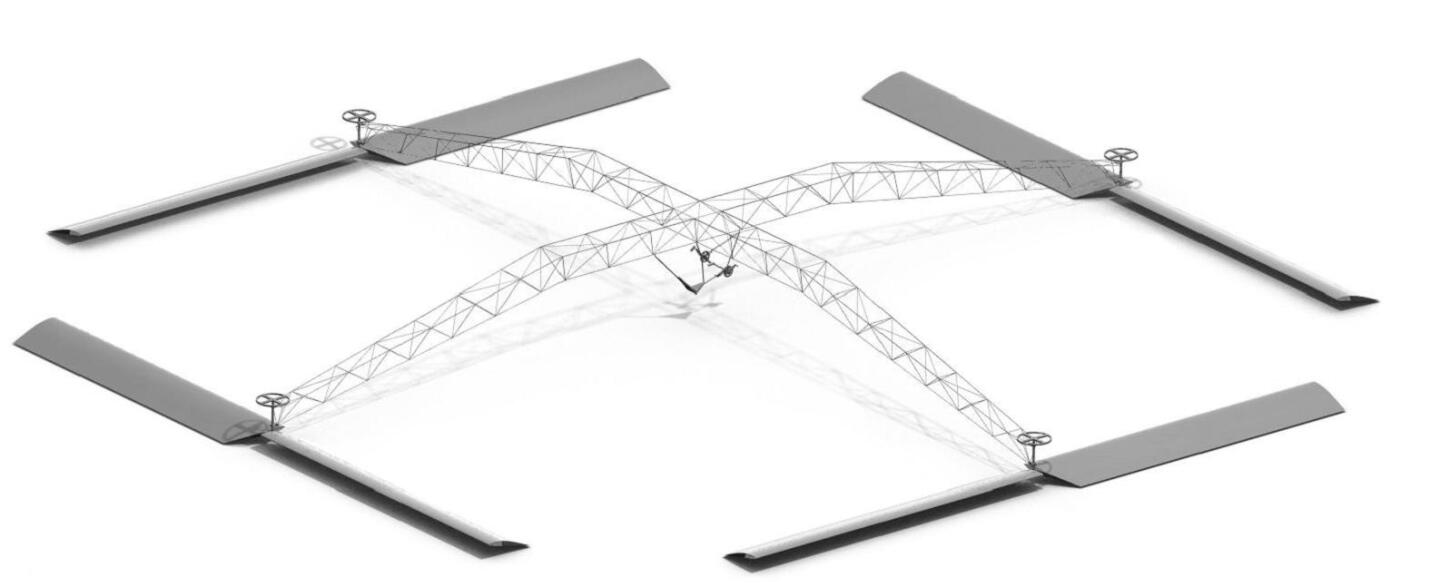

Diagram of Gamera - each crossbar of the frame is 60 feet long, and has a 42-foot rotor at each of the four points of the cross
Diagram of Gamera - each crossbar of the frame is 60 feet long, and has a 42-foot rotor at each of the four points of the cross

The rules of this challenge - named in honor of helicopter pioneer Igor Sikorsky - state that the craft should get all of its power from the human pilot and that it should thus be capable of hovering for 60 seconds within a 10-meter (32.8-foot) square area. During this time, the lowest part of the machine must reach an altitude of 3 meters (9.84 feet) above the ground - if only momentarily. As of August 2011, no-one has claimed the prize.

The closest so far was 1994's Yuri I (19.46 seconds at an altitude of 0.2 meters/0.65 feet) designed by the Nihon University Aero Student Group. Gamera sports a similar design - with a 42-foot (12.8-meter) rotor at the end of each of the four points of a cross, and the pilot sat in the middle. Each crossbar of the frame is 60 feet (18.2 meters) long.

"The similarities are more a result of convergent evolution than direct inspiration," the team's Joe Schmaus told Gizmag. "Helicopters are notoriously challenging to control and human powered flight has only ever been possible with the aid of ground effect. A quad rotor is the only configuration we have identified that is passively stable and allows the rotors to be as deep in ground effect as possible."

Final checks on the structure of Gamera, which had to undergo emergency repair the night before the record attempt due to crashing during testing
Final checks on the structure of Gamera, which had to undergo emergency repair the night before the record attempt due to crashing during testing

Gamera's main structure is made from carbon fiber using a specially-developed truss construction method, that allows highly optimized composite trusses to be created very quickly. The team also developed a novel method to minimize buckling, where airframe trusses at critical points have been reinforced with so-called baby trusses. Elsewhere, the craft is made of balsa, foam, mylar, and other lightweight materials to help keep its weight down - the entire weight is just 210 pounds (95.25 kg), including the weight of the pilot - while also offering structural strength.

The lightweight pilots used throughout the project have also been experienced cyclists, and were free to design their own training regimes based on their specialist knowledge. The team "became aware through our testing that a more focused training plan that optimized for muscular endurance rather than cardiovascular endurance, and one which trained the motion that is unique to Gamera, would produce even better results," said Schmaus. "Moving forward we are working with specialists in Biomechanics to develop a targeted training plan."

On the eve of the most recent record attempt inside the University's Reckord Armory, Gamera crashed during testing - forcing an emergency all-night repair. However, the next day a few bleary-eyed team members watched as pilot Judy Wexler powered aloft for 12.4 seconds in the presence of officials from the National Aeronautic Association (NAA). However, it's a time of 11.4 seconds from a subsequent flight that's just been confirmed as a new national record by the NAA and submitted to the Fédération Aéronautique International in Switzerland for consideration as a world record. The flights also represent the longest human-powered flight by a female U.S. pilot.

Judy Wexler straps in for the record-breaking flight
Judy Wexler straps in for the record-breaking flight

Even though the team members believe that Gamera is capable of longer duration flights, they are now faced with something of a dilemma.

"The Sikorsky Prize has the very ambitious target of 10 feet and 60 seconds that we do not think our current vehicle can achieve," said Schmaus. "Through the development of Gamera we have learned many things about extreme ground effect aerodynamic design and also about lightweight structural design. At this point we are combining these two knowledge bases to determine whether to go for another record setting, but not prize-winning, flight with Gamera or put all our energy into designing a vehicle capable of the Sikorsky Prize."

The next phase of the Gamera project will be decided shortly. Updates will appear on the project's website.

In the meantime, you can watch all 12.4 exhilarating seconds of human-powered flight in the following video:

Gamera's July 13, 2011 Flight

View gallery - 16 images
