Germ-inspired microbots shape shift to deliver drugs, unclog arteries

2 pictures

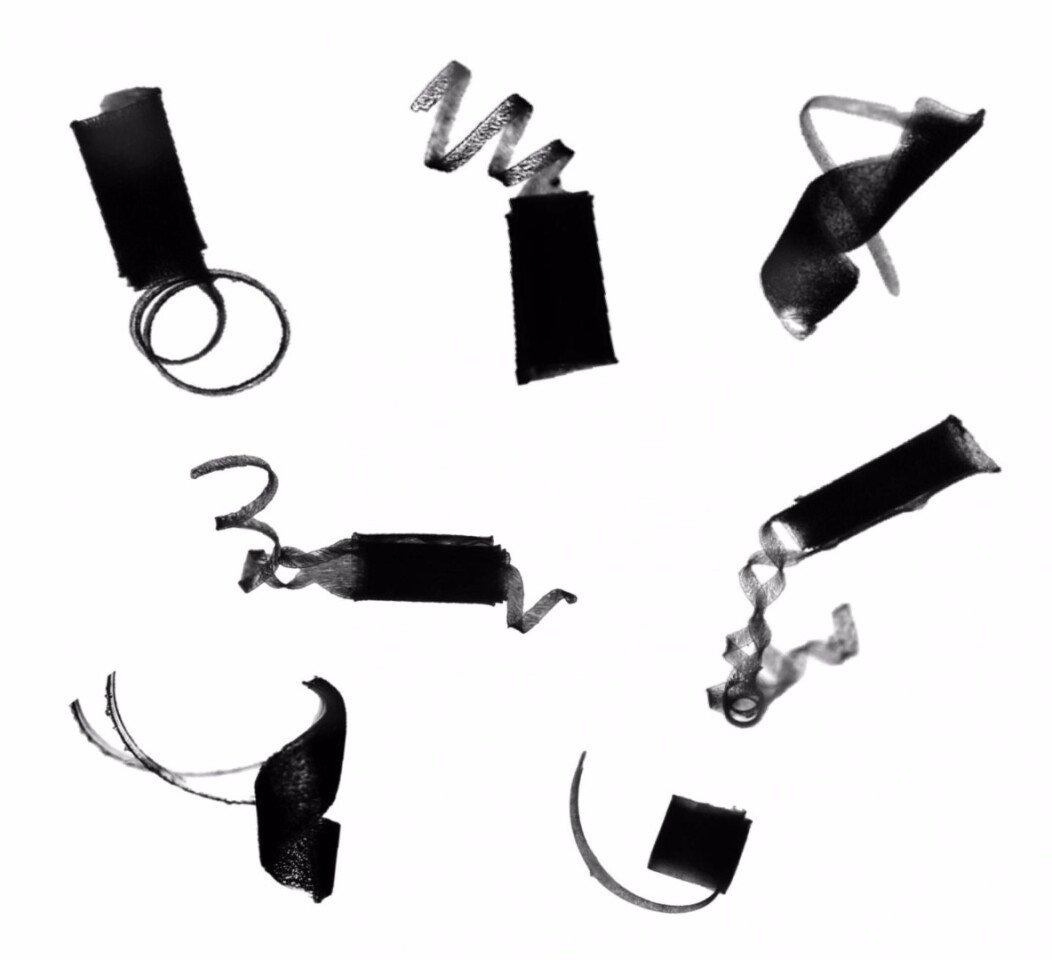

The microbots are powered and controlled by electromagnetic fields and shift shape when heated by a laaser beam(Credit: EPFL)

View gallery - 2 images

According to the World Health Organization, up to 20,000 people still suffer from African trypanosomiasis or sleeping sickness, which once made many parts of central Africa almost uninhabitable. Scientists from the Ecole Polytechnique Federale Lausanne (EPFL) and the Eidgenössische Technische Hochschule Zürich (ETHZ) have manages to salvage some good from this scourge, however, by using the protozoa that causes the disease as the model for a new class of microbots designed to deliver drugs with precision and carry out other medical procedures such as clearing out clogged arteries and other forms of microsurgery.

Microbots have made great strides in recent years, with developments ranging from tiny experimental robots that can swim through the bloodstream to origami-like creations designed to be swallowed. But one of the tricky problems is figuring out how these microbots are supposed to propel themselves through a miniature world where standard propellers aren't very efficient.

Selman Sakar at EPFL and Hen-Wei Huang and Bradley Nelson at ETHZ are developing and testing a number of configurations of microbots that can not only move about, but can be produced quickly and in quantity using a new manufacturing technique. The result is a robot that can be controlled using an electromagnetic field and, when heated, can alter its shape.

The microbots are soft, flexible, and motorless thanks to the use of biocompatible hydrogel and magnetic nanoparticles. The latter act as mechanical reinforcers and react to electromagnetic fields, making the microbot move.

The scientists used the microorganism Trypanosoma brucei as their starting point. This protozoa moves by means of a whip-like appendage called a flagellum, which it whisks about. Carried by the bite of infamous Tsetse fly, the microorganism uses the flagellum to move into the bloodstream of its host. Once there, it hides the flagellum in what the team call a survival mechanism.

The prototype microbot operates in a similar fashion. Controlled and powered by the electromagnetic field, it's moved to its destination, then a laser beam heats it, causing its robo-flagellum to wrap about the microbot to get it out of the way.

The microbot is made by placing layers of magnetic nanoparticles into a biocompatible hydrogel. An electromagnetic field then orientates the nanoparticles to different parts of robots and the hydrogel is solidified to keep everything in place. When placed in water the microbot folds based on the orientation of the nanoparticles to produce the final configuration.

"We show that both a bacterium's body and its flagellum play an important role in its movement," says Sakar. "Our new production method lets us test an array of shapes and combinations to obtain the best motion capability for a given task. Our research also provides valuable insight into how bacteria move inside the human body and adapt to changes in their microenvironment."

The team says that the microbot could be used for clearing out clogged arteries and similar forms of microsurgery with minimum incursion, as well as delivering drugs to specific locations for maximum effectiveness and minimal side effects. One of the main tasks now is to ensure that the robot itself causes no harmful side effects.

The team's research was published in Nature Communications.

The video below shows one of the prototype robots on the go.
