May 4, 2007 Driveline specialist ZF has designed a new automatic transmission generation for passenger cars combining seemingly contradictory goals. Presented for the first time at the 28th International Vienna Motor Symposium, the 8-speed auto allows for fuel savings of six percent compared with the company’s already optimized 6-speed automatic transmission. This is achieved by a completely new transmission concept featuring four planetary gear sets and five shift elements. The automatic 8-speed transmission transmits more power in comparison to the previous model, but still gets by with the same installation space and does not require more components. The transmission is also designed for hybridization as either a micro hybrid with a crankshaft starter generator or a full parallel hybrid.
The new, more powerful ZF multi-ratio automatic transmission allows for consumption savings of six percent. This means that the excellent consumption values of the second-generation automatic ZF 6-speed transmission which entered volume production only in 2006 have been further improved considerably. To make it clear: Compared to an automatic 5-speed transmission which is still widely used today the consumption reduction amounts to approx. 14 %.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE

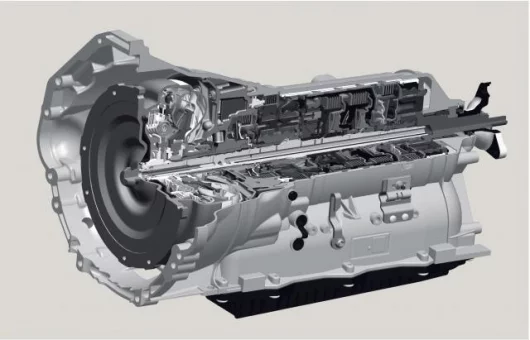

Two innovations are mainly responsible for these spectacular consumption values. Compared to the automatic 6-speed transmission, the basis of the new ZF automatic transmission generation is an entirely new transmission concept featuring four planetary gear sets and five shift elements. Only two shift elements are opened in each gear which leads to considerably lower drag losses. Besides the improved efficiency, this transmission concept features a higher total ratio. Modern torsional vibration damping systems in the torque converter also have a positive impact on consumption and CO2 emissions. These systems also allow for a quick lock-up of the converter clutch in the second generation automatic 6-speed transmission presented in 2006. Furthermore, ZF now uses a small vane cell pump mounted parallel to the axle.
Another development focus was the increase in performance. The power-to-weight ratio of the new automatic transmission is higher and can transmit a higher input torque at the same weight, in comparison to the previous model. The automatic 8-speed transmission gets by with the same installation space as the previous versions made by ZF. In terms of shift comfort, response and shifting speed, also the new automatic 8-speed transmission operates at the already very high level of the second generation of the automatic 6-speed transmission.
The equipment options offered with the new automatic 8-speed transmission for passenger car driveline technology are trend-setting. The new transmission has been designed in such a way that it can serve as a modular system for further starting and all-wheel concepts without changing the basic transmission concept. This way, a torque converter could be replaced by new clutches or could be omitted completely when an integrated starting clutch is used. The design engineers of the automatic 8-speed transmission have also paid attention to the compatibility with today’s and future ZF all-wheel concepts.
For the hybridization of the driveline, the automatic 8-speed transmission offers the possibility of implementing both a micro hybrid with a crankshaft starter generator and a full hybrid in the form of a parallel hybrid. All known hybrid functions can thus be implemented in combination with the new automatic 8-speed transmission.View gallery - 2 images
