California start-up inks FEMA deal to provide disaster relief solar villages

California start-up inks FEMA deal to provide disaster relief solar villages

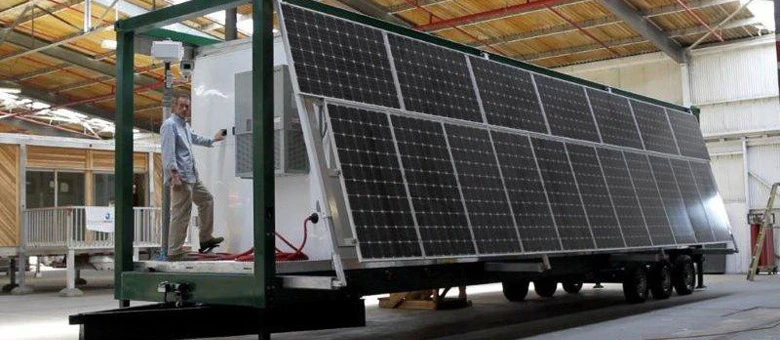

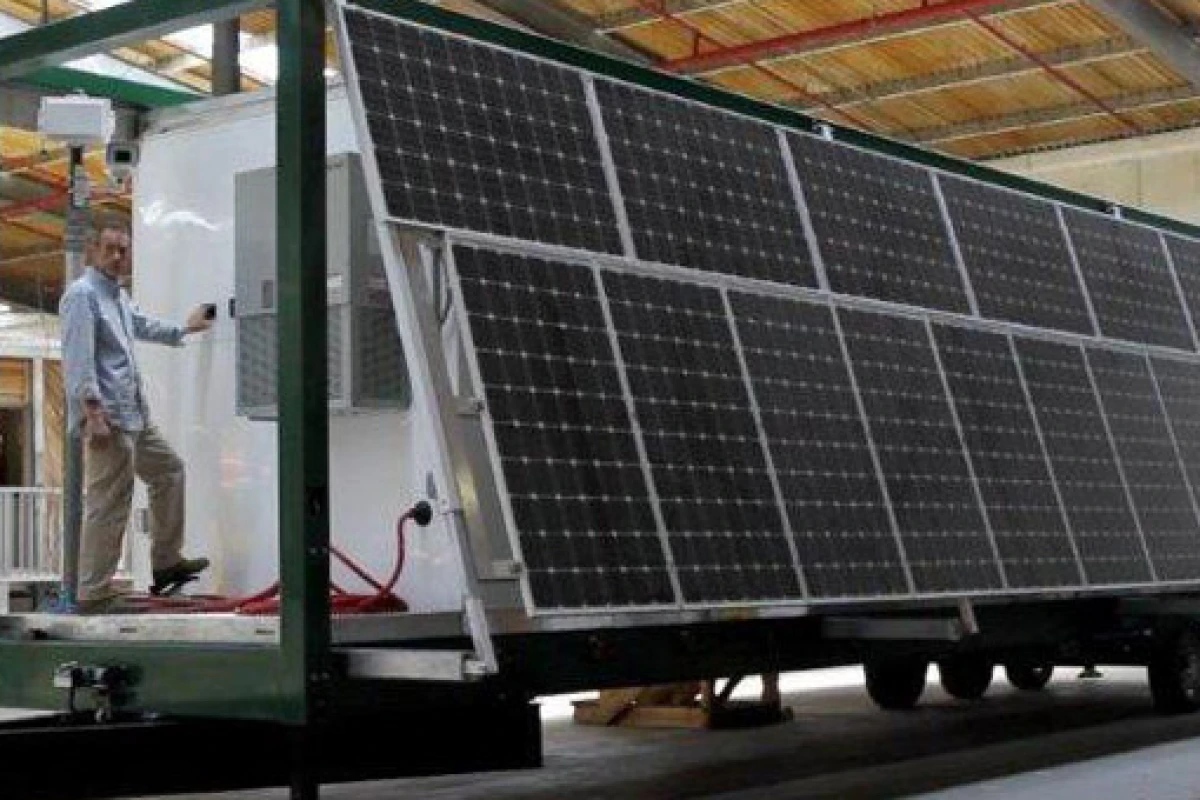

Following five years of research and development, California start-up and provider of disaster relief technology Green Horizon has begun shipping a solar-powered services hub capable of providing electricity and clean water to disaster-hit communities
Following five years of research and development, California start-up and provider of disaster relief technology Green Horizon has begun shipping a solar-powered services hub capable of providing electricity and clean water to disaster-hit communities
View 29 Images
Following five years of research and development, California start-up and provider of disaster relief technology Green Horizon has begun shipping a solar-powered services hub capable of providing electricity and clean water to disaster-hit communities
1/29
Following five years of research and development, California start-up and provider of disaster relief technology Green Horizon has begun shipping a solar-powered services hub capable of providing electricity and clean water to disaster-hit communities

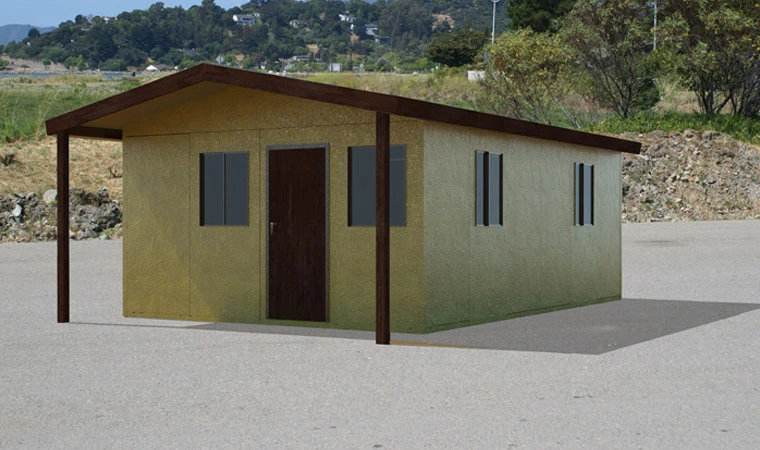

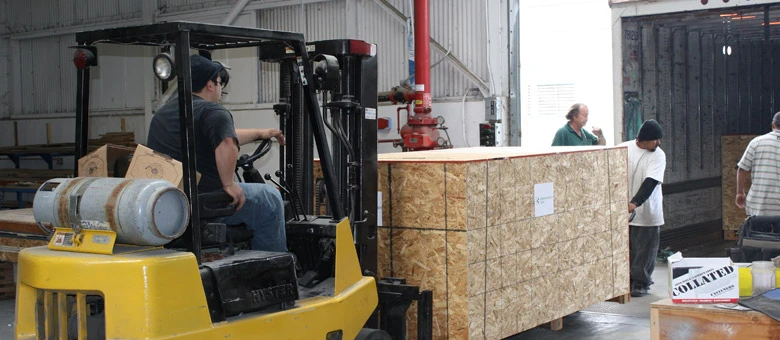

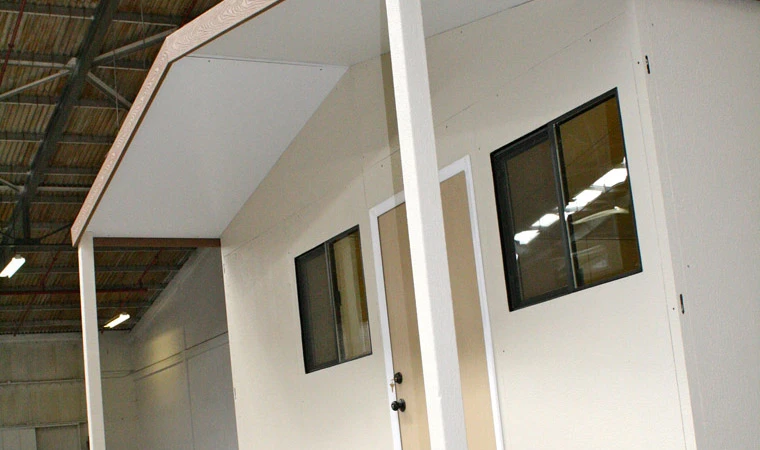

Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people
2/29
Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people

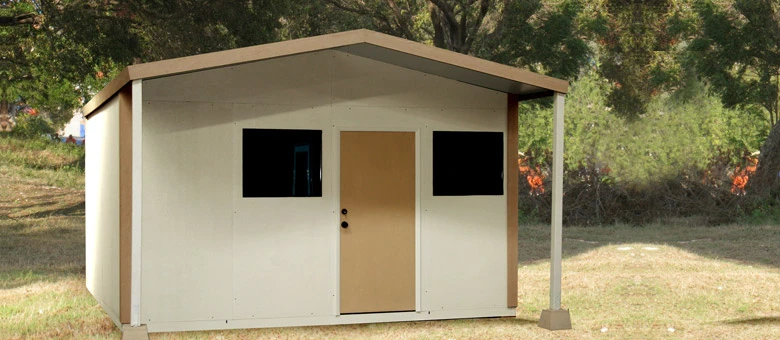

San Francisco builder James Pope was compelled to develop a practical relief shelter following Hurricane Katrina, when thousands of trailers provided to victims by FEMA were found to emit formaldehyde fumes
3/29
San Francisco builder James Pope was compelled to develop a practical relief shelter following Hurricane Katrina, when thousands of trailers provided to victims by FEMA were found to emit formaldehyde fumes

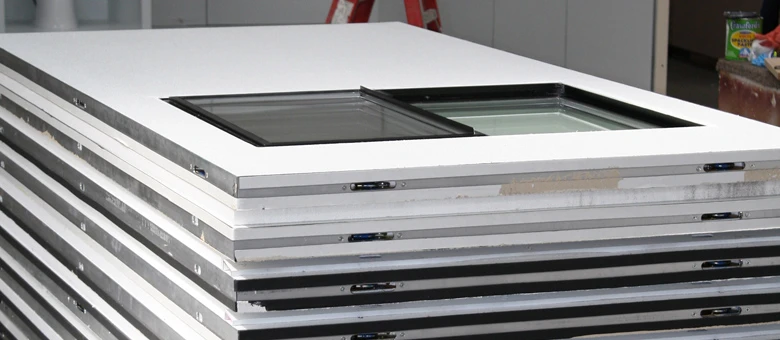

Five years after setting up Green Horizon, the result is the QuickHab prefabricated home designed for simple and rapid transport and construction
4/29
Five years after setting up Green Horizon, the result is the QuickHab prefabricated home designed for simple and rapid transport and construction

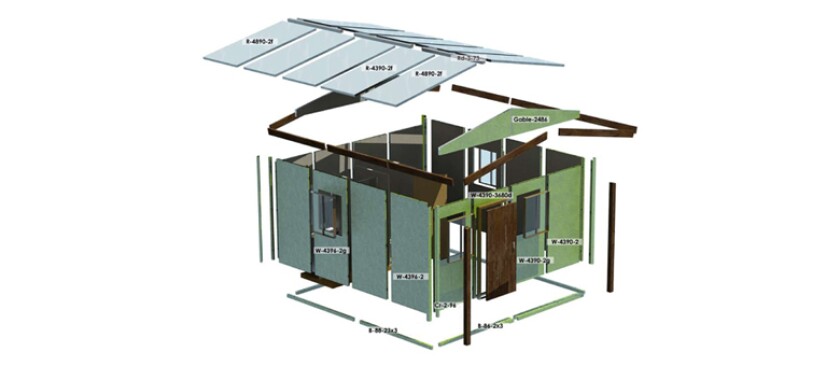

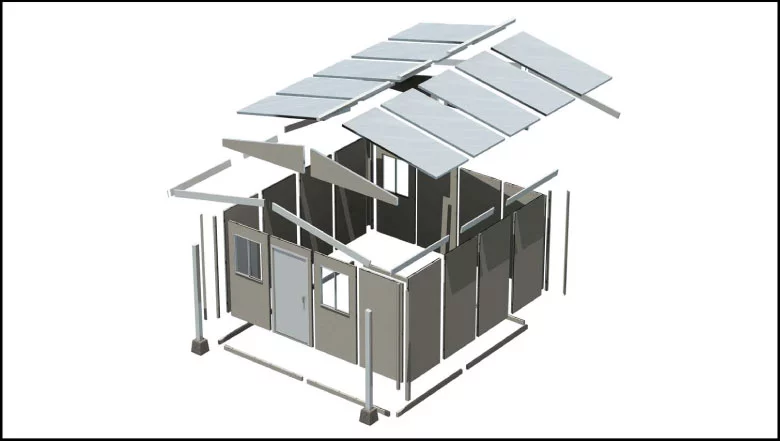

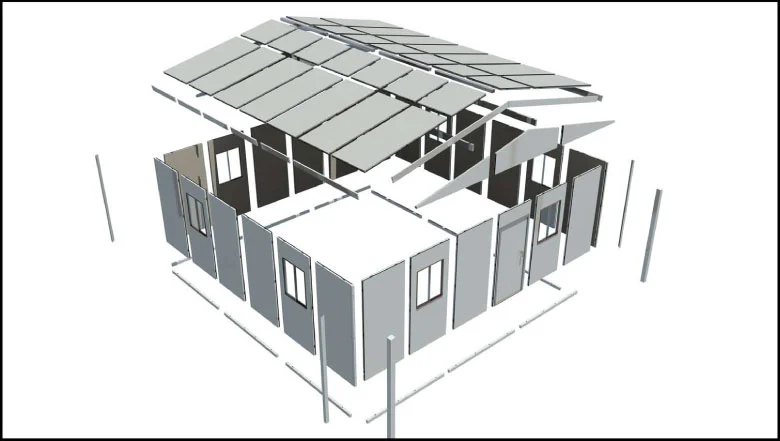

Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
5/29
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
6/29
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
7/29
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together

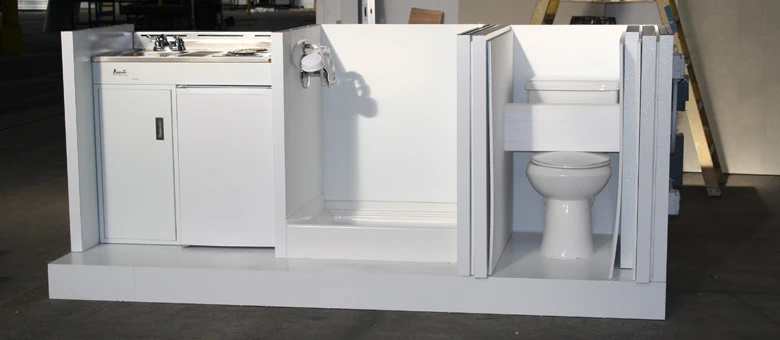

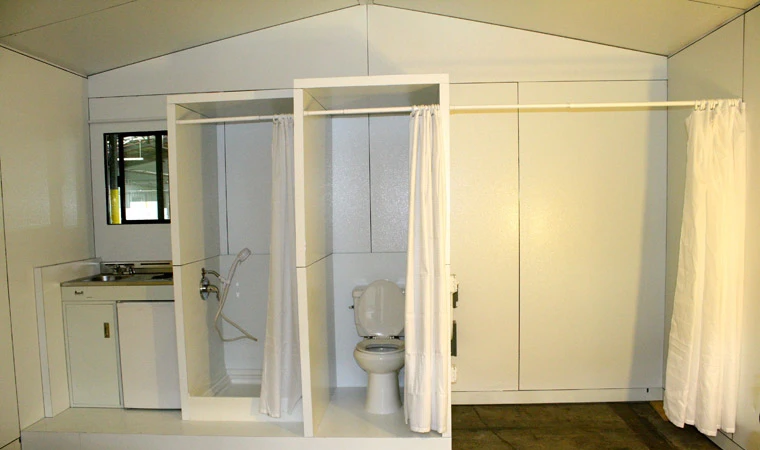

Each QuickHab is equipped with a water heater, shower, toilet and kitchenette
8/29
Each QuickHab is equipped with a water heater, shower, toilet and kitchenette
Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people
9/29
Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people

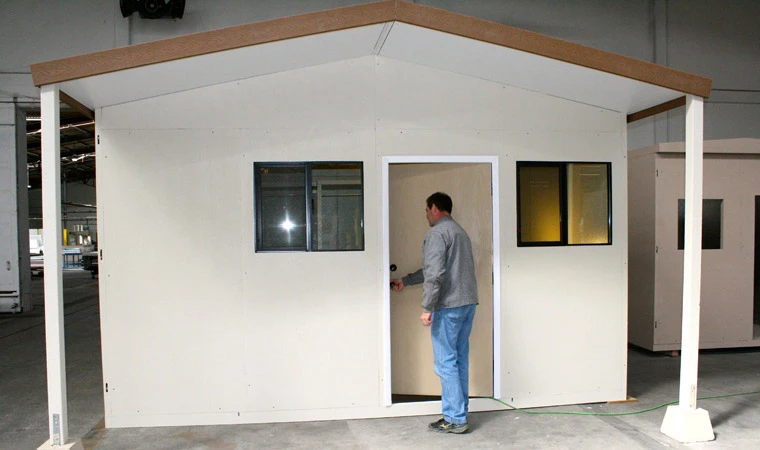

It even comes with a lockable front door, which, despite the obvious practical advantages is a very human touch
10/29
It even comes with a lockable front door, which, despite the obvious practical advantages is a very human touch
Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people
11/29
Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, QuickHab can be put together in mere hours to provide a temporary home for two people
Each QuickHab is equipped with a water heater, shower, toilet and kitchenette
12/29
Each QuickHab is equipped with a water heater, shower, toilet and kitchenette
Each QuickHab is equipped with a water heater, shower, toilet and kitchenette
13/29
Each QuickHab is equipped with a water heater, shower, toilet and kitchenette

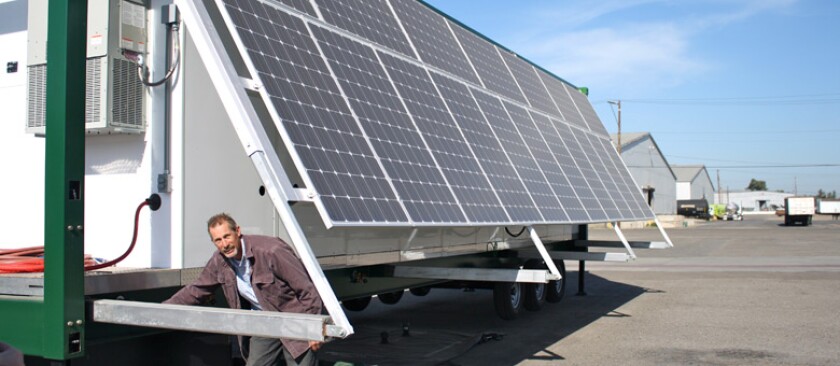

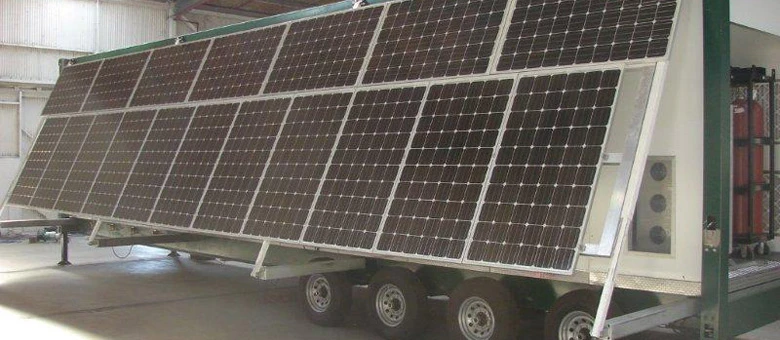

Each CSU is equipped with a solar array with a capacity of 74 kW
14/29
Each CSU is equipped with a solar array with a capacity of 74 kW
Each CSU is equipped with a solar array with a capacity of 74 kW
15/29
Each CSU is equipped with a solar array with a capacity of 74 kW

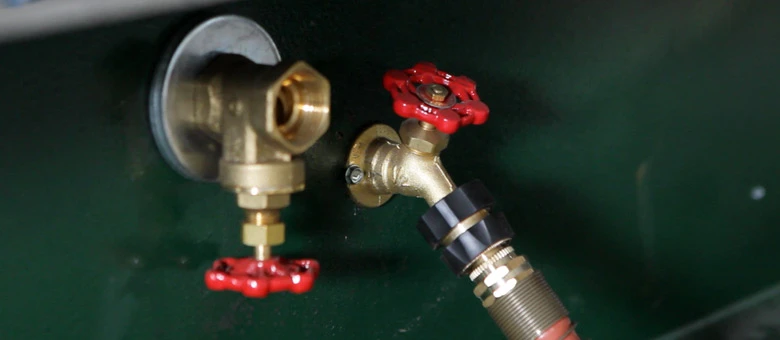

The CSU's water filtration system can provide 19,000 US gallons (72,000 liters) of potable water per day, and it provides an additional 2000 US gallons (7600 liters) of gray-water via a separate system
16/29
The CSU's water filtration system can provide 19,000 US gallons (72,000 liters) of potable water per day, and it provides an additional 2000 US gallons (7600 liters) of gray-water via a separate system

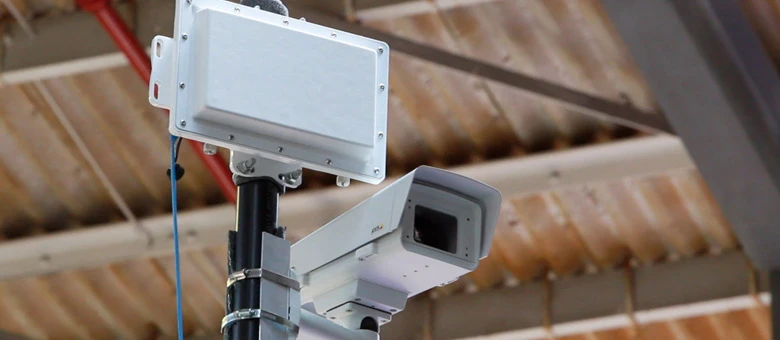

The CSU can also provides communications, including Wi-Fi internet access, telephone and cable
17/29
The CSU can also provides communications, including Wi-Fi internet access, telephone and cable

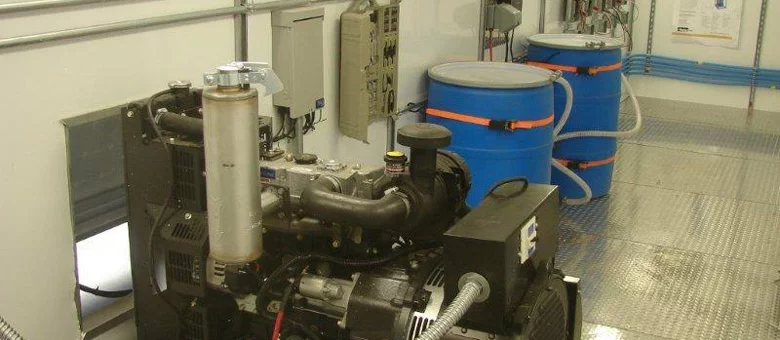

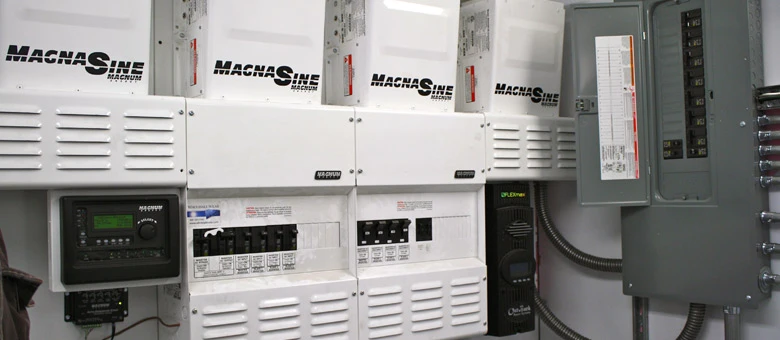

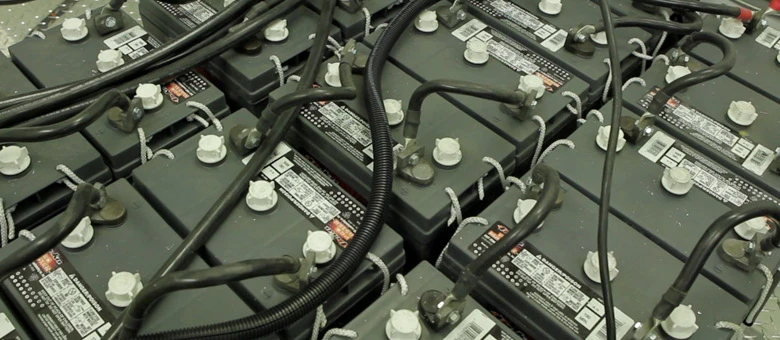

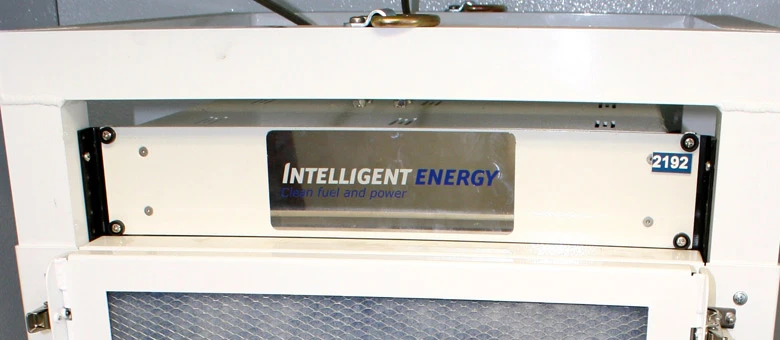

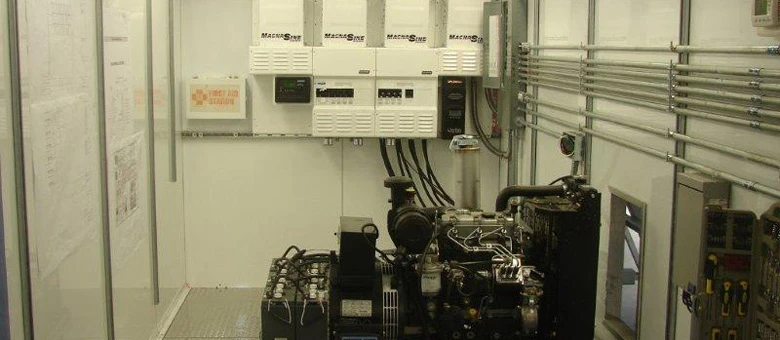

The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
18/29
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
19/29
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
20/29
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
21/29
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries
22/29
The CSU's solar array is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries

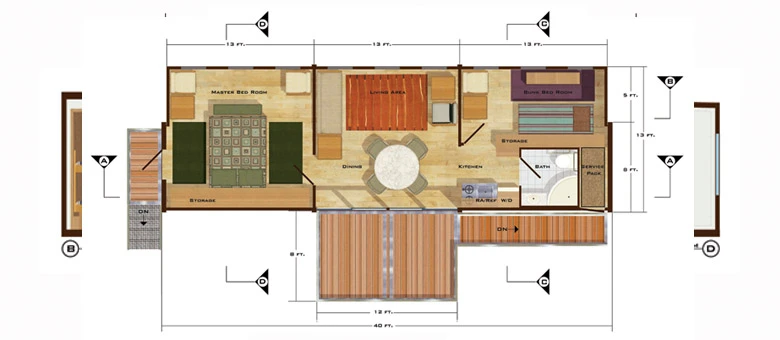

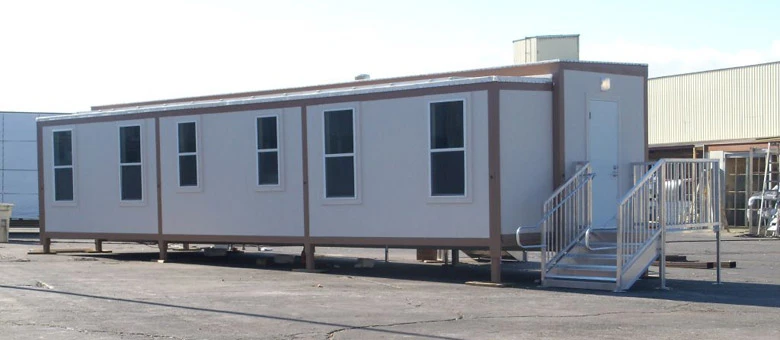

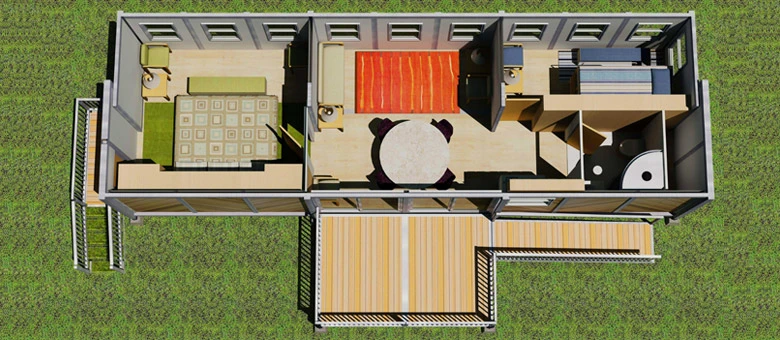

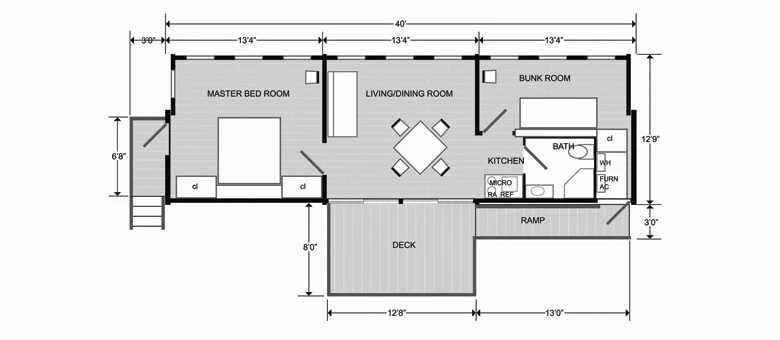

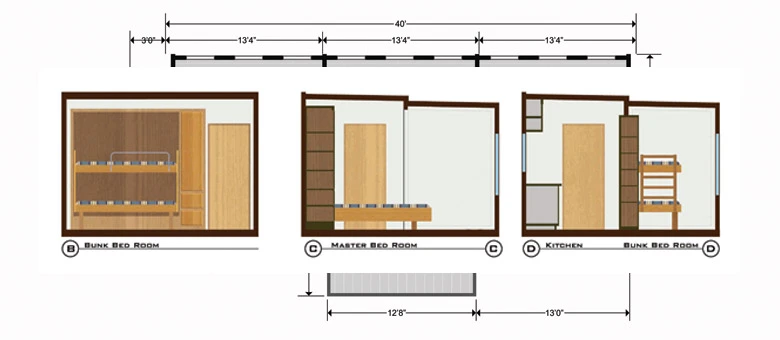

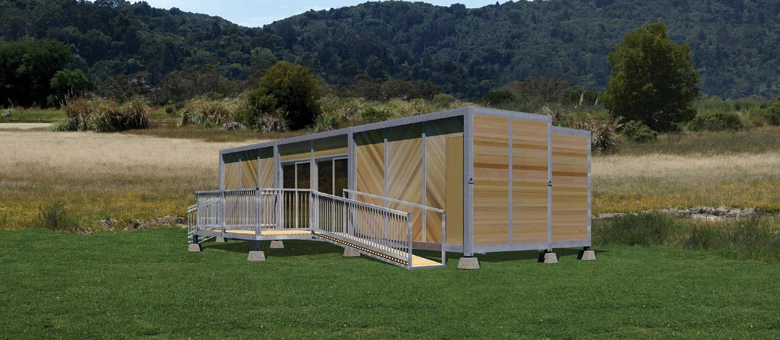

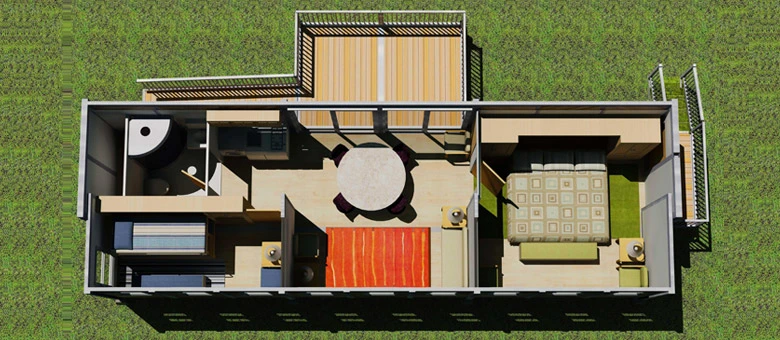

Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
23/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
24/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
25/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
26/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
27/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
28/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
29/29
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
View gallery - 29 images

Following five years of research and development, California start-up and provider of disaster relief technology Green Horizon has begun shipping a solar-powered services hub capable of providing electricity and clean water to disaster-hit communities. Combined with its QuickHab and SFH40 rapid-assembly prefabricated homes, Green Horizon has come up with a trio of rapid-response technologies that the company hopes will transform our responses to natural disasters by providing, essentially, rapid-assembly solar powered villages.

San Francisco builder James Pope was compelled to develop a practical relief shelter following Hurricane Katrina, when thousands of trailers provided to victims by FEMA were found to emit formaldehyde fumes. Five years after setting up Green Horizon, the result is the QuickHab prefabricated home designed for simple and rapid transport and construction.

Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together
Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together

Pope has compared the QuickHab to LEGO due to the ease with which the standardized panels which comprise the house fit together. Being essentially a kit that fits inside a shipping container, once delivered to the disaster zone, it can be put together in mere hours to provide a temporary home for two people. For the medium to long term, the QuickHab is also designed for rapid disassembly and relocation. With the right foundations, Green Horizon says it can be deployed as permanent housing.

Though the QuickHab looks simple, functionally it offers more than mere shelter. Each unit is equipped with a water heater, shower, toilet and kitchenette. There are standardized connections for electricity, water and sewerage. It even comes with a lockable front door, which, despite the obvious practical advantages is a very human touch (imagine offering someone their own door key within hours of their losing their home).

It's well and good to have connections for essential services, but with nothing to connect them to, a shower or electric hob is useless. The supply of clean drinking water after natural disasters such as hurricanes is one of the most critical short-term responses. It's to this end that Green Horizon developed its Central Service Unit, which provides both power and clean water to disaster-hit communities.

Each CSU is equipped with a solar array with a capacity of 74 kW
Each CSU is equipped with a solar array with a capacity of 74 kW

Each CSU is equipped with a solar array with a capacity of 74 kW. This is complimented by a 12 kW back-up diesel generator and 5 kW hydrogen fuel cell, all of which are wired to the CSU's 24 deep-cycle batteries. Its water filtration system can provide 19,000 US gallons (72,000 liters) of potable water per day, and it provides an additional 2000 US gallons (7600 liters) of gray-water via a separate system. The CSU can also provides communications, including Wi-Fi internet access, telephone and cable. Also designed for containerized shipping, a CSU, once assembled, can withstand 150-mph winds. The idea is that one CSU provides all incoming services to up to 20 QuickHab homes.

The final piece of the puzzle is Green Horizon's SFH40. Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom. It can provide housing for up to six people.

Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom
Perhaps best described as a larger, more adaptable version of the QuickHab, the SFH40 includes an air conditioning system, 30-US gallon (114-liter) hot water tank, heat pump, kitchen and bathroom

Each CSU costs approximately US$200,000, and each QuickHab about $5,000. Green Horizon negotiated a $25 million deal with FEMA at the beginning of the year for the provision of rapid-response housing. In addition to disaster relief, Green Horizon is pitching its self-sustaining housing sytem at mining and fuel prospectors and the military.
