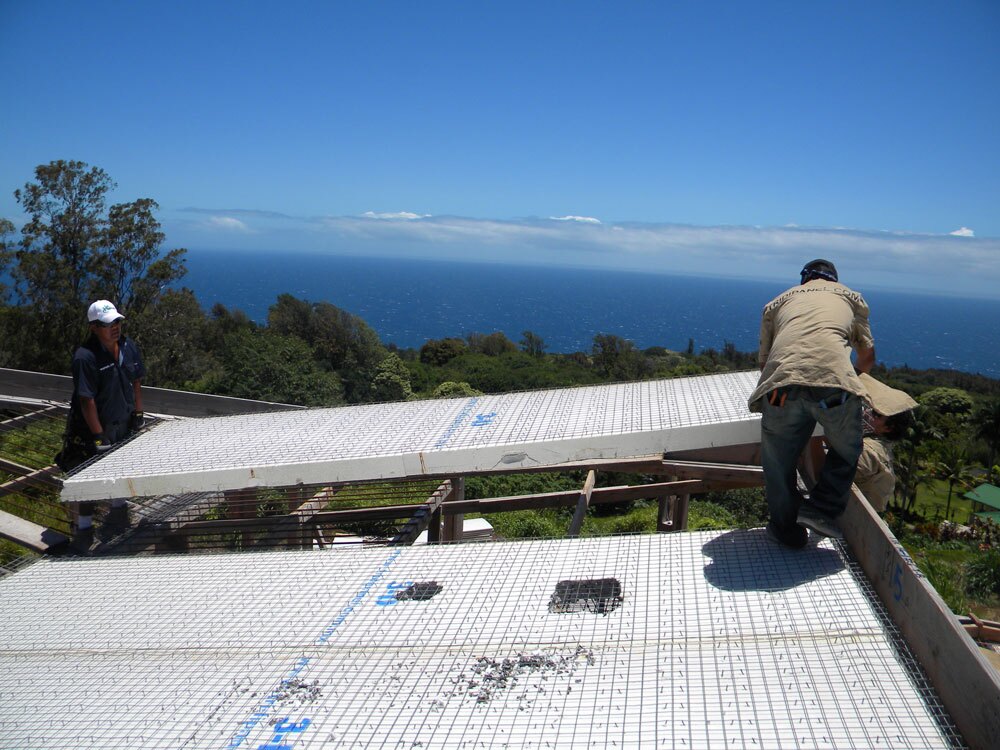

Hi’ilani EcoHouse is constructed using non-toxic termite-proof Structural Concrete Insulated Panels (SCIP) (Photo: Studio RMA)
4/13
Hi’ilani EcoHouse is constructed using non-toxic termite-proof Structural Concrete Insulated Panels (SCIP) (Photo: Studio RMA)
The property measures 7,000 sq ft (650 sq m), and sports a climate-controlled area of 4,000 sq ft (371 sq m) (Photo: Studio RMA)
5/13
The property measures 7,000 sq ft (650 sq m), and sports a climate-controlled area of 4,000 sq ft (371 sq m) (Photo: Studio RMA)
A significant quantity of its energy requirements are met by a rainwater-collection system, solar power, and carefully designed passive cooling (Photo: Studio RMA)
6/13
A significant quantity of its energy requirements are met by a rainwater-collection system, solar power, and carefully designed passive cooling (Photo: Studio RMA)
Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)
7/13
Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)
The house contains four bedrooms, five bathrooms, a spa facility, two kitchens, wine cellar, 150-seat amphitheater, a 240 sq ft (22 sq m) indoor music stage, and even a recording studio (Photo: Studio RMA)
8/13
The house contains four bedrooms, five bathrooms, a spa facility, two kitchens, wine cellar, 150-seat amphitheater, a 240 sq ft (22 sq m) indoor music stage, and even a recording studio (Photo: Studio RMA)
The home draws much of its required energy from natural sources (Photo: Studio RMA)
9/13
The home draws much of its required energy from natural sources (Photo: Studio RMA)
Hi’ilani EcoHouse was completed earlier this month (Photo: Studio RMA)
10/13
Hi’ilani EcoHouse was completed earlier this month (Photo: Studio RMA)
Hi’ilani EcoHouse is expected to receive eventual LEED Platinum certification on account of its green design (Photo: Studio RMA)
11/13
Hi’ilani EcoHouse is expected to receive eventual LEED Platinum certification on account of its green design (Photo: Studio RMA)
A significant quantity of its energy requirements are met by a rainwater-collection system, solar power, and carefully designed passive cooling (Photo: Studio RMA)
12/13
A significant quantity of its energy requirements are met by a rainwater-collection system, solar power, and carefully designed passive cooling (Photo: Studio RMA)
Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)
13/13
Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)
View gallery - 13 images

US architectural firm Studio RMA recently completed the Hi’ilani EcoHouse: a two-family, low-energy property located on an attractive plot on Hawaii's Big Island. The building draws much of its required energy from renewable sources, and Studio RMA strove to offset the CO2 produced during construction by planting extensive forestry.

Hi’ilani EcoHouse was constructed using non-toxic termite-proof Structural Concrete Insulated Panels (SCIPs), which are derived from mostly recycled materials. The property measures 7,000 sq ft (650 sq m), and sports a climate-controlled area of 4,000 sq ft (371 sq m).

Though the design of Hi’ilani EcoHouse kept the environment firmly in mind, the comfort of its occupants hasn't been overlooked either. It includes four bedrooms, five bathrooms, a spa facility, two kitchens, wine cellar, 150-seat amphitheater, a 240 sq ft (22 sq m) indoor music stage, and even a recording studio.

Hi’ilani EcoHouse is expected to receive eventual LEED Platinum certification on account of its green design (Photo: Studio RMA)
Hi’ilani EcoHouse is expected to receive eventual LEED Platinum certification on account of its green design (Photo: Studio RMA)

Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid. Until then, a significant quantity of its energy requirements are met by a rainwater-collection system, solar power, and carefully designed passive cooling.

Rainwater runs from the roof of Hi’ilani EcoHouse into a 26,000 US gallon (98,500 liter) tank situated some way down the hill below, before being fed, via solar-powered pumps, into the home or otherwise used as irrigation – either way, nothing is wasted. The water is also filtered before being used for drinking, and can be heated with solar-powered heaters if necessary.

A rooftop weather station, linked to a computer, controls a series of slats on the exterior of the property, opening and closing them so as to channel the prevailing winds, and thus offer natural ventilation.

Additionally, energy-efficient fans are employed, and the SCIPs material offers excellent insulation, keeping the indoor temperature relatively stable.

Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)
Hi’ilani EcoHouse is currently connected to mains electricity, but the plan is for it to eventually go fully off-grid (Photo: Studio RMA)

Dual rooftop-based solar arrays are tasked with providing electricity. A larger 9.33 KW array provides 220-volt AC for general use (and powers all appliances), while a smaller .66 KW unit offers 24-volt DC for the aforementioned motorized ventilation slats. LED lighting is also installed throughout the property.

However, no matter how modest Hi’ilani EcoHouse's non-renewable energy requirements, its construction necessitated the production of large quantities of CO2 – a point often overlooked in the construction of so-called "green" homes.

Therefore, as Studio RMA's Robert Mechielsen explains further in the video below, the company sought to mitigate CO2 production with a reforestation initiative which will transform 3 acres (1.2 hectares) of grass into forest and underbrush, thus converting large quantities of CO2 into oxygen and wood over time.

Hi’ilani EcoHouse was completed earlier this month, and is expected to receive eventual LEED Platinum certification on account of its green design.

Sources: Studio RMA, Hi'ilani EcoHouse

Balance and Impact - Hi'ilani EcoHouse
