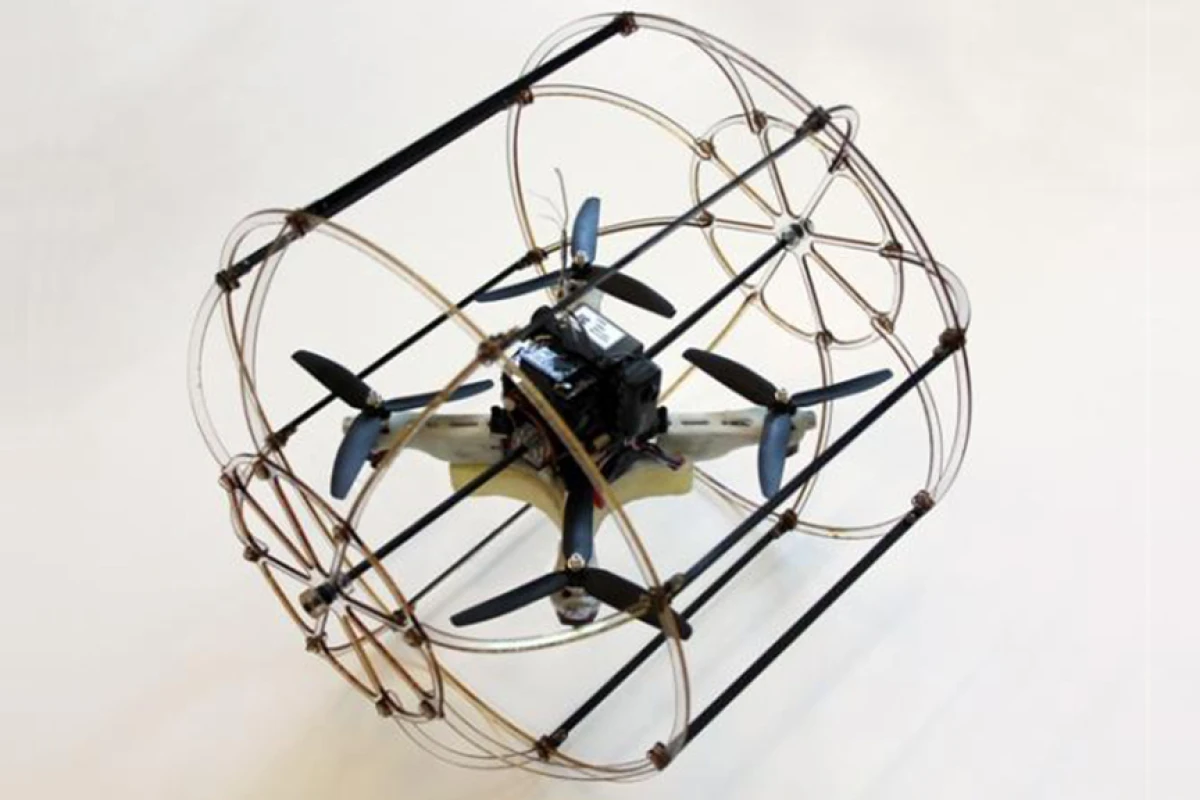

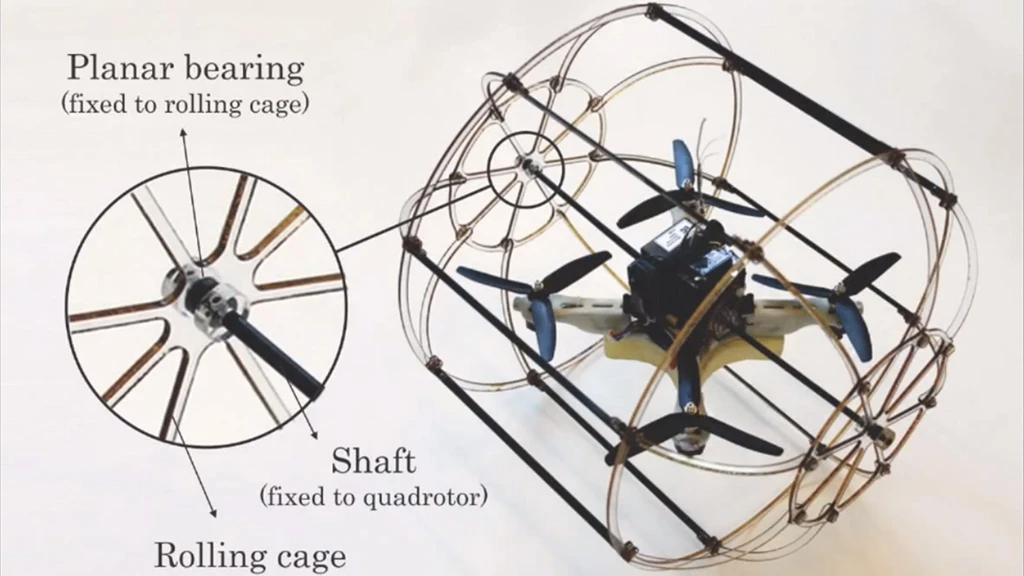

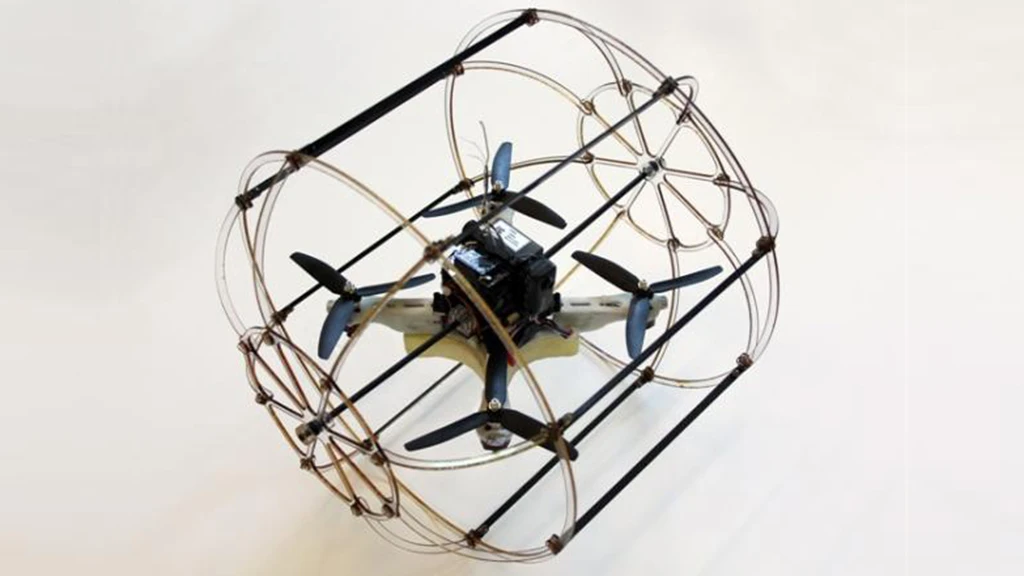

A team at the Robotics Lab at the Illinois Institute of Technology (IIT) has come up with another take on the caged flying robots like the spherical air vehicle developed by Japan’s Ministry of Defense (JMD) and the more recent Kyosho Space Ball. However, instead of a spherical shape, the the outer protective cage of the HyTAQ (Hybrid Terrestrial and Aerial Quadrotor) is cylindrical and is attached to the quadrotor via a shaft connected by two rotating joints, thereby providing the HyTAQ with the ability to fly or roll over the ground.
With the quadrotors providing thrust for both aerial and terrestrial locomotion, there's no requirement for additional actuators that would increase the weight of the system. When on the ground, the rolling cage means the robot only needs to overcome rolling resistance to move forward, and when it encounters an obstacle to difficult to roll over, it can simply take to the air to jump over it.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE
The developers say the robot’s hybrid nature makes it much more energy efficient than aerial-only systems, with the ability to operate almost six times as long and travel a distance four times greater than such systems. Experiments conducted by the team showed that for aerial-only travel, its battery lasted five minutes and it traveled 1,969 ft (600 m), but rolling over a smooth surface saw its endurance extend to 27 minutes and the distance traveled increase to 7,874 ft (2,400 m).

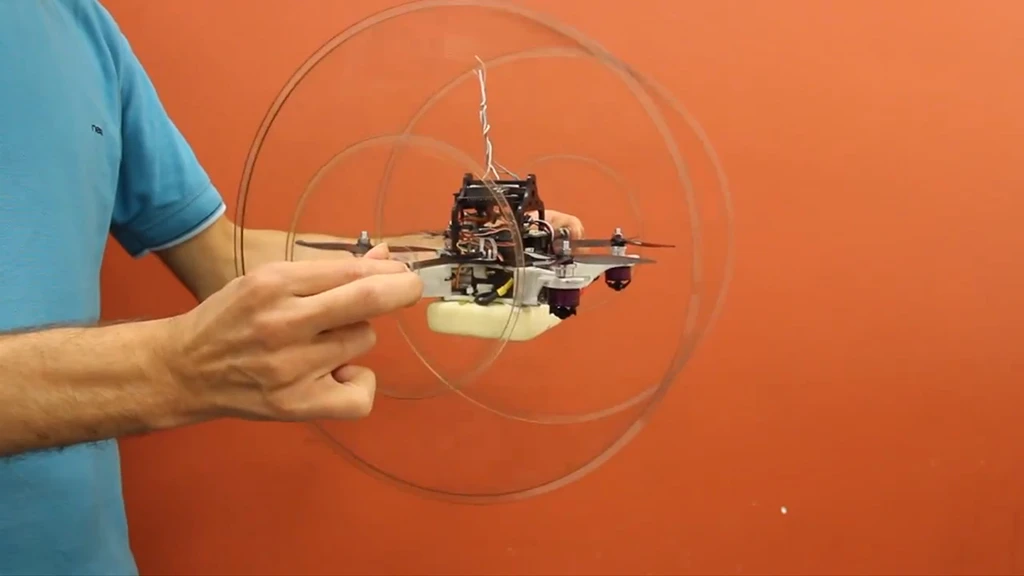

The cage itself is constructed out of polycarbonate and carbon fiber making it both flexible and strong enough to withstand crashing. The development team has tested the HyTAQ’s ground performance over various types of terrain, including flat indoor surfaces and sand and grass outdoors. The ground locomotion capabilities also allow the robot to move when it’s too windy for flight.

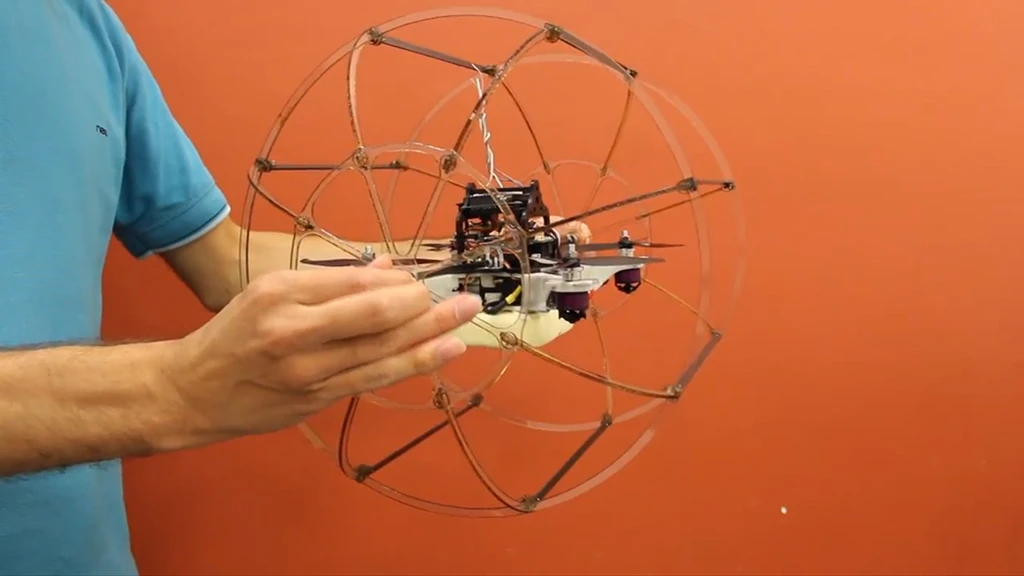

Like its spherical kin, the reconnaissance and search and rescue potential of the camera-equipped robot are obvious and the team is now in the process of patenting the design and hopes to attract commercial interest.
The HyTAQ robot can be seen in action in the following video.
