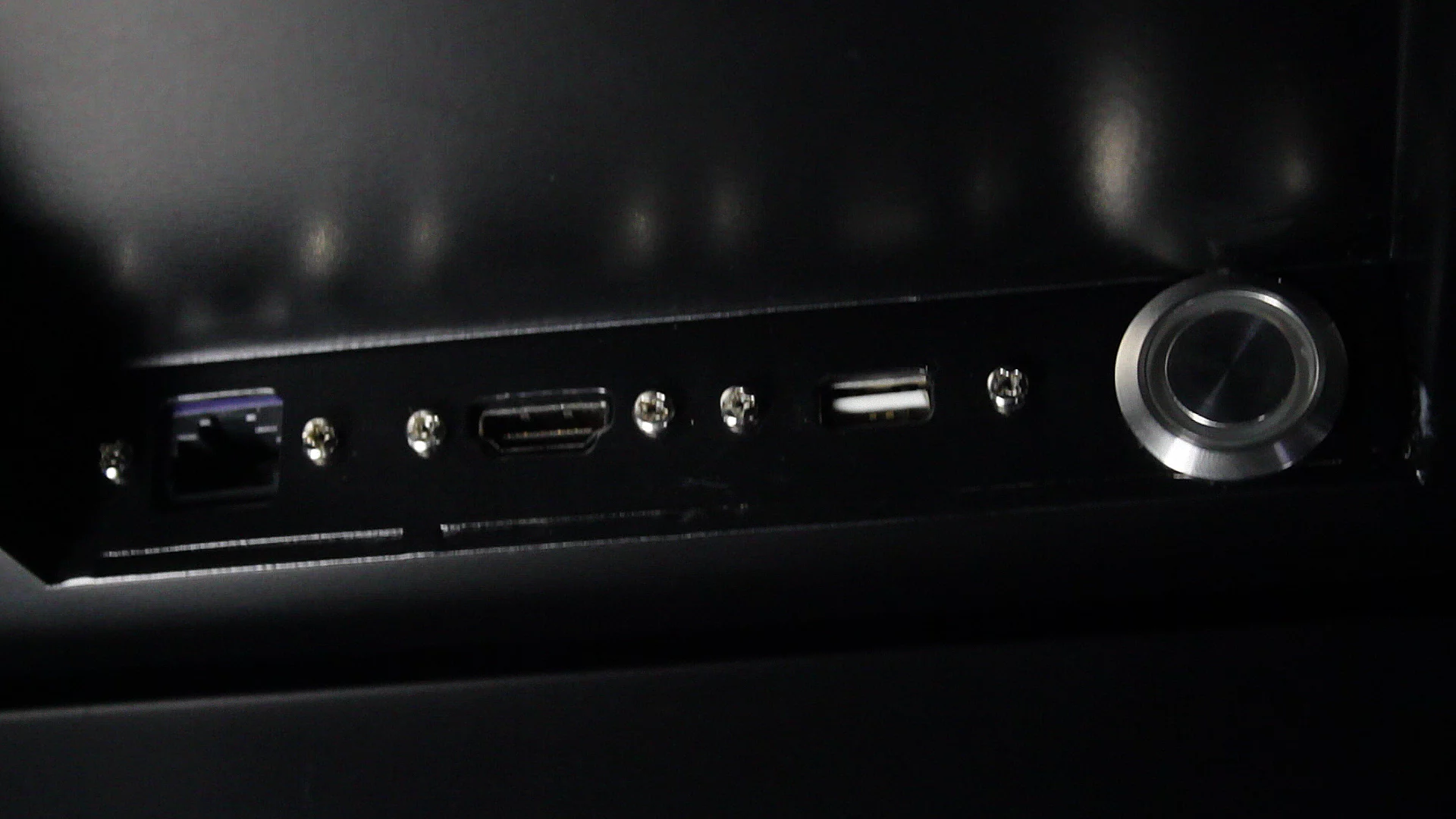

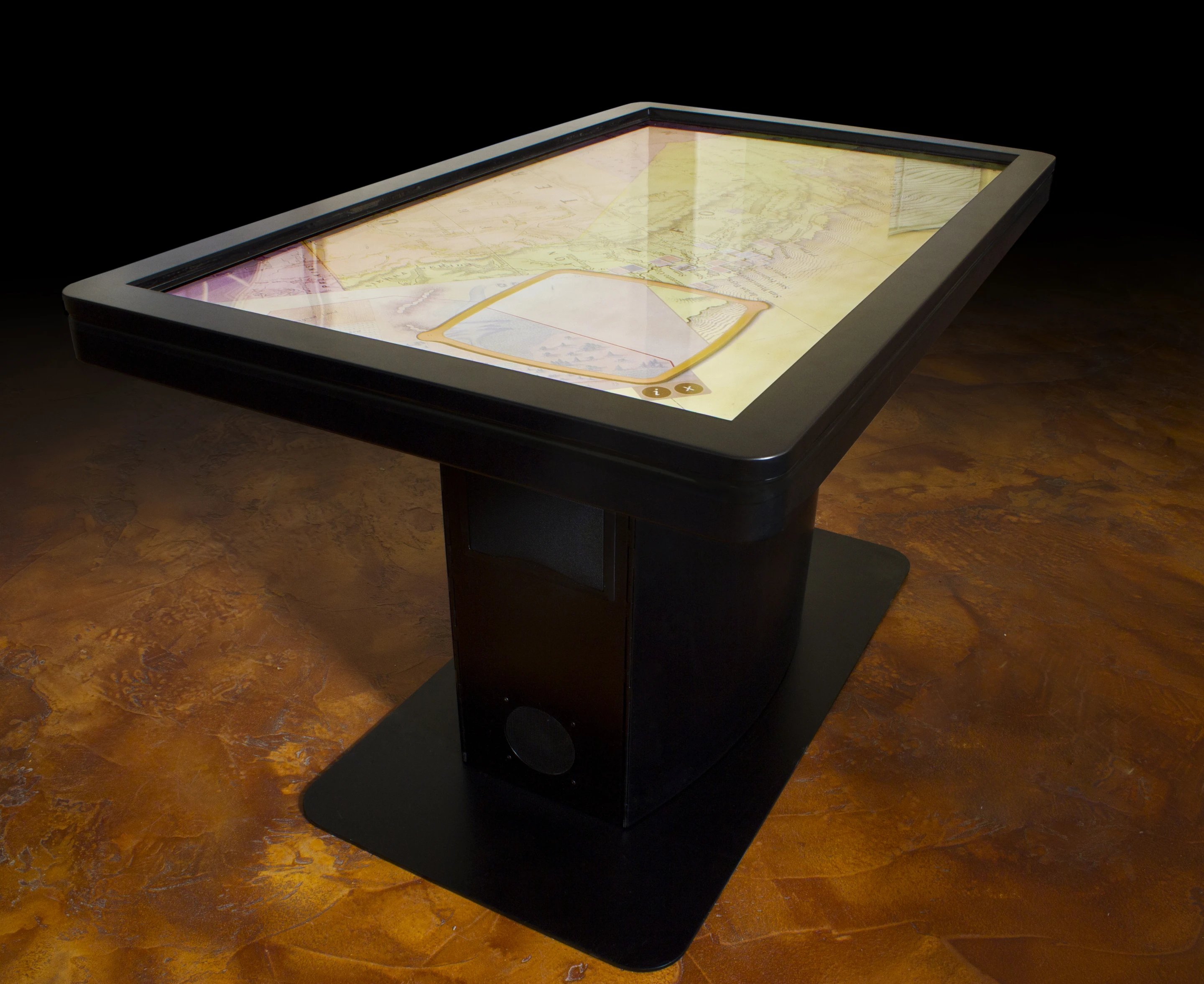

As its name suggests, the new MT55 HD Multitouch Table from Ideum features a 55-inch high definition LCD display which can support multiple simultaneous touch points. Standing at an Americans with Disabilities Act-friendly 31 inches tall, the powder coated, aluminum and steel pedestal table has a powerful quad-core processor and NVIDIA graphics running the show, supported by dual hard drives and DDR3 memory. A useful feature for the museum and tradeshow settings that the table is likely to find itself in, is the ability to lock the power switch out of harm's way and keep the ports hidden from view.

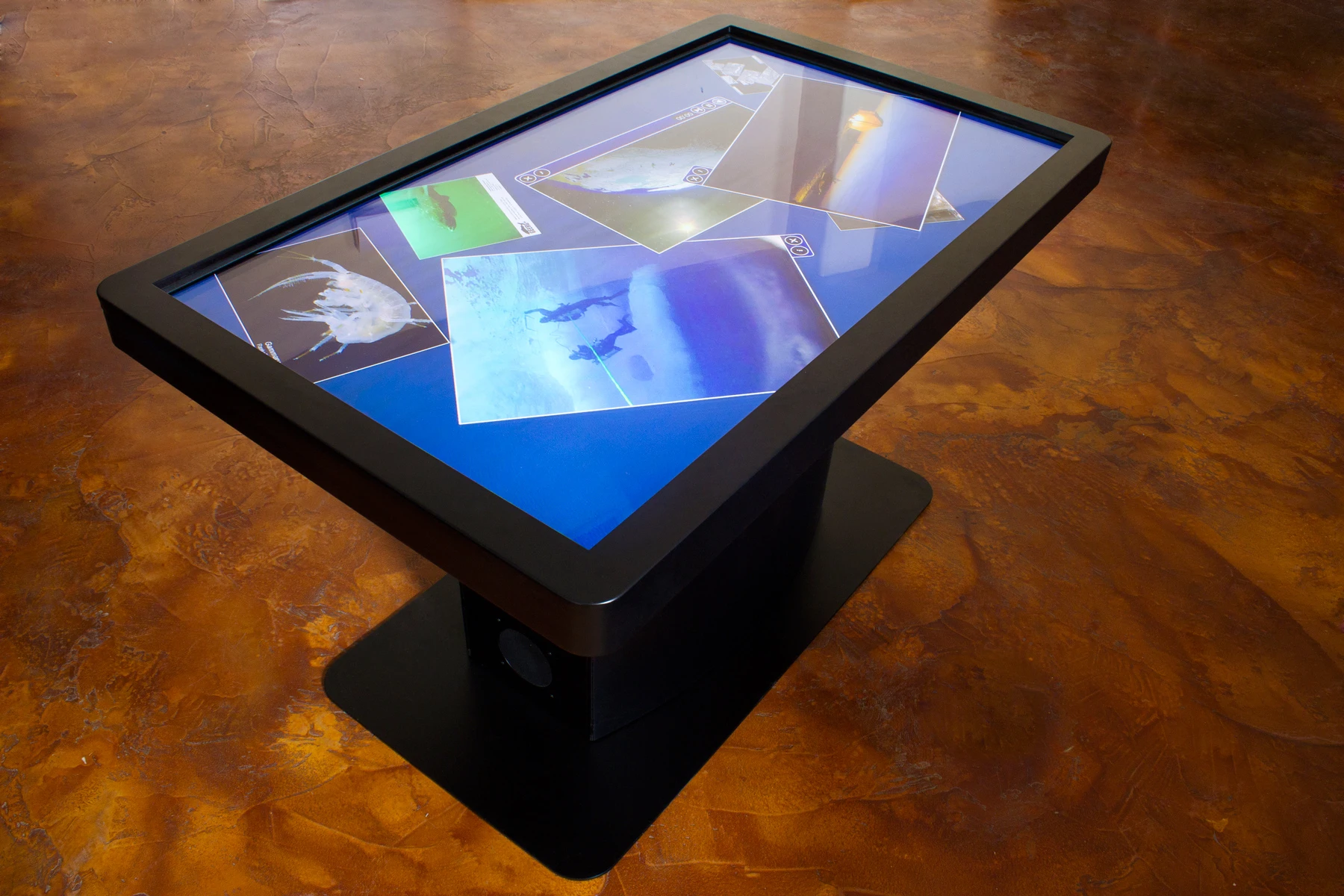

At the heart of the MT55 HD Multitouch Table is a 64-bit Windows 7 Professional computer system sporting an Intel Core i7 quad-core processor running at 2.93GHz, NVIDIA's Quadro 600 PCIe graphics with 1GB of dedicated memory, dual 250GB SATA HDDs spinning at 7200RPM and 4GB of DDR3 RAM. Wireless connectivity takes the form of 802.11n Wi-Fi and Bluetooth, with a Bluetooth keyboard with integrated trackpad also included. Physical connectivity includes USB 2.0, HDMI-out and Ethernet - all of which are hidden away - and there's 3.5mm audio input and output jacks, too.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE

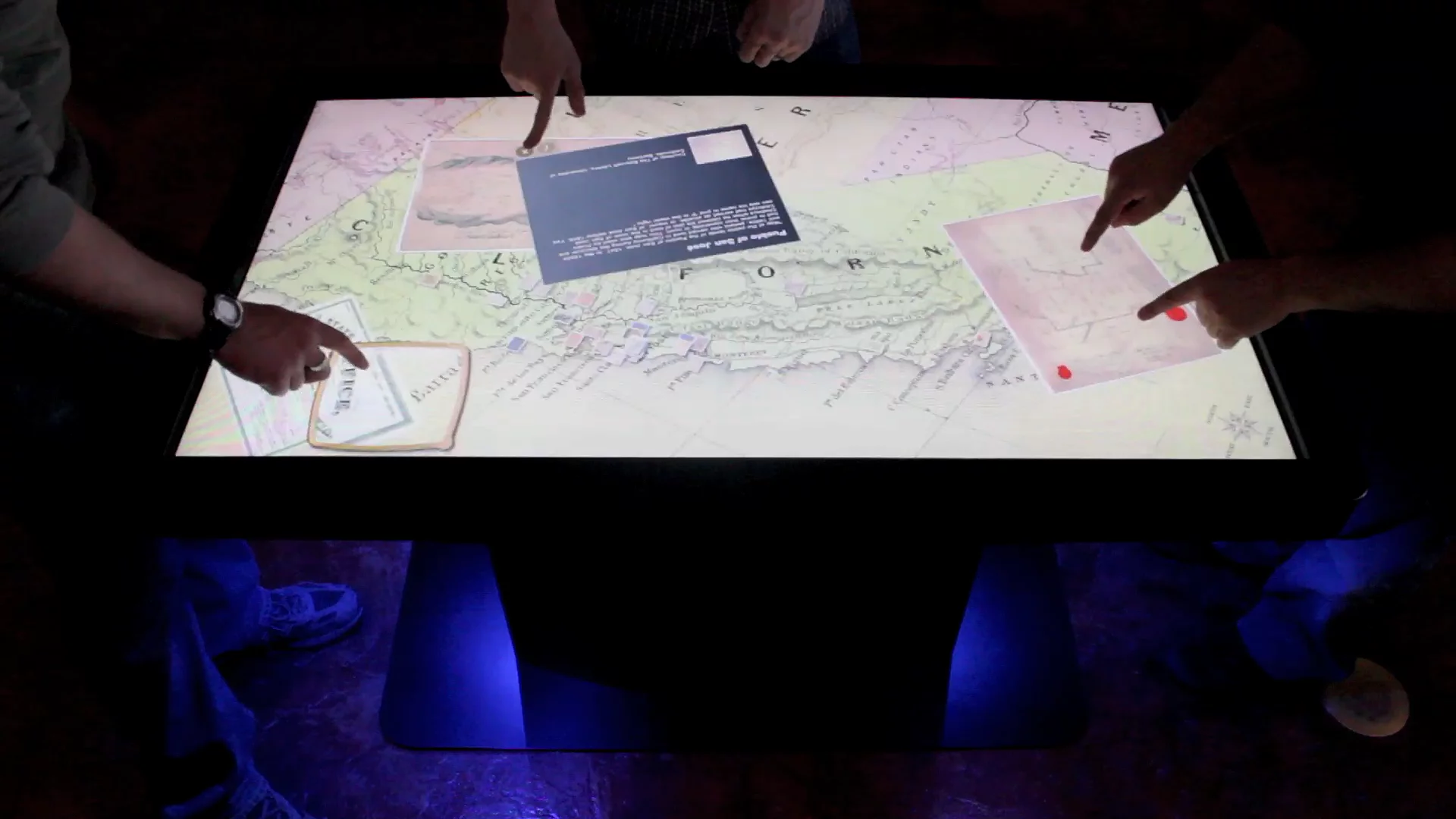

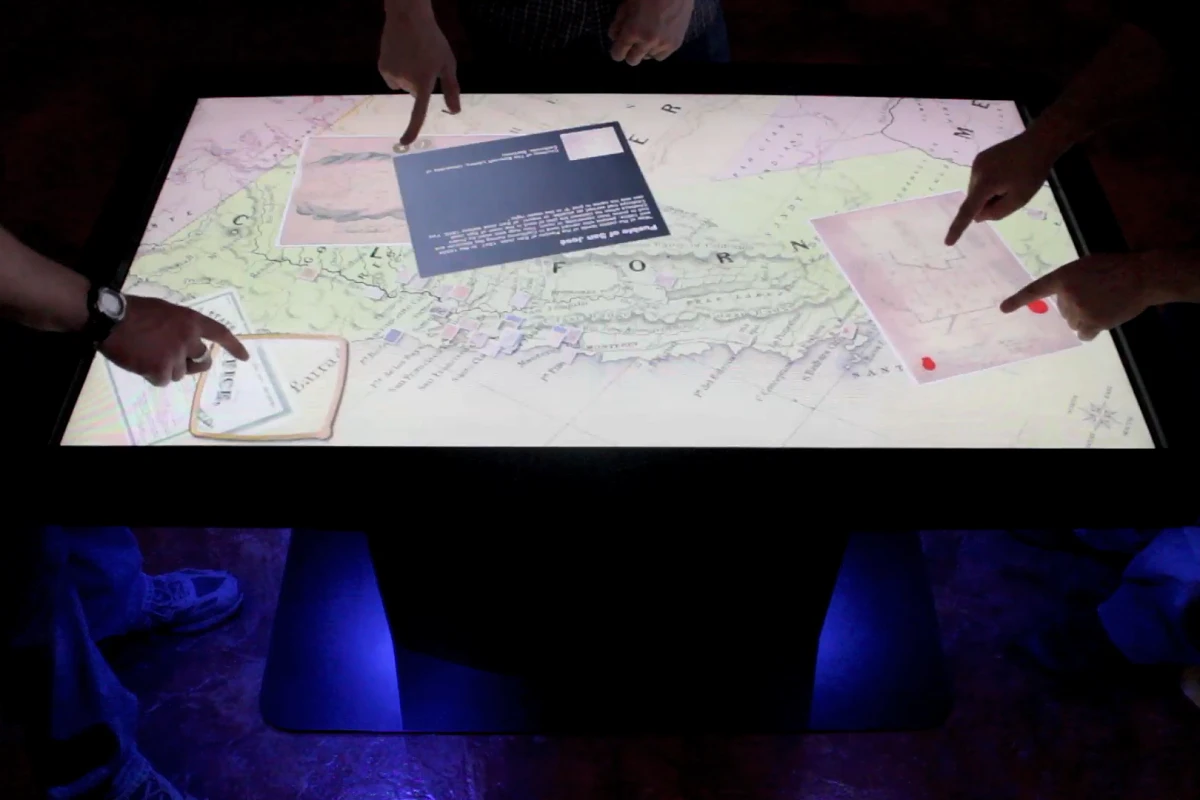

Like Touchscape's multi-touch coffee table, the MT55 HD sports an LCD multi-touch surface. However, the latter is a 55-inch LED backlit LCD Display with a luminance of 500 cd/m2 at 120Hz and protected by a haptic, ultra-clear, 5mm tempered glass surface. The 1080p full HD display features a 4,000,000:1 contrast ratio and a 178 degree viewing angle, and its solid state optical multitouch system can support up to 32 simultaneous touch points with a 7-12 ms touch response time.
Ideum's Jim Spadaccini told us that, like the company's 100-inch multitouch monster, the table has four blue LED lights underneath the surface to provide 'ground effects' – there is a controller that allows the brightness to be adjusted (or they can be turned off).
As well as high definition visuals, users can also look forward to some decent audio thanks to an amplified Bose Articulated Array 191 stereo sound system. The MT55 HD also has integrated 1200 W surge protection and UPS backup and filtered air cooling.
Together with development software options for programming languages like C++ and Java, the Table ships with GestureWorks for Flash and Flex SDK – which includes almost a dozen pre-built components (including onscreen keyboard and image a video handlers) and supports over 200 gestures. The license also includes access to a growing library of open source multitouch-enabled exhibit components at Open Exhibits.

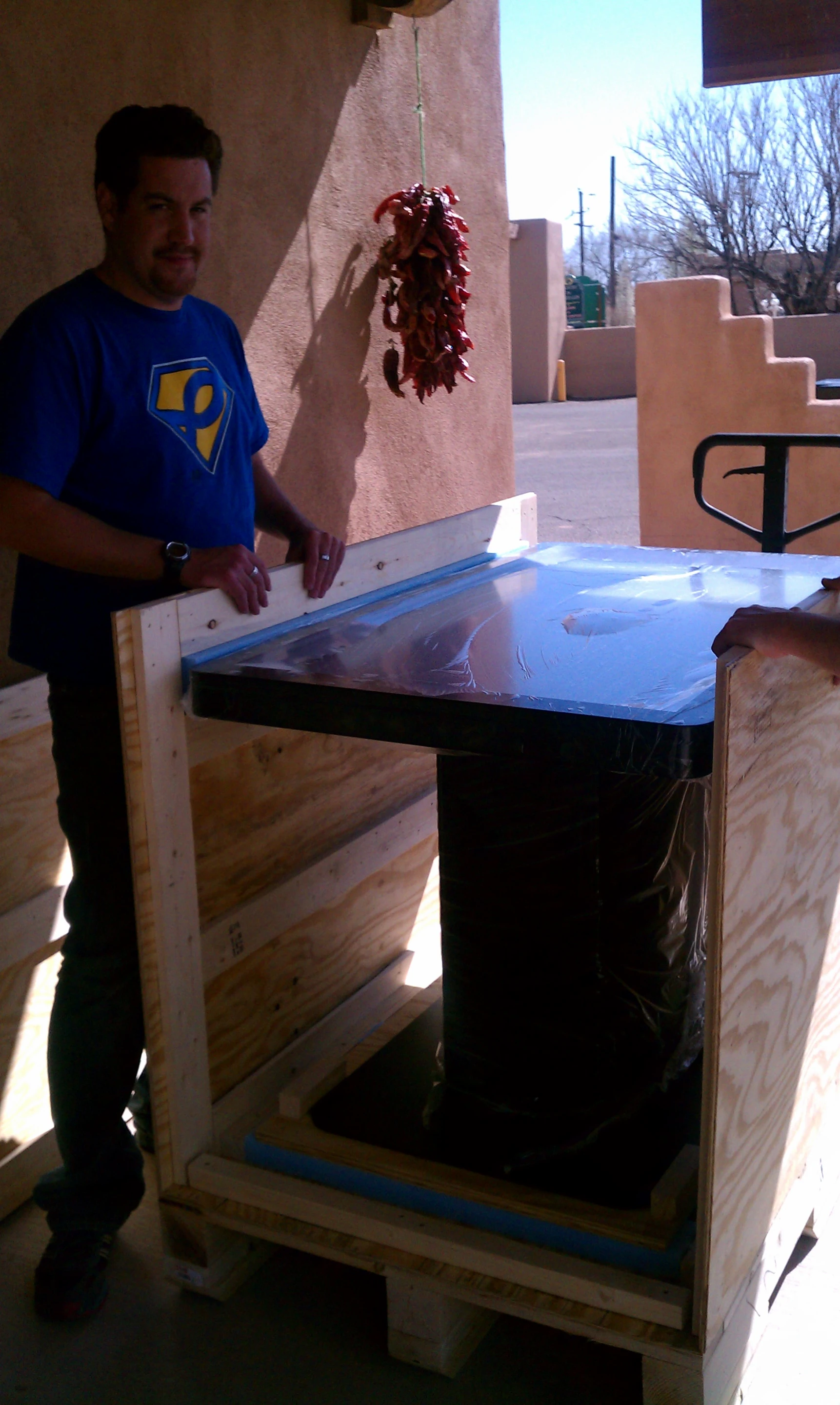

The entire 31 x 31.5 x 52.5-inch (78 x 80 x 133.5 cm), 350 pounds (136kg) unit is shipped assembled, has single button operation and is designed to work straight out of the crate.View gallery - 6 images
