New multi-speed Electric Vehicle transmission improves EV performance and rangeView gallery - 2 images
May 13, 2009 The Electric Vehicle Symposium (EVS) opens in Norway today and will see the official unveiling of a novel multi-speed electric vehicle gearbox by transmission specialist Vocis. Simulations show that a two-speed configuration could reduce the battery energy consumed by 5-10 percent over the industry-standard New European Drive Cycle, without any significant increase in overall cost or packaging volume, as well as extending battery life and providing the potential to substantially downsize the powertrain and battery pack.

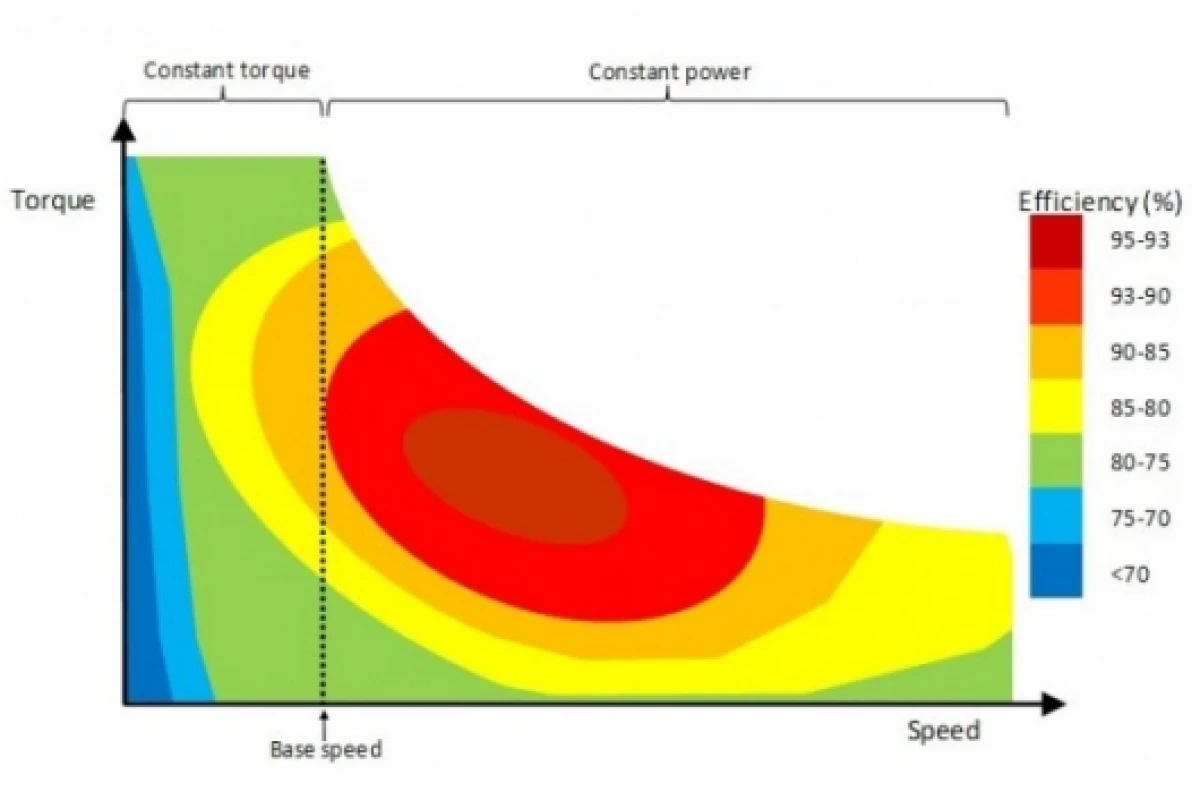

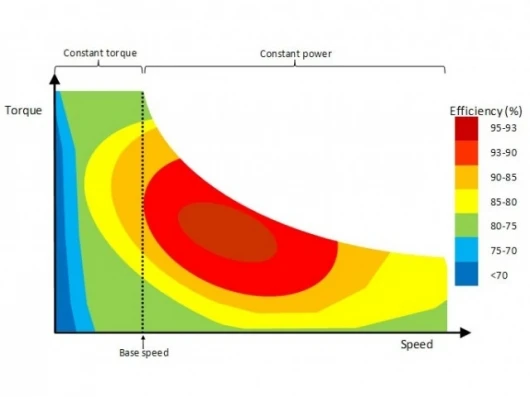

“Electric motors have a very wide operating range, but that doesn’t mean that they are equally efficient at every speed,” explains Vocis EV transmissions specialist Andy Turner. “The torque curve of a typical traction motor is well suited to vehicle propulsion, having maximum torque from zero speed and a wide constant power region. However, there is a ‘sweet spot’, typically at medium speed and medium to high loads, where the delivery of power is most efficient. A choice of gear ratios allows the motor to be kept in this operating region during more of the drivecycle.”
