Panasonic's stretchy resin film may find use in wearable electronics, and more

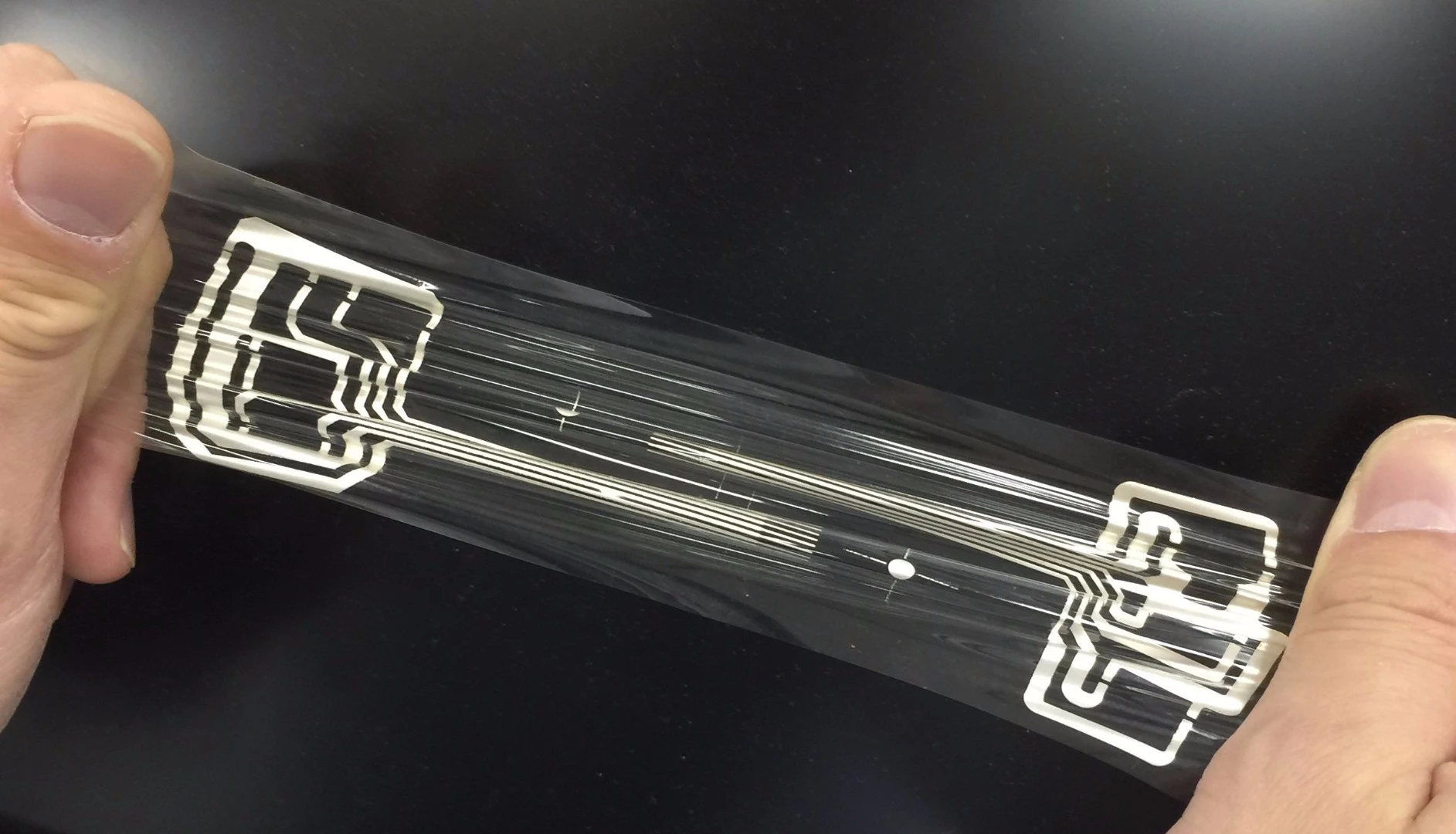

The new film remains conductive and undamaged, even when stretched to more than twice its usual length(Credit: Panasonic)

Before flexible electronic devices can become commonplace, there needs to be a practical way of manufacturing reliable stretchable circuitry. While some solutions are already in development, Panasonic recently announced one of its own – a soft, flexible polymer resin film combined with transparent electrodes and a conductive paste.

The substrate can be stretched up to 2.5 times its relaxed length before springing back to its original state, and is made from a proprietary thermosetting resin. This means that although it's initially cured using heat, subsequent exposure to heat won't cause it to melt.

Its ability to withstand the stresses associated with repeated stretching and relaxing is due mainly to its three-dimensional cross-linked structure, which distributes mechanical stress evenly across a large area. By contrast, some other more conventional rubbers tend to degrade after being stretched multiple times.

The transparent electrodes are made from a layer of carbon nanotubes, adhered to the resin. Unlike indium tin oxide (which is often used to create transparent electrodes for items such as flat-panel displays), the nanotube material won't crack when stretched, and remains conductive while in that state.

Linking those electrodes are circuits made from the paste. It's composed of the same resin as the substrate, mixed with silver. Like the electrodes, it remains intact and is still able to conduct electricity while stretching along with everything else.

"The newly developed material is deployable in a broad range of applications, from wearable devices to sensors, displays, and robots," the company stated earlier this week.

Source: Panasonic
