Porsche's 918 Spyder hybrid on track for 2013 release, now with 770 bhp and 94 mpgView gallery - 72 images
Porsche's hybrid 918 Spyder is a 770 bhp supercar that can top 320 km/h (200 mph), accelerate to 100 km/h (62 mph) from standstill in under three seconds and lap the Nurburgring Nordschleife circuit in seven minutes 22 seconds. The largely-carbon-fiber 918 Spyder will hit showrooms before the end of 2013, with pricing beginning at around US$1 million. It's all standard fare for a supercar except for one small thing - its fuel consumption of 3.0 l/100 km (94 mpg).

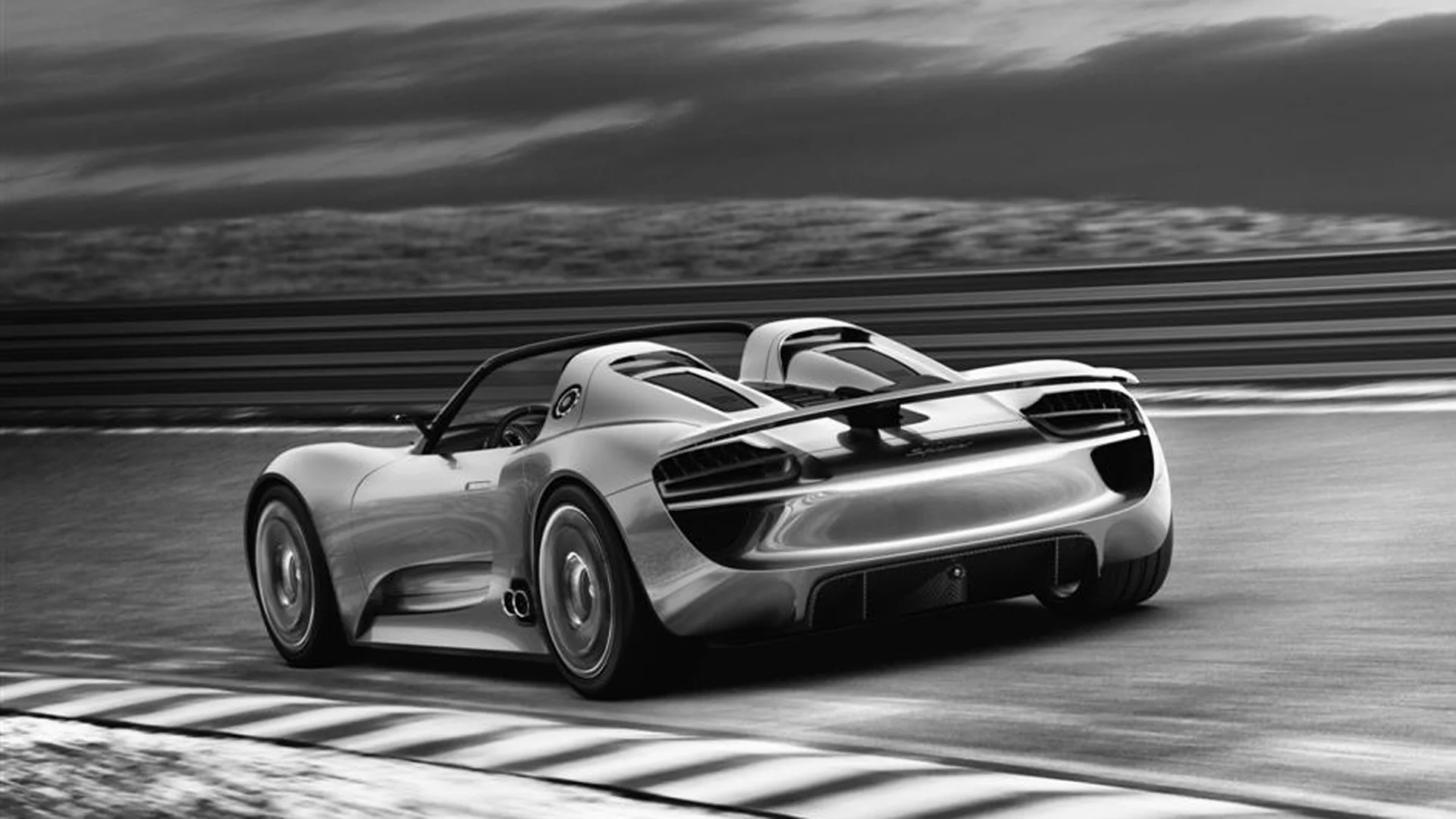

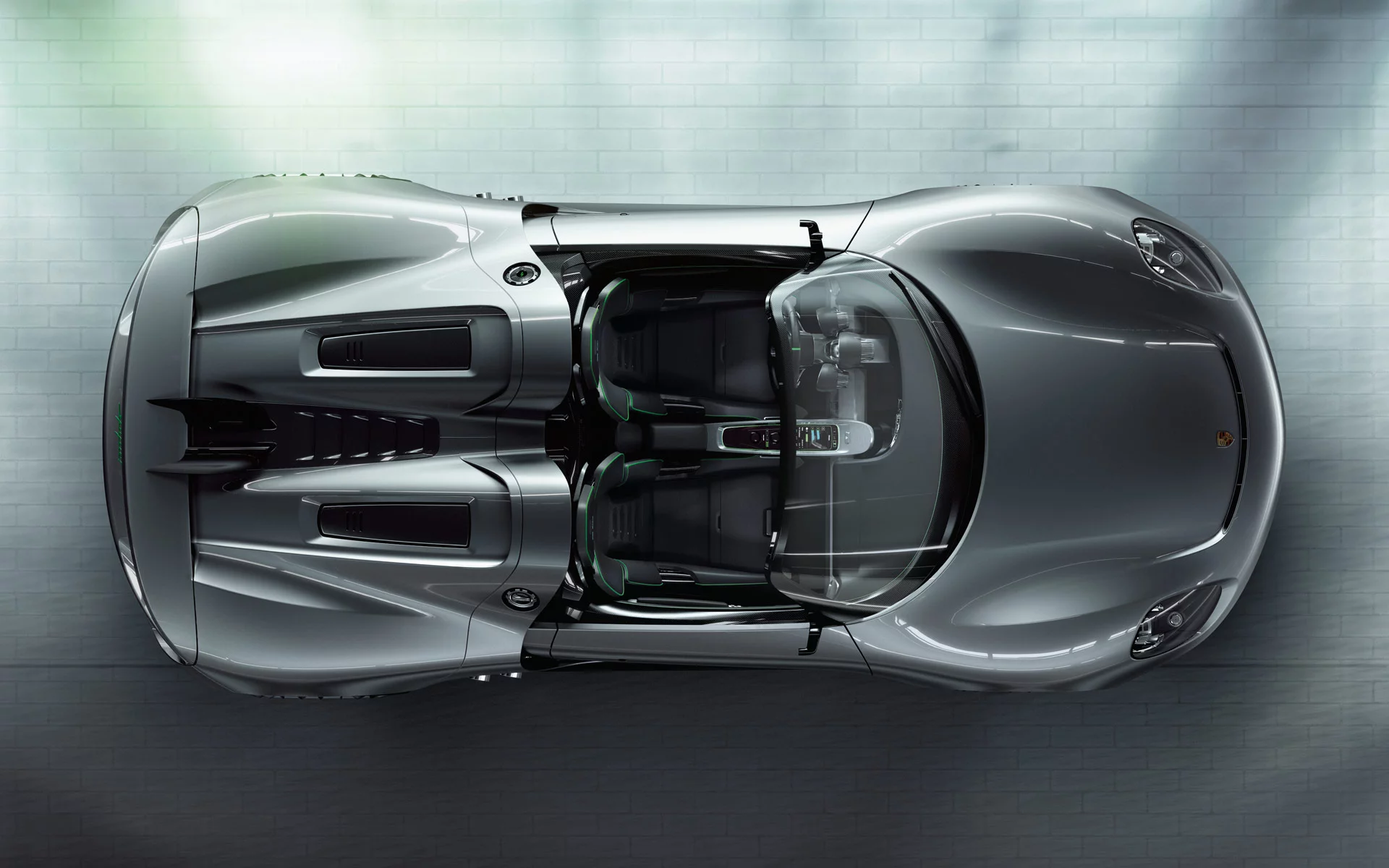

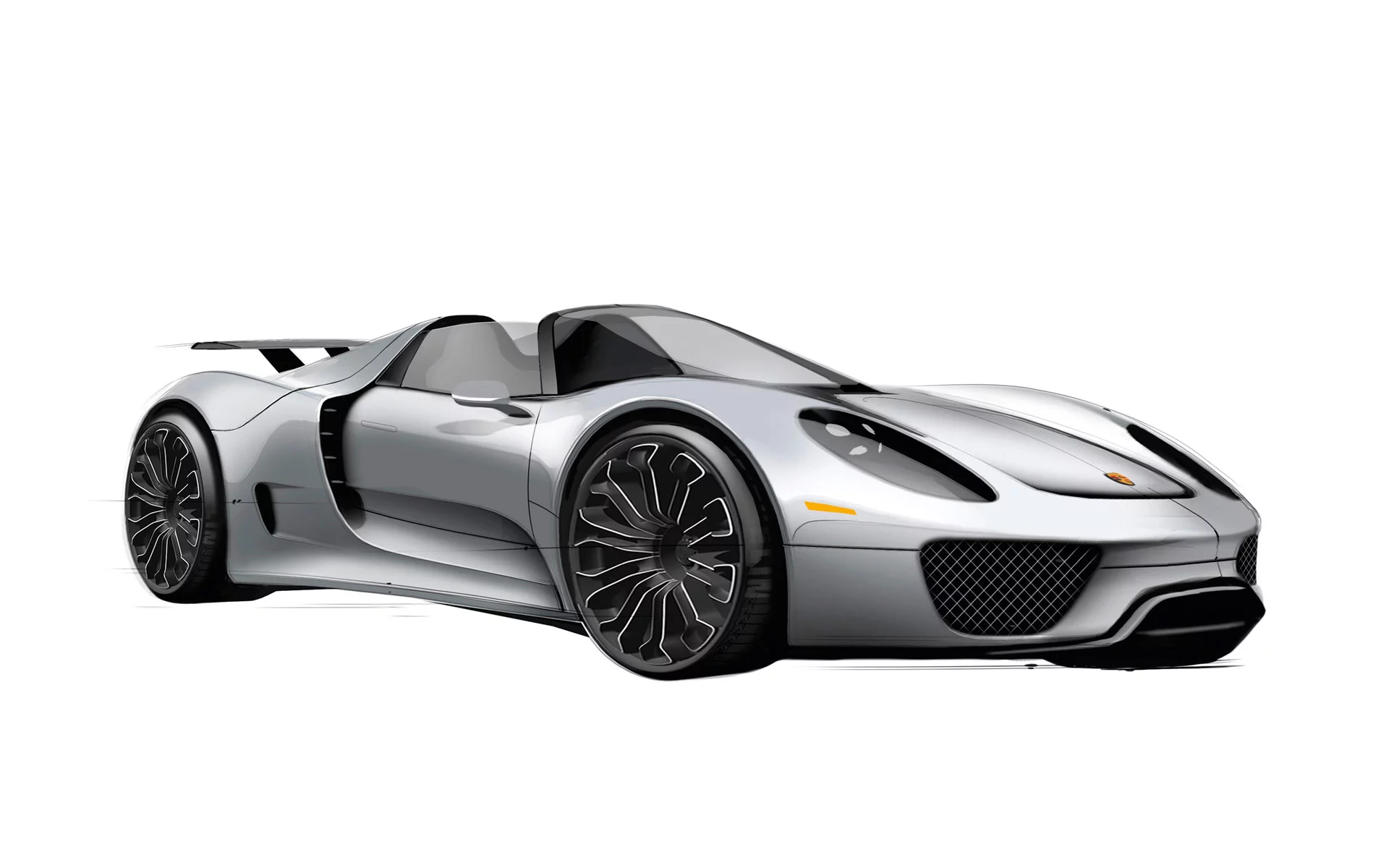

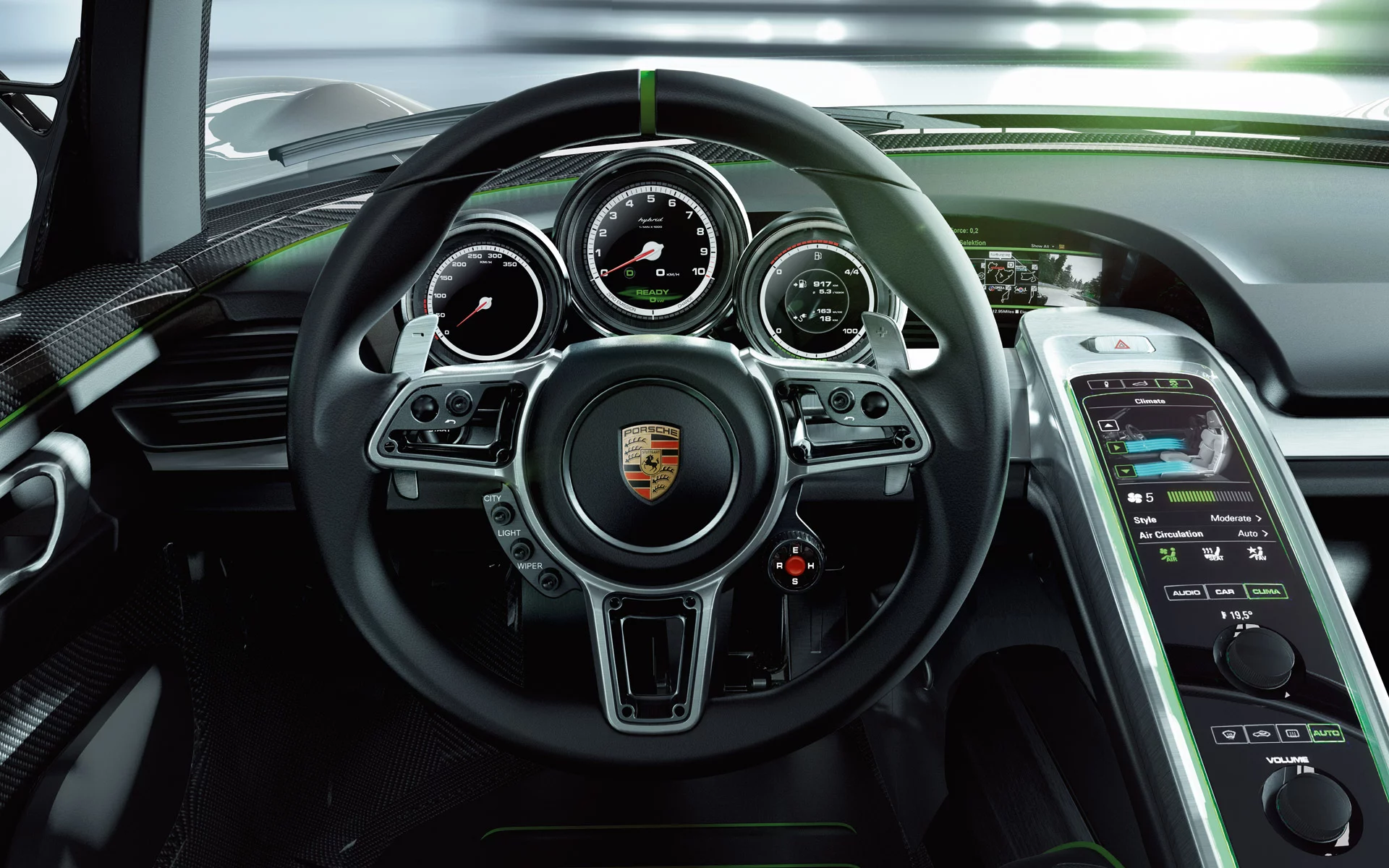

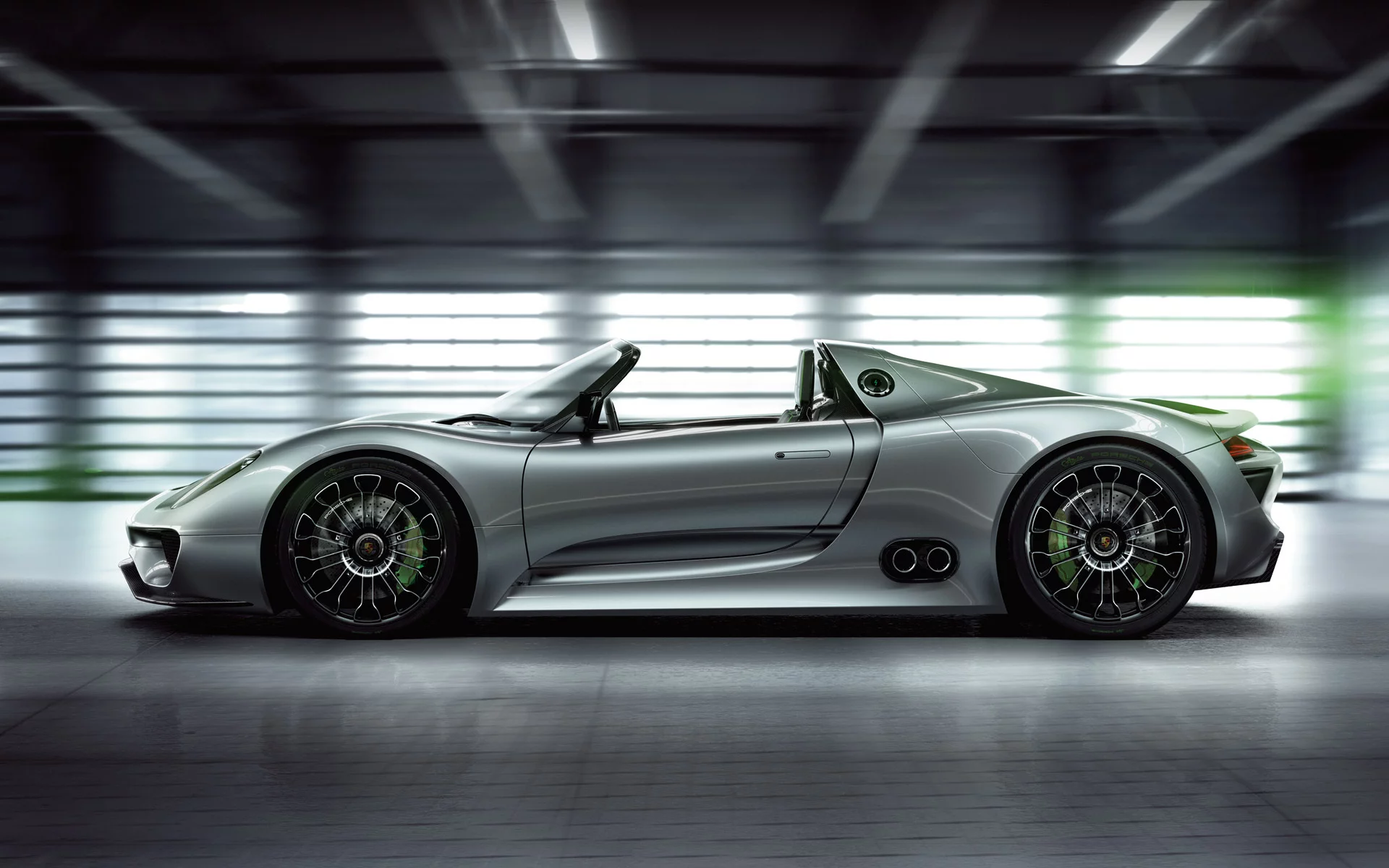

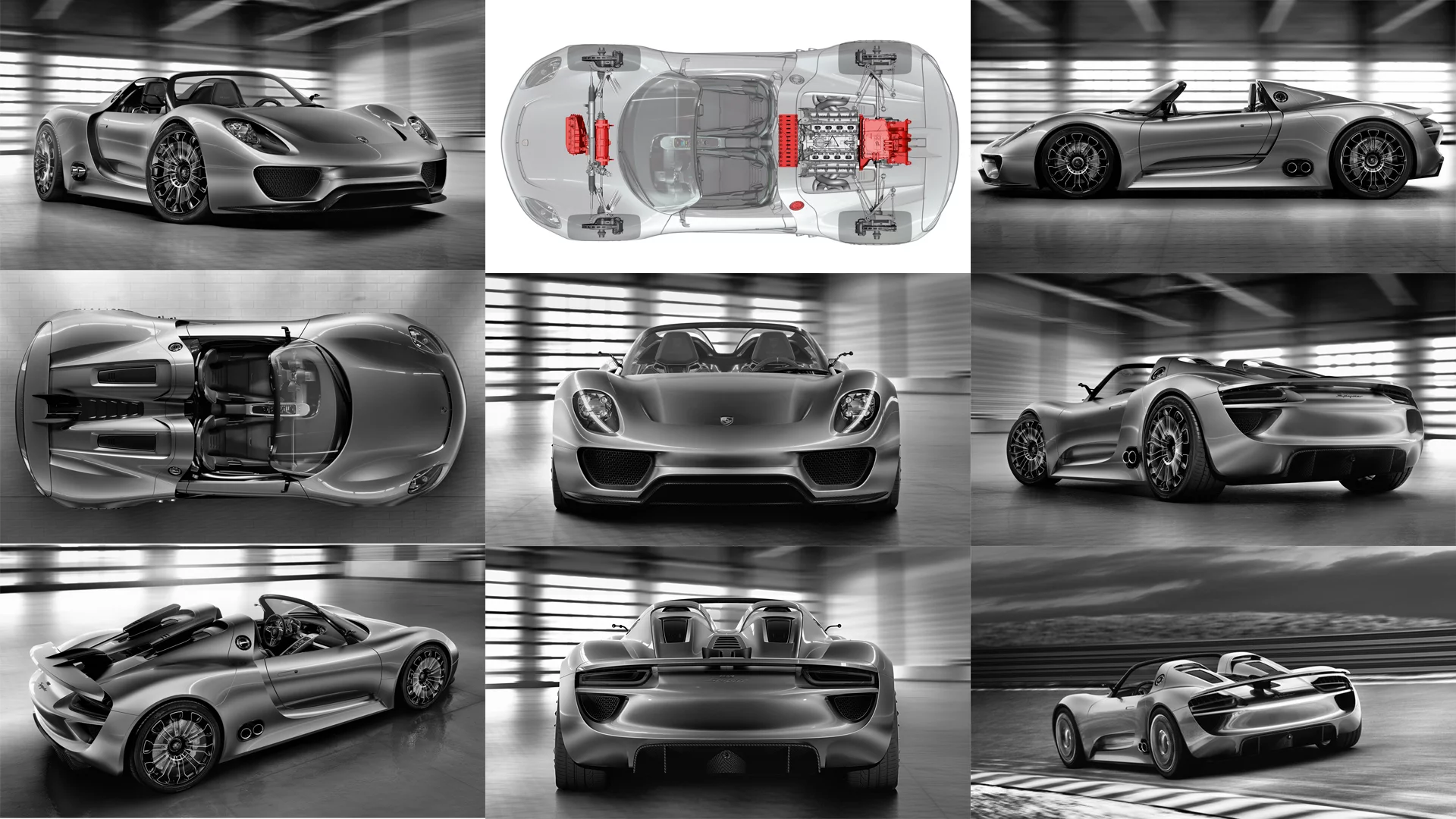

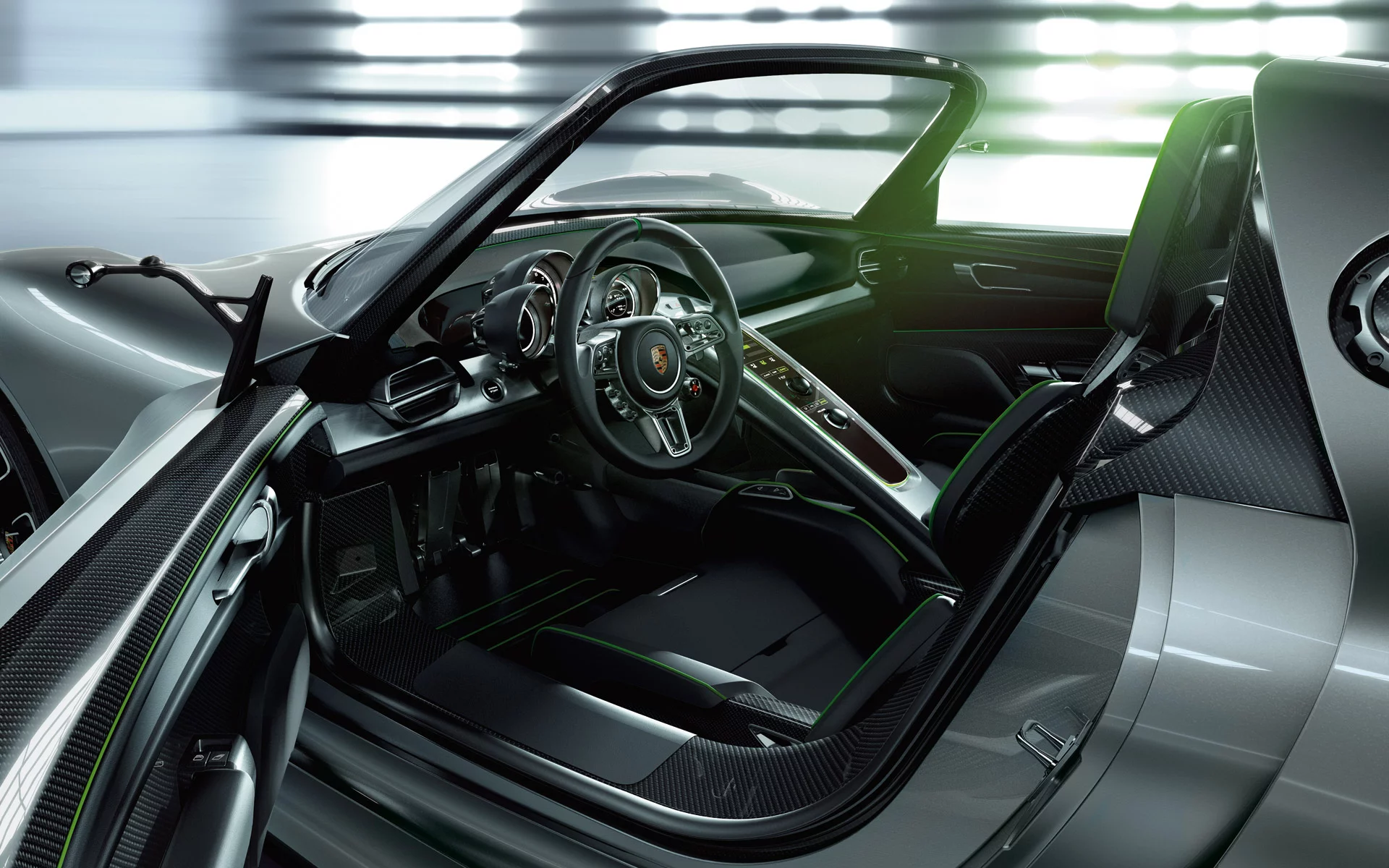

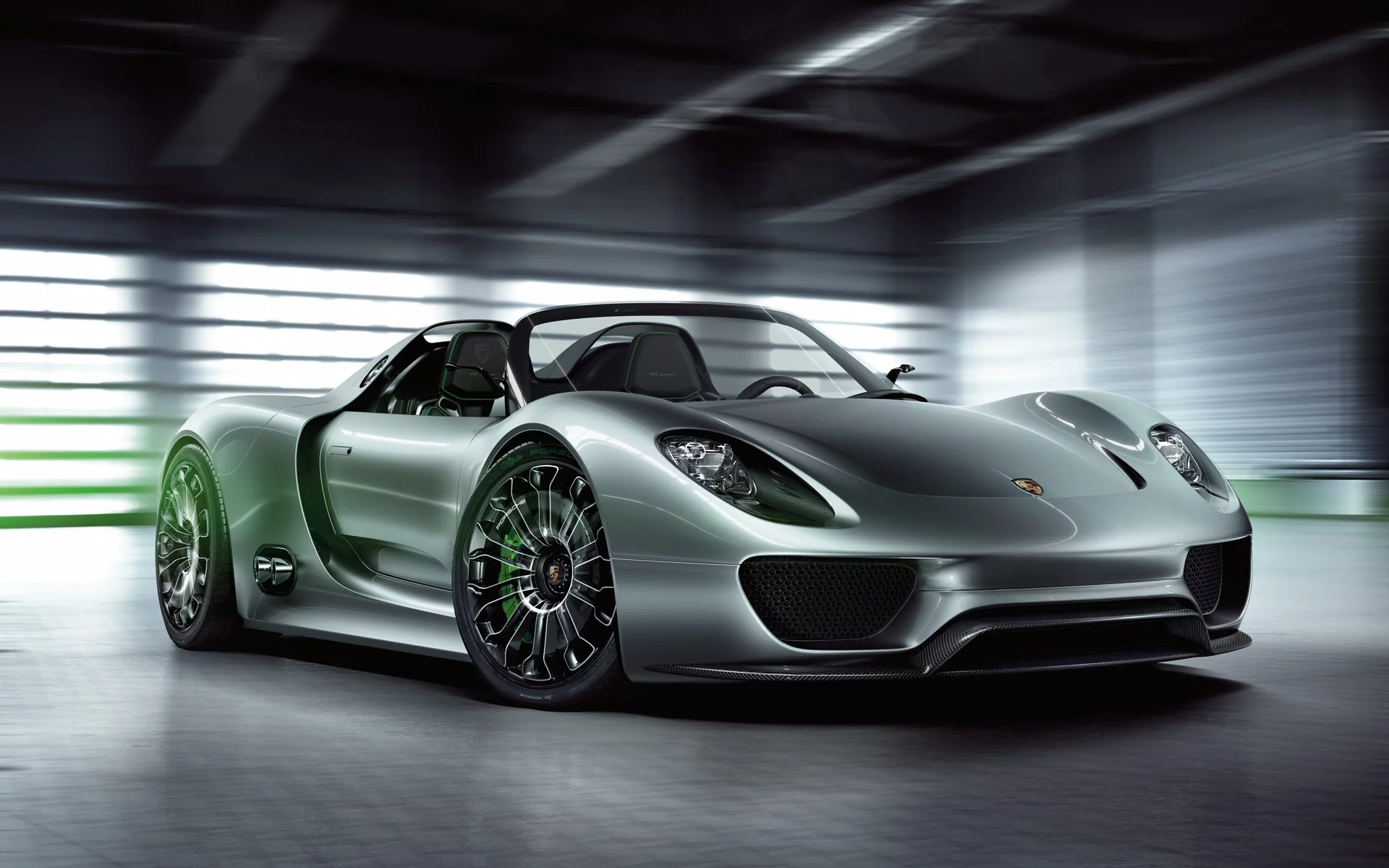

Porsche's hybrid 918 Spyder first broke cover in 2010, creating a sensation with its combination of 500 bhp V8 plus three electric motors totaling 215 bhp for a total of 715 bhp.
Sick of Ads?
More than 700 New Atlas Plus subscribers read our newsletter and website without ads.
Join them for just US$19 a year.More Information
At that time, the car was officially quoted as running 0-100 km/h in 3.2 seconds, having a top speed of 320 km/h (198 mph) and was reported to have done a lap of the Nordschleife Nurburgring circuit under 7:30 minutes. The images below are from the initial story 26 months ago.
The original 918 Spyder reportedly weighed less than 1,490 kg, emitted 70 gm/km of CO2 and had fuel consumption of three liters/100 kilometers (94 mpg).
The 918 Spyder as announced, came with “Range Manager”. The Range Manager uses the map in the navigation system to present the remaining range the car is able to cover, allowing the driver to influence that range through the choice of performance mode and how hard they plant their boot into the go-pedal. In cities with environmental alert areas, the Range Manager can calculate and monitor whether the car can reach its intended destination on electric power alone.

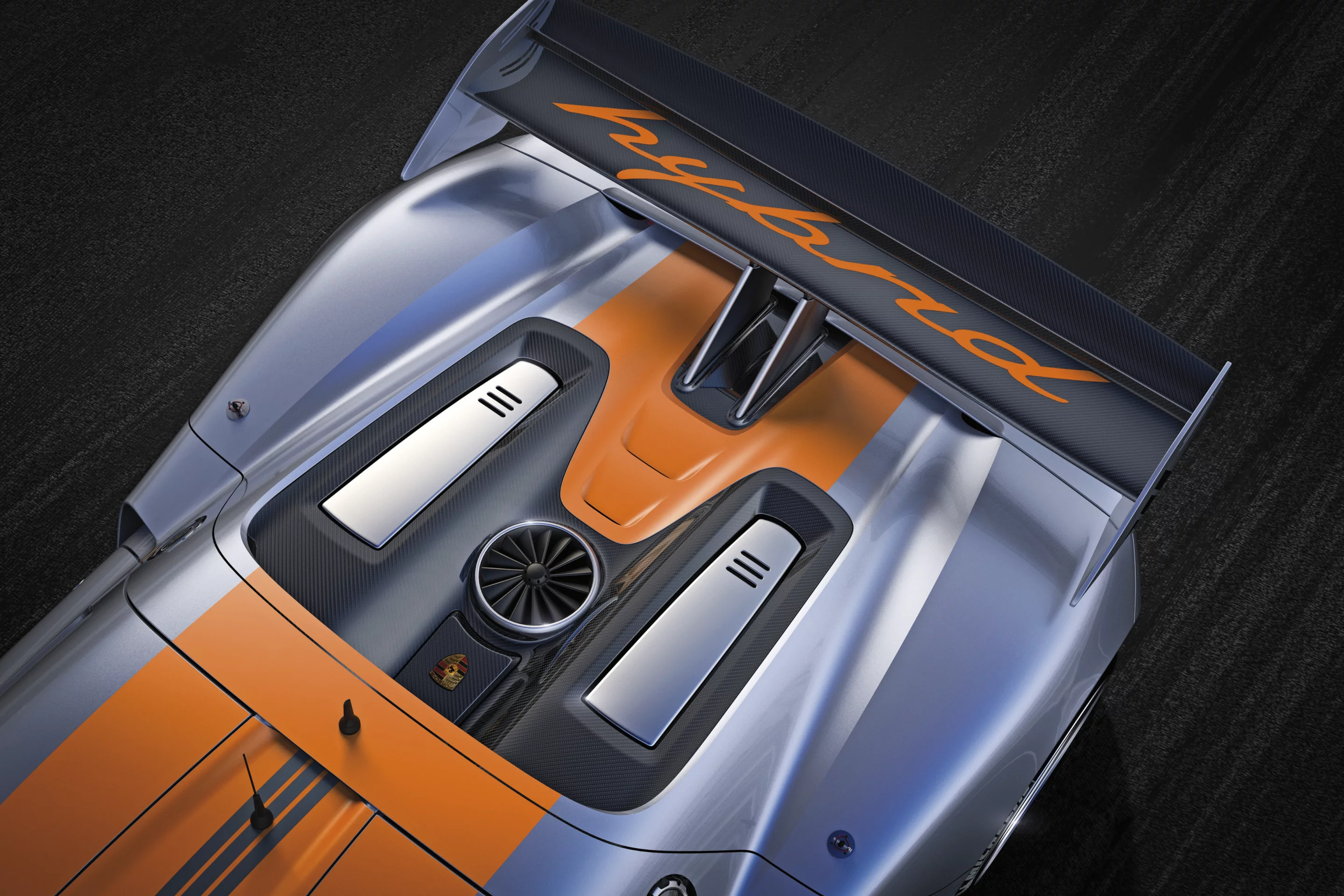

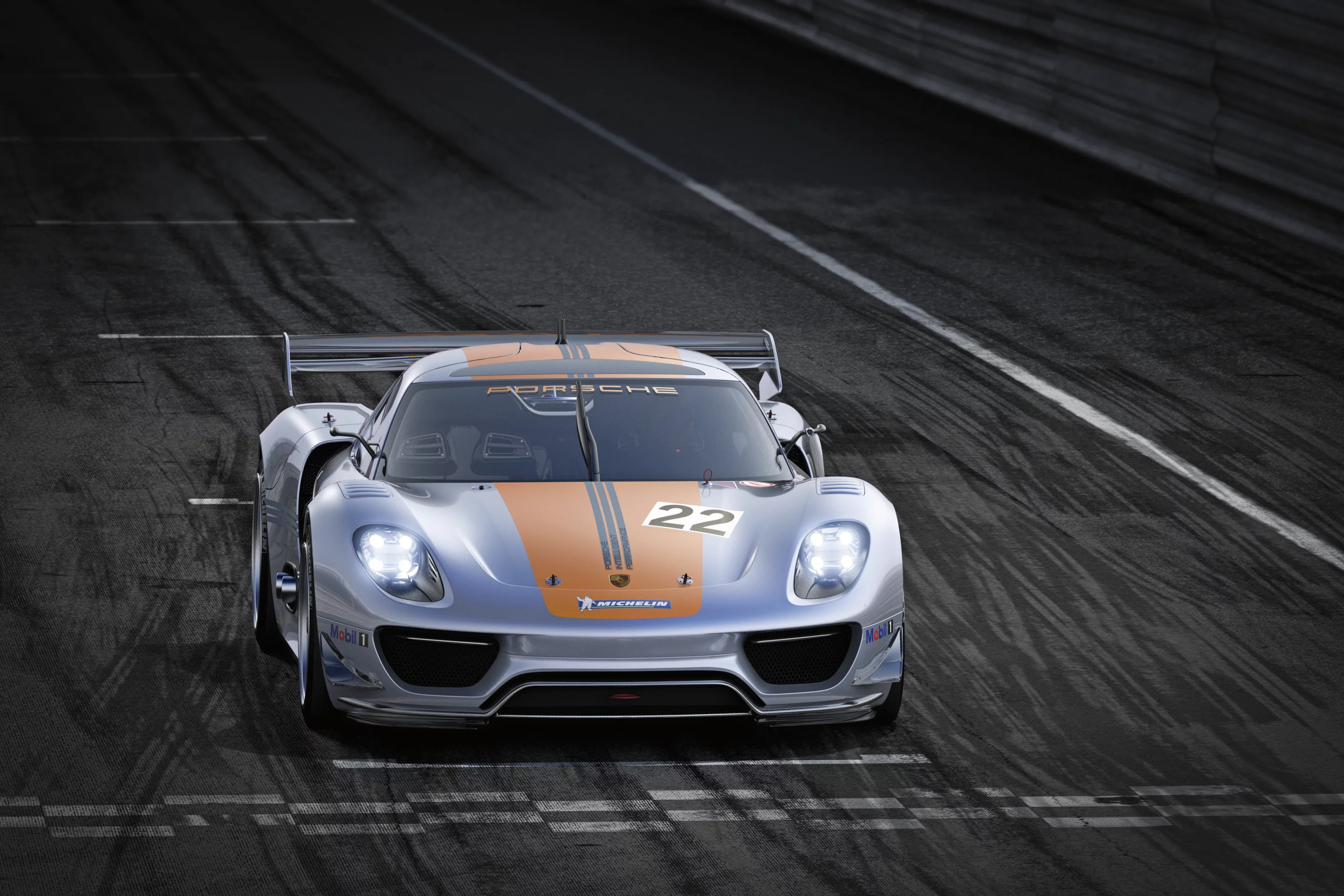

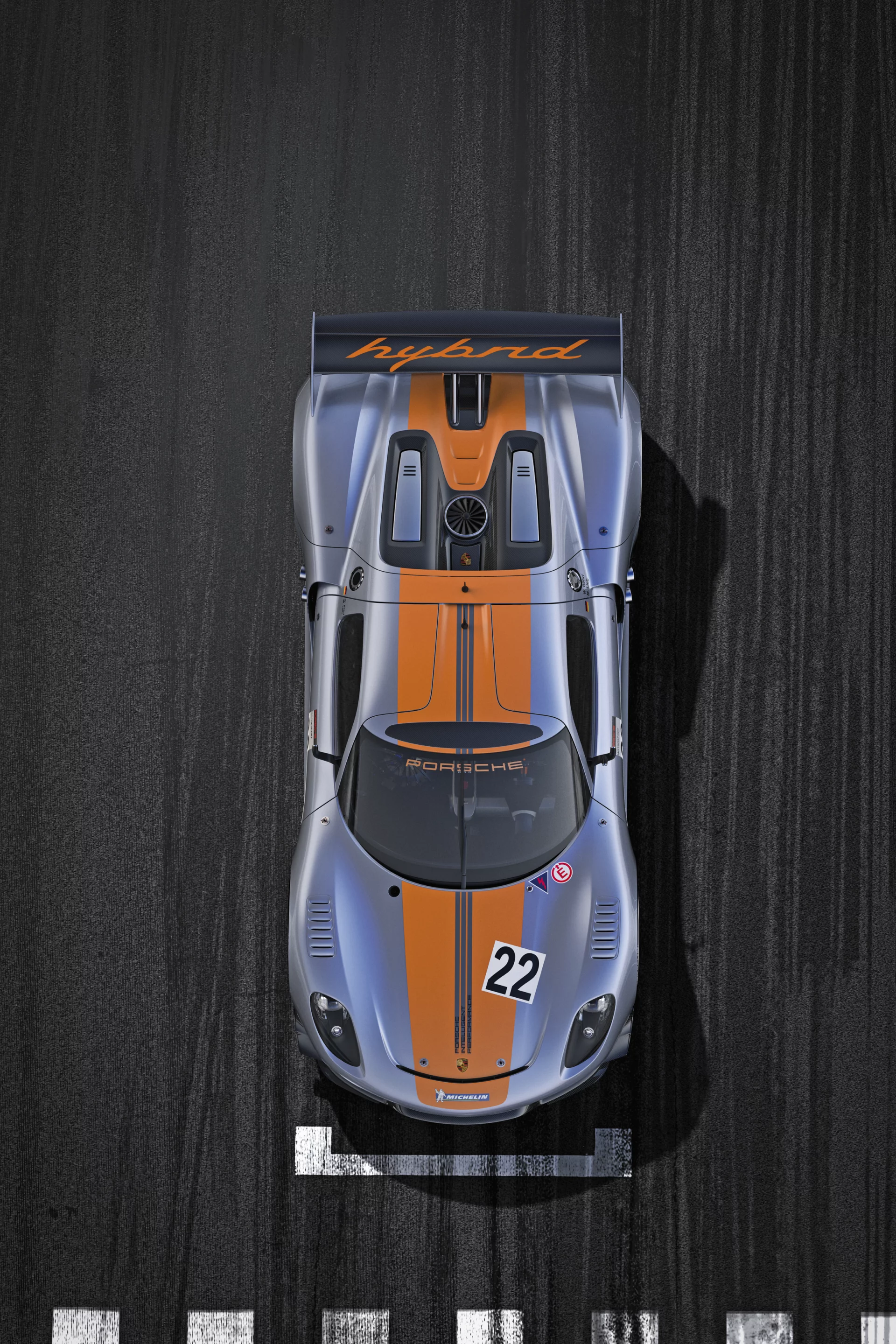

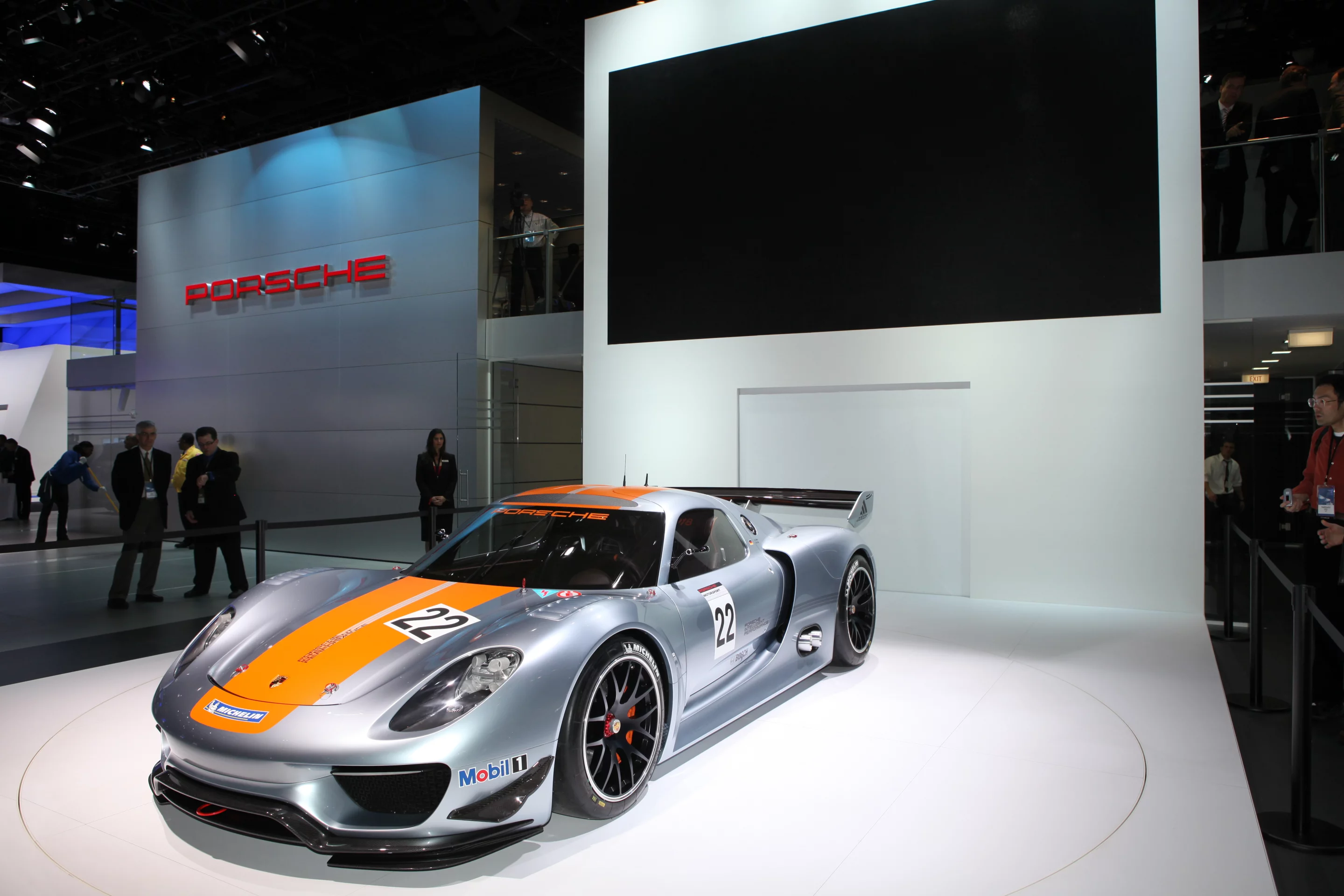

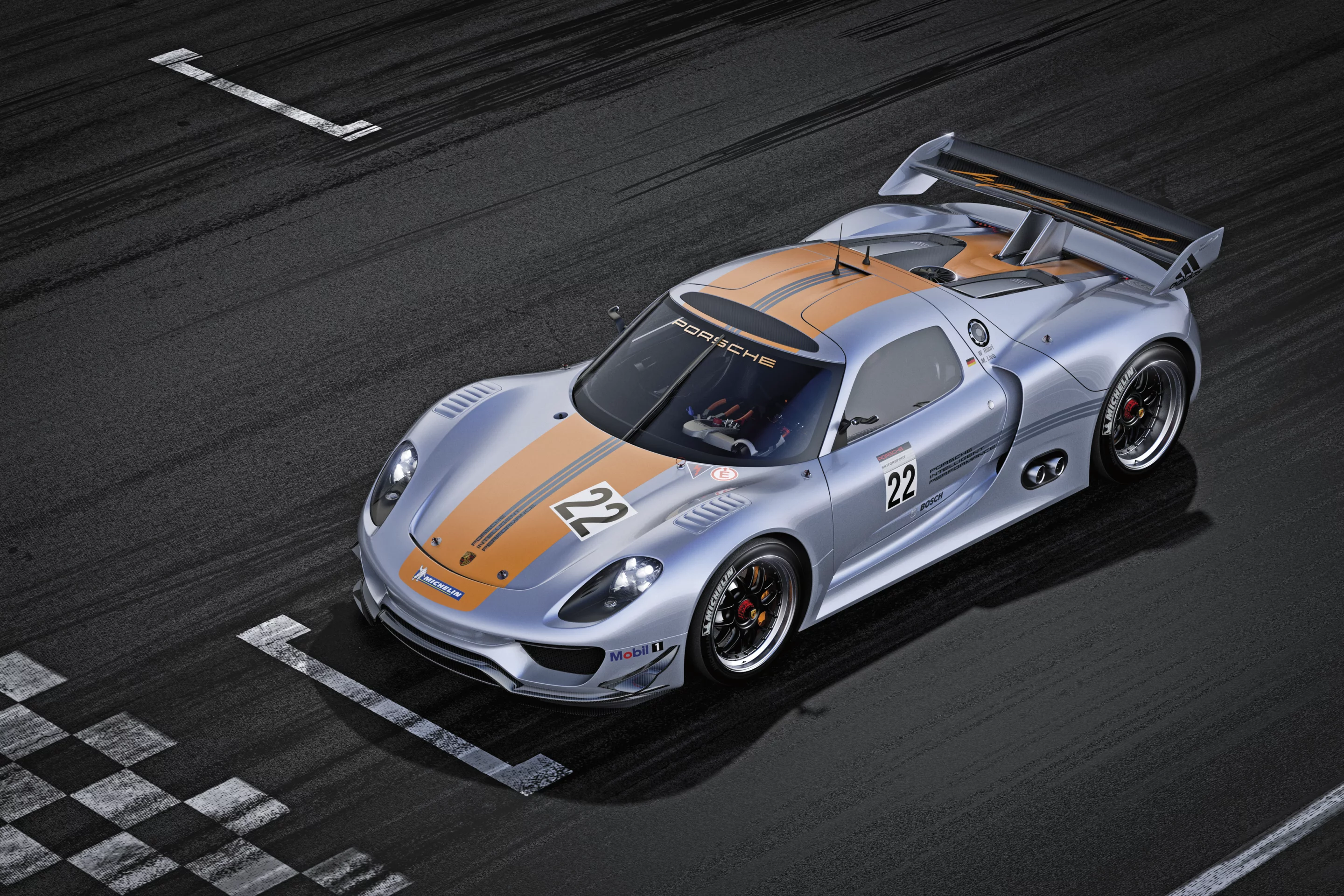

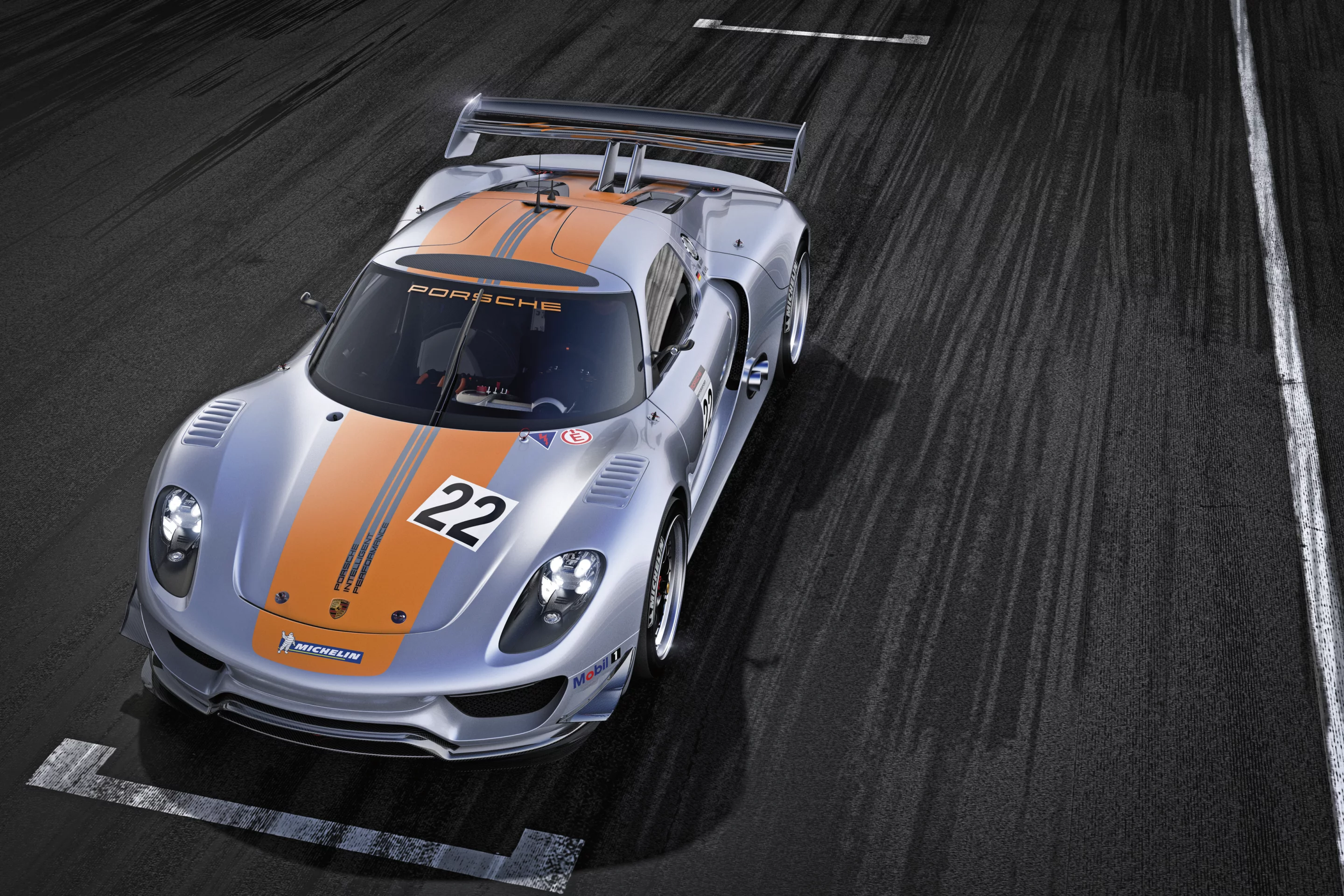

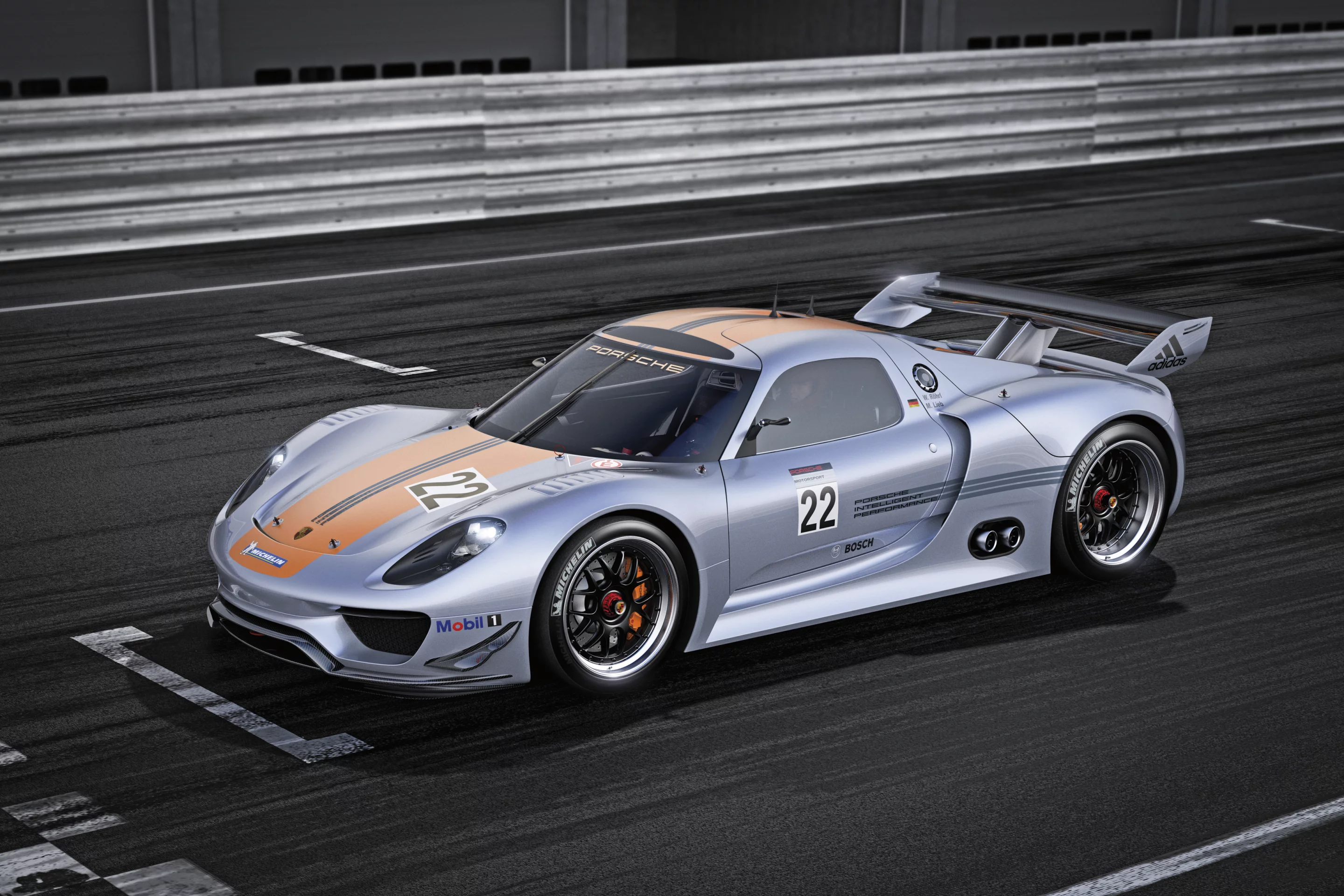

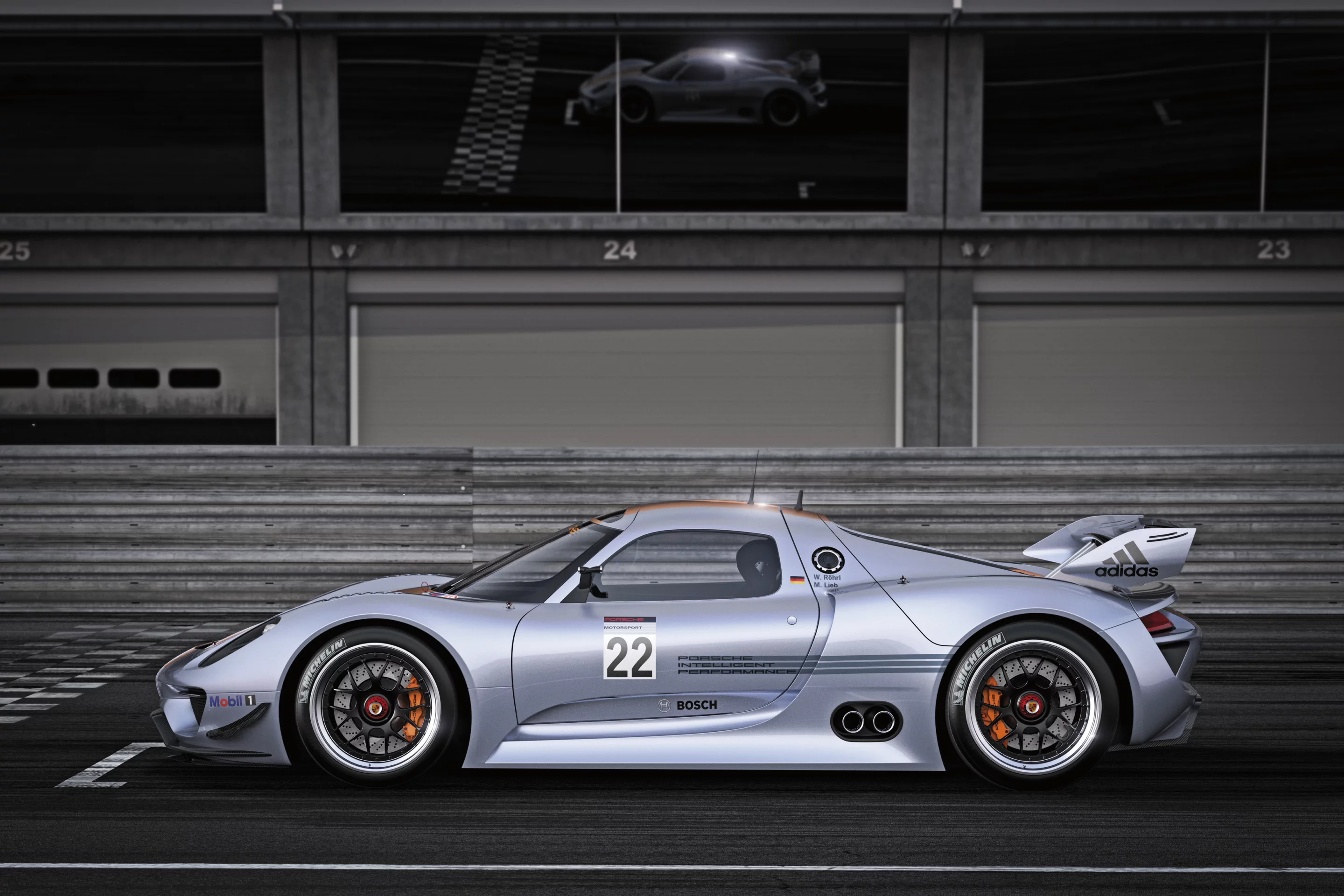

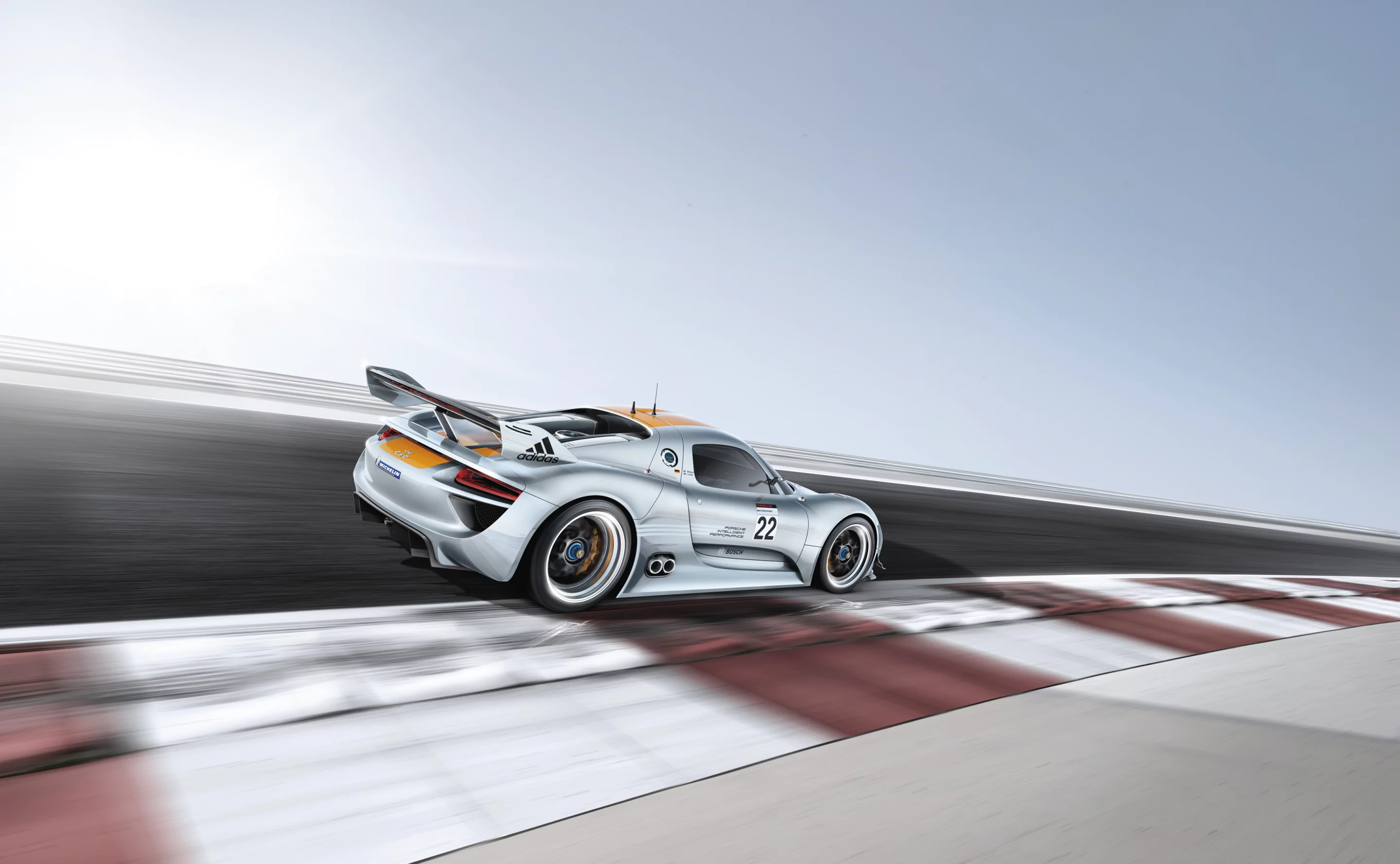

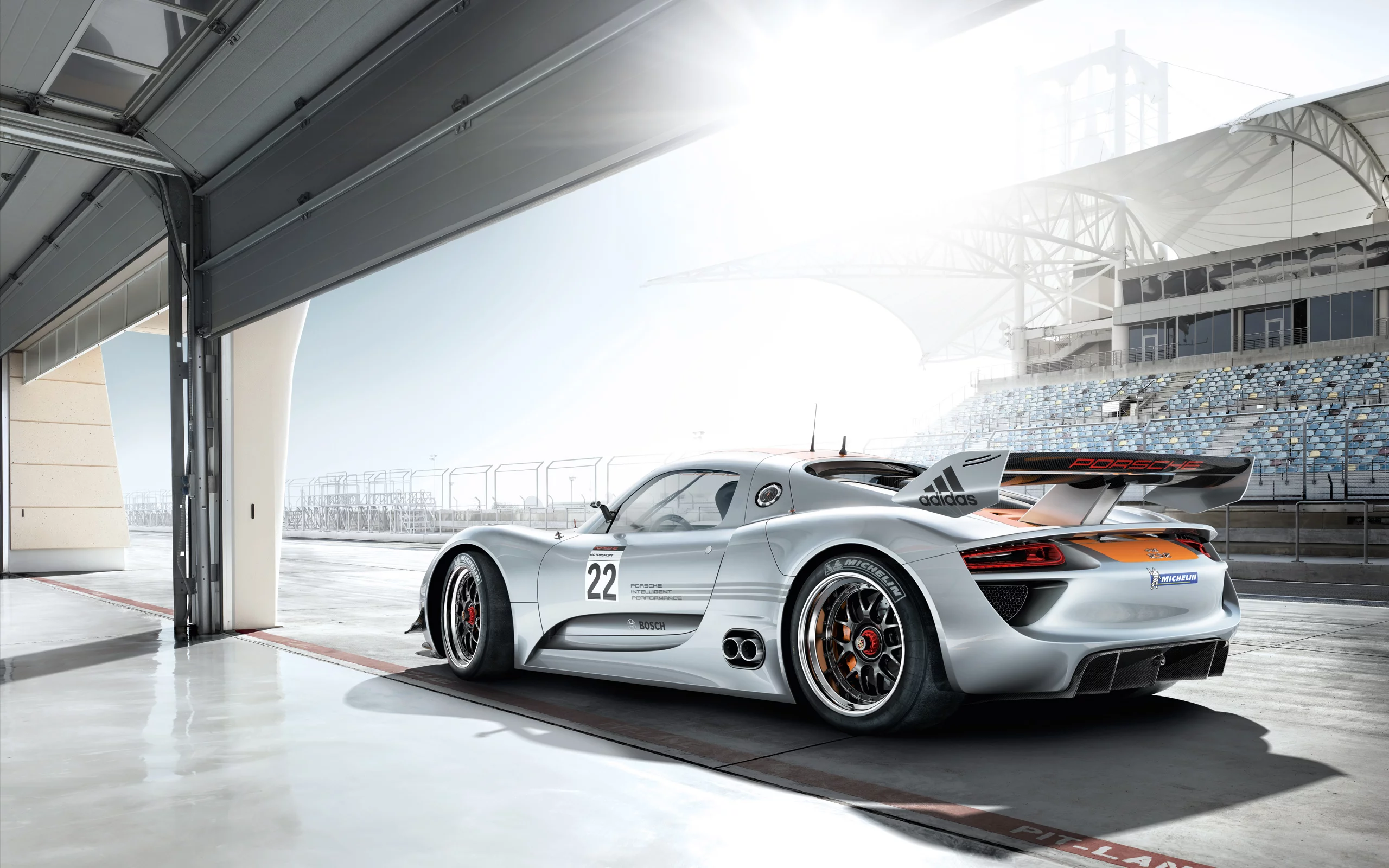

In January 2011, Porsche announced the 918 RSR at the North American International Auto Show in Detroit.

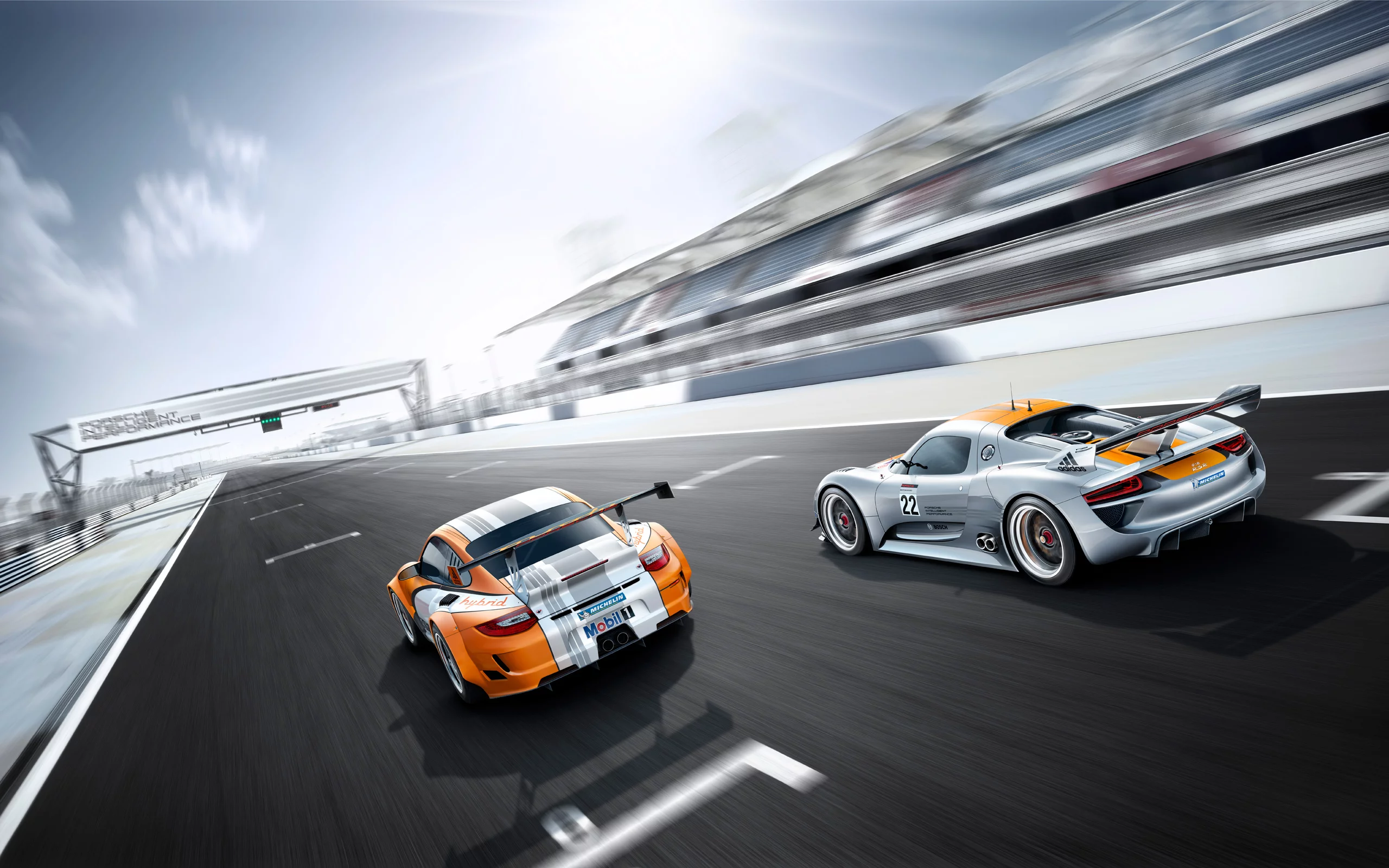

The RSR spliced the drivetrain from the race-winning 911 GT3 R Hybrid into a roofed version of the original 918 Spyder for a vehicle that produced 767 bhp.

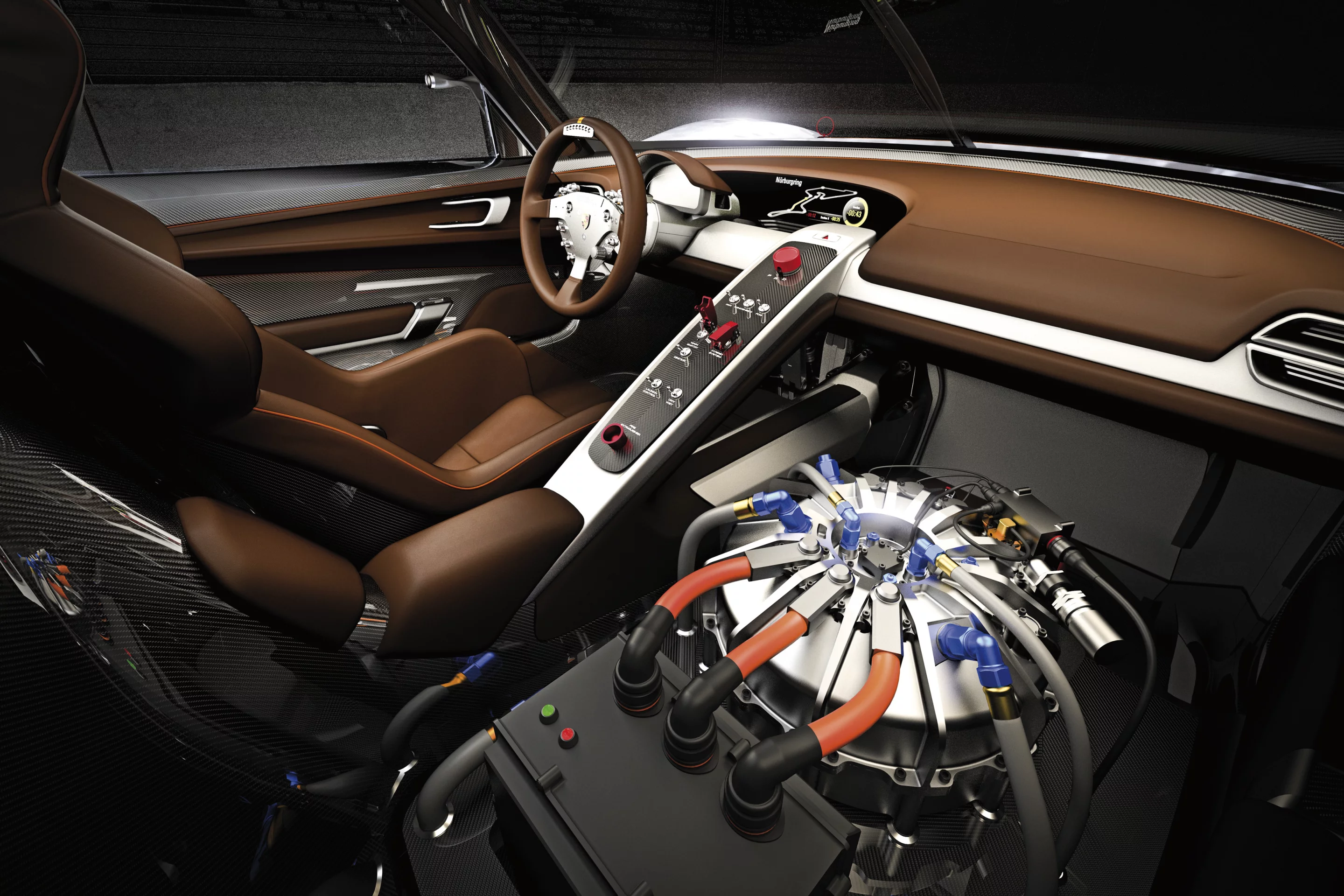

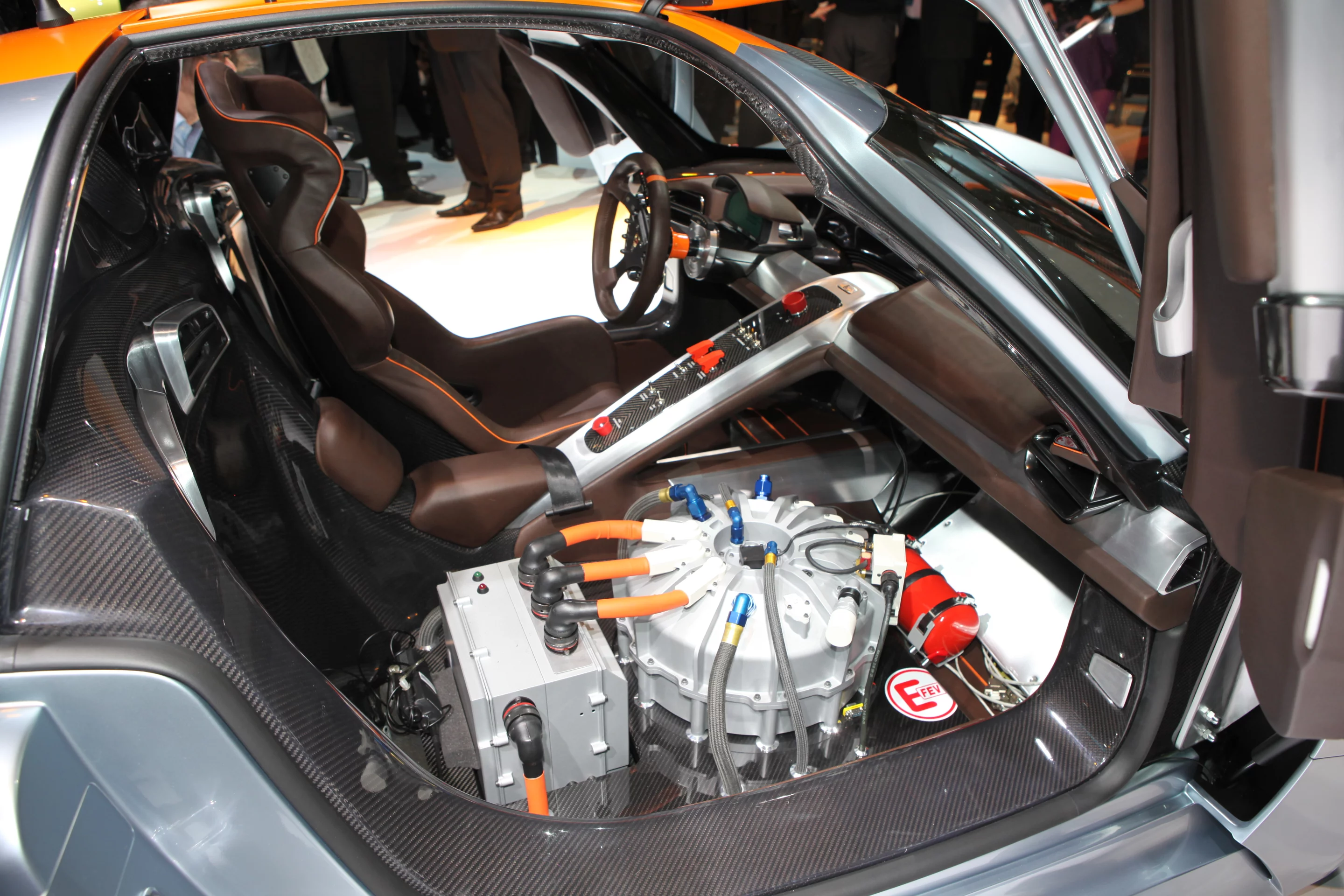

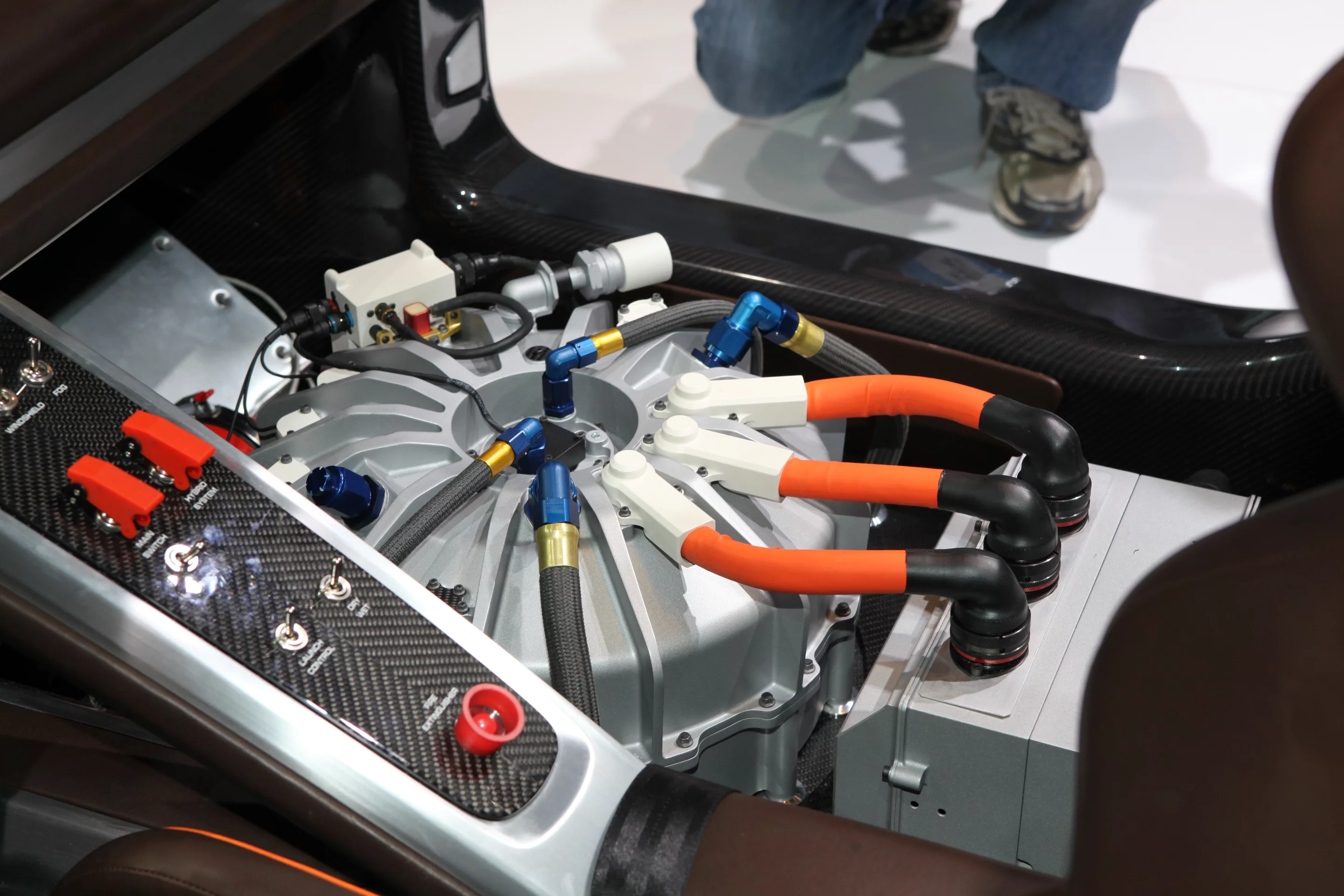

The 767 horses was a combination of a 563 bhp direct injection V8 engine and two 75 kW electric motors. The biggest difference to the normal battery-electric-hybrid system was the 36,000 rpm Williams Hybrid Power flywheel which sat next to the driver and accumulated energy harvested from braking.
This additional power was then delivered through the front wheel electric motors at the push of a button, giving the driver 150 kW of "on call" power boost for up to eight seconds duration.
The order books were officially opened for the 918 Spyder in March 2011 with an asking price of US$845,000 and the news that no more than 918 units of the new two-seater supercar would be produced, beginning in September 2013.
The latest update from Porsche, shown directly above, is all good news. Production scheduling for the 918 Spyder has not moved, and the latest incarnation of the 918 Spyder has more horsepower and drivability – not usually the direction things go for horsepower, looks and functionality when a car metamorphoses from concept to reality.
Indeed, it's fair to say that the 918 Spyder has evolved and is evolving to become a better vehicle than the original. It seems that Porsche is at least partially using the limited edition Spyder as a sort of technology demonstrator with the full carbon fiber reinforced plastic (CFRP) monocoque, fully adaptive aerodynamics, adaptive rear-axle steering and the upward-venting “top pipes” exhaust system.
Hence, if you can find a spot on the list and have the readies, it's likely to become a collectors car of some note if you wish to have an investment that isn't likely to bear fruit for a few decades, but will delight you daily in the meantime.
The supercar now has 770 bhp and will run past 320 km/h (200 mph), accelerate from 0-100 km/h in under three seconds and can lap the legendary Nurburgring Nordschleife circuit in seven minutes 22 seconds.
The 918 Spyder still has the same fuel consumption of 3.0 l/100 km (94 mpg) and 70 g/km of carbon dioxide emissions that were originally announced, but more horsepower, and no doubt, more drivability.
That is the sort of frugality one normally associates with a finely tuned, ultra light weight commuter car with an incredibly small petrol engine, it yet comes from a vehicle with more power than most race cars.
The 918 Spyder's new drive train comprises a mid-engined 4.6-liter V8 producing 570 bhp, and the additional 200 bhp is provided courtesy of the electric motors.
There's not much doubt we're seeing the next model Porsche supercar being developed in these images, and one of the remarkable aspects of what has been released is that most of the technical information is not written so much as contained in the images that have been released by the German marque.

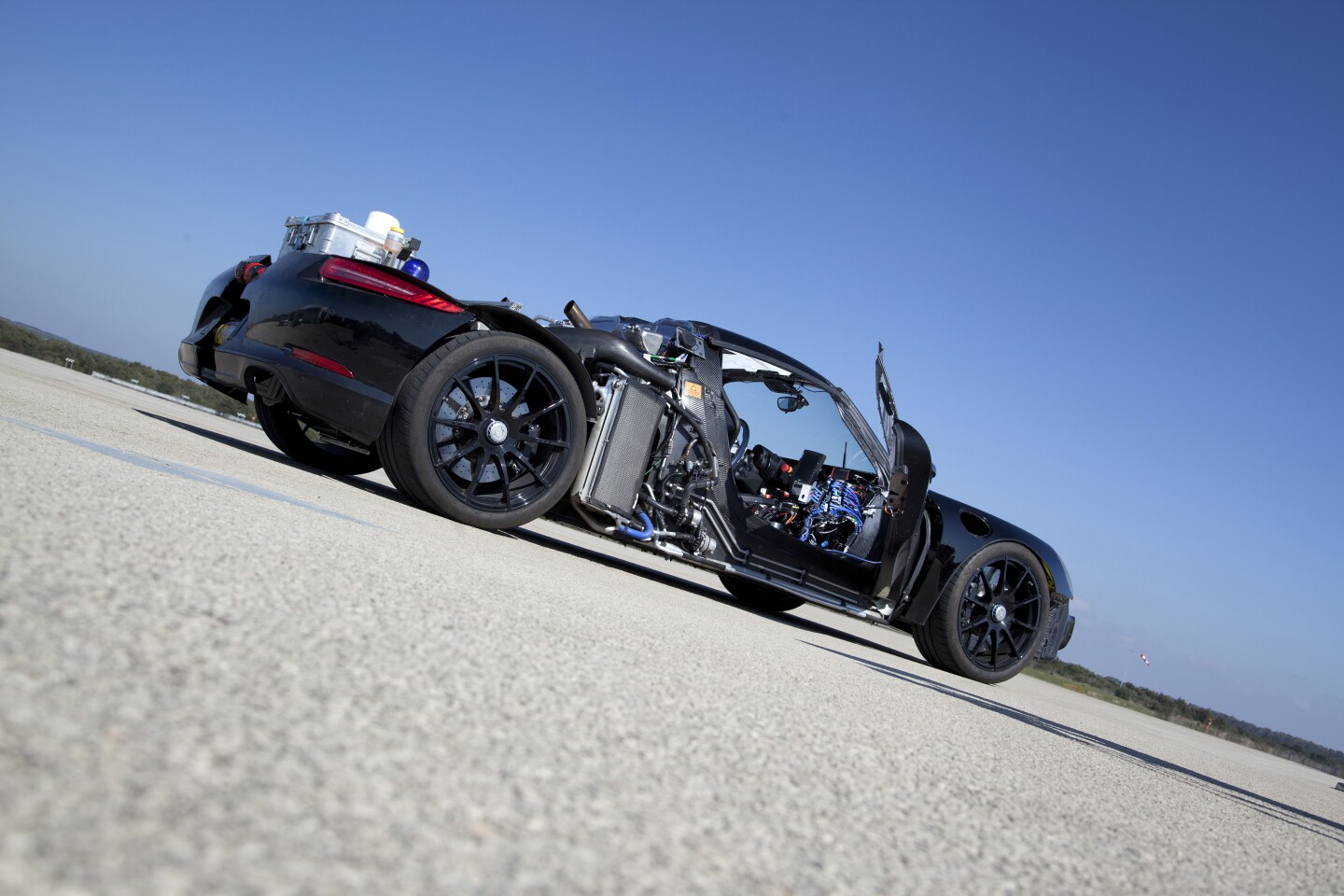

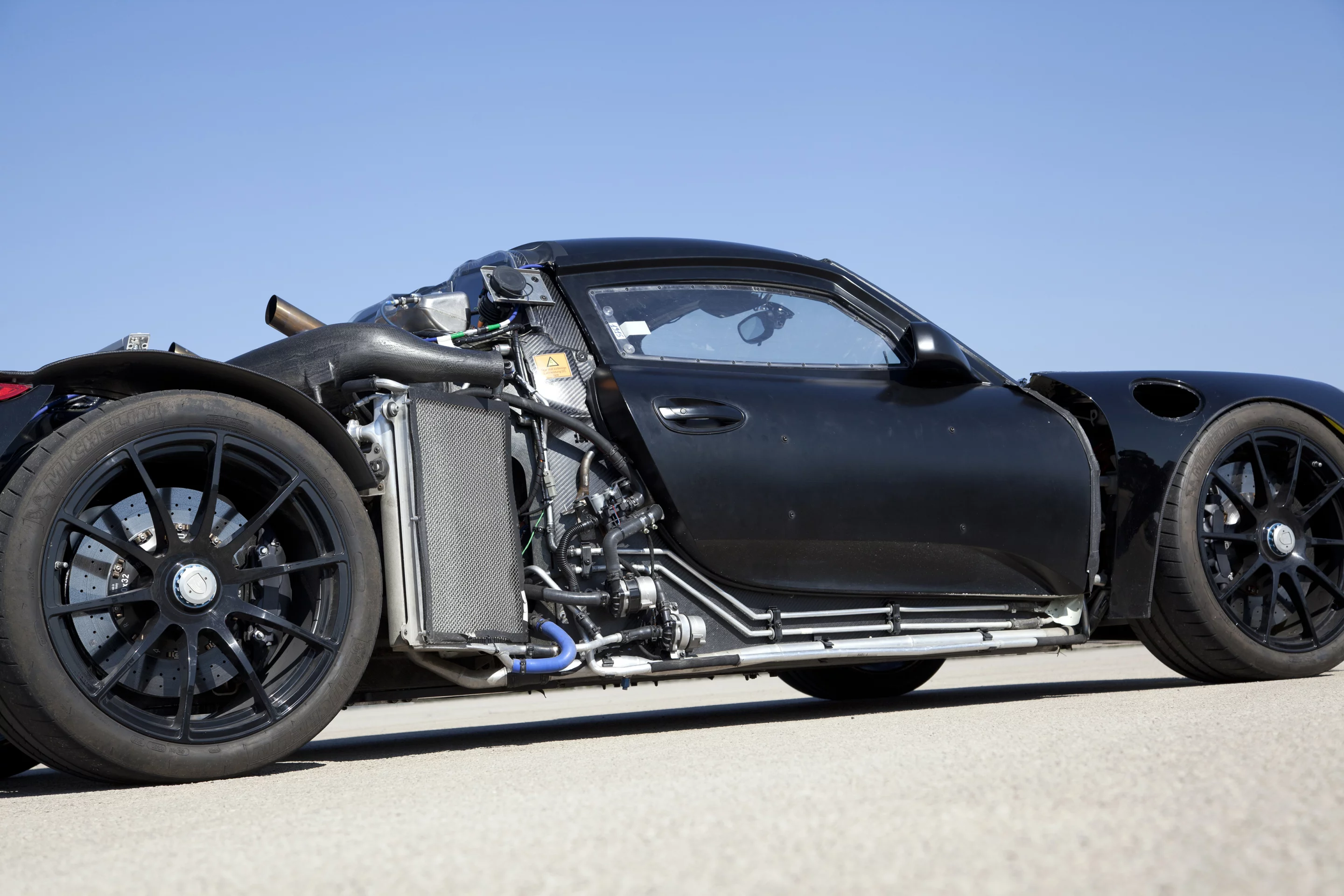

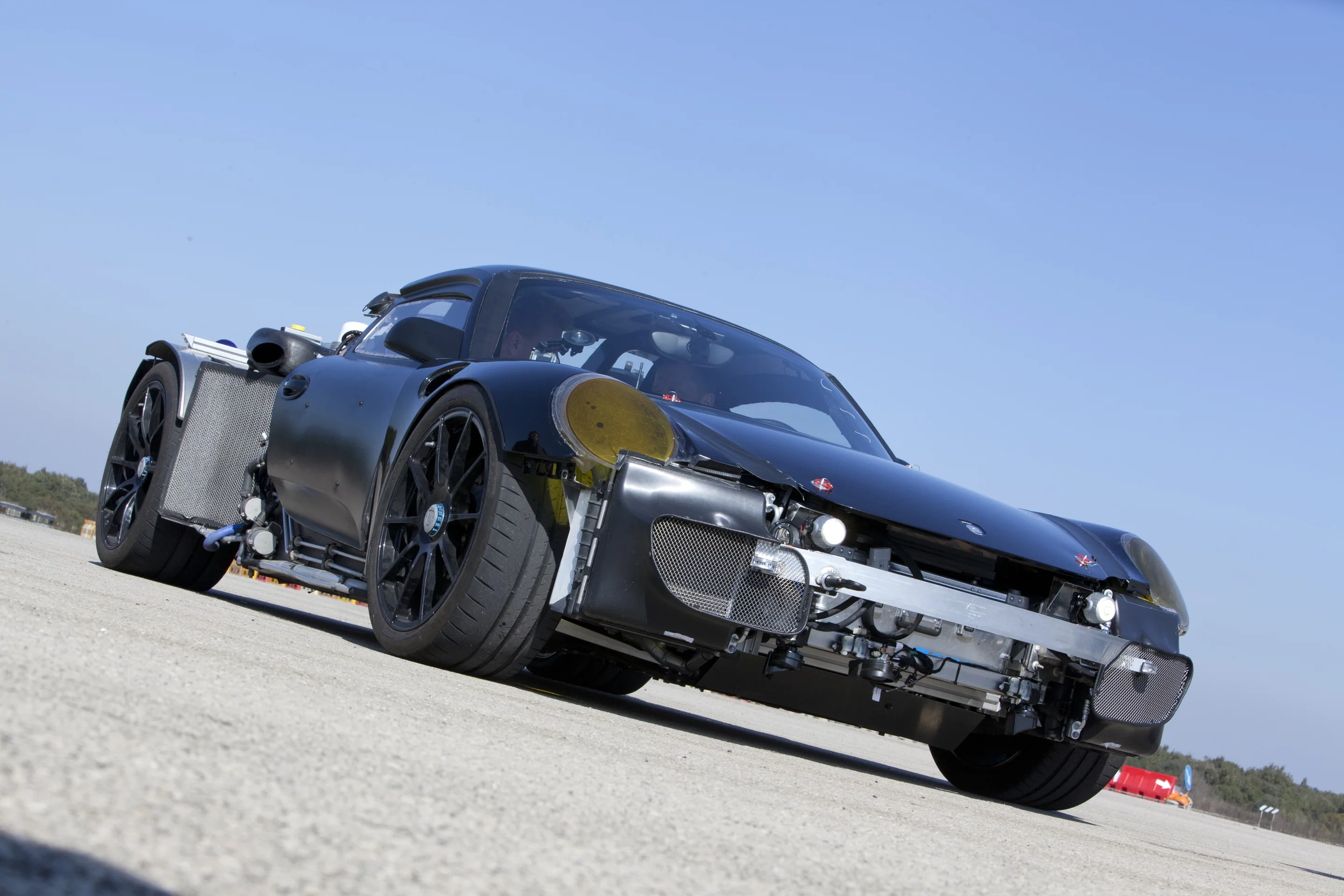

The images of the vehicle without its skin offer some remarkable insights into the extraordinary amount of development work that has gone into, and continues to go into the vehicle.

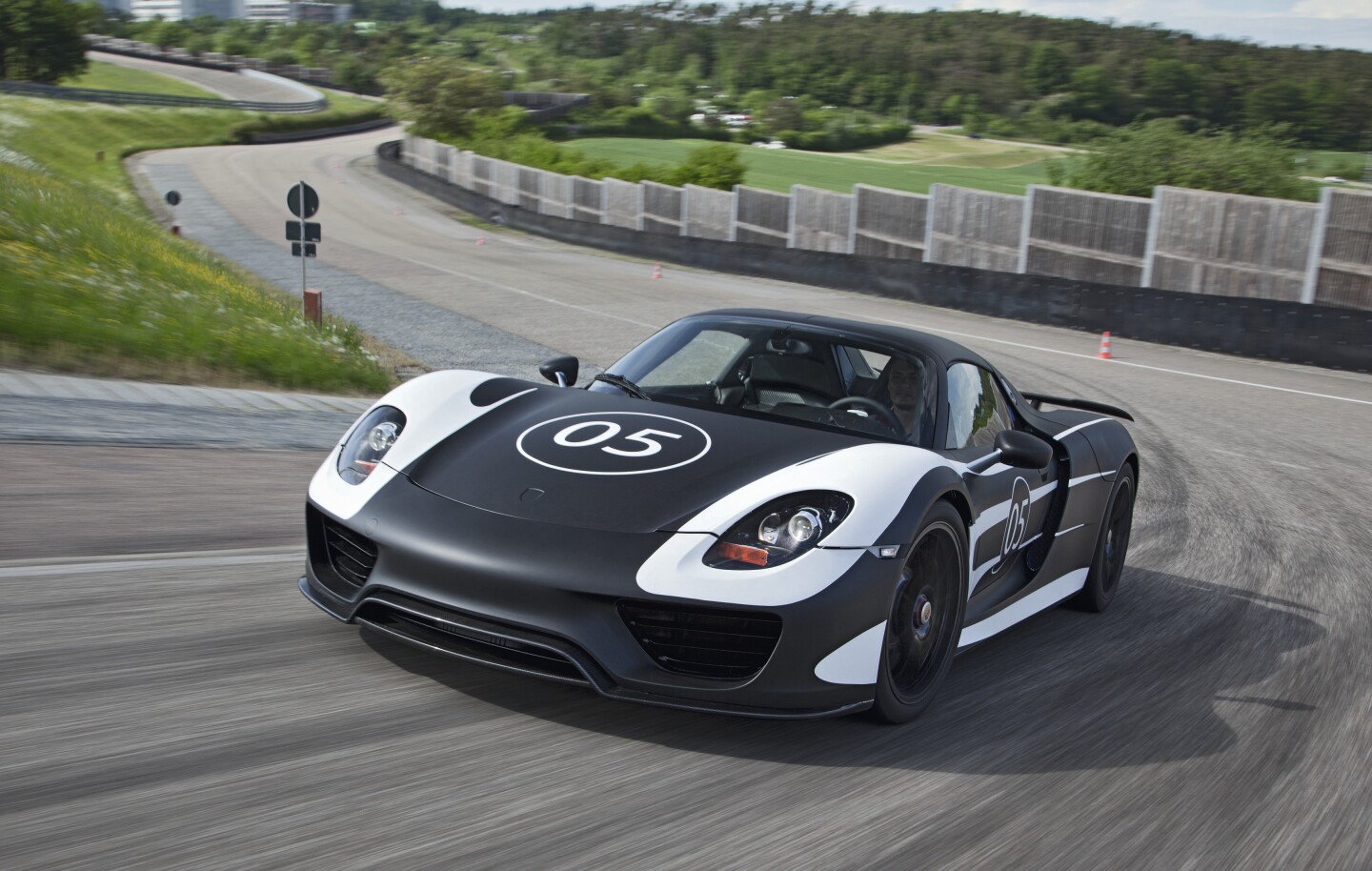

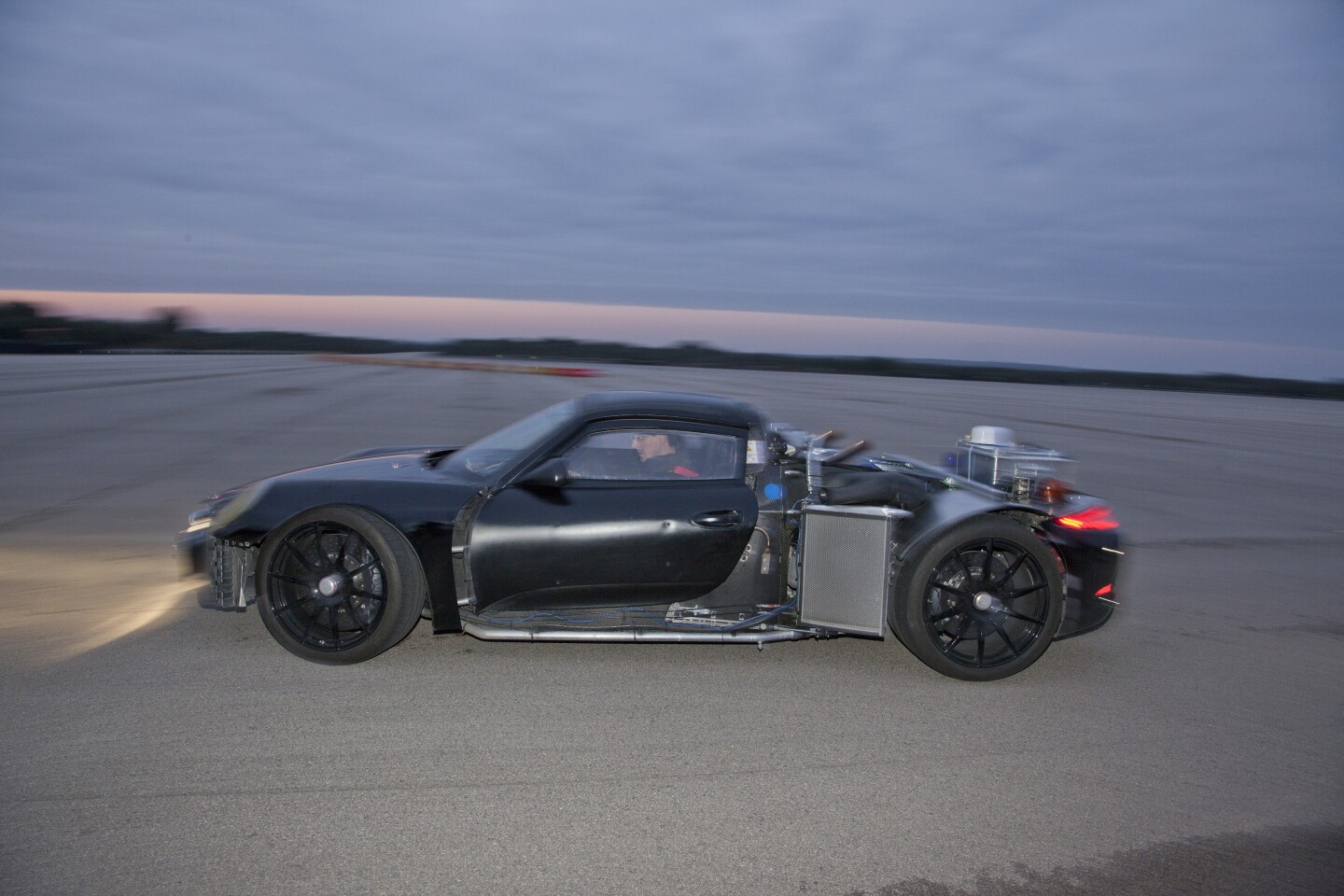

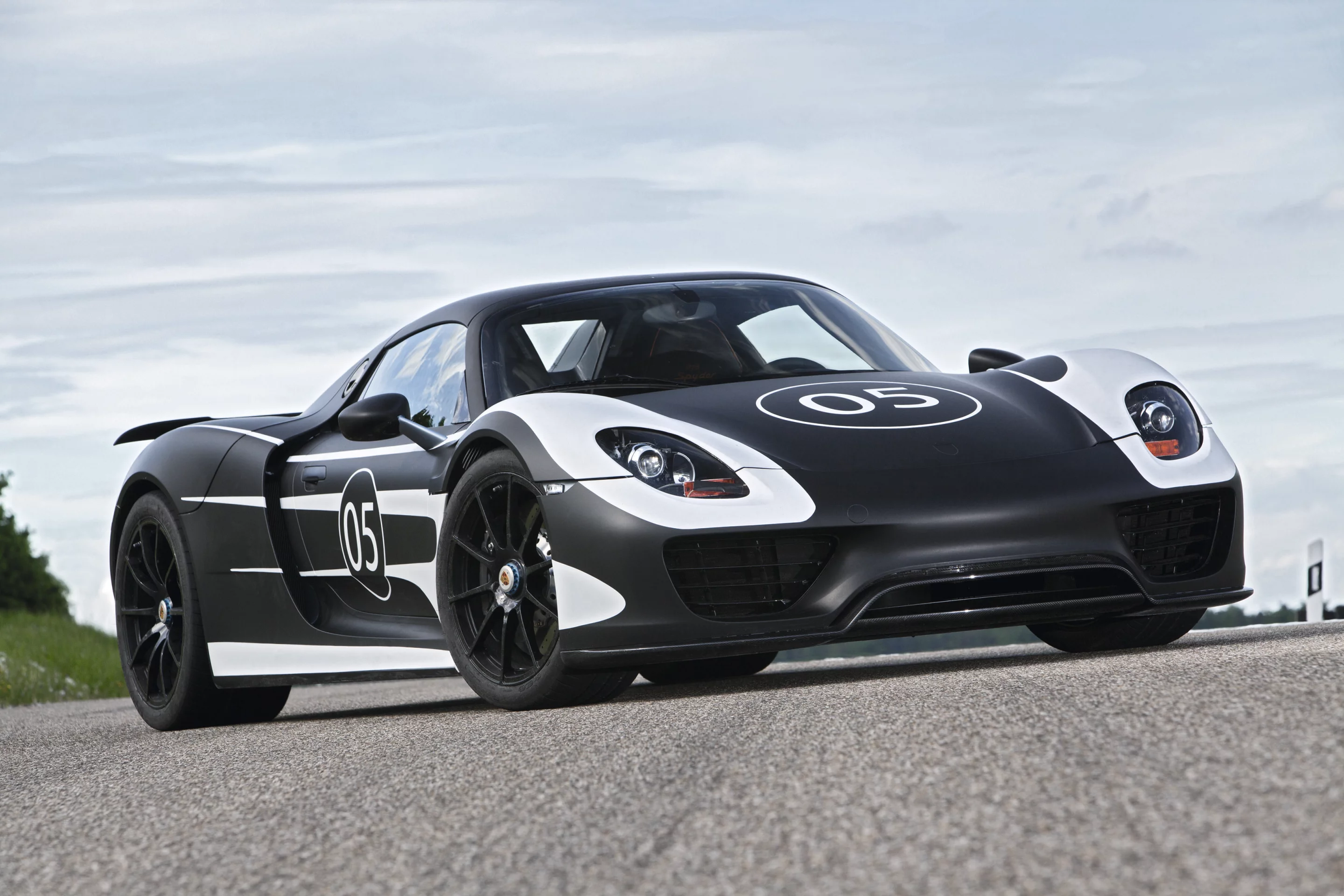

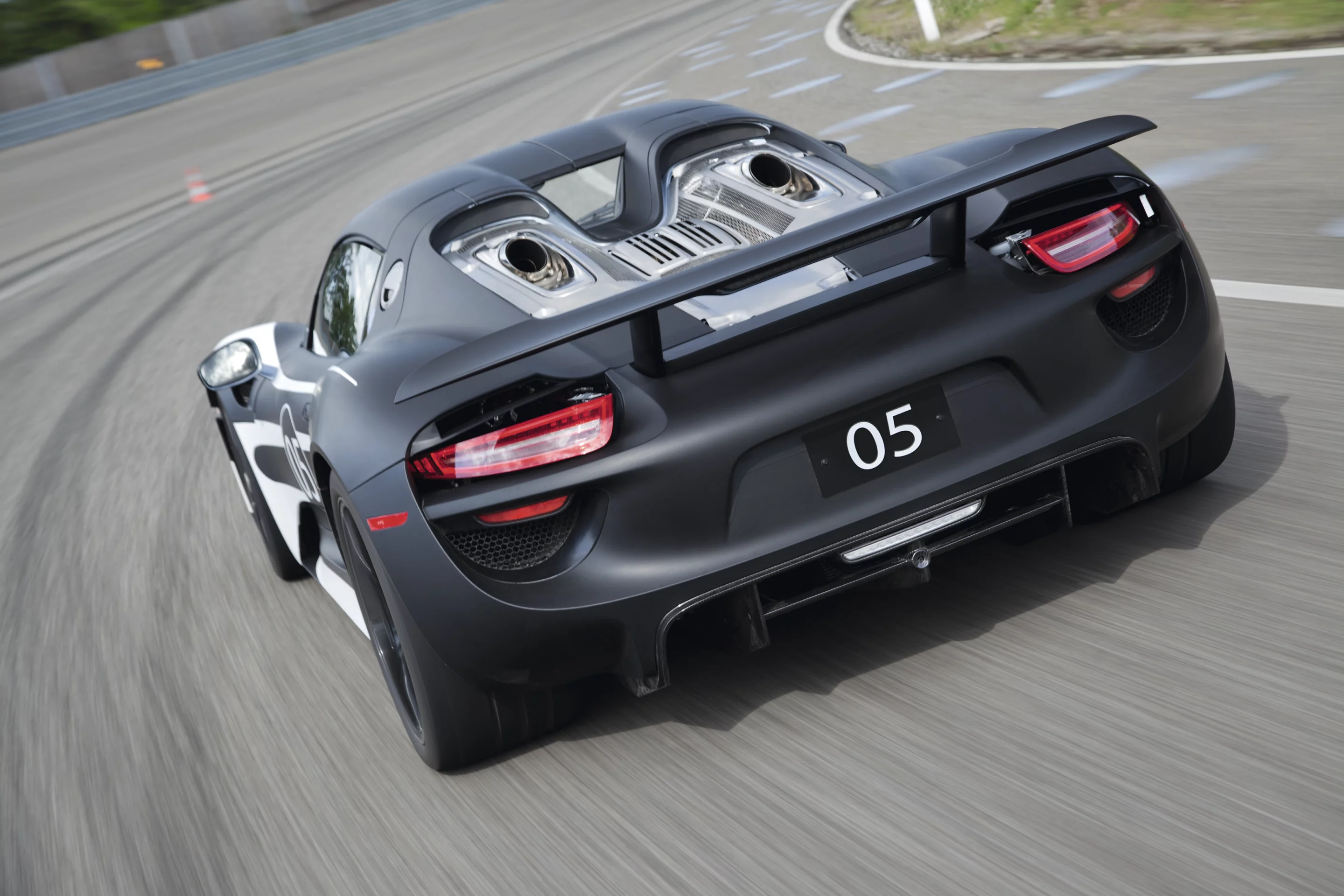

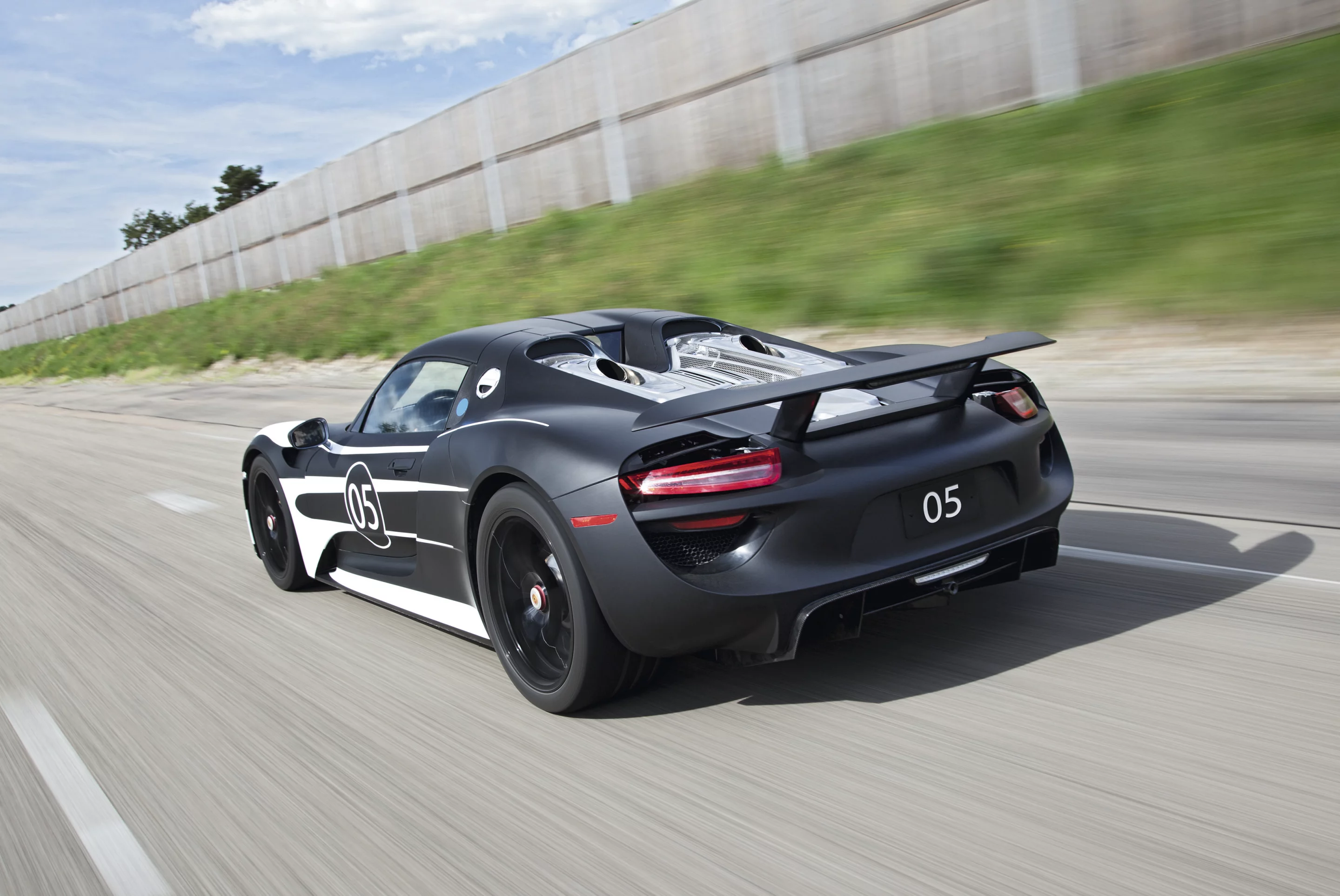

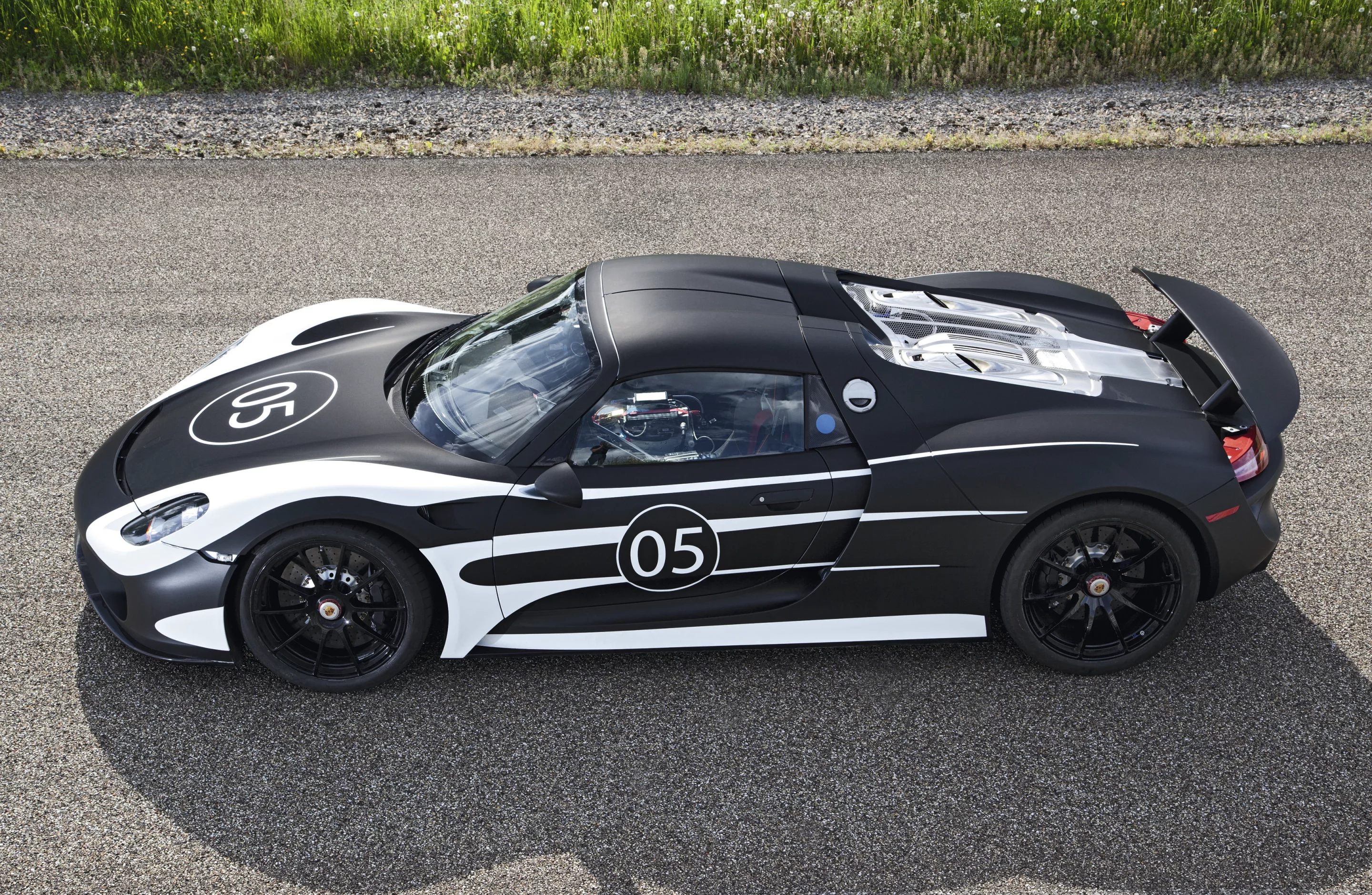

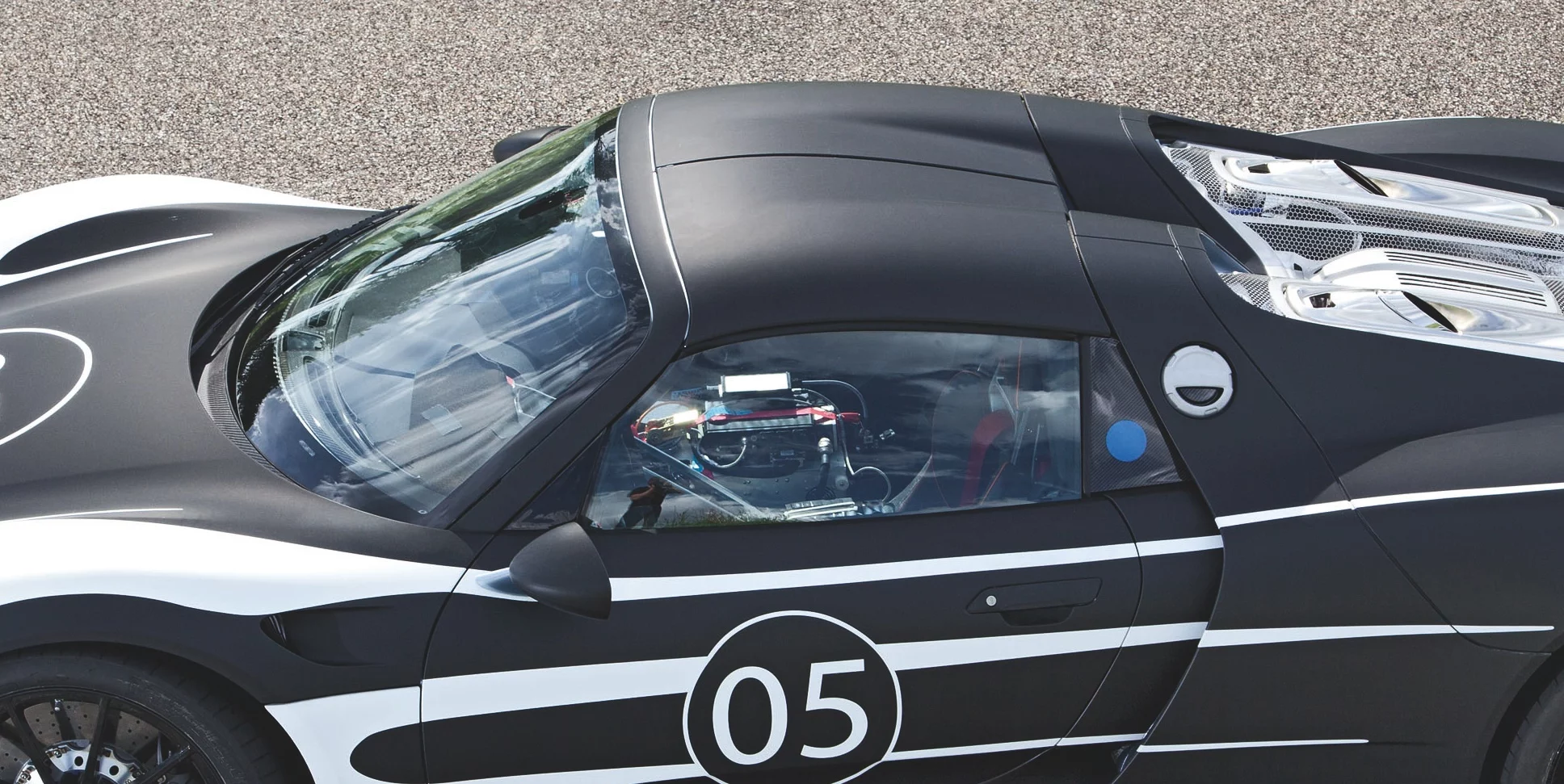

The initial prototypes of the production 918 Spyder were recently completed and began real world testing with the car still scheduled in showrooms prior to the end of 2013.
The prototypes feature color schemes inspired by the iconic Porsche 917 race car liveries of the late sixties and early seventies, as was the color scheme of the RSR shown in Detroit just 15 months ago.
At that time the RSR was shown, Porsche had this to say on the relationship between the frighteningly fast 917s and the coming 918 RSR: "From the tradition established by classic Porsche long-distance race cars such as the 908 long-tale coupé (1969) and the 917 short-tail coupé (1971), the Porsche designers created a link to the postmodernism of the 'form follows function' philosophy."
"In the 918 RSR, the lines' elegant flow is dominated by muscular wheel arches, dynamic air intakes and a pulpit-like cockpit. A visible fan wheel between the ram air intake tubes and a rear spoiler with RS Spyder dimensions additionally emphasize the racing laboratory function."

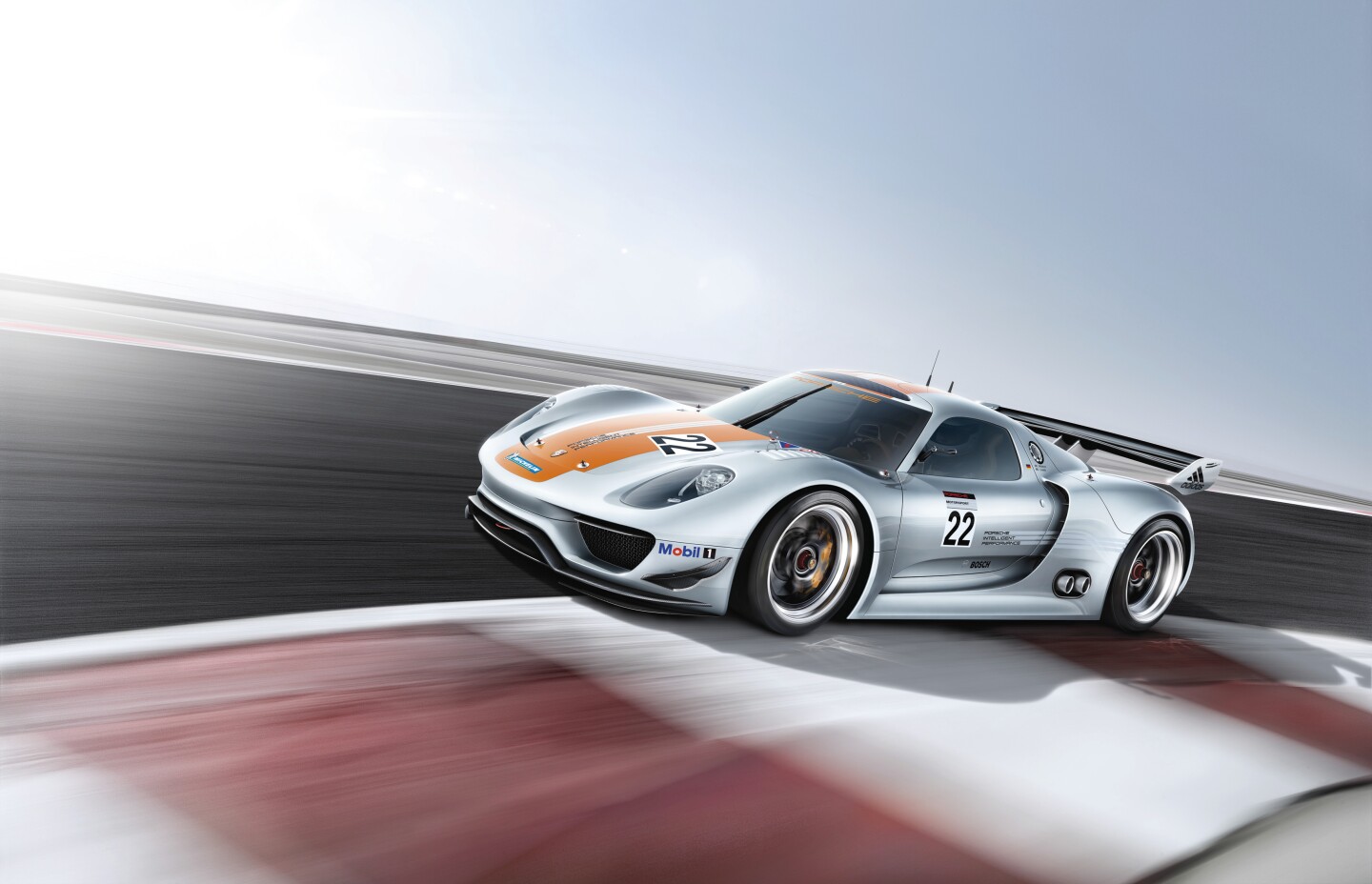

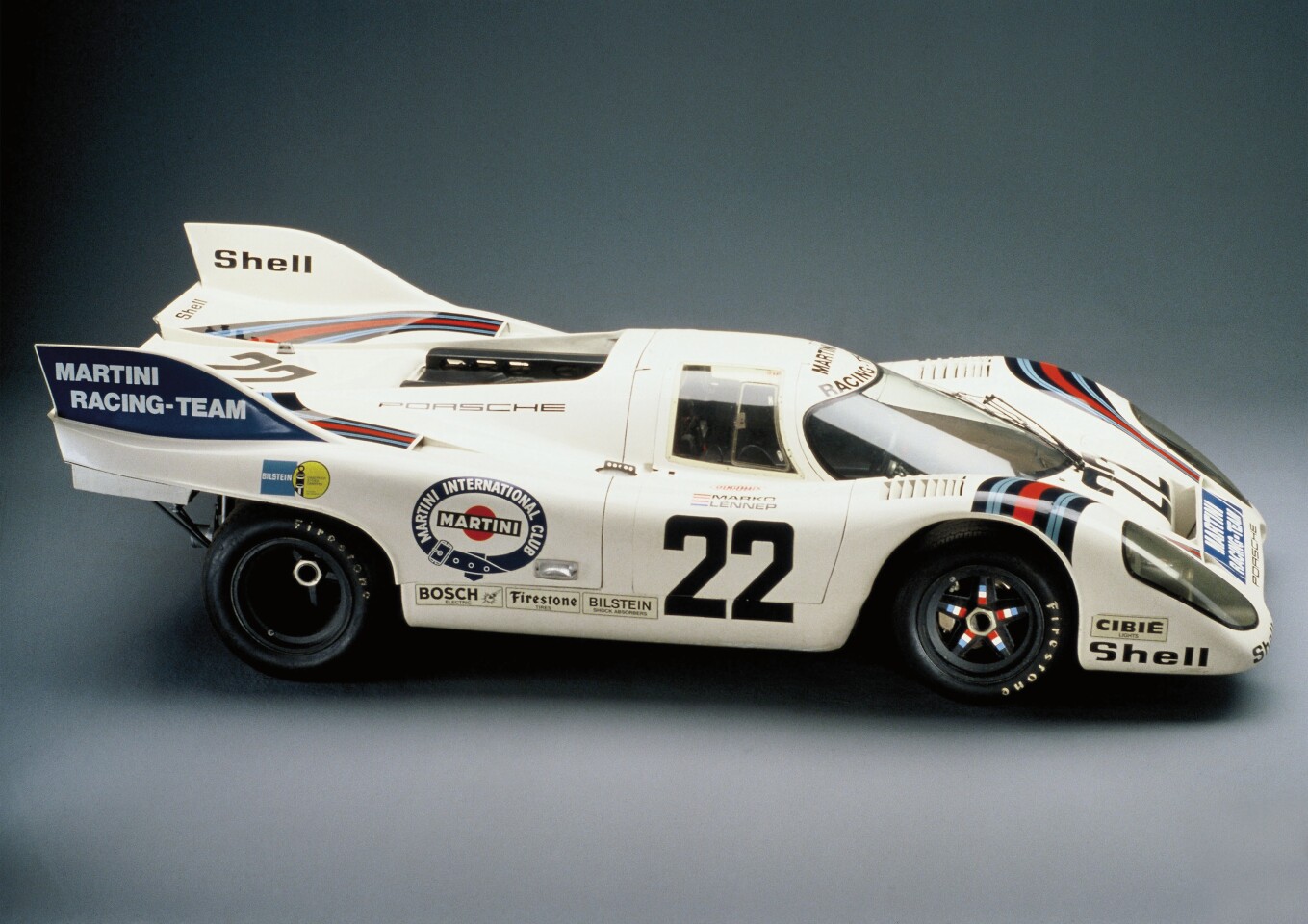

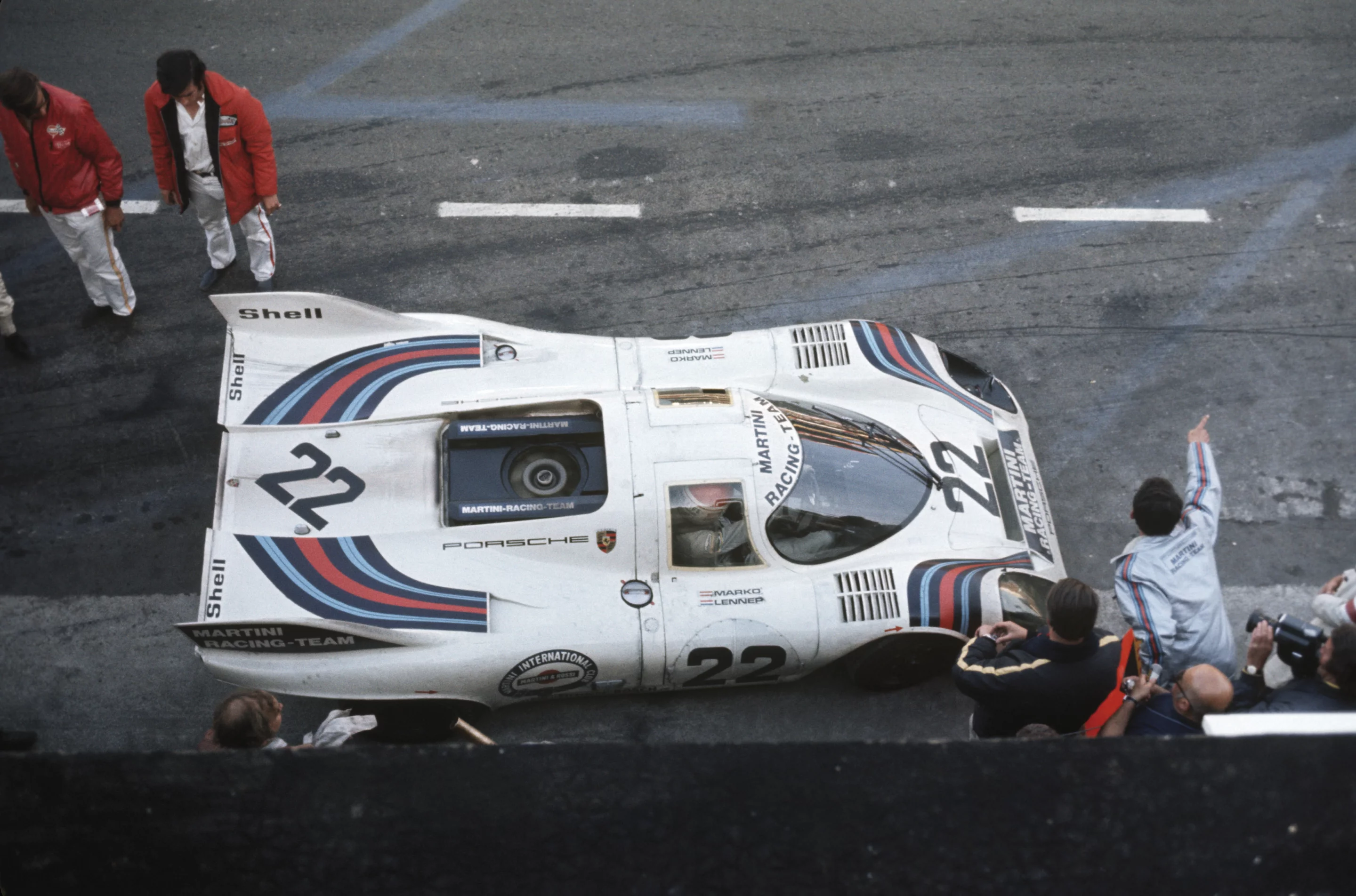

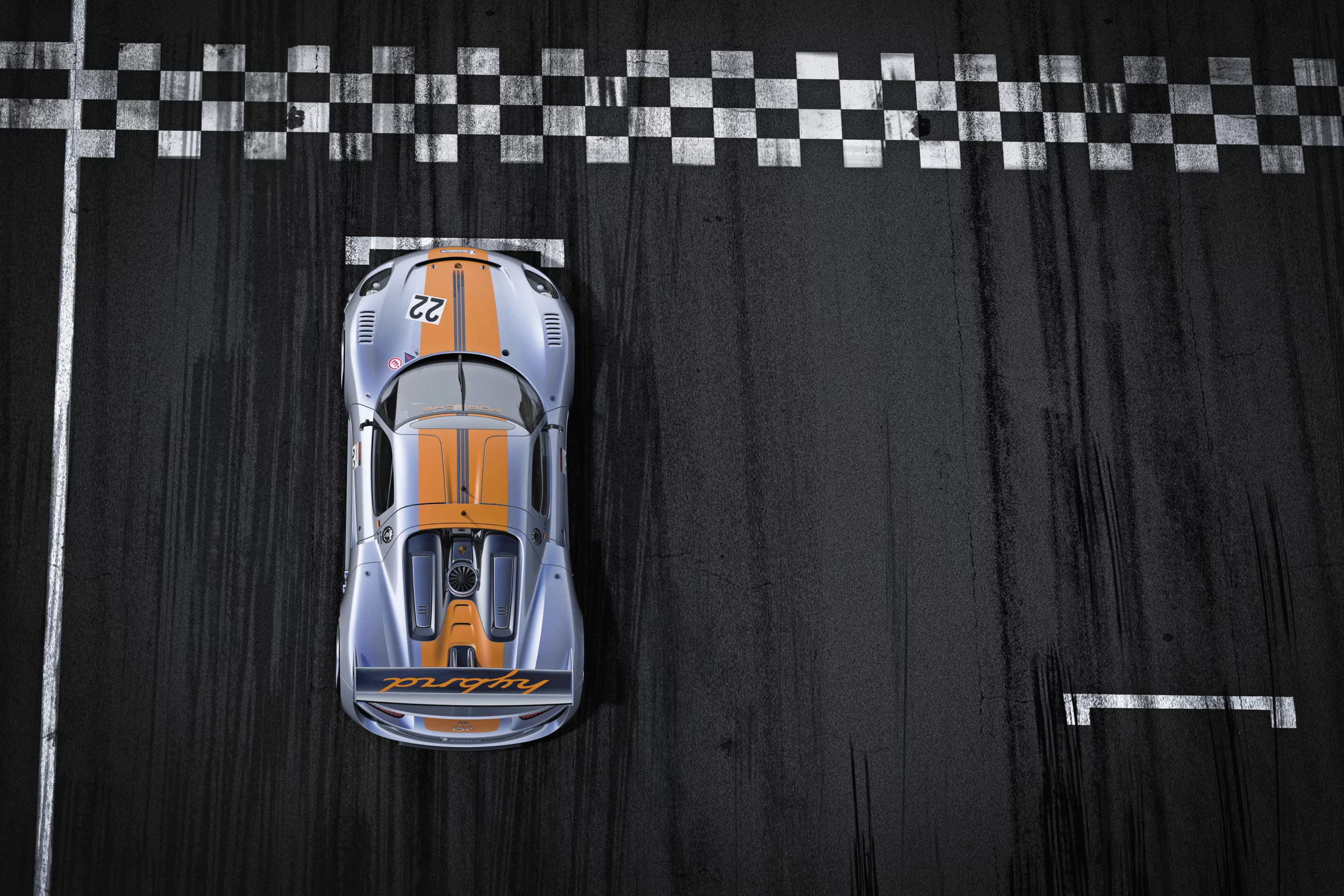

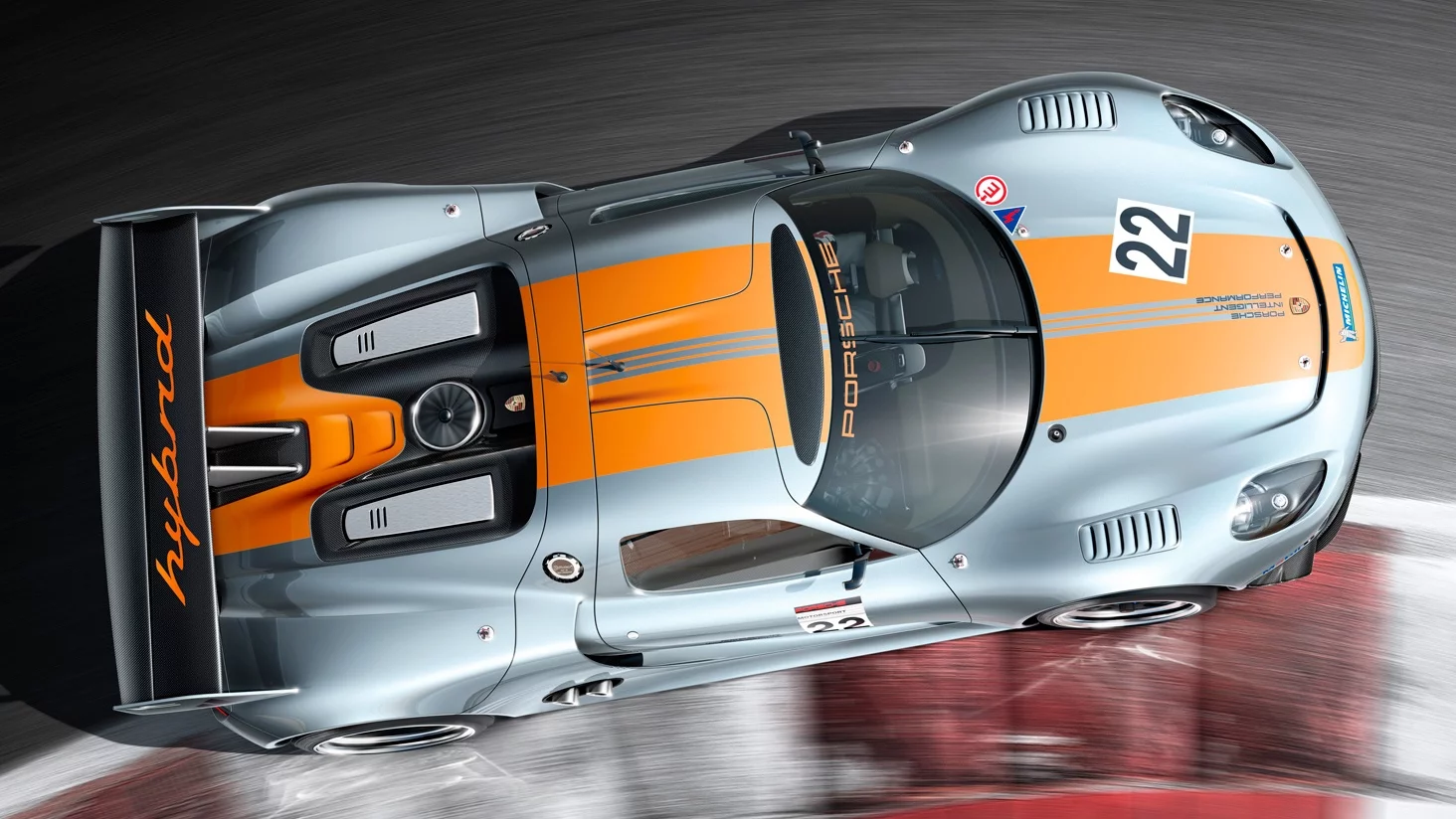

The RSR's "liquid metal chrome blue" color and number 22 paid tribute to the 1971 Le Mans win by Dr. Helmut Marko and Gijs van Lennep in a Porsche 917 short-tail coupé. The pair raced 5335.313 kilometers (3315.21 miles) at an average speed of 222.304 km/h (138.13 mph) – a mark not bested until 2010. Marko is now one of the key advisors to another not-too-shabby racing team in the form of Red Bull Racing, and has been instrumental in nurturing Sebastien Vettel from junior to double F1 champion.
Though the RSR was a race car and development vehicle, the 918 Spyder is a supercar designed as the legitimate successor to the Carrera GT, and hence improving the Carrera GT’s performance was critical.
The Spyder's time of less than three seconds from zero to 100 km/h bests the Carrera GT by a full second (Carrera GT = 3.9 seconds) and a Nürburgring Nordschleife lap time of 7:22 minutes is a full ten seconds faster than the Carrera GT.
However, the uniqueness of the 918 Spyder is likely to be the drivability offered by the intelligent combination of three power units.
Harmonizing 770 bhp from three different power units is likely to be a strength of Porsche's thanks to its extensive race testing of the 911 GT3 R Hybrid, and the intelligent management system which choreographs the three units using five pre-selectable modes. This operating strategy is a core competency of the 918 Spyder.
It takes the best possible account of the different requirements between an efficiency-orientated driving profile on the one hand and maximum performance on the other. In order to make the best possible use of these different approaches, the Porsche developers defined a total of five operating modes that can be activated via a “map switch” in the steering wheel, just like in motor sports cars.
The following is taken directly from Porsche's press briefing document on the latest version of the Porsche 918 Spyder:
Quiet and elegant: “E-Power”
When the vehicle is started up, the “E-Power” mode is the default operating mode as long as the battery is sufficiently charged. In ideal conditions, the 918 Spyder can cover more than 25 kilometres on purely electric power. In this mode, the combustion engine is only used when needed: maximum engine power is available at a moment’s notice by means of the kick-down function. If the charge state of the battery falls below a set minimum value, the vehicle automatically switches to hybrid mode.
Efficient and comfortable: “hybrid”
In “hybrid” mode, the electric motors and combustion engine work together with the focus on maximum efficiency and minimum fuel consumption. The use of the individual drive components adapts depending on the current driving situation and the desired performance. The hybrid mode is typically used for moderate, consumption-orientated driving styles, e.g. in city traffic.
Sporty and dynamic: “Sport Hybrid”
In more dynamic situations, the 918 Spyder selects the “Sport Hybrid” mode for its motors. The combustion engine is now in constant operation and provides the main propulsive force. In addition, the electric motors provide support in the form of an electric boost when the driver demands higher output, or if there is scope to optimise the operating point of the combustion engine for greater efficiency. The focus of this mode is on performance and a sporty driving style.
For fast laps: “Race Hybrid”
“Race Hybrid” is the mode for the highest possible performance and especially sporty dri- ving style. The combustion engine is chiefly used under high load, and charges the battery when the driver is not utilising the maximum output. The electric motors provide additional support as necessary in the form of a boost when the driver requires even more power.
The electric motors are used up to the maximum power output limit in order to provide the best possible performance for the race track. In this mode, the battery charge state is not kept constant, but instead fluctuates across the entire charge range. In contrast to Sport Hybrid mode, the electric motors run at their maximum power output limits for a short time, thus ensuring better boosting. This increased output is balanced out by the combustion engine charging the battery more powerfully.
For pole position: “Hot Lap”
The “Hot Lap” button in the middle of the map switch releases the 918 Spyder’s last reserves and can only be activated in “Race Hybrid” mode. Similar to a qualification mode, this pushes the traction battery to its maximum power output limits for a few fast laps. This mode uses all of the available energy in the battery.
Main propulsion: the eight cylinder engine
The main source of propulsion is the 4.6-litre, eight cylinder engine delivering more than 570 hp of power, which was directly derived from the power unit in the successful RS Spyder and explains why it delivers engine speeds of up to 9,000 rpm. Like the RS Spyder’s racing engine, the 918 Spyder power unit features dry-sump lubrication with a separate oil tank and oil extraction. In order to save weight, the four extraction pumps are made of plastic.
Further extensive lightweight design measures resulted in, for example, titanium connec- ting rods, thin-wall, low-pressure casting on the crank case and the cylinder heads, a high- strength, light-weight steel crankshaft and the extremely thin-walled, alloy steel exhaust system. The result of the weight and performance optimisations is a power output per litre of approx. 125 hp/l, which is significantly higher than that of the Carrera GT (106 hp/l) and outstanding for a naturally aspirated engine.
Unique racing car construction heritage: Top Pipes

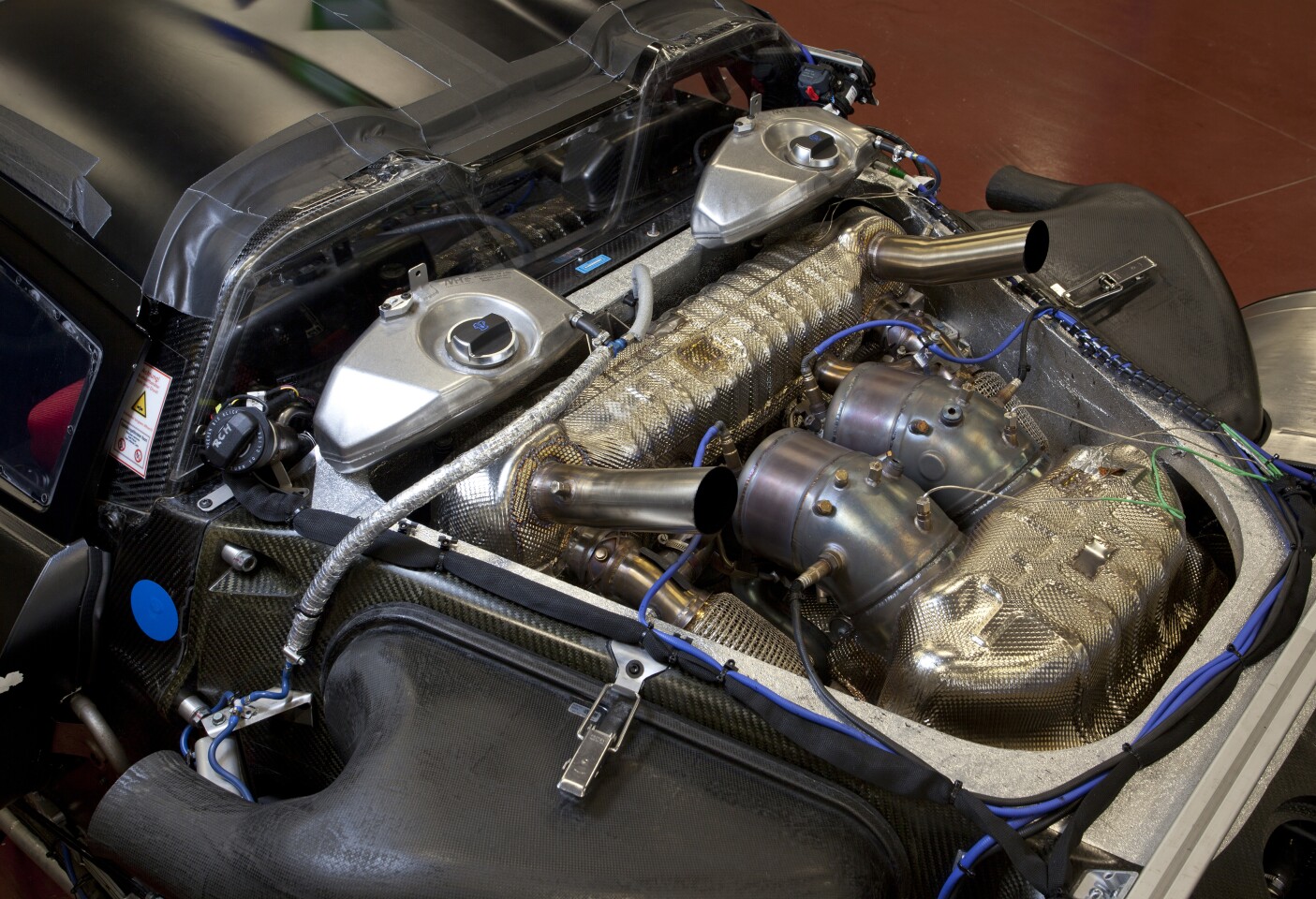

It isn’t just this engine’s performance but also the sound it makes that stokes the emotionality of the 918 Spyder. This is attributable first and foremost to the so-called top pipes: the tail- pipes terminate in the upper part of the rear end immediately above the engine. No other production vehicle exhibits this solution.
The top pipes’ greatest benefit are the extremely short distances, as the hot exhaust gases are evacuated by the shortest, direct route and the exhaust gas back pressure remains low. This design requires a new, thermodynamic air channelling concept: With the HSI engine, the hot side is located inside in the cylinder V, the intake tracts are outside. There’s a further benefit: the engine compartment remains cooler.
This is especially beneficial to the lithium-ion hybrid battery, as it provides optimum performance at temperatures between 20 and 40 degrees Celsius. As such, less energy needs to be used for active cooling of the battery.
In parallel in the drive line: hybrid module

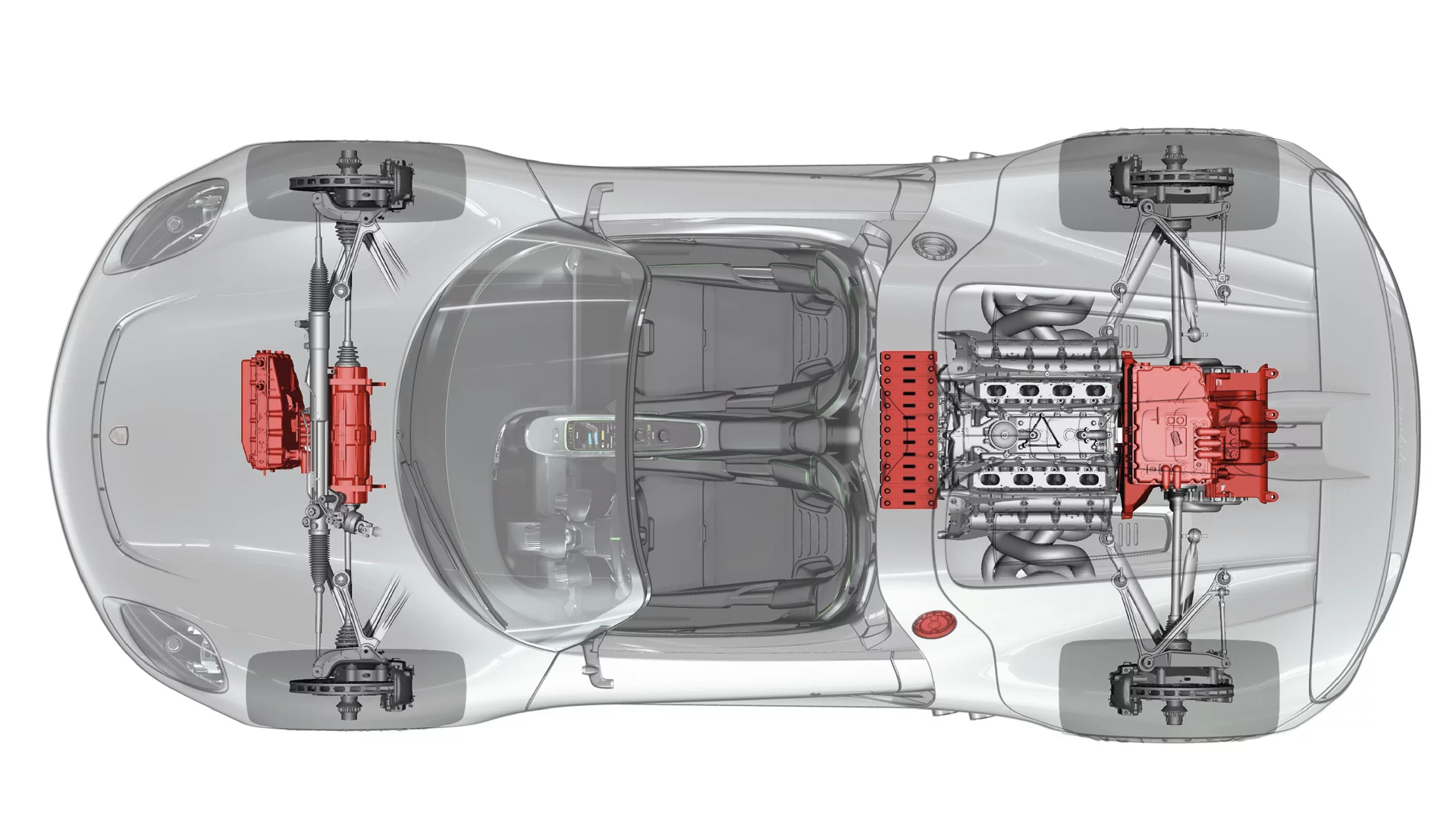

The V8 engine is coupled to the hybrid module, the 918 Spyder being designed as a parallel hybrid like Porsche’s current hybrid models. Essentially, the hybrid module comprises a 90 kW electric motor and a decoupler acting as the connection with the combustion engine. As a result of the parallel hybrid configuration, the 918 Spyder can be powered at the rear axle both individually by the combustion engine or electric motor or via both drives jointly. As is typical for a Porsche super sports car, the power pack in the 918 Spyder has been placed in front of the rear axle, and does not have any direct mechanical connection to the front axle.
Upside down for low centre of gravity: Doppelkupplungsgetriebe (PDK)
A seven-speed Doppelkupplungsgetriebe (PDK) transmission takes care of power transmission to the rear axle. The high-performance transmission based on the PDK in the 911 Turbo has undergone a complete overhaul for the 918 Spyder and was further optimized for high performance. In order to ensure that the installation position and thus the centre of gravity of the entire vehicle were kept low, the gear unit was turned “on its head”, by rotating it 180 degrees about its longitudinal axis, in contrast to the mid-engine, two-seater Boxster, for example. If no propulsive power is required on the rear axle, the two motors can be decoupled by opening the decoupler and PDK clutches. This is what is behind the Porsche hybrid drive’s trademark “coasting” with the combustion engine switched off.
Independent all-wheel drive: front axle with electric motor
On the front axle there is another, independent electric motor with an output of approxi- mately 80 kW. The front electric drive unit drives the wheels via a fixed ratio. A decoupler ensures that the electric motor can be decoupled at high speeds to prevent the motor from over-revving. The drive torque is independently controlled for each axle. This makes for a very responsive all-wheel function, offering great potential for traction and driving dynamics.
Lithium-ion battery with plug-in charging system
The electric energy for the electric motors is stored by a liquid-cooled lithium-ion battery comprising 312 individual cells with an energy content of approximately seven kilowatt hours. The battery of the 918 Spyder has a performance-orientated design in terms of both power charging and output in order to fulfil the performance requirements of the electric motor. The power capacity and the operating life of the lithium-ion traction battery are dependent on several factors, including thermal conditions. That is why the 918 Spyder’s battery is liquid-cooled by a dedicated cooling circuit.
To supply it with energy, Porsche developed a new system with a plug-in charging interface and multiplied recuperation potential. The plug-in interface in the B-column on the front passenger side enables the storage battery to be connected directly with the home mains supply and charged. The charging interface is standardized for the country of purchase. The charger is located close to the traction battery.
It converts the alternating current of the mains supply into direct current with a maximum charge output of 3.6 kW. For example, using the charging cable supplied with it, the battery can be charged within four hours from a ten ampere rated, fused power socket on the German 230 Volt mains supply. A compact charging station is also supplied as standard with the 918 Spyder. This can be installed permanently in the driver’s garage. It permits rapid and convenient charging within approximately two hours, irrespective of regional conditions.
Energy recuperation trebled: recuperation
In order to convert the kinetic energy of the vehicle into electric current when braking signi- ficantly more effectively than today, Porsche’s developers created a new generation of the recuperation system. A modern-day Porsche hybrid recovers braking energy up to a dece- leration of 0.15 g. That corresponds to a braking manoeuvre in which the driver applies approximately 1.5 kilograms of pedal force. The 918 Spyder can recover up to 0.5 g, equa- ting to eleven kilograms of pedal force – that is more than three times the amount of energy. The 918 Spyder can brake using both electric motors and thus recuperate energy for the traction battery. The super sports car features a ceramic braking system (PCCB) as standard.
Carbon fibre monocoque promotes lightweight design with low centre of gravity
Despite, or rather because of the heavy components in the electric motor, the 918 Spyder is a model of lightweight design. The load-bearing structure of its body comprises a mono- coque with a unit carrier, both of them made of carbon fibre reinforced plastic (CFRP). This concept has a critical part to play in the curb weight of less than 1,700 kilograms, an outstandingly low value for a hybrid vehicle in this performance class. A system of adjustable aerodynamic elements ensures unique, fully adaptive aerodynamics that automatically re- concile optimal efficiency and maximum downforce.
The drivetrain components and all components weighing more than 50 kilograms are located as low down and as centrally as possible within the vehicle. The result is a slightly rear end biased axle load distribution of 57 per cent on the rear axle and 43 per cent on the front axle, combined with an extremely low center of gravity, ideal for driving dynamics. The central and low position of the traction battery directly behind the driver not only supports the concentration of masses and the lowering of the centre of gravity; it also provides the best temperature conditions for optimum battery functioning.
Chassis with racing car genes and rear-axle steering
The Porsche 918 Spyder’s multi-link chassis is inspired by racing car construction, comple- mented by additional systems such as the adaptive shock-absorber system PASM and rear-axle steering. Basically, this comprises an electro-mechanical adjustment system on each rear wheel. The adjustment is speed-sensitive and executes steering angles of a few degrees in each direction. The rear axle can therefore be steered in the same direction or the opposite direction to the front wheels. At low speeds, the system steers the rear wheels in the opposite direction to the front wheels. This makes cornering even more direct, faster and more precise, and reduces the turning circle. At higher speeds, the system steers the rear wheels in the same direction as the front wheels. This minimises the “pushing” of the vehicle’s rear end when changing lanes quickly. The result is very secure and stable handling.
A new super sports car for a new decade
The 918 Spyder continues the super sports car line in Porsche history; as technology demonstrators, the driving force behind emotion and evolution alike and the ultimate sports cars of their decade: the Carrera GTS, the first Porsche Turbo, the 959, the 911 GT1, the Carrera GT. More than any of its predecessors, the 918 Spyder is providing a critical impetus to developing the technologies for future vehicle concepts. ENDS
