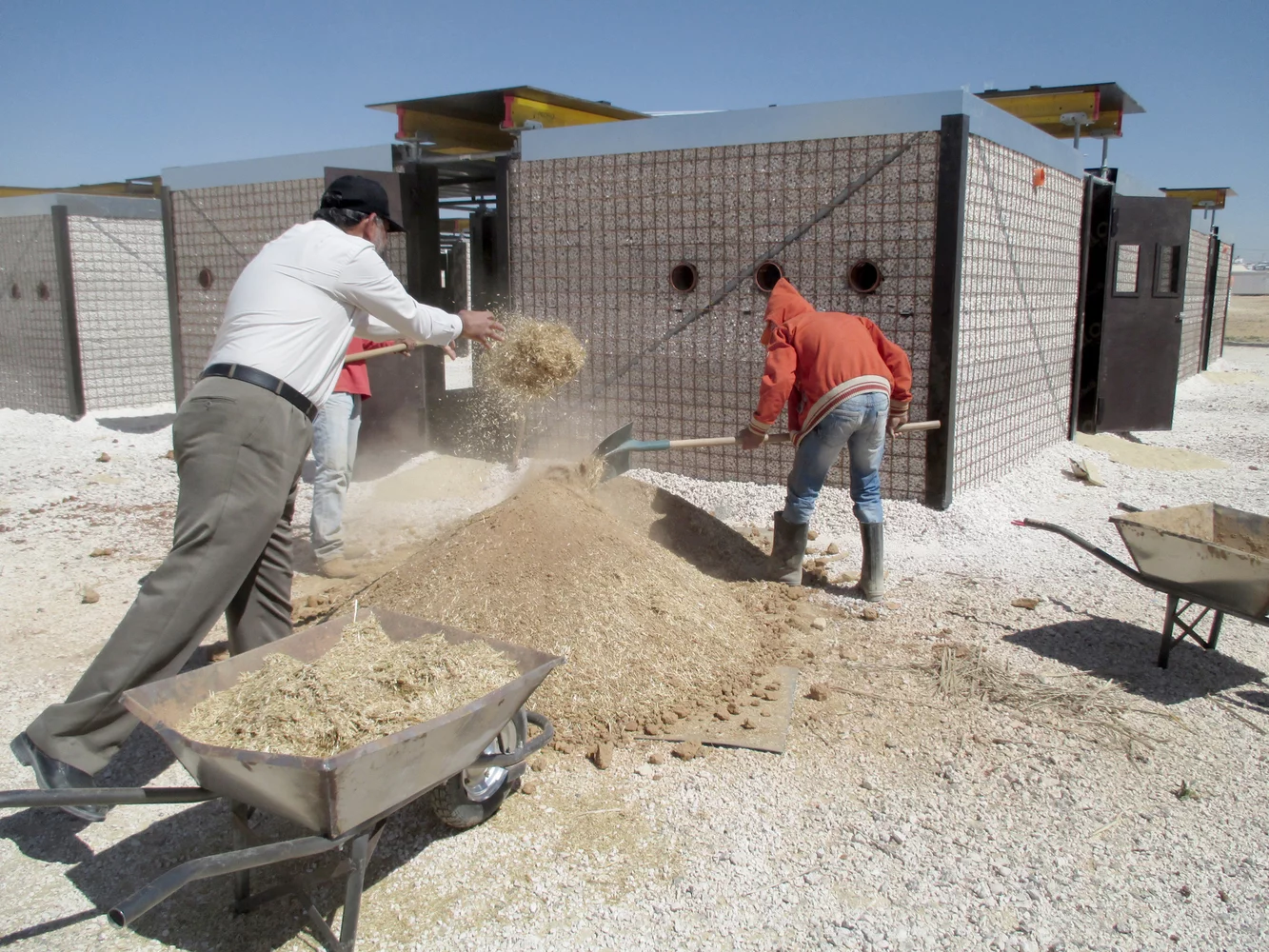

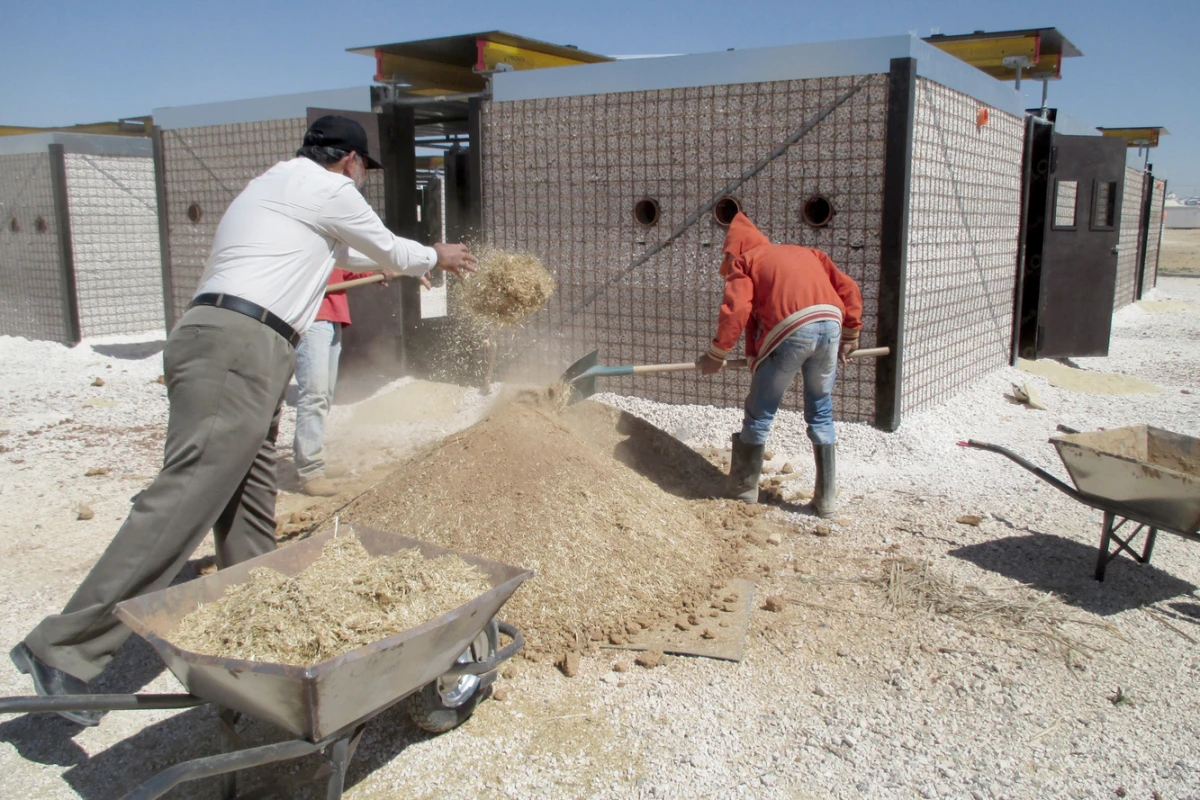

Re:Build can be used to build a wide variety of buildings
Re:Build can be used to build a wide variety of buildings
View 18 Images

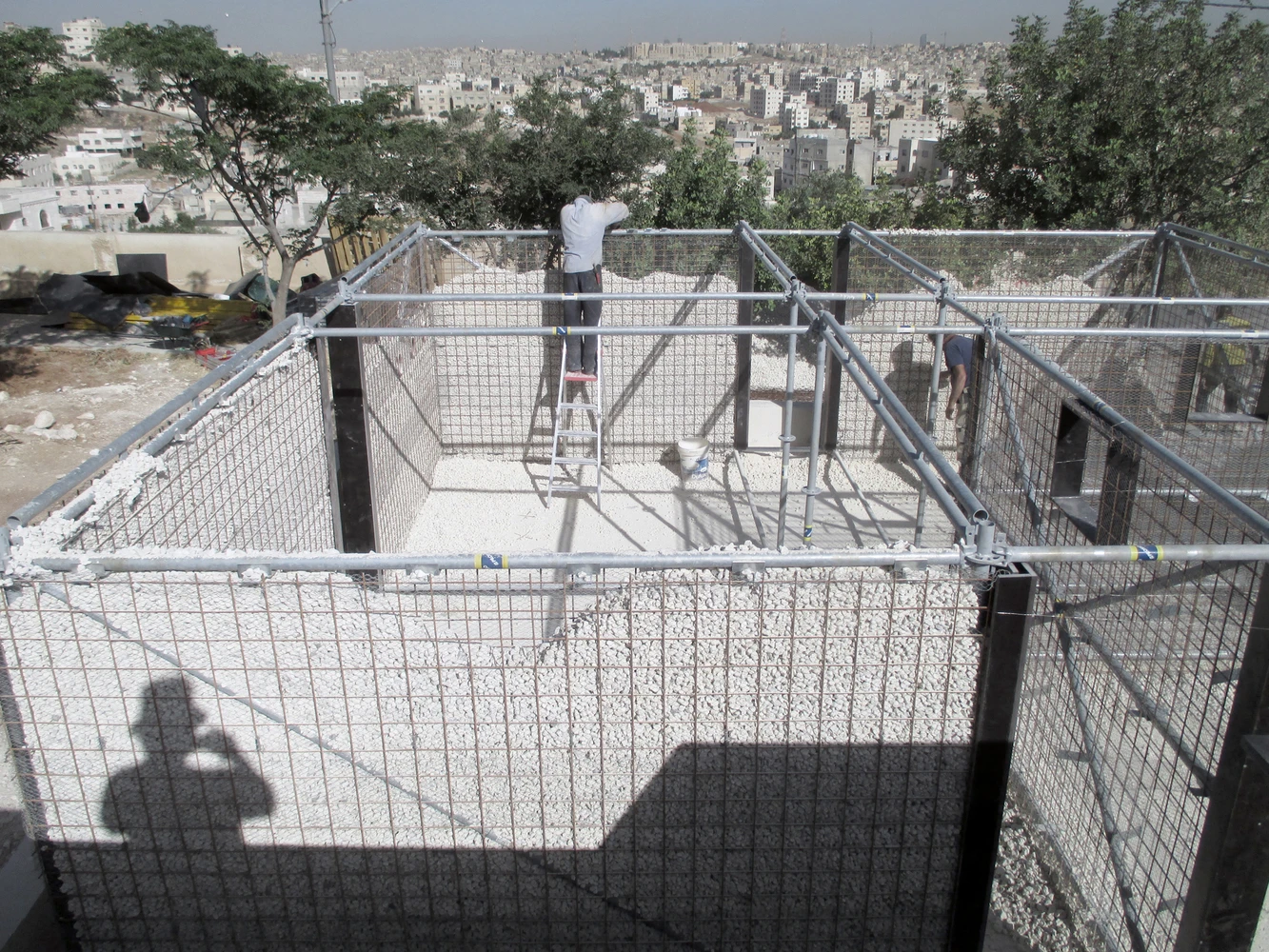

The Re:Build project is the work of Pilosio Building Peace (the non-profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)
1/18
The Re:Build project is the work of Pilosio Building Peace (the non-profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)
Former Architecture for Humanity boss Cameron Sinclair, and architect Pouya Khazaeli are also involved
2/18
Former Architecture for Humanity boss Cameron Sinclair, and architect Pouya Khazaeli are also involved

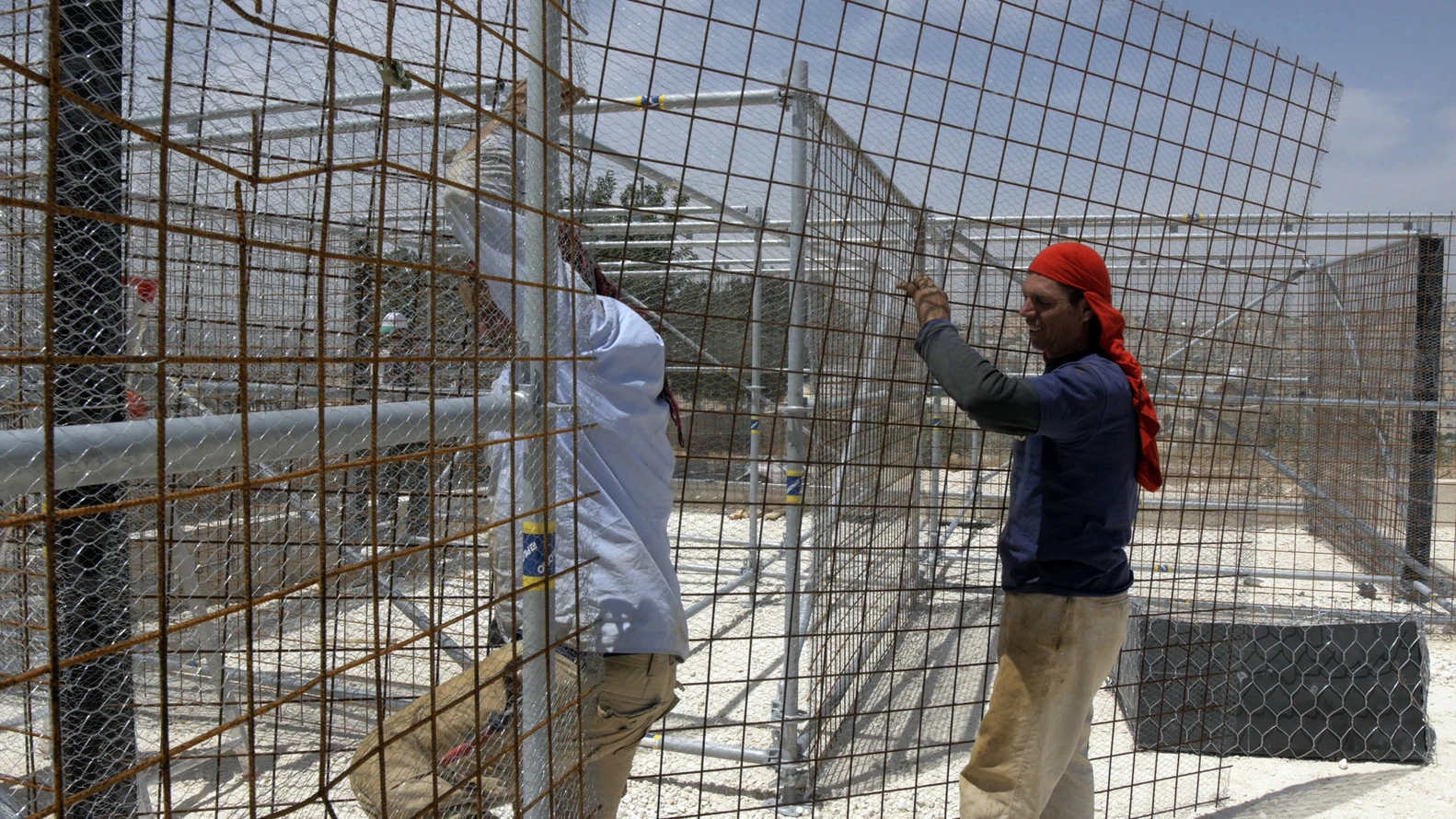

The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required
3/18
The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required

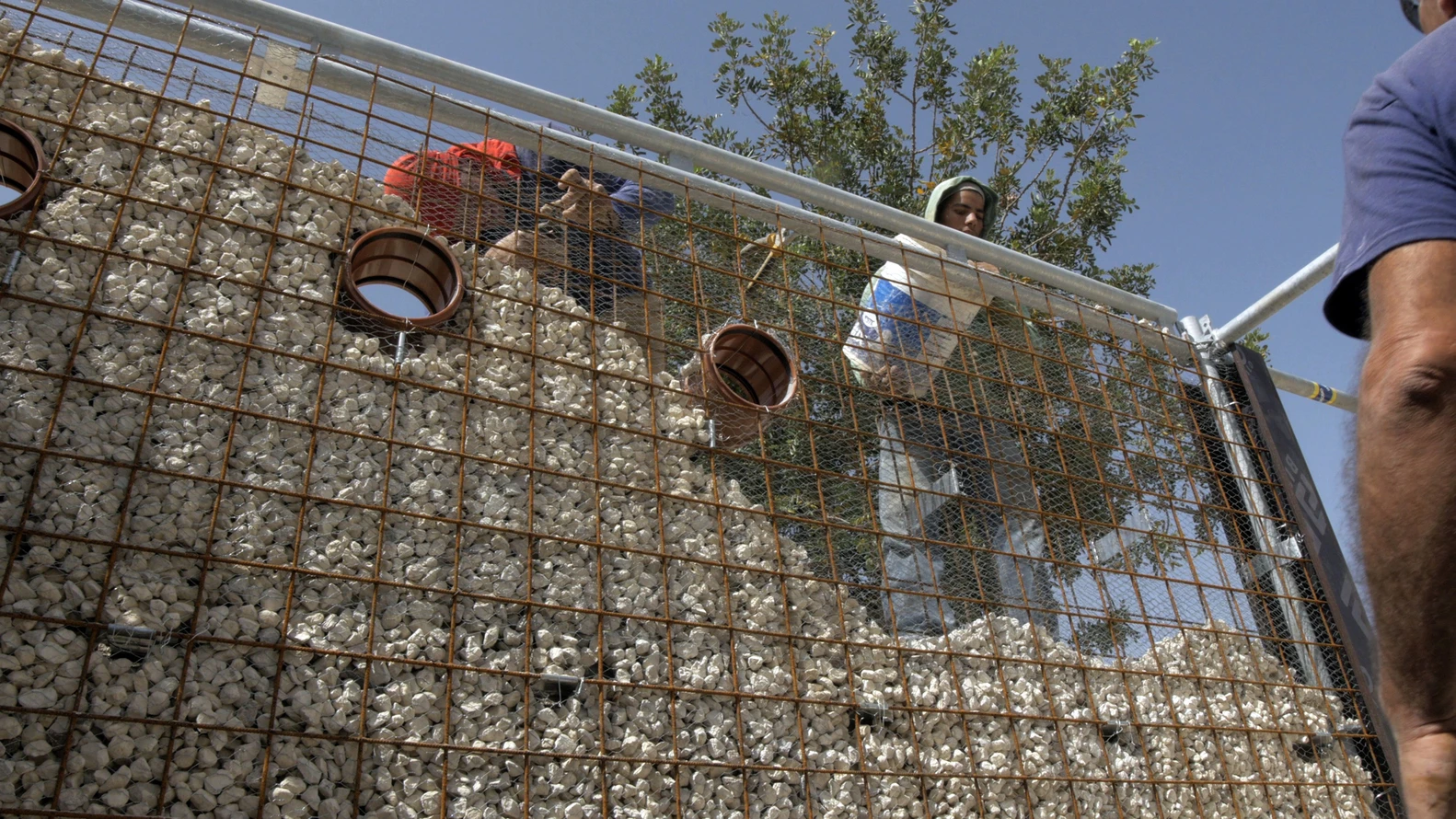

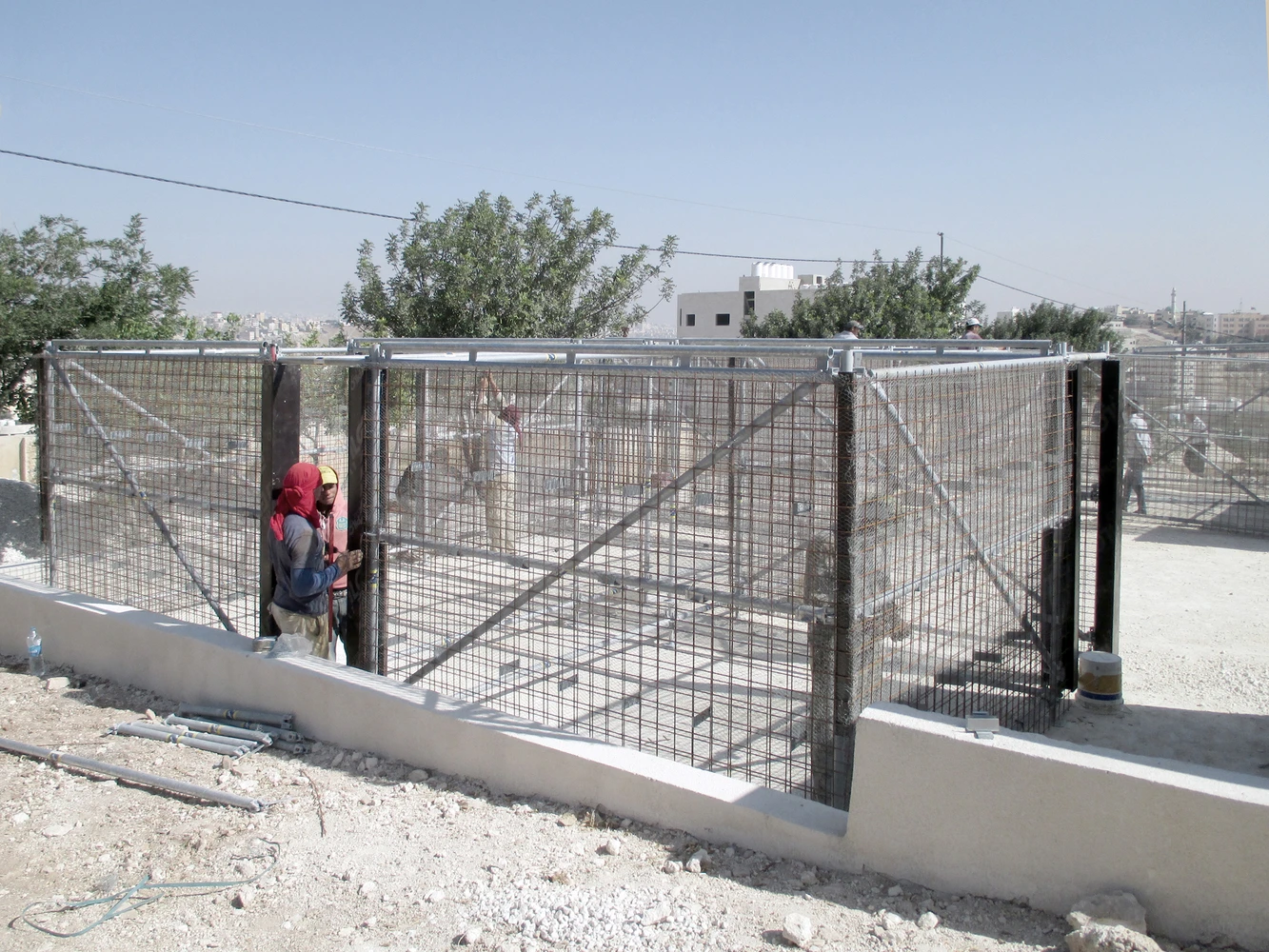

Fencing is added to hold gravel and sand
4/18
Fencing is added to hold gravel and sand

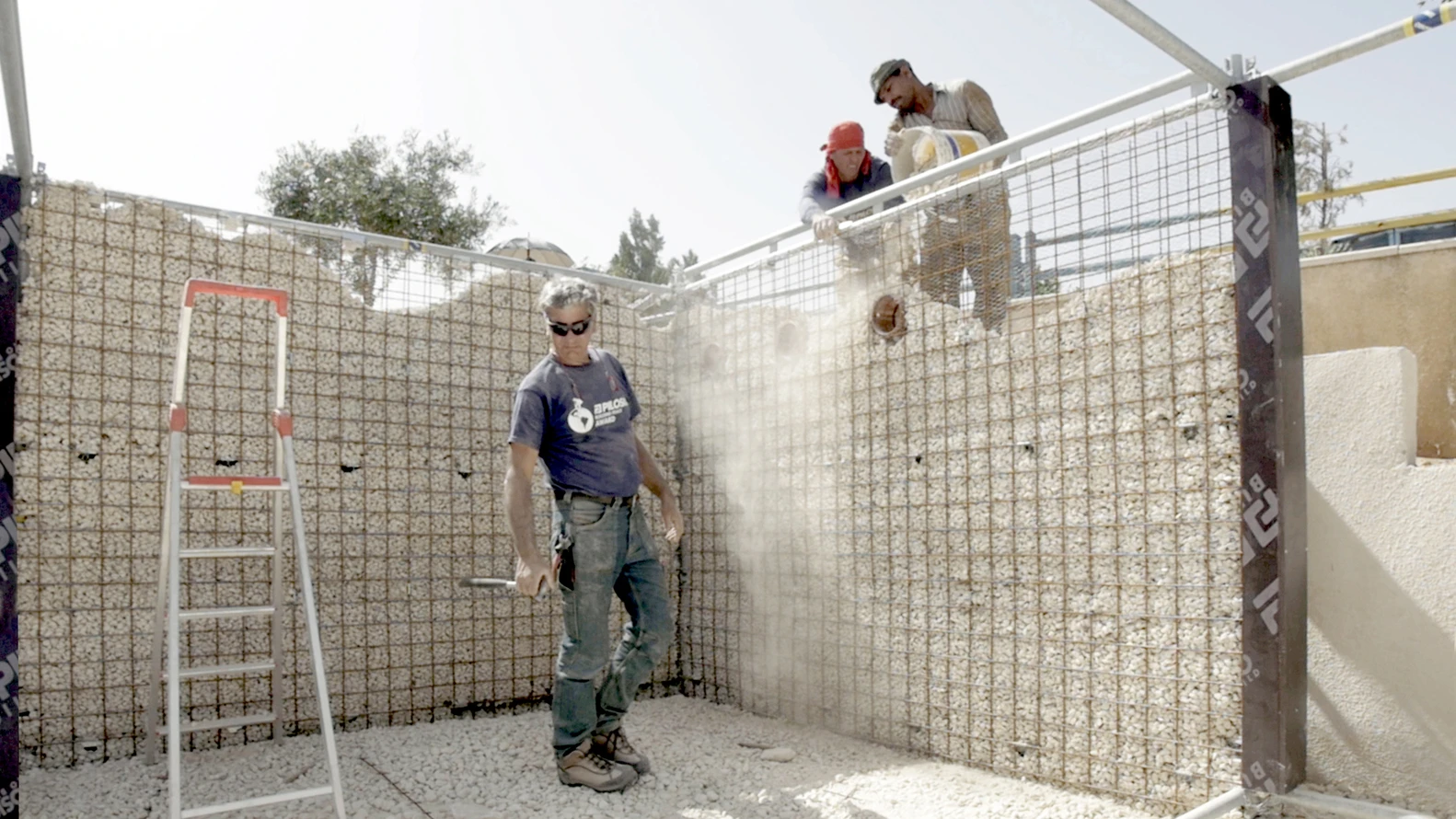

According to the Re:Build team, a group of ten workers lacking any prior construction experience should be perfectly capable of assembling a 16 x 16 m (52 x 52 ft) structure in just a fortnight
5/18
According to the Re:Build team, a group of ten workers lacking any prior construction experience should be perfectly capable of assembling a 16 x 16 m (52 x 52 ft) structure in just a fortnight
The floor is made from plywood panels
6/18
The floor is made from plywood panels

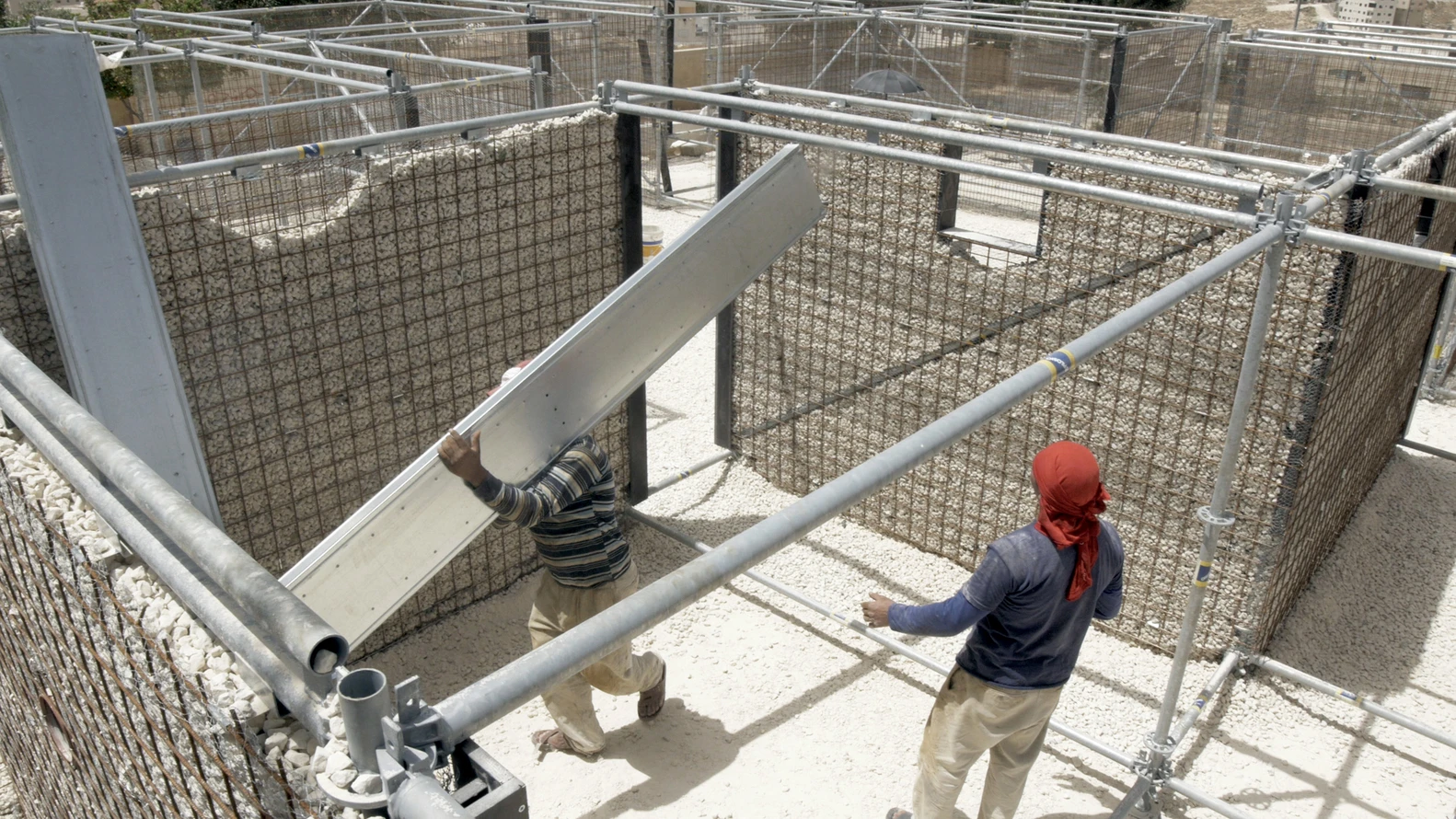

So far, the project has resulted in two schools being built in the Za’atari refugee camp and the Queen Rania Park camp, both in Jordan
7/18
So far, the project has resulted in two schools being built in the Za’atari refugee camp and the Queen Rania Park camp, both in Jordan

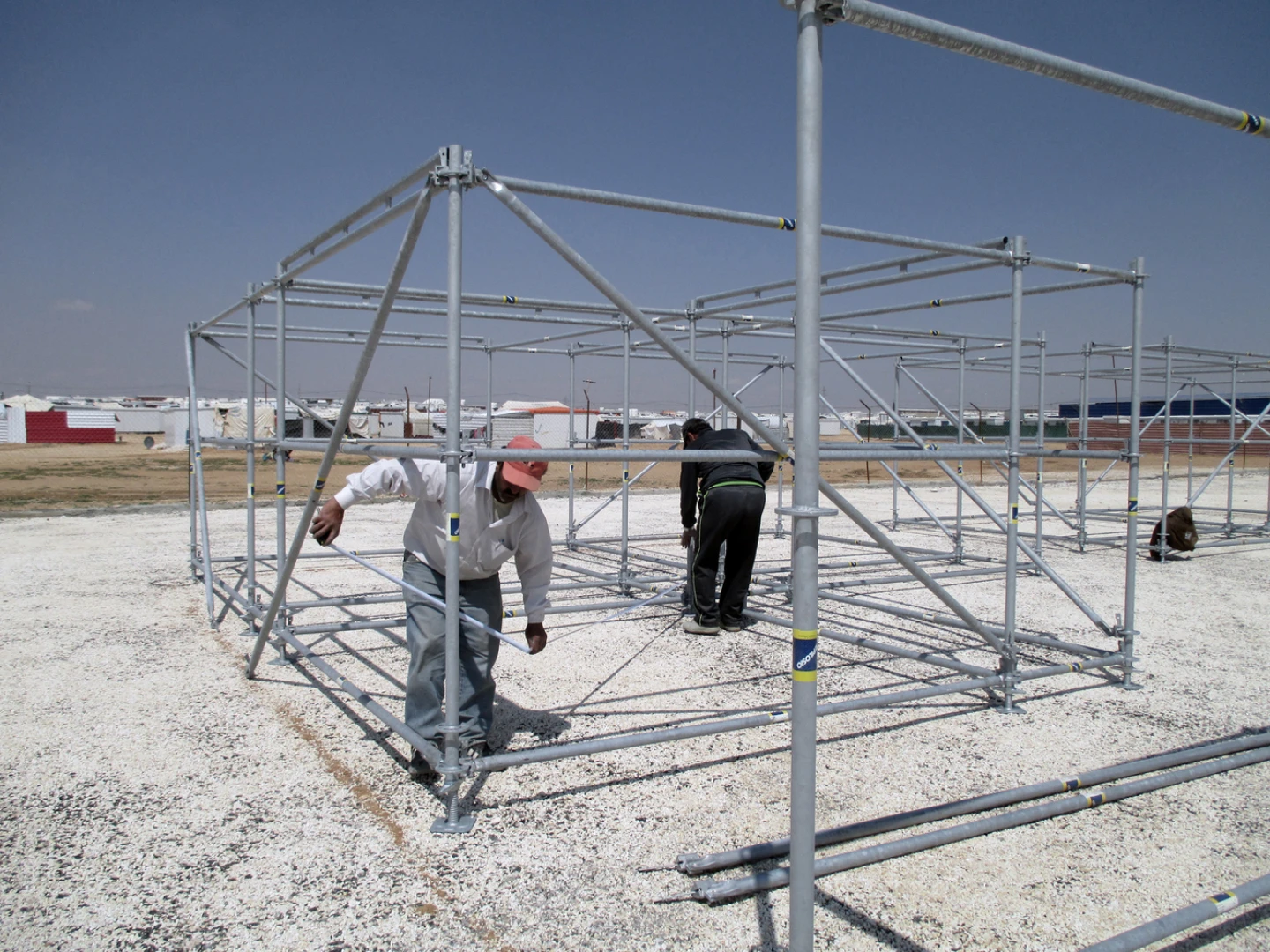

Each school cost €30,000 (roughly US$32,900), including all materials, transport, construction, labor and design and planning costs
8/18
Each school cost €30,000 (roughly US$32,900), including all materials, transport, construction, labor and design and planning costs

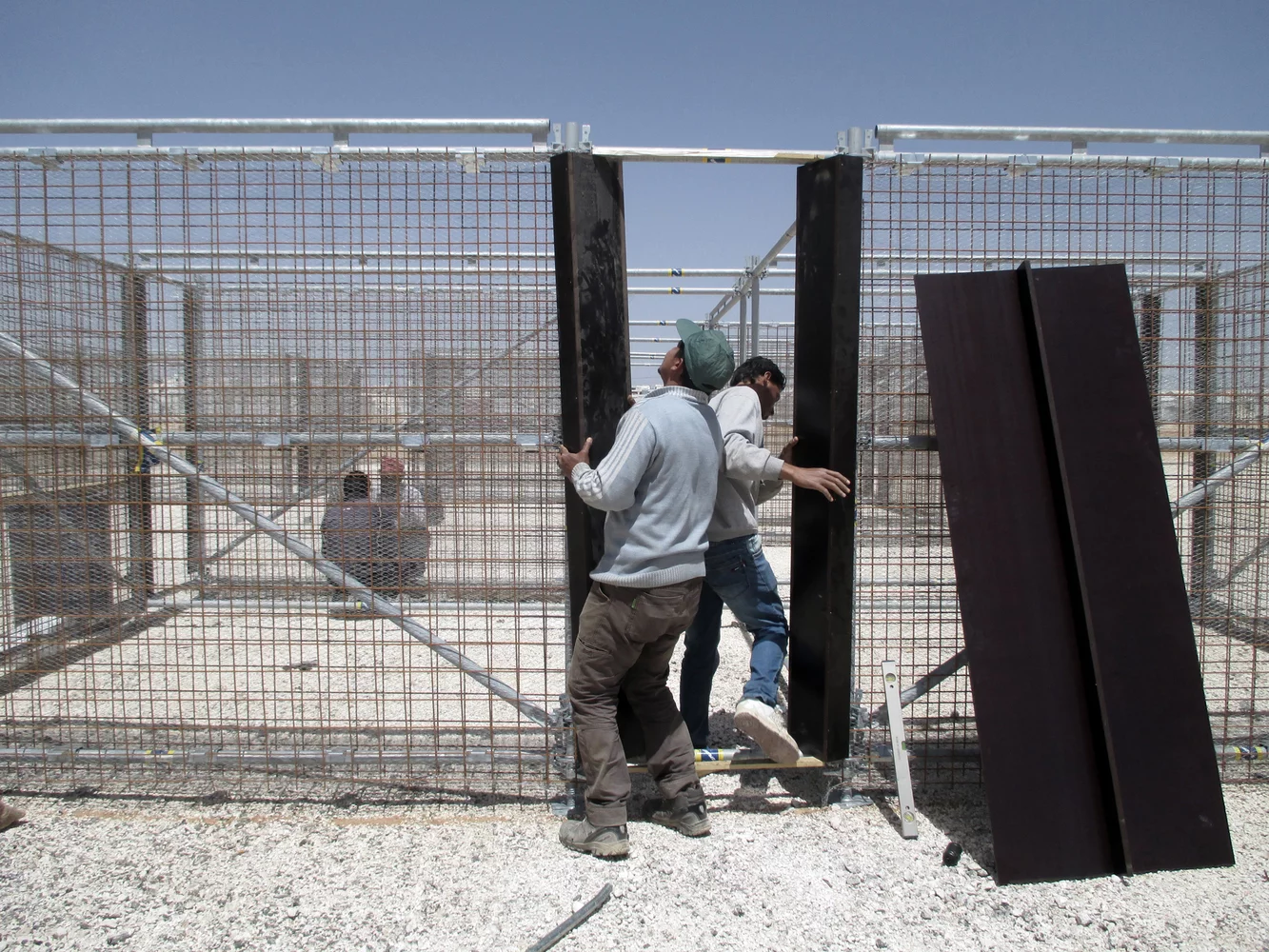

The buildings even have a rudimentary rainwater catchment system installed
9/18
The buildings even have a rudimentary rainwater catchment system installed
The Re:Build team is now working on a project to construct a school, market, a residential area, canteen and an information centre for another refugee camp in Somalia
10/18
The Re:Build team is now working on a project to construct a school, market, a residential area, canteen and an information centre for another refugee camp in Somalia
The Re:Build project is the work of Pilosio Building Peace (the non-profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)
11/18
The Re:Build project is the work of Pilosio Building Peace (the non-profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)
According to the Re:Build team, a group of 10 workers lacking any prior construction experience should be perfectly capable of assembling a 16 x 16 m (52 x 52 ft) structure in just a fortnight
12/18
According to the Re:Build team, a group of 10 workers lacking any prior construction experience should be perfectly capable of assembling a 16 x 16 m (52 x 52 ft) structure in just a fortnight
The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required
13/18
The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required
Former Architecture for Humanity boss Cameron Sinclair, and architect Pouya Khazaeli are also involved
14/18
Former Architecture for Humanity boss Cameron Sinclair, and architect Pouya Khazaeli are also involved
Re:Build can be used to build a wide variety of buildings
15/18
Re:Build can be used to build a wide variety of buildings
Fencing is added to hold gravel and sand
16/18
Fencing is added to hold gravel and sand
The Re:Build project is the work of Pilosio Building Peace (the non profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)
17/18
The Re:Build project is the work of Pilosio Building Peace (the non profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer)

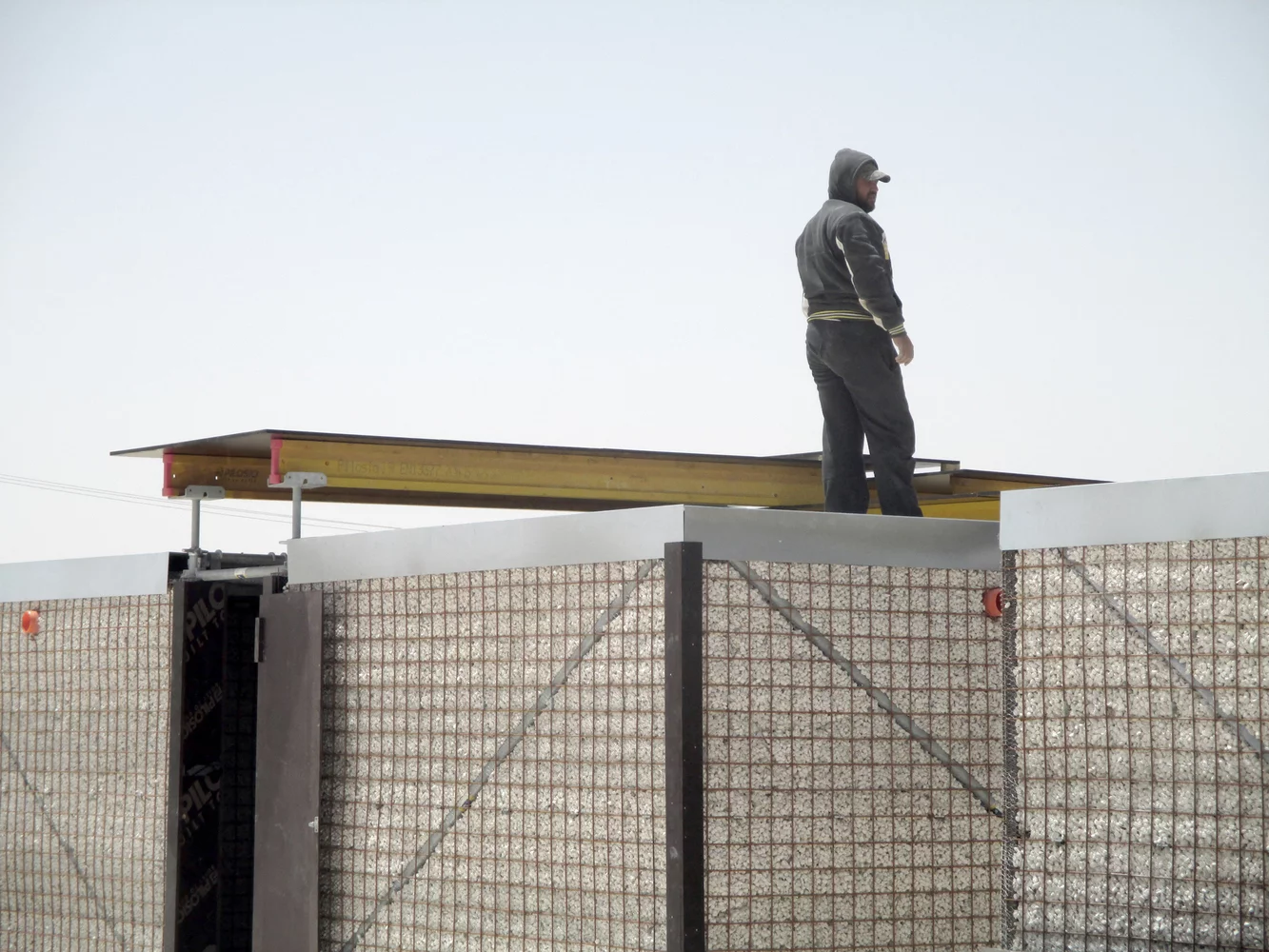

The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required
18/18
The system is simple and comprises scaffolding tubes, which are are joined together to build a simple frame for whatever structure is required
View gallery - 18 images

Created to ease the plight of displaced refugees, Re:Build is a basic scaffold-based construction system that can be used to build a home, school, clinic, or whatever else is required. It makes use of readily-available onsite materials like sand, gravel, and earth, and enables the refugees themselves to construct the structures.

The Re:Build project involves Pilosio Building Peace (the non-profit arm of Pilosio S.p.A, a construction and oil rig equipment manufacturer), former Architecture for Humanity boss Cameron Sinclair, and architect Pouya Khazaeli.

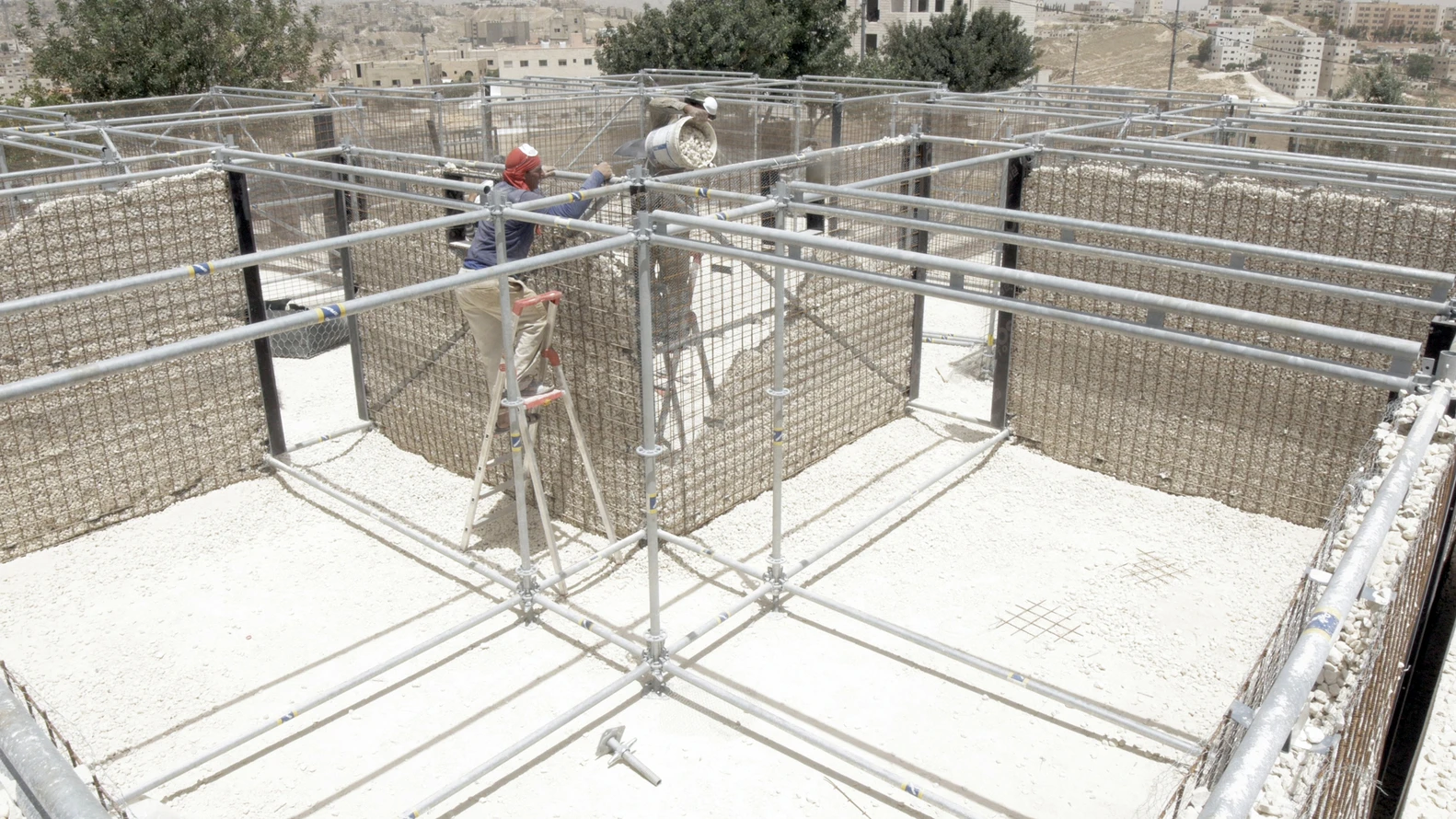

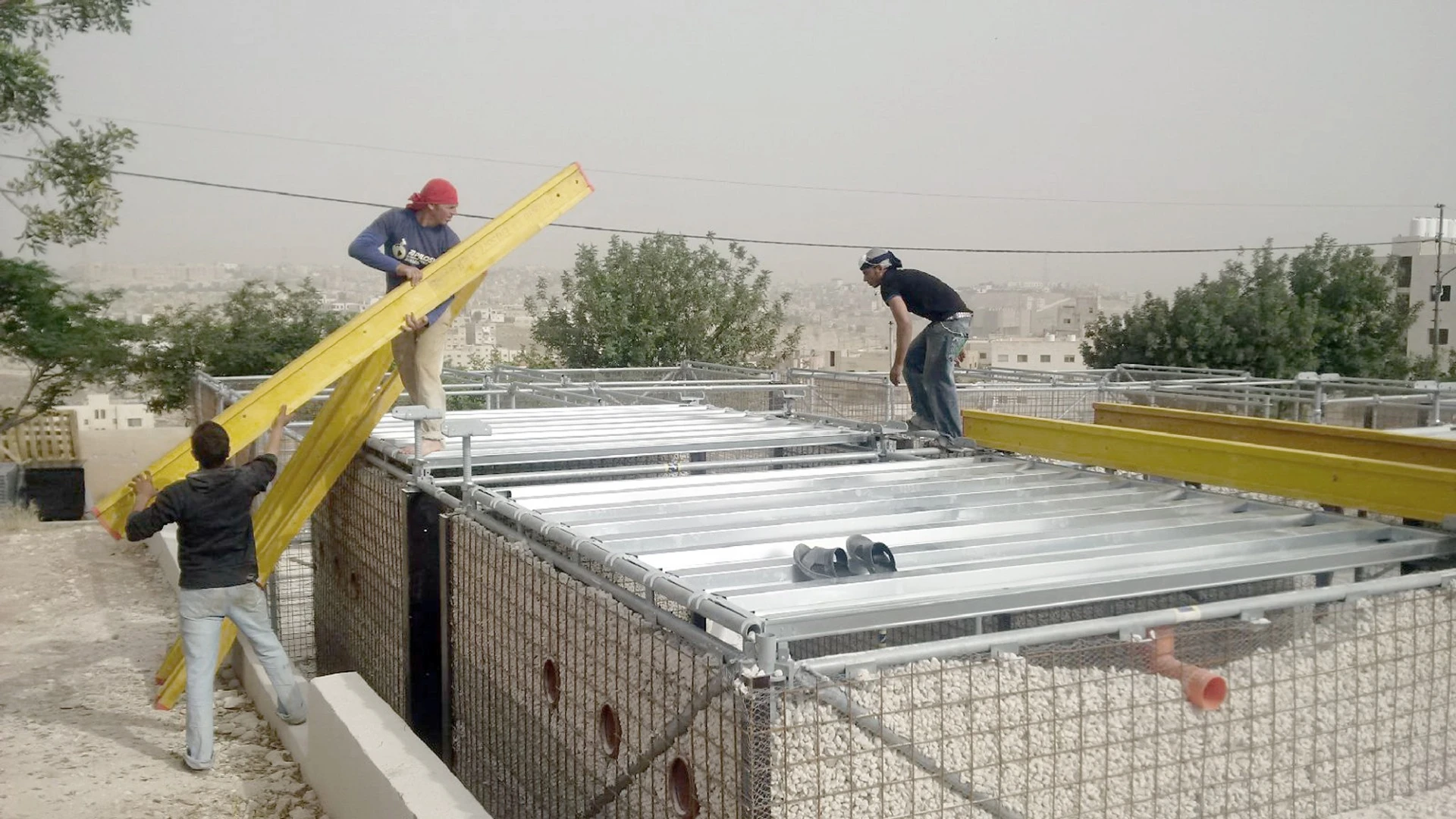

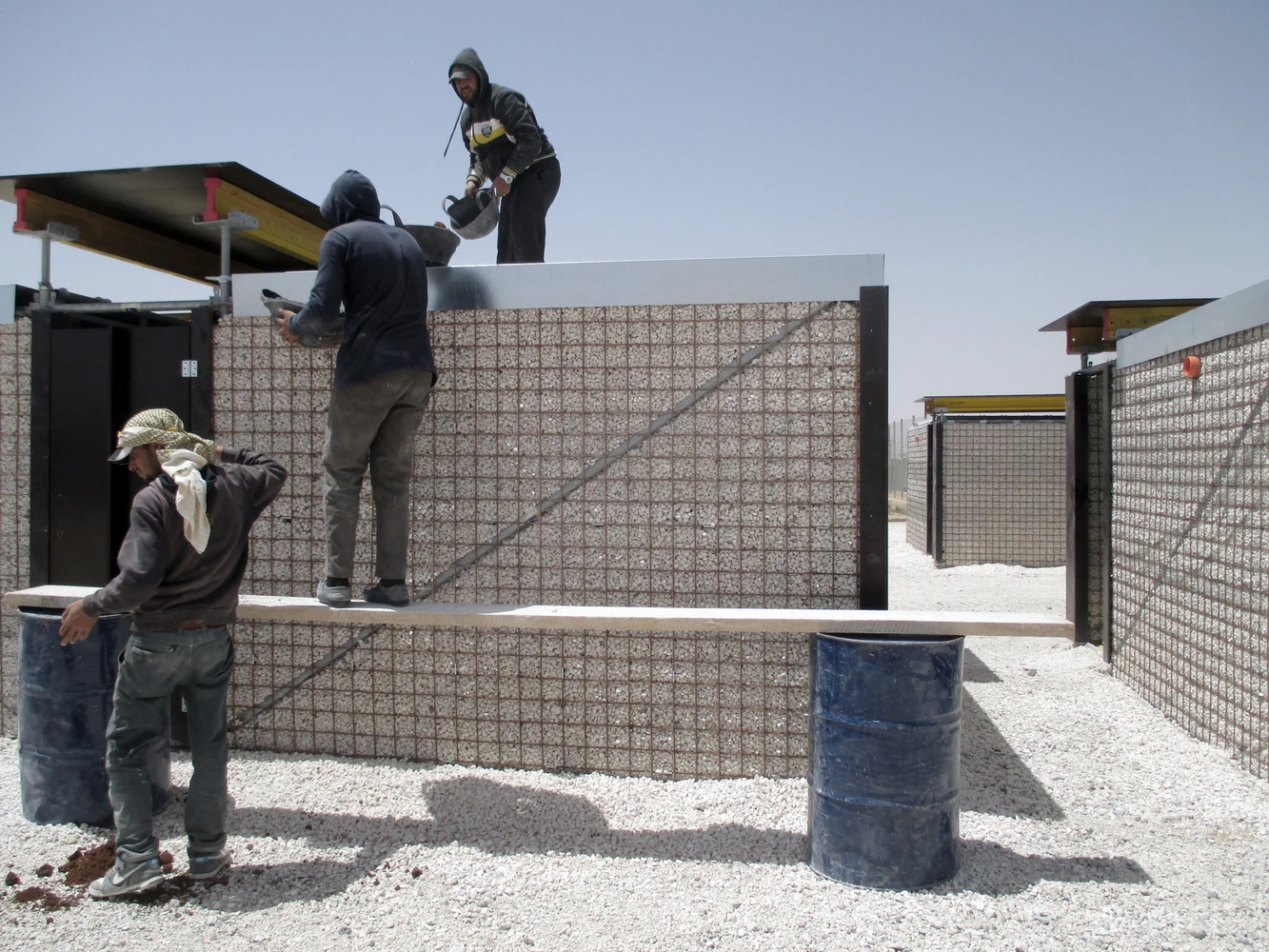

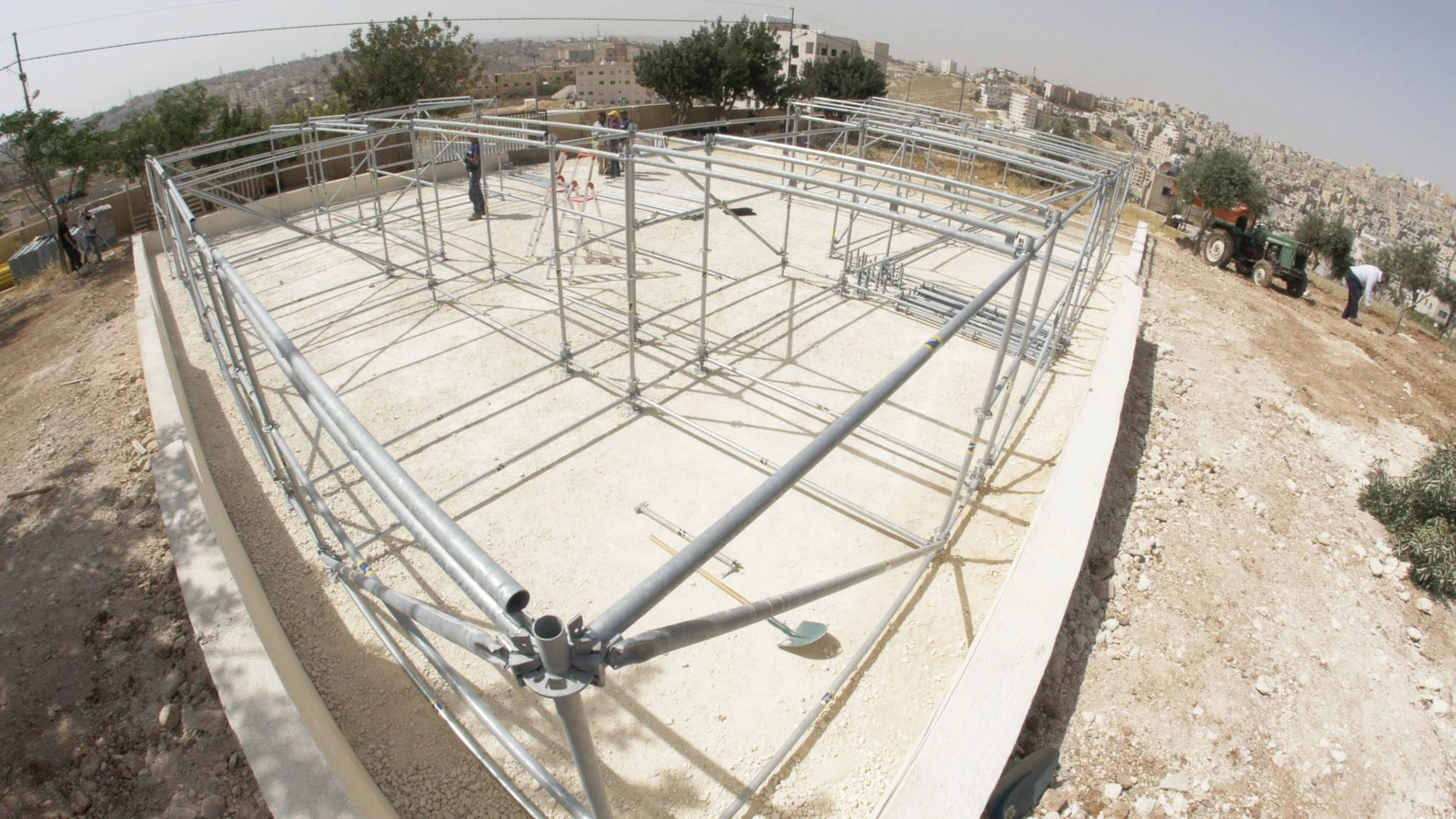

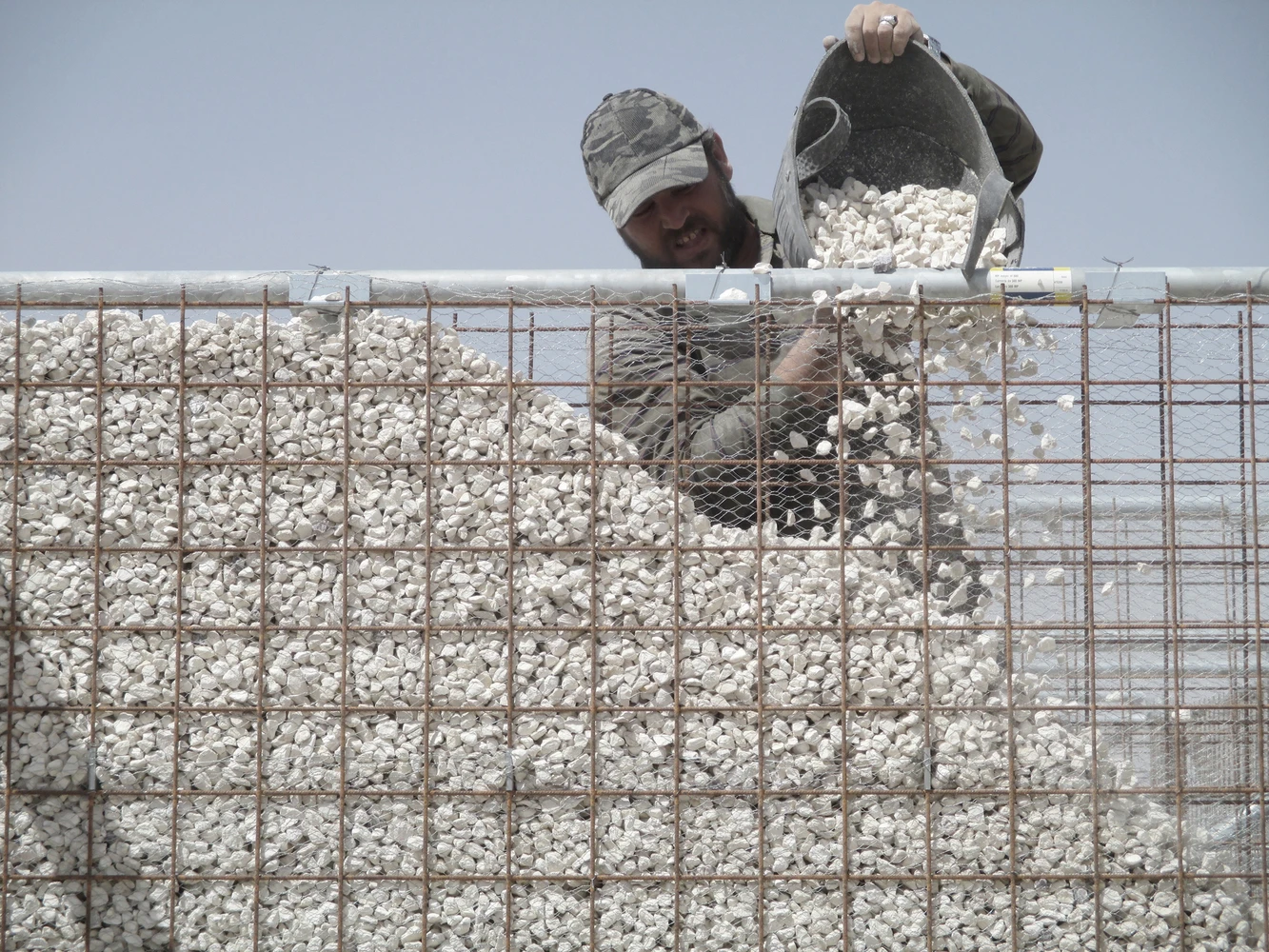

The system is simple and comprises scaffolding tubes joined together to build a simple frame for whatever structure is required, with fencing added to hold gravel and sand. Scaffolding platforms are used as the roof, over which earth is piled to both improve insulation and eventually create a green roof, while walls are filled by simply adding whatever's available into the empty space – sand, gravel, or the like.

The floor is made from plywood panels, and the buildings even have a rudimentary rainwater catchment system installed.

The Re:Build team is now working on a project to construct a school, market, a residential area, canteen and an information centre for another refugee camp in Somalia
The Re:Build team is now working on a project to construct a school, market, a residential area, canteen and an information centre for another refugee camp in Somalia

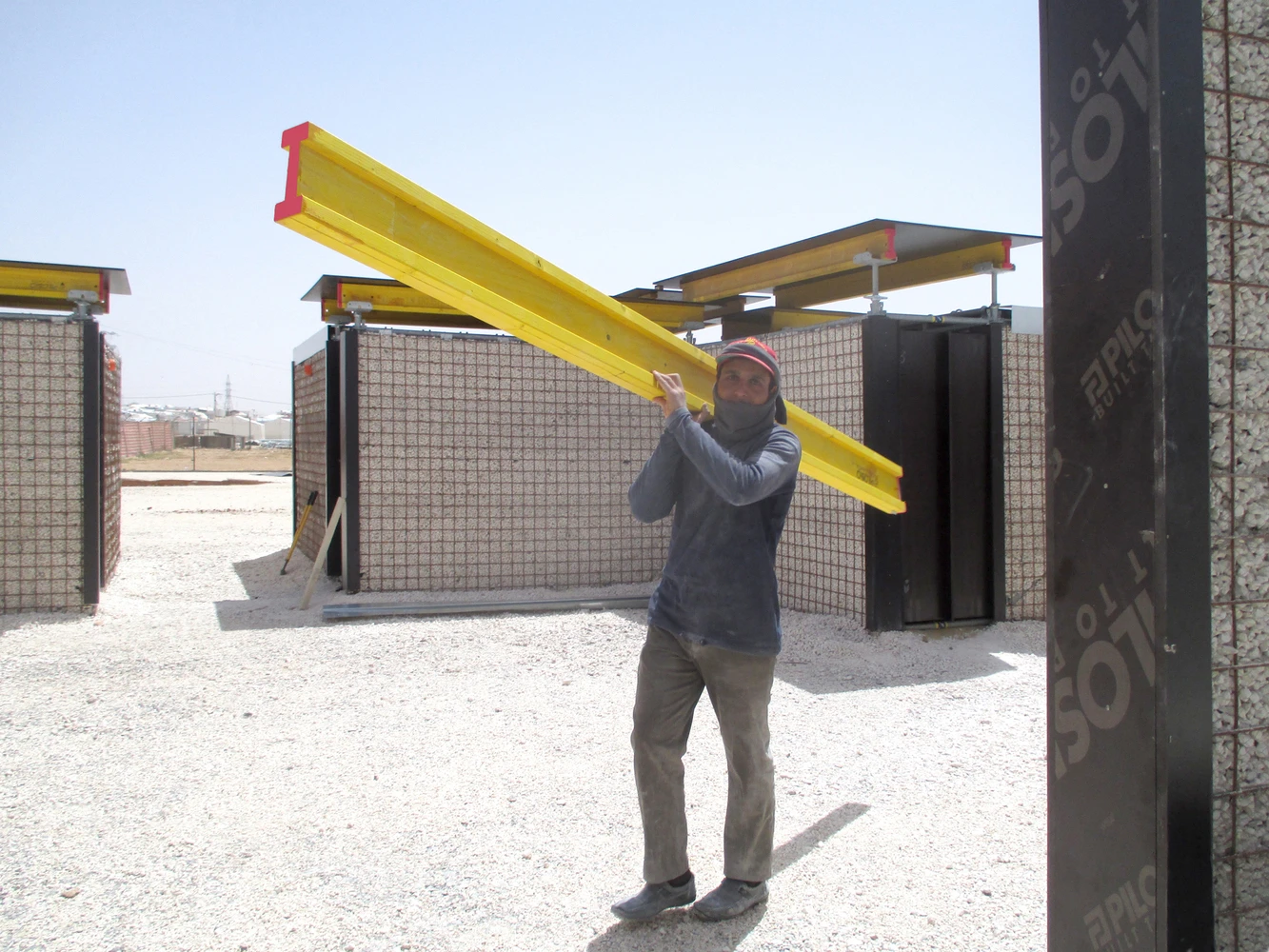

According to the Re:Build team, a group of 10 workers lacking any prior construction experience should be perfectly capable of assembling a 16 x 16 m (52 x 52 ft) structure in just a fortnight, under the supervision of one Pilosio Building Peace technician.

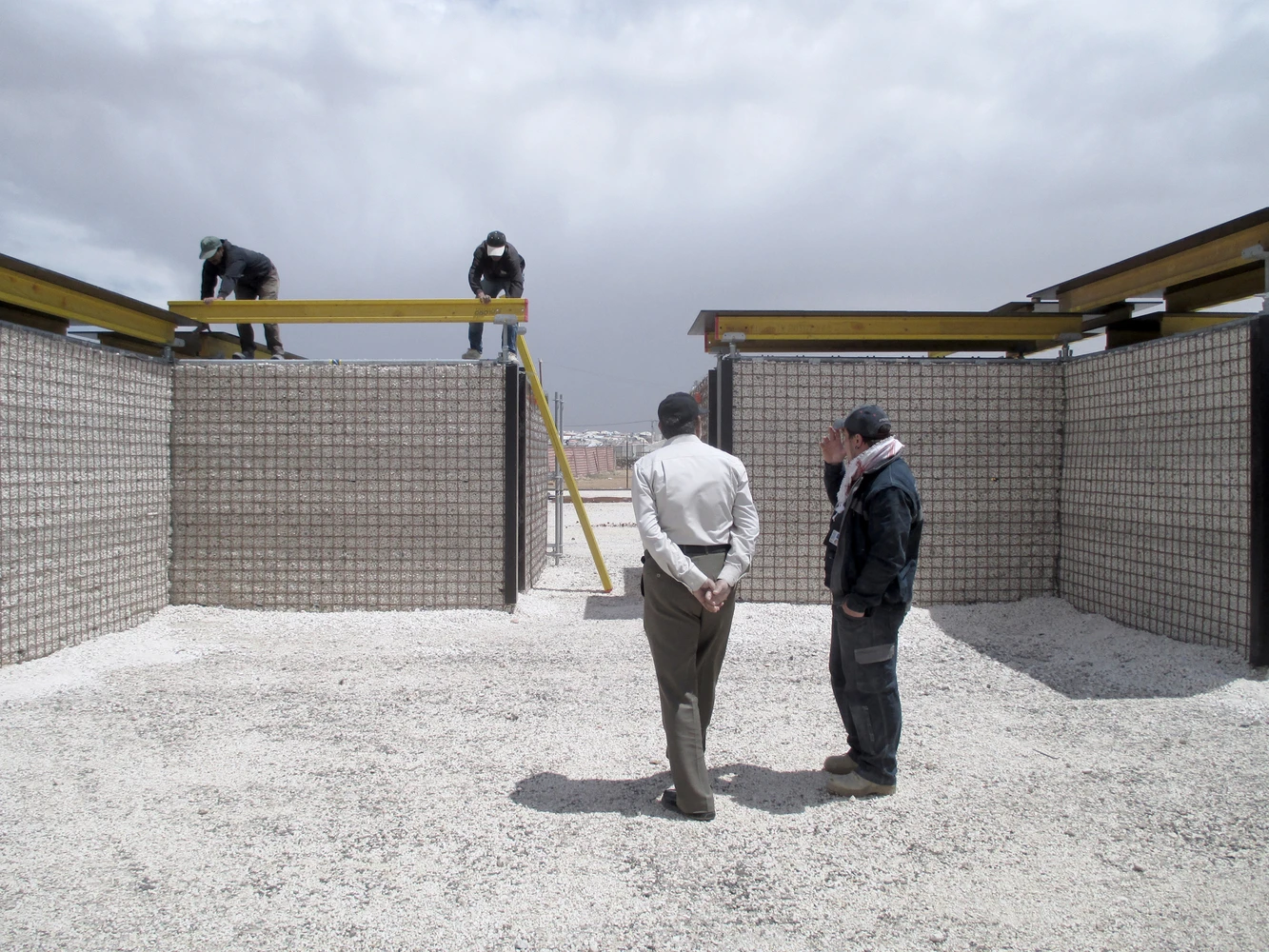

The project has resulted in two schools being built in the Za’atari refugee camp and Queen Rania Park, both in Jordan. Each cost €30,000 (roughly US$32,900), including all materials, transport, construction, labor and design and planning costs. The Re:Build team is now working on a project to construct a school, market, a residential area, canteen and an information center for another refugee camp in Somalia.
