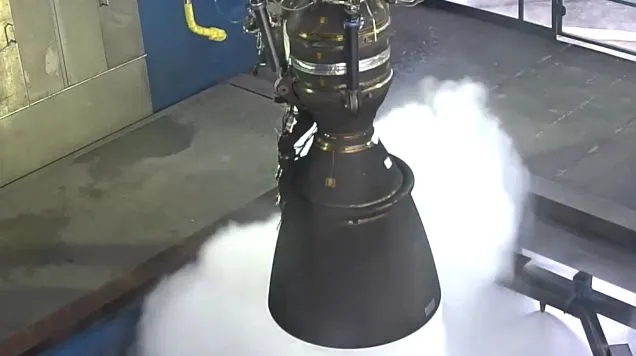

SpaceX's Merlin 1D engine now qualified for use on the Falcon 9 rocketView gallery - 2 images
SpaceX’s Falcon 9 rocket is now a crucial step closer to getting more efficient new engines. While the launch vehicle currently uses nine of the company’s Merlin engines, the next-generation Merlin 1D achieved flight certification earlier this week.
The qualification program involved the 1D being subjected to 28 Earth-based tests, throughout the course of which it racked up a total of 1,970 seconds of run time – according to SpaceX, that’s the equivalent of over ten full missions’ worth of use. In four of those tests, it ran at or above the power (147,000 pounds of thrust) and duration (185 seconds) required for launch. Additionally, it was “tested at propellant inlet and operating conditions that were well outside the bounds of expected flight conditions.”
Sick of Ads?
More than 700 New Atlas Plus subscribers read our newsletter and website without ads.
Join them for just US$19 a year.More Information
When nine of the engines are combined in the Falcon 9’s first stage, they should produce almost 1.5 million lbs of thrust in a vacuum – the same as the existing Merlin engines. SpaceX claims that the Merlin 1D is the most efficient booster engine ever made, however, with a record-breaking vacuum thrust-to-weight ratio of over 150. The 1D is also designed for easier manufacturability, via higher-efficiency building processes, more use of robotics in its construction, and fewer parts.
The company informs us that NASA reviewed the test plan, to ensure that it met the requirements for NASA Launch Services certification. The engine should see its first official use later this year, in Falcon 9’s Flight 6 mission. SpaceX is also using Merlin 1D engines in its Grasshopper reusable launch vehicle.

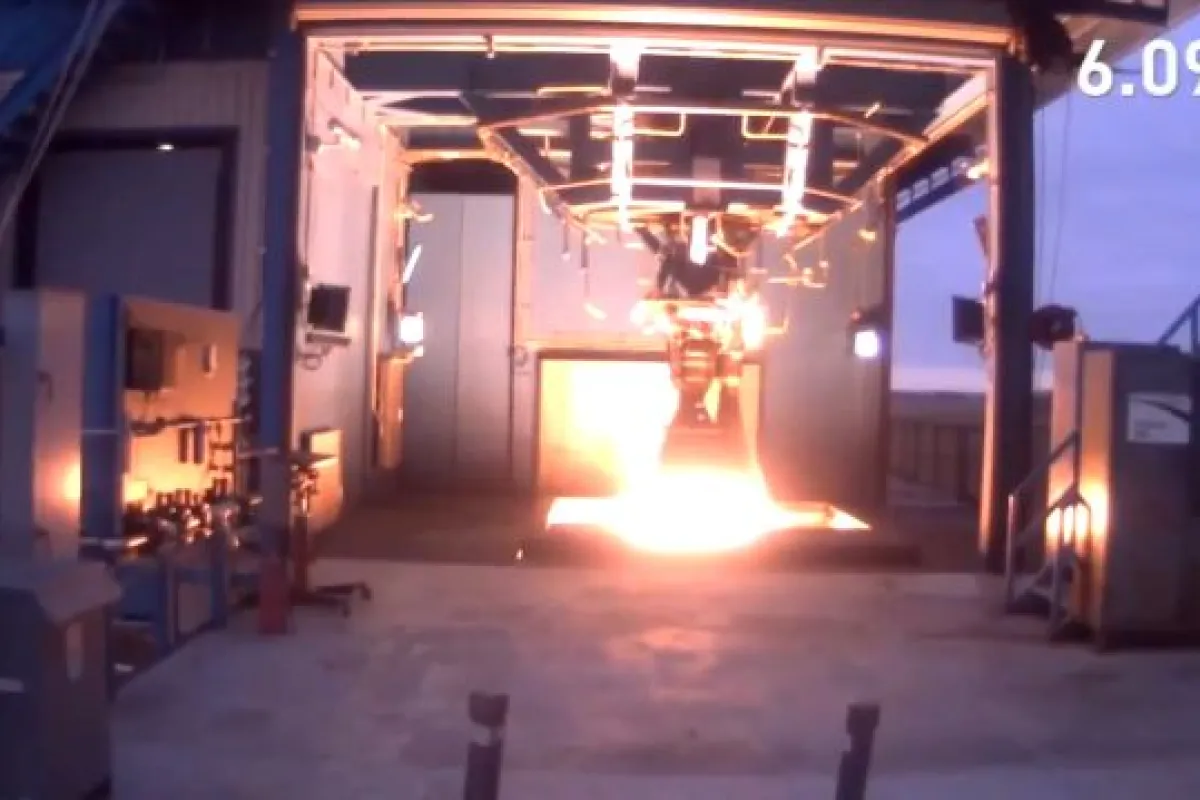

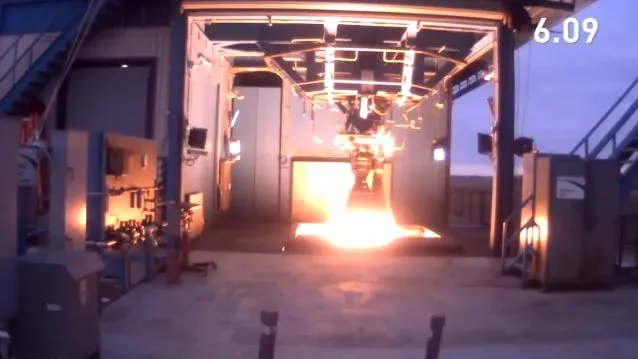

One of the engine tests, which took place at the SpaceX rocket development facility in McGregor, Texas, can be seen in the video below.
