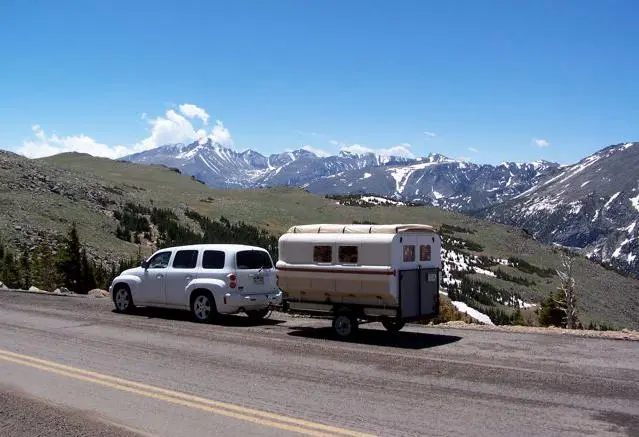

The Teal camper was designed around the Chevy HHR's 1,000-lb (455-kg) towing capacity
The Teal camper was designed around the Chevy HHR's 1,000-lb (455-kg) towing capacity
View 33 Images
The large double doors provide generous loading
1/33
The large double doors provide generous loading

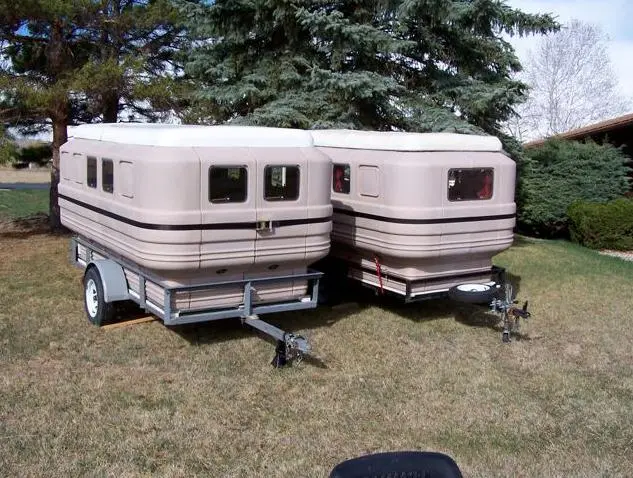

Teal Campers come in several different sizes and configurations
2/33
Teal Campers come in several different sizes and configurations

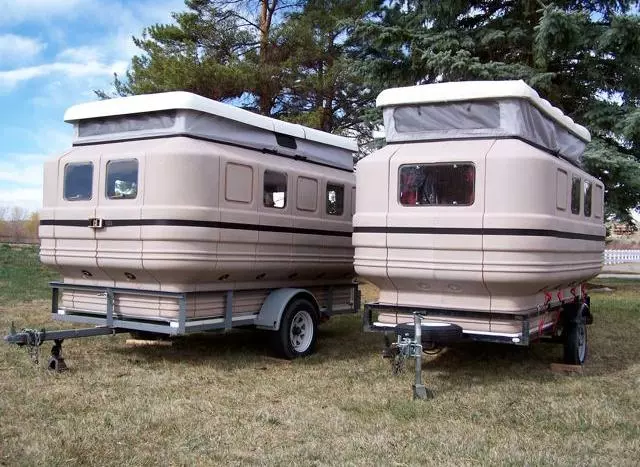

The pop-up roof gives you 6 feet (1.8 m) of headroom
3/33
The pop-up roof gives you 6 feet (1.8 m) of headroom

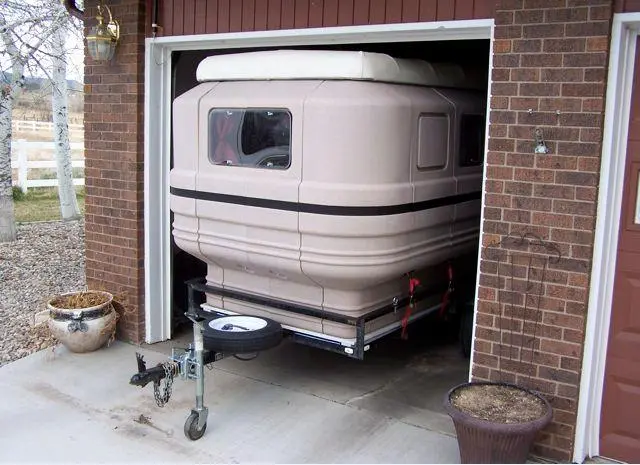

If you don't have room in the garage, break the Teal down into its panels
4/33
If you don't have room in the garage, break the Teal down into its panels

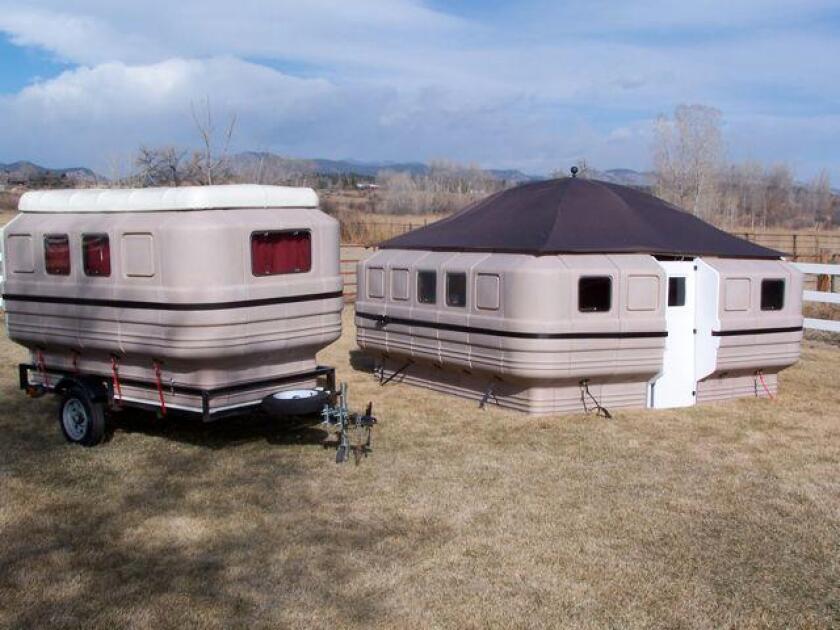

The camper was the first Teal panel innovation, but its modular design leaves open all kinds of shelter possibilities
5/33
The camper was the first Teal panel innovation, but its modular design leaves open all kinds of shelter possibilities

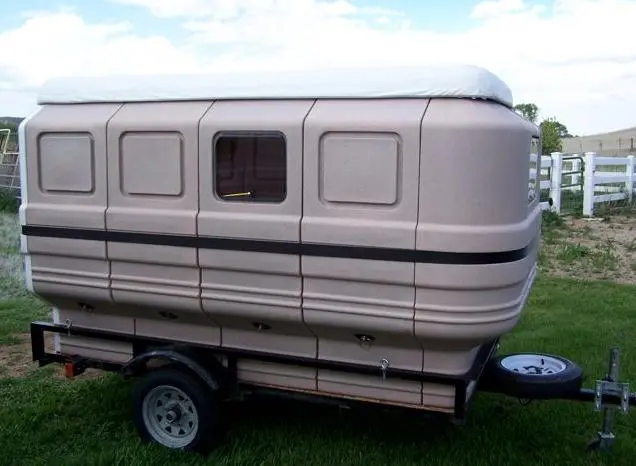

You can customize window and door panels to your liking
6/33
You can customize window and door panels to your liking

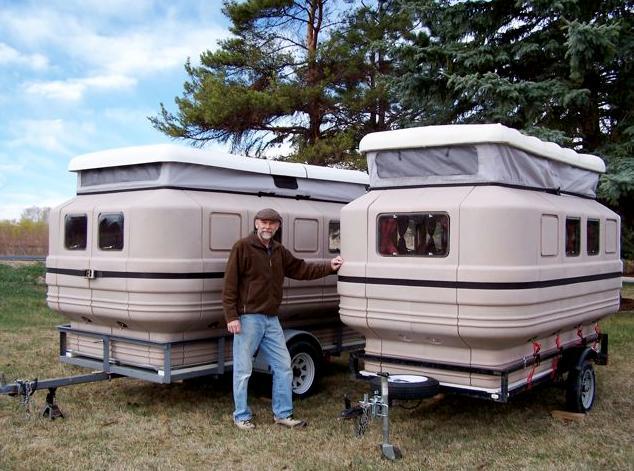

Lawrence Drake and his proud creations
7/33
Lawrence Drake and his proud creations
The Teal camper can be strapped or bolted to a trailer
8/33
The Teal camper can be strapped or bolted to a trailer
Slide the Teal onto your trailer and you're ready to travel the open road
9/33
Slide the Teal onto your trailer and you're ready to travel the open road

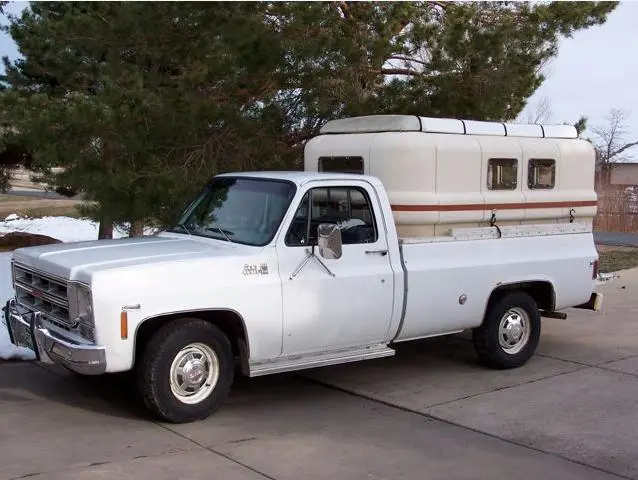

The Teal is also designed for pickup campers
10/33
The Teal is also designed for pickup campers

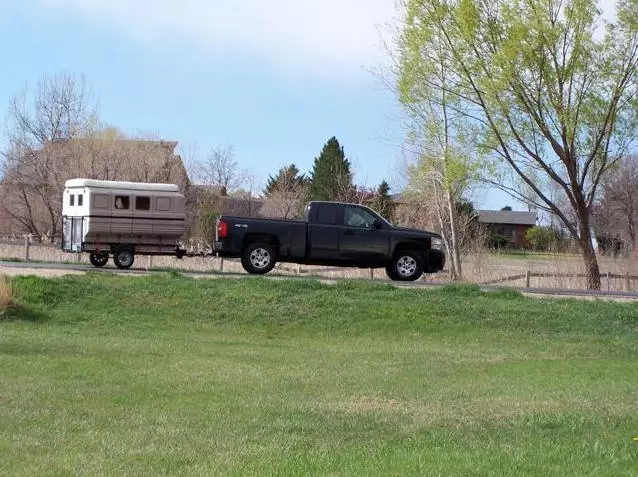

Drake managed to keep the weight well below his goal of 1,000 lbs. (455 kg) with his first prototype
11/33
Drake managed to keep the weight well below his goal of 1,000 lbs. (455 kg) with his first prototype

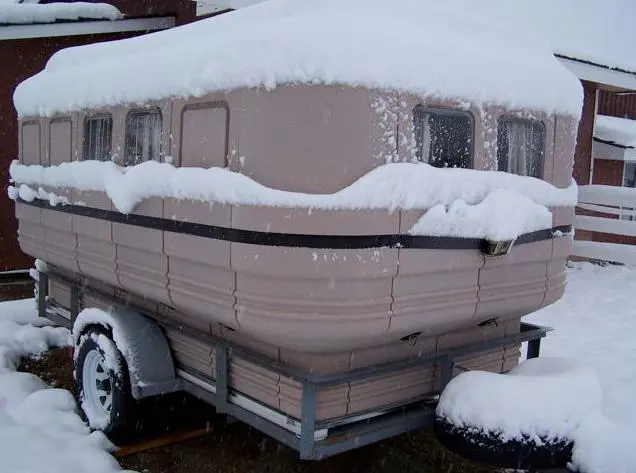

The Teal Camper uses foam insulated panels
12/33
The Teal Camper uses foam insulated panels
The Teal camper was designed around the Chevy HHR's 1,000-lb (455-kg) towing capacity
13/33
The Teal camper was designed around the Chevy HHR's 1,000-lb (455-kg) towing capacity

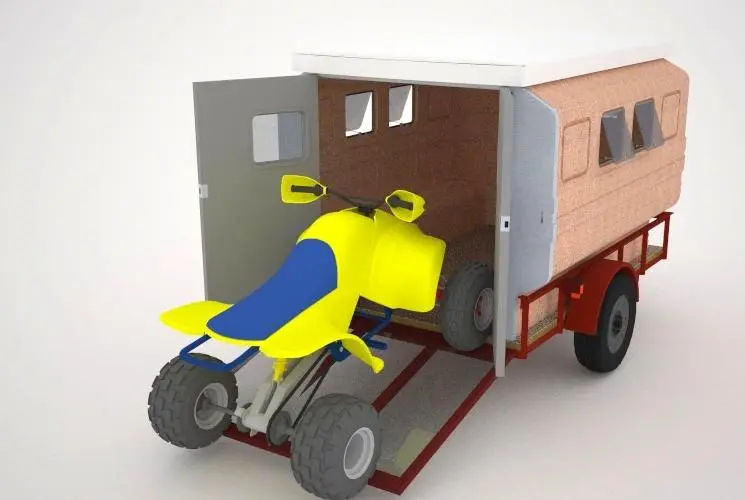

Unlike campers with fixed equipment, the Teal lets you empty out the inside and use it as a toy or gear hauler
14/33
Unlike campers with fixed equipment, the Teal lets you empty out the inside and use it as a toy or gear hauler
The large double doors provide generous loading
15/33
The large double doors provide generous loading

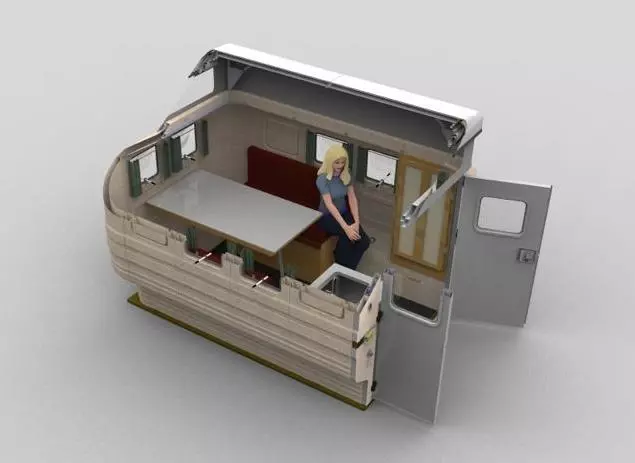

The standard interior is minimalistic, but gives you a place to eat and sleep
16/33
The standard interior is minimalistic, but gives you a place to eat and sleep

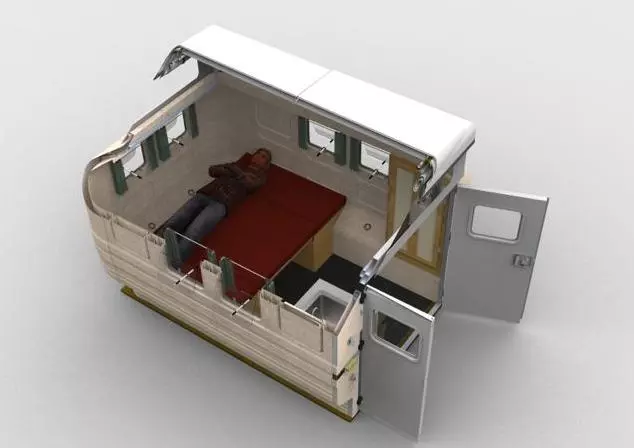

The Teal sleeps two
17/33
The Teal sleeps two
The standard interior is minimalistic, but gives you a place to eat and sleep
18/33
The standard interior is minimalistic, but gives you a place to eat and sleep

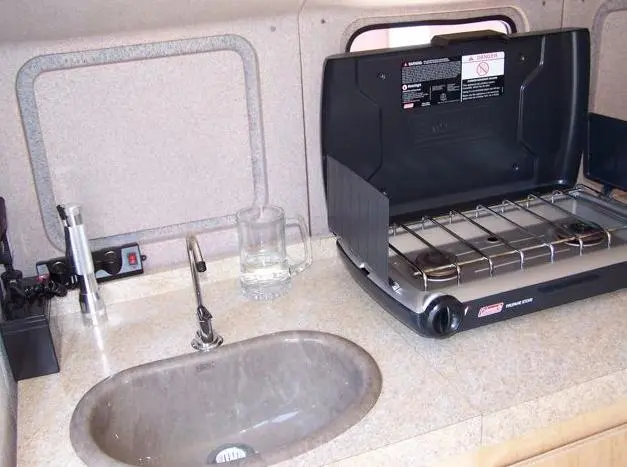

The focus is on lightweight, easily removable equipment like folding cabinets and camping stoves
19/33
The focus is on lightweight, easily removable equipment like folding cabinets and camping stoves
The focus is on lightweight, easily removable equipment like folding cabinets and camping stoves
20/33
The focus is on lightweight, easily removable equipment like folding cabinets and camping stoves
The interior includes basics like a table, seating and a bed
21/33
The interior includes basics like a table, seating and a bed
The Teal Camper sleeps two
22/33
The Teal Camper sleeps two

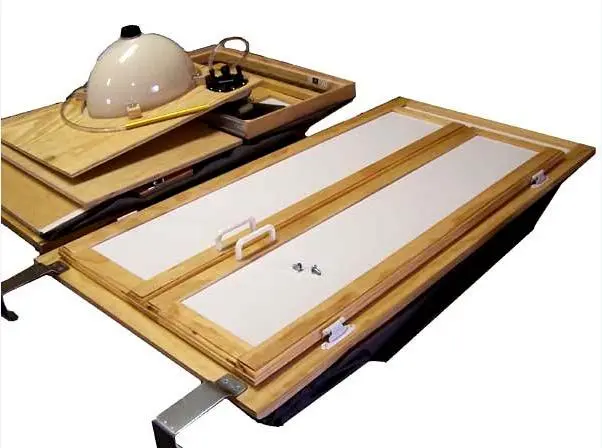

Interior fixtures fold up and store easily
23/33
Interior fixtures fold up and store easily

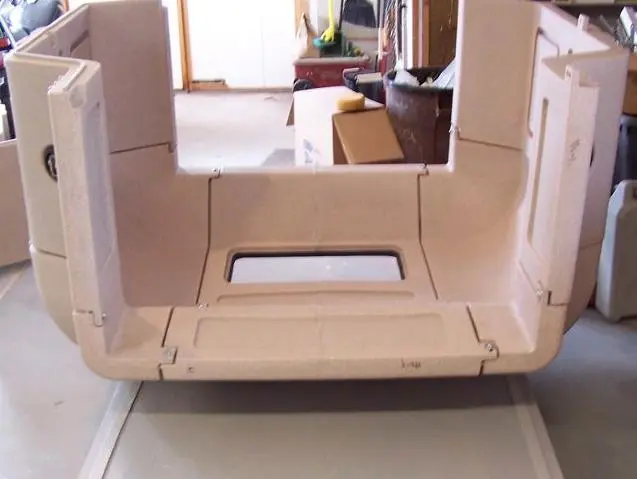

Several different panel types like corners and windows assemble together to create the full camper
24/33
Several different panel types like corners and windows assemble together to create the full camper
Several different panel types like corners and windows assemble together to create the full camper
25/33
Several different panel types like corners and windows assemble together to create the full camper

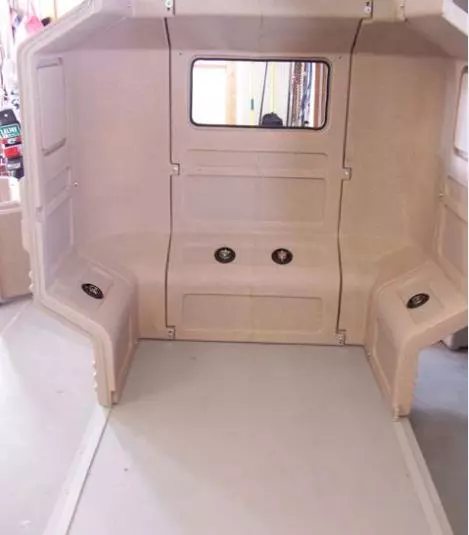

Teal says that the camper takes about 90 minutes to put together
26/33
Teal says that the camper takes about 90 minutes to put together
You can customize window and door panels to your liking
27/33
You can customize window and door panels to your liking
The gird strap tightens everything down and locks in weather sealing
28/33
The gird strap tightens everything down and locks in weather sealing

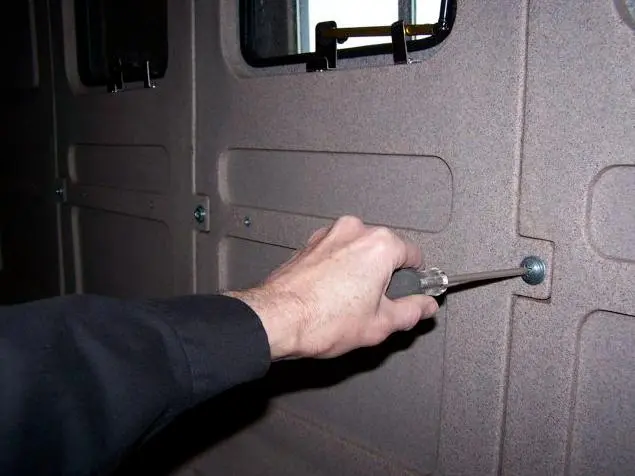

It may look complex, but all it takes is a screwdriver
29/33
It may look complex, but all it takes is a screwdriver
You can keep the interior minimal or outfit it with equipment
30/33
You can keep the interior minimal or outfit it with equipment

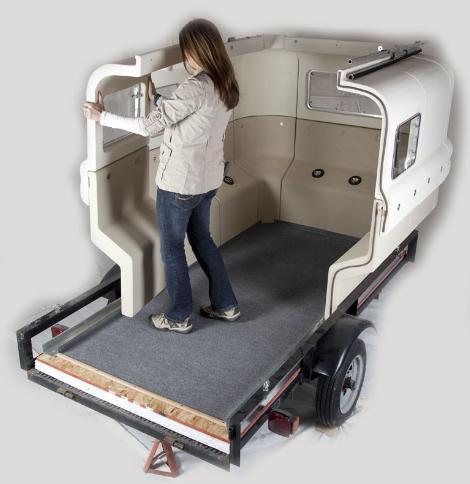

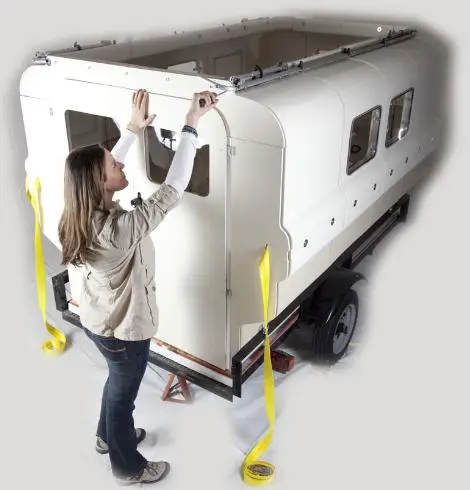

Attach the panels, doors and pop-top roof to make the full camper
31/33
Attach the panels, doors and pop-top roof to make the full camper

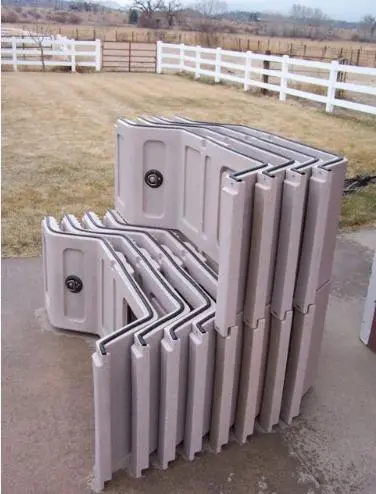

A few panels are much more versatile for storage than a full camper
32/33
A few panels are much more versatile for storage than a full camper
The Teal can be bolted or strapped to a plywood floor on the trailer
33/33
The Teal can be bolted or strapped to a plywood floor on the trailer
View gallery - 33 images

The Teal Camper gives campers an interesting way of combining the sturdy, hard-sided living quarters of a camping trailer with the easy storage of a smaller pop-up or tent. The camper is shipped to your door as a series of panels, and assembles into a two-person dwelling within about 90 minutes. When your camping season is over, you break it back down and store it neatly.

On our recent look at the NASA-inspired Cricket Trailer, many readers echoed the same two complaints: too expensive and not all that lightweight considering what it was designed for. There's certainly some merit to those arguments. On paper, the Teal Camper seems to steer well clear of both of those issues.

Inventor Lawrence Drake was inspired by a combination of family camping and daily cargo haulin'. When his daughter suggested a camping trip in 2009, Drake decided that his days of tent camping were in the past. He realized a pop-up camper would be a much better route but didn't want to have to go out and buy a big truck to haul it. The towing capacity on his Chevy HHR was 1,000 lbs. (455 kg), so what he really wanted was a compact trailer less than that weight.

When Drake had traded in his pickup truck for the HHR, he purchased an 4 x 8 foot (1.2 x 2.4 m) utility trailer to replace the bed for hauling tools, gear and the like. Drake realized that what would really work in terms of a camper is something that he could assemble within the utility trailer for camping trips and take apart when not in use. In that way, he'd have both a camping trailer and a utility trailer in one.

The Teal can be bolted or strapped to a plywood floor on the trailer
The Teal can be bolted or strapped to a plywood floor on the trailer

The solution that Drake came up with is a modular, assembly-required camper that consists of a series of foam-insulated polyethylene panels. The panels ship to your door by way of UPS truck, and you assemble them inside your tow trailer with the help of nothing more than a trusty Phillips head. The panels fit together with a series of hardware and waterproof sealing, and create the camper shell. Certain panels are equipped with doors and windows, and a pop-top roof kit expands head room to around 6 feet (1.8 m). The camper body attaches to a plywood floor in the utility trailer by way of straps or angle brackets.

The camper can be purchased in several sizes for use in different utility trailers and pickup truck beds. Thanks to its beveled base, it fits neatly in the trailer while offering a little extra interior room than it would with straight, right-angled walls. Because it's made up of individual panels, it's easy to customize to preference with things like extra windows. You can even expand to a larger sized trailer by adding extra panels.

Lawrence Drake and his proud creations
Lawrence Drake and his proud creations

Inside, the standard Teal camper kit limits you to the basics in order to keep weight below the magic number of 1,000 lbs. Bench seating, a table and a double bed are included in the full camper. From there, it's really up to you. Teal offers some add-on equipment like a canvas sink cabinet (lighter and easier to break down than wood), and the camper's open, minimalistic framing leaves the door open for you to customize it with your own equipment and accessories. Drake's idea is that you stick with light, camping hardware rather than built-in fixtures to keep things lightweight and easy to break down. So instead of an integrated cooking range and bathroom, you would use a propane camping stove and portable toilet.

Since you can assemble and disassemble part of or the whole Teal package, it also takes on a level of versatility that other camping trailers don't enjoy. Keep it empty and load an ATV, bike or other toys in through the large double doors on back or fill the space up with the conveniences of living, depending upon your trip. During the off season, you can break it down completely instead of having a camper sitting in the middle of your driveway or garage. The panels are designed to nest together to be as unobtrusive as possible.

Drake has gone as far as to build several prototypes of the camper. Along with the trailer he had to tow it, his original empty camper prototype weighed in at a very lightweight 630 lbs (286 kg).

Currently, Drake is finding out that it takes more than a great idea to get a product off the ground. Despite having some background in the manufacturing realm from a career in the home heating industry, he's run into difficulty finding a manufacturing partner to get the project up and running. He's currently looking for partners and investors to help him make that big next step.

"Ive pretty much gotten to the point, to be honest with you, where I've put everything I've got into it and I'm looking for someone to pick it up and help me take it to the next level," Drake told us. "The opportunity is definitely there. I've got over 600 people who have expressed interest in purchasing; I've got 150 people that are interested in being a dealer. The interest I get on it is pretty high."

Drake opined that the tough economy over the past few years has forced manufacturers into shrinking operations and focusing in on proven, high-volume cash cows. In short, they're afraid to take a risk on an unproven quantity like the Teal Camper.

Since manufacturing costs remain up in the air, there's no solid pricing on the Teal Camper. However, Drake has published some projected prices. For the most basic shell, which includes exterior panels, a fixed roof and doors, but no interior equipment, the listed estimate is just under US$3,000. Full campers, which include more windows, a cabinet with sink, bed, dining area, and pop-up roof, are projected at a starting price of just under $5,000.

Beyond the camper, Drake also sees some potential for his panel system to be applied to other lightweight shelter solutions. He cites things like ice fishing huts, hunting blinds and emergency shelters as projects that the Teal panels would be well-suited for.

The camper was the first Teal panel innovation, but its modular design leaves open all kinds of shelter possibilities
The camper was the first Teal panel innovation, but its modular design leaves open all kinds of shelter possibilities

"The camper is a great little product, but my sense is that that's not going to be the biggest use for this [panel system]," Drake predicted. "The ideas and the uses that have come up for the panel system - everything from hot tub surrounds to emergency shelters that can be taken in and set up on snowmobiles - that, to me, could end up being a much bigger market."

Of course, he'll need to get production and marketing off the ground before expanding into new areas. But it looks like he's got an innovative shelter solution on his hands.

"It's gonna just take the right match, the right person that not only sees the opportunity but they feel good about getting involved."
