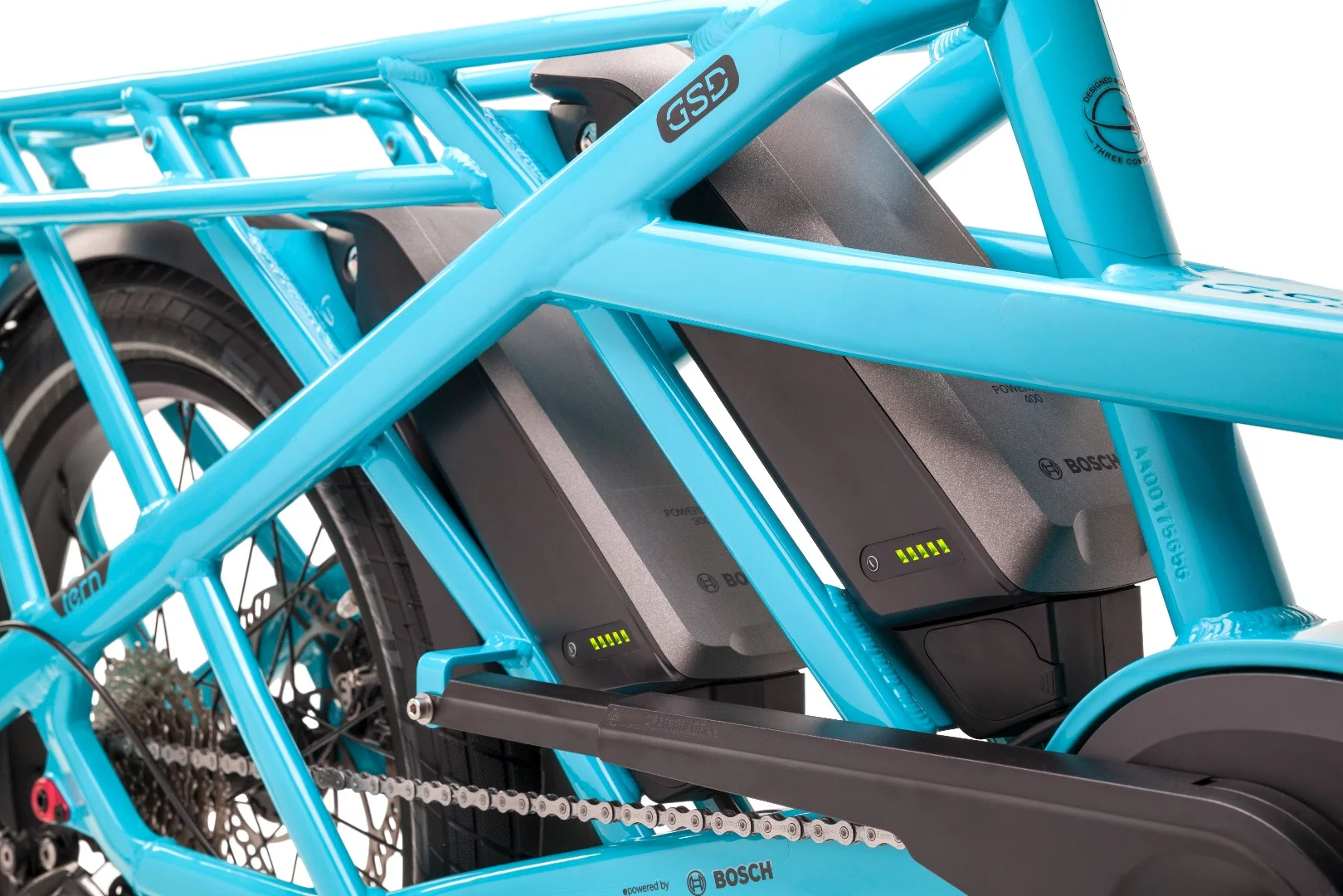

Bosch's DualBattery option is available on the GSD
3/29
Bosch's DualBattery option is available on the GSD
Tern has designed the GSD to have a footprint comparable to a regular bicycle, with more cargo-hauling muscle
4/29
Tern has designed the GSD to have a footprint comparable to a regular bicycle, with more cargo-hauling muscle

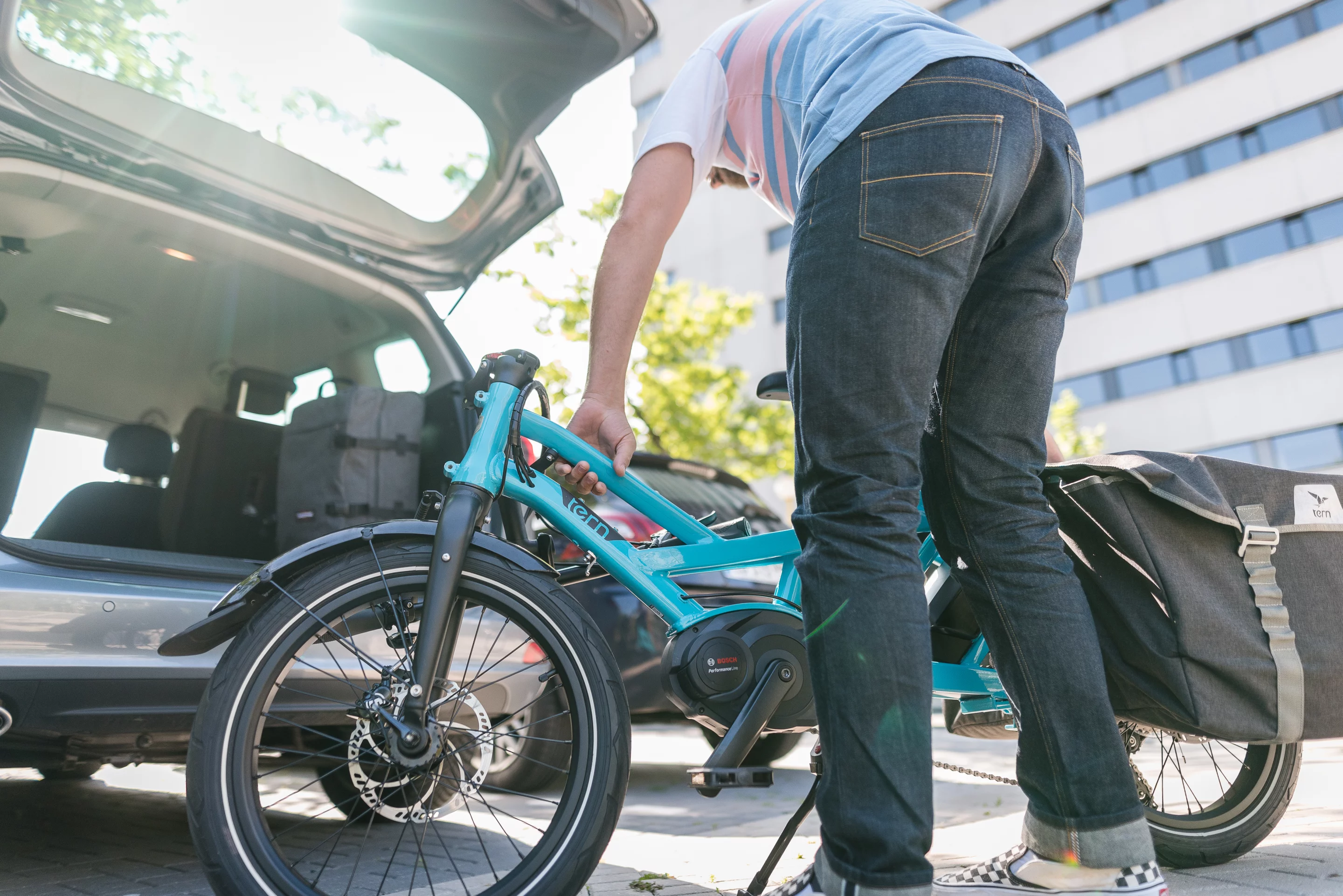

The Tern shrinks in size and width within seconds for transport and storage
5/29
The Tern shrinks in size and width within seconds for transport and storage
It won't slide in a small car trunk like a fully folding bicycle, but the GSD is designed to fit inside mid-size vehicles
6/29
It won't slide in a small car trunk like a fully folding bicycle, but the GSD is designed to fit inside mid-size vehicles
The GSD has the flexibility to haul all kinds of cargo
7/29
The GSD has the flexibility to haul all kinds of cargo
The GSD can hold nearly 400 lb of riders, passengers and cargo
8/29
The GSD can hold nearly 400 lb of riders, passengers and cargo
Tern has designed the GSD to fit two children or one adult passenger
9/29
Tern has designed the GSD to fit two children or one adult passenger
The GSD holds two Thule Yepp Maxi seats with room for cargo
10/29
The GSD holds two Thule Yepp Maxi seats with room for cargo

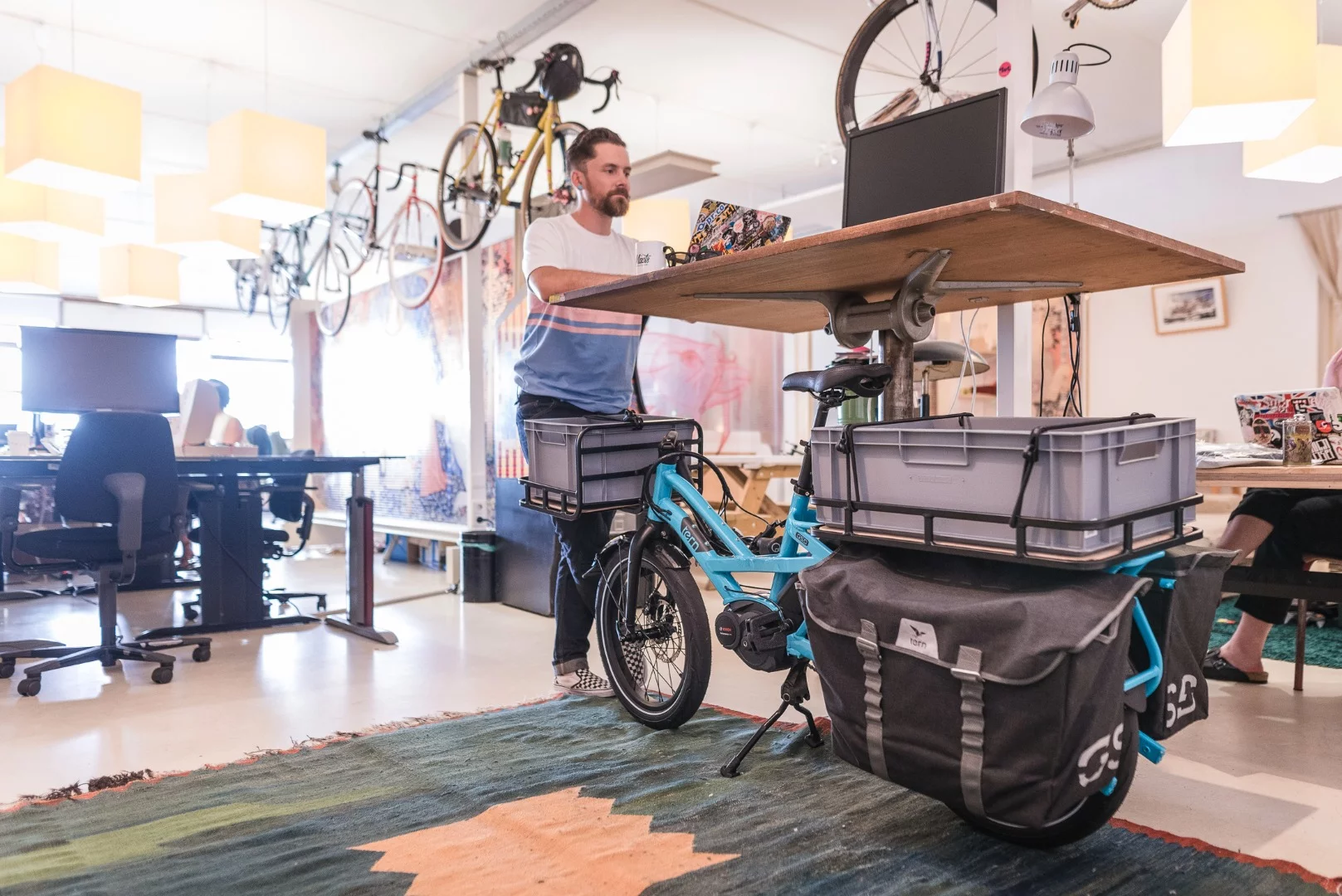

It's not as compact as a full folder, but you can still find a spot for it at the office
11/29
It's not as compact as a full folder, but you can still find a spot for it at the office
The GSD can carry an adult passenger and includes retractable foot pegs for this purpose
12/29
The GSD can carry an adult passenger and includes retractable foot pegs for this purpose
Tern GSD electric cargo bike
13/29
Tern GSD electric cargo bike
Tern has made the GSD compact enough to fit elevators, helping it get from home to work and back again
14/29
Tern has made the GSD compact enough to fit elevators, helping it get from home to work and back again
The GSD has Magura disc brakes
15/29
The GSD has Magura disc brakes
The adjustable stem and handlebars help the GSD adjust to different riders
16/29
The adjustable stem and handlebars help the GSD adjust to different riders
Tern GSD electric cargo bike
17/29
Tern GSD electric cargo bike
Tern GSD electric cargo bike
18/29
Tern GSD electric cargo bike
The retractable foot pegs help keep the rear passenger comfortable and stable
19/29
The retractable foot pegs help keep the rear passenger comfortable and stable
Retractable foot pegs retracted
20/29
Retractable foot pegs retracted
The dual kickstand stabilizes the large bike when at rest
21/29
The dual kickstand stabilizes the large bike when at rest
Tern GSD electric cargo bike
22/29
Tern GSD electric cargo bike
Schwalbe 2.4-in Super Moto-X tires
23/29
Schwalbe 2.4-in Super Moto-X tires
Tern GSD electric cargo bike
24/29
Tern GSD electric cargo bike

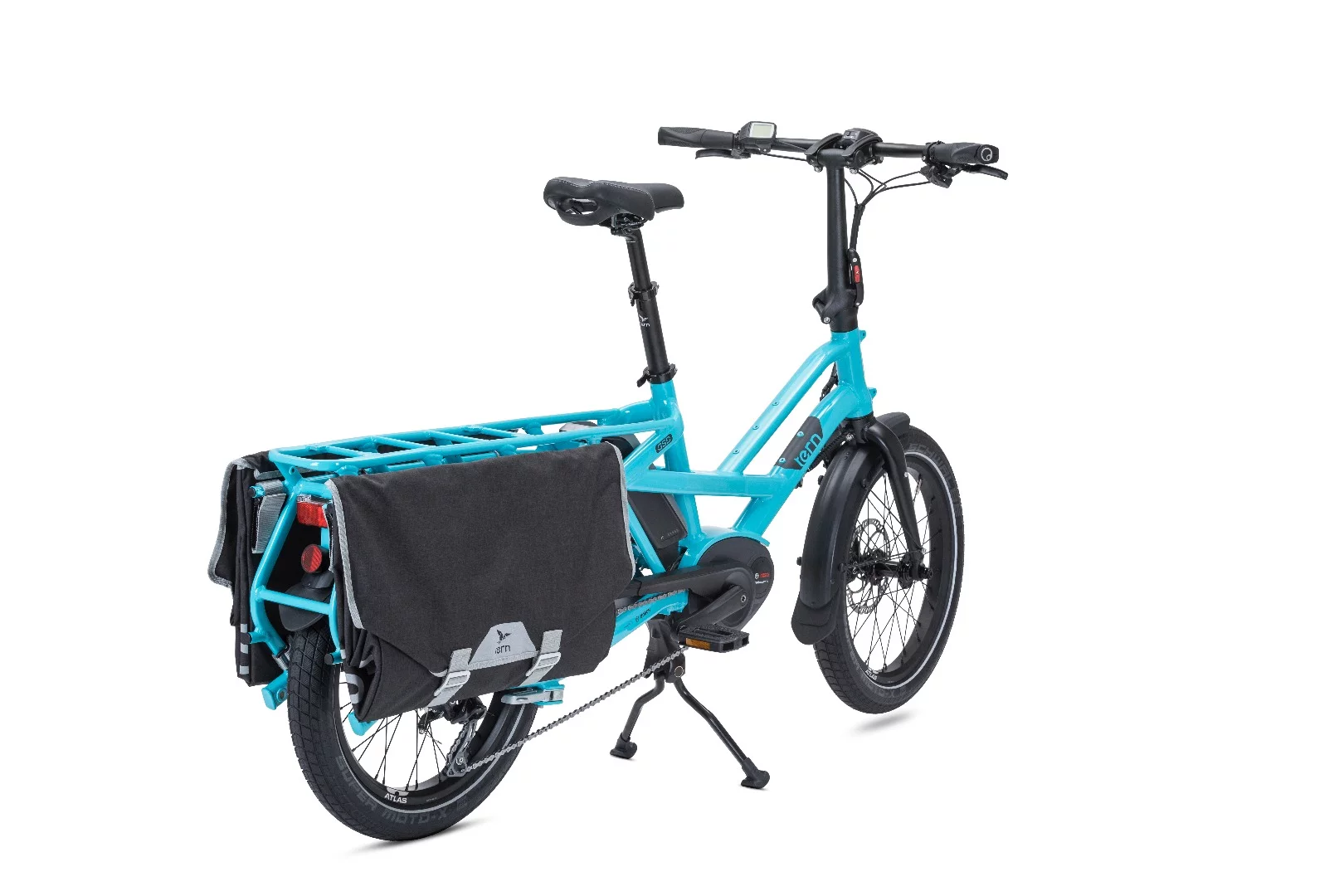

Tern will debut the GSD during the upcoming bike show season, starting at Eurobike 2017
25/29
Tern will debut the GSD during the upcoming bike show season, starting at Eurobike 2017
Tern GSD electric cargo bike
26/29
Tern GSD electric cargo bike

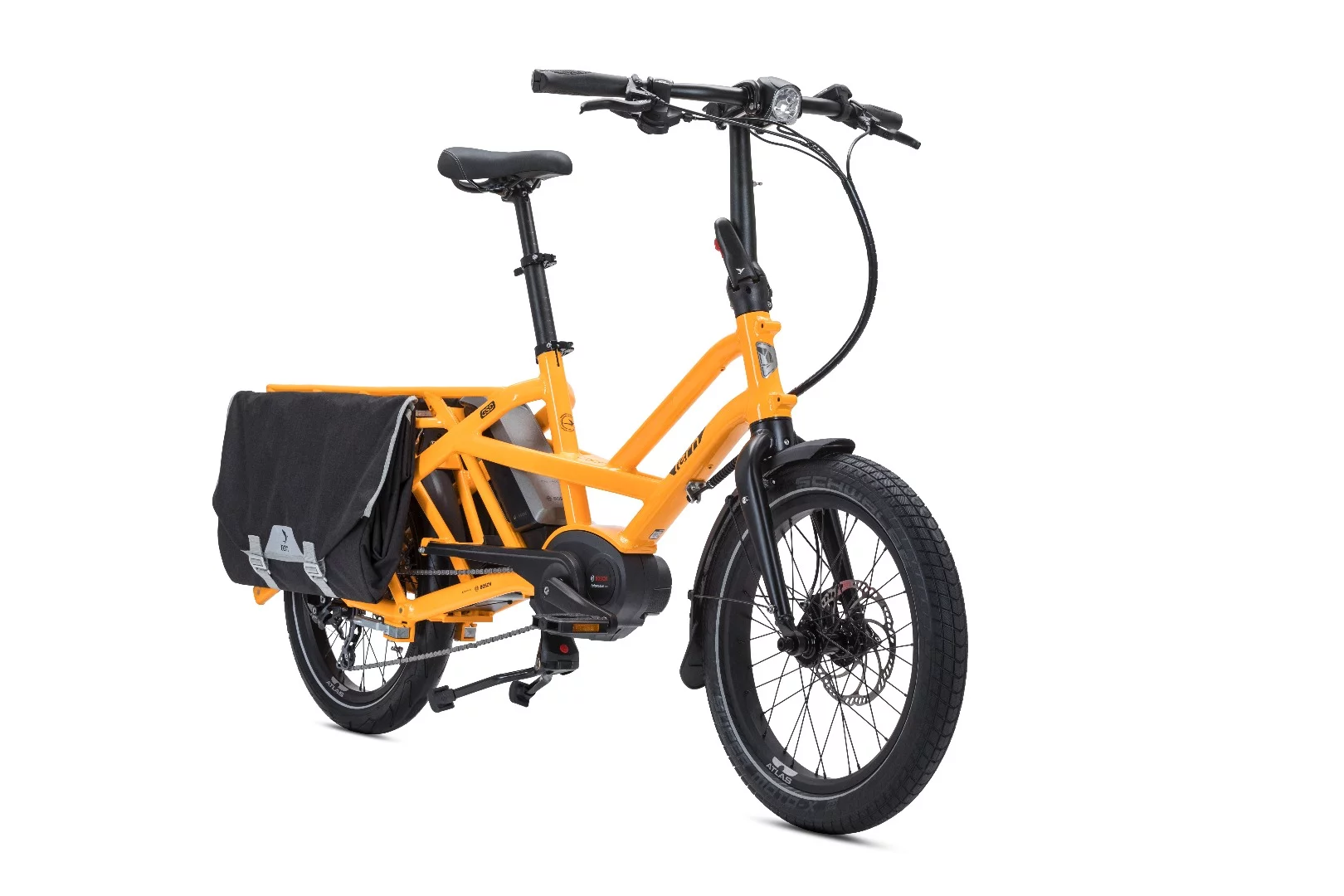

The GSD will be available in the first quarter of 2018
27/29
The GSD will be available in the first quarter of 2018
Tern GSD electric cargo bike
28/29
Tern GSD electric cargo bike
Tern GSD electric cargo bike
29/29
Tern GSD electric cargo bike
View gallery - 29 images

Taiwanese bicycle manufacturer Tern realized a nagging problem afflicting cargo bikes. They're perfect for city centers, where short distances make pedaling the kids to school or carrying groceries home a practical exercise. But the large, heavy bicycles tend to be less than ideal for narrow, crowded streets and small, high-rise apartments. To help solve this conundrum, it's launching the all-new GSD, a compact electric cargo bike that has the wheelbase of a standard bike, along with folding components that help it ride in a car and store in an office or apartment.

There are already folding and compact cargo bikes and accessories out there, but cargo bikes in general tend to have either long, cargo-cradling noses or large rear racks, sometimes both. These bikes can be long, wide, heavy and just plain awkward – not necessarily ideal for riding through compact spaces, let alone carrying up stairs, transporting by car, or storing in small dwellings or offices.

Tern is one of the companies that offers a more compact alternative: the non-electric, folding Cargo Node it introduced back in 2015. That model is designed to offer a blend of cargo-hauling utility, compact size, and easy transport and storage.

The Cargo Node looked quite compact when we first covered it, but it now looks rather long, at least in riding form, when compared to the GSD. The 71-in-long (180 cm) GSD measures 15 in (38 cm) shorter than the Cargo Node while offering a larger 397-lb (180 kg) payload and an electric-assist powertrain to help muscle that payload forward.

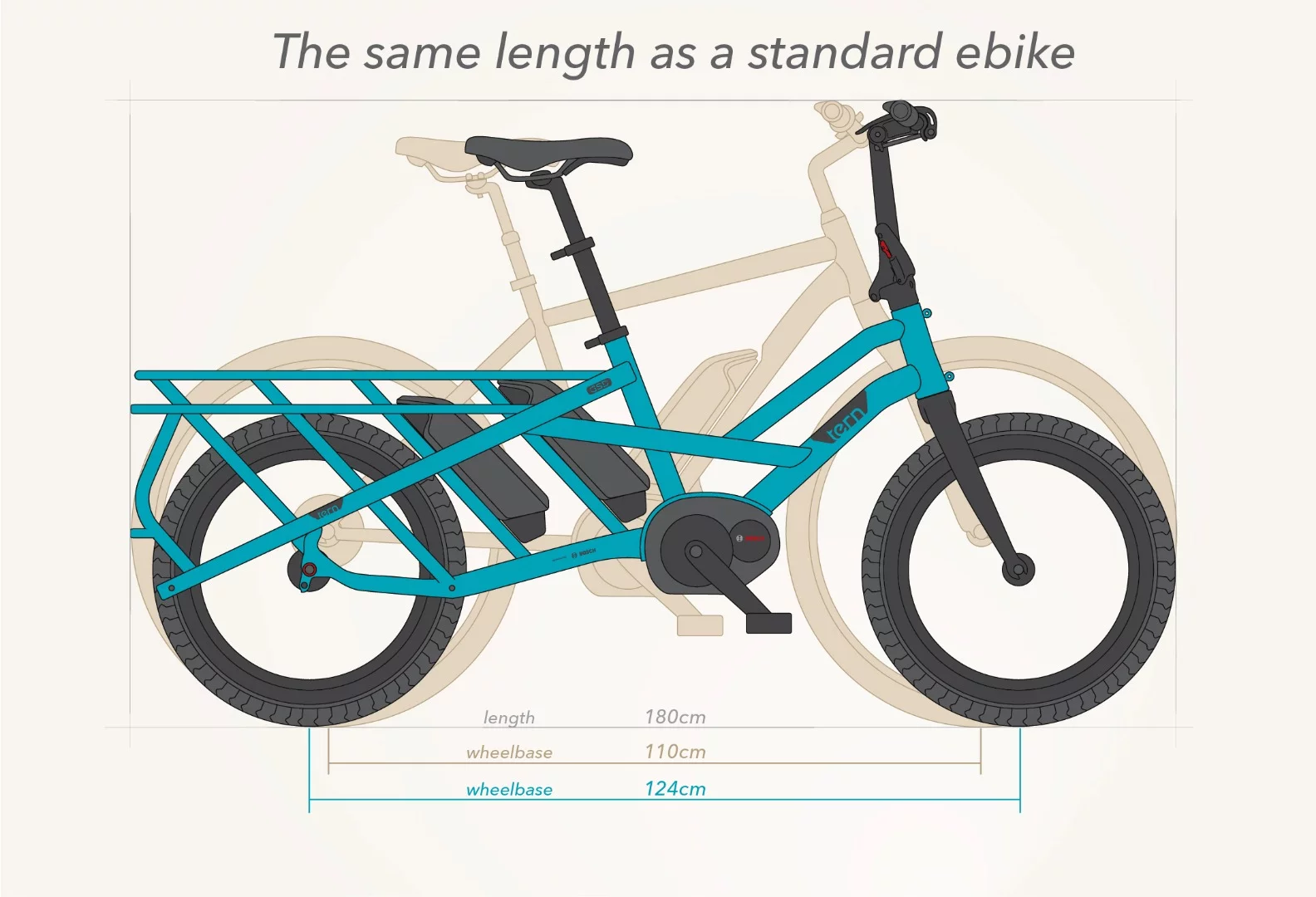

Tern says the GSD has the same length as a standard, non-cargo bicycle with a shorter frame height, low center of gravity and long wheelbase that help in stability and maneuvering
Tern says the GSD has the same length as a standard, non-cargo bicycle with a shorter frame height, low center of gravity and long wheelbase that help in stability and maneuvering

Tern says the GSD's wheelbase is comparable to a standard bicycle, and the bike is designed to fit standard car and bus bike racks. The frame does not fold, but the collapsible handlebars and seat help it slide in vehicle load areas and store in small apartments. This hardware works in a matter of seconds and cuts the bike's height by 33 percent and width by 40 percent.

The GSD hauls its load with help from the 31.5-in-long (80 cm), frame-integrated rack in back. That rack can hold the two side panniers that come standard (62 L total storage), two Thule Yepp Maxi child seats, or a single adult passenger. Owners can also add a rear tray, front tray and other accessories, and Tern plans on open-sourcing the frame attachment dimensions so that riders can design their own cargo accessories.

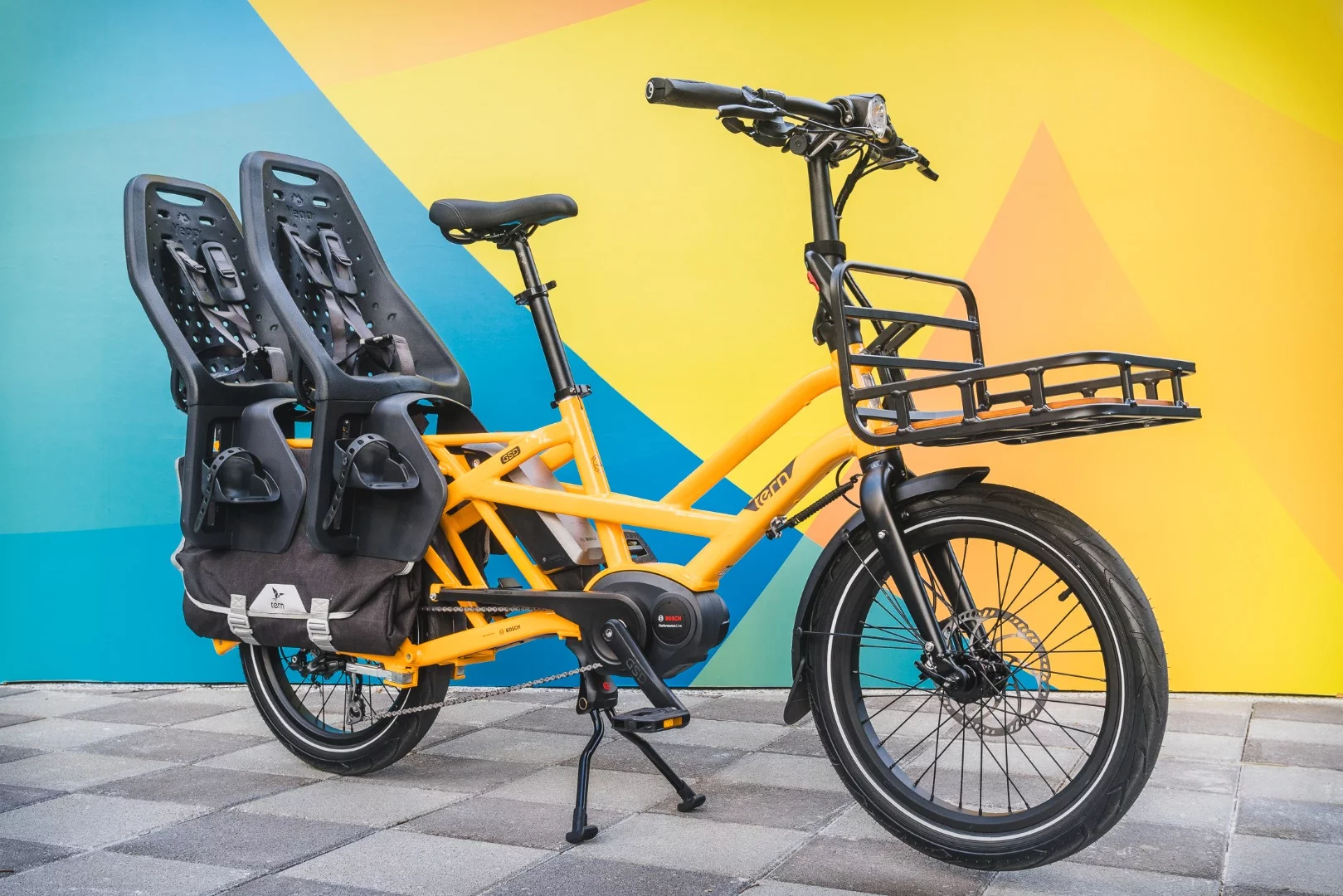

The GSD holds two Thule Yepp Maxi seats with room for cargo
The GSD holds two Thule Yepp Maxi seats with room for cargo

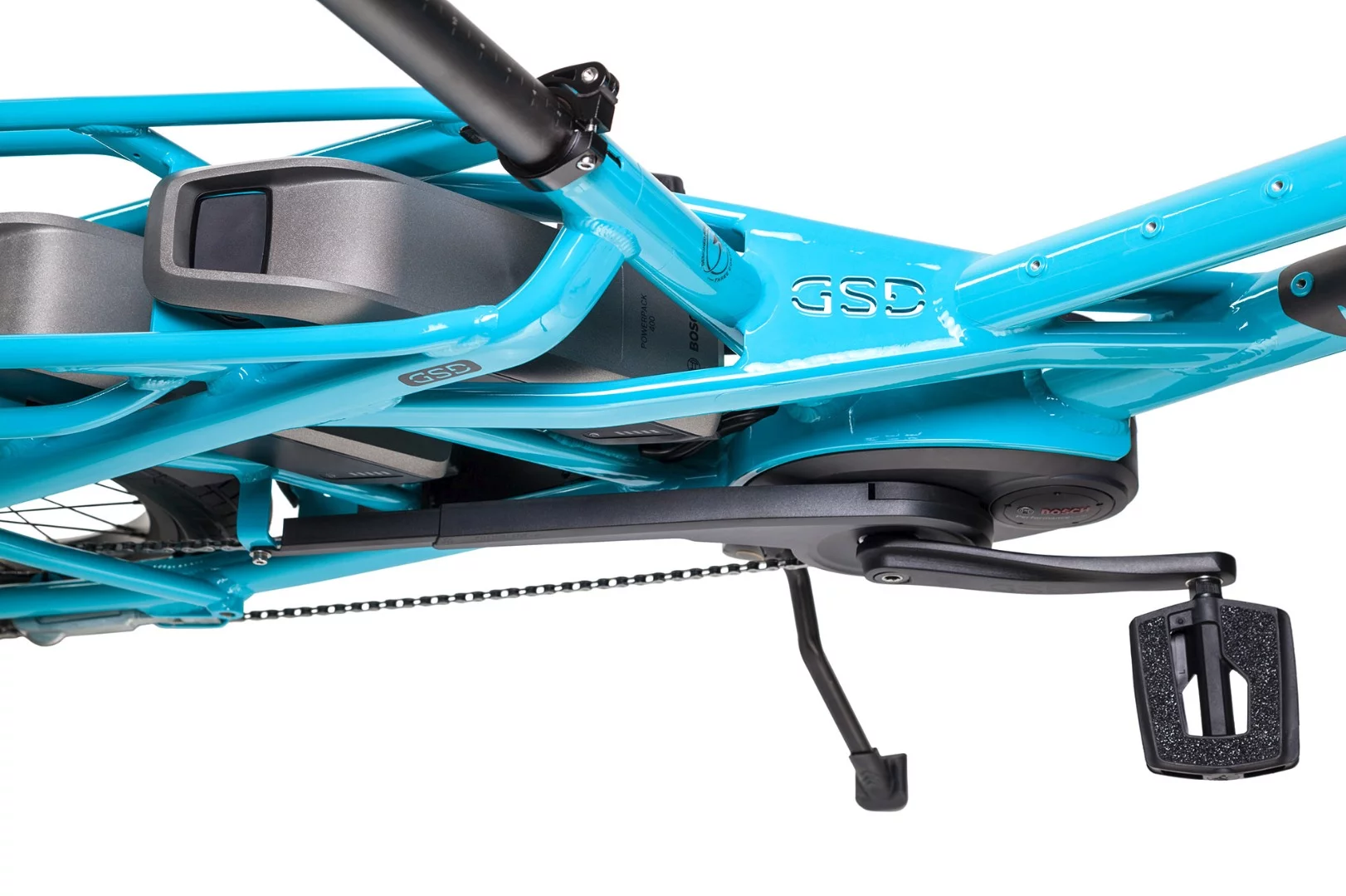

To help the rider more easily pedal all that cargo, the GSD includes a Bosch Performance pedal-assist mid-drive, available with a DualBattery option. Battery sizes and ranges vary by market, with Europe getting 400- and 500-Wh options and the US getting up to 900 Wh. The bike offers up to 155 miles (250 km) of pedal-assist range, and the mid-drive layout makes for a low center of gravity, which Tern promises improves the stability and handling with the stretched 49-in (124-cm) wheelbase.

"When you design a bicycle around an electric drivetrain, you don't need to compromise key functionalities like comfort and cargo capacity to optimize for speed," says Josh Hon, Tern team captain. "With a Bosch drivetrain, 20-in-wheel bikes ride just as fast as 700c bikes, but thanks to smaller wheels, deliver punchier acceleration. The smaller wheels also allow us to maximize cargo capacity. And with top speed removed from the optimization equation, we were free to design the GSD with a comfortable Dutch-bike riding position. Best of all, we were able to fit all this into a package that's only the size of a standard city bike."

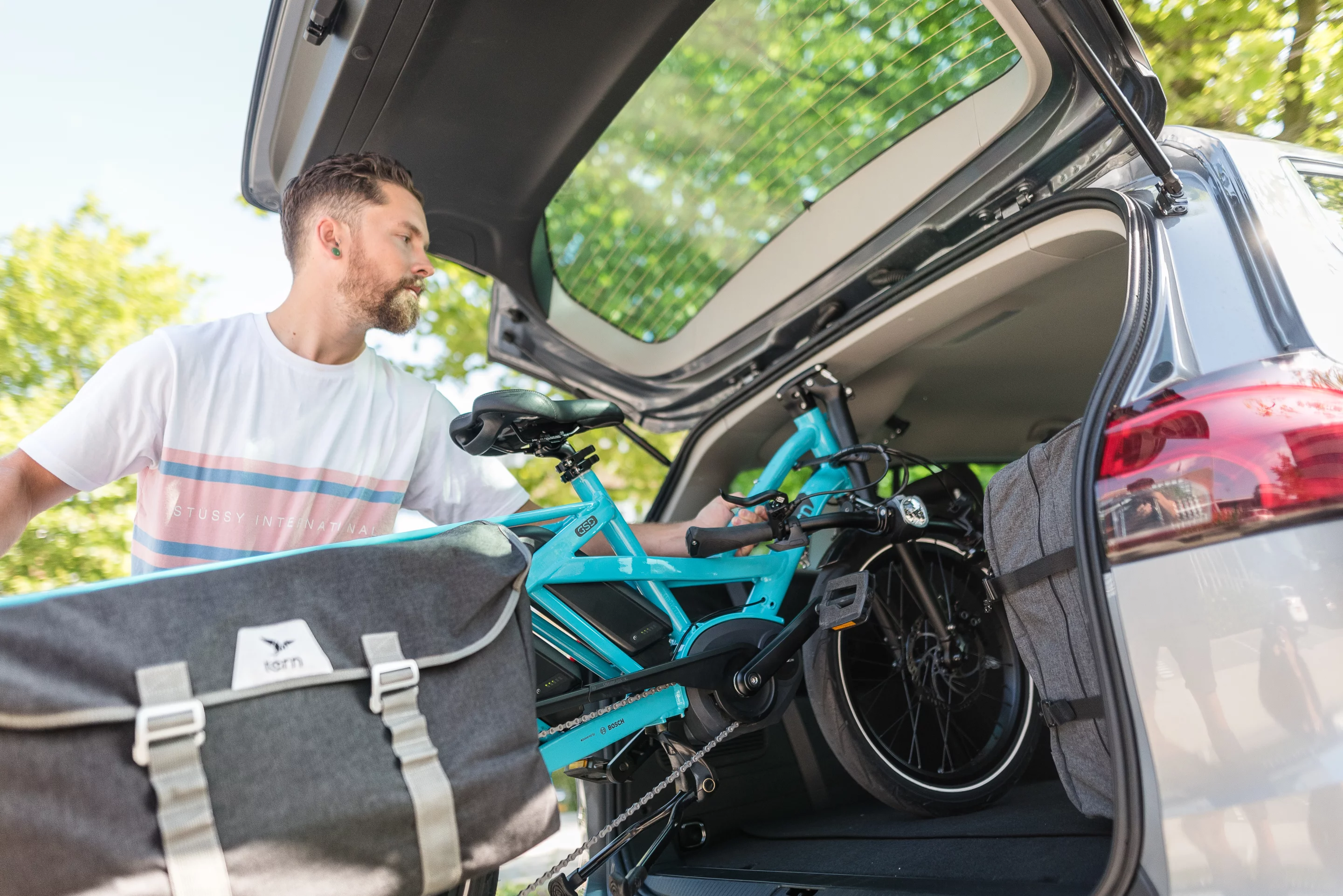

It won't slide in a small car trunk like a fully folding bicycle, but the GSD is designed to fit inside mid-size vehicles
It won't slide in a small car trunk like a fully folding bicycle, but the GSD is designed to fit inside mid-size vehicles

Beyond shrinking it down into transport/storage mode, the GSD's adjustable handlebars, cockpit and seat offer another advantage: adjusting to better fit each rider, anyone between 4.9 and 6.4 feet (150 and 195 cm) tall. The low step-over height helps smaller riders, while the heavily buttressed frame and fork ensure support for heavier riders pedaling cargo.

To add robustness, Tern has carefully selected components like the Magura 4 disc brakes, custom 2.4-in Schwalbe Super Moto-X tires, Boost thru-axle hubs, and custom 36-mm rims. Also included are built-in lighting, mudguards, a double kickstand and retractable passenger foot pegs.

Tern announced the GSD ahead of its world premiere at Eurobike later this month. It will retail for US$3,999/3,999 when it arrives at bike dealers in the first quarter of 2018.
