Japanese architectural firm Kengo Kuma & Associates recently demonstrated its ethos of design inspired by light and nature with an experimental house in Hokkaido called "Même." The structure is designed for cold climates and whilst based upon the local Ainu people's “Chise” (House of the Earth), it uses modern materials for an insulated double skin membrane that promotes convection and maintains a comfortable internal environment due to heat circulation from its continually lit fire.

The traditional “Chise” housing insulates and recovers heat from a central fire, and uses bamboo grass or sedge for facade insulation, wrapped around a wooden frame. The Même experimental house has adapted that principle.

The design team at Kengo Kuma built the 79.5 sq.mt. (855.7 sq.ft.) house frame from Japanese Larch, then incorporated their customized membrane composed of polyester fluorocarbon tarp on the outside, with a glass-fiber cloth membrane on the interior. Finally, polyester insulation from recycled plastic bottles was installed in between.

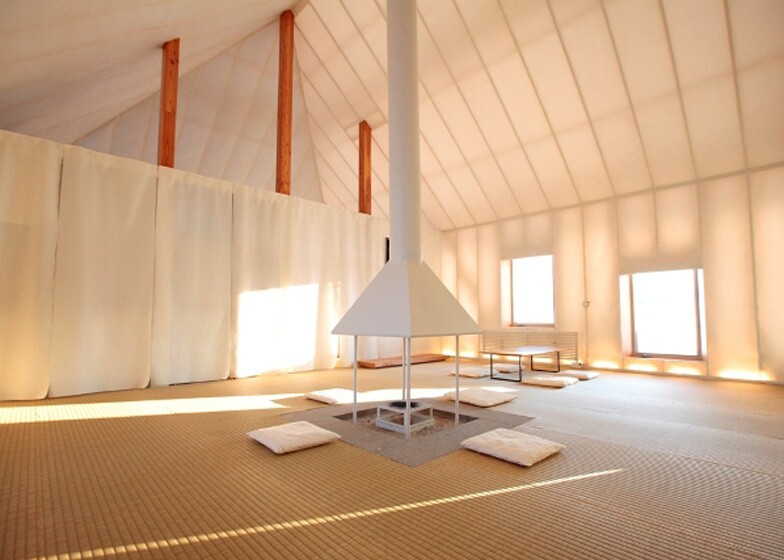

A central fireplace radiates heat throughout the entire space
A central fireplace radiates heat throughout the entire space

The Même experimental house facade not only ensures natural ventilation through the materials used, but is also semi-transparent to permit natural indoor lighting throughout the year. The design also encourages natural daylight working hours for the occupants, in addition to providing a luminous glow when the building is viewed from the outside at night.

The experimental house is located on the 185,000 sq.mt. (1,991,323 sq.ft.) Même Meadows research facility – established for studying design responses to the region's harsh climate – and will continue to test the limits of both internal and external architecture in extreme environments.

It was completed with support from the Tomonari Yashiro Laboratory at the University of Tokyo’s Institute of Industrial Science.

Source: Kengo Kuma & Associates via arcspace
