The spherical genius of the Hüttlin Kugelmotor

The spherical genius of the Hü...
Huttlin kugel motor prototype under testing
Huttlin kugel motor prototype under testing
View 26 Images
Kugel motor hybrid cutaway drawing
1/26
Kugel motor hybrid cutaway drawing
Kugel motor generator cutaway drawing
2/26
Kugel motor generator cutaway drawing
Kugel motor compressor cutaway drawing
3/26
Kugel motor compressor cutaway drawing
Huttlin kugel motor prototype under testing
4/26
Huttlin kugel motor prototype under testing
Kugel motor cutaway
5/26
Kugel motor cutaway
Kugel motor prototype under testing
6/26
Kugel motor prototype under testing
Dr Huttlin and the Kugel motor production prototype
7/26
Dr Huttlin and the Kugel motor production prototype
Kugel motor prototype under testing
8/26
Kugel motor prototype under testing
Kugel motor cutaway drawing
9/26
Kugel motor cutaway drawing
Kugel motor cutaway drawing
10/26
Kugel motor cutaway drawing
Kugel motor hybrid exterior drawing
11/26
Kugel motor hybrid exterior drawing
Kugel motor generator exterior drawing
12/26
Kugel motor generator exterior drawing
Kugel motor prototype under testing
13/26
Kugel motor prototype under testing
Kugel motor cutaway showing the pistons
14/26
Kugel motor cutaway showing the pistons
Kugel motor production prototype
15/26
Kugel motor production prototype
Kugel motor cutaway showing the magnet ring
16/26
Kugel motor cutaway showing the magnet ring
Kugel motor cutaway showing the generator coils
17/26
Kugel motor cutaway showing the generator coils
Kugel motor cutaway
18/26
Kugel motor cutaway
Dr Huttlin at the Geneva Motor Show
19/26
Dr Huttlin at the Geneva Motor Show
Kugel motor cutaway
20/26
Kugel motor cutaway
Kugel motor production prototype
21/26
Kugel motor production prototype
Kugel motor production prototype
22/26
Kugel motor production prototype
Dr Huttlin and the Kugel motor cutaway
23/26
Dr Huttlin and the Kugel motor cutaway
Kugel motor production prototype
24/26
Kugel motor production prototype
Kugel motor prototype under testing
25/26
Kugel motor prototype under testing
Kugel motor prototype under testing
26/26
Kugel motor prototype under testing

The car is not going to disappear anytime soon and neither is the combustion engine, despite the inevitable rise in fuel prices. We have said it before, electrical motors are an energy-efficient method for driving vehicles but battery technology is simply not going to advance quickly enough for all-electric vehicles to be a practical reality for most uses anytime soon. The near and mid-term future is undoubtedly a combination of compact combustion engine generators charging dense battery packs that drive electric motors - the "range extender" option. We reported on one possible candidate, the disc motor, a couple of months ago. Now, after nearly twenty years of development another candidate is going through final testing and it is a work of elegant genius - Dr. Herbert Hüttlin's Kugelmotor.

Dr Herbert Hüttlin is a 67 year old flow engineer with over 150 patents to his name, mostly in the field of pharmaceutical production machinery. In 1991 he began to look at the traditional "Otto/Diesel" combustion engine and how its efficiency could be improved. After twenty years and three design iterations the good doctor, with help from Freiburg University, has created a compact spherical motor/generator combination that is radically different from the traditional in-line combustion engine with significantly fewer moving parts. Its mode of operation is simple but hard to describe, the video at the bottom should help to make it clear.

Two opposing curved twin-piston heads rock on the same bearing. When two heads are pushed apart the opposing pistons are pushed together. Because this is four-stroke engine the cycle will be induction (apart), compression (together), combustion (apart) and exhaust (together). This obviously has the effect of rocking the cylinder heads back and forth. Here's the genius bit. On the top of each of the four piston heads is a large titanium ball bearing that runs in a channel that is circular in one axis and a sine wave in the other. The channel completely encompasses the pistons and their rocking causes them to rotate on an axis perpendicular to their bearing axis by "swimming" along the channel.

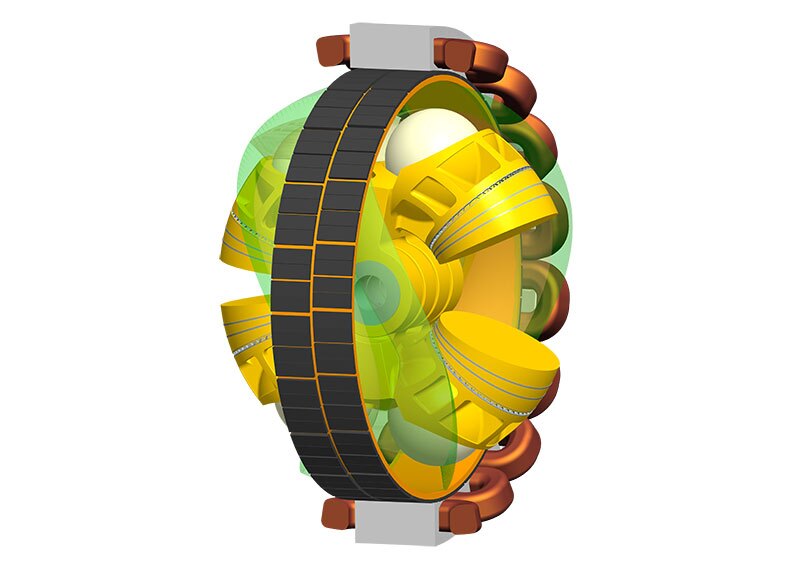

Genius bit #2. The ball-bearing guide channel is fixed to one side of the spherical aluminum housing whilst on the other side a permanent magnet ring is attached to the rotation axis of the cylinders. Fixed to the inside surface of the enclosing sphere is a ring of electromagnetic coils and the interaction with the spinning magnet causes the generation of electricity.

Kugel motor cutaway drawing
Kugel motor cutaway drawing

Genius bit #3. With the principal "kinematics" proven and working, three different variations can be created with simple design changes. The first is the basic generator that produces electricity from the combustion engine as described above. There's also a hybrid form that takes a drive shaft off the rotating pistons for traditional mechanical drive (plus the electricity generation). However the combustion pistons can be disengaged and drive reversed back to the engine (under braking for instance) to rotate the coils and generate electricity, or indeed the electrical flow reversed and the coils become an electric motor producing drive. There is a third variation where the pistons do not rotate but the guide channel is driven around them by the motor coils causing them to rock and become a compressor/pump. It's the simplicity yet ingeniousness and versatility of the arrangement that suggests the Kugelmotor (sphere-engine) has great potential longevity.

Pre-production prototypes of 1.18 liter capacity have been in testing for some months and power output at present is 74kW (100hp) at 3000rpm with torque up to 290Nm (213ft-lb). Dr Hüttlin expects efficiency to increase by another 40% with reduced bearing friction and optimization of the combustion. The engine weighs 62 kg and consists of only 62 parts, while a conventional engine has at least 240. The doctor has set up a corporation, Innomot AG, to license the engine design and expects to have a major car manufacturer on board before the end of the year.
