Hybrid aqueous battery charges up in under 30 seconds

Hybrid aqueous battery charges...
KAIST researchers have developed a new hybrid aqueous energy storage device, which boasts high energy and power densities and can be recharged in as little as 20 seconds
KAIST researchers have developed a new hybrid aqueous energy storage device, which boasts high energy and power densities and can be recharged in as little as 20 seconds
View 4 Images
Transmission electron microscope images of the anode and cathode of the new hybrid aqueous energy storage device
1/4
Transmission electron microscope images of the anode and cathode of the new hybrid aqueous energy storage device
KAIST researchers have developed a new hybrid aqueous energy storage device, which boasts high energy and power densities and can be recharged in as little as 20 seconds
2/4
KAIST researchers have developed a new hybrid aqueous energy storage device, which boasts high energy and power densities and can be recharged in as little as 20 seconds

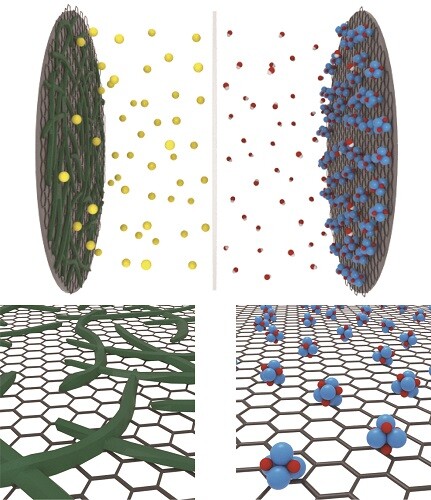

The anode of the hybrid aqueous energy storage device was made with polymer chain materials based on graphene, while the cathode was nickel oxide nanoparticles on graphene
3/4
The anode of the hybrid aqueous energy storage device was made with polymer chain materials based on graphene, while the cathode was nickel oxide nanoparticles on graphene
Il Woo Ock, left, and Jeung Ku Kang, are researchers on the hybrid aqueous energy storage device project
4/4
Il Woo Ock, left, and Jeung Ku Kang, are researchers on the hybrid aqueous energy storage device project

We're so used to having our everyday devices powered by lithium-ion batteries that sometimes it's hard to imagine using anything else. But there are plenty of teams working on alternatives like lithium-air, sodium-ion, lithium-metal and aluminum-ion designs that may help solve some of the drawbacks of lithium-ion batteries. The latest, an aqueous hybrid capacitor, is stable, safe and boasts high energy and power densities, recharging in as little as 20 seconds.

The new creation, out of the Korean Advanced Institute of Science and Technology (KAIST), is made with a liquid electrolyte sandwiched between a specially-designed anode and cathode. The anode is made with polymer chain materials based on graphene, which gives it a high surface area, allowing it to store more energy. The cathode material was made up of nickel oxide nanoparticles embedded on graphene.

Thanks to these materials arranged in these structures, the new device had much higher energy density and faster energy exchange than other aqueous batteries. It was far more stable with minimal energy loss, maintaining its capacity at close to 100 percent over 100,000 redox cycles.

The anode of the hybrid aqueous energy storage device was made with polymer chain materials based on graphene, while the cathode was nickel oxide nanoparticles on graphene
The anode of the hybrid aqueous energy storage device was made with polymer chain materials based on graphene, while the cathode was nickel oxide nanoparticles on graphene

The new device also has a power density about 100 times higher than similar designs, allowing it to be charged in 20 to 30 seconds using low-power systems like a conventional USB charger. In tests, the team hooked two of the batteries up to a flexible photovoltaic cell, and was able to power an LED, while the whole kit was worn like a sleeve.

"This eco-friendly technology can be easily manufactured and is highly applicable," says Jeung Ku Kang, co-author of a study describing the device. "In particular, its high capacity and high stability, compared to existing technologies, could contribute to the commercialization of aqueous capacitors. The device can be rapidly charged using a low-power charging system, and thus can be applied to portable electronic devices."

The research was published in the journal Advanced Energy Materials. The team demonstrates the device in the video below.

Source: KAIST

Polymer Chain Anode and Metal Oxide Cathode for Aqueous Hybrid Capacitors
