Researchers develop cheap and easy to mass-produce "solar-paint"

Researchers develop cheap and ...

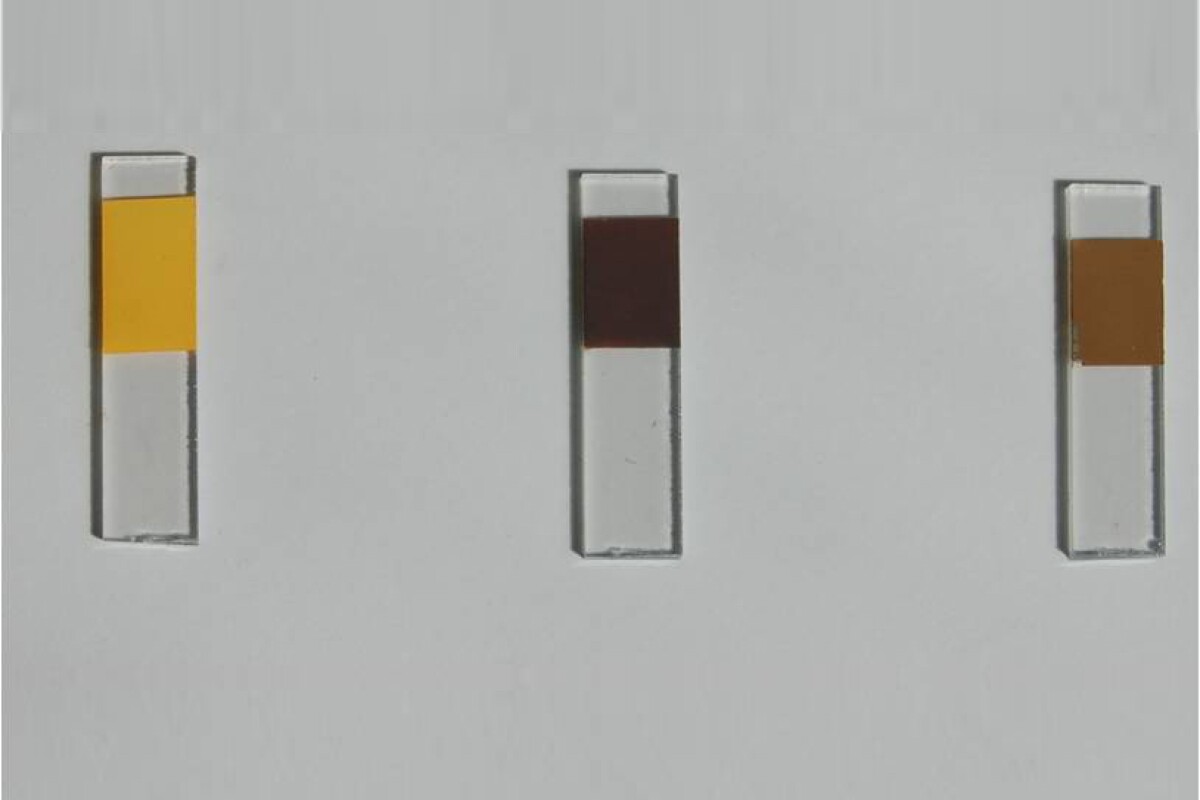

Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
View 3 Images

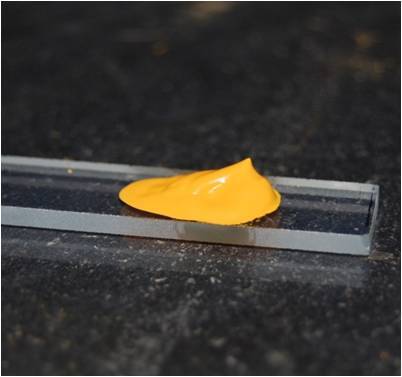

Titanium dioxide nanoparticles coated with cadmium sulfide produced a yellow paste that, when painted onto a transparent conductive material, generates electricity (Photo: ACS Nano)
1/3
Titanium dioxide nanoparticles coated with cadmium sulfide produced a yellow paste that, when painted onto a transparent conductive material, generates electricity (Photo: ACS Nano)
Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
2/3
Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
3/3
Mixtures using cadmium sulfide produced yellow paint, cadmium selenide produced dark brown, while a mixture of the two - which offered the best conversion efficiency - was light brown (Photo: ACS Nano)
View gallery - 3 images

A team of researchers from the University of Notre Dame in Indiana is reporting the creation of a "solar paint" that could mark an important milestone on the road to widespread implementation of renewable energy technology. Although the new material is still a long way off the conversion efficiencies of commercial silicon solar cells, the researchers say it is cheap to make and can be produced in large quantities.

In an effort to find an alternative to silicon-based solar cells, the Notre Dame researchers turned to quantum dot materials. They started with nanoparticles of titanium dioxide (TiO2) and coated them with either cadmium sulfide or cadmium selenide - both compounds that can absorb photons. A photon of the right energy hitting the cadmium compounds causes an electron to escape, which is absorbed by the TiO2.

The resultant particles were then suspended in a water-alcohol mixture to create a paste. The cadmium sulfide mixture produced a yellow paste, while the cadmium selenide mix produced a dark brown. The most efficient was a mixture of the two that produced a light brown paste.

Titanium dioxide nanoparticles coated with cadmium sulfide produced a yellow paste that, when painted onto a transparent conductive material, generates electricity (Photo: ACS Nano)
Titanium dioxide nanoparticles coated with cadmium sulfide produced a yellow paste that, when painted onto a transparent conductive material, generates electricity (Photo: ACS Nano)

When the paste was brushed onto a transparent conducting material and exposed to light, it created electricity. To replenish the electrons lost by the cadmium and test the conversion efficiency of the paint-on electrode, cathodes made from other materials and additional compounds were used.

"The best light-to-energy conversion efficiency we've reached so far is 1 percent, which is well behind the usual 10 to 15 percent efficiency of commercial silicon solar cells," explains Prashant Kamat, an investigator in Notre Dame's Center for Nano Science and Technology (NDnano). "But this paint can be made cheaply and in large quantities. If we can improve the efficiency somewhat, we may be able to make a real difference in meeting energy needs in the future."

Kama and his team have christened the new paint "Sun-Believable" and plan to study ways to increase its conversion efficiency and improve its stability. The Notre Dame team's paper is published in the journal ACS Nano.
