SPEEDrelease bike hub combines advantages of quick-release and thru-axle
For the past several decades, higher-end bicycles have utilized quick-release axles in their wheel hubs, in order to facilitate fast and easy wheel removal. With the recent movement towards disc brakes on mountain bikes, however, some manufacturers have started using a more rigid, secure thru-axle setup. Given that discs should soon be showing up on more and more road bikes, Connecticut-based Topolino Technology recently unveiled its SPEEDrelease hub, which reportedly combines the best features of both systems in one lightweight design.
Quick releases axles are very easy to use – you just slide the wheel up into the dropouts, spin the axle lever around a few turns to tighten it, then push it down to lock it. Given that the dropouts are open on the bottom, however, there's always the danger that if things aren't sufficiently tightened or lined up, the wheel could fall off in mid-ride. Additionally, the design does allow the axle to flex somewhat.
Sick of Ads?
Join more than 500 New Atlas Plus subscribers who read our newsletter and website without ads.
It's just US$19 a year.More Information
Thru-axles are stiffer and safer, in that a bigger, beefier removable axle is pushed in from the side, and threaded into place. Getting that axle aligned can take a bit of fiddling, though, plus there's a chance that it could get left on the ground and forgotten when the wheel is removed.

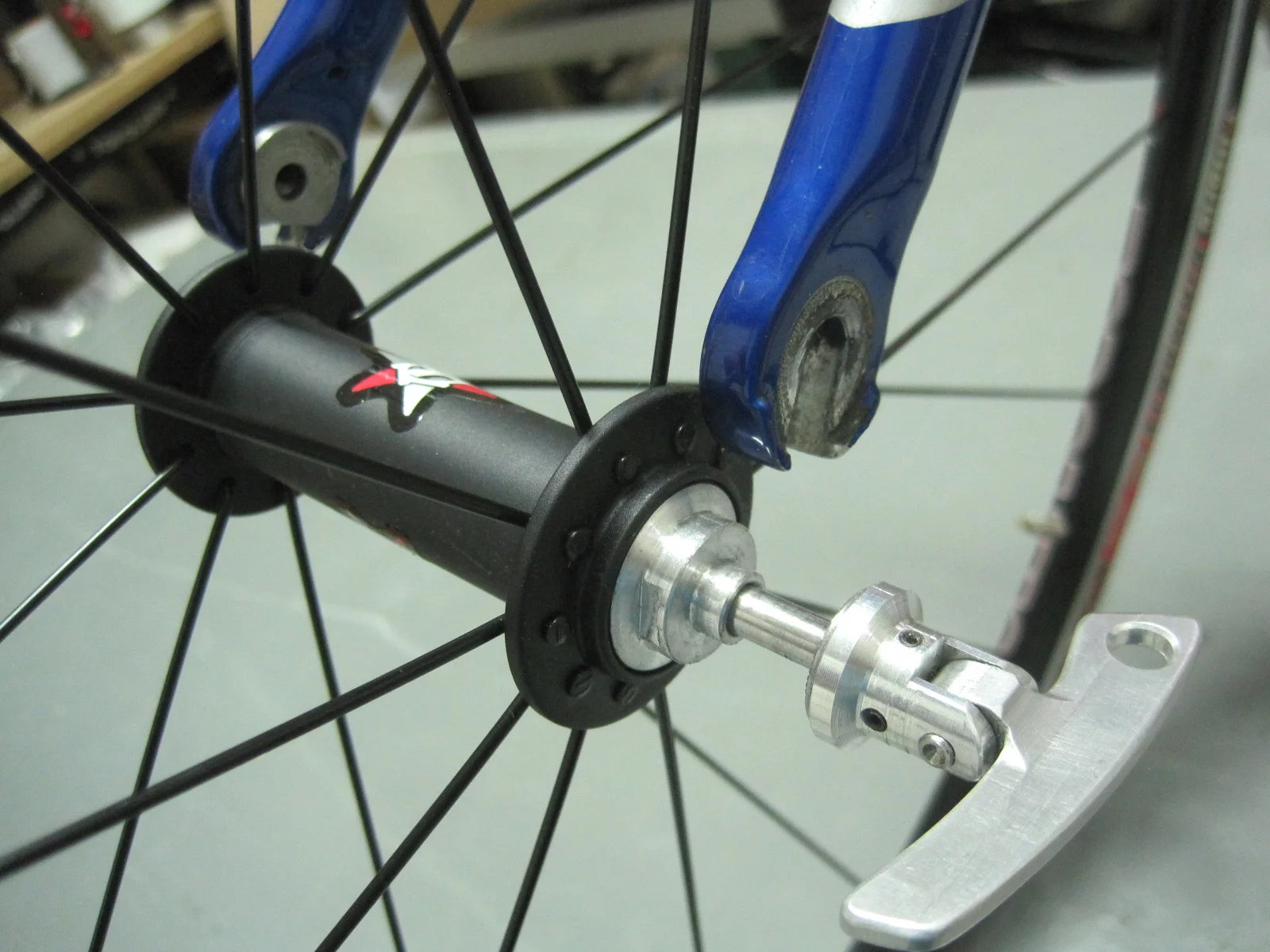

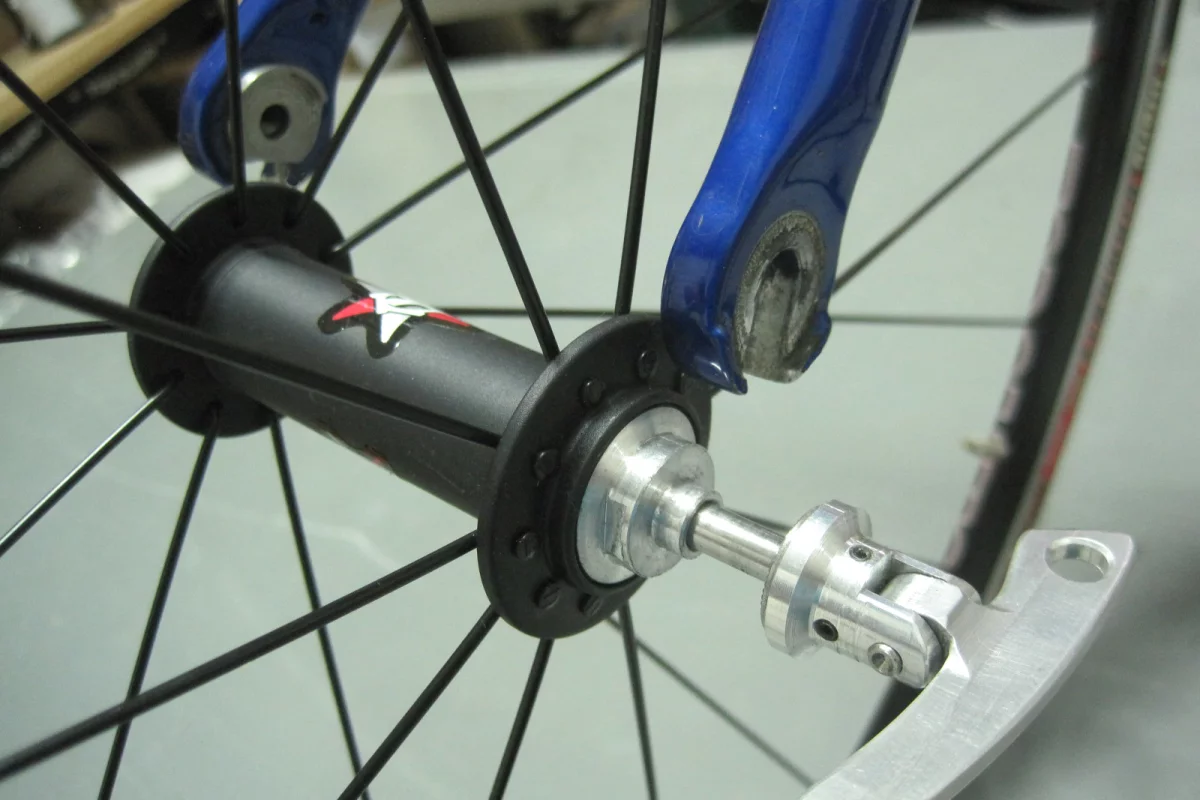

The SPEEDrelease incorporates a permanently-attached skewer running through the center of the axle – it's sort of like the skewers used in quick-release axles, but thick like a thru-axle. When the wheel is slid into a set of standard dropouts, one of which is equipped with a threaded add-on receptacle, the tip of the spring-loaded skewer is simply popped into that receptacle from the side. At that point, even if everything is left loose, the wheel can't fall off.
To snug things up, the skewer is threaded the rest of the way into the receptacle simply by spinning its lever a few turns and folding it down – just like you do with either a quick release or a thru-axle.
The whole setup, including the receptacle, tips the scales at just 140 grams – an even lighter titanium version is on the way. That said, it reportedly offers twice the bending stiffness of a traditional quick release. It's also authorized by the UCI (Union Cycliste Internationale), so it should be kosher to use in high-profile bike races.
Topolino founder Rafe Schlanger is now looking at licensing the technology to hub manufacturers.
