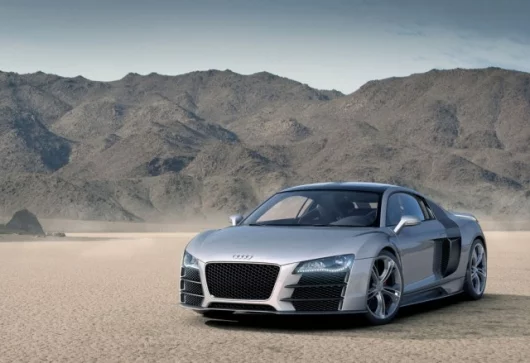

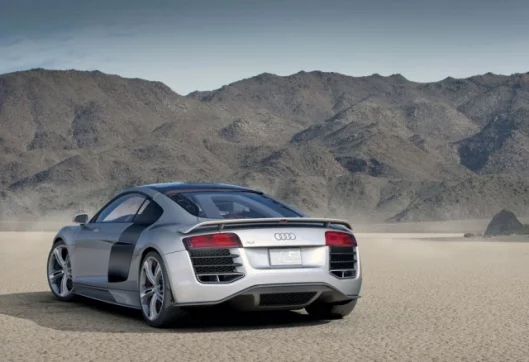

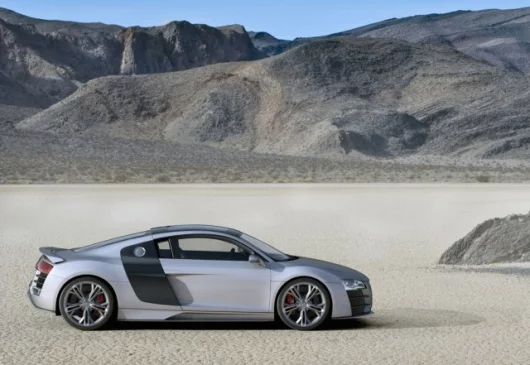

January 16, 2008 Audi looks set to create a new class of road-going supercar following the first showing of its R8 TDI Concept at NAIAS this week. Using the V12 6.0-liter bi-turbo TDI engine first seen in the forthcoming Q7 V12 TDI SUV, the 6.0-litre twin-turbo V12 with 500 bhp is similar in basic concept to the R10 TDI’s 5.5-litre race engine, and delivers – wait for it - 1,000Nm of torque - between 1,750rpm and 3000 rpm, guaranteeing the effortless delivery of a 4.2-second 0-62mph acceleration time and a top speed in excess of 186mph. The 4WD beauty has a full set of goodies, such as Audi’s magnetic adaptive suspenders, it already meets the proposed EU6 emission limits expected to apply from 2014 and comes with a GPS system that incorporates race circuit information and centrifugal force / boost pressure data when the car is in race mode. Hey guys, you’ve gotta make this one!
Despite its astonishing statistics, this remarkable engine shows the necessary restraint when it comes to environmental impact. Its fundamental efficiency, achieved through the use of an advanced common rail fuel injection system enhanced by piezo injectors, is complemented by twin particulate filters and a new state-of-the-art ultra-low emission system that ensures compliance with proposed EU6 emission limits expected to apply from 2014.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE
The heart of the system is a special catalytic converter downstream of the oxidizing catalyst and the particulate filter. The second component is an additional tank containing an aqueous urea solution. Small quantities of the solution, known as "AdBlue," are injected into the exhaust system. The hot exhaust gases break the solution down to form ammonia that splits the nitric oxides into inert nitrogen and water. The system remains effective for the entire service life of the vehicle.
The R8’s classic mid-engine configuration, combined with advanced Audi Space Frame (ASF) construction mating lightweight aluminum paneling to an aluminum space frame, provides the very best operating conditions for the futuristic chassis, which itself contains a high proportion of aluminum components.
The V12 TDI Concept is equipped with the advanced Audi magnetic ride adaptive damping system, which swaps conventional damper fluid for a magneto rheological fluid containing minute magnetic particles that can be influenced by an electromagnetic field. By applying a voltage to the system’s electromagnets, the viscosity of the fluid is altered by the affected magnetic particles, increasing resistance to damper movement to iron out pitch and roll when necessary, and reducing resistance at times when ride comfort is of greater importance. The system constantly monitors road conditions and driving style and reacts accordingly.
A specially tailored version of Audi drive select, the adaptive dynamics system introduced recently in the new A4 Saloon, also helps to personalize the driving experience. Offering ‘Dynamic’, ‘Sport’ and ‘Race’ settings, it enables further fine-tuning of the magnetic ride dampers and the parameters of the engine and transmission. When the ‘Race’ setting is selected on a circuit, the interior instrument lighting changes from white to red and the onboard satellite navigation system displays navigation information relating to the specific circuit being driven, along with a lap timer. Supplementary information including centrifugal force and boost pressure can also be accessed in this mode.
Whether on road or circuit, the R8 is effectively moderated by high-performance carbon fiber-reinforced ceramic brakes, and by the legendary quattro permanent four-wheel-drive system, which by apportioning power to front and rear axles in constantly varying degrees dictated by road conditions prevents the less desirable handling traits often exhibited by powerful mid-engine, rear-drive sports cars.
Additional downforce to help the quattro system suck the car to the tarmac at speed is provided by a specially developed, larger version of the production road car’s automatically extending rear spoiler, combined with a fully clad diffuser under-body and special measures such as diffuser apertures in the rear bumper. Air is not only channeled in a way that accentuates the R8’s widely acclaimed handling capabilities, but is also effectively captured by racing-derived NACA ducts within the new glass roof over the passenger compartment to cool the potent V12.

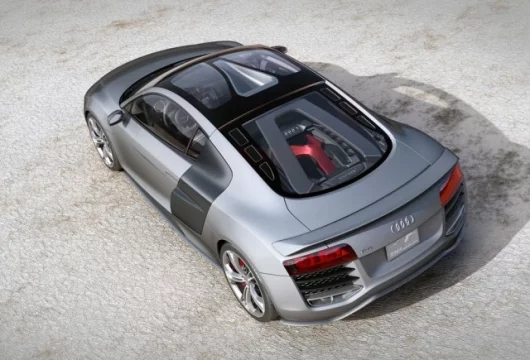

The engine itself is also displayed in all its glory beneath a clear glass cover, through which special air deflectors can also be seen in the Concept. At only 684mm in length, the surprisingly compact 12-cylinder is only 166mm longer than the V8 TDI, which means that with the help of the long 2.65-meter wheelbase the sensation of space which sets the R8 apart from rivals is barely compromised.
Inside, the V12 TDI Concept is distinguishable by its additional aluminum and carbon fiber elements, and by its figure-hugging racing-style sports seats. On the outside, it is marked out by all-LED lights, enlarged inlet and outlet ducts at the front, side and rear, the modified rear spoiler and exclusive alloy wheels.View gallery - 7 images
