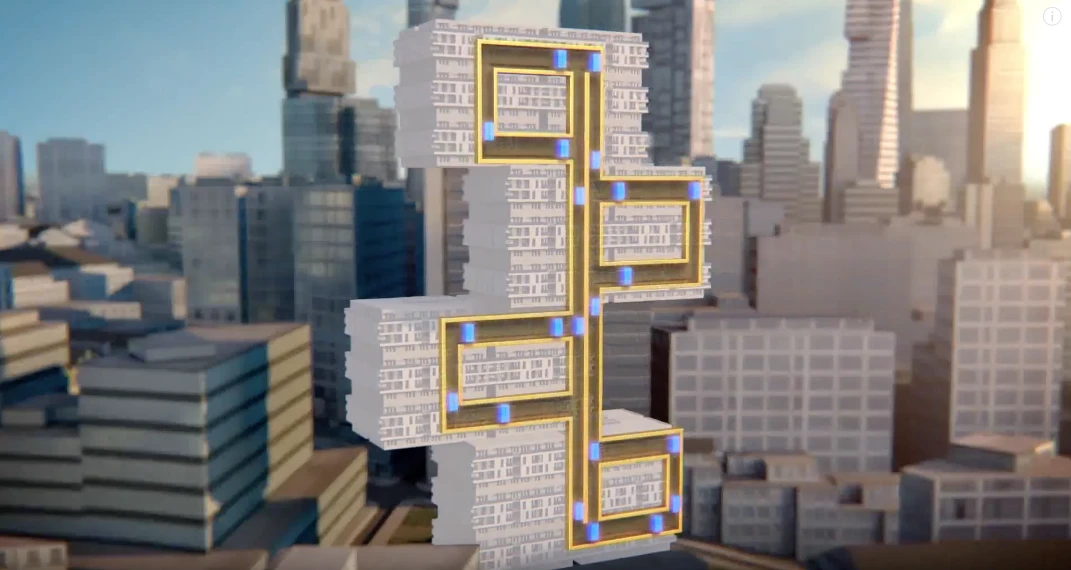

This cable-free, Willy Wonka-style concept, can move multiple cars vertically and horizontally in a single shaft using a magnet-based drive system similar to that of Maglev train technology.
This cable-free, Willy Wonka-style concept, can move multiple cars vertically and horizontally in a single shaft using a magnet-based drive system similar to that of Maglev train technology.
View 11 Images

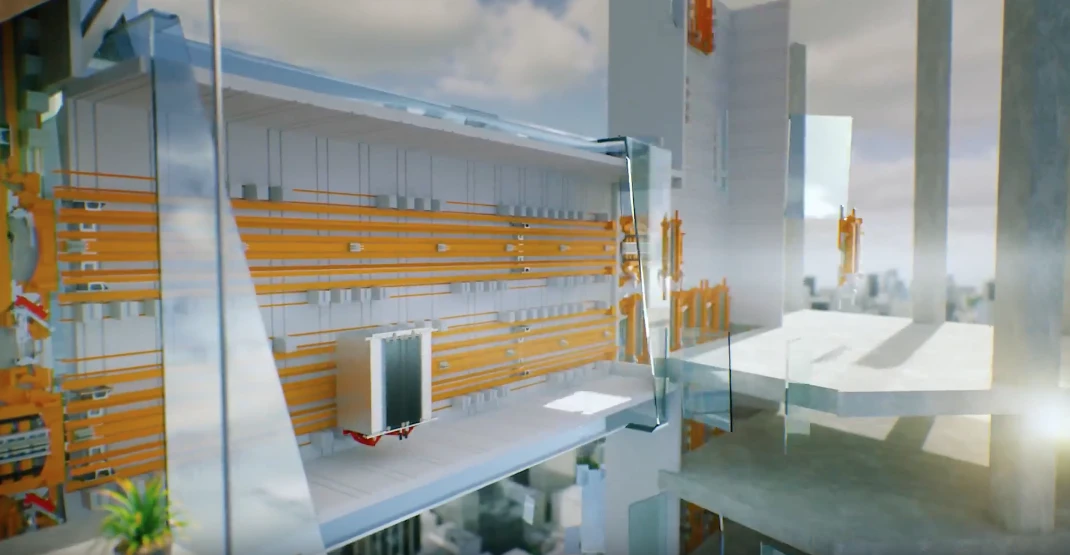

The Multi system can move elevator cabins along a horizontal axis
1/11
The Multi system can move elevator cabins along a horizontal axis
The system allows for new and novel building designs
2/11
The system allows for new and novel building designs

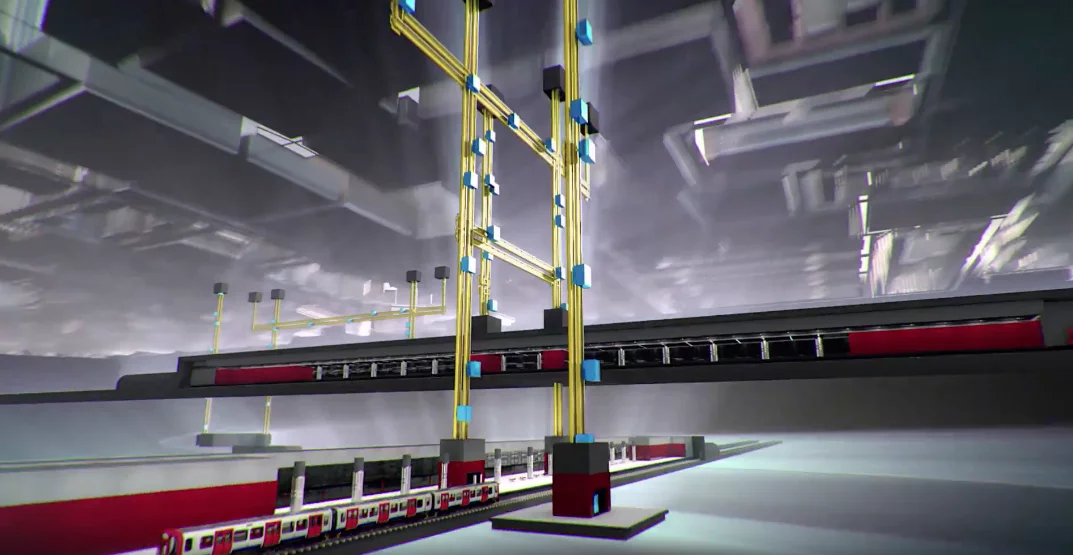

The company envision the system also being used to transport high volumes of people to resigned underground train networks
3/11
The company envision the system also being used to transport high volumes of people to resigned underground train networks

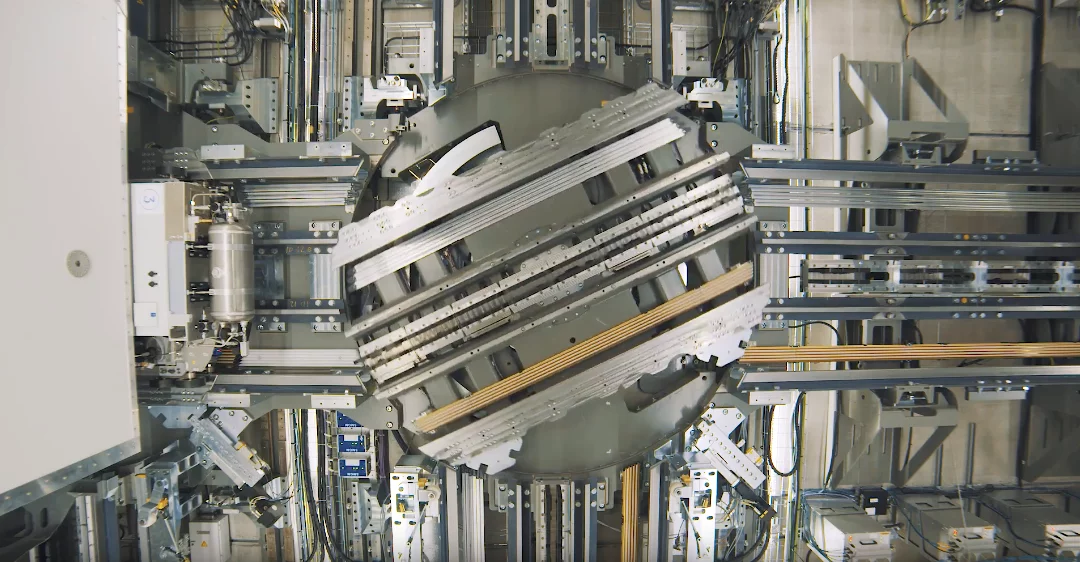

A close up of the magnetic pivoting system
4/11
A close up of the magnetic pivoting system

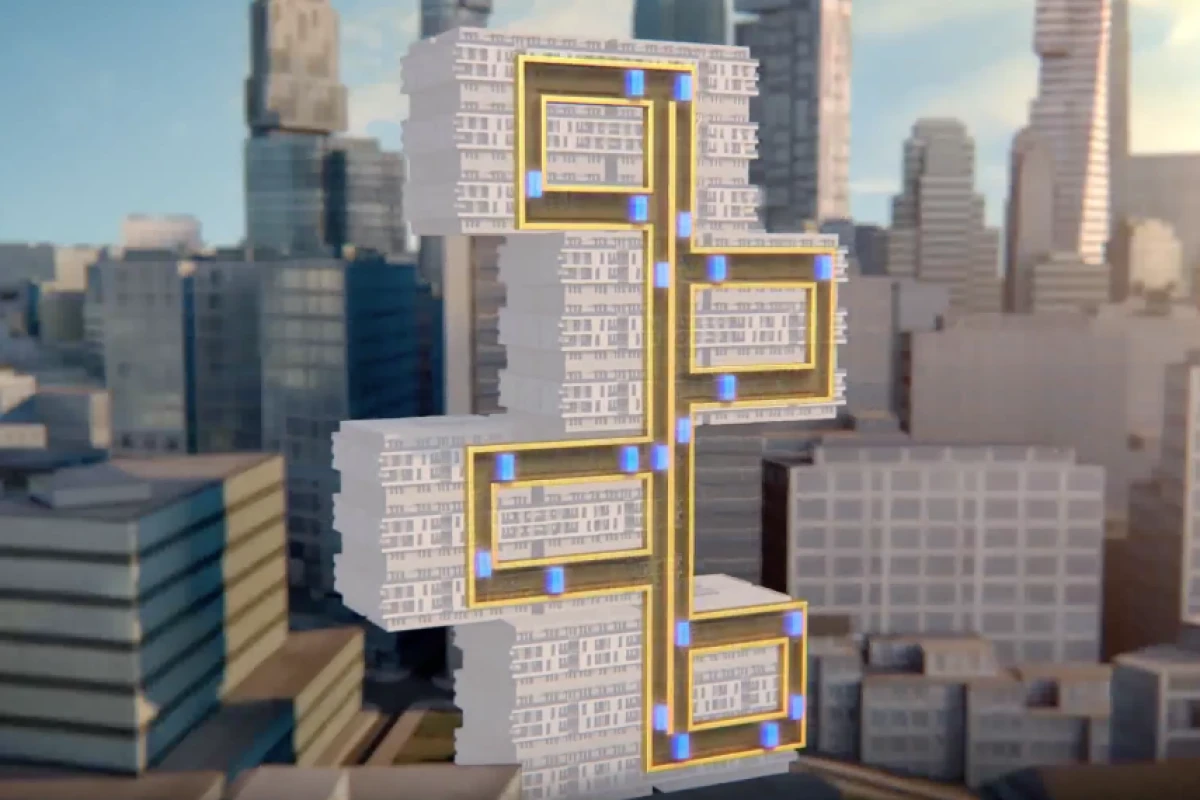

This cable-free, Willy Wonka-style concept, can move multiple cars vertically and horizontally in a single shaft using a magnet-based drive system similar to that of Maglev train technology.
5/11
This cable-free, Willy Wonka-style concept, can move multiple cars vertically and horizontally in a single shaft using a magnet-based drive system similar to that of Maglev train technology.
The first building to host a Multi system will be in Berlin due for completion in 2019
6/11
The first building to host a Multi system will be in Berlin due for completion in 2019

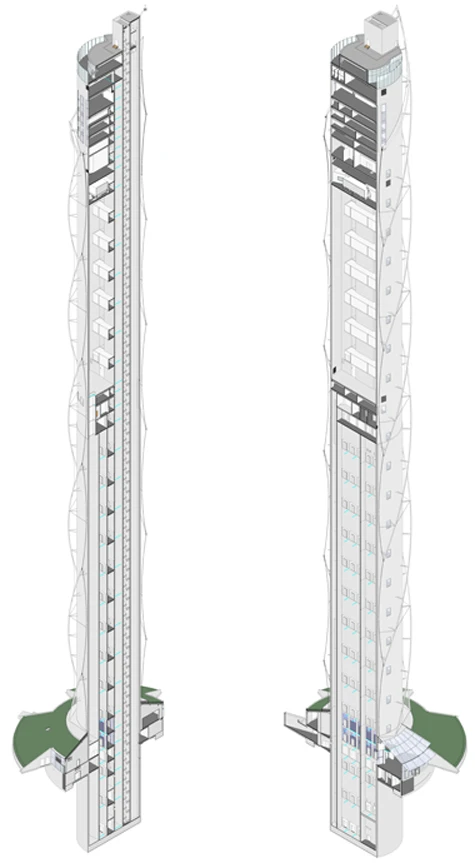

Over two years in construction the test tower contains multiple shafts to test different elevator designs
7/11
Over two years in construction the test tower contains multiple shafts to test different elevator designs
An artist impression of the final test tower once it gets its exterior "skin" on
8/11
An artist impression of the final test tower once it gets its exterior "skin" on
An impression of the loop system that allows several cabins to travel along the same elevator shafts using the Multi system
9/11
An impression of the loop system that allows several cabins to travel along the same elevator shafts using the Multi system

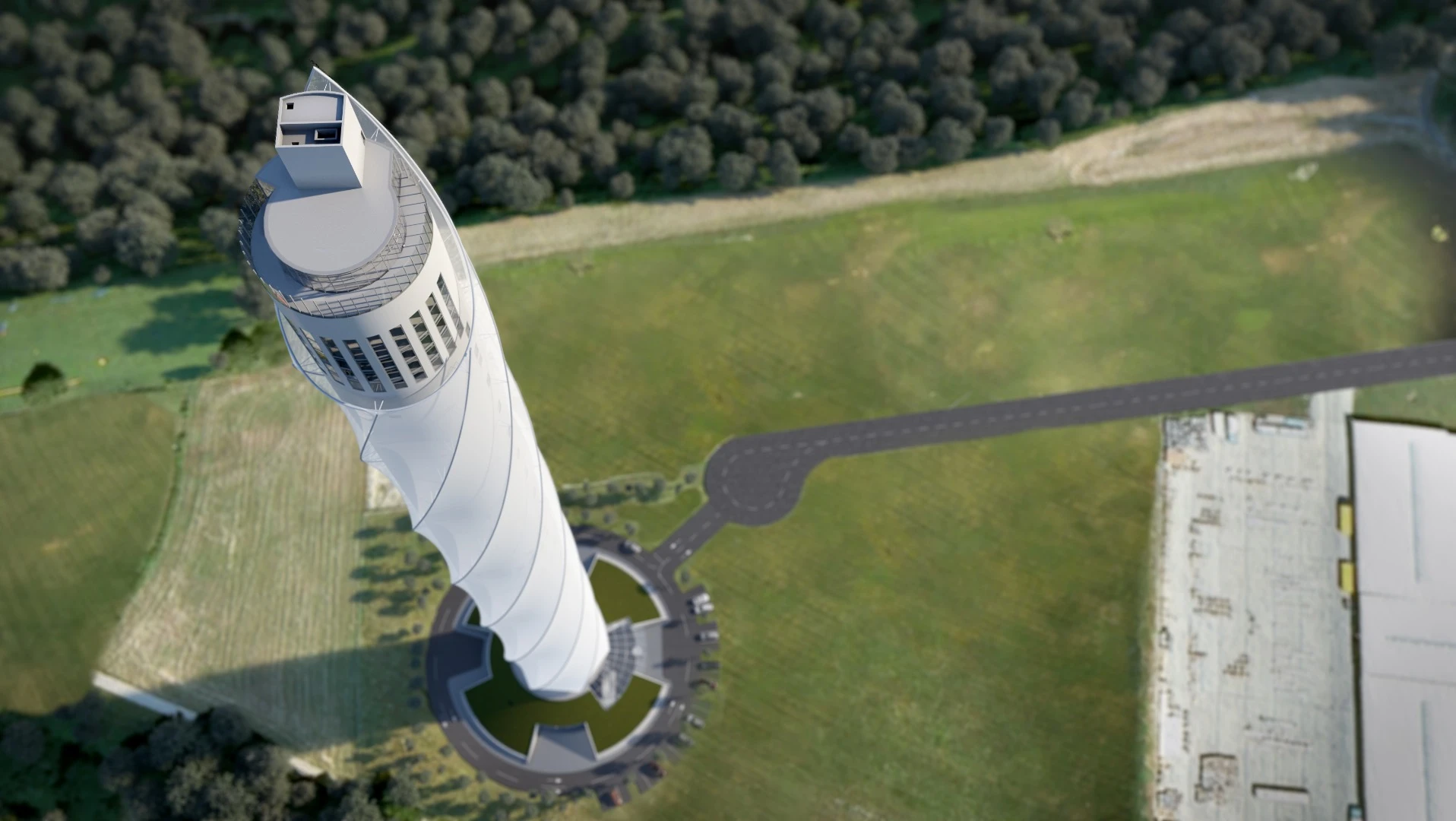

Artist impression of the ThyssenKrupp test tower
10/11
Artist impression of the ThyssenKrupp test tower
Artist impression of the ThyssenKrupp test tower
11/11
Artist impression of the ThyssenKrupp test tower
View gallery - 11 images

After unveiling its Multi concept in 2014, German engineering conglomerate ThyssenKrupp has made its vision of a cable-free, Willy Wonka-style elevator design a reality. Over the past few years the company has been constructing a 246-m (807-ft) high test tower and refining the technology that would allow multiple cars to move vertically and horizontally in a single shaft using a magnet-based drive system similar to that in Maglev trains. Just last week, after two-and-a-half years of construction, the test tower and first fully functional Multi unit were launched.

The test tower, located in Rottweil, Germany, specifically designed for ThyssenKrupp's research and development contains 12 shafts that can test elevator speeds up to 10 meters per second (22.45 mph), plus three dedicated shafts especially designed for certifying the new cable-free elevator system.

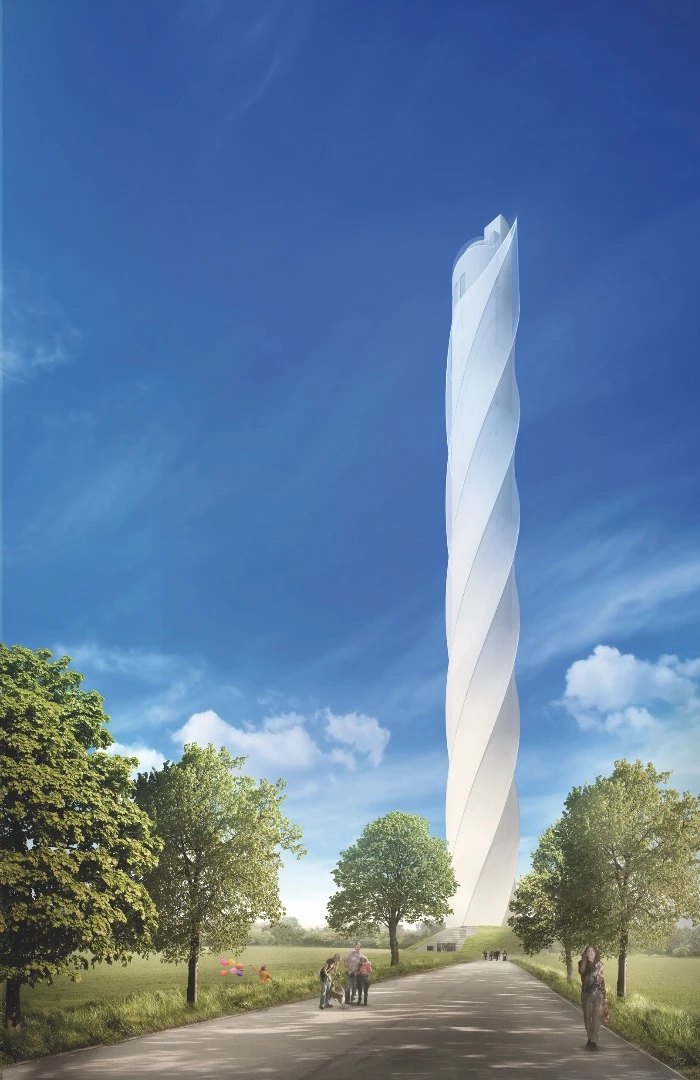

Artist impression of the ThyssenKrupp test tower
Artist impression of the ThyssenKrupp test tower

The Multi system is the biggest innovation in elevator design since the cable-dependent elevator was invented over 160 years ago. Replacing cables with linear motors that allow vertical as well as horizontal travel not only results in more cabins being able to travel along single shafts, but also offers architects entirely new possibilities for building design.

Traditional skyscrapers have, until now, been constrained by the necessity of incorporating large and unwieldy elevator shafts that need to run continuously from the top of the building to the bottom. But the Multi system would allow architects the ability to form entirely new shapes and internal designs.

ThyssenKrupp estimates that its Multi system reduces elevator cabin weight by up to 50 percent and allows them to travel along smaller shafts more efficiently. This means that a building would require fewer elevator shafts, yet be able to run more cabins simultaneously by running along looping pathways. Overall, it is estimated the system could increase a building's usable area by up to 25 percent, not to mention the new architectural and design possibilities opened up by the technology.

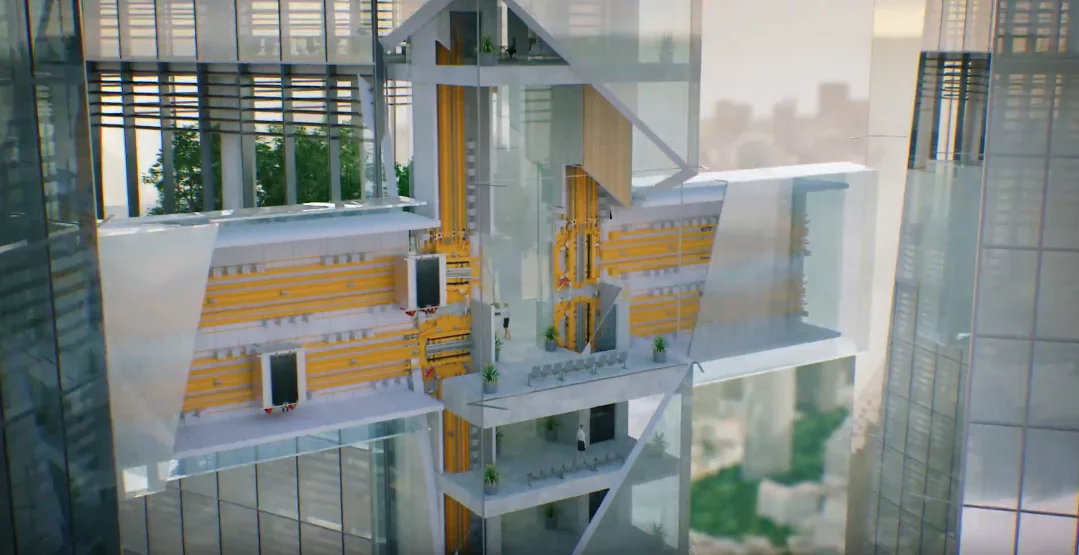

The system allows for new and novel building designs
The system allows for new and novel building designs

"We believe MULTI is a genuine game-changer that will truly transform the way people move, work and live in our built environment," says ThyssenKrupp CEO Andreas Schierenbeck. "It will reduce waiting times for passengers and take up significantly less space within the building."

While hyperbolic phrases such as "game-changer" are not unwarranted, we may not see the Multi system in widespread use for some years as it reportedly costs nearly five times more than a conventional elevator system. Despite potentially using up to 60 percent less peak energy than regular elevators, and increasing the usable footprint of a building, this expensive price tag will no doubt slow its initial uptake.

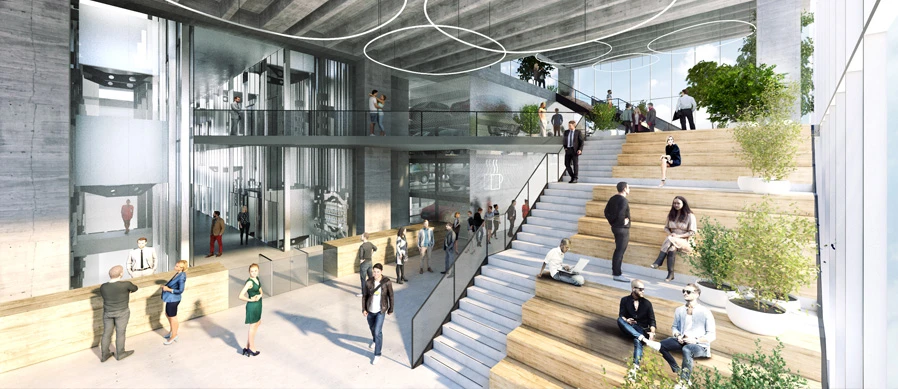

The first building to host a Multi system will be in Berlin due for completion in 2019
The first building to host a Multi system will be in Berlin due for completion in 2019

But one German property developer has already taken the plunge. OVG Real Estate's East Side Tower in Berlin will become the first building in the world to host a Multi system. The building is due for completion in 2019.

Take a look at the Multi in the video below.

Source: ThyssenKrupp (1), (2)
