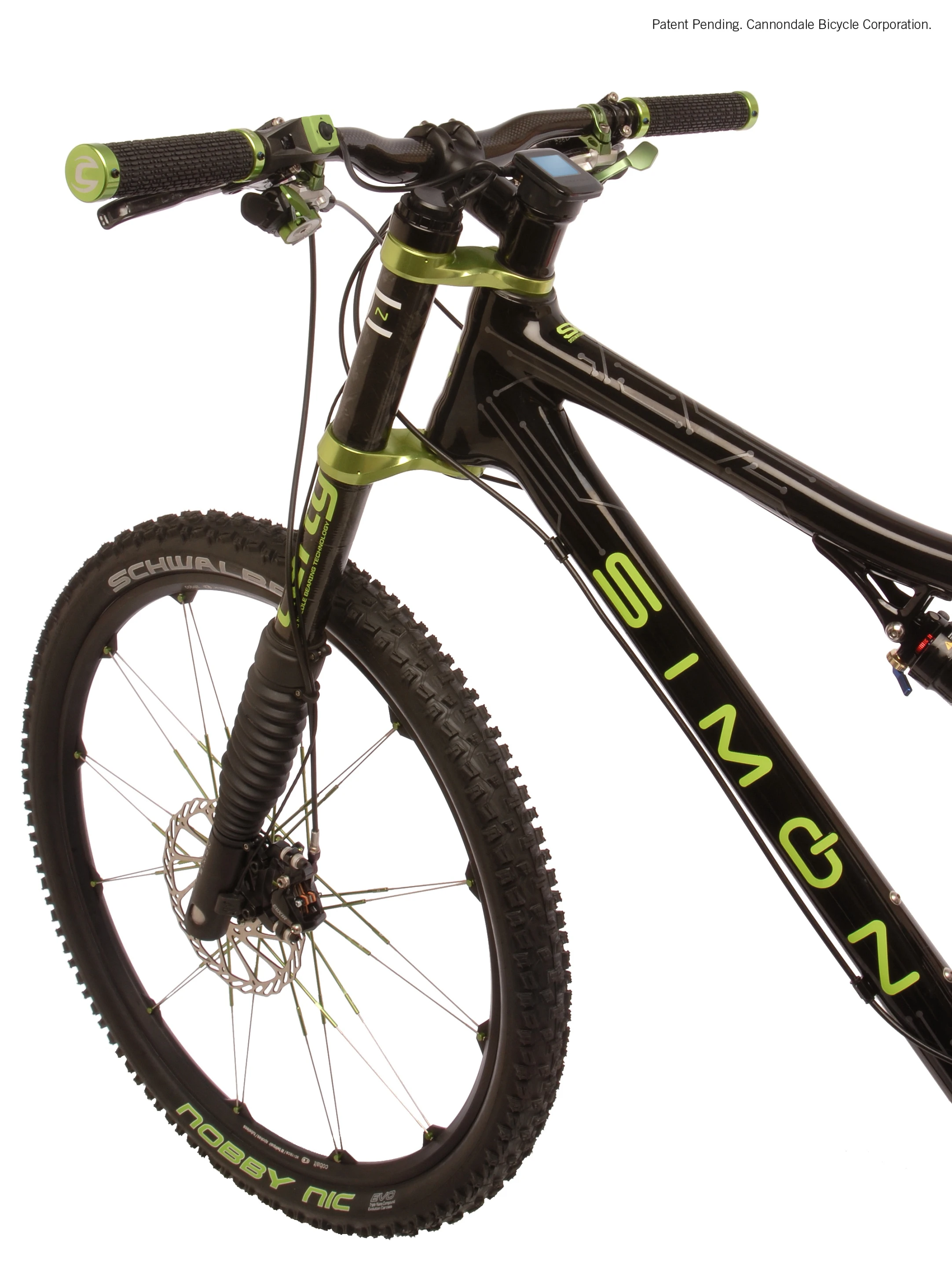

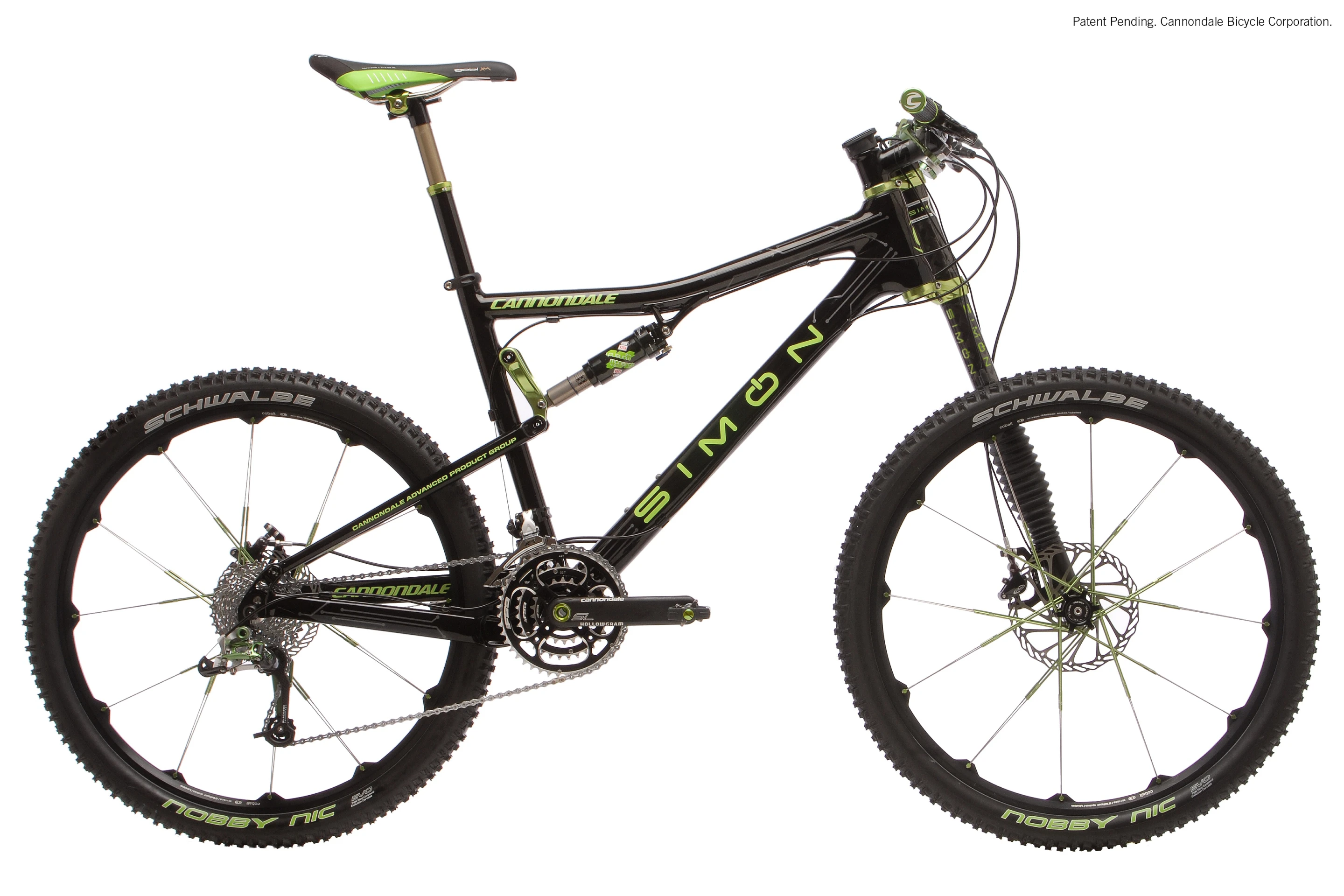

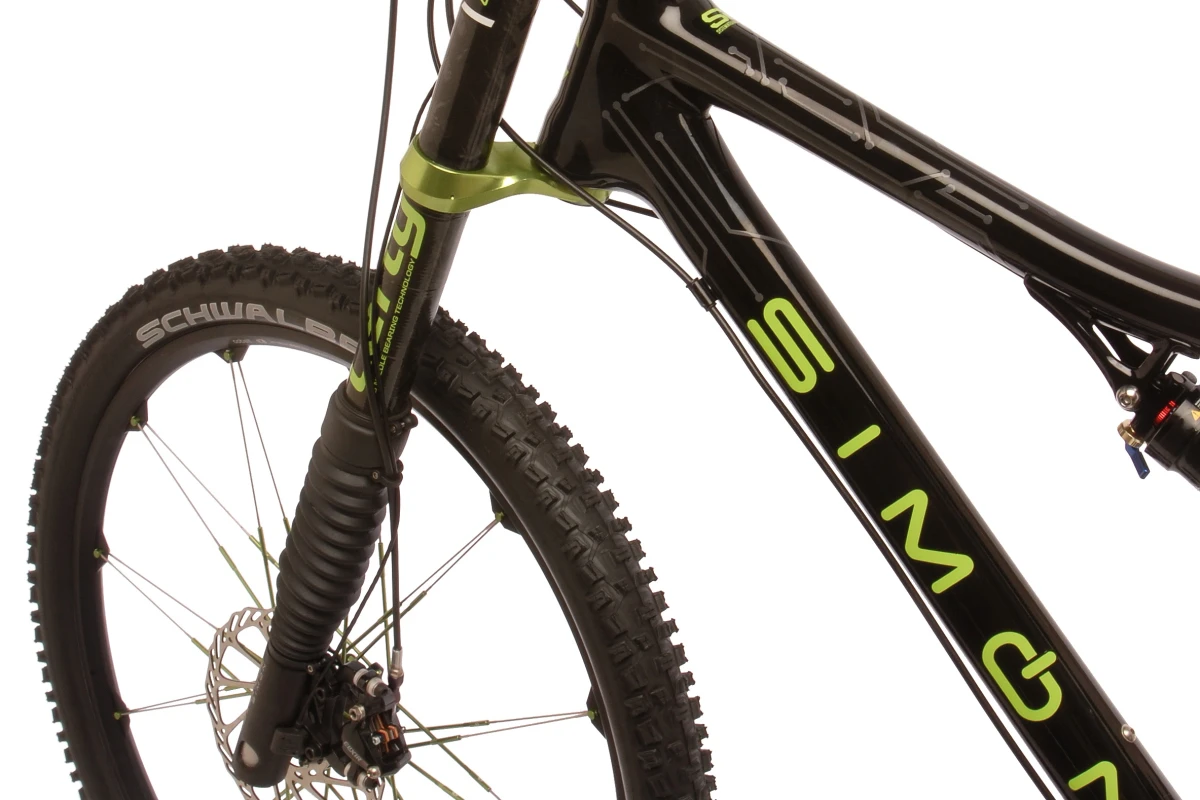

After five years of development, Cannondale Bicycle Corp recently unveiled a new proof-of-concept prototype that could revolutionize bicycle suspension. Called Simon, it’s the newest member of their offbeat Lefty line of one-legged shock forks. According to Cannondale, Simon’s onboard microprocessor will allow users to customize their ride like never before. If that isn’t enough, it can also send the fork from being fully-open to fully-closed in just six milliseconds.

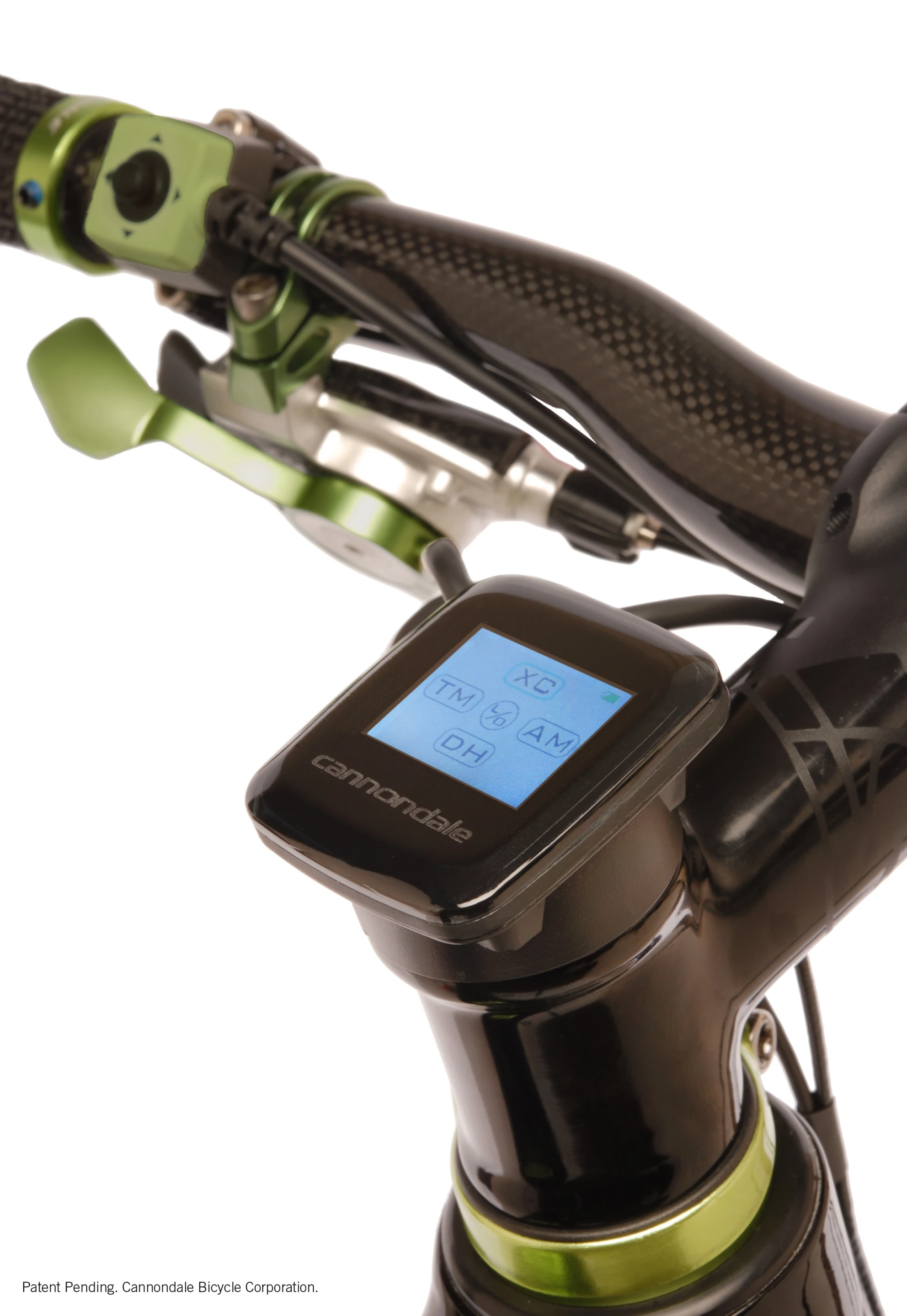

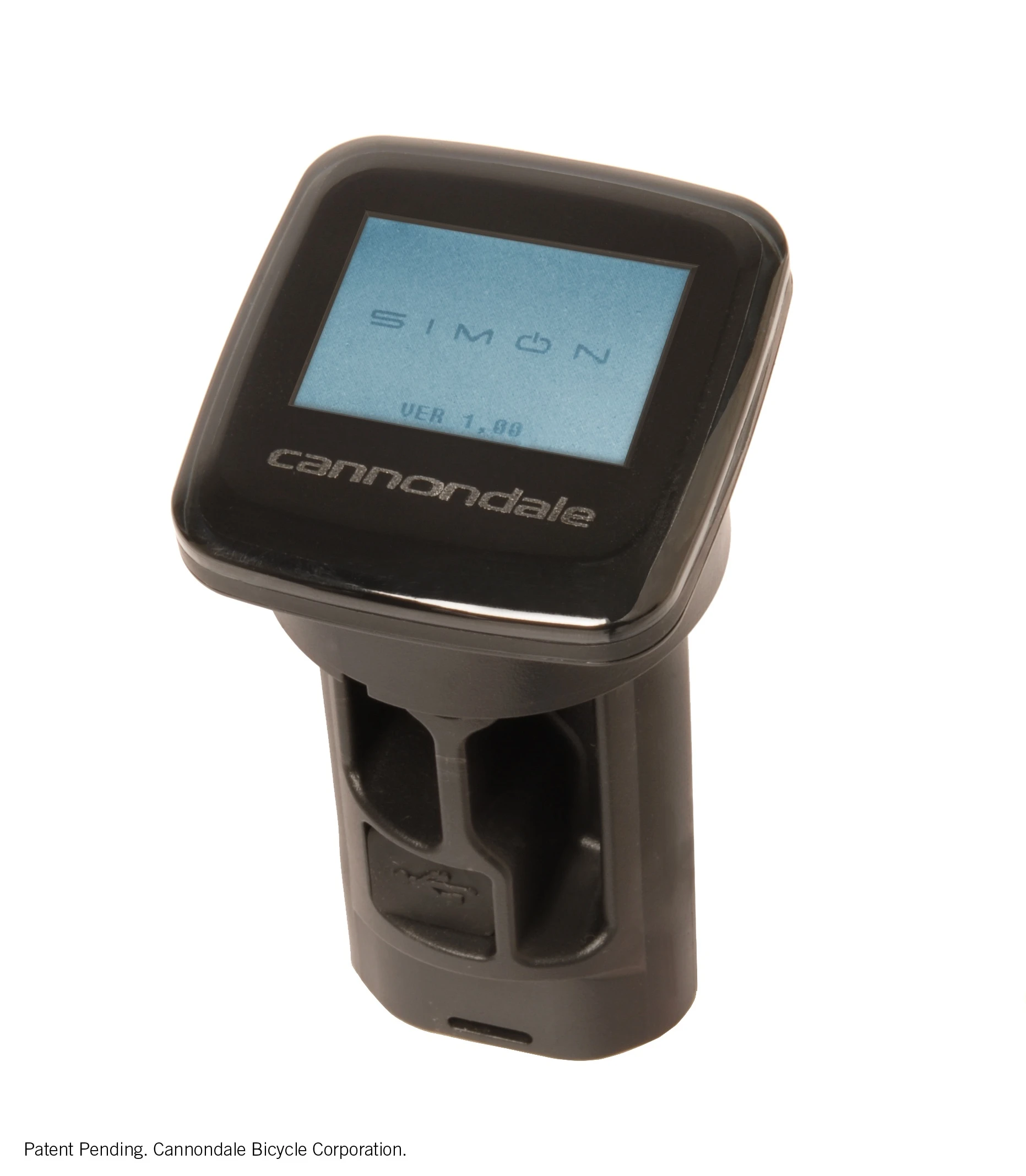

You start by telling Simon a bit about yourself. Utilizing the stem-mounted LCD screen and bar-mounted joystick, you enter your physical specs and riding preferences, then choose between one of five suspension modes: Cross-Country, All-Mountain, Downhill, Travel Management (for hill-climbing) and Lock-Out. Once you hit the trail, an optical sensor keeps track of where the fork is within its 130mm travel distance, and an accelerometer detects hits to the front wheel. Every time a hit is detected, the shock’s energy damping mechanism is instantaneously adjusted according to the suspension mode and rider data.
Sick of Ads?
More than 700 New Atlas Plus subscribers read our newsletter and website without ads.
Join them for just US$19 a year.More Information

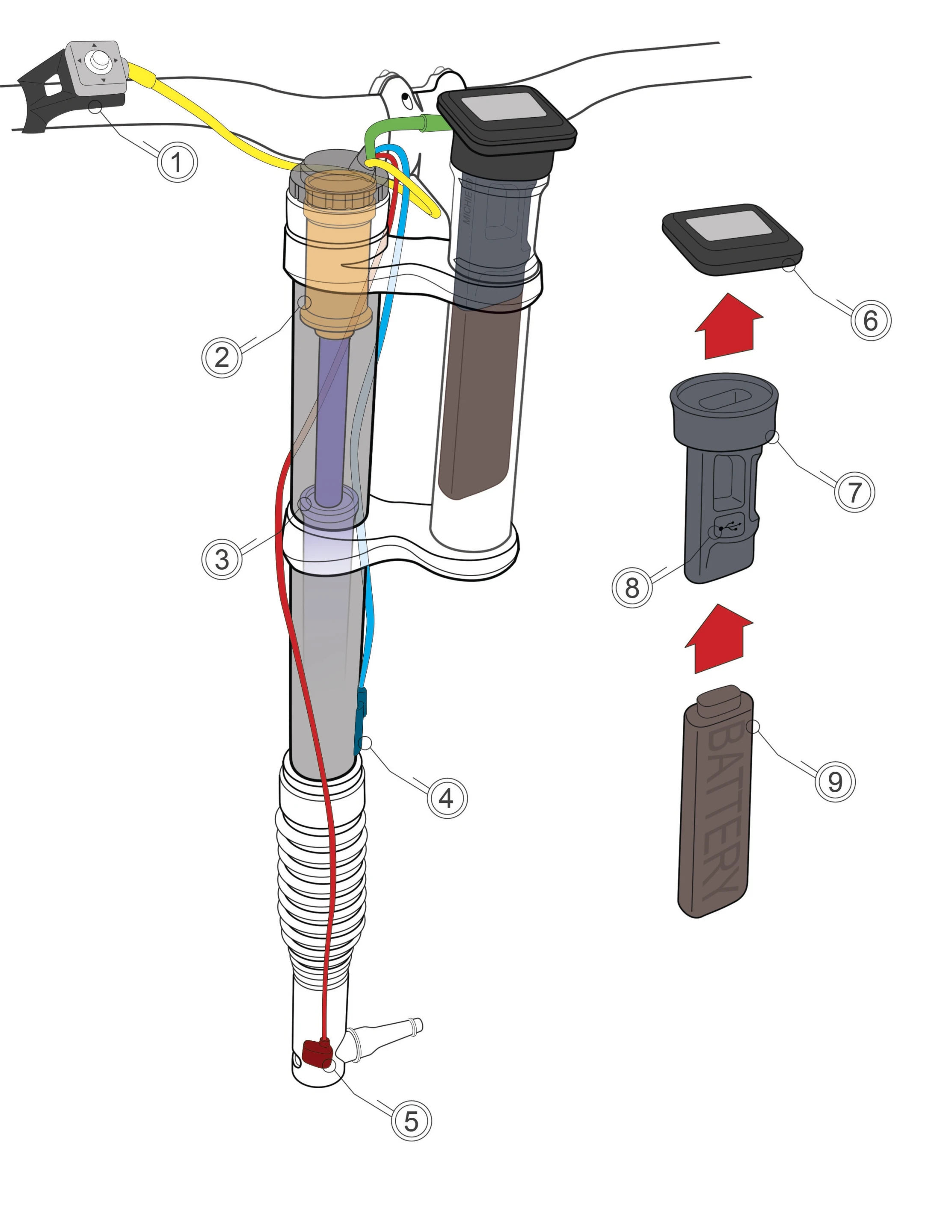

Damping mechanisms are the heart of any shock absorber, as they are what allow it to soak up the hits, as opposed to bouncing crazily up and down and bottoming out. On most forks, damping is achieved via a piston that forces oil through small orifices. The size and/or number of open orifices determines the amount of damping, and keeps it at that level until reset by the rider. On Simon, there is only one orifice, but its size is readjusted 500 times a second by a retractable pin. The larger the trail bump that the accelerometer registers, the farther out the pin is pulled, and the greater the amount of energy absorbed.
The damping pin is moved by a very speedy linear-force motor, and that motor draws its power from a rechargeable lithium-ion battery. Unfortunately, the battery pack does add to the weight and girth of the fork. The whole system weighs four pounds, which isn’t awful, but is still a pound more than the current top-of-the-line Lefty. Although the battery is said to last for up to eight hours, that estimate goes down to just two hours for exceptionally bumpy trails. Company reps have suggested that riders could pack a spare battery, although that would involve extra weight, expense and hassle.
At this point, there is still no set release date or price for Simon. In the meantime, some of the technology may trickle down to existing Cannondale products, including rear shocks.
Once Simon is available for purchase, it will be interesting to see how the mountain biking community reacts to it. While it promises unprecedented performance, some riders might question whether menus, submenus and electric motors belong in the realm of mud, sweat and gears.
For an earlier example of a computer-controlled suspension fork, check out the late-90’s K2 Smart Shock.View gallery - 7 images
