September 20, 2006 In a flash of the blinding obvious, MIT researchers have once again taken a simple concept and applied liberal lashings of leading edge science and common sense – take the wind turbines that everyone complains about and move them a hundred miles out to sea, where the winds are strong and steady and no-one can see them. The proposed deep water floater-mounted turbine design would be enable much larger turbines than currently in use by land or shallow-water turbines
Offshore wind turbines usually stand on towers driven deep into the ocean floor, but that arrangement works only in shallow waters (depths of 15 meters or less) and hence installations are typically close to shore and elicit public opposition.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE

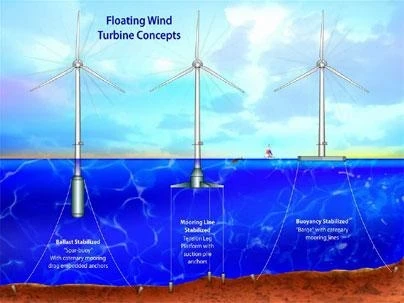

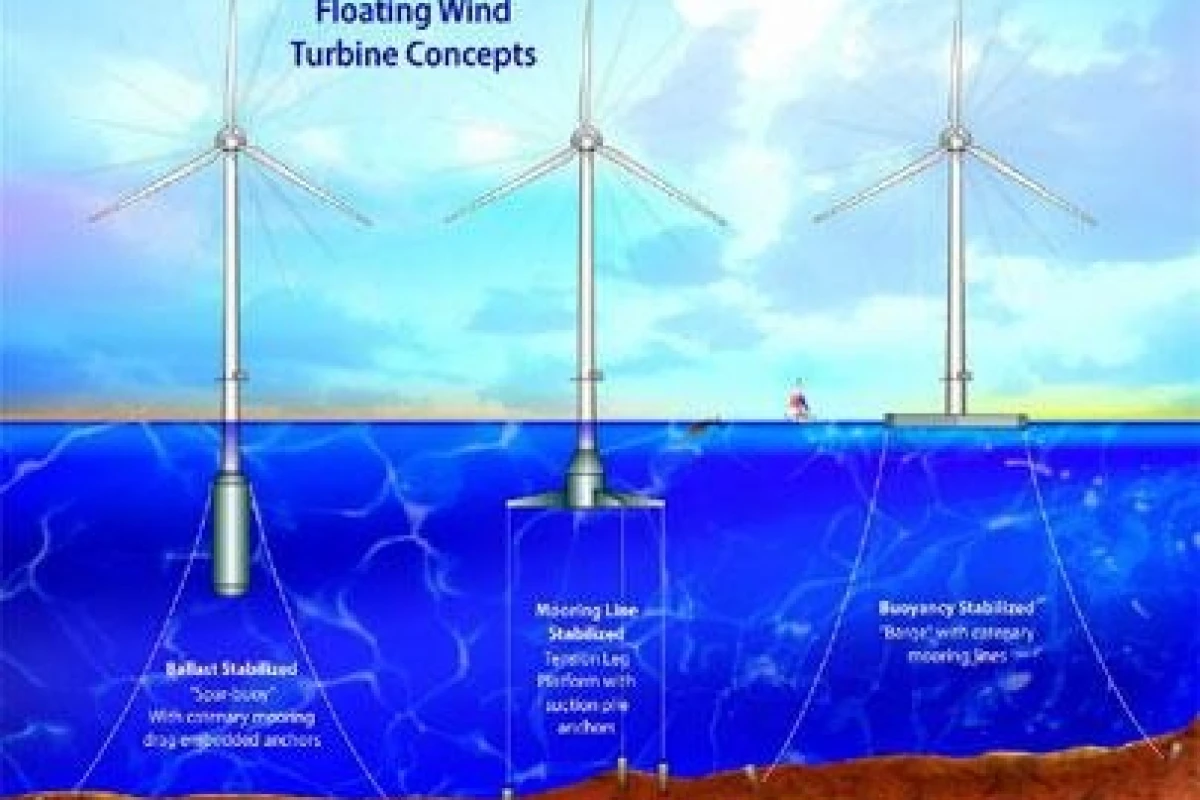

In 2004, MIT researchers teamed up with wind-turbine experts from the U.S. National Renewable Energy Laboratory (NREL) to integrate a wind turbine with a floating platform similar to those used by off-shore oil rigs. The design uses a tension leg platform (TLP), in which steel tethers connect the corners of the platform to a mooring on the ocean floor. The platform and turbine are thus supported not by an expensive tower but by buoyancy.

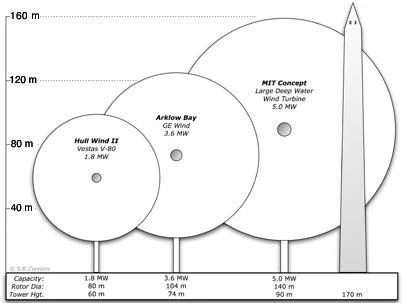

According to their analyses, the floater-mounted turbines could work in water depths ranging from 30 to 200 meters. In the Northeast, for example, they could be 50 to 150 kilometers from shore. And the turbine atop each platform could be big--an economic advantage in the wind-farm business. The MIT-NREL design assumes a 5.0 megawatt (MW) experimental turbine now being developed by industry. (Onshore units are 1.5 MW, conventional offshore units, 3.6 MW.)
Stable enough for towing
Ocean assembly of the floating turbines would be prohibitively expensive because of their size: the wind tower is fully 90 meters tall, the rotors about 140 meters in diameter. So the researchers designed them to be assembled onshore--probably at a shipyard--and towed out to sea by a tugboat. To keep each platform stable, cylinders inside it are ballasted with concrete and water. Once on site, the platform is hooked to previously installed tethers. Water is pumped out of the cylinders until the entire assembly lifts up in the water, pulling the tethers taut.
The tethers allow the floating platforms to move from side to side but not up and down--a remarkably stable arrangement. According to computer simulations, in hurricane conditions the floating platforms--each about 30 meters in diameter--would shift by one to two meters, and the bottom of the turbine blades would remain well above the peak of even the highest wave. The researchers are hoping to reduce the sideways motion still further by installing specially designed dampers similar to those used to steady the sway of skyscrapers during high winds and earthquakes.
Paul D. Sclavounos, a professor of mechanical engineering and naval architecture at MIT estimates that building and installing his floating support system should cost a third as much as constructing the type of truss tower now planned for deep-water installations. Installing the tethers, the electrical system, and the cable to the shore is standard procedure. Because of the strong offshore winds, the floating turbines should produce up to twice as much electricity per year (per installed megawatt) as wind turbines now in operation. And because the wind turbines are not permanently attached to the ocean floor, they are a movable asset. If a company with 400 wind turbines serving the Boston area needs more power for New York City, it can unhook some of the floating turbines and tow them south.
Encouraged by positive responses from wind, electric power, and oil companies, Sclavounos hopes to install a half-scale prototype south of Cape Cod. "We'd have a little unit sitting out there and…could show that this thing can float and behave the way we're saying it will," he said. "That's clearly the way to get going."View gallery - 3 images
