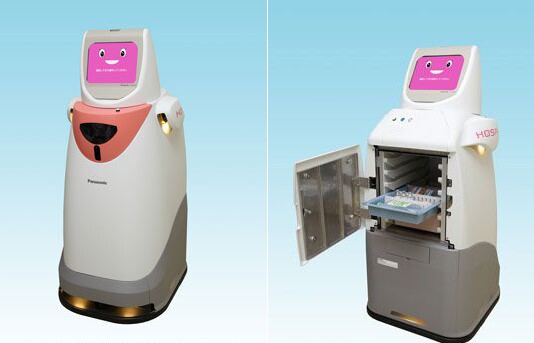

Panasonic has launched the HOSPI-R, an autonomous delivery robot, for use in Japanese hospitals
Panasonic has launched the HOSPI-R, an autonomous delivery robot, for use in Japanese hospitals
View 31 Images
Panasonic has launched the HOSPI-R, an autonomous delivery robot, for use in Japanese hospitals
1/31
Panasonic has launched the HOSPI-R, an autonomous delivery robot, for use in Japanese hospitals
The HOSPI-R is cheaper than conventional systems because it navigates autonomously rather than with rail systems
2/31
The HOSPI-R is cheaper than conventional systems because it navigates autonomously rather than with rail systems

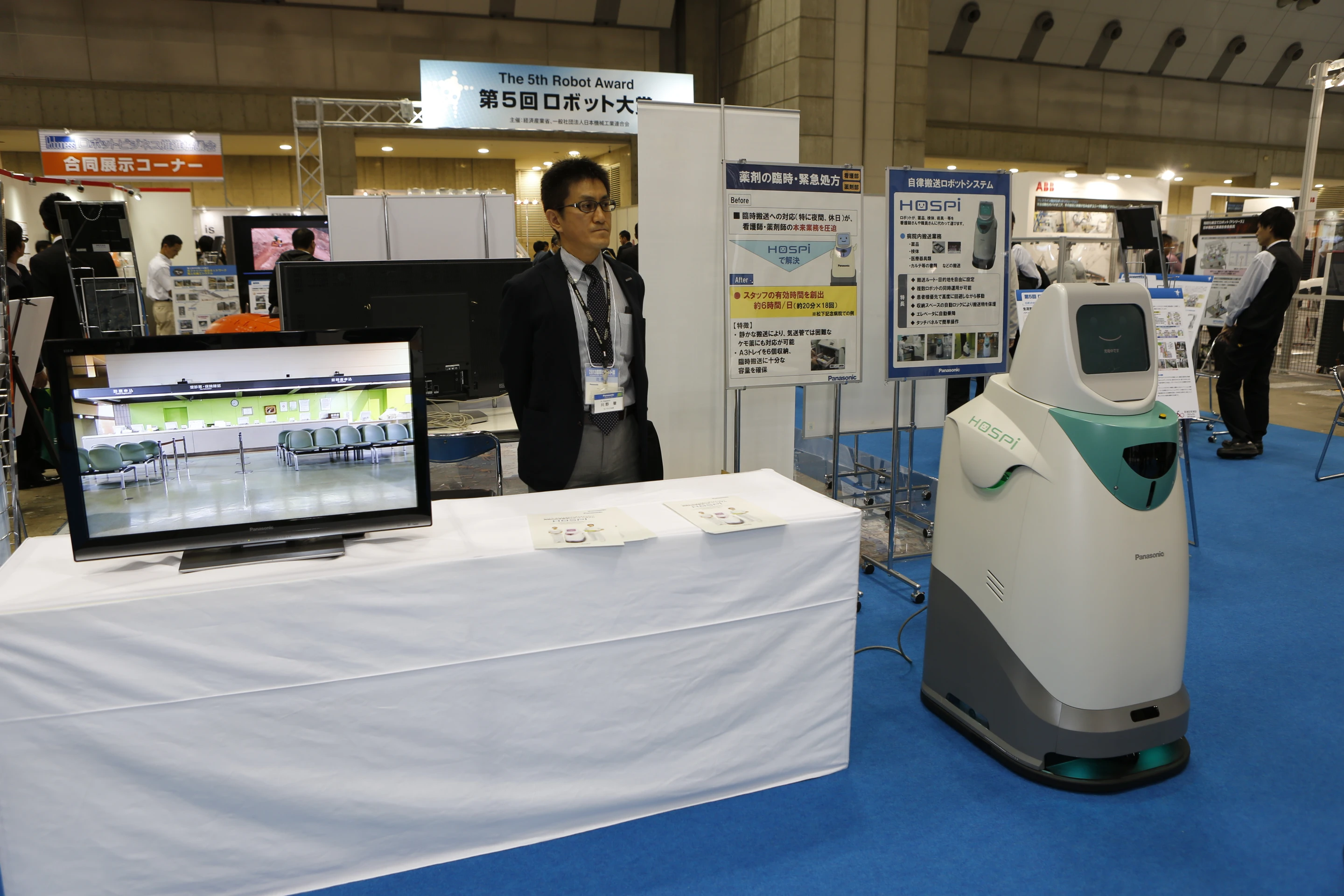

Panasonic's hospital delivery robot was showcased at IREX 2013 (Photo: Mike Hanlon, Gizmag)
3/31
Panasonic's hospital delivery robot was showcased at IREX 2013 (Photo: Mike Hanlon, Gizmag)

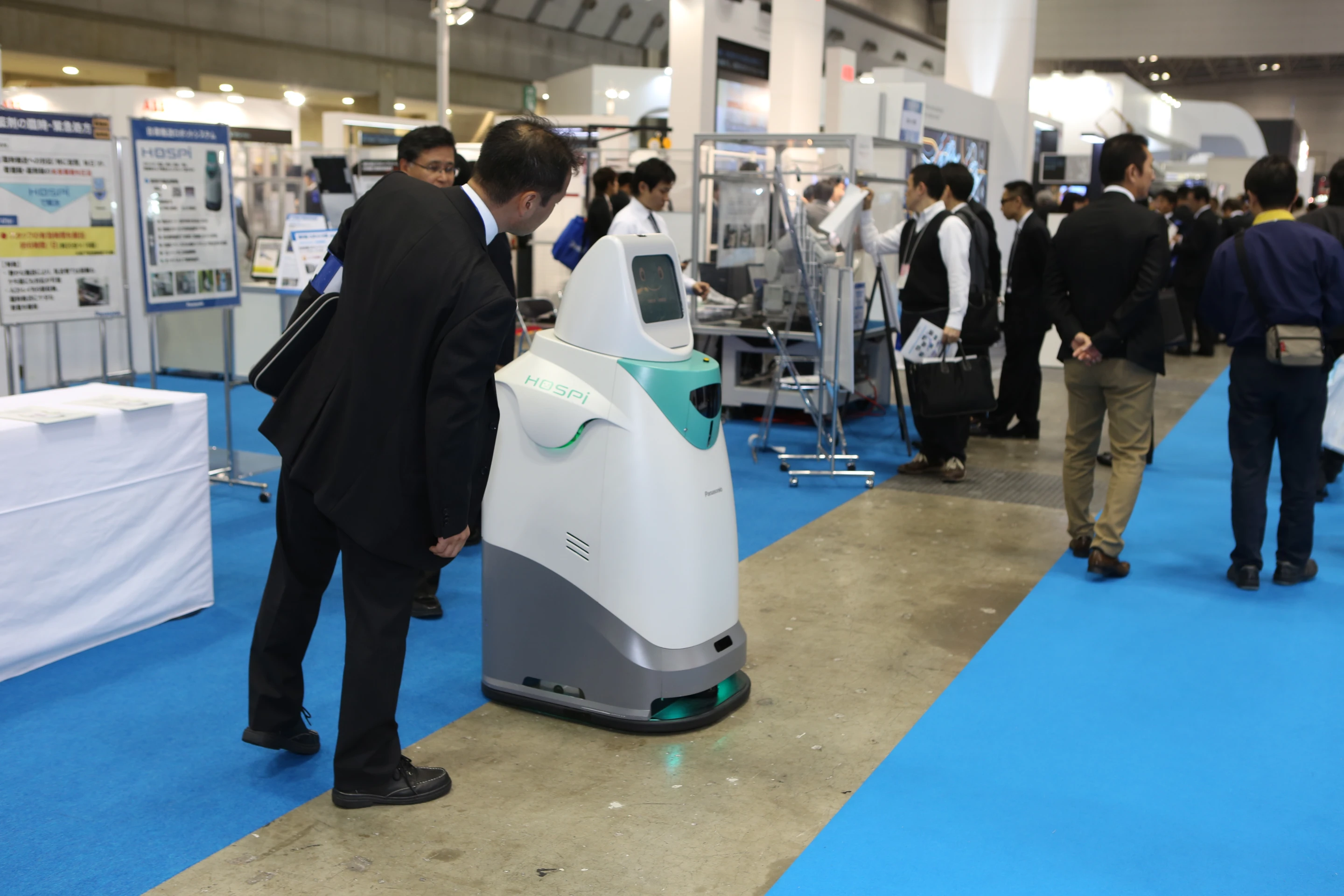

A curious onlooker checks out the HOSPI-R, Panasonic's hospital delivery robot, at IREX 2013 (Photo: Mike Hanlon, Gizmag)
4/31
A curious onlooker checks out the HOSPI-R, Panasonic's hospital delivery robot, at IREX 2013 (Photo: Mike Hanlon, Gizmag)
The HOSPI-R navigates using a combination of sensors and preprogrammed maps (Photo: Mike Hanlon, Gizmag)
5/31
The HOSPI-R navigates using a combination of sensors and preprogrammed maps (Photo: Mike Hanlon, Gizmag)

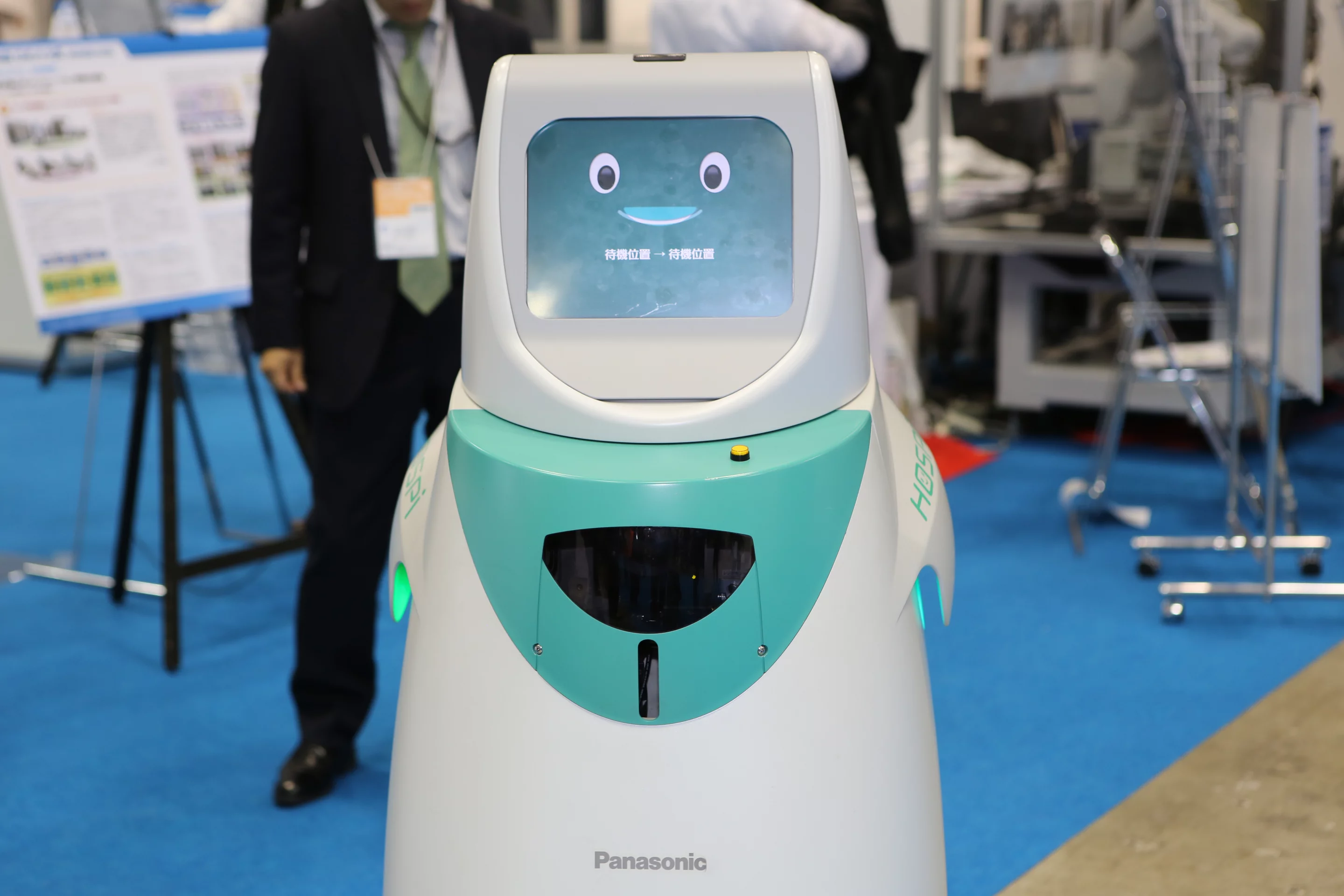

The HOSPI-R's screen can display a friendly face to the casual observer as well as its program interface when needed (Photo: Mike Hanlon, Gizmag)
6/31
The HOSPI-R's screen can display a friendly face to the casual observer as well as its program interface when needed (Photo: Mike Hanlon, Gizmag)

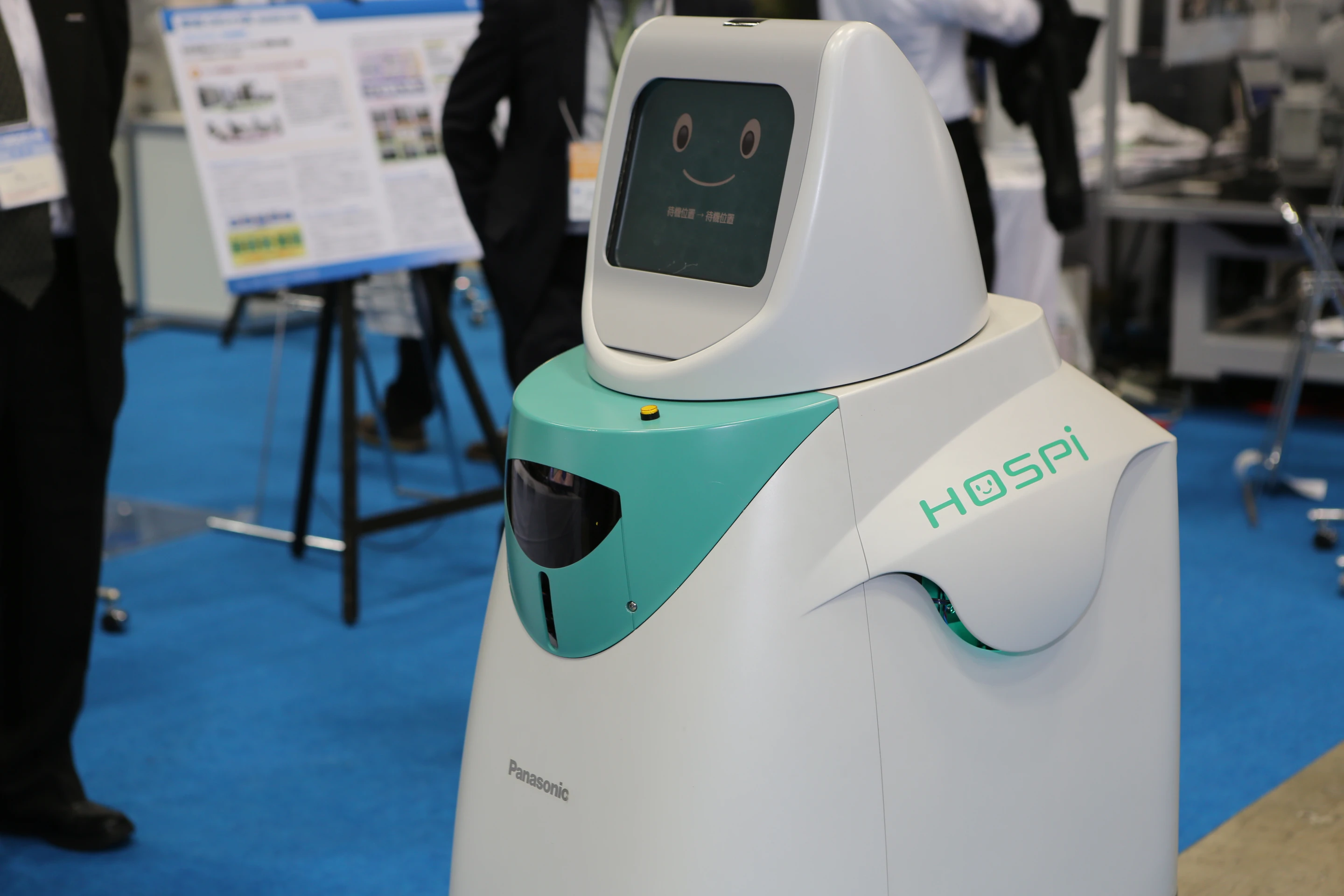

The HOSPI-R was designed to deliver up to 20 kg / 44 lb of drugs or samples (Photo: Mike Hanlon, Gizmag)
7/31
The HOSPI-R was designed to deliver up to 20 kg / 44 lb of drugs or samples (Photo: Mike Hanlon, Gizmag)

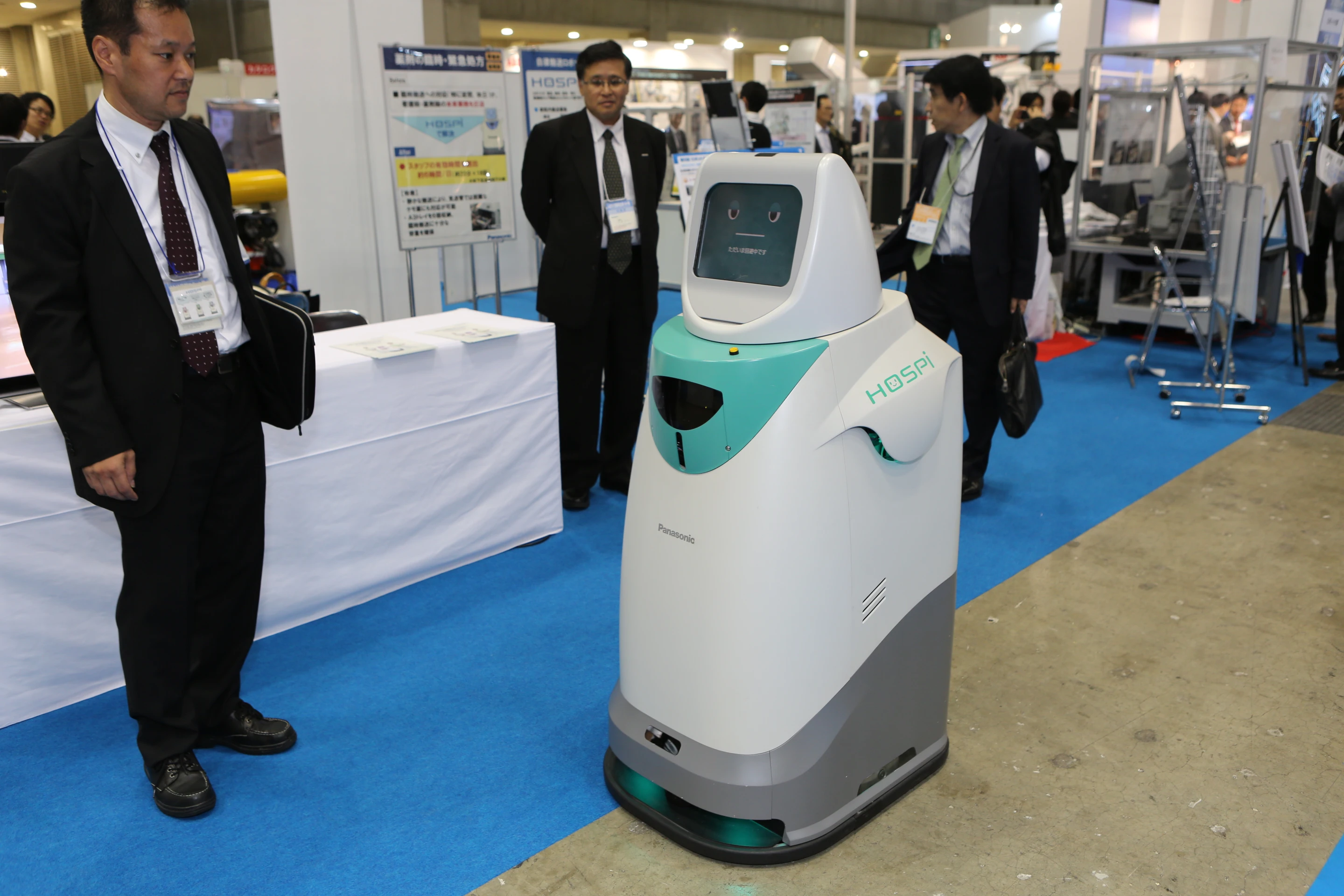

The robot can work for 7 hours before automatically returning to its charging station (Photo: Mike Hanlon, Gizmag)
8/31
The robot can work for 7 hours before automatically returning to its charging station (Photo: Mike Hanlon, Gizmag)

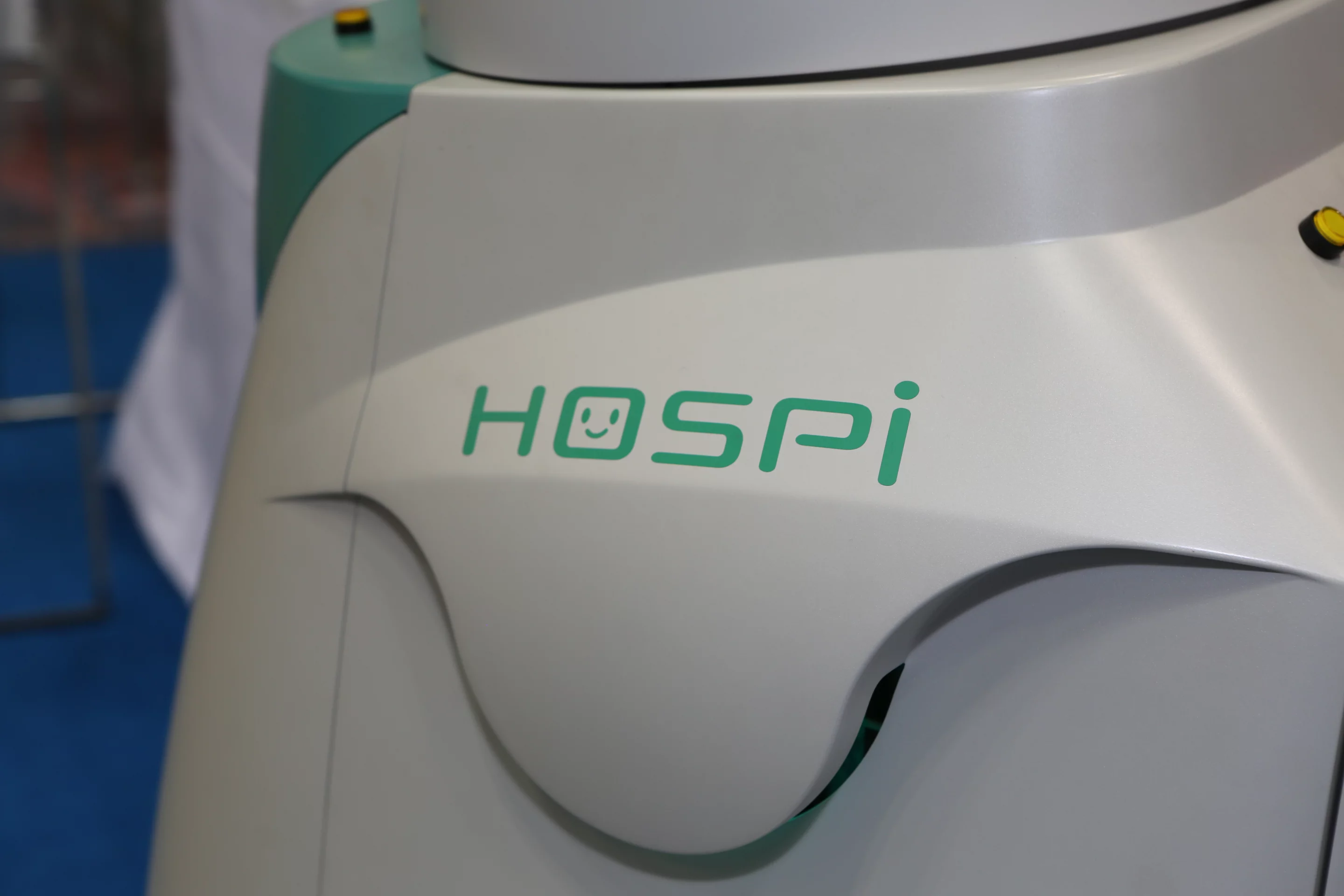

A close-up of Panasonic's HOSPI logo (Photo: Mike Hanlon, Gizmag)
9/31
A close-up of Panasonic's HOSPI logo (Photo: Mike Hanlon, Gizmag)

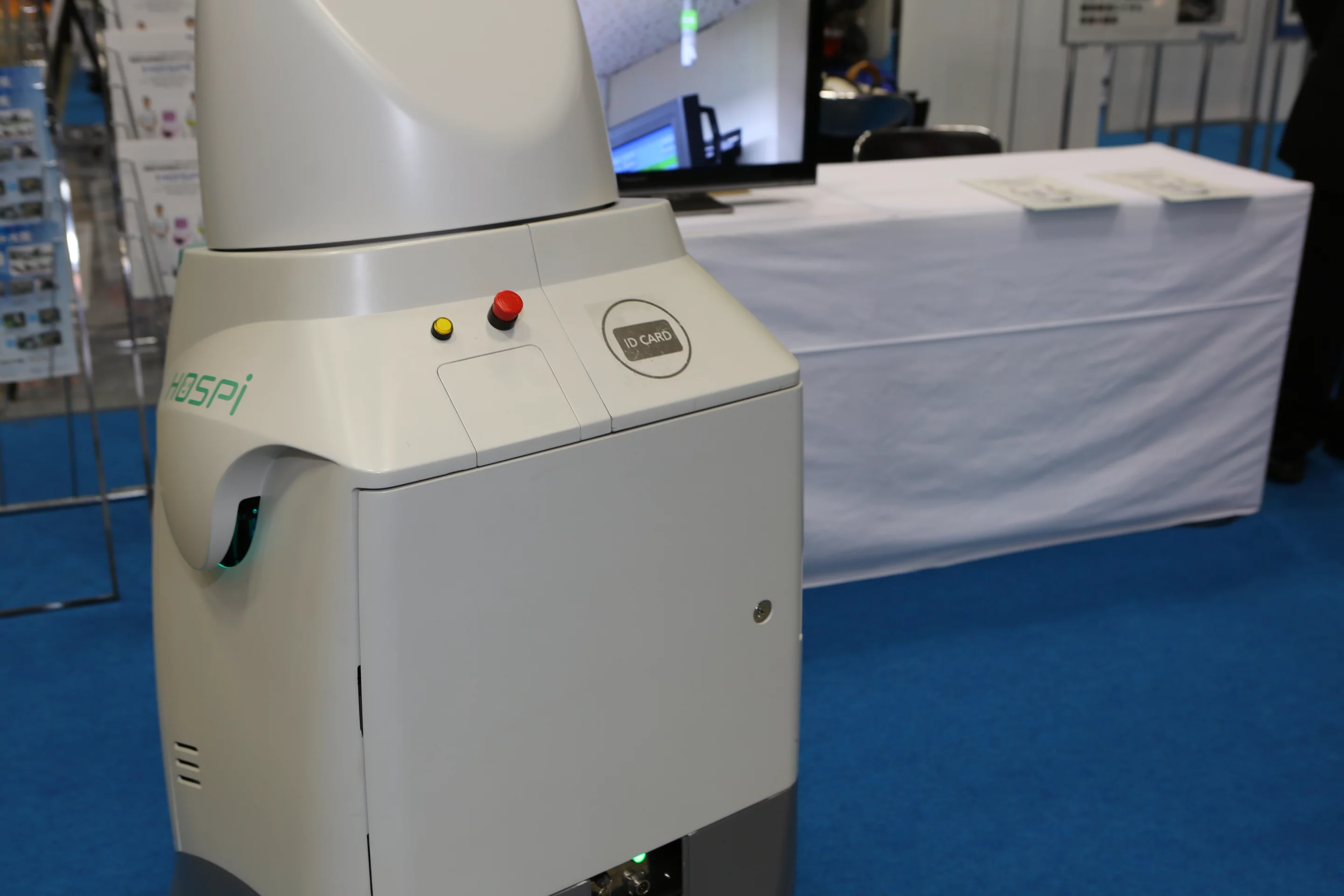

The all-important emergency stop button (Photo: Mike Hanlon, Gizmag)
10/31
The all-important emergency stop button (Photo: Mike Hanlon, Gizmag)

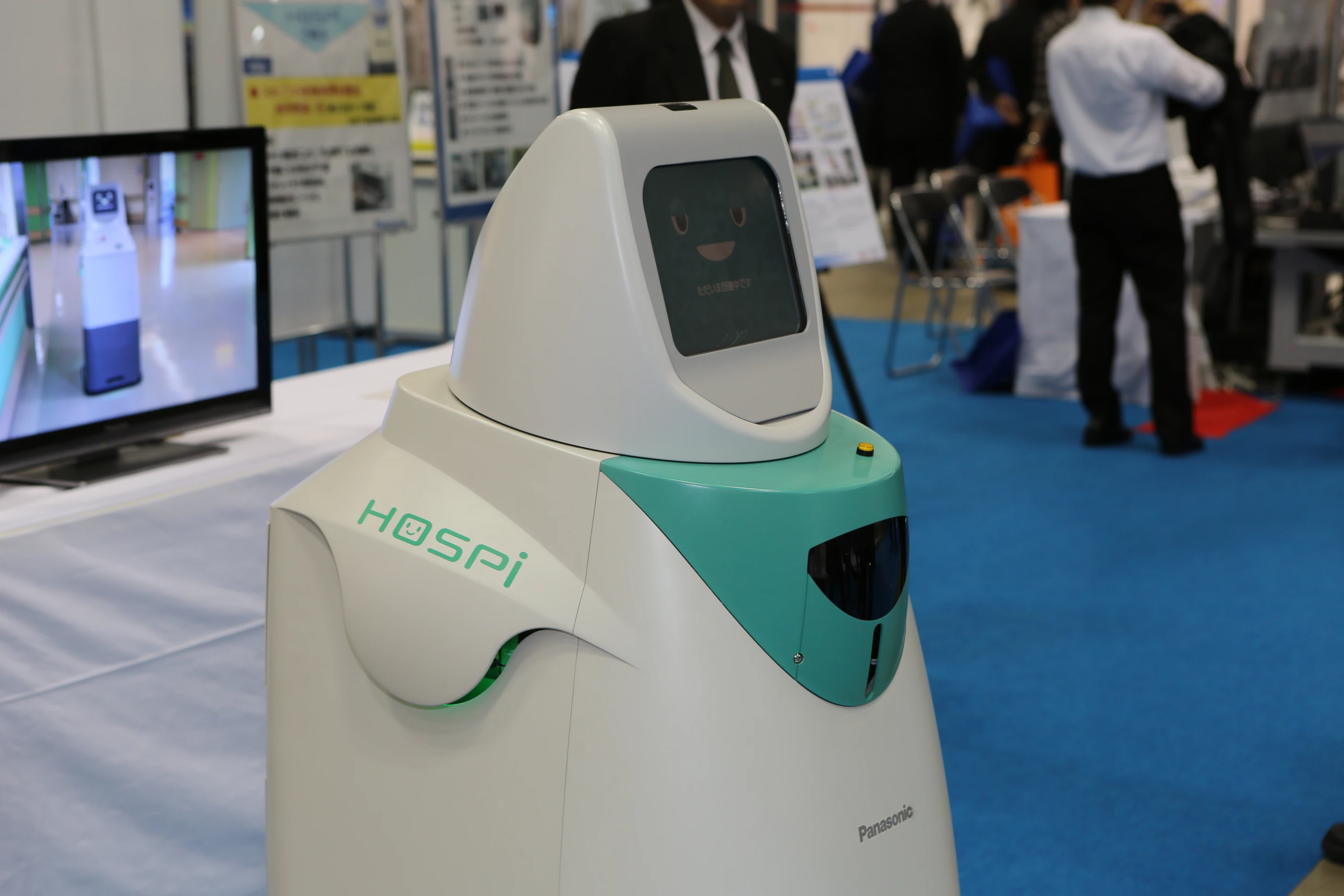

Panasonic is aggressively targeting medical applications for its robotics technologies (Photo: Mike Hanlon, Gizmag)
11/31
Panasonic is aggressively targeting medical applications for its robotics technologies (Photo: Mike Hanlon, Gizmag)

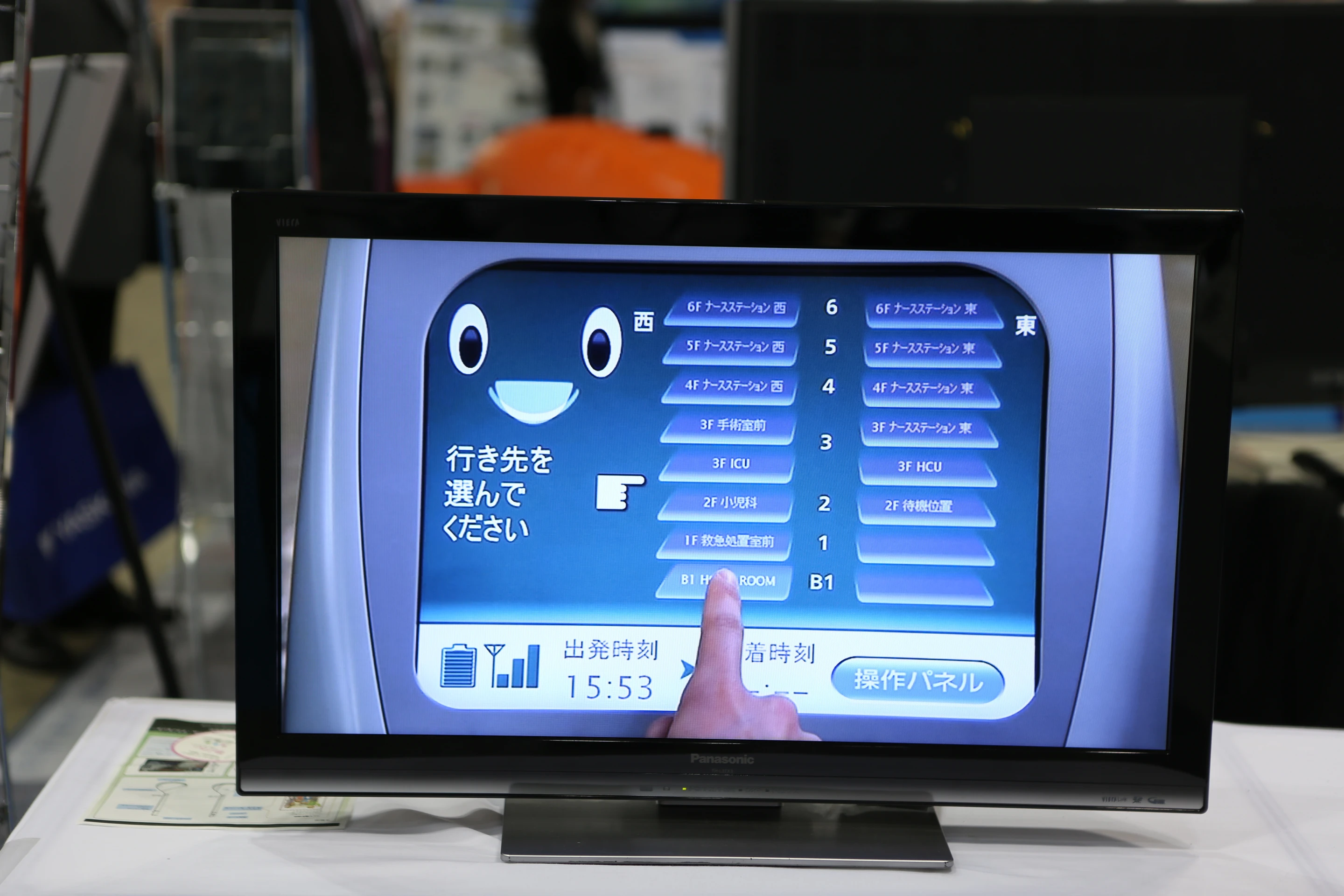

Nurses can easily tell the HOSPI-R where to go using a simple touch interface (Photo: Mike Hanlon, Gizmag)
12/31
Nurses can easily tell the HOSPI-R where to go using a simple touch interface (Photo: Mike Hanlon, Gizmag)

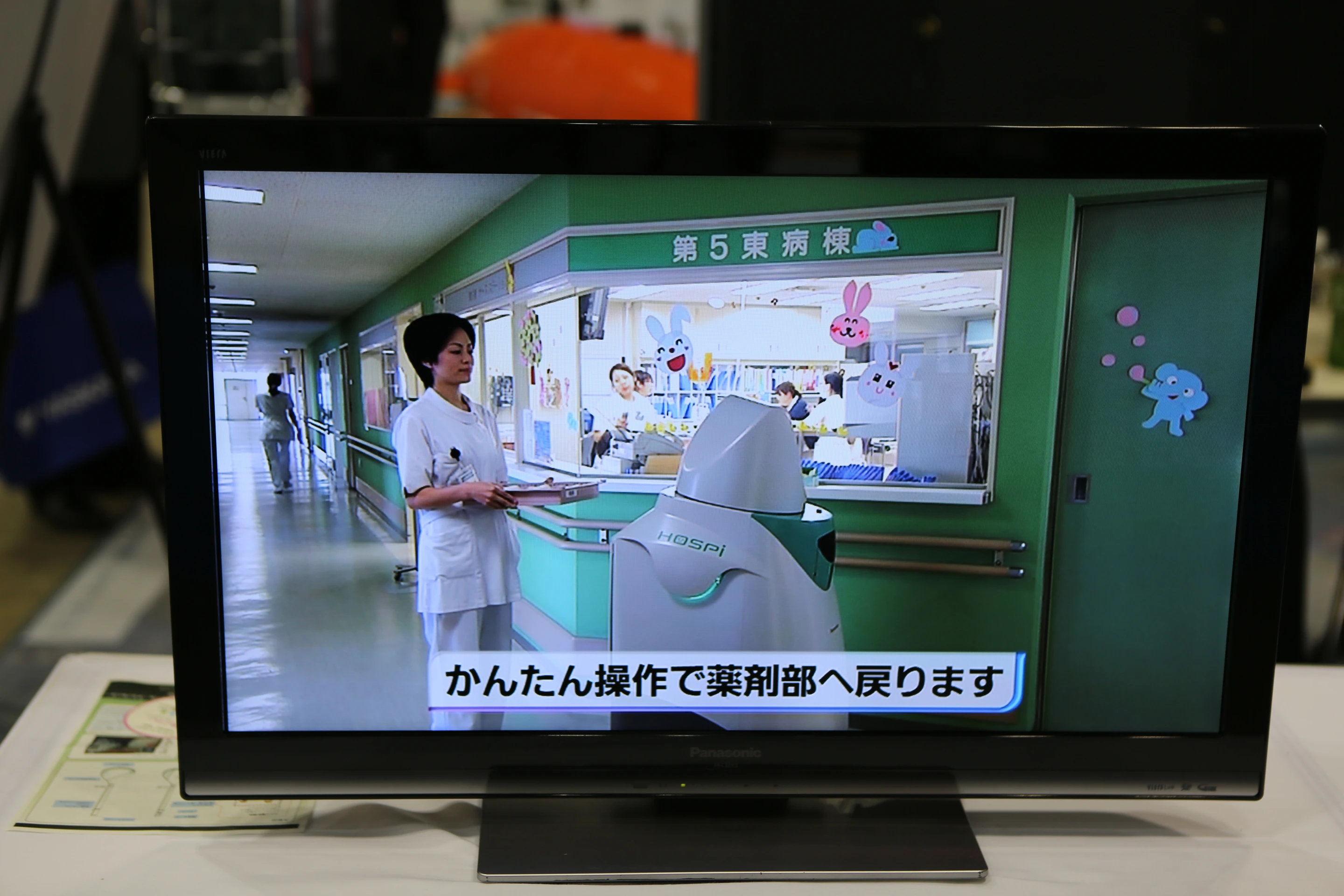

The HOSPI-R diligently avoids obstacles automatically as it cruises hospital wards (Photo: Mike Hanlon, Gizmag)
13/31
The HOSPI-R diligently avoids obstacles automatically as it cruises hospital wards (Photo: Mike Hanlon, Gizmag)

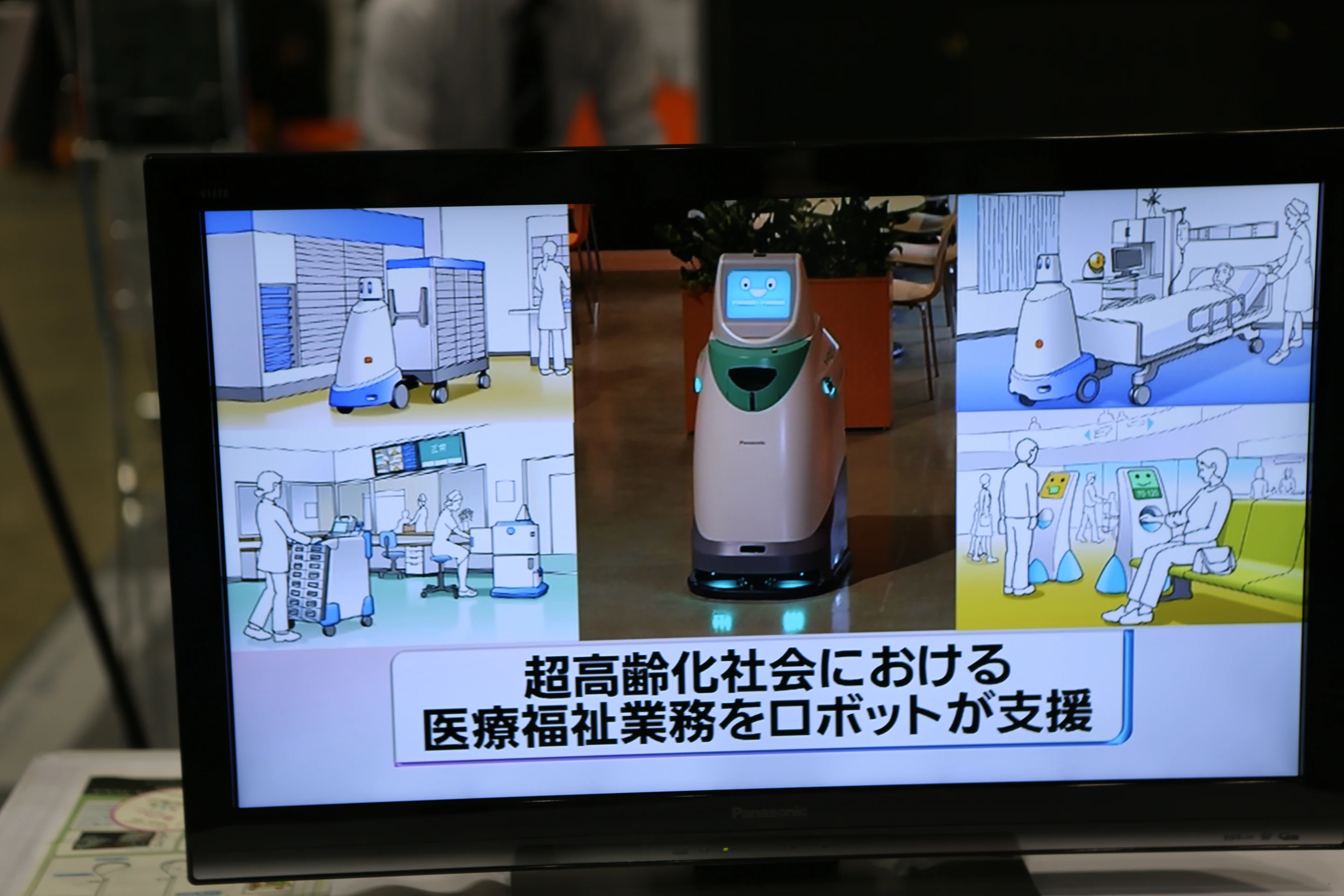

Panasonic predicts a huge market for medical robotics (Photo: Mike Hanlon, Gizmag)
14/31
Panasonic predicts a huge market for medical robotics (Photo: Mike Hanlon, Gizmag)

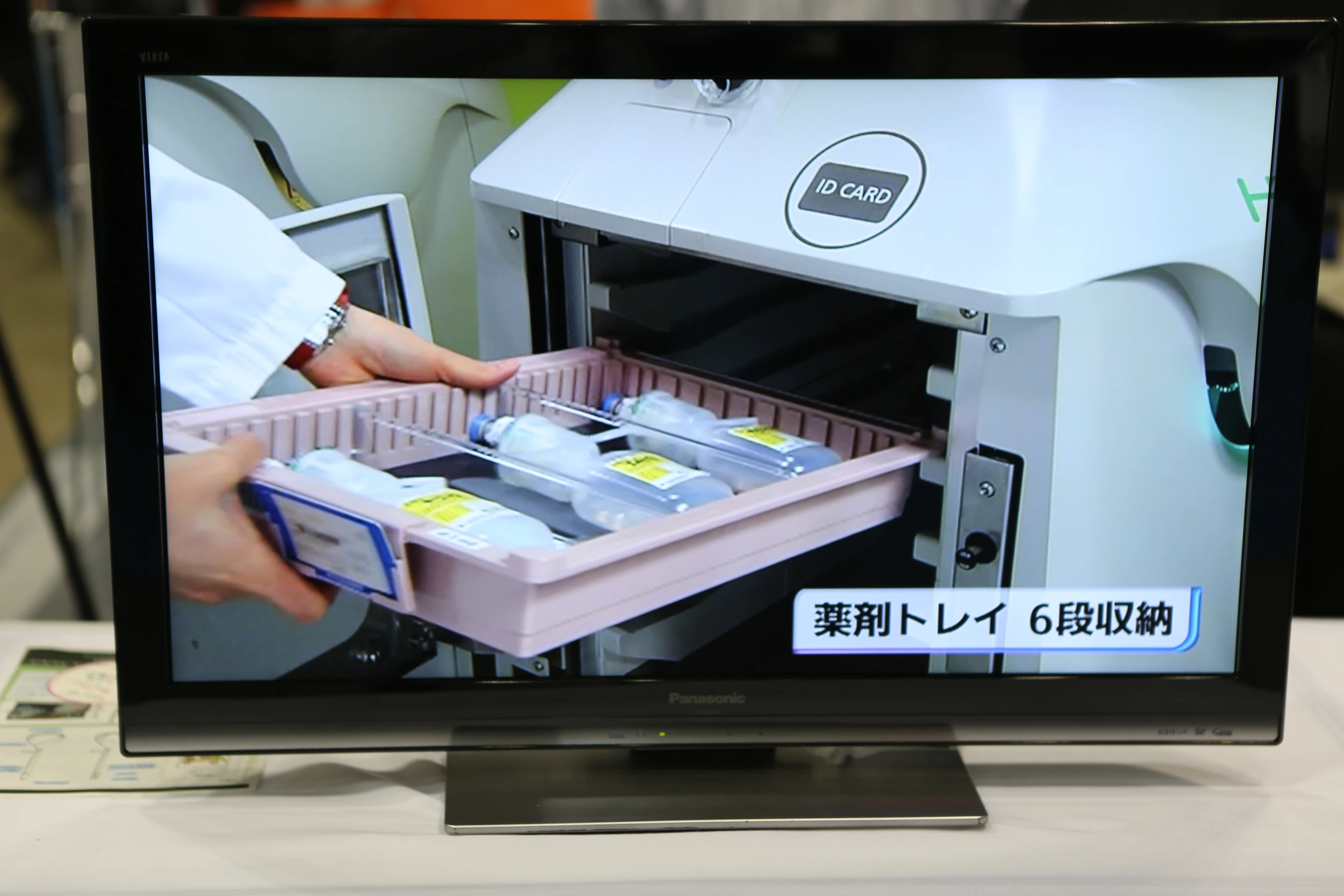

Drugs and samples are kept protected by a locking door on its storage container that opens with an ID card (Photo: Mike Hanlon, Gizmag)
15/31
Drugs and samples are kept protected by a locking door on its storage container that opens with an ID card (Photo: Mike Hanlon, Gizmag)
Liquids, such as chemical or urine samples, are kept in a stable position to limit foaming (Photo: Mike Hanlon, Gizmag)
16/31
Liquids, such as chemical or urine samples, are kept in a stable position to limit foaming (Photo: Mike Hanlon, Gizmag)

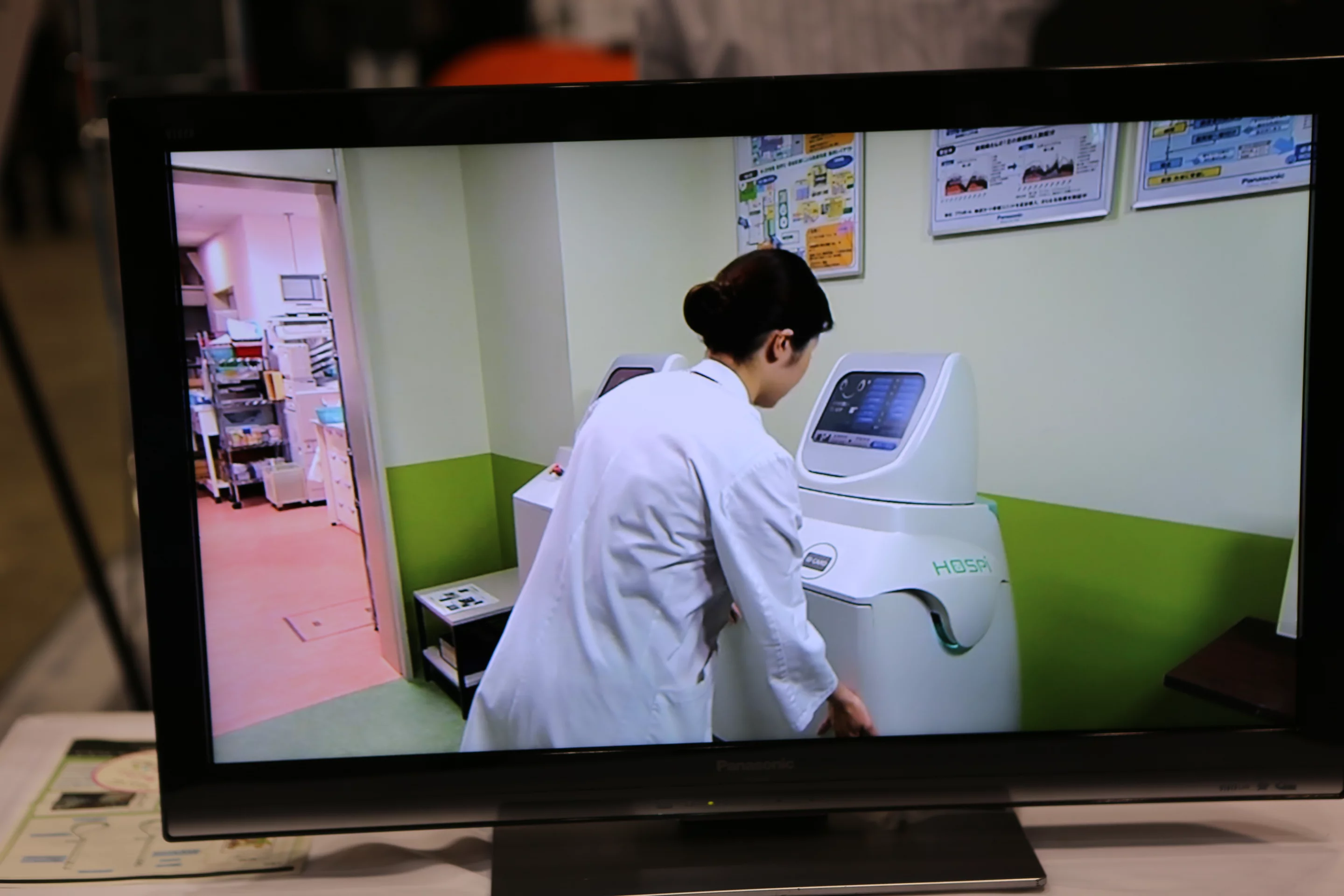

The HOSPI-R saves nurses the trouble of carting drugs and specimens throughout their shift (Photo: Mike Hanlon, Gizmag)
17/31
The HOSPI-R saves nurses the trouble of carting drugs and specimens throughout their shift (Photo: Mike Hanlon, Gizmag)

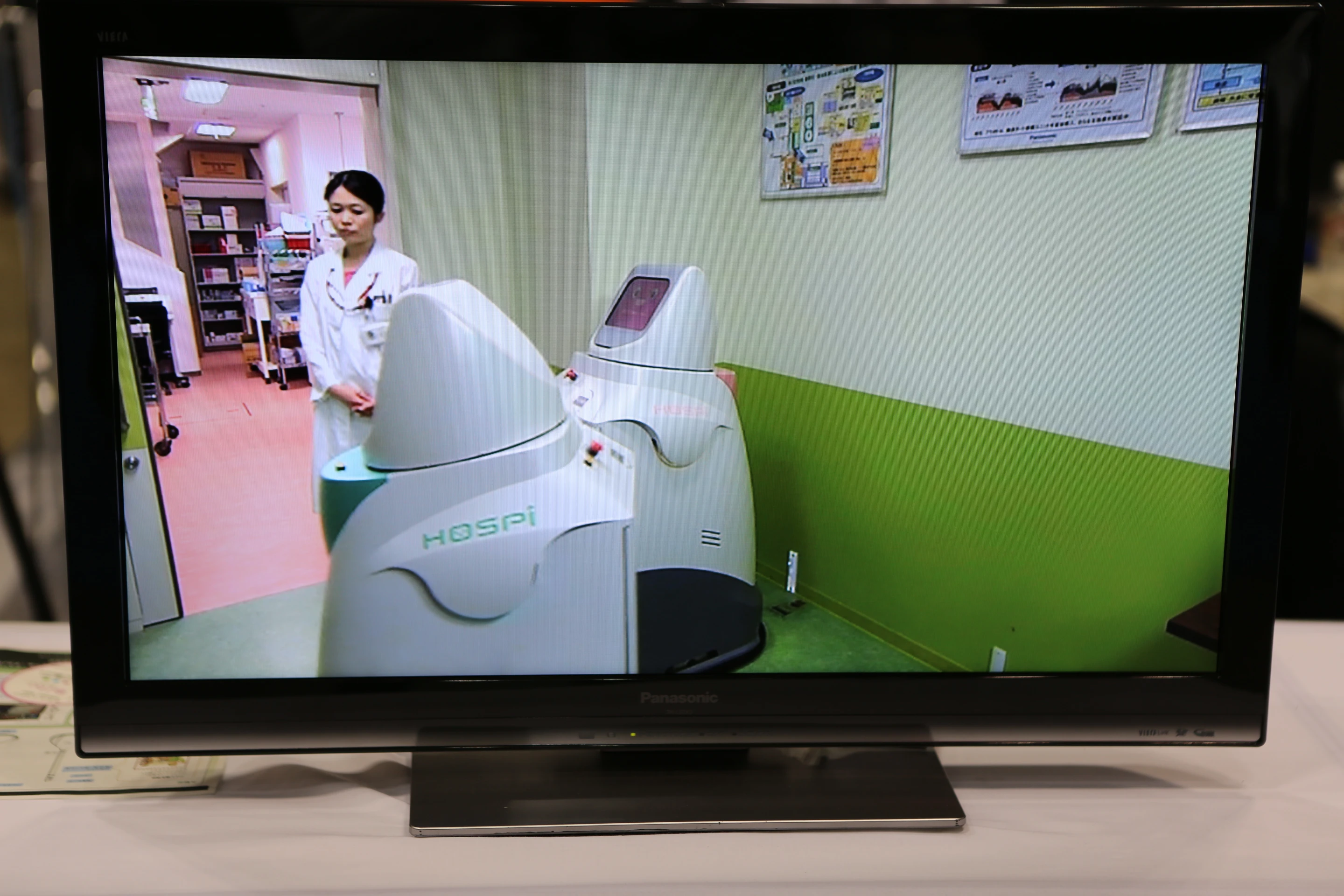

Multiple HOSPI-R robots could operate 24 hours a day in 8 hour shifts (Photo: Mike Hanlon, Gizmag)
18/31
Multiple HOSPI-R robots could operate 24 hours a day in 8 hour shifts (Photo: Mike Hanlon, Gizmag)

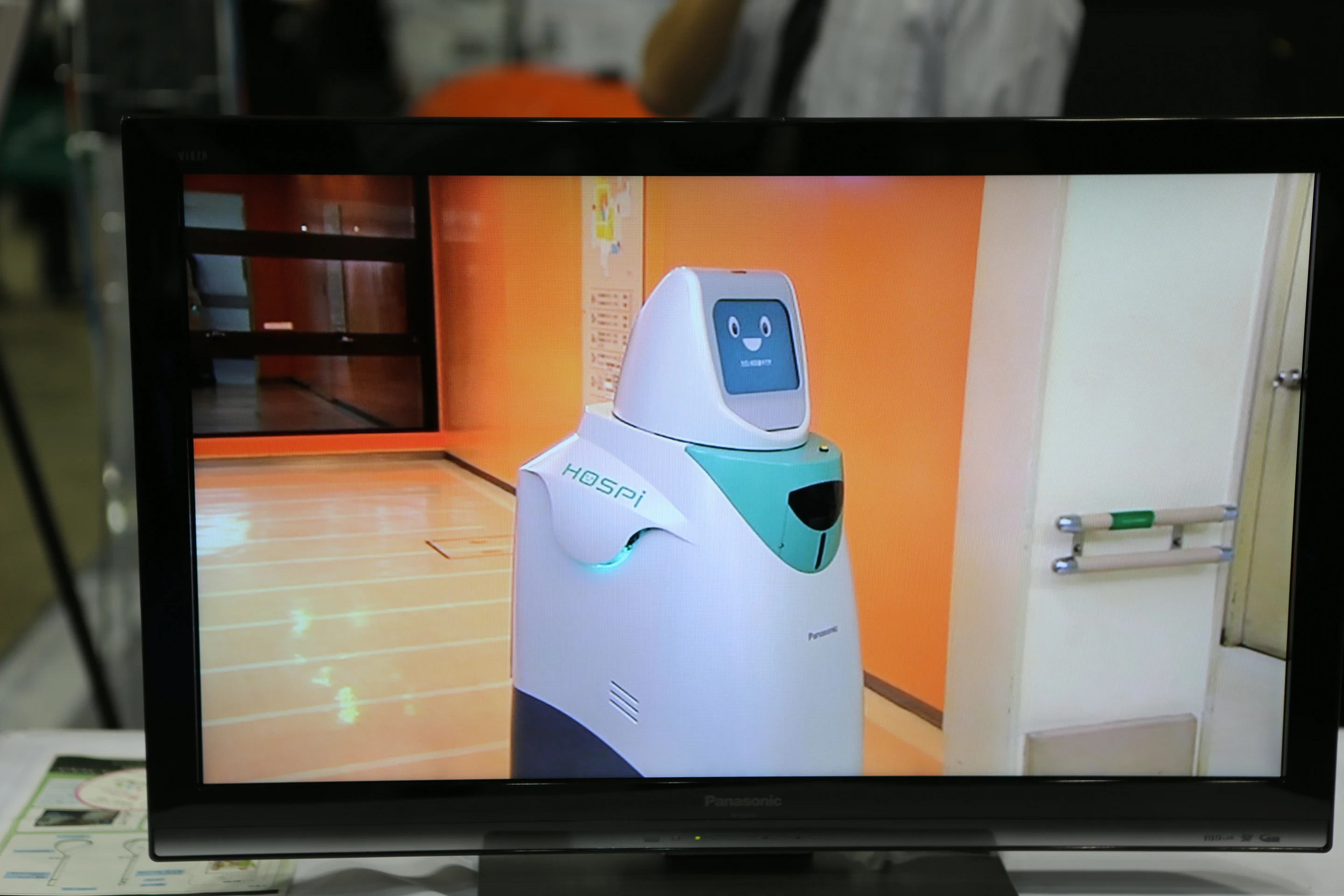

The HOSPI-R has been extensively tested in the Matsushita Memorial Hospital (Photo: Mike Hanlon, Gizmag)
19/31
The HOSPI-R has been extensively tested in the Matsushita Memorial Hospital (Photo: Mike Hanlon, Gizmag)

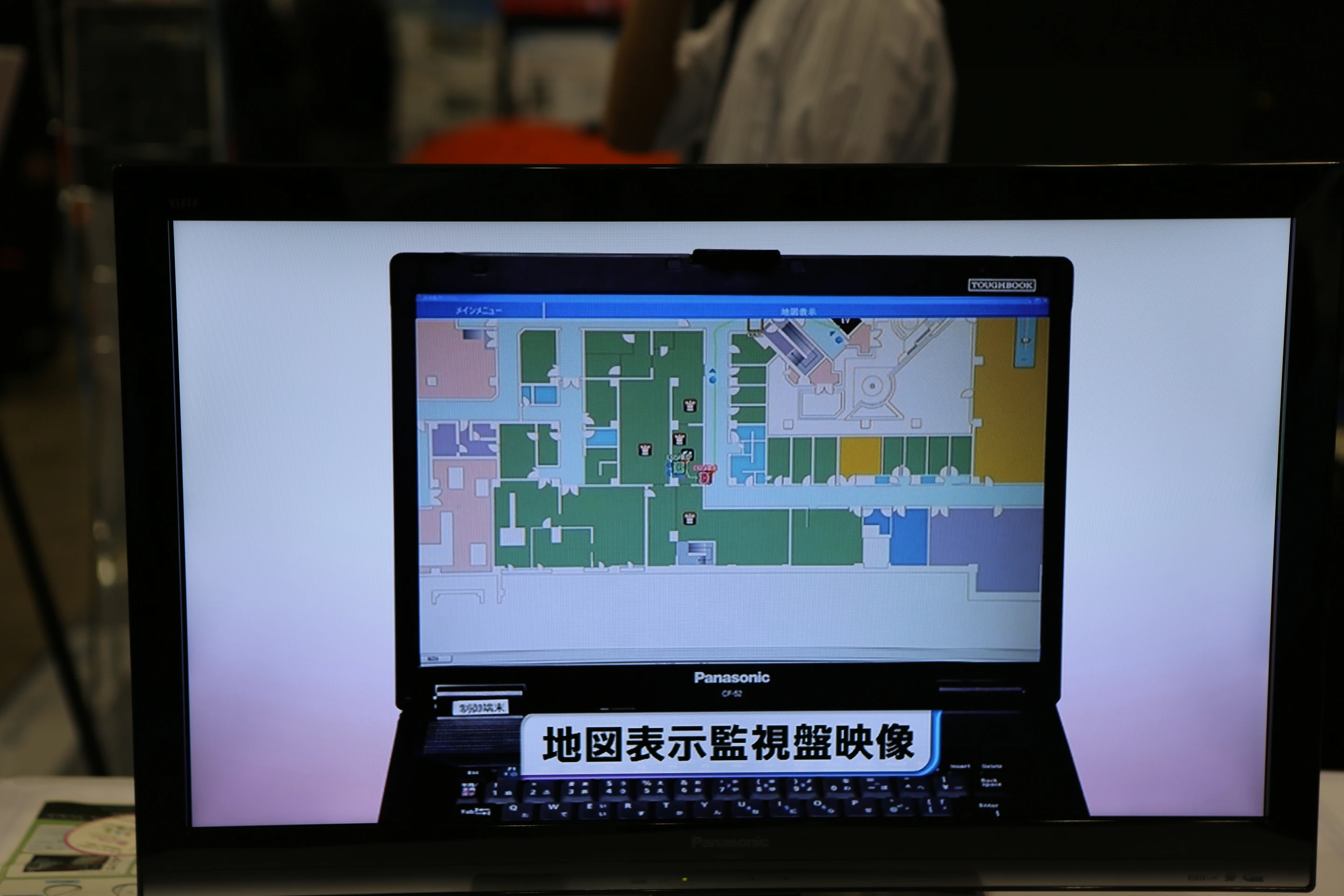

The robot navigates using a map of the hospital's floor plan, which is programmed in advance (Photo: Mike Hanlon, Gizmag)
20/31
The robot navigates using a map of the hospital's floor plan, which is programmed in advance (Photo: Mike Hanlon, Gizmag)

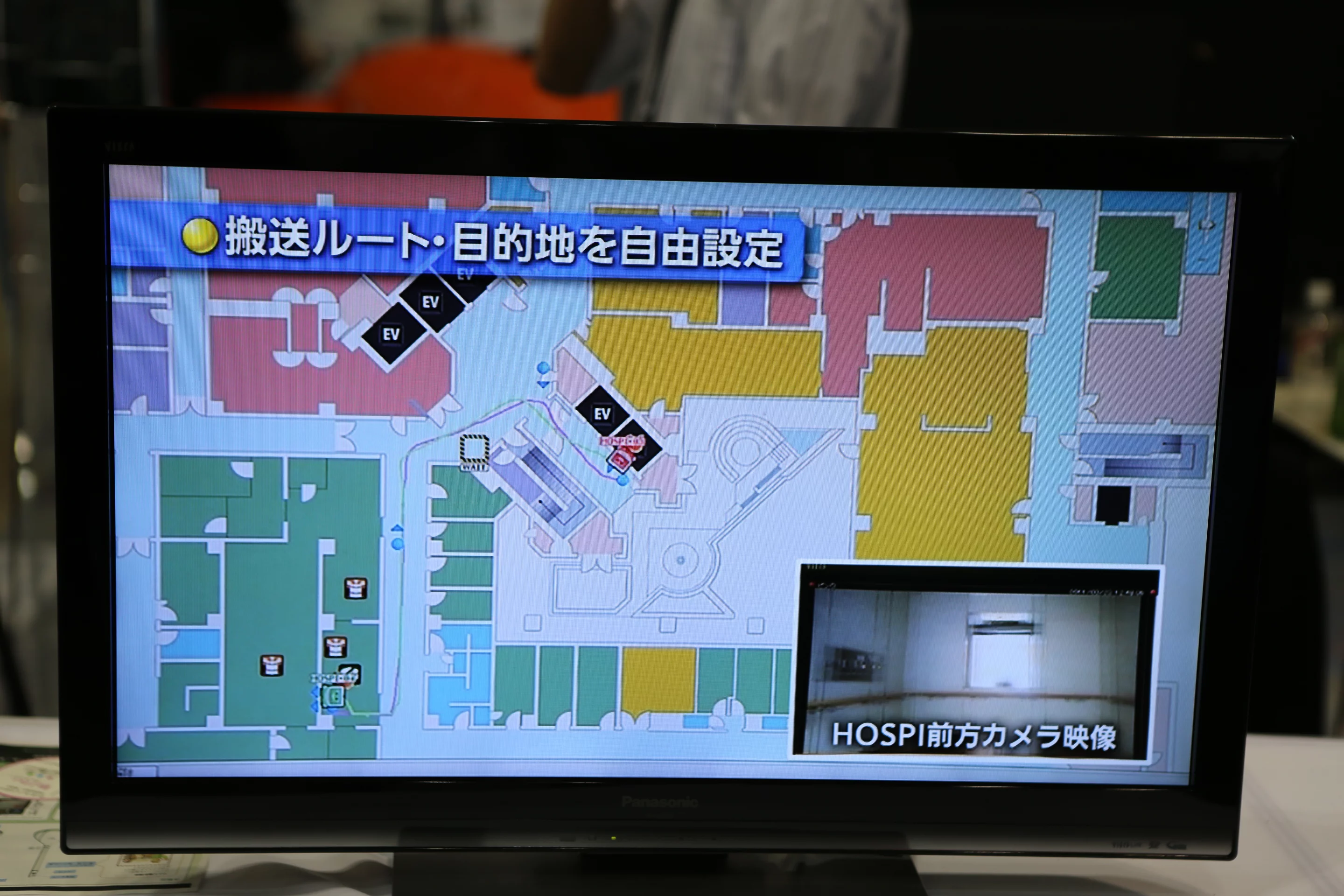

Nurses can watch a live feed from the robot's camera to see where it is at all times (Photo: Mike Hanlon, Gizmag)
21/31
Nurses can watch a live feed from the robot's camera to see where it is at all times (Photo: Mike Hanlon, Gizmag)

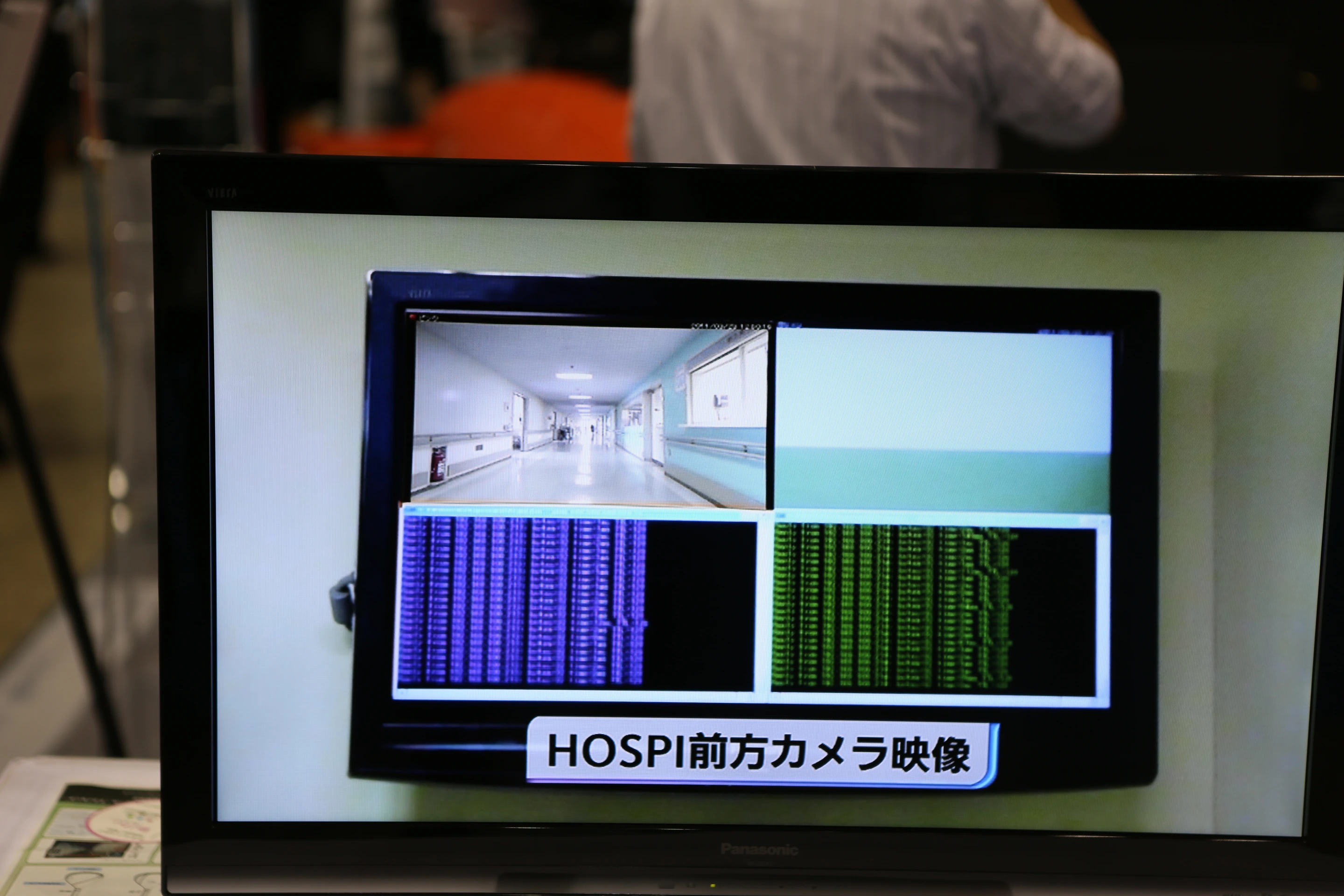

Video cameras provide a live feed of the robot's activities (Photo: Mike Hanlon, Gizmag)
22/31
Video cameras provide a live feed of the robot's activities (Photo: Mike Hanlon, Gizmag)

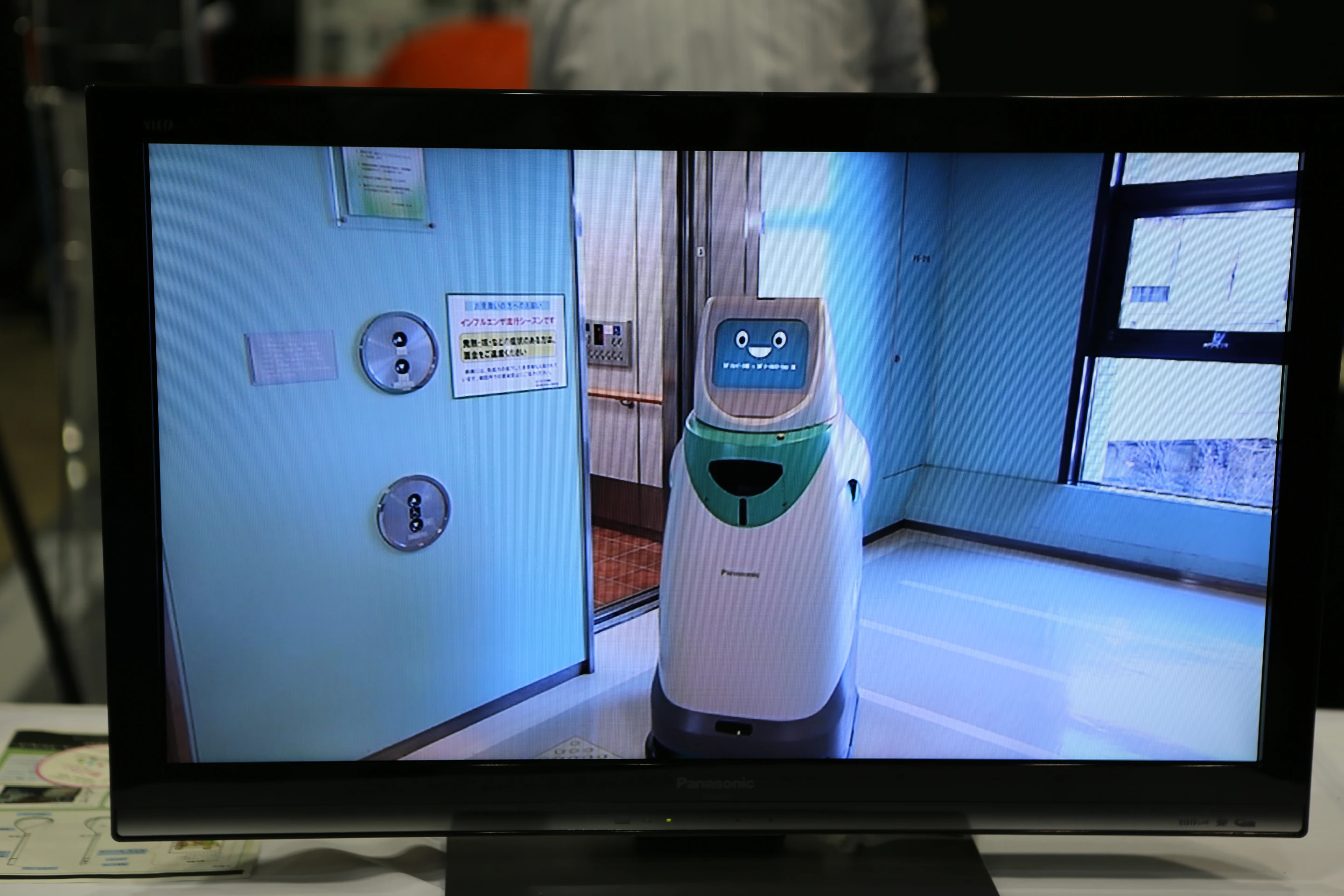

The HOSPI-R can automatically take the elevators when needed (Photo: Mike Hanlon, Gizmag)
23/31
The HOSPI-R can automatically take the elevators when needed (Photo: Mike Hanlon, Gizmag)

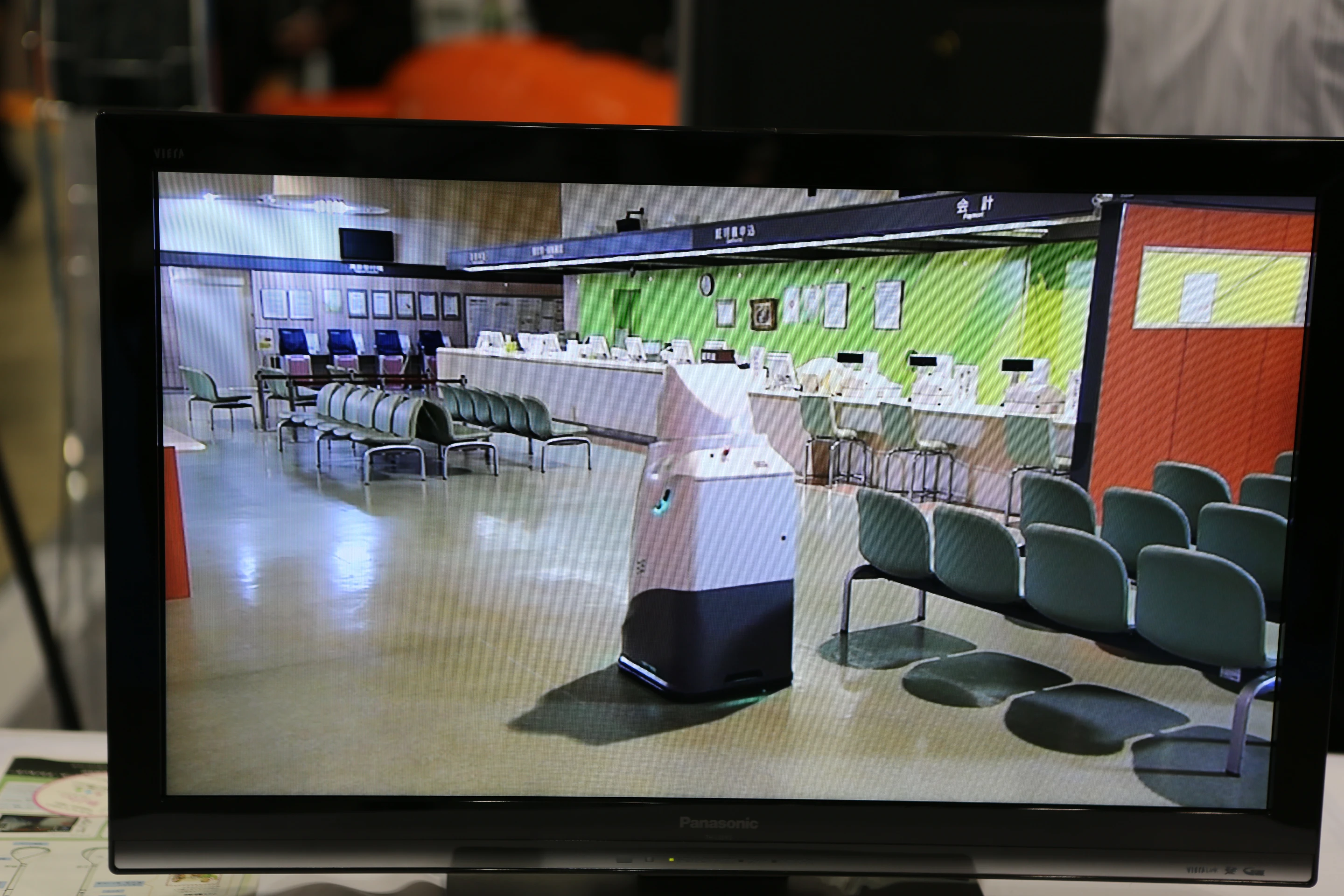

Thanks to a laser range finder, the robot is able to safely navigate potentially busy areas (Photo: Mike Hanlon, Gizmag)
24/31
Thanks to a laser range finder, the robot is able to safely navigate potentially busy areas (Photo: Mike Hanlon, Gizmag)

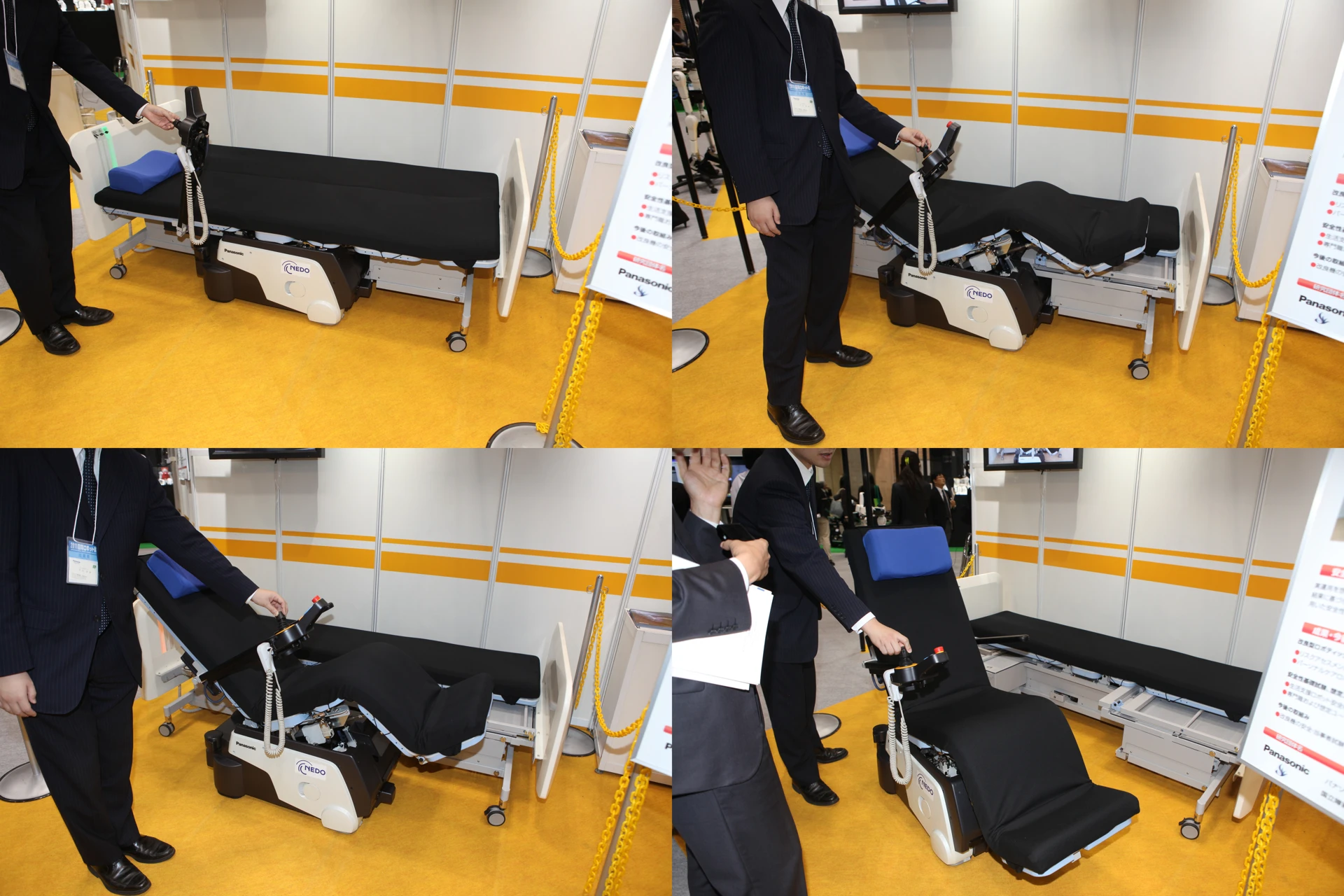

Panasonic's booth at IREX 2013 also contained its robotic bed, which serves double-duty as an electric wheelchair when needed (Photo: Mike Hanlon, Gizmag)
25/31
Panasonic's booth at IREX 2013 also contained its robotic bed, which serves double-duty as an electric wheelchair when needed (Photo: Mike Hanlon, Gizmag)

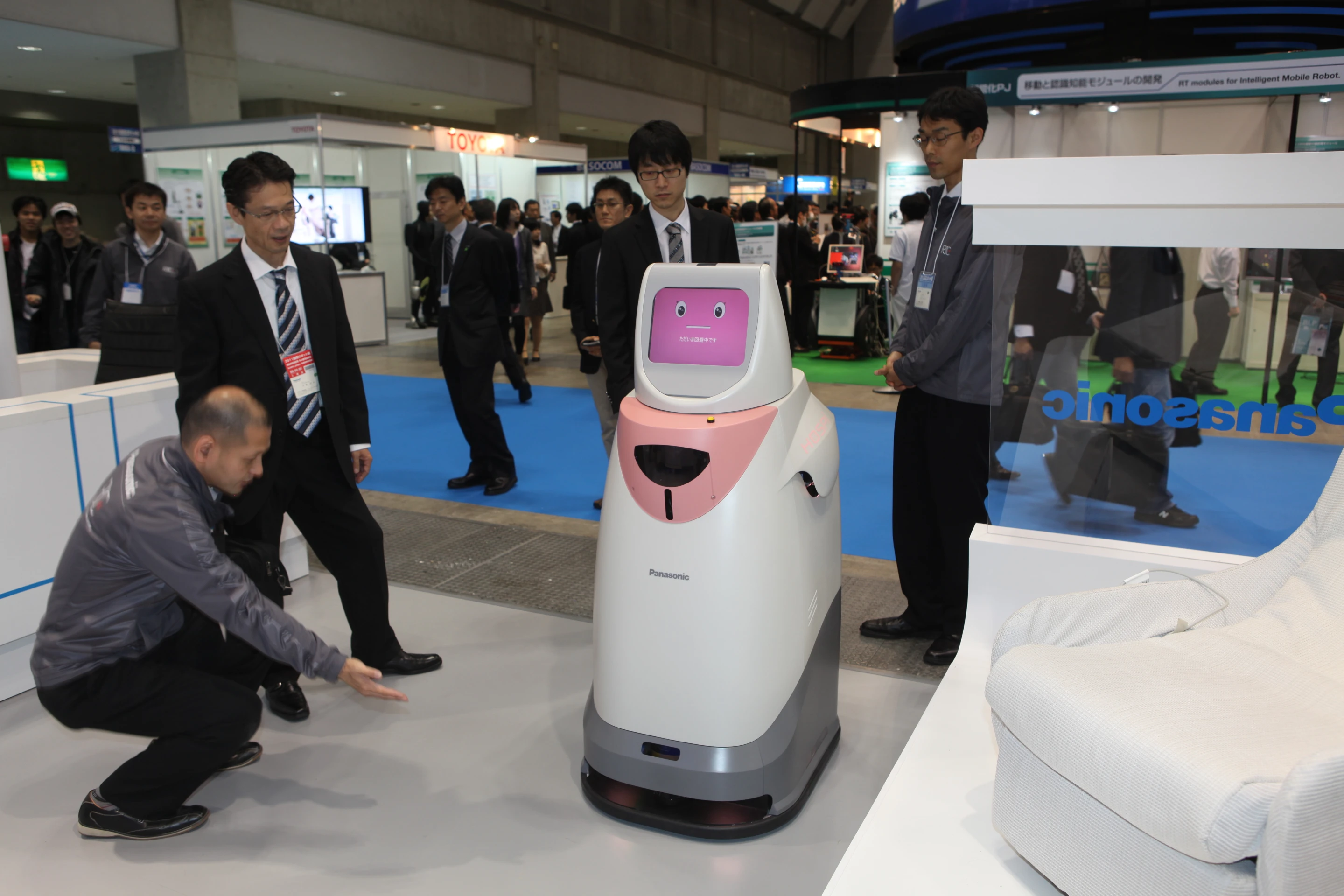

HOSPI-R shows a friendly face at IREX 2013 (Photo: Mike Hanlon, Gizmag)
26/31
HOSPI-R shows a friendly face at IREX 2013 (Photo: Mike Hanlon, Gizmag)

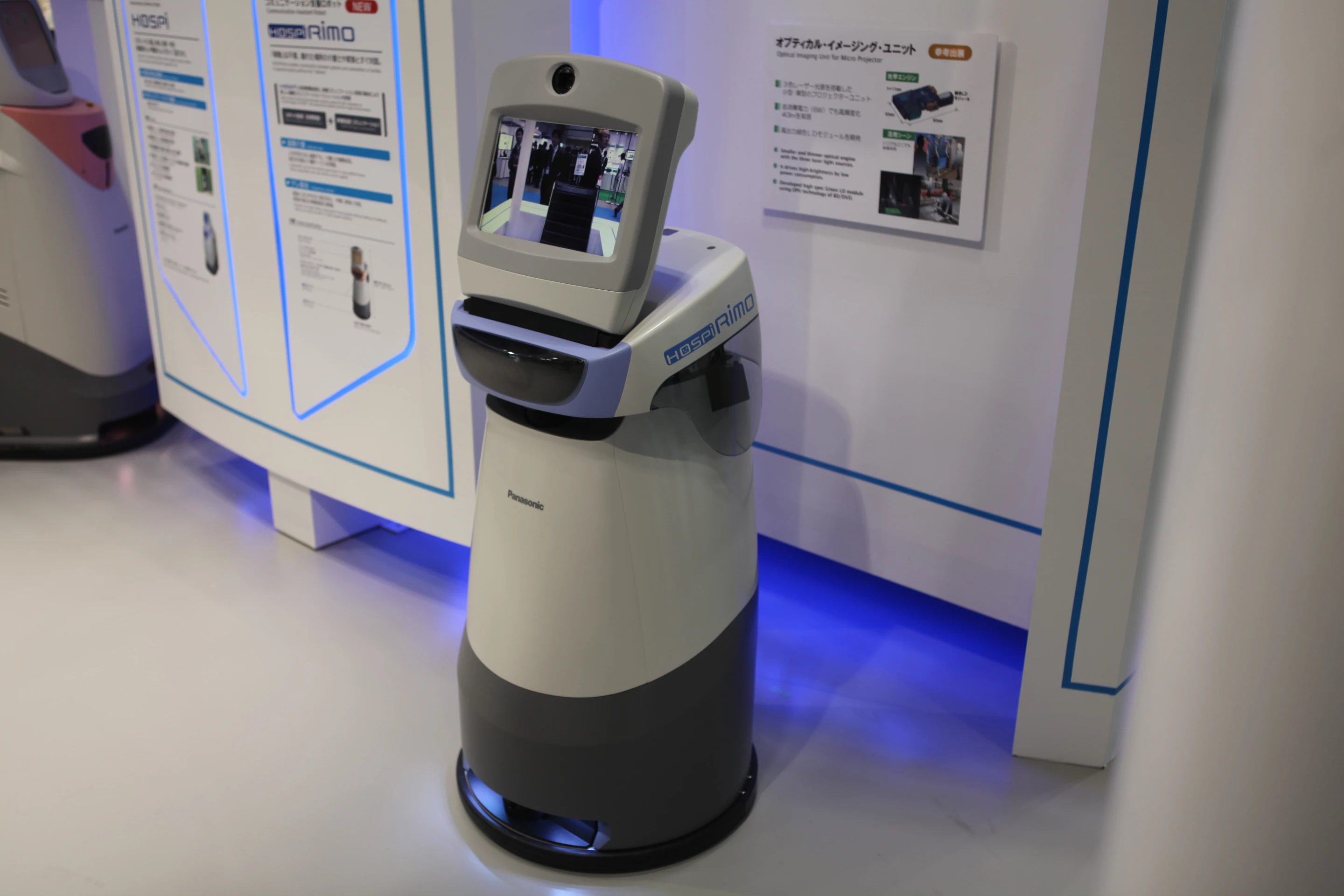

HOSPI-Rimo is a telepresence robot designed to connect busy doctors with patients (Photo: Mike Hanlon, Gizmag)
27/31
HOSPI-Rimo is a telepresence robot designed to connect busy doctors with patients (Photo: Mike Hanlon, Gizmag)

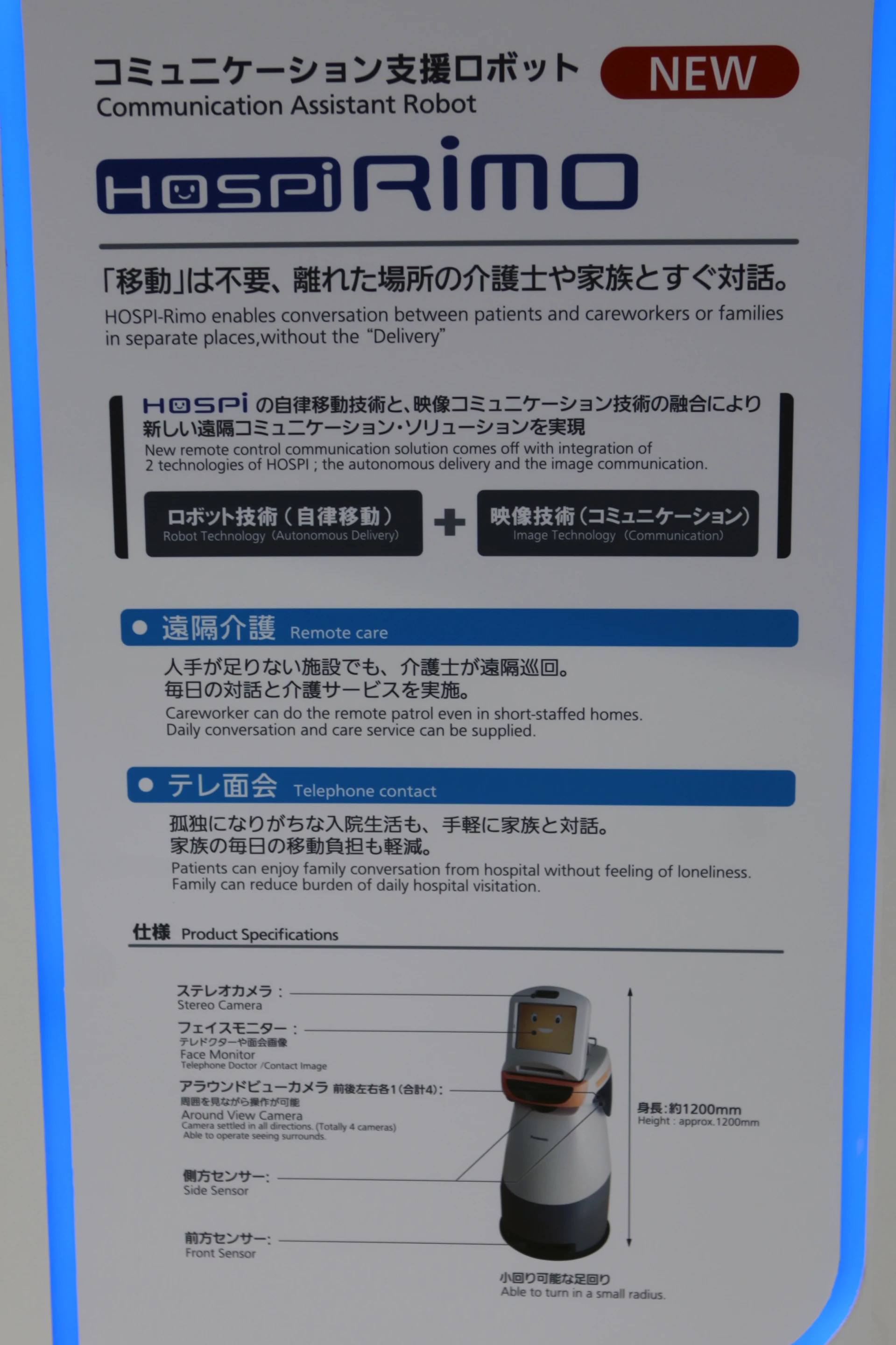

HOSPI-Rimo's tech sheet (Photo: Mike Hanlon, Gizmag)
28/31
HOSPI-Rimo's tech sheet (Photo: Mike Hanlon, Gizmag)
HOSPI-R's tech sheet (Photo: Mike Hanlon, Gizmag)
29/31
HOSPI-R's tech sheet (Photo: Mike Hanlon, Gizmag)

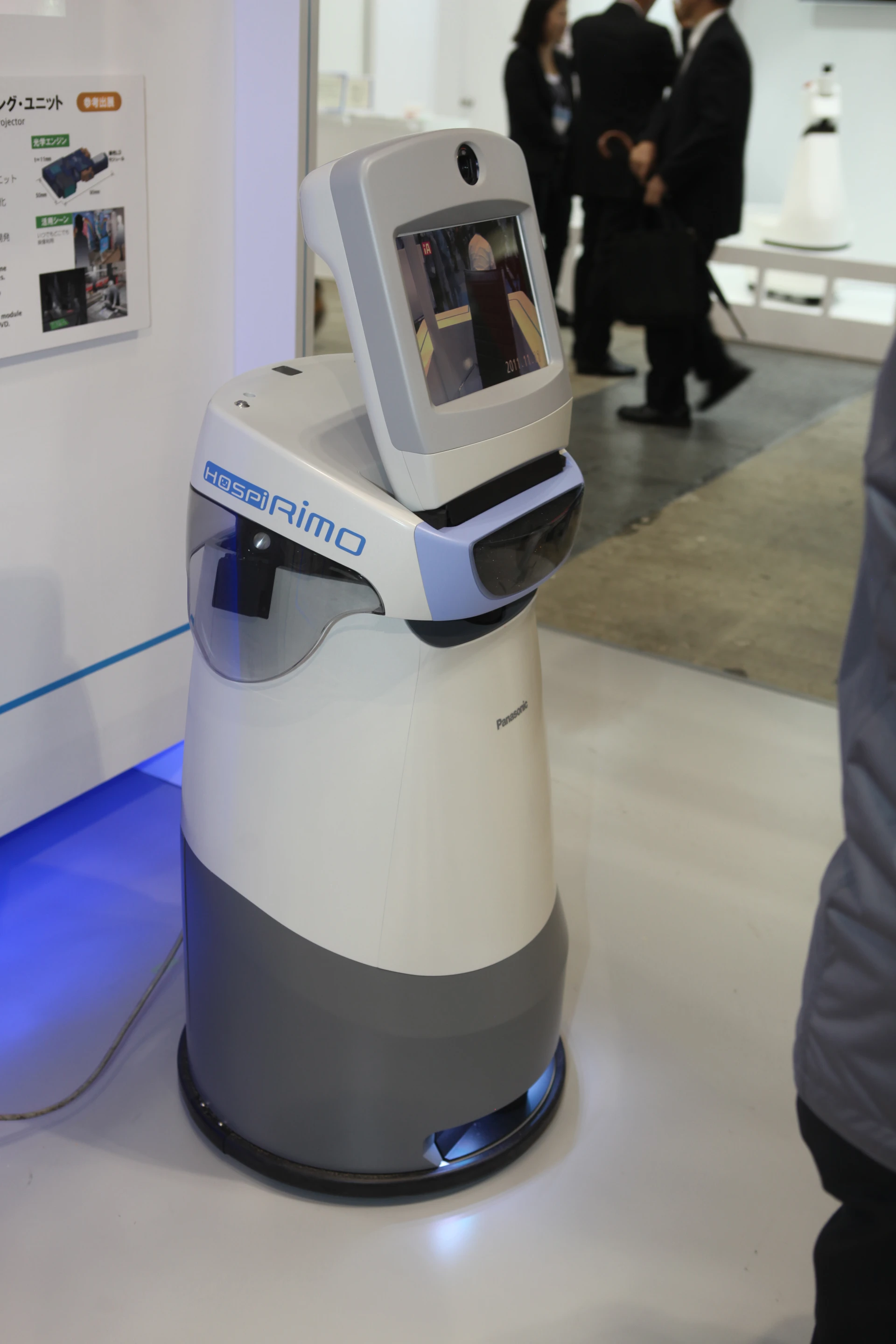

Similar to other telepresence robots, the HOSPI-Rimo saves specialists the time of meeting patients in person (Photo: Mike Hanlon, Gizmag)
30/31
Similar to other telepresence robots, the HOSPI-Rimo saves specialists the time of meeting patients in person (Photo: Mike Hanlon, Gizmag)

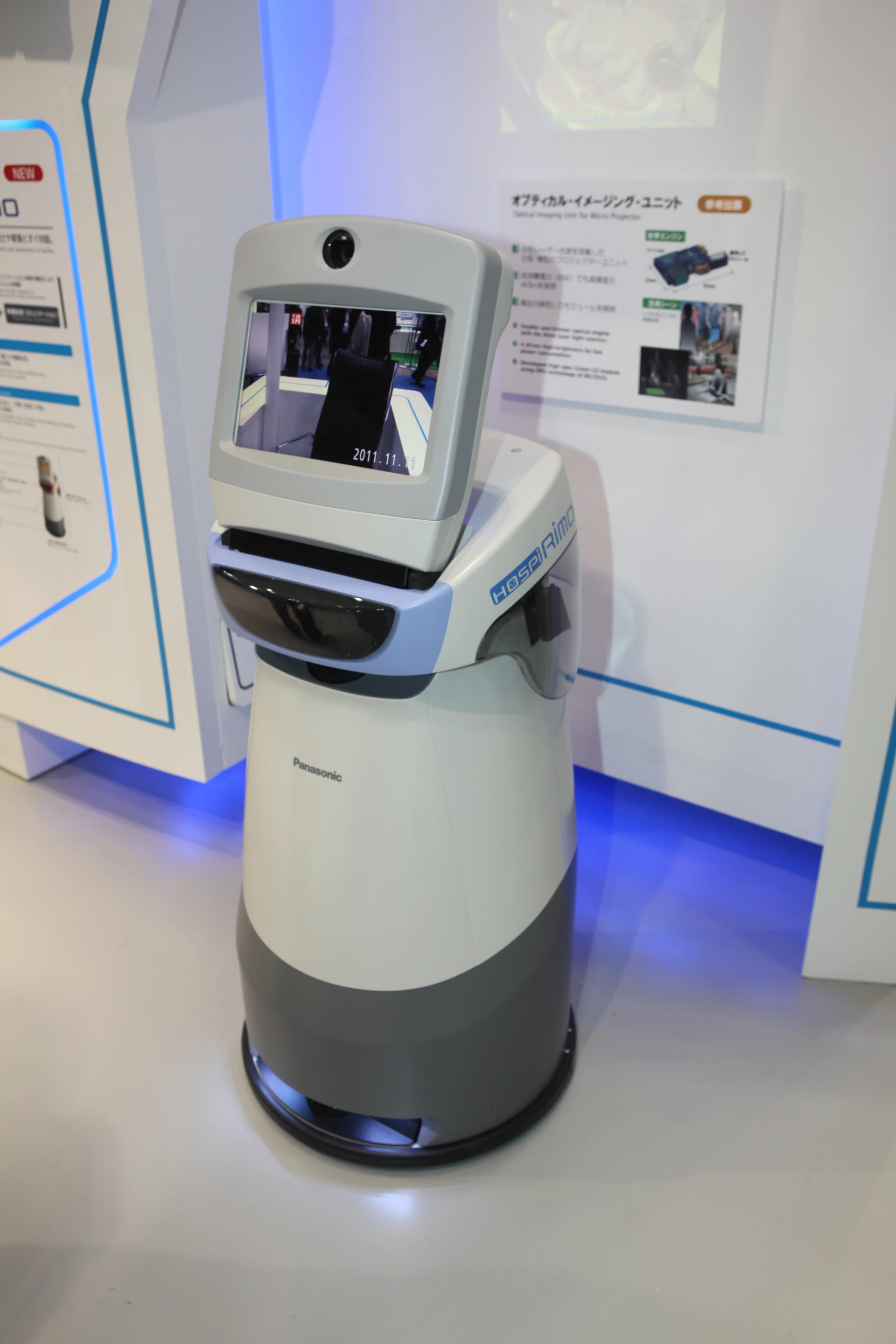

The HOSPI-Rimo utilizes similar obstacle avoidance and navigation technologies as Panasonic's other robots (Photo: Mike Hanlon, Gizmag)
31/31
The HOSPI-Rimo utilizes similar obstacle avoidance and navigation technologies as Panasonic's other robots (Photo: Mike Hanlon, Gizmag)
View gallery - 31 images

Panasonic's ongoing effort to automate Japanese hospitals continued this month with the launch of the HOSPI-R, an autonomous delivery robot that is now on sale. In its press release, Panasonic contends that robots like this one are needed to maintain and improve the quality of nursing services due to Japan's rapidly aging society. The latest in the company's line of HOSPI robots is designed to transport samples and drugs so that lab technicians and nurses won't have to.

Panasonic has been working on this particular problem for the past few years. In early 2010, nurses and pharmacists complained that their work was being constantly interrupted whenever drugs had to be delivered. Beginning with just two robots to help out during the night shift, soon the robots were working 24/7. Finally, after more than two years of experimental use at the Matsushita Memorial Hospital, the robots are ready to go pro.

The main benefit of the HOSPI-R is its autonomous navigation capabilities. Whereas many automation systems rely on obtrusive rail systems or other delineated routes, the HOSPI-R navigates using just its onboard sensors. When compared with conventional rail systems, Panasonic's system implementation costs reduce to between 25 and 50 percent (and maintenance costs are reduced to 20 percent).

A map of the building is programmed in advance, which it uses to plan its route. If the route changes because an extension is built onto existing facilities, the system is flexible enough to handle it, and the robot can even take the elevators automatically. If, along the way, it encounters obstacles during its trip, such as a person in a wheelchair, the robot automatically adjusts its route using its sensors.

The HOSPI-R is cheaper than conventional systems because it navigates autonomously rather than with rail systems
The HOSPI-R is cheaper than conventional systems because it navigates autonomously rather than with rail systems

As you might expect, the HOSPI-R also has some security features to prevent tampering, damage, and theft of the drugs and samples it is tasked with delivering. An automatically locking door on its storage container opens with ID cards, and liquids (such as chemical or urine samples) are kept in a stable position to limit foaming. The robot's gradual acceleration and deceleration also helps to ensure a smooth trip from start to finish.

The robot can carry up to 20 kg (44 lb), and moves at a maximum speed of 1 meter per second (2.2 mph). It can work up to seven hours before needing to be recharged, which takes about eight hours, so a team of robots on rotation can work 24 hours a day. Panasonic did not reveal specific pricing, as that will vary depending on the needs of each facility.

Panasonic was at IREX 2013 (as was our own Mike Hanlon) to demonstrate the HOSPI-R and some of its other medical robots, among them a robotic hospital bed which can transform into an electric wheelchair when needed. It's one of many technologies designed to move bedridden patients more safely, thereby preventing common injuries to both patients and caregivers.

Also at the show was the HOSPI-Rimo, a telepresence robot that is functionally similar to the iRobot Ava 500. It features a larger display than the standard HOSPI robots to facilitate video chats between doctors and patients. Besides these, Panasonic is also developing a number of other devices, including a hair washing machine with robotic fingers for massaging the scalp.

Check out the photo gallery for a closer look at the robots on display at Panasonic's booth.
