March 3, 2007 Anti Personnel (land)mines cannot distinguish between the footfall of a child and a soldier. The banning of landmines by the 1997 Mine Ban Treaty has left civilised military forces with a problem – landmines have traditionally been used to cover dead ground in the 20 to 200 metre range. The weapon of choice to replace the landmine has subsequently become the Claymore. Named after the 700 year-old two-handed Scottish sword, the Claymore is based on the Misznay-Schardin effect in that its blast is primarily in a single direction. The U.S. Army developed the design half a century ago during the Korean War into an anti-personnel weapon that would fire 700 ball bearings propelled by 650 grams of plastic explosive with lethal effect to 100 meters across a 60° arc in front of the 8 x 3 x 1.5 inch box. Claymores are not buried like mines – they are anchored above ground pointed towards the likely location of the enemy, and are now known the world over for the words "Front Toward Enemy" embossed on their olive plastic casing. For the first 50 years of their existence, Claymores have been dumb – but an ingenious telecommunications system that can be fitted to any Claymore looks set to give new life to the fearsome weapon. The newly available Macroswiss Claymore Camera consists of a video camera attached to the Claymore, which relays information to a remote receiver through a cable system so an operator can monitor events in front of the mine, and detonate it when the time comes. If the user wants to keep a record, the video feedback can be recorded with the GPS position and its even possible to ensure no-one can sneak past the mine by adding a motion detection system that will raise an alarm if there is any movement in the camera’s field of view.

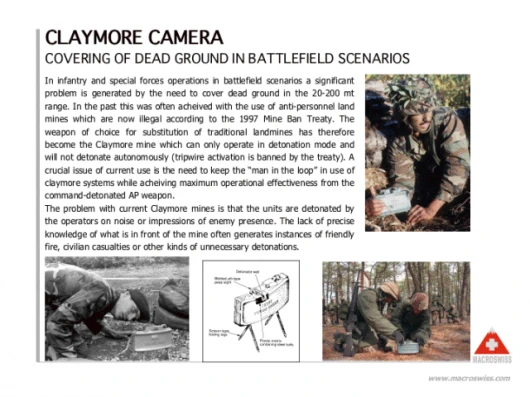

An age-old problem in battlefield scenarios is collateral damage (i.e. casualties caused by traditional anti-personnel land mines), nowadays the problem is still, to some extent, present due to the imprecise detonation of the command-detonated Claymore mines which have taken the place of old-fashioned AP mines.
UPGRADE TO NEW ATLAS PLUS
More than 1,200 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE

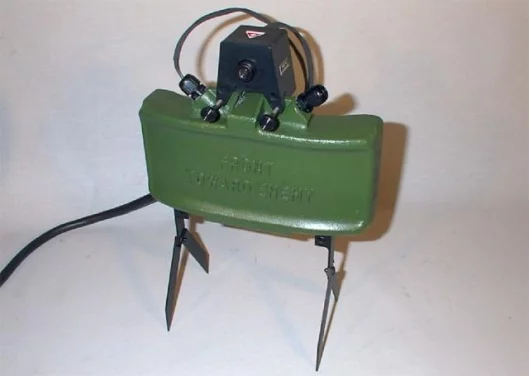

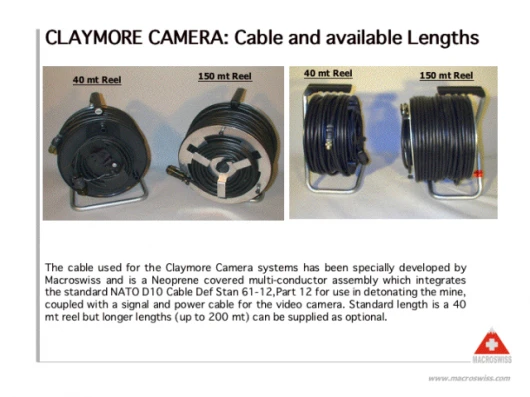

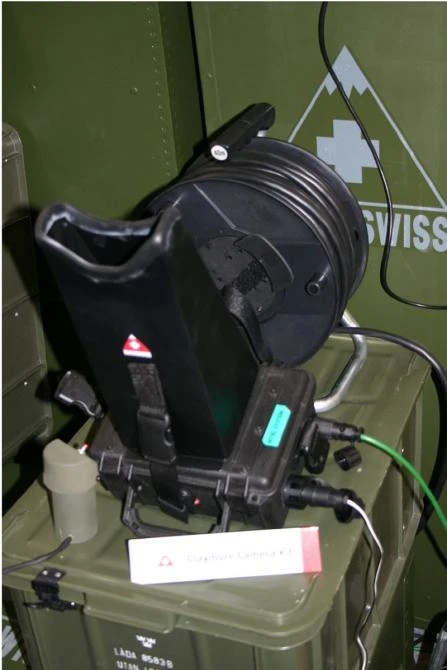

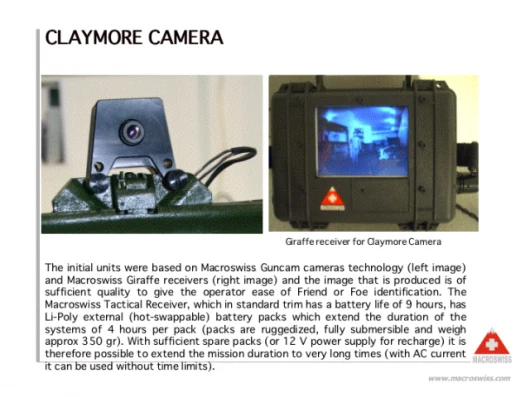

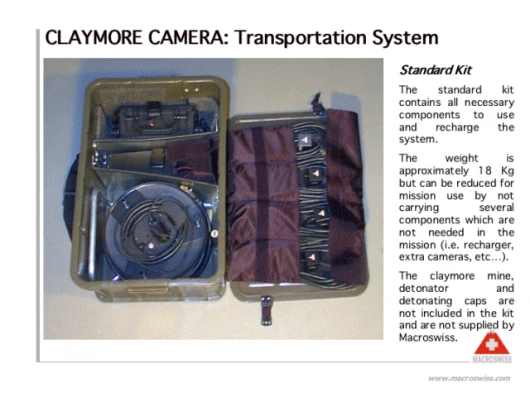

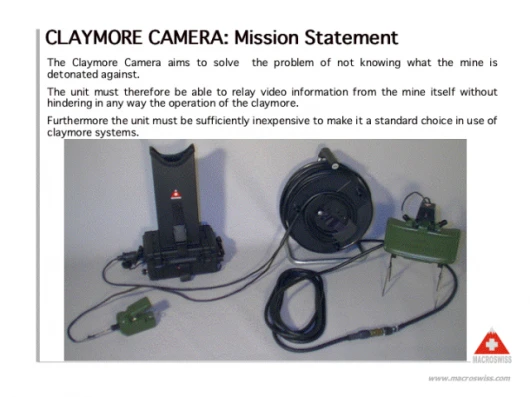

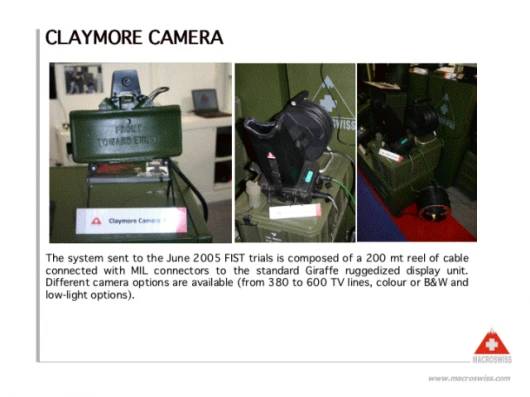

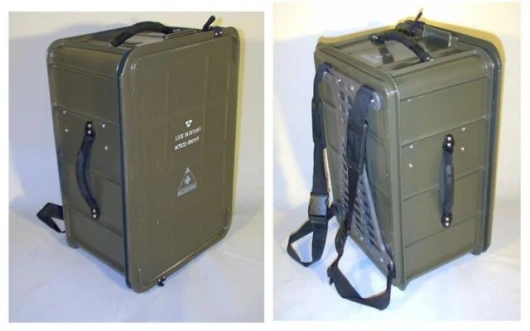

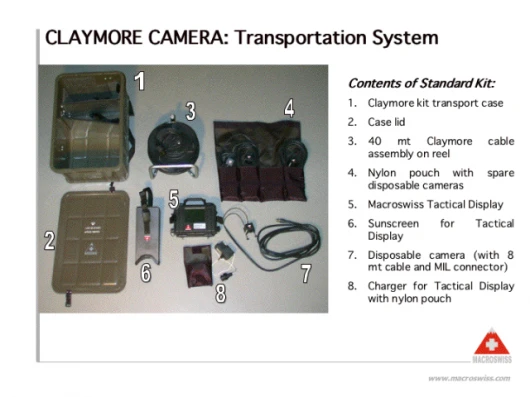

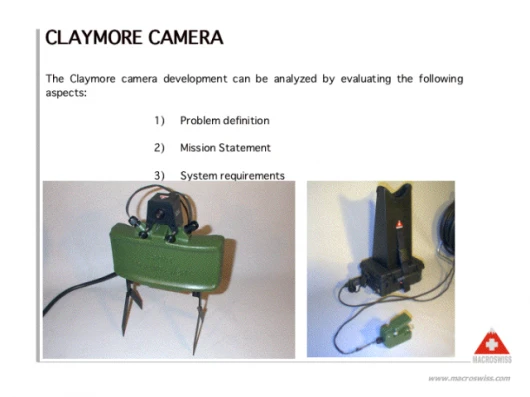

This innovative and inexpensive product is a great tool to avoid the loss of innocent lives by mistake, solving the problem of not knowing what the mine is detonated against, but, above all, it turns regular dumb mines into intelligent mines which represents a revolutionary progress in minefield technology. A Claymore Camera Standard Kit is composed of a 50 meters reel of cable connected with MIL connectors to the standard Giraffe tactical ruggedized display unit. The camera is a 380 TV lines IR unit (higher definitions, up to 600 TV lines are available as well as lengths of cable up to 200 meters).

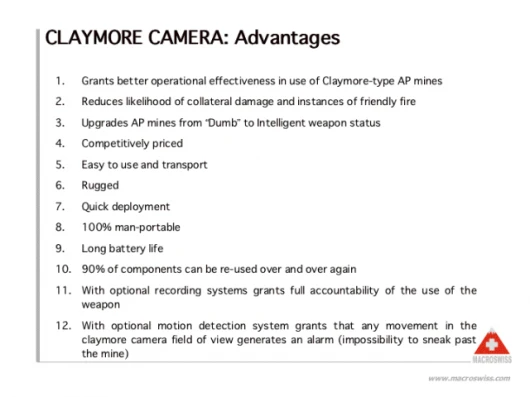

Advantages of the Claymore Camera
1. Grants better operational effectiveness in use of Claymore-type AP mines
2. Reduces likelihood of collateral damage and instances of friendly fire
3. Upgrades AP mines from “Dumb” to Intelligent weapon status
4. Competitively priced

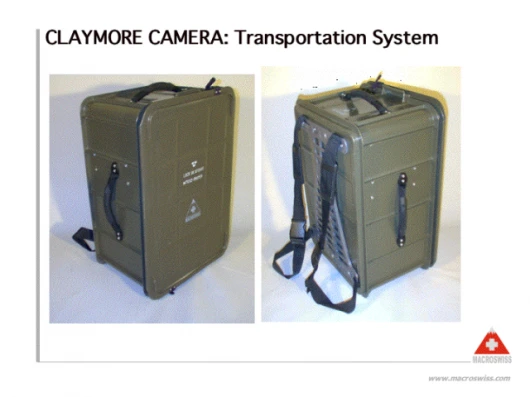

5. Easy to use and transport
7. Quick deployment

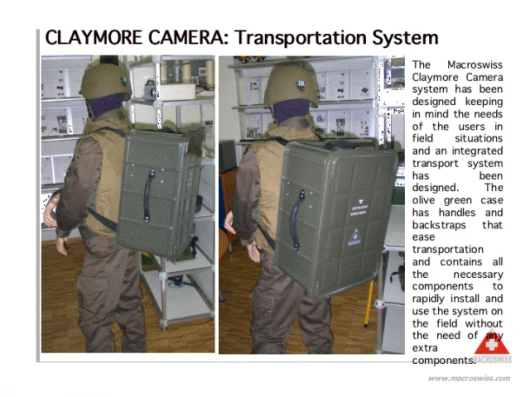

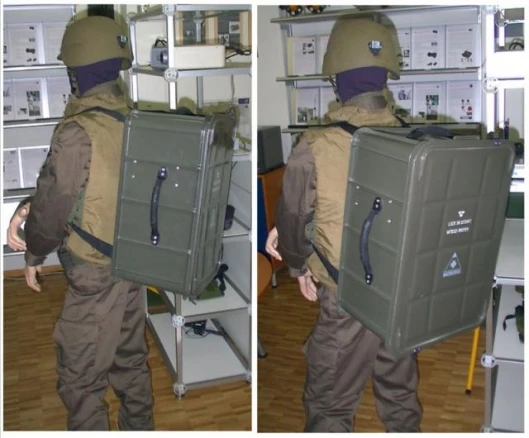

8. 100% man-portable
9. Long battery life
10. 90% of components can be re-used over and over again
11. With optional recording systems grants full accountability of the use of the weapon

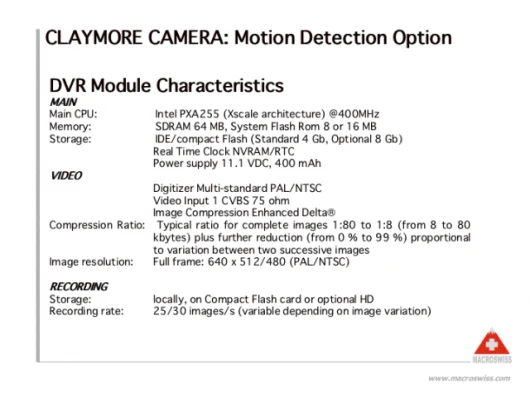

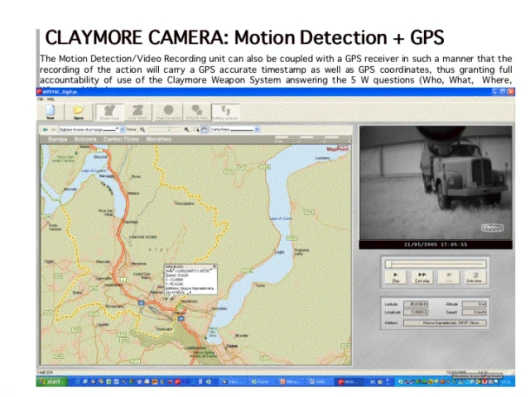

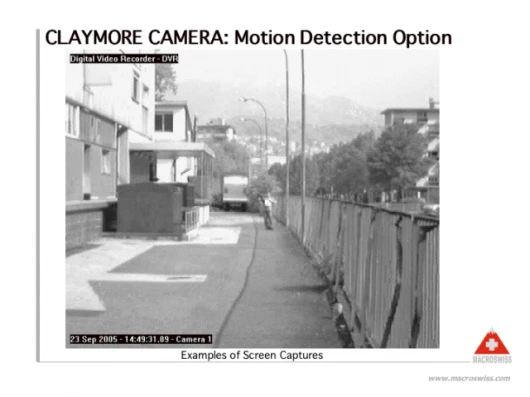

12. With optional motion detection system grants that any movement in the claymore camera field of view generates an alarm (impossibility to sneak past the mine)View gallery - 42 images
