Algae to crude oil: Million-year natural process takes minutes in the lab

Algae to crude oil: Million-year natural process takes minutes in the lab
Biocrude produced using the new process
Biocrude produced using the new process
View 5 Images
The algae slurry that starts the process can be up to 80 percent water
1/5
The algae slurry that starts the process can be up to 80 percent water

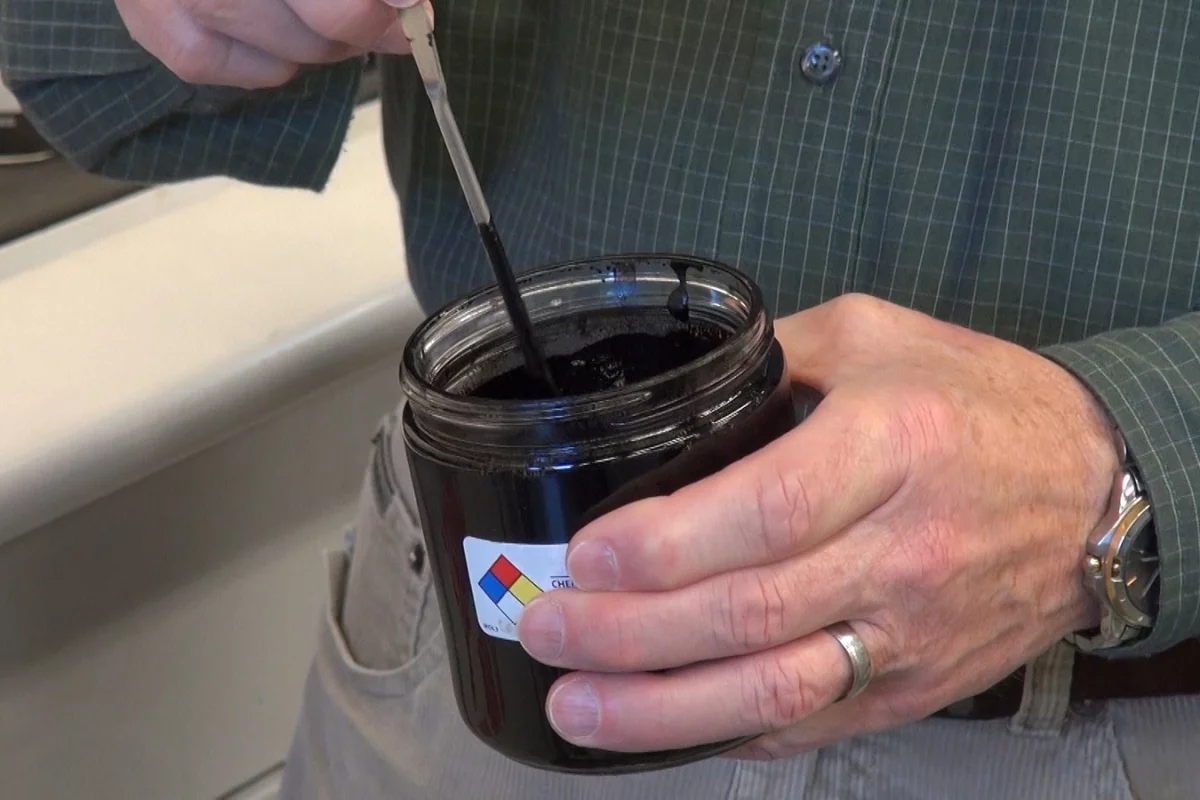

Biocrude produced using the new process
2/5
Biocrude produced using the new process

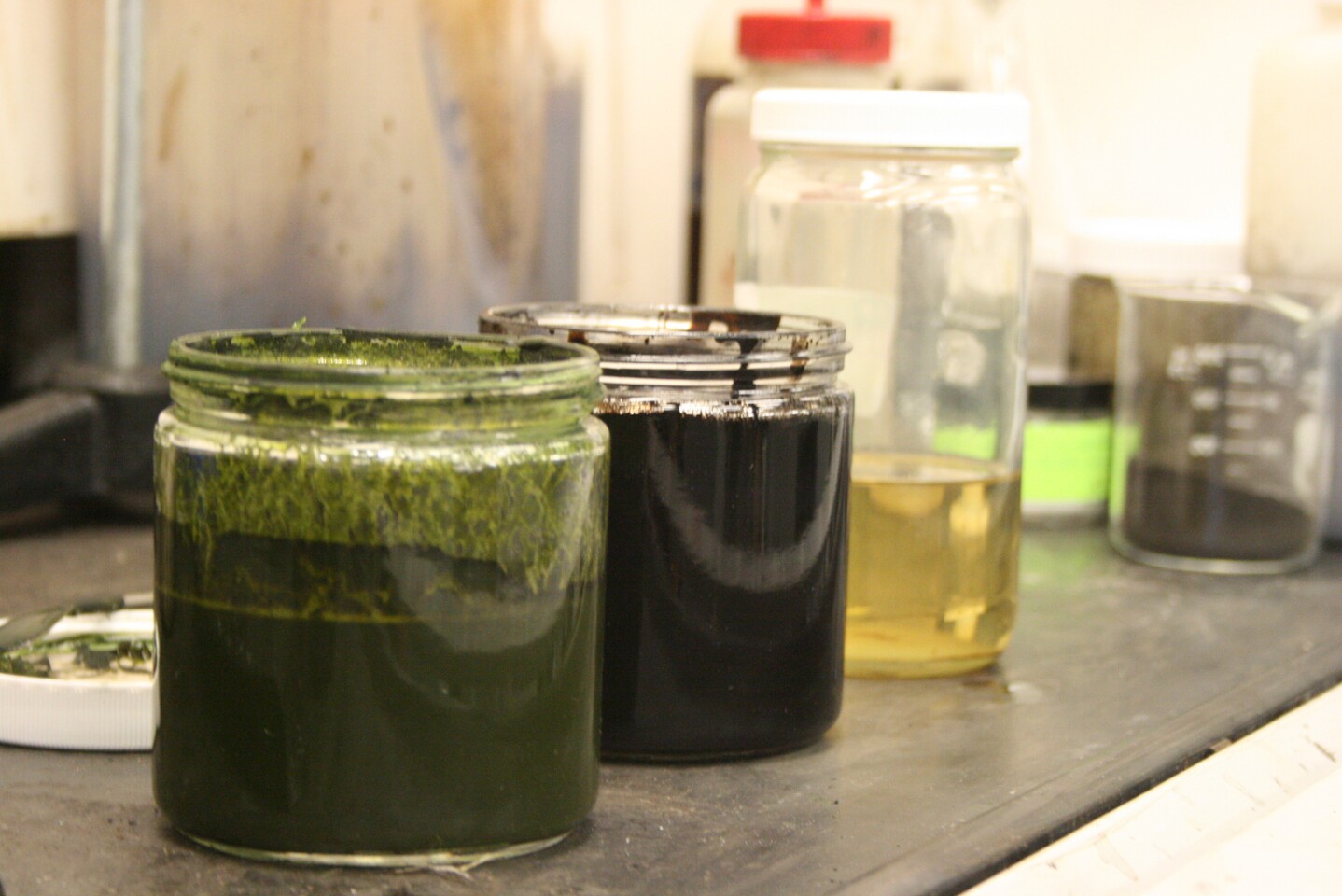

Steps in the process for making fuel from algae – the algae slurry, crude oil, and refined diesel fuel
3/5
Steps in the process for making fuel from algae – the algae slurry, crude oil, and refined diesel fuel

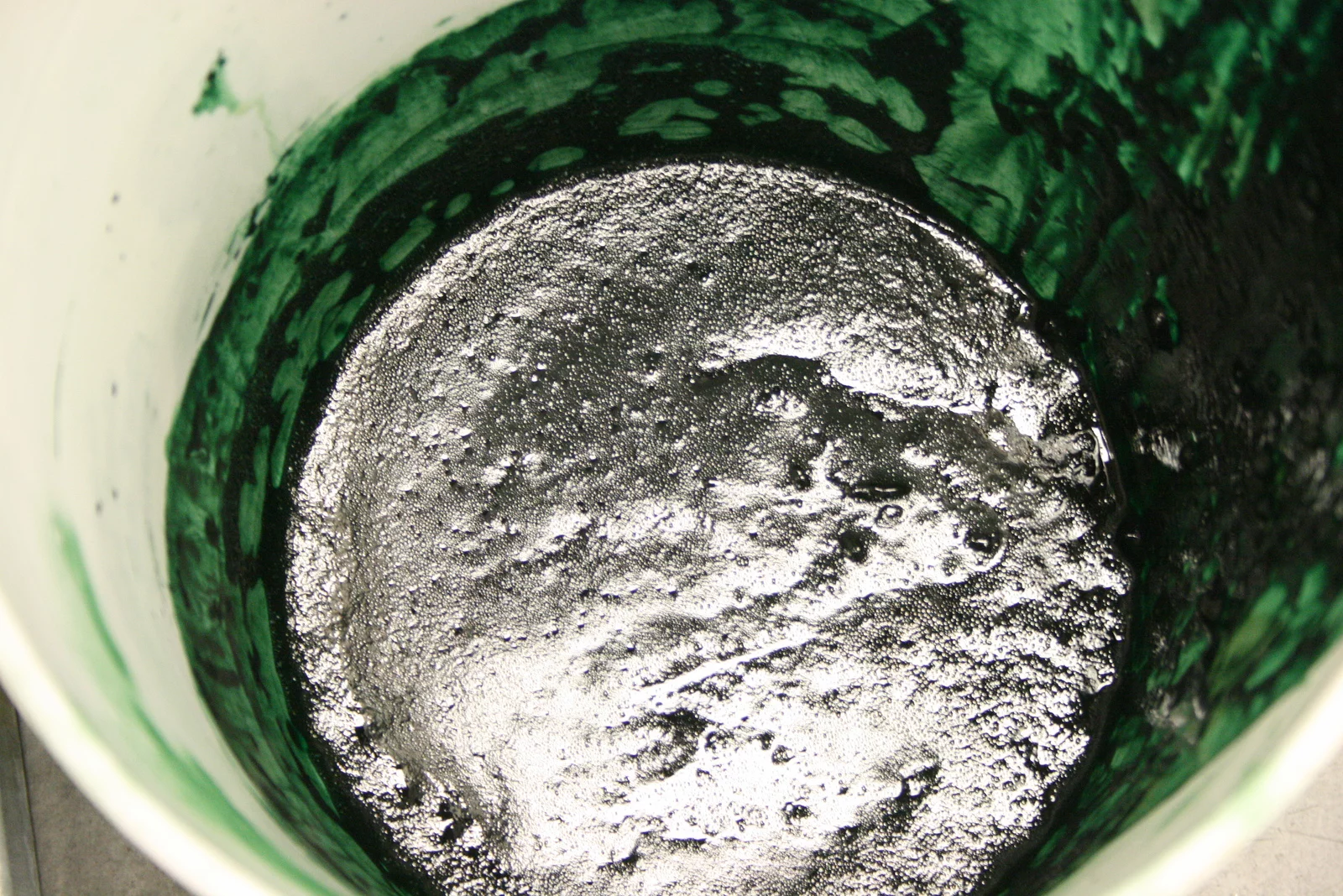

This muck may fuel your car in the future
4/5
This muck may fuel your car in the future

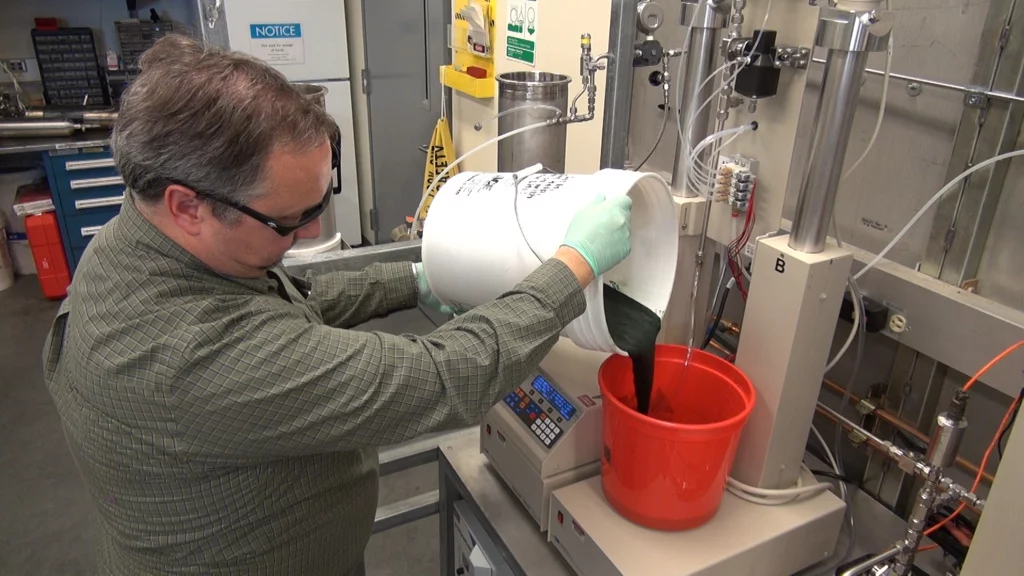

PNNL lab manager Tom Hart, pouring some of the unprocessed algae
5/5
PNNL lab manager Tom Hart, pouring some of the unprocessed algae
View gallery - 5 images

Engineers at the US Department of Energy’s Pacific Northwest National Laboratory (PNNL) have created a continuous process that produces useful crude oil minutes after harvested algae is introduced. This new process does not require drying out the algae, which grows in water, saving time and energy that would be otherwise wasted. The final product can be refined into aviation fuel, diesel, or gasoline.

The process mimics some of the conditions that originally turned prehistoric plant material into fossil fuel deep within the earth – high pressures and temperatures.

Algae, an aquatic plant, has long been considered as a biofuel source, but the steps needed to turn a wet, green plant into clear, burnable fuel have been both expensive and time-consuming. The algae had to be processed in a series of steps, one of which involved drying it out and removing all the water, which might be 80 percent of the biomass. Then solvents were used to extract energy-rich hydrocarbons from the dried material.

The PNNL team created a continuous process that starts with the wet algae and subjects the entire mass – water, algae, and all – to high temperatures and pressures, in this case, 350ºC (662ºF) and 3,000 psi.

"It's a bit like using a pressure cooker, only the pressures and temperatures we use are much higher," said Laboratory Fellow Douglas Elliott, the leader of the research team. "In a sense, we are duplicating the process in the earth that converted algae into oil over the course of millions of years. We're just doing it much, much faster."

Steps in the process for making fuel from algae – the algae slurry, crude oil, and refined diesel fuel
Steps in the process for making fuel from algae – the algae slurry, crude oil, and refined diesel fuel

The products of the process include crude oil, which can be further refined into aviation fuel, gasoline, or diesel fuel (in tests, the process achieved between 50 and 70 percent conversion of the algae’s carbon into fuel); clean water, which can be used to grow more algae; fuel gas, which can be burned to make electricity or cleaned to make natural gas; and nutrients like nitrogen, phosphorus, and potassium – needed for growing algae.

Genifuel Corporation has licensed the process, and has been working with the team at the lab since 2008. The company intends to team with some industrial partners to create a pilot plant using this process to make biofuel in industrial quantities.

The process was detailed in a recent paper published in the journal Algal Research. More information on the technology is available in the video below.

Source: PNNL
