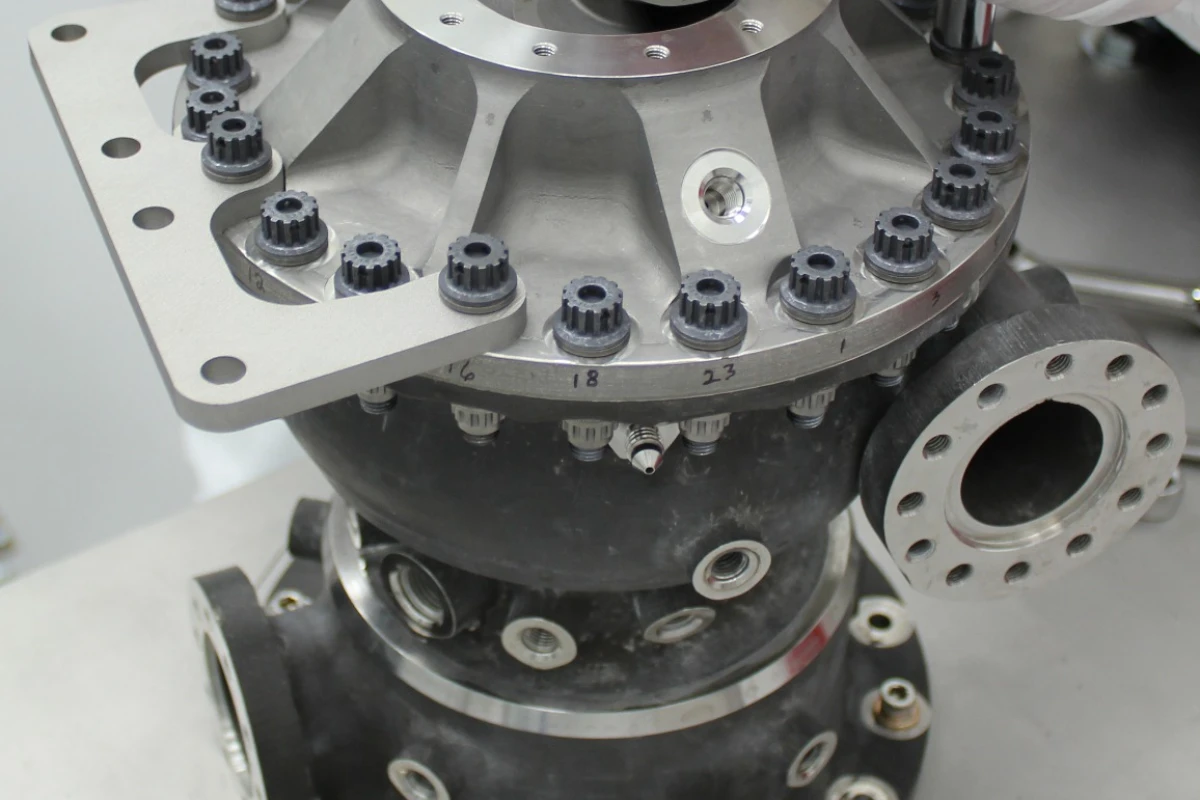

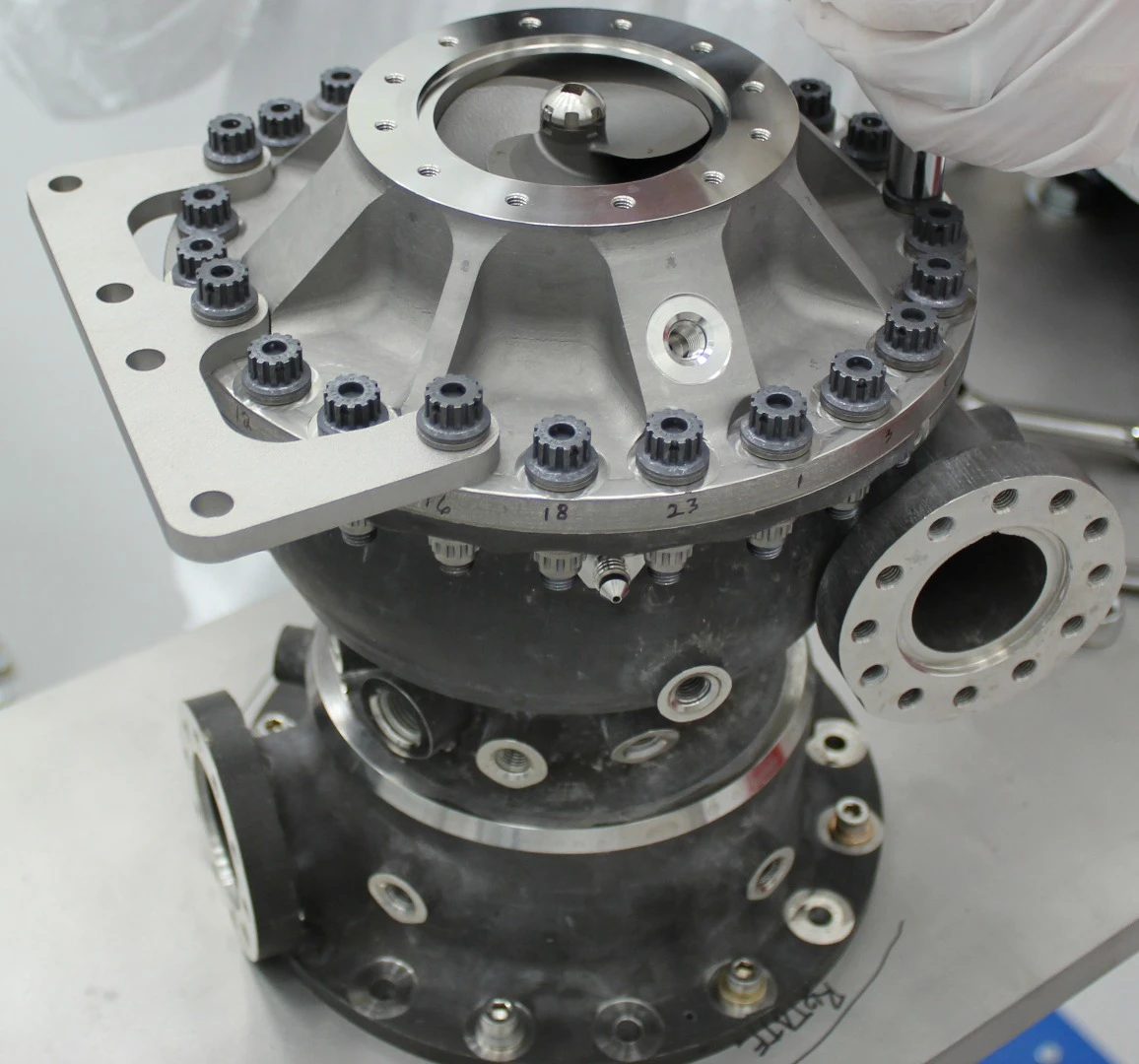

This rocket engine fuel pump has hundreds of parts including a turbine that spins at over 90,000 rpm
This rocket engine fuel pump has hundreds of parts including a turbine that spins at over 90,000 rpm
View 3 Images

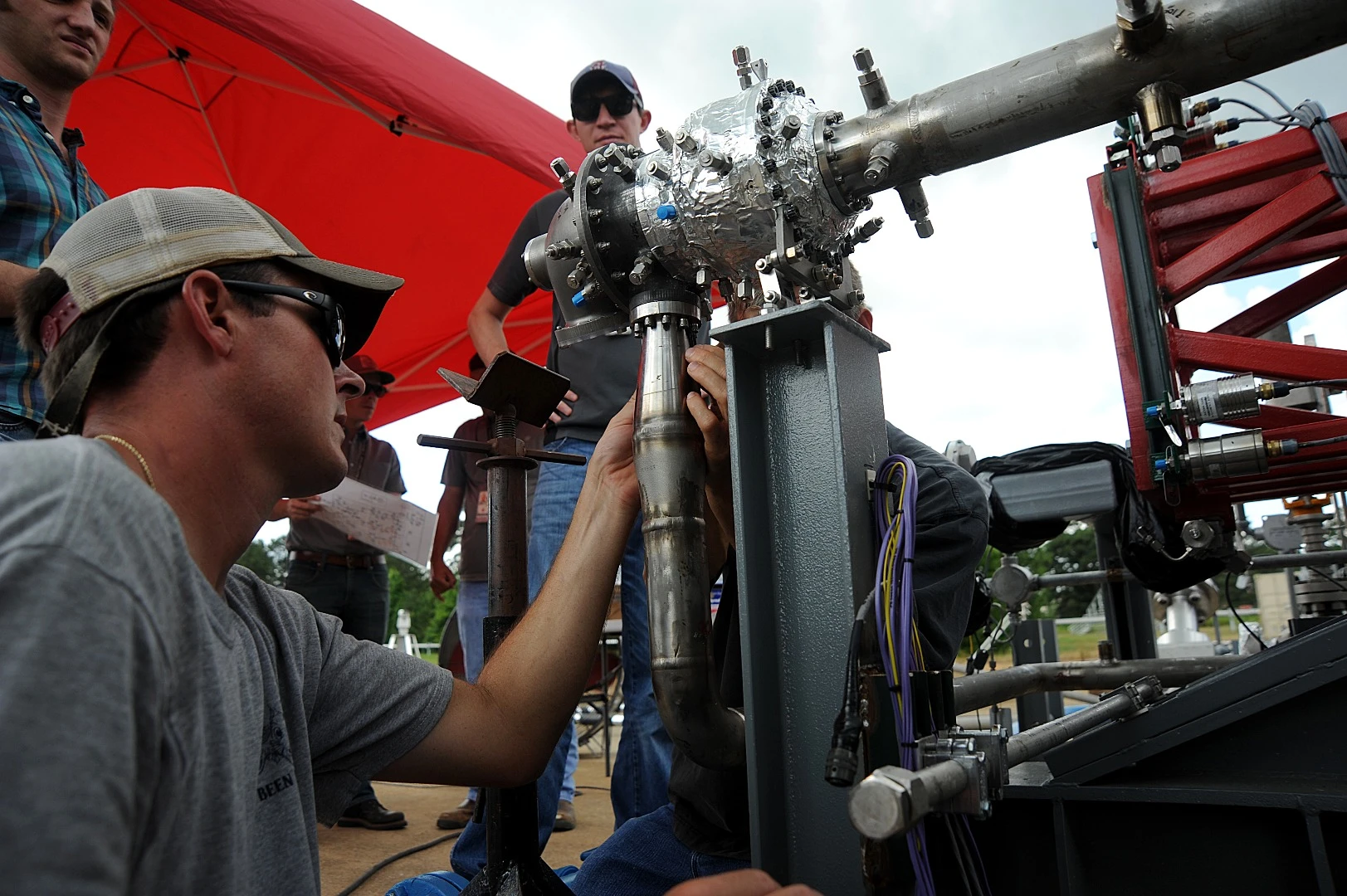

Engineers prepare a 3-D printed turbopump for a test at NASA’s Marshall Space Flight Center in Huntsville, Alabama
1/3
Engineers prepare a 3-D printed turbopump for a test at NASA’s Marshall Space Flight Center in Huntsville, Alabama
This rocket engine fuel pump has hundreds of parts including a turbine that spins at over 90,000 rpm
2/3
This rocket engine fuel pump has hundreds of parts including a turbine that spins at over 90,000 rpm

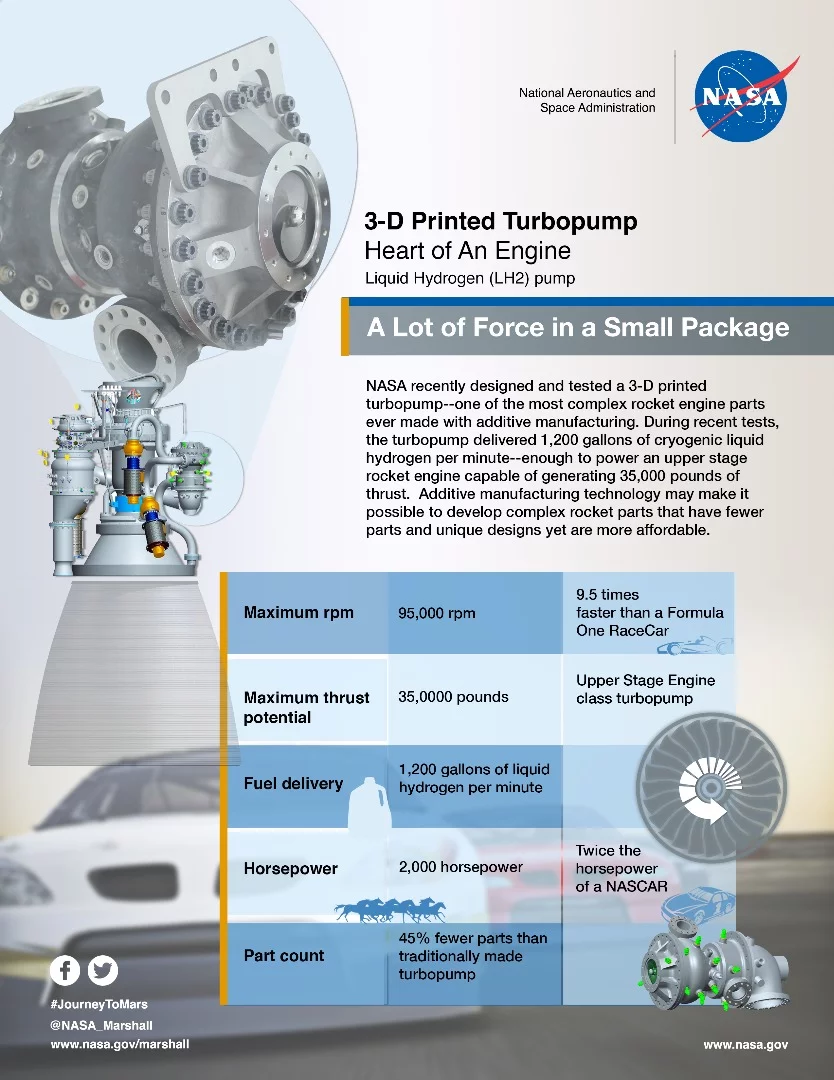

Infographic describing the 3D=printed turbopump
3/3
Infographic describing the 3D=printed turbopump

NASA has previously tested simple 3D-printed rocket components, such as combustion chambers and fuel injectors, but if the technique is to be practical, it has to cope with more complex items. Case in point is this 3D-printed rocket engine turbopump. Successfully built and tested at NASA's Marshall Space Flight Center in Huntsville, Alabama, the turbopump is described as "one of the most complex, 3D-printed rocket engine parts ever made."

The pump was designed by Marshall engineers and outside vendors. It's capable of operating at more than 90,000 revolutions per minute and generating over 2,000 bhp (1,500 kW) as it pumps 1,200 gal (4,500 l) of cryogenic liquid hydrogen per minute. According to NASA, 3D printing allows the pump to use 45 percent fewer parts than conventional designs.

The pump was subjected to 15 full-power tests, which were enough to feed an upper stage rocket engine capable of generating 35,000 lb of thrust. During the tests, the turbopump delivered the fuel at a temperature of -400º F (-240º C), which then burned at over 6,000º F (3,315º C).

Engineers prepare a 3-D printed turbopump for a test at NASA’s Marshall Space Flight Center in Huntsville, Alabama
Engineers prepare a 3-D printed turbopump for a test at NASA’s Marshall Space Flight Center in Huntsville, Alabama

NASA regards 3D-printing as a way to manufacture spacecraft components more economically, as well as carry out manned deep space missions without the need to carry enormous stores of spare parts.

The method used to produce the turbopump was laser additive printing. In this process, a powder of metal alloy is spread in a thin layer by the printing machine. A computer-controlled laser then fuses the powder into a cross section of the engine component. The machine spreads a second layer of powder and the process repeats until the component is complete. The excess powder is then removed as are any temporary supports printed to hold the component together during printing, then it’s hardened, polished, and assembled.

NASA says that the engine design and test data are open to American companies working on future space engines.

"Our team designed and tested the fuel pump and other parts, such as injectors and valves, for the additive manufactured demonstrator engine in just two years," says Nick Case, a propulsion engineer and systems lead for the turbopump work. "If we used traditional manufacturing processes, it would have taken us double that time. Using a completely new manufacturing technique allowed NASA to design components for an additively manufactured demonstration engine in a whole new way."

Source: NASA
