Imagine only replacing the batteries in a device once a decade, or even once a century. Nuclear batteries could one day let us do just that, but their power density is currently too low to be very practical. Now, Russian researchers have developed a new nuclear battery design based on nickel-63, which has a higher specific energy than regular, commercially-available batteries.

Nuclear power gets a bad rap, thanks to the fact that any nuclear material that escapes confinement can linger dangerously in the environment for decades or even centuries. But by the same token, if properly contained this longevity can be harnessed for good, releasing energy slowly and consistently over years.

Some nuclear batteries work through a process known as betavoltaics. A radioactive source inside the device decays and emits beta particles (electrons and positrons), and when these interact with a semiconductor layer they can create an electric current. While these kinds of batteries can deliver energy consistently for long periods of time, their low power density means that energy trickles out slowly.

Providing relatively low energy over a long time makes nuclear power sources great for applications where it's hard to change the battery, such as spacecraft or implantable devices like pacemakers. In the last few years, we've seen a strontium-based nuclear battery that splits water molecules to produce electricity, and the NanoTritium battery with a 20-year lifetime.

The new design developed by researchers from the Moscow Institute of Physics and Technology (MIPT), the Technological Institute for Superhard and Novel Carbon Materials (TISNCM), and the National University of Science and Technology MISIS uses the radioactive isotope nickel-63, which has a half-life of over 100 years. The team designed a new layout that improves the battery's power density.

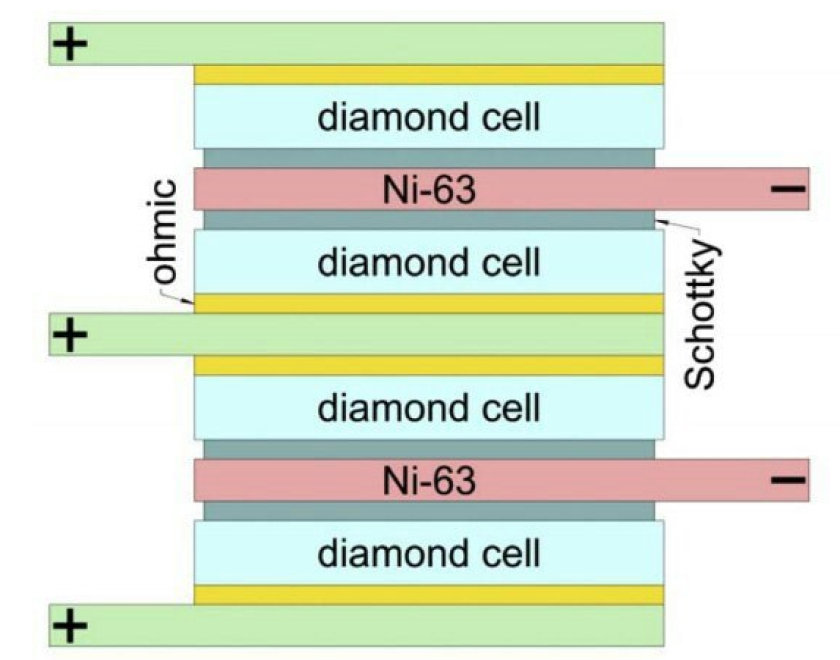

A diagram of the structure of the new nuclear battery prototype
A diagram of the structure of the new nuclear battery prototype

The researchers determined that the nickel-63 layers would be most effective at a thickness of just two microns, and if these radioactive sources were sandwiched between diamond diodes measuring 10 microns thick. The prototype of the team's nuclear battery contained 200 of these diamond energy converters, and achieved a power output of about 1 microWatt (μW). Its power density was 10 μW per cm3, which means it could power a modern pacemaker.

Given nickel-63's hundred-year half-life, the nuclear battery boasts about 3,300 milliWatt-hours of power per gram, which the team says is 10 times more than conventional electrochemical batteries.

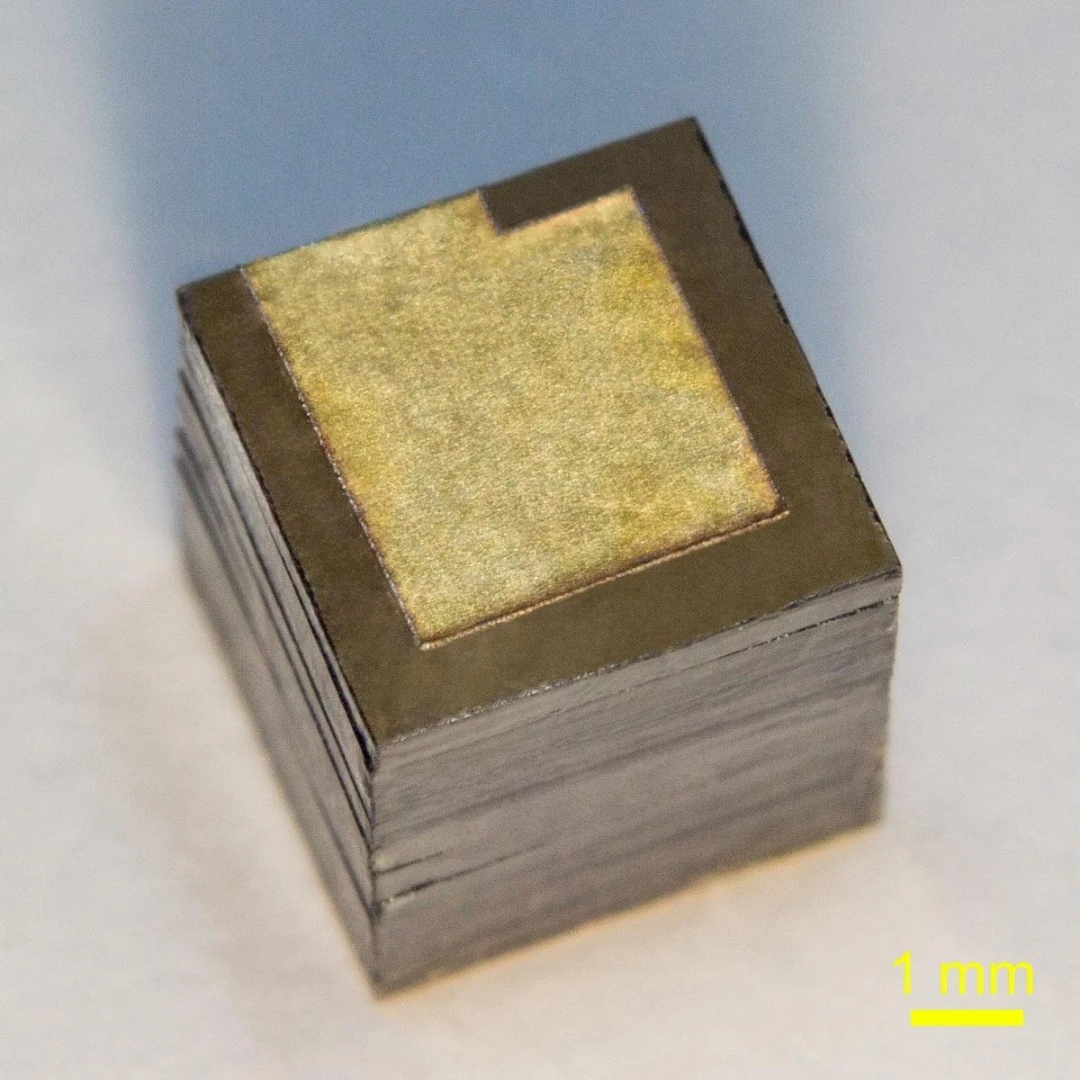

The prototype of the new nuclear battery
The prototype of the new nuclear battery

The researchers also developed a more efficient method of mass-producing the thin diamond layers with minimal losses. Producing the nickel-63 could be tricky at a large scale, but the team says that industrial scale production of the material may be rolling out in the next decade or so.

In future, the team plans to continue improving the nuclear battery design, and have already identified a few ways to boost the battery power. That includes enriching the nickel-63, changing the structure of the diamond converters, and giving these converters a larger surface area.

A paper describing the new nuclear battery design was published in the journal Diamond and Related Materials.

Source: Moscow Institute of Physics and Technology
