Spike S-512 could be the world's first supersonic business jet

By Darren Quick
December 27, 2013
Spike S-512 could be the world's first supersonic business jet

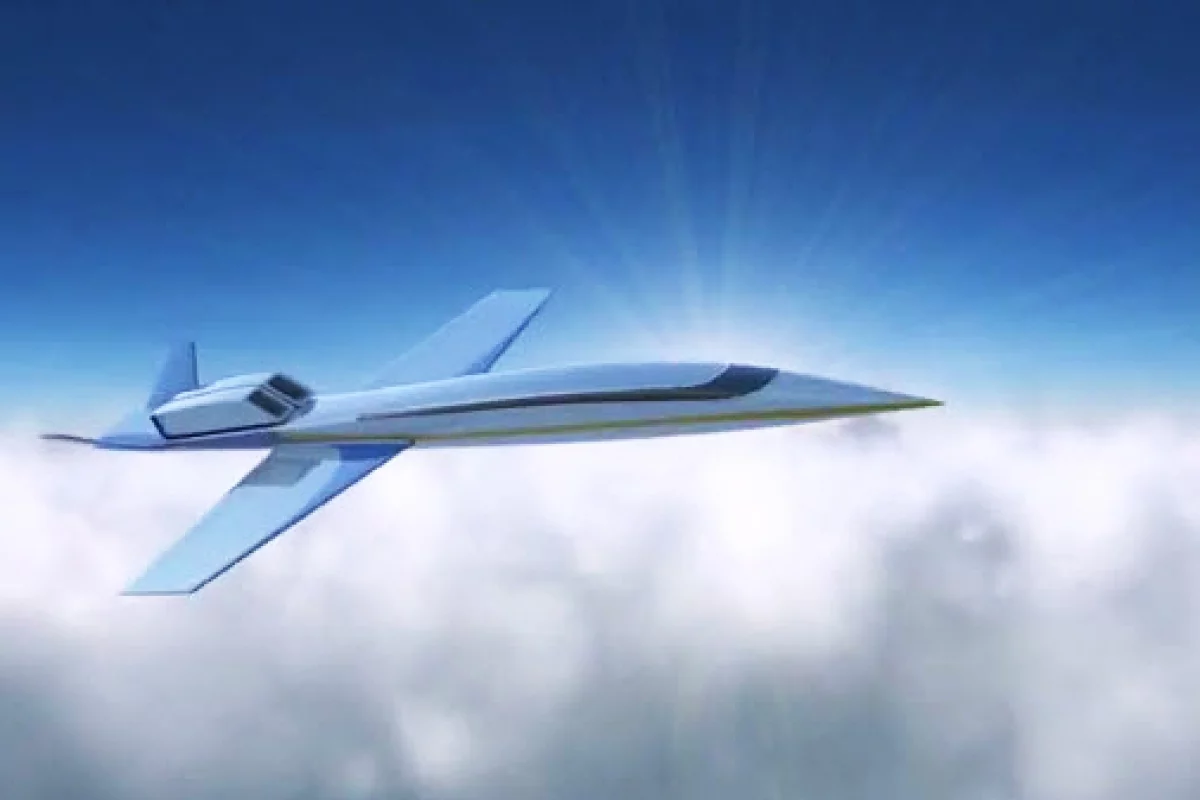

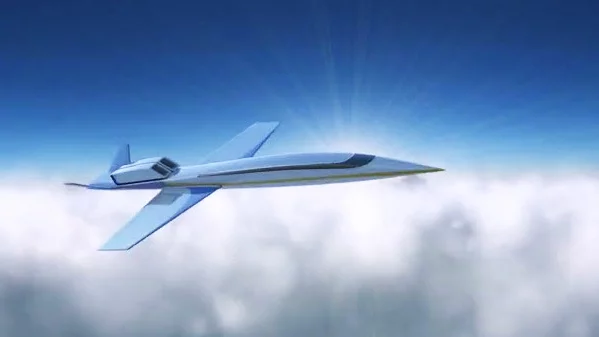

Spike Aerospace's S-512 is a supersonic business jet designed to travels at speeds of up to Mach 1.8
Spike Aerospace's S-512 is a supersonic business jet designed to travels at speeds of up to Mach 1.8
View 4 Images
Spike Aerospace's S-512 is a supersonic business jet designed to travels at speeds of up to Mach 1.8
1/4
Spike Aerospace's S-512 is a supersonic business jet designed to travels at speeds of up to Mach 1.8

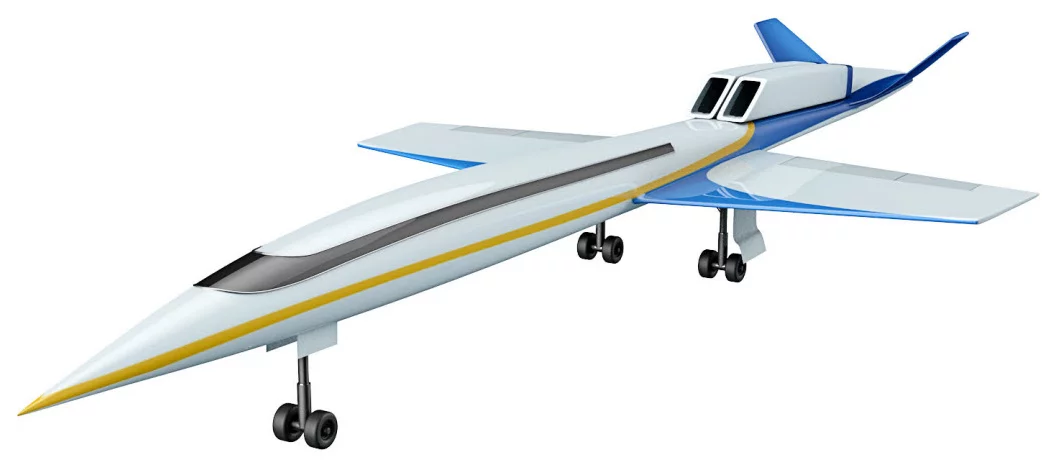

Front angle view of the Spike S-512 supersonic jet design
2/4
Front angle view of the Spike S-512 supersonic jet design

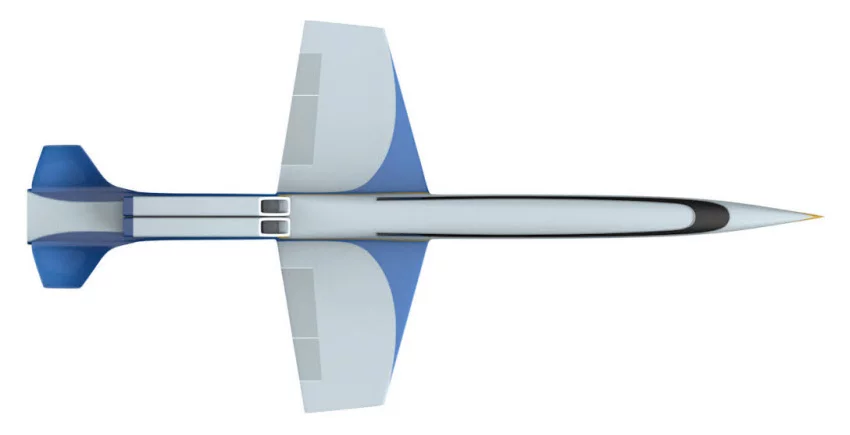

To[ down view of the Spike S-512 supersonic jet design
3/4
To[ down view of the Spike S-512 supersonic jet design

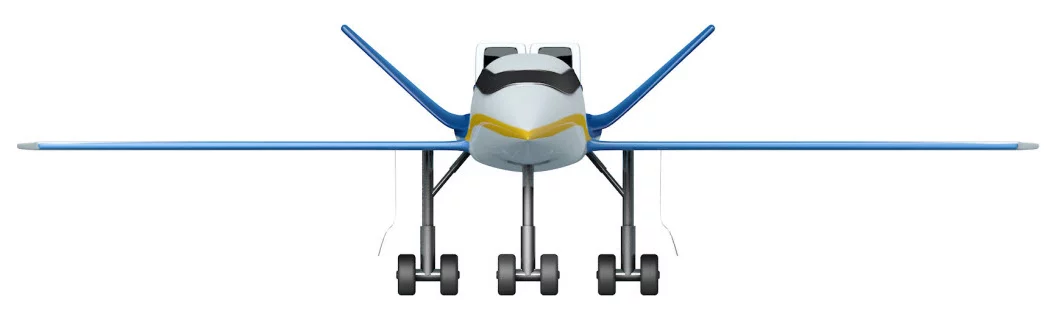

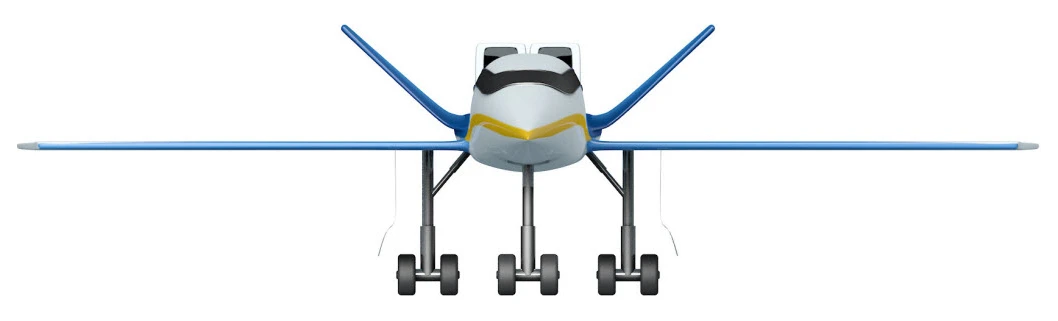

Front on view of the Spike S-512 supersonic jet design
4/4
Front on view of the Spike S-512 supersonic jet design
View gallery - 4 images

With the Cessna Citation X set to receive FAA certification in early 2014 and knock the Gulfstream G650 off it's world's fastest civilian aircraft perch thanks to its maximum operating speed of Mach 0.935, Boston-based Spike Aerospace is looking to leave both those aircraft in its wake with its S-512. Spike says its S-512 will be the world's first supersonic business jet, boasting a cruising speed of Mach 1.6, and a maximum speed of Mach 1.8.

The Spike team, made up of engineers with experience at Gulfstream, Eclipse and Airbus, has spent the last couple of years designing the Spike S-512. Initially to be targeted at business users for whom time is money, the aircraft is designed to carry a maximum of up to 18 passengers in the luxury befitting an aircraft with an estimated price tag of between US$60 to $80 million.

The company says the Mach 1.6 to 1.8 speed capabilities of the aircraft will translate to a flight from New York to London taking three to four hours instead of six to seven, and the 14 to 16 hour flight time for a Los Angeles to Tokyo flight cut to eight hours.

Front angle view of the Spike S-512 supersonic jet design
Front angle view of the Spike S-512 supersonic jet design

Although the aircraft is still at the design and development stage and specifications are still subject to change, Spike currently says the S-512 will have a maximum range of 4,000 nautical miles (4,600 miles/7,400 km). The current design sees the aircraft measuring 131 ft long (40 m), with a wingspan of 60 ft (18 m), and cabin measuring 40 ft (12 m) long, 6.2 ft (2 m) high and 6.2 ft wide.

With potential problems surrounding the sonic boom, which severely limited the market for the Concorde, the Spike team acknowledges that reducing this to acceptable levels to ensure the S-512 meets FAA regulations surrounding sonic booms will be a major challenge. If it can overcome this and other problems, the company hopes the make the first deliveries of the S-512 in December 2018

The company has been playing its cards relatively close to its chest until now, but promises to release more information early in 2014.

The video below introduces the Spike S-512.

Source: Spike Aerospace

Concept 2013 - Spike Aerospace S-512: Fly Faster. Do More.

View gallery - 4 images

Tags

AircraftAviationAircraftSupersonicSpike Aerospace
30 comments
Darren Quick
Darren Quick
Darren's love of technology started in primary school with a Nintendo Game & Watch Donkey Kong (still functioning) and a Commodore VIC 20 computer (not still functioning). In high school he upgraded to a 286 PC, and he's been following Moore's law ever since. This love of technology continues as Managing Editor of New Atlas.

Most Viewed

Load More
30 comments
David Armour
How do they expect to balance this? Even if the engines were mounted at the very end, it will likely be very nose heavy with the wings so far aft. It may need Canards and/or F18 type Leading Edge Root Extensions(LERX).
Vikas Vimal
I don't know technical issues much, but I would sure buy one if I had like 100 mil lying around. But I would pay more if it looker like SR 71. Given all other aspects remain constant. This does not look cool enough for 2013/2014.
Victor Engel
Is there some reason the Concorde is not counted as a supersonic business jet?
Mirmillion
Thought the same thing - stall speed very high unless some non-visible mechanism creates balance/lift at the front of the aircraft.
JDJacob
Or you could buy a Gulfstream G650 for the same price and cruise at M 0.9+, have twice the range and fly in comfort and luxury with greater cross-sectional area and head room. One of the problems with the Concorde was that for the same price you could either fly fast and be cramped (it was an incredibly small cabin and felt like coach) or take the time and fly in first class. Which will matter more to those that can afford such a vehicle: speed or luxury?
Spike Aerospace
The Concorde carried 100 passengers and flew with load rates of 70%+. A tragic accident in 2000 and then 9/11 led to the Concorde's cancellation in 2003. But demand for supersonic travel and willingness to pay for premium tickets was well established. It is about time for a next generation Concorde.
The Concorde was designed in the 1960s with slide rules and built just a few years after AT&Ts Princess telephone. Since then, there have been a lot of new technologies in composites, engines and avionics. These can be used to increase fuel efficiency, reduce noise and improve safety.
David: In this aircraft, the center of gravity is a function of the positioning of the fuel tanks. It is controlled during flight by regulating fuel consumption from each tank.
Victor: In this case, business jets are considered aircraft with less than 20 passengers or under a certain max weight. The Concorde with 100 passengers was considered an airliner.
JDJacob: good question. Is time more important than luxury?
Slowburn

@ Mirmillion
Balance issues do not notably affect stall speed.
@ JDJacob
For hours in coach or eight in first class? No contest; coach.
Pat Kelley
With time and luxury, it's not an either/or situation. Small business aircraft, that are extremely cramped, sell well because the flight times are short, so it seems the degree of comfort desired is a function of flight time.
Operating cost is another factor that seems to be missing, and supersonic aircraft will be much more expensive to operate. It would be interesting to have an extended exchange with business leaders comparing the comfort and economy possible with a blended wing/body subsonic aircraft to the shorter flight time of a narrow-bodied, fuel-hungry supersonic.
BenH
The wing does not look at all like a supersonic wing. Supersonic wings are typically swept back quite a bit. Even aircraft that fly close to the speed of sound have swept wings. This wing has a somewhat straight planform that would be good for low speed flight.
The landing gear seems unnecessarily tall. Gear that tall wouldn't be able to fold back into a the wing as shown. Look at the head-on rendering. The wing is impossibly thin. The strut of the landing gear is thicker than the wing itself. The rear landing gear looks like it folds inward so that the wheels end up inside the fuselage. However, the wheels are cartoonishly large. No way they would fit. The landing gear doors in the front are ridiculously small. Their small size suggest that the front gear telescopes straight down, from underneath the cockpit area. Again, there is no way they could fit there.
As far as the center of gravity is concerned, I actually do think the plane could balance in the configuration shown. Remember that even a full cabin is still mostly empty space. The engines are big chunks of metal that are much more dense than the rest of the aircraft.
All things considered, I think this is a badly done "artist's concept" of a futuristic plane from the 1960s.
Robt
Hey Ben - I really hope that you are joking. I can assure you that those wings are superbly designed as an aerodynamic compromise between fuel efficient (relatively speaking) supersonic flight and high transonic flight speeds. If you think that all supersonic wings are heavily swept, I refer you to the F104. As for the undercarriage, although this is obviously an artist's impression, the angle of attack at take-off and landing in an aircraft of this nature will likely be extremely high, hence the need for a rather elongated landing gear.
