Hydrogen-powered ambulance drives into Glasgow ahead of London trial

Hydrogen-powered ambulance dri...

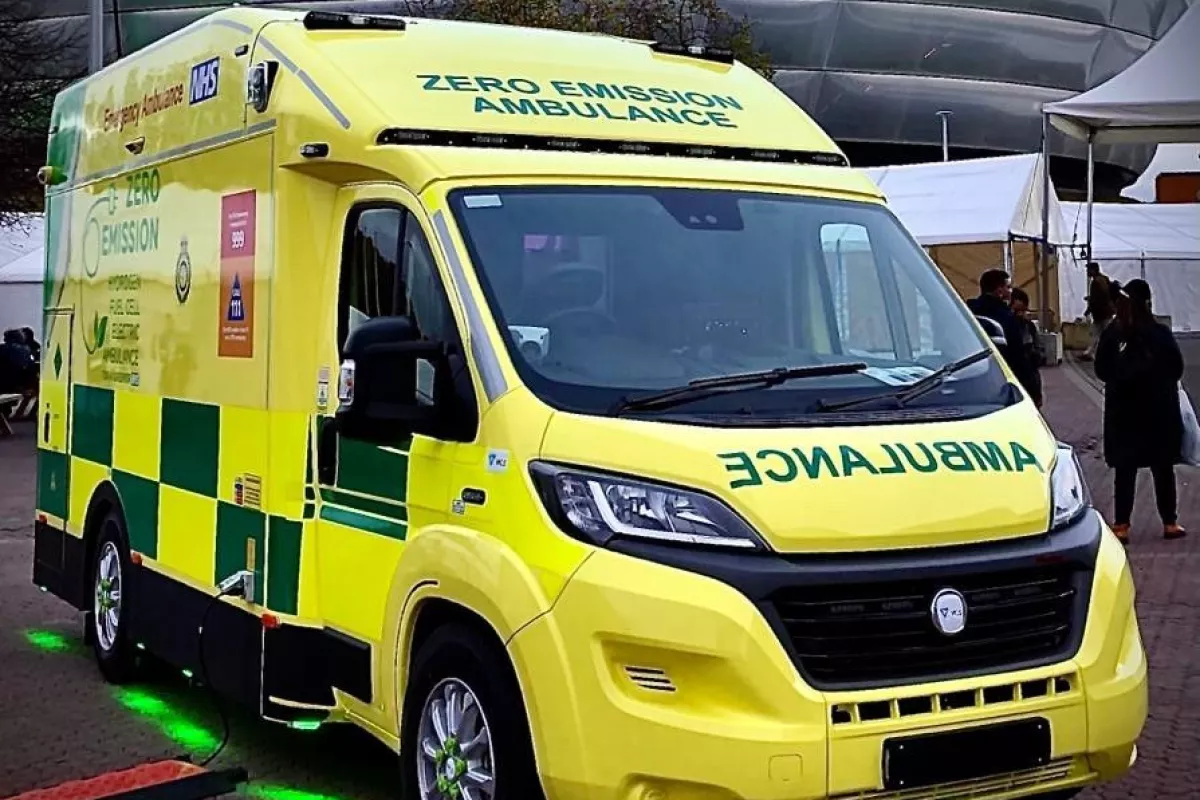

The ZERRO ambulance prototype is billed as the world's first hydrogen fueled ambulance
The ZERRO ambulance prototype is billed as the world's first hydrogen fueled ambulance
View 4 Images
The ZERRO ambulance prototype is billed as the world's first hydrogen fueled ambulance
1/4
The ZERRO ambulance prototype is billed as the world's first hydrogen fueled ambulance

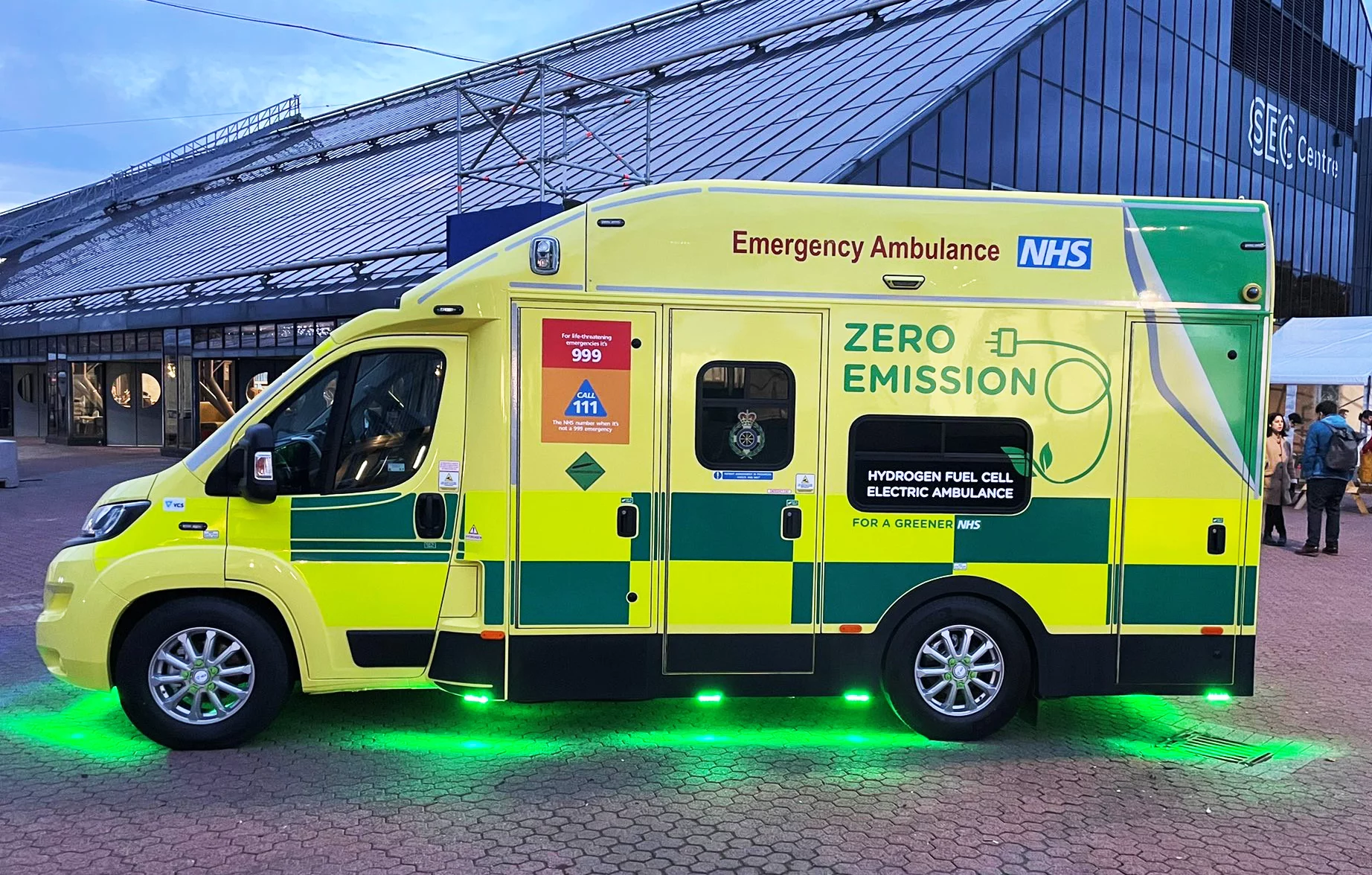

The Zero Emission Rapid Response Operations (ZERRO) ambulance prototype on display at the GreenerNHS stand at the UN COP26 summit in Glasgow, Scotland
2/4
The Zero Emission Rapid Response Operations (ZERRO) ambulance prototype on display at the GreenerNHS stand at the UN COP26 summit in Glasgow, Scotland

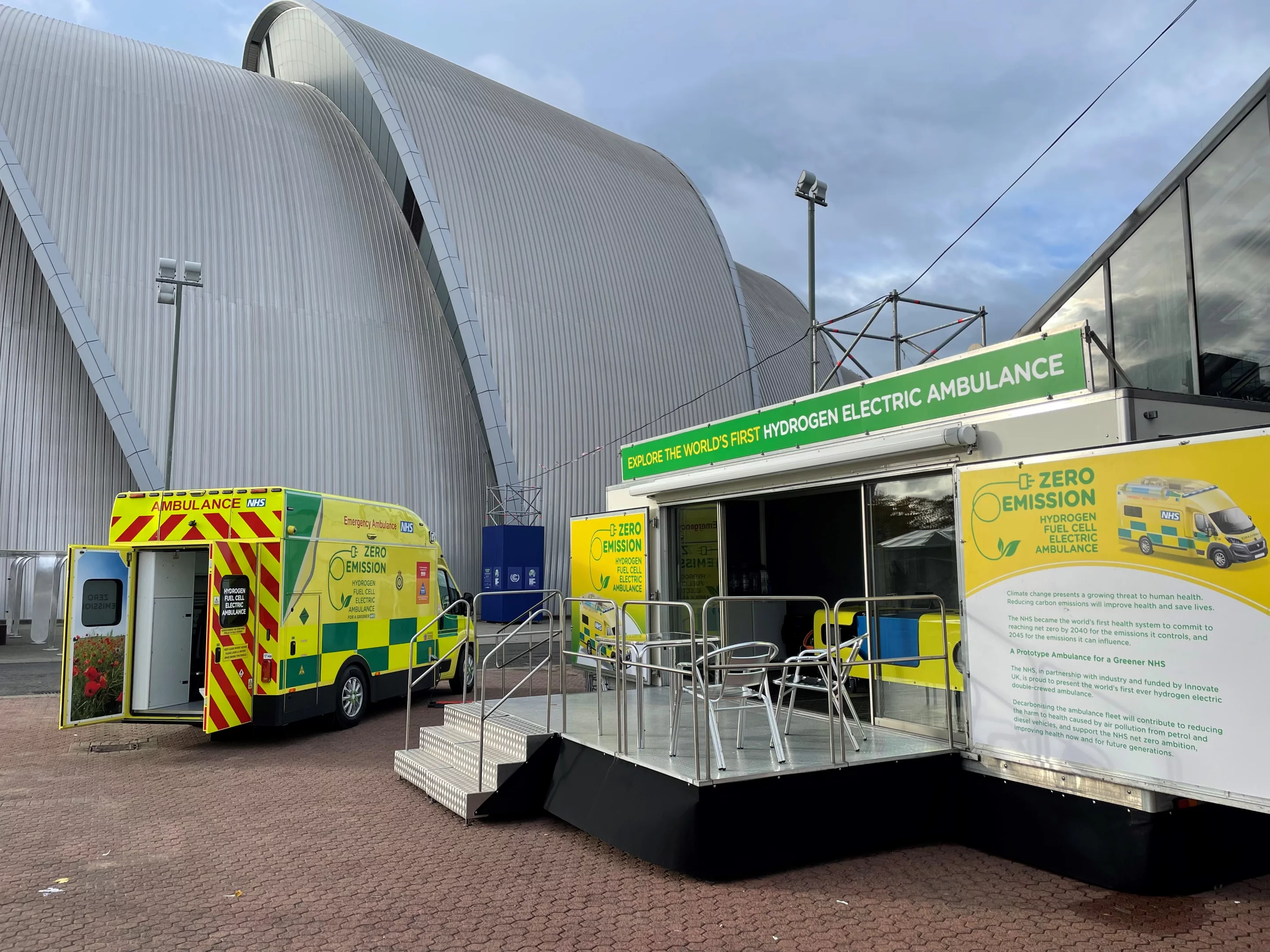

The Zero Emission Rapid Response Operations ambulance prototype (left) has a recharge-capable battery pack and quick refill hydrogen fuel cell range extender to enable service operation in rural areas
3/4
The Zero Emission Rapid Response Operations ambulance prototype (left) has a recharge-capable battery pack and quick refill hydrogen fuel cell range extender to enable service operation in rural areas

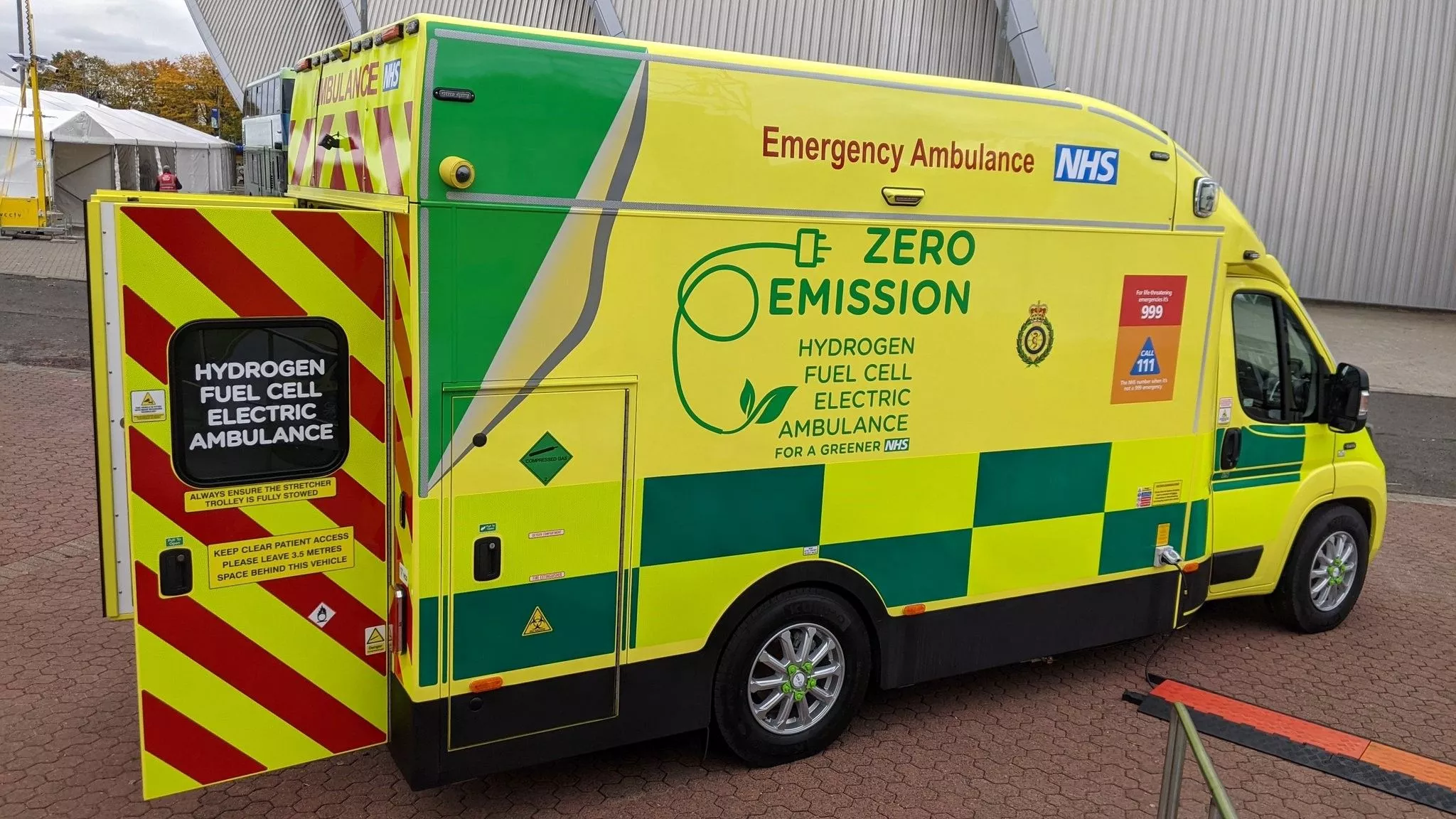

The ZERRO ambulance prototype has a lightweight bespoke body and low access floor
4/4
The ZERRO ambulance prototype has a lightweight bespoke body and low access floor
View gallery - 4 images

Back in February, ULEMCo and industry partners announced plans to design an electric rapid response ambulance for the UK's NHS Trust that would run on batteries and hydrogen fuel cells. Now, the working prototype has driven into Glasgow to give global leaders attending the UN's COP26 climate summit a closer look at the technology.

The NHS reckons that air pollution contributes to one in 20 deaths in the UK, prompting it to pledge to become the first health service in the world to commit to reaching net zero carbon. With service travel and transport adding up to 3.5 percent of all UK road traffic, the health body is looking at ways to reduce harmful emissions, and the ambulance fleet seems like a good place to start – with GreenerNHS noting that "decarbonising the ambulance fleet could potentially reduce emissions by 87 ktCO2e every year."

The Zero Emission Rapid Response Operations (ZERRO) ambulance prototype on display at the GreenerNHS stand at the UN COP26 summit in Glasgow, Scotland
The Zero Emission Rapid Response Operations (ZERRO) ambulance prototype on display at the GreenerNHS stand at the UN COP26 summit in Glasgow, Scotland

There's already a battery-electric ambulance in service in Birmingham, but the Zero Emission Rapid Response Operations (or ZERRO) ambulance prototype has been designed to meet the extended range needs of rural operations as well as urban. Originally developed for the Yorkshire Ambulance Service, the working prototype looks to be rolling with all of the key specs announced in February.

The bespoke frame-based body has been built by Mellor Coachcraft and features a Promech Technologies EV drivetrain installed by VCS. The vehicle is powered by a 92-kWh battery pack that can be topped up via a cable plugged into a charger, but a ULEMCo FC Rx hydrogen fuel cell range extender has been included for quick refill flexibility. The range extender includes 8 kg of 350-bar H2 storage, a 30 kW fuel cell and Lyra Electronics DCDC converter.

The prototype has been designed for up to 300 miles (~483 km) of range, and a top speed of 90 mph (145 km/h). A low access floor enables it to meet the payload requirements of the ambulance service, with the earlier specs calling for it to be capable of hauling at least 900 kg.

The Zero Emission Rapid Response Operations ambulance prototype (left) has a recharge-capable battery pack and quick refill hydrogen fuel cell range extender to enable service operation in rural areas
The Zero Emission Rapid Response Operations ambulance prototype (left) has a recharge-capable battery pack and quick refill hydrogen fuel cell range extender to enable service operation in rural areas

The ZERRO ambulance is being exhibited on a GreenerNHS display at the Innovation Zone in Glasgow during the COP26 summit, and will then make its way to London to begin trials to test its operational flexibility and make sure it meets the needs of its intended users. NHS England and NHS Improvement hope to work with ambulance trusts to set up more trials, and work on a plan to roll out zero emissions ambulances in the future.

"A great deal of hard work from the industrial partners has gone into bringing the ZERRO project to this stage," said ULEMCo's Amanda Lyne. "We believe this is a key milestone in the development of hydrogen mobility, and shows what can be achieved today to achieve zero emissions from HGV and utility vehicles."

Sources: ULEMCo, GreenerNHS

View gallery - 4 images
3 comments
3 comments
FB36
It is extremely bad idea to use hydrogen as fuel for land/sea/air transportation because it is pretty much explosive!
Imagine a future world w/ all kinds of hydrogen vehicles, tanker trucks, gas stations everywhere!
Are we seriously thinking that there will be never any accidents/leaks/ruptures/mishandling to trigger massive explosions?

Not to mention, there is actually no need at all to use hydrogen as fuel!
All light/small vehicles are already becoming fully electric & all heavy/big land/sea/air vehicles just need us to start producing biodiesel/biofuel at large scales!
(From all possible industrial/agricultural/forestry waste/biomass & trash & sewage!)
martinwinlow
Why on *EARTH* not just make it purely battery-electric and be done with it? What is the point in adding all the extra complexity and cost (and unreliability) of an H2FC? How far do ambulances need to travel, day-to-day anyway, for Heaven's sake? Pure electric is 100 times more sensible, affordable, practical and sustainable. Why is everyone suddenly so obsessed with this fantastically silly idea of using hydrogen to power everything? Billions have been spent on trying to make it work for 5 decades or more and we are *still* no-where near a practical, affordable and reliable solution. On top of that the process of making the H2 involves either converting natural gas (you know, a fossil fuel and wasting a lot of energy in the conversion process, besides) or making it from hydrolysing water and a/ we are short of water and b/ the resulting hydrogen, once converted back into electricity in a fuel cell is less than 1/3 of what you had in the beginning. It's even more wasteful than burning petrol/diesel in an engine! So can we please stop this foolishness! See planetforlife.com for more.
Olexandr Kapustin
> It is extremely bad idea to use hydrogen as fuel for land/sea/air transportation because it is pretty much explosive!

So petrol is not? As an alternative, I think it's really good idea to use hydrogen.

> Why on *EARTH* not just make it purely battery-electric and be done with it?
How much time will take you to charge "purely battery-electric" and how much for filling your tank?
But it's not even top of iceberg. What the infrastructure required to be installed on site to allow charging lets say 10 or 20 machines at the same time? amount of power required is insane!
