Hyundai develops new airbag system for panoramic sunroofs

Hyundai has successfully developed the world's first airbag system for panoramic sunroofs that is designed to stop occupants spilling out from the cabin and reducing serious head injuries
Hyundai has successfully developed the world's first airbag system for panoramic sunroofs that is designed to stop occupants spilling out from the cabin and reducing serious head injuries
View 2 Images
Hyundai has successfully developed the world's first airbag system for panoramic sunroofs that is designed to stop occupants spilling out from the cabin and reducing serious head injuries
1/2
Hyundai has successfully developed the world's first airbag system for panoramic sunroofs that is designed to stop occupants spilling out from the cabin and reducing serious head injuries

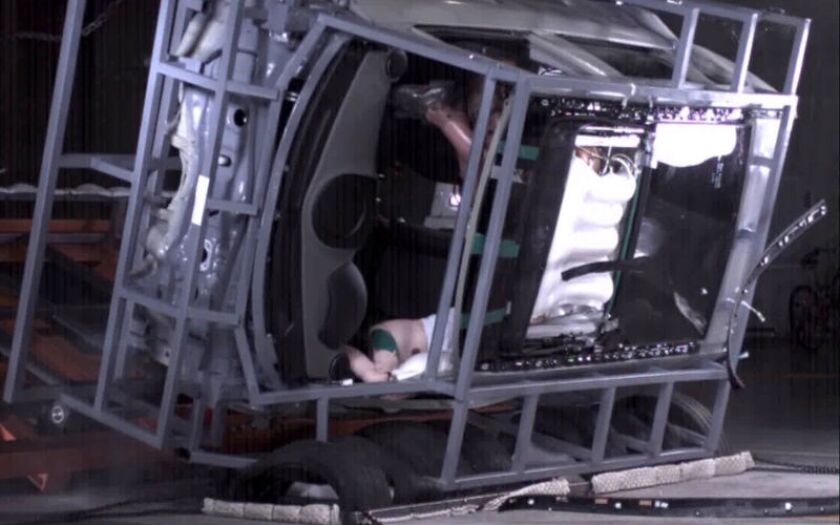

The sunroof airbag system being deployed in a crash demonstration. Notice that the sunroof appears to be in open in this scenario (pictured). The airbag is mounted in between the sunroof glass and sun shield so that it can be deployed no matter what position the sunroof is in
2/2
The sunroof airbag system being deployed in a crash demonstration. Notice that the sunroof appears to be in open in this scenario (pictured). The airbag is mounted in between the sunroof glass and sun shield so that it can be deployed no matter what position the sunroof is in

Airbags are fitted to every new car nowadays and are ready to be deployed in most types of collisions. But there are certain scenarios where an airbag can't protect the occupants. The team at Hyundai Mobis, which is the parts arm of Hyundai automobiles, has tackled one of these scenarios by developing a world-first system designed to reduce injuries in a rollover using an airbag mounted in the panoramic sunroof.

The sunroof airbag is designed to prevent the passengers from spilling out in a rollover, and during crash tests conducted with dummies Hyundai found that it can also reduce serious head injuries.

The sunroof airbag system being deployed in a crash demonstration. Notice that the sunroof appears to be in open in this scenario (pictured). The airbag is mounted in between the sunroof glass and sun shield so that it can be deployed no matter what position the sunroof is in
The sunroof airbag system being deployed in a crash demonstration. Notice that the sunroof appears to be in open in this scenario (pictured). The airbag is mounted in between the sunroof glass and sun shield so that it can be deployed no matter what position the sunroof is in

To ensure that it can be deployed in whatever position the sunroof is set, the new airbag system is mounted in between the glass and sun shield. When the on board yaw sensor detects a rollover collision, the airbag covers the entire roof surface and deploys towards the rear of the vehicle in 0.08 seconds.

This is no mean feat, as the roof section of a car has very limited space to mount components, especially an airbag. Although roof-mounted airbags have been developed by safety companies like ZF and TRW, they've been more geared towards frontal impacts.

The system is expected to be available in early 2019 and it will most likely make its debut on models like the luxury Genesis and the new Kona crossover.

Source: Hyundai
