Balamutti Yondu: An apocalyptic, supercharged Russian ice-racing trike

Balamutti Yondu: An apocalypti...
The Balamutti Yondu is a spiked-out, supercharged, apocalyptic rat-trike
The Balamutti Yondu is a spiked-out, supercharged, apocalyptic rat-trike
View 8 Images
Primed for a quarter mile on the ice at Lake Baikal
1/8
Primed for a quarter mile on the ice at Lake Baikal

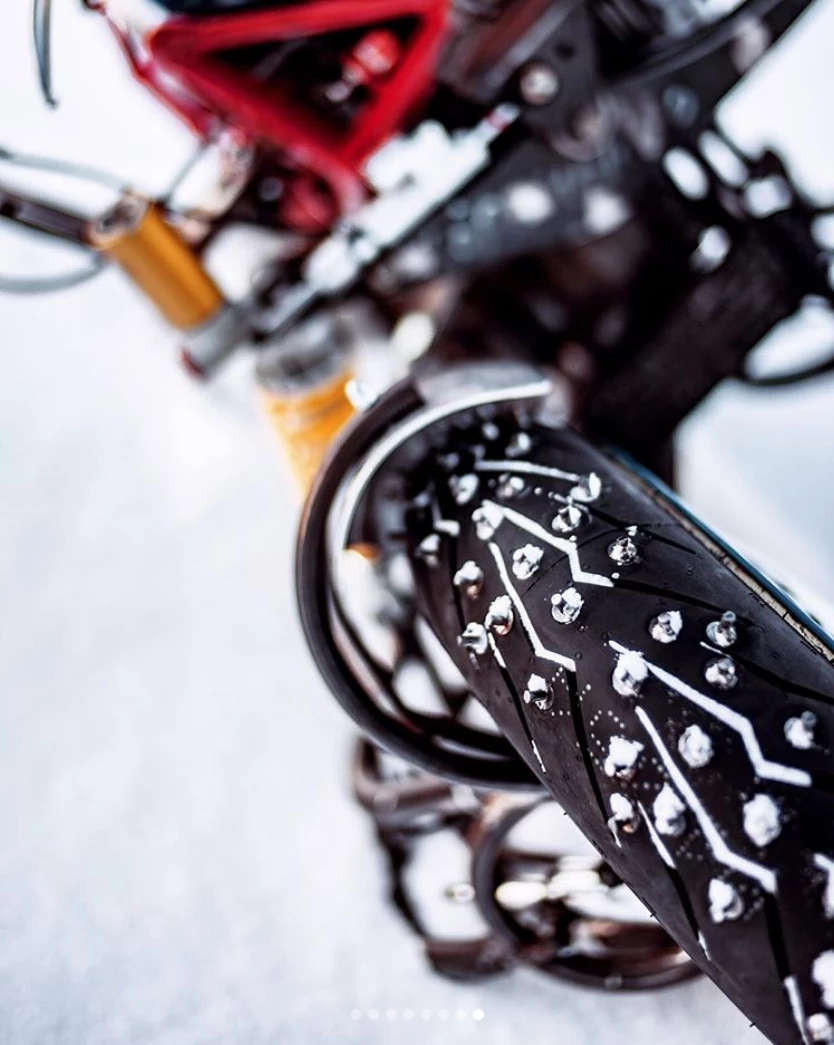

Tire spikes are your only hope of grip out here
2/8
Tire spikes are your only hope of grip out here

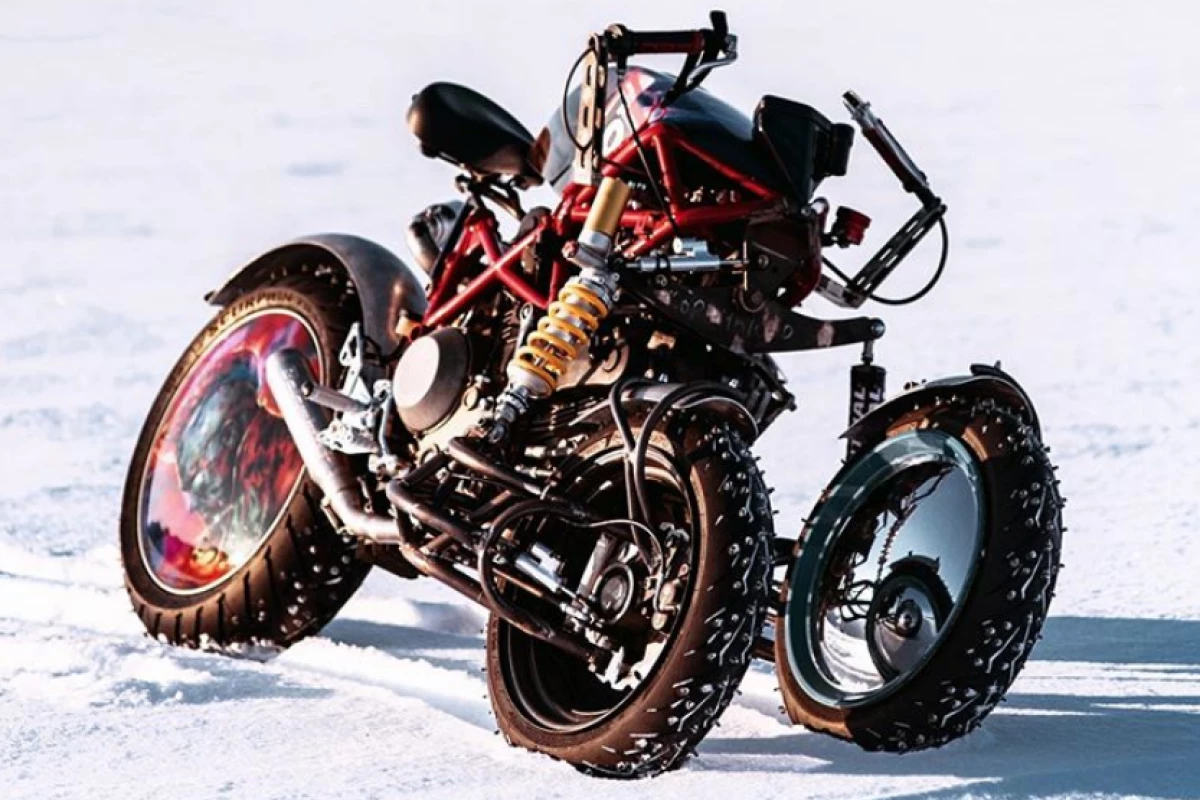

The Balamutti Yondu is a spiked-out, supercharged, apocalyptic rat-trike
3/8
The Balamutti Yondu is a spiked-out, supercharged, apocalyptic rat-trike
Reverse handlebars look absolutely bonkers
4/8
Reverse handlebars look absolutely bonkers

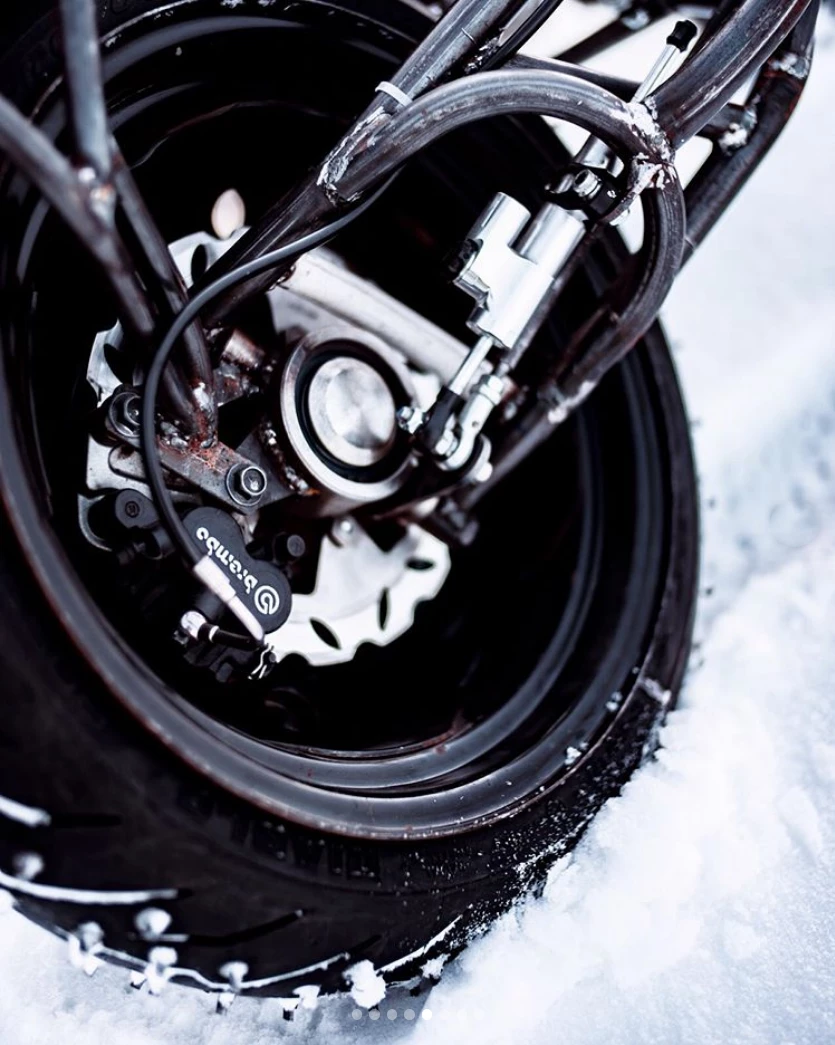

The hand-made hub-steer system on each front swingarm
5/8
The hand-made hub-steer system on each front swingarm

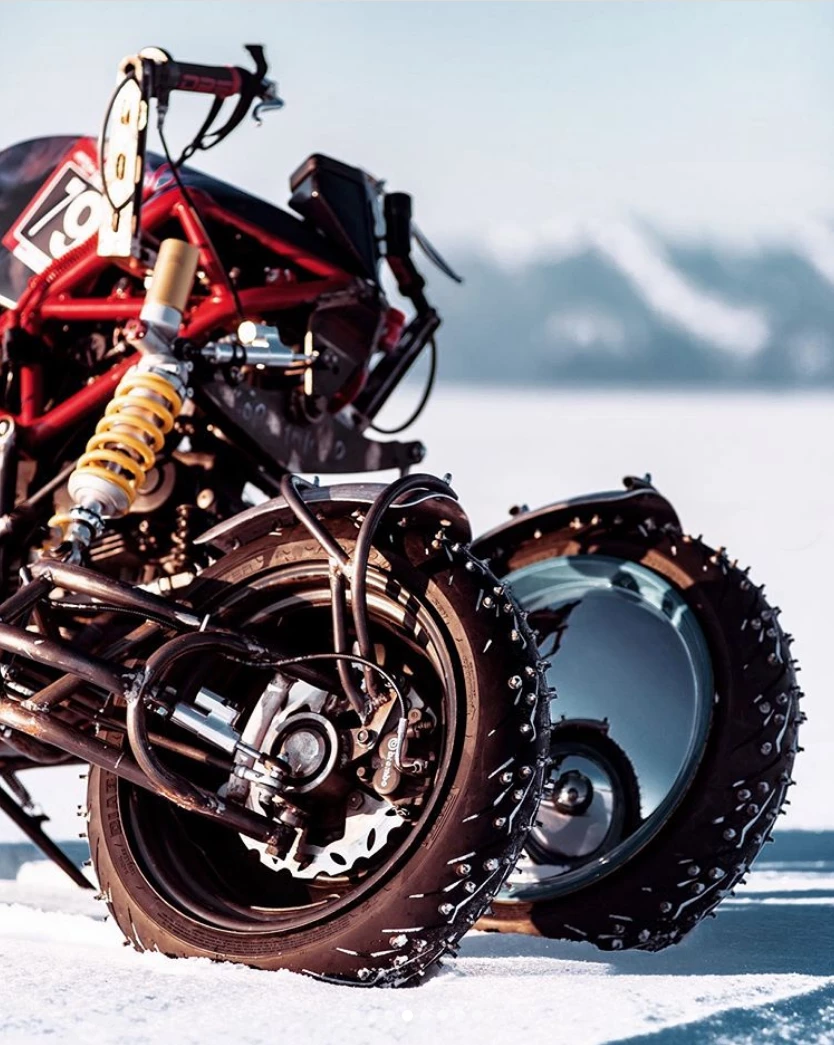

You'll rarely see a more evil front end than this
6/8
You'll rarely see a more evil front end than this
Reflective hub covers on the insides of the front wheels
7/8
Reflective hub covers on the insides of the front wheels

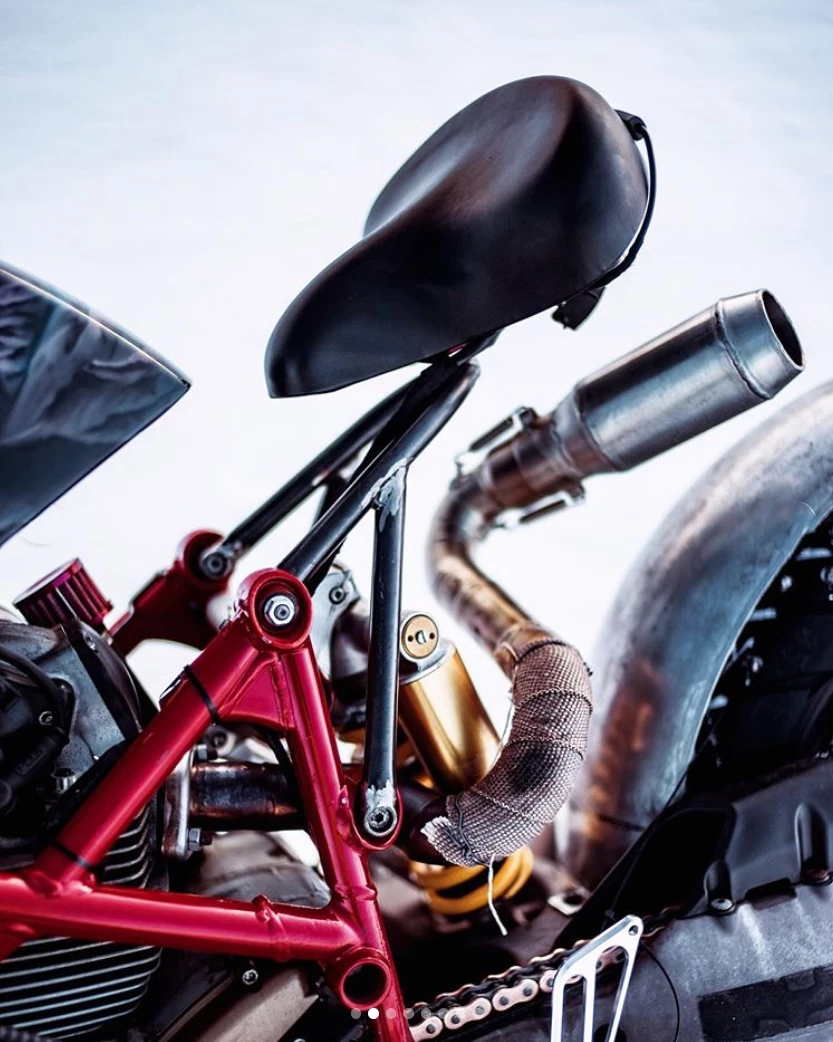

Is that a bicycle seat?
8/8
Is that a bicycle seat?
View gallery - 8 images

This supercharged, three-wheeled, ice-racing monstrosity once lived a happy, peaceful life as a Ducati Hypermotard, until Vitaliy Selyukov of Balamutti got hold of it and turned it into a mutant Trikenstein perfect for today's apocalyptic mood.

Selyukov runs a workshop for Italian bikes out of St. Petersburg, and when he's not doing services and tuning, he's wrenching on the Yondu. Inspired by the Speeder bikes from Return of the Jedi, he took the engine and main trellis frame of a donor Hypermotard and set about making pretty much everything else himself.

According to Pipeburn, that hideously brutal front end is effectively a double hub-center steering system on dual Sachs-suspended swingarms, the wheel pivoting on spherical roller bearings, controlled by dual steering dampers and rose-jointed articulating rods. No small amount of thinking has gone into this, and the chief nod to Star Wars is the outside-in reverse handlebar setup, which looks absolutely nuts.

Primed for a quarter mile on the ice at Lake Baikal
Primed for a quarter mile on the ice at Lake Baikal

The wheel hubs, where they're not required to support swingarms and brake systems, are covered with convex reflective covers – except the rear hub, which is painted up to show some kind of galactic hellfire scene. The subframe is comically tiny, and holds aloft what appears to be a bicycle seat, leaving room for a particularly vicious-looking exhaust to rise up underneath.

As for the engine, Selyukov has apparently chopped a Garrett turbo to bits, yanked out the turbine and repurposed it as a crank-driven supercharger, building his own belt and pulley setup in order to blow a bit more life into an engine that makes less than 100 horses stock. We are in the presence of a madman here.

Lord knows how it rides on those spiked-out ice tires – it looks like one for the bold – but Selyukov plans to drag-race it on the ice at the Lake Baikal Mile. Godspeed, you marvelous maniac. More shots in the gallery, thanks to photographer Denis Minchenkov.

Source: Balamutti via Pipeburn

View gallery - 8 images
