Valeo combines an ebike motor and an automatic gearbox in one unit

View 7 Images
The Valeo system incorporates both a 48V electric motor and a 7-speed adaptive gearbox
Valeo

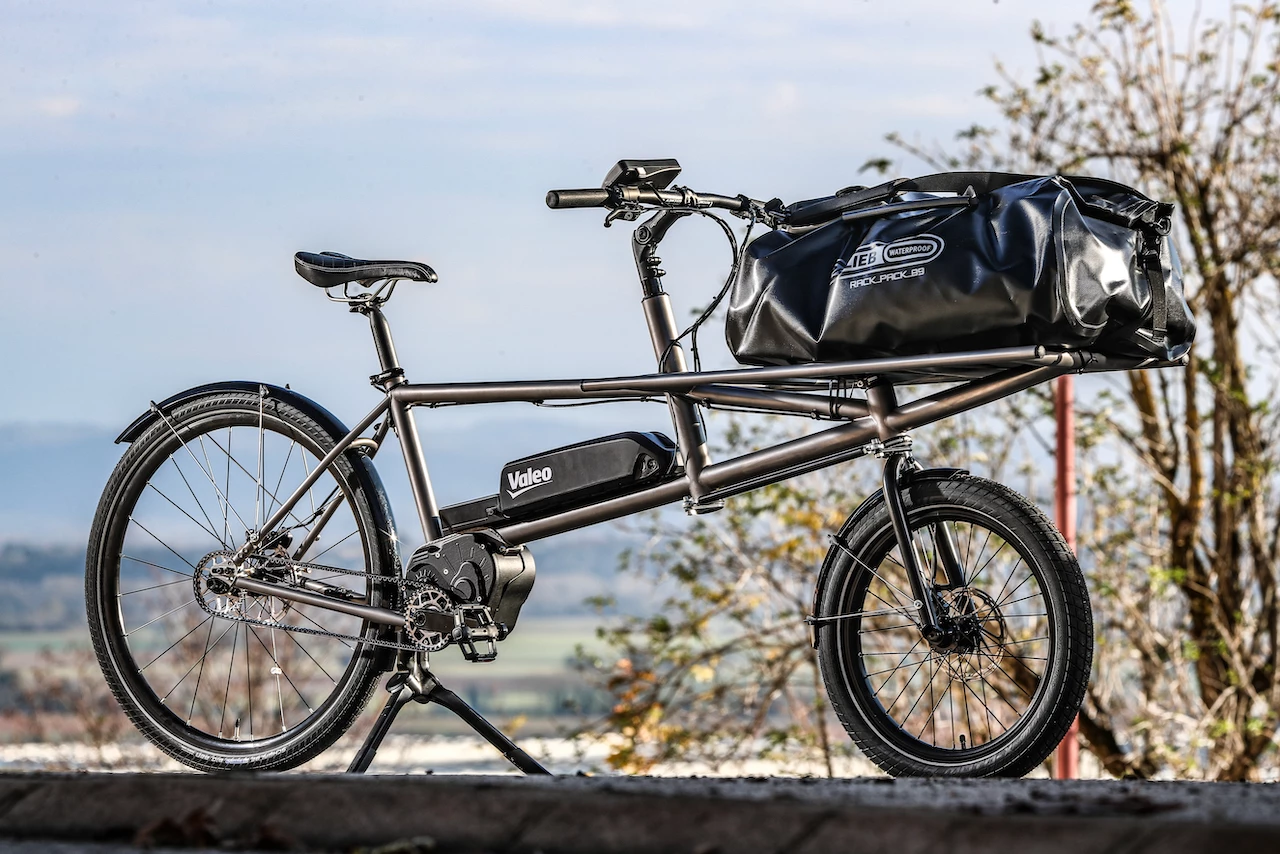

The Valeo cargo bike prototype
Valeo
The Valeo motor produces up to 130 Nm (96 ft lb) of torque
Valeo
The Valeo city bike prototype
Valeo
The Valeo system incorporates a belt drive instead of a chain
Valeo
The Valeo system incorporates both a 48V electric motor and a 7-speed adaptive gearbox
Valeo
The Valeo mountain bike prototype
Valeo
The Valeo handlebar remote is used to select the amount of electrical assistance, and to monitor factors such as the battery charge level
Valeo
View gallery - 7 images

Electric bicycles may require less pedaling effort than regular bikes, but … their riders still have to shift gears. Paris-based electric mobility company Valeo is out to change that, by combining a motor with an automatic gearbox.

Officially called the Valeo Smart e-Bike System, the bottom bracket-located setup features one of the company's 48-volt electric motors, along with a 7-speed adaptive gearbox made by project partner Effigear. Electrical power is provided by a down-tube-mounted battery pack.

The motor produces up to 130 Nm (96 ft lb) of torque – according to Valeo, this multiplies the rider's pedaling effort by a factor of eight, whereas other systems top out at five. Additionally, even though the 48V motor is beefier than the more commonly seen 24V or 36V ebike motors, it's claimed to be more efficient.

And because no derailleurs are required, a smooth-running belt drive is used instead of a greasy chain.

The Valeo cargo bike prototype
Valeo

As is the case with other ebike systems, integrated sensors continuously monitor the cyclist's pedaling cadence/torque. Based on that information, the Valeo setup triggers the motor to kick in accordingly, and it prompts the gearbox to shift gears as required. There's also a manually activated boost function for providing an extra shot of motor power when needed (such as when passing other vehicles), along with a pedestrian push-assist mode to help in the pushing of heavily laden bikes.

There's even a reverse gear, along with an anti-theft function that locks up the drivetrain when the bike is left on its own.

Valeo plans on licensing the system to third-party bicycle manufacturers, who will build it into their own ebikes. Nonetheless, to demonstrate how the technology works, the company has integrated it into three prototypes – a city bike, a mountain bike and a cargo bike.

You can see the system in use, in the video below.

Source: Valeo via BikeRumor
