The Intel 4004, the first computer on a chip, turns 50

View 12 Images
The first Intel 4004 chip
Intel
The Intel 4004
Intel
Schematic of the Intel 4004
Intel
Intel 4004 design
Intel
Production version of the Intel 4004
Intel
The advert that introduced the Intel 4004
Intel

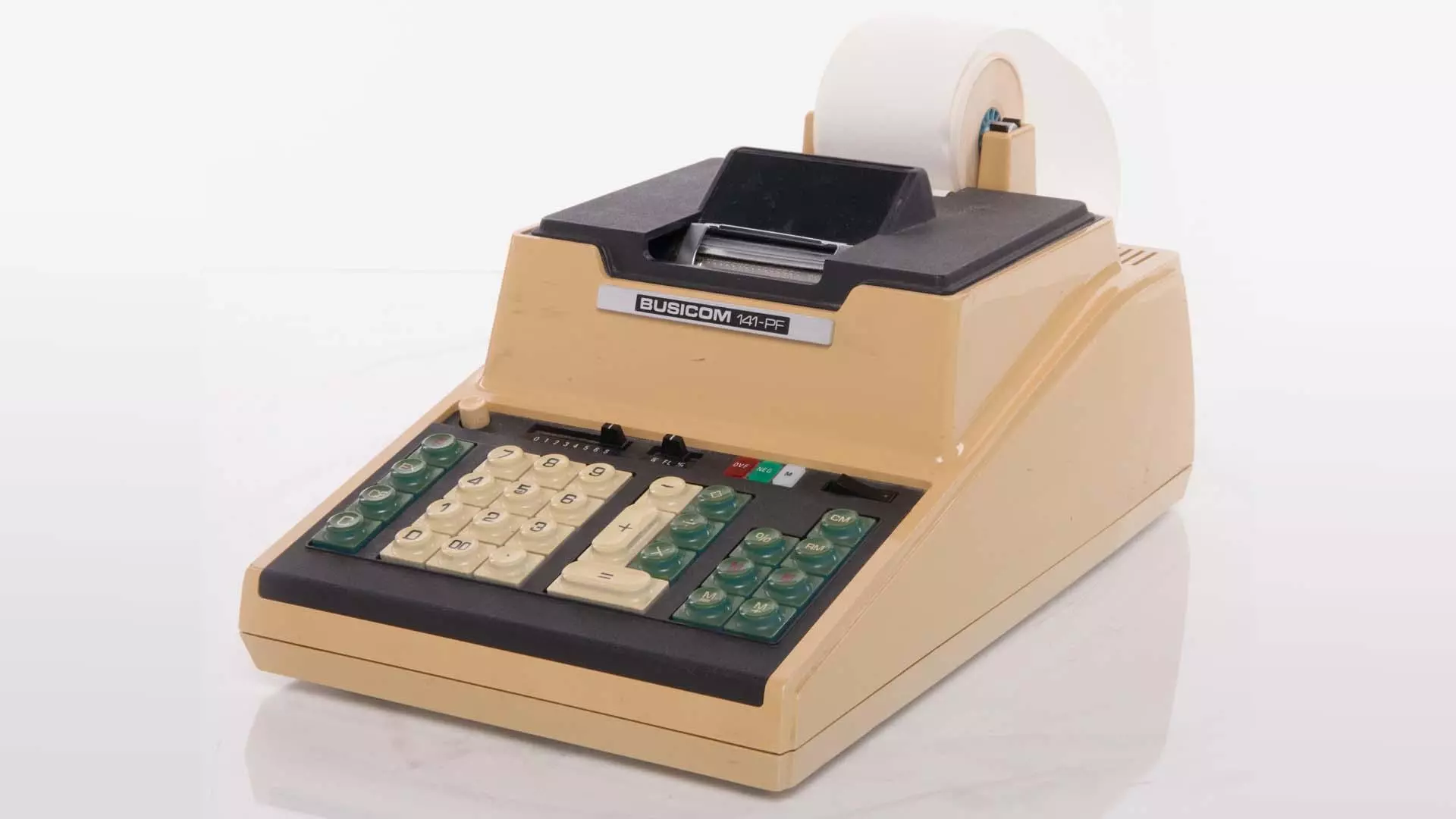

The Busicom 141-PF desktop printing calculator
Intel
Frederic Faggin
Intel
Masatoshi Shima of the Nippon Calculating Machine Corporation
Intel
Stan Mazor
Intel
Ted Hoff with the 4004 chip
Intel
Intel 4004 infographic
Intel

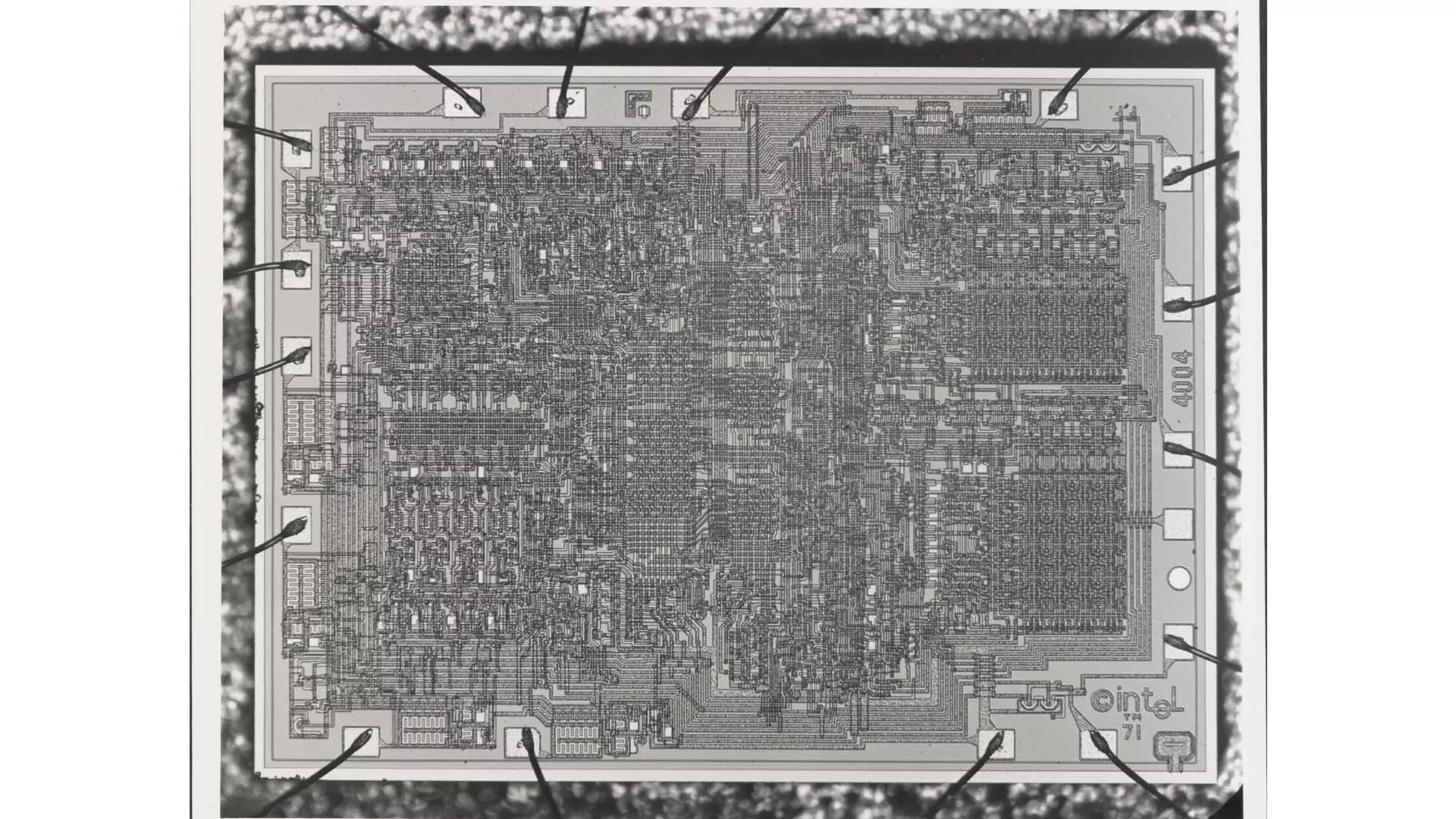

The first Intel 4004 chip
Intel
View gallery - 12 images

This month marks the 50th anniversary of Intel's 4004 processor, the first commercially available microprocessor built on a single chip. Originally designed for a Japanese desk calculator, it helped spark the personal computer revolution.

In November 1971, an advertisement appeared in Electronic News with the tagline, "Announcing a new era in integrated electronics." This marked the debut of the Intel 4004 general-purpose programmable processor chip on the market.

It was originally conceived of in 1969 as a way of meeting a contract for Intel to produce 12 custom chips for the Nippon Calculating Machine Corporation's Busicom 141-PF engineering prototype calculator. Over the next two years, an Intel team led by Marcian "Ted" Hoff, Stan Mazor, and Federico Faggin reduced this to four chips, one of which was the 4004. The result was so impressive that Intel secured the rights to put it on the general market.

The advert that introduced the Intel 4004
Intel

What made the 4004 so different was that this was the first time a complete Central Processor Unit (CPU) was built into one chip. Previously, CPUs would have been made up of multiple integrated circuits or tens or hundreds of individual transistors. Instead, the 4004 contained 2,300 transistors on a chip the size of a fingernail and assembled in a new random logic design.

The 4004 had only 16 pins, so it had only a 4-bit bus, and a 740-kHz maximum clock rate that allowed it to process 92,600 instructions per second. Still, this one chip was as powerful as the first computers built in 1946 that took up large rooms.

The 4004 sparked generations of rapid innovation that have resulted in not just computers on a chip, but chips in smartphones that can stroll past the most powerful supercomputers of the 1970s and 1980s. As a point of perspective, where the 4004 had 2,300 transistors, a modern chip can have over 50 billion.

"[Looking back at] 1970, it was clear that microprocessors would change the way that we design systems, switching from using hardware to software instead. But the speed with which microprocessors developed over time and were adopted by the industry was really surprising," says Faggin.

Source: Intel

View gallery - 12 images
  • Facebook
  • Twitter
  • Flipboard
  • LinkedIn
4 comments
David F
A great image for a nerd t-shirt! Indeed, have a range of such t-shirts, each with an original advertisement for critical steps in computing.
EH
Was there anything that didn't have fake wood grain on it in the '70s? 8-D
(I think its really some kind of brushed-on thermal compound.)
All the mask layers were drawn by hand on Mylar. (Using opaque adhesive tape lines, actually - hence the still-used phrase "tape out" for making a photomask set for chip production.) I think that chip package is ceramic, not cheap, would have cost quite a bit more than the gold plating at the time, but likely needed due to the high heat dissipation of PMOS. Other early processors used NMOS, only in '74 did the RCA-1802 8-bit processor using CMOS come out, which combines N and P types of transistors for much lower power consumption. Several other processors in '74-'76 such as the 8080, 6502 and Z80 finally were practical enough to allow personal computers.

The 4004 wasn't the first microprocessor, nor was it really practical as a single-chip processor, but it's been called those for so long that it has a place in history.
https://en.wikipedia.org/wiki/Microprocessor#History
HoppyHopkins
I still have fond memories of my first wire wrapped breadboard 8008 micro computer only years after the 4004 came out. Alot of fun working out programs in assembler and pure binary
ljaques
And, soon, we'd have Moore's Law!
