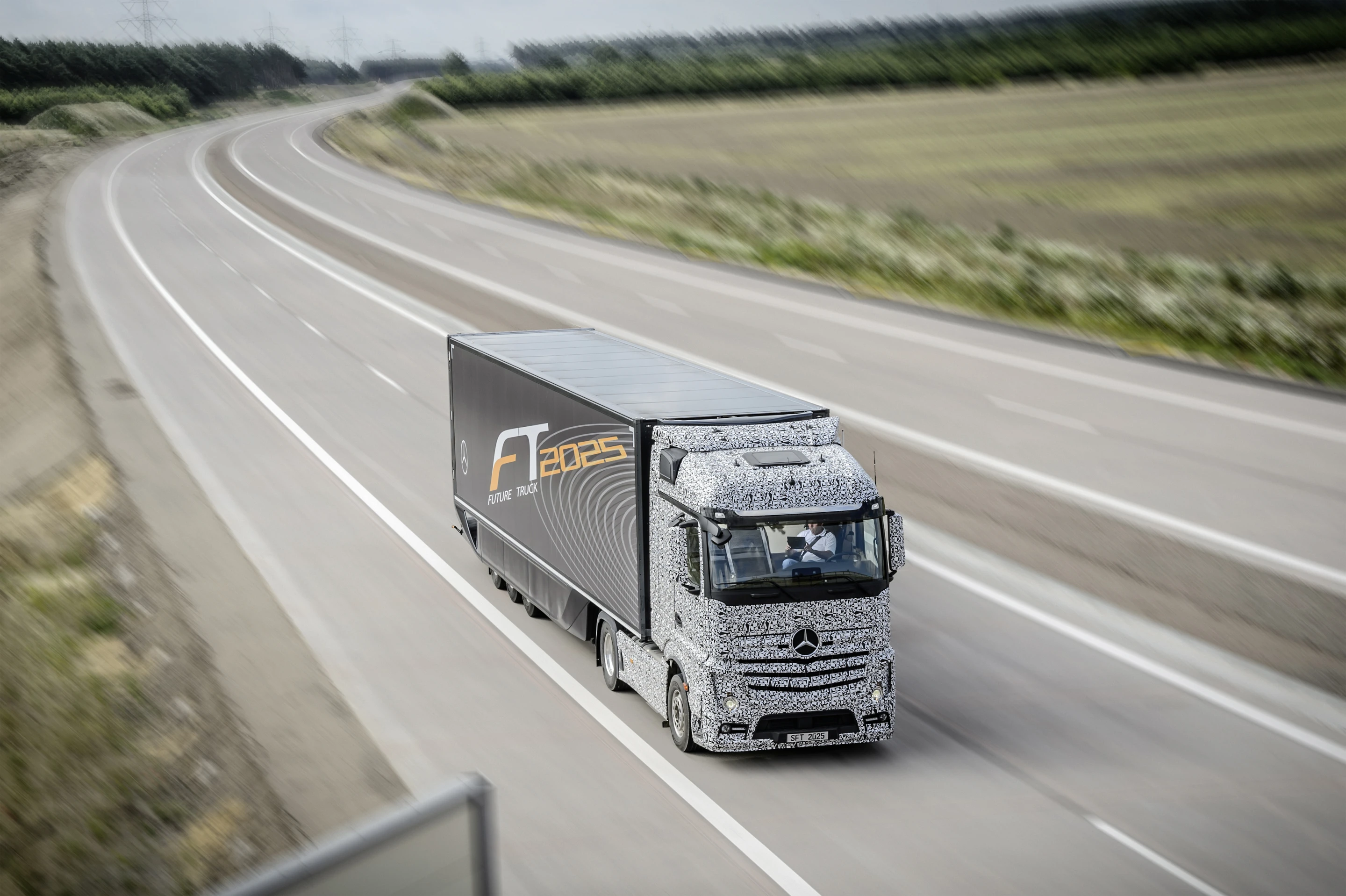

The Daimler autonomous truck was tested on the autobahn
3/25
The Daimler autonomous truck was tested on the autobahn

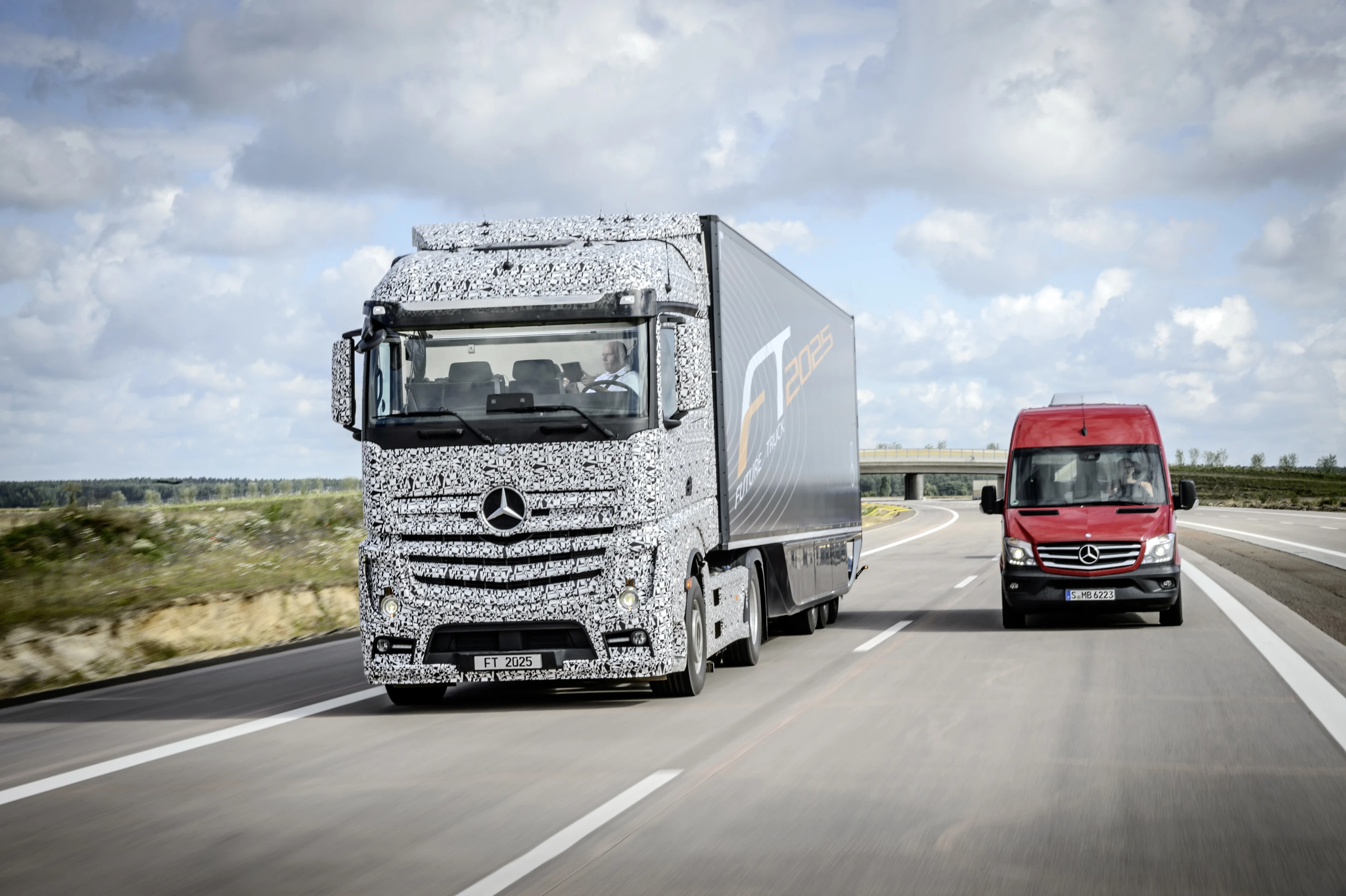

The Daimler autonomous truck is designed to operate on major roads
4/25
The Daimler autonomous truck is designed to operate on major roads

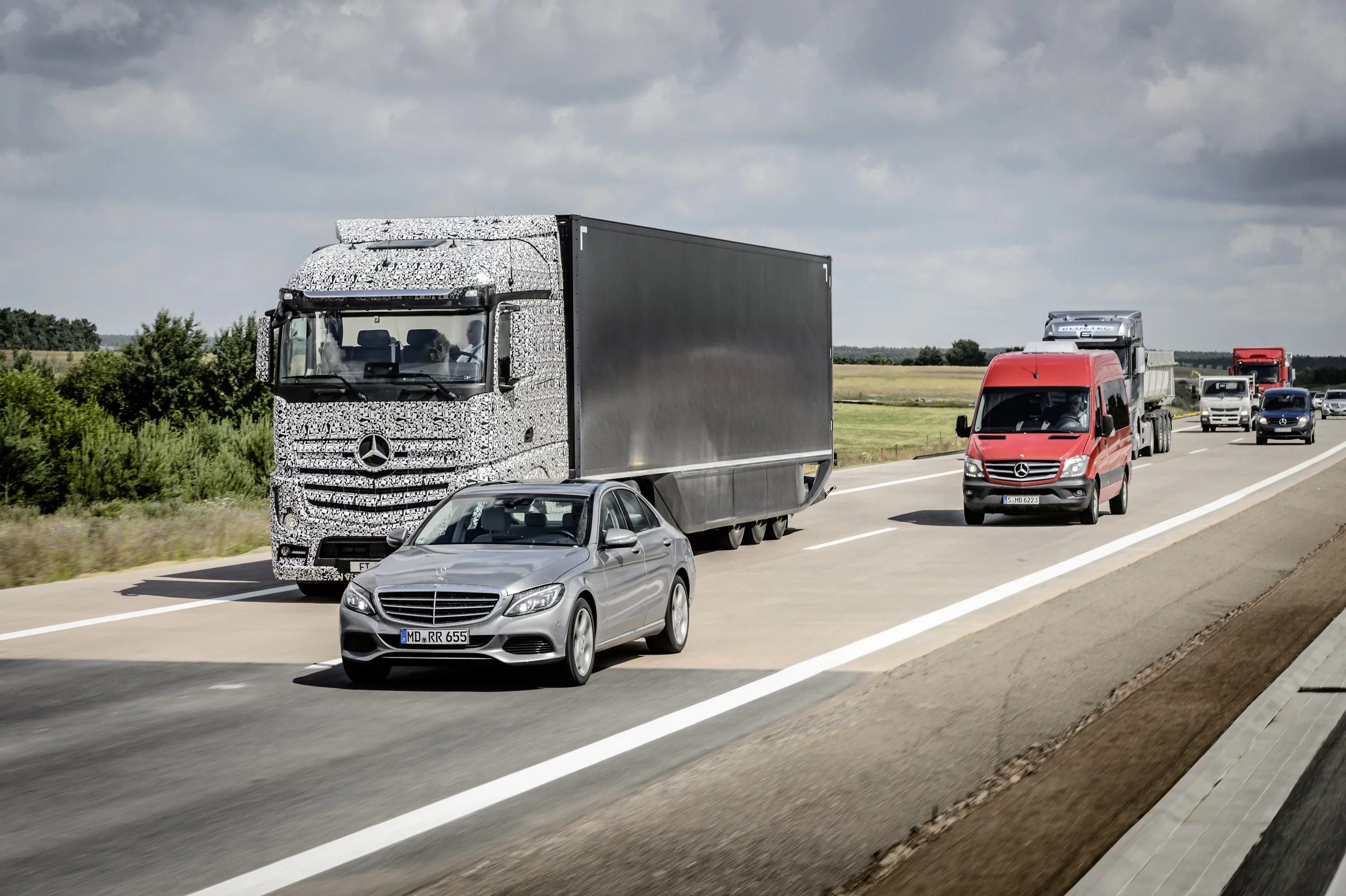

The Daimler autonomous truck may enter service by 2025
5/25
The Daimler autonomous truck may enter service by 2025

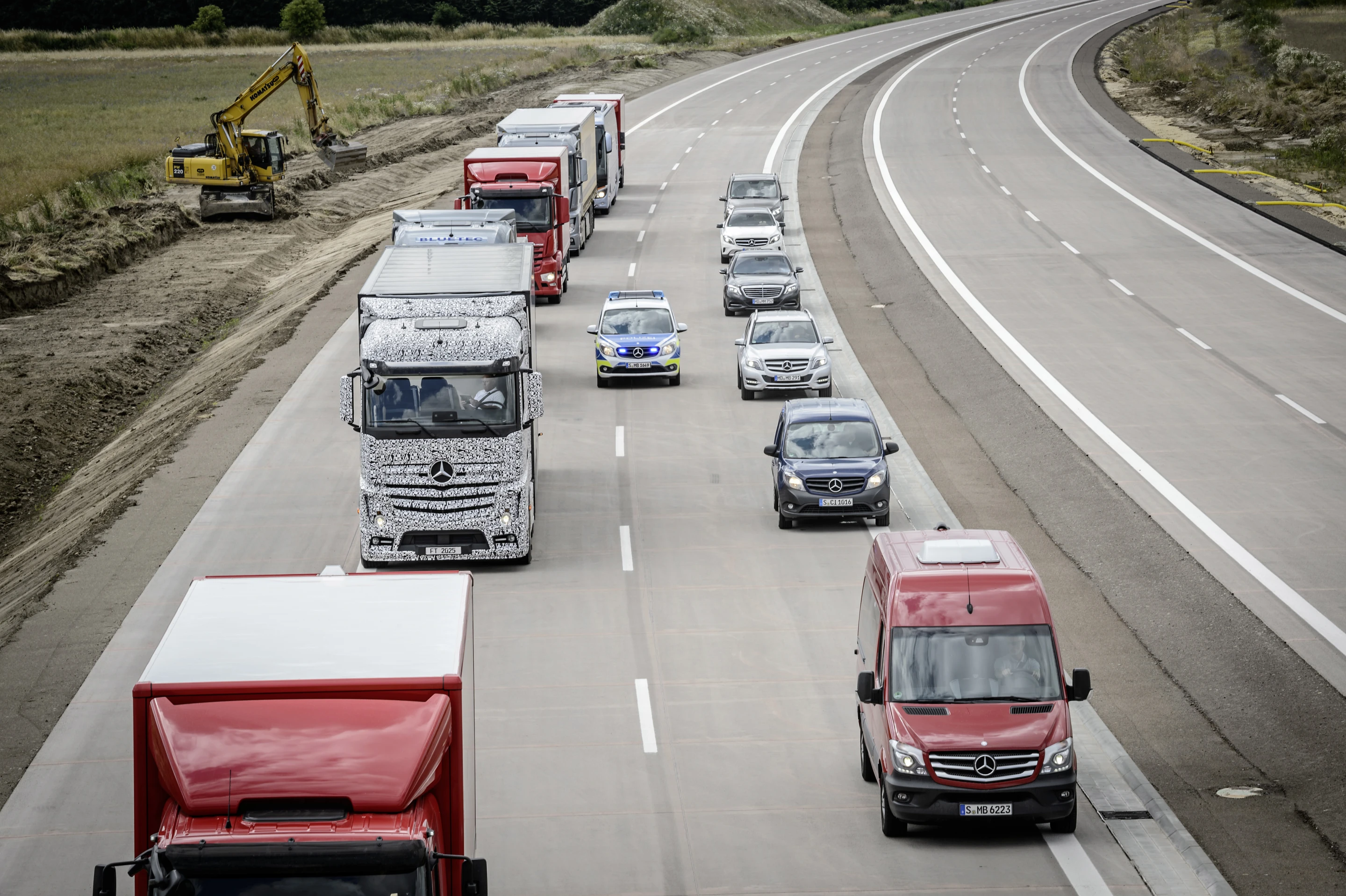

The Daimler autonomous truck communicates with other vehicles and road infrastructure
6/25
The Daimler autonomous truck communicates with other vehicles and road infrastructure

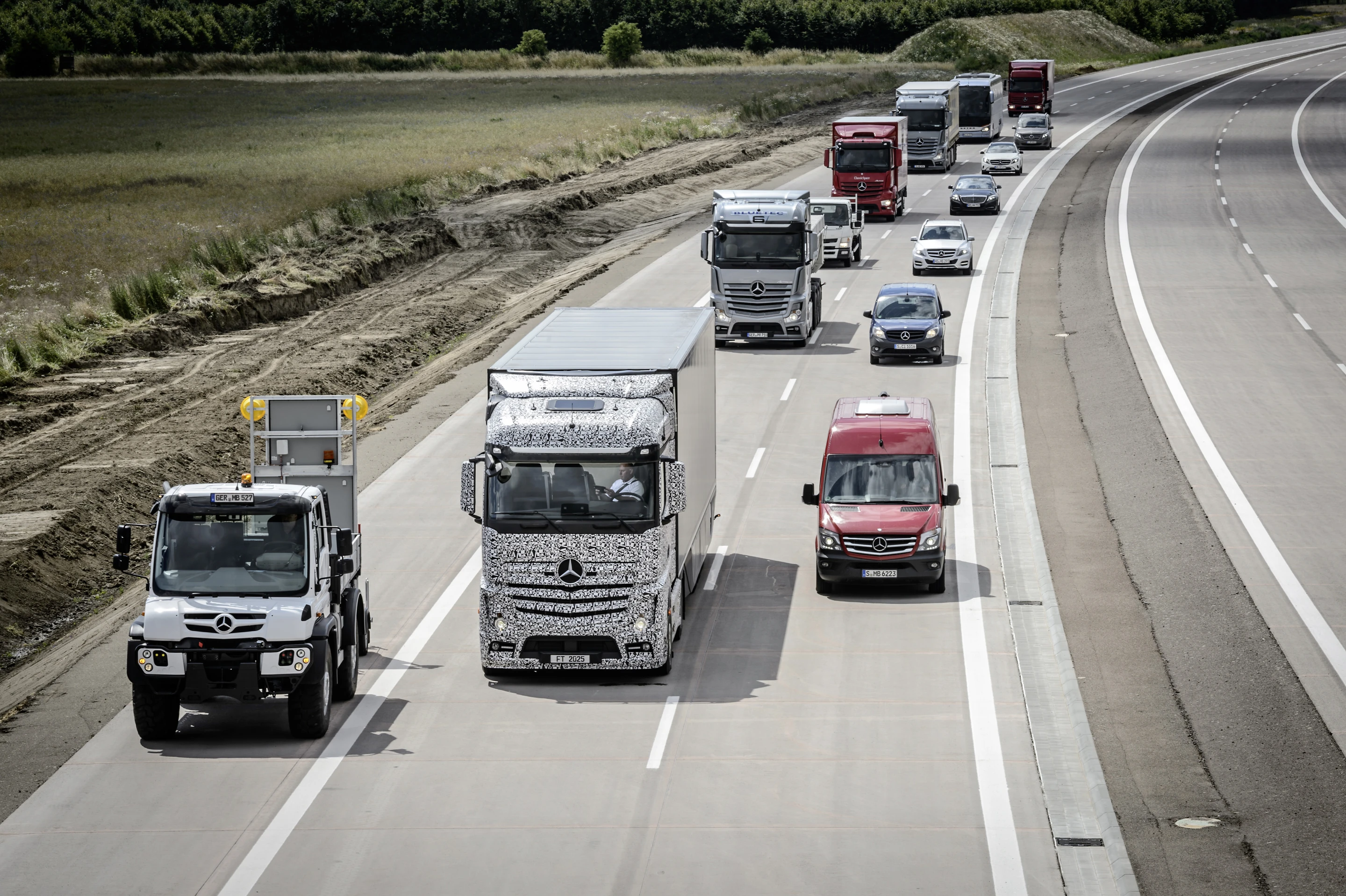

The Daimler autonomous truck uses radar and cameras to assess road situations
7/25
The Daimler autonomous truck uses radar and cameras to assess road situations

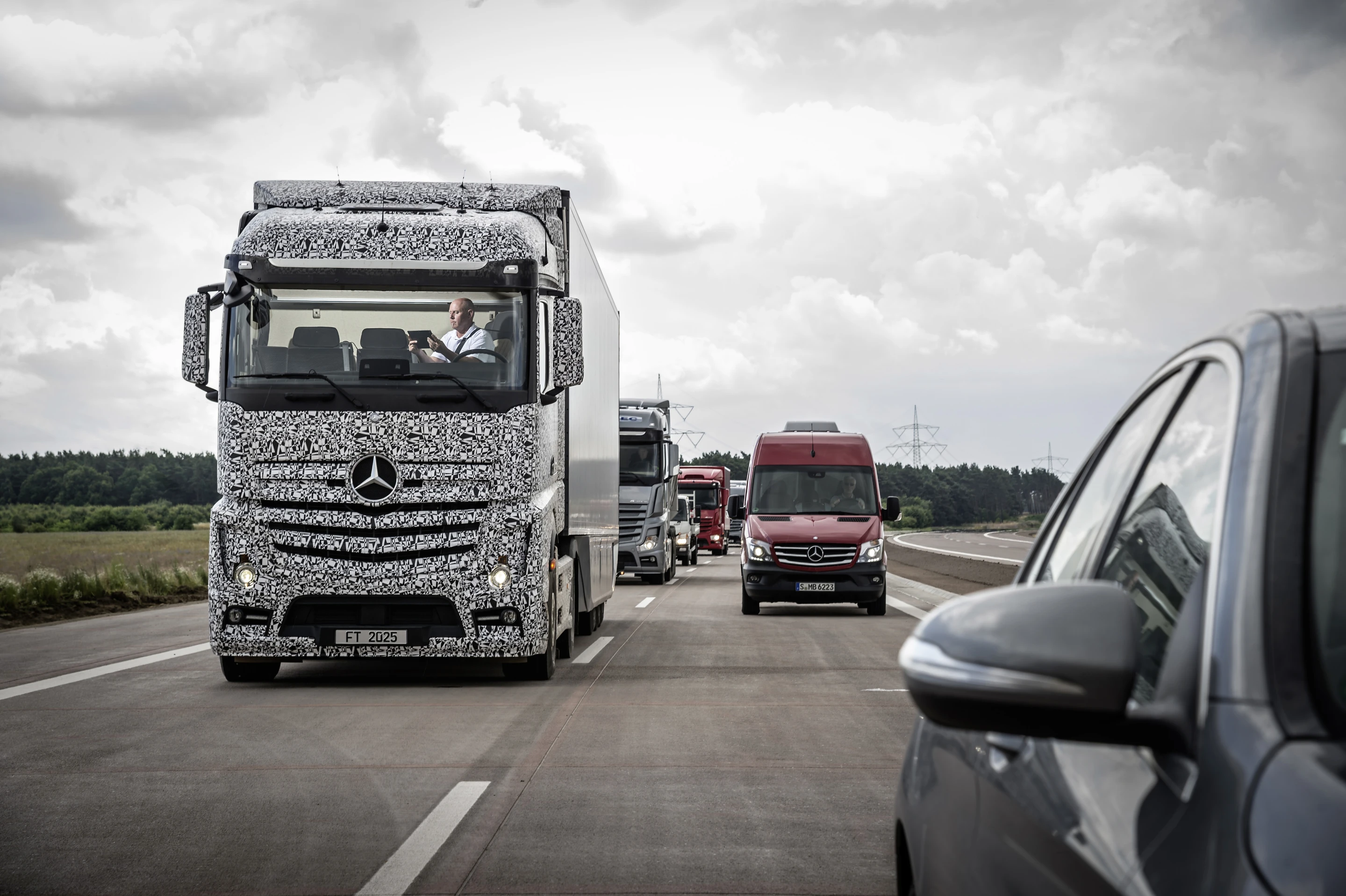

The Daimler autonomous truck has wireless communications
8/25
The Daimler autonomous truck has wireless communications

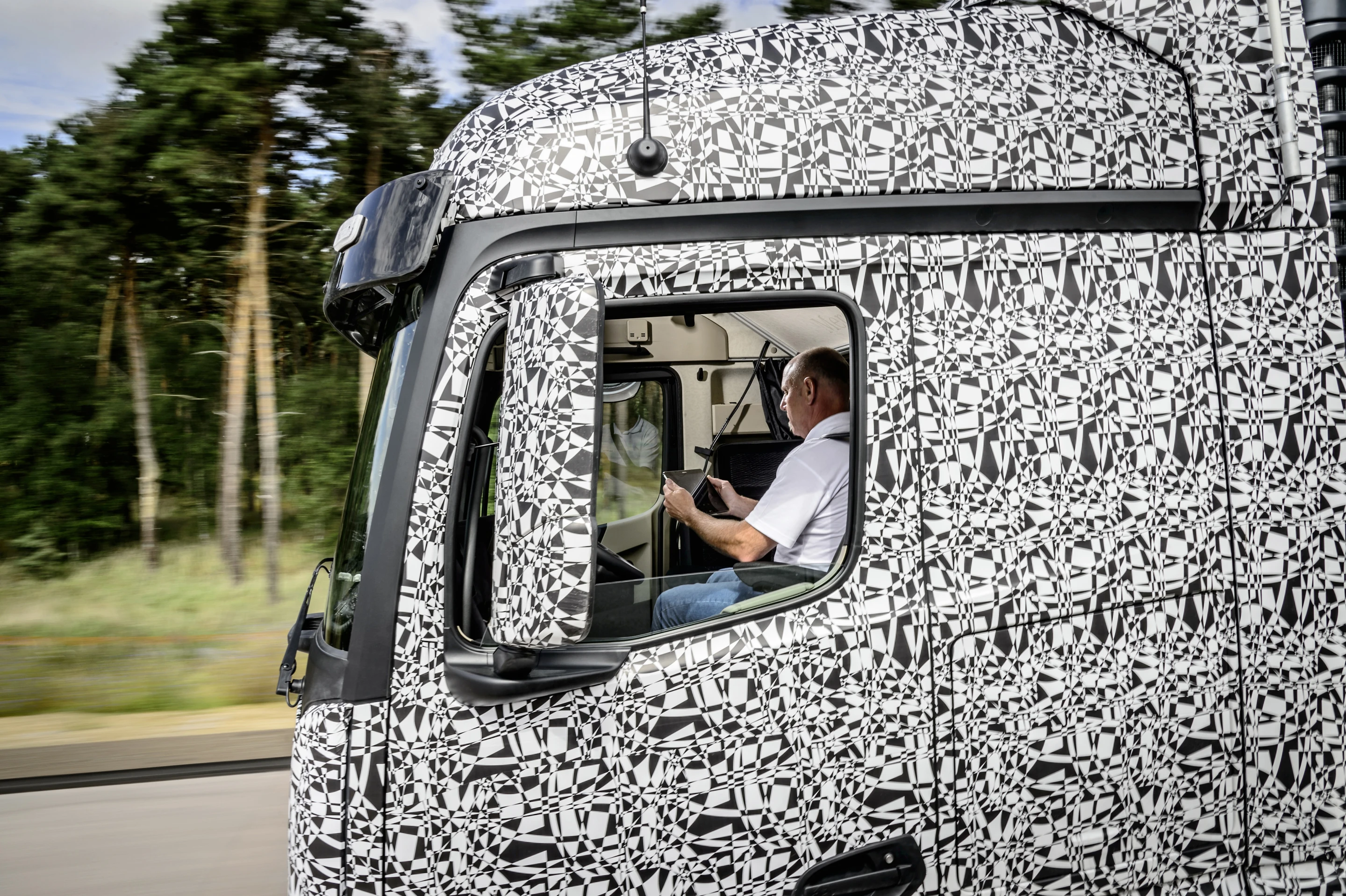

The Daimler autonomous truck
9/25
The Daimler autonomous truck

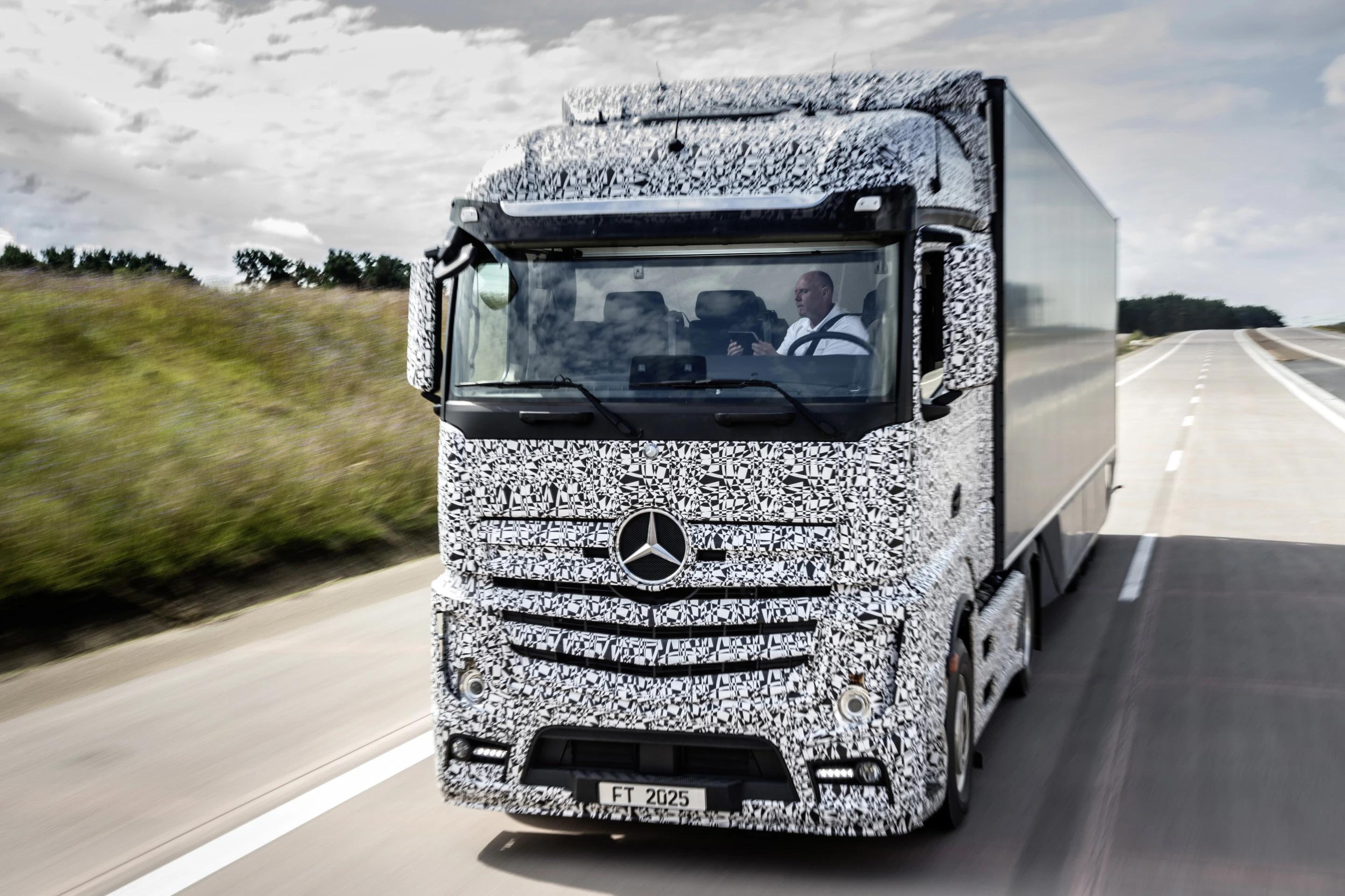

The Daimler autonomous truck is based on technology developed for passenger cars
10/25
The Daimler autonomous truck is based on technology developed for passenger cars

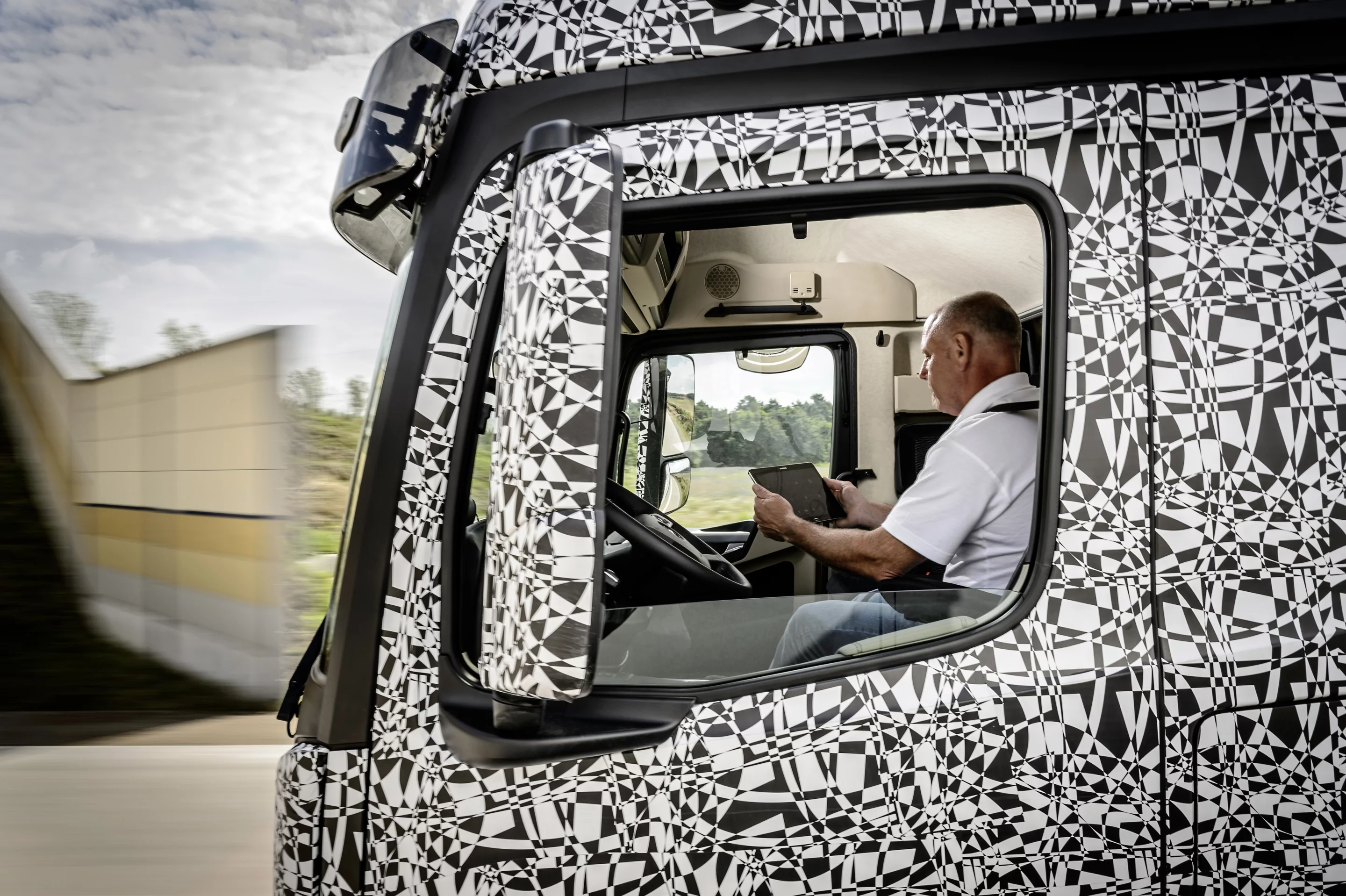

The Daimler autonomous truck makes drivers into managers
11/25
The Daimler autonomous truck makes drivers into managers

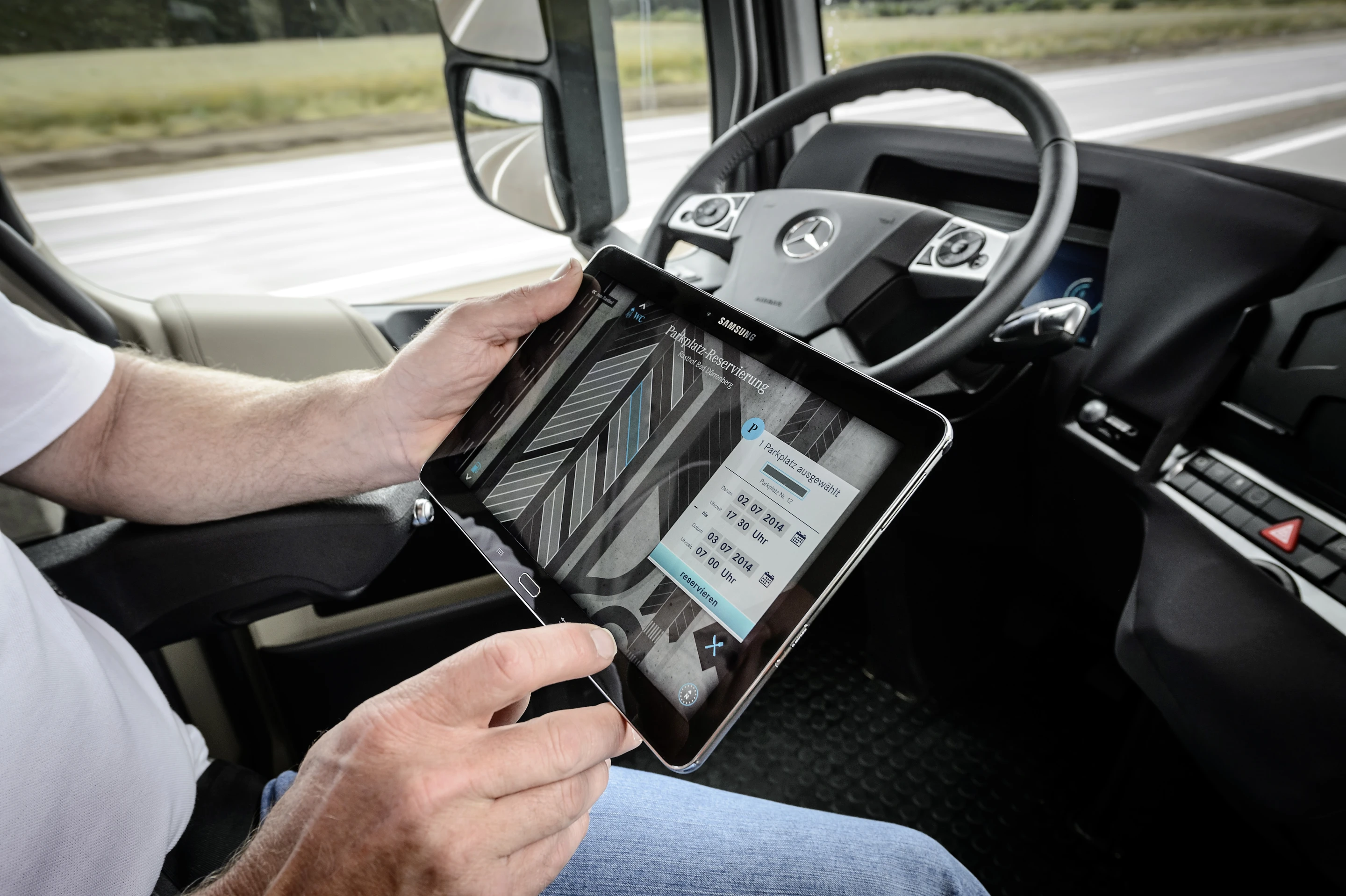

The Daimler autonomous truck can be controlled by a tablet
12/25
The Daimler autonomous truck can be controlled by a tablet
The Daimler autonomous truck allows the driver to relax or carry out other tasks
13/25
The Daimler autonomous truck allows the driver to relax or carry out other tasks

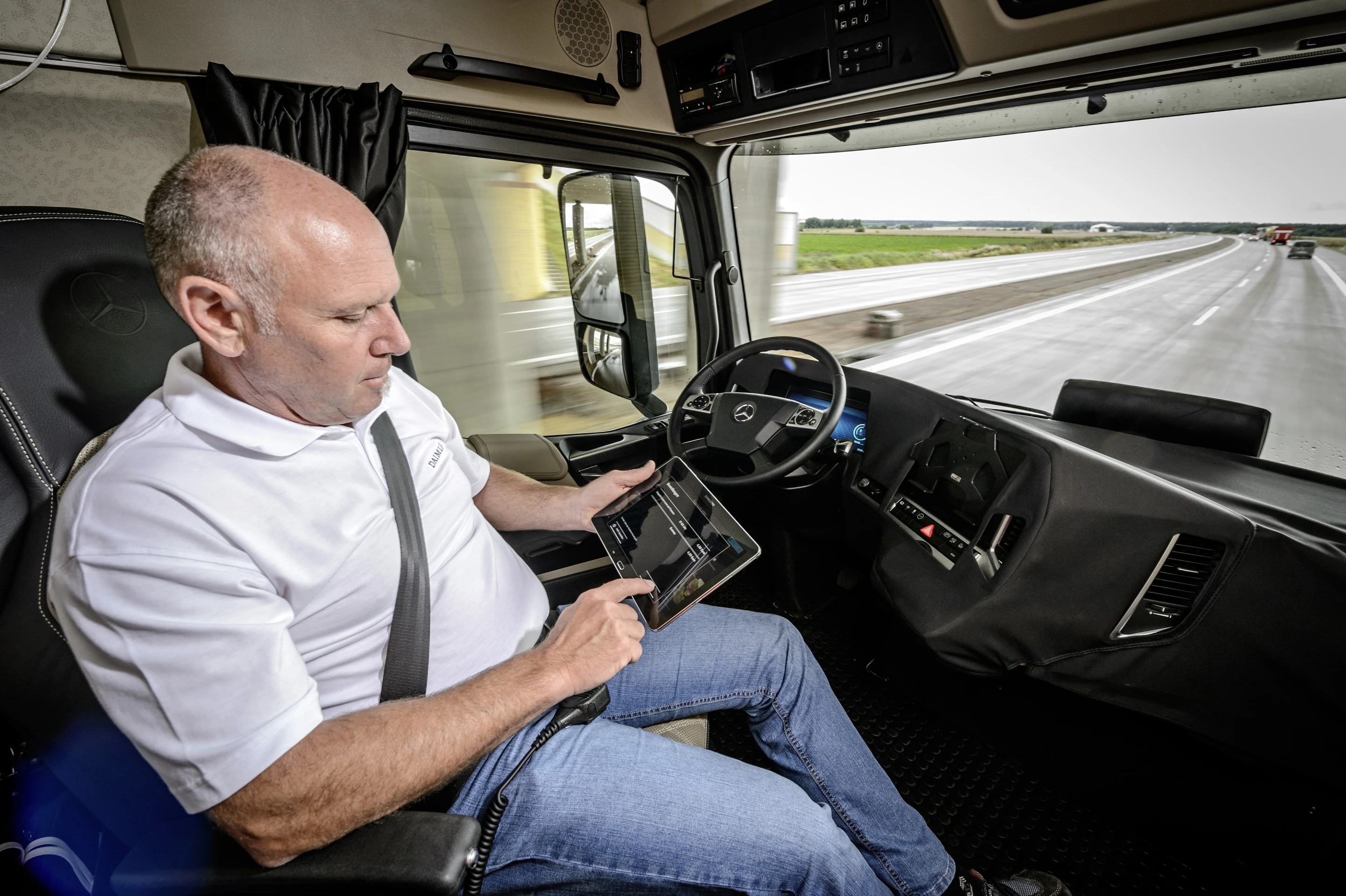

The Daimler autonomous truck uses the tablet to inform the driver
14/25
The Daimler autonomous truck uses the tablet to inform the driver

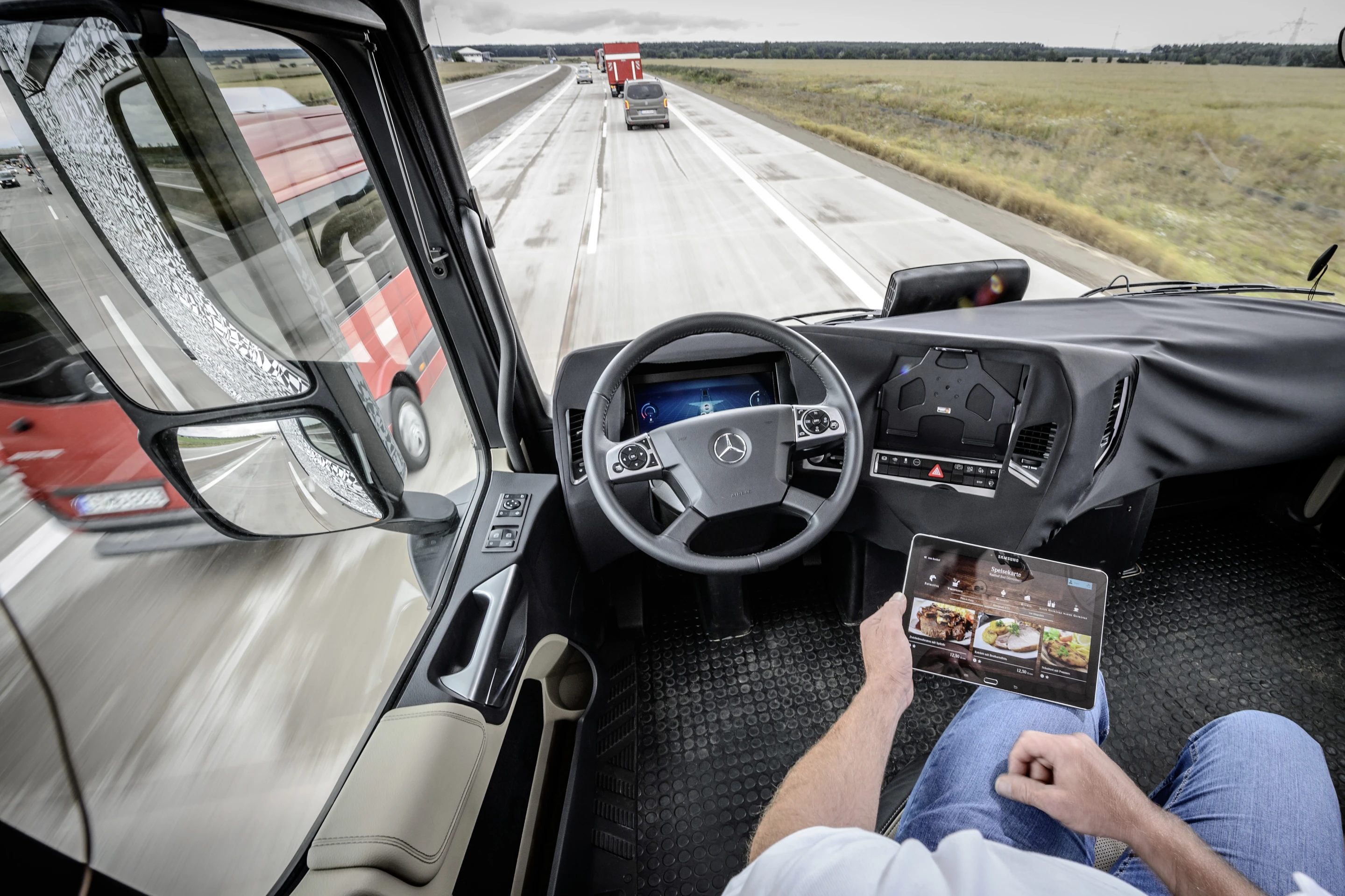

The Daimler autonomous truck in self-driving mode
15/25
The Daimler autonomous truck in self-driving mode

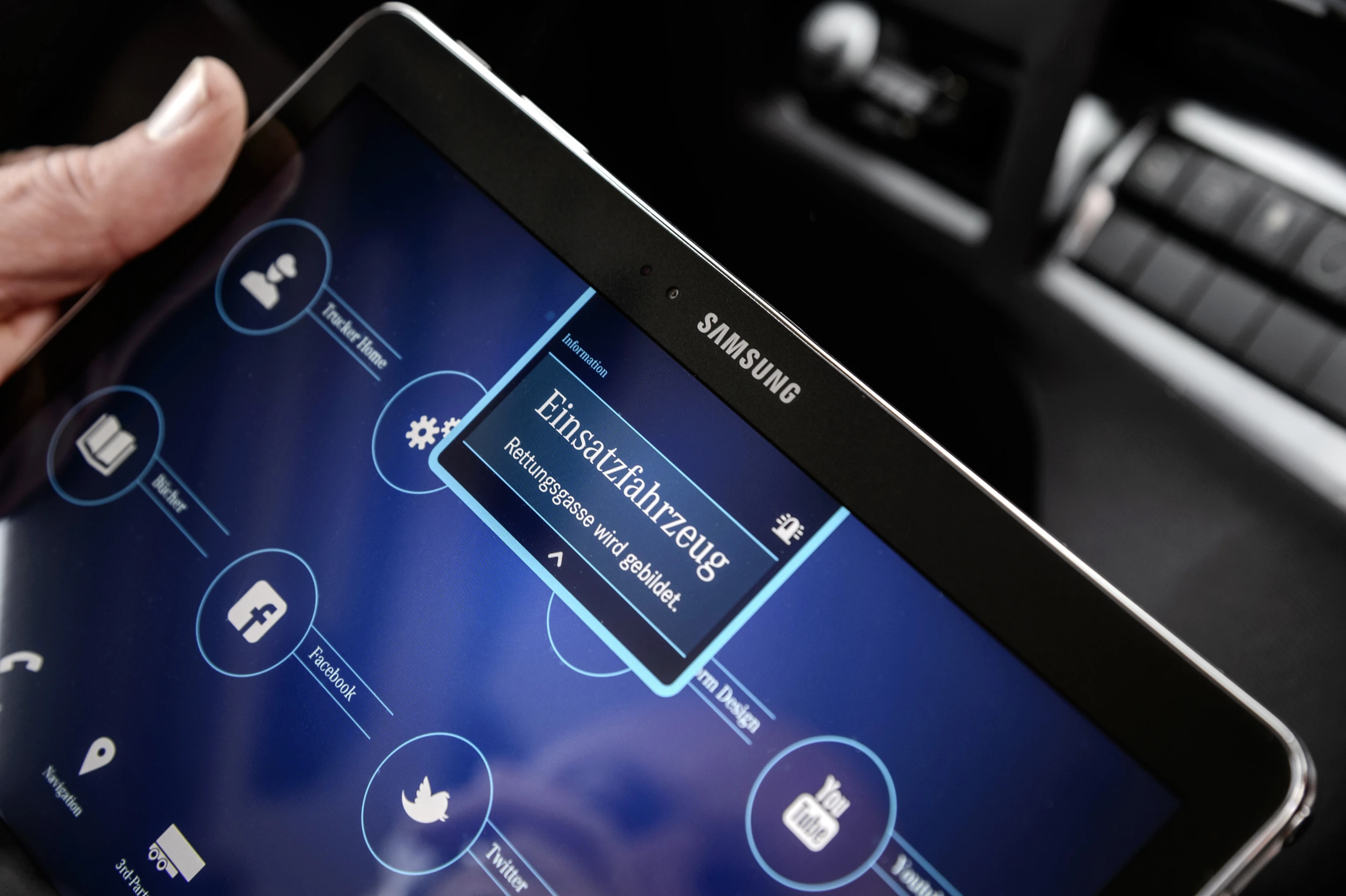

The Daimler autonomous truck tablet showing monitoring app
16/25
The Daimler autonomous truck tablet showing monitoring app

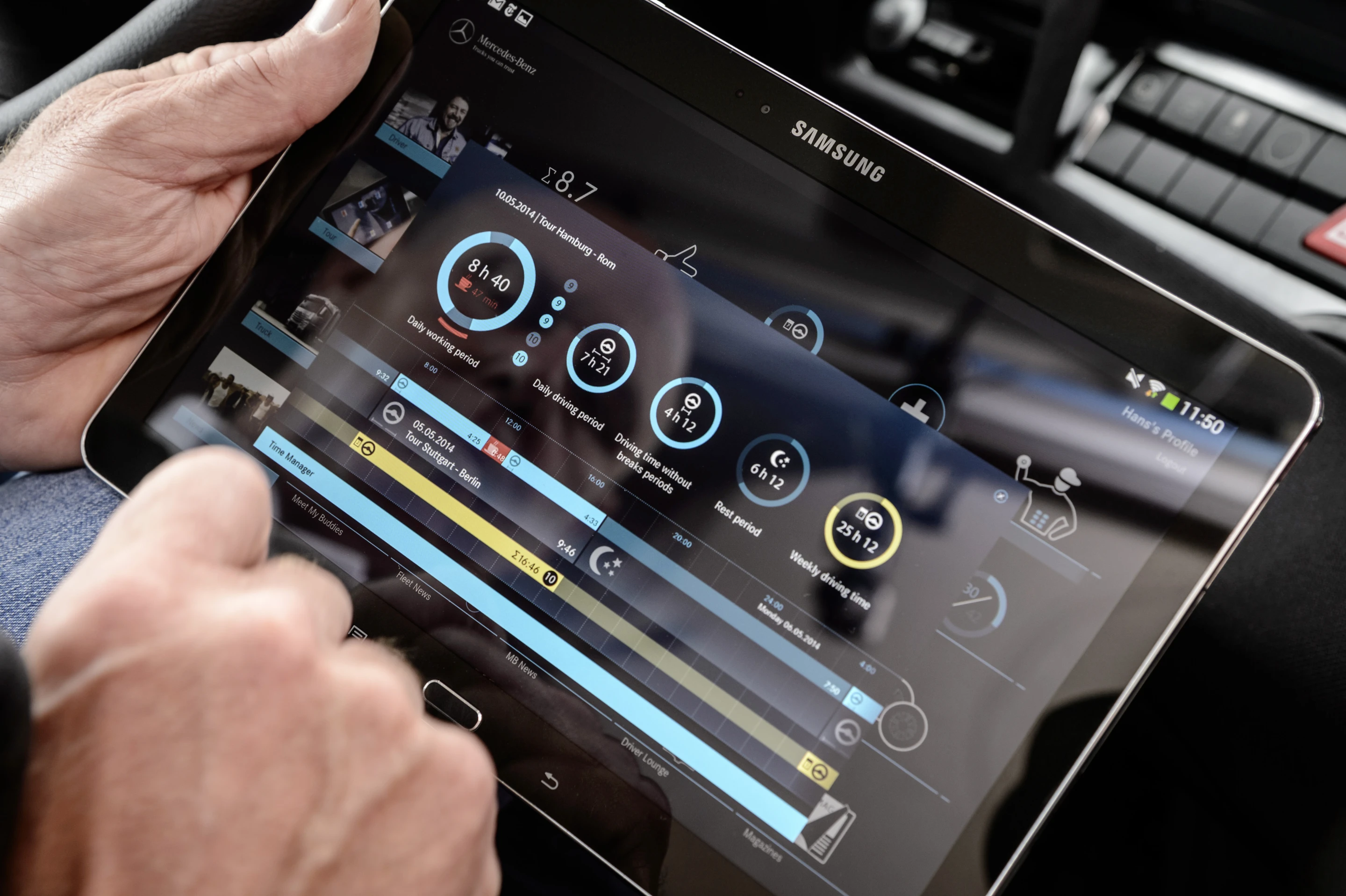

The Daimler autonomous truck is designed to cut costs
17/25
The Daimler autonomous truck is designed to cut costs

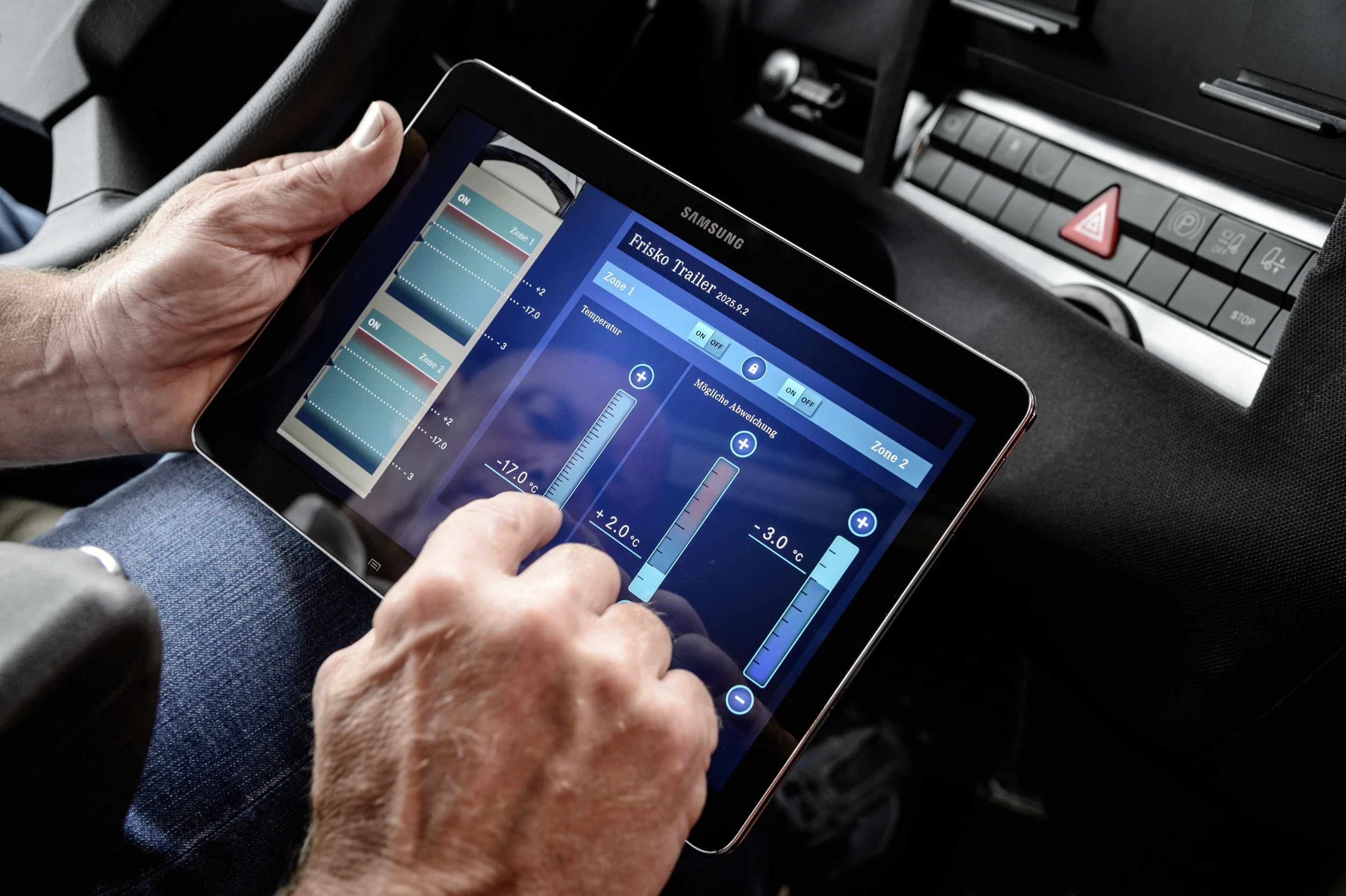

The Daimler autonomous truck tablet controls vehicle systems
18/25
The Daimler autonomous truck tablet controls vehicle systems

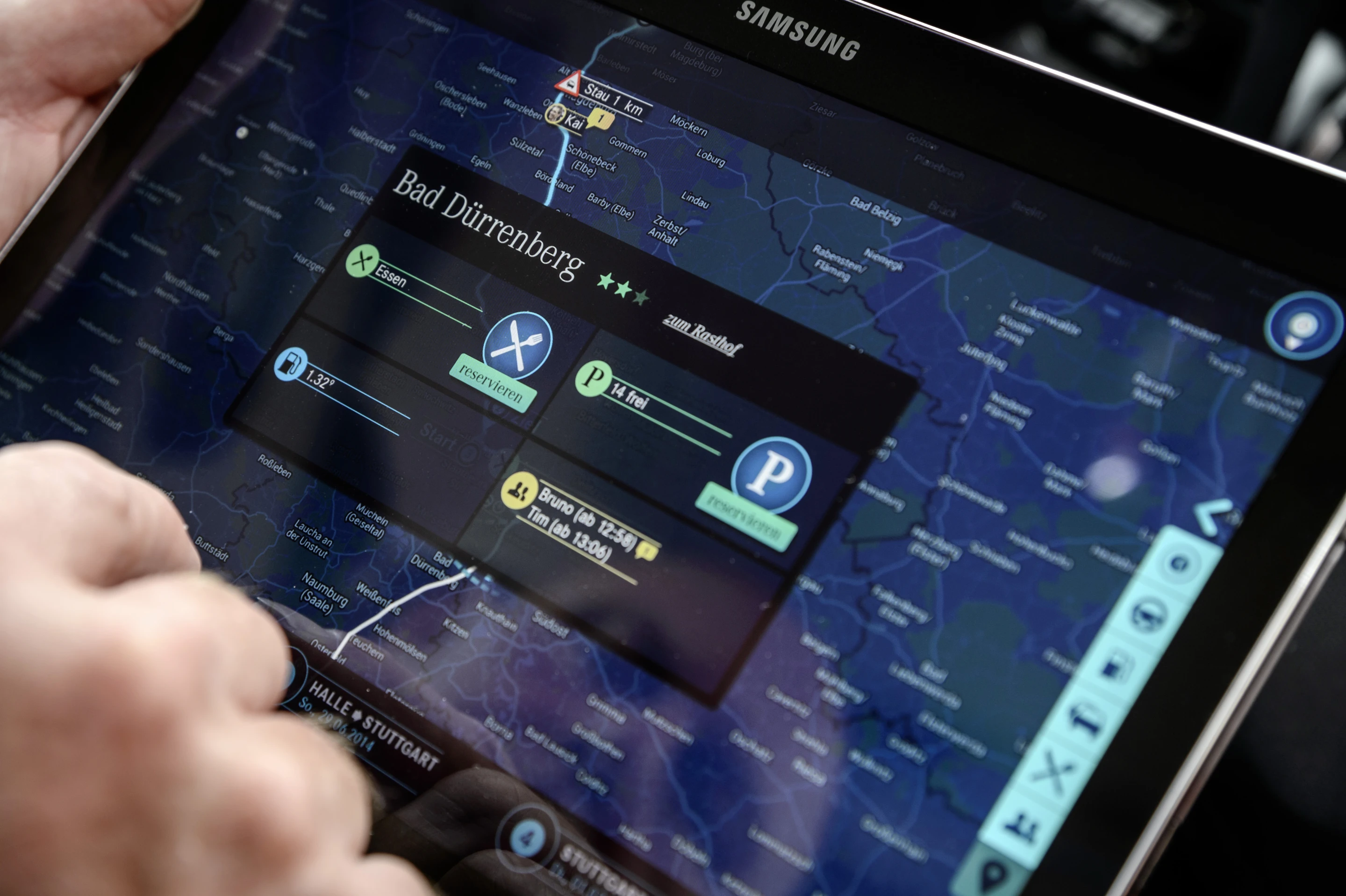

The Daimler autonomous truck tablet monitors navigation
19/25
The Daimler autonomous truck tablet monitors navigation

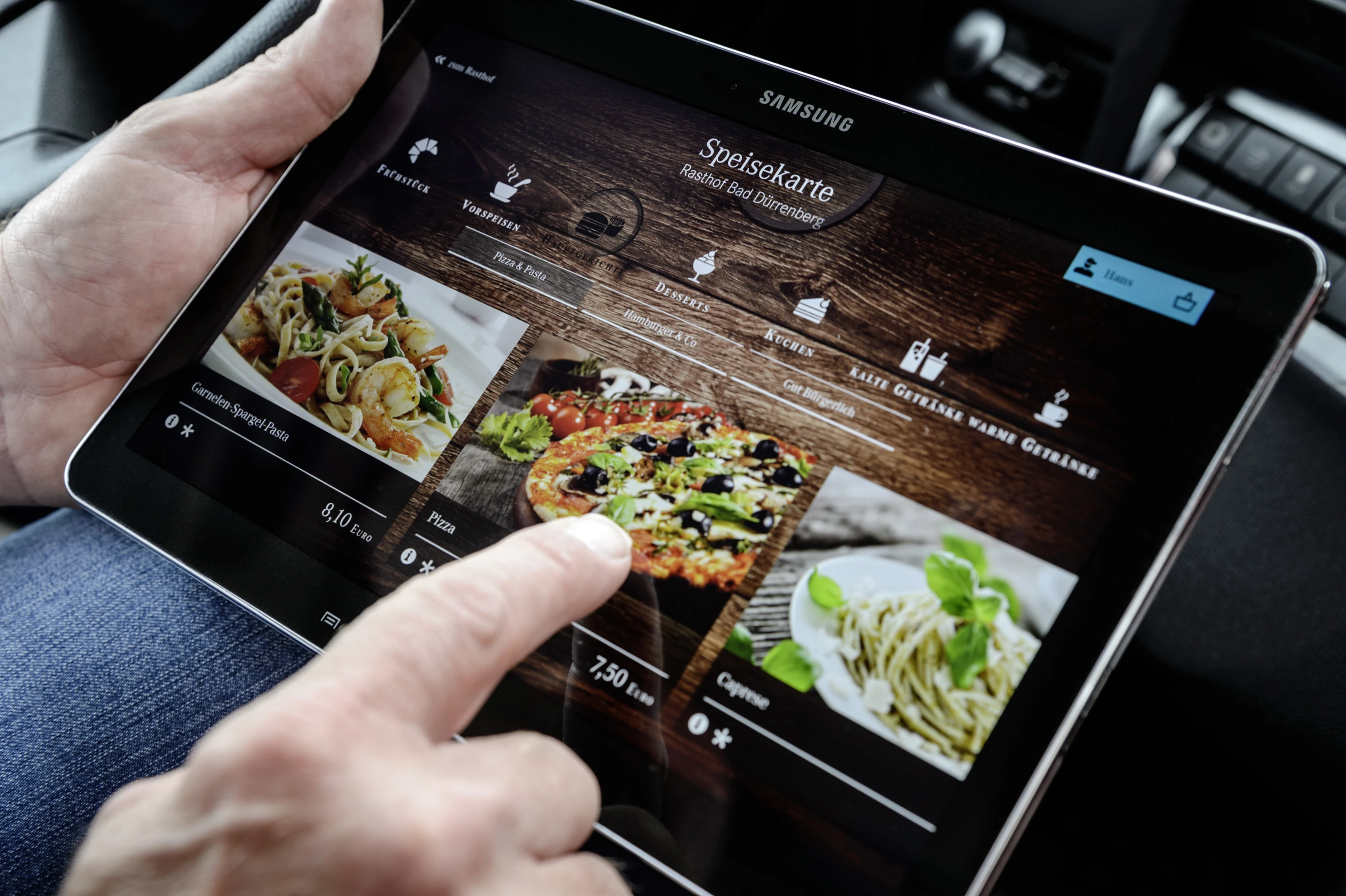

Ordering food from the tablet
20/25
Ordering food from the tablet

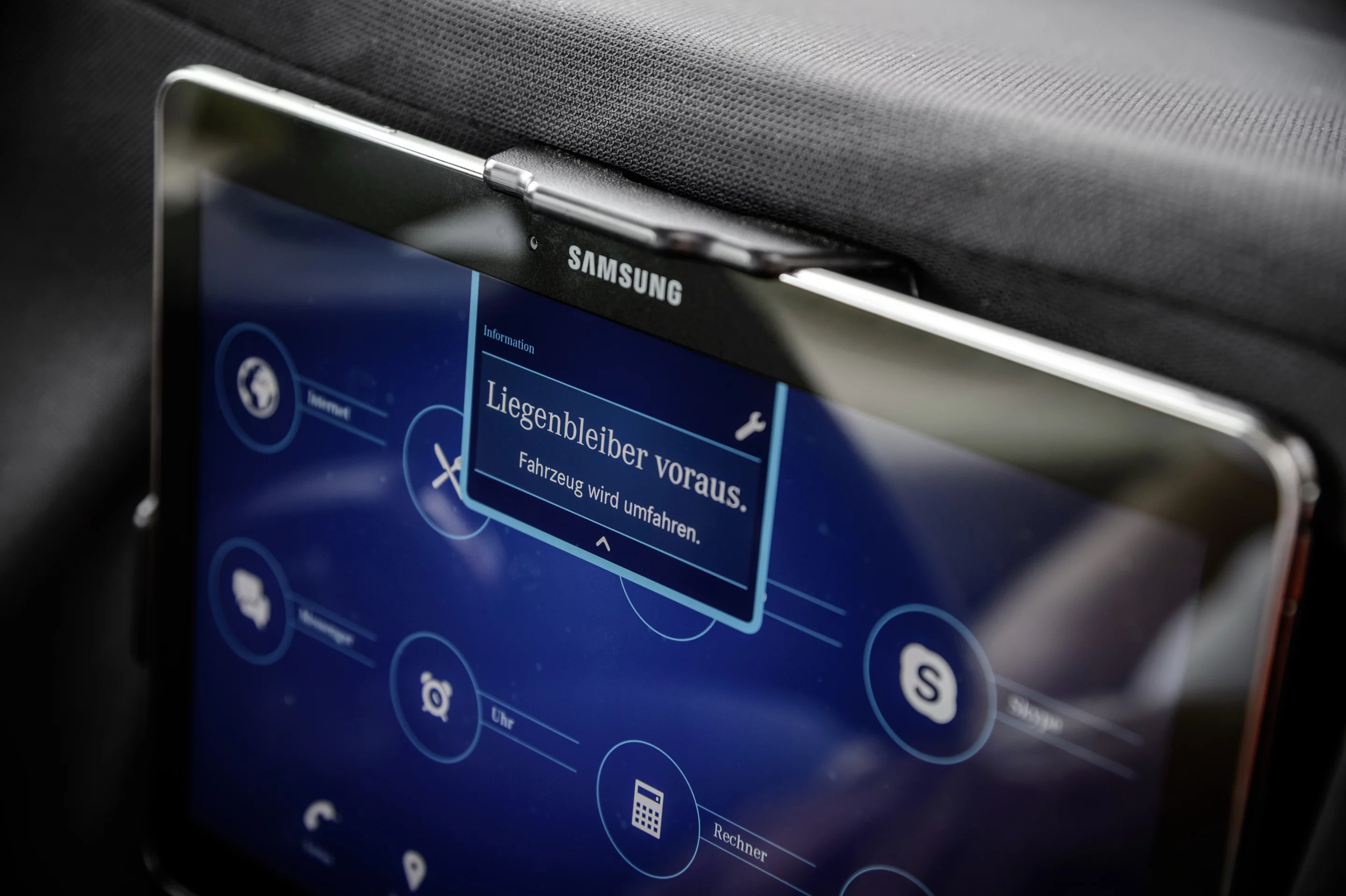

Tablet menu
21/25
Tablet menu
Diagram of the Highway Pilot system in operation
22/25
Diagram of the Highway Pilot system in operation

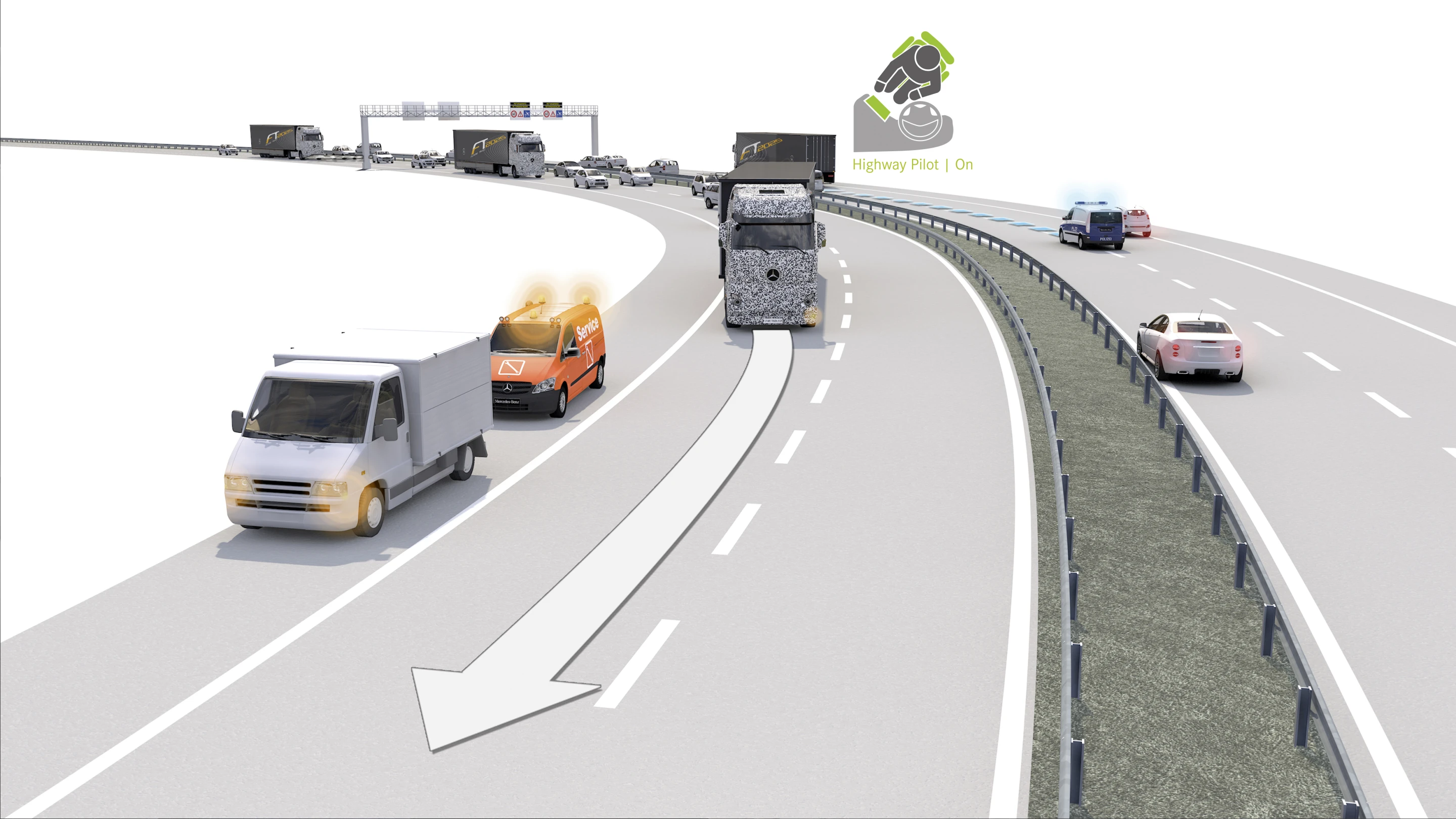

Diagram of the Highway Pilot system initiating a passing maneuver
23/25
Diagram of the Highway Pilot system initiating a passing maneuver

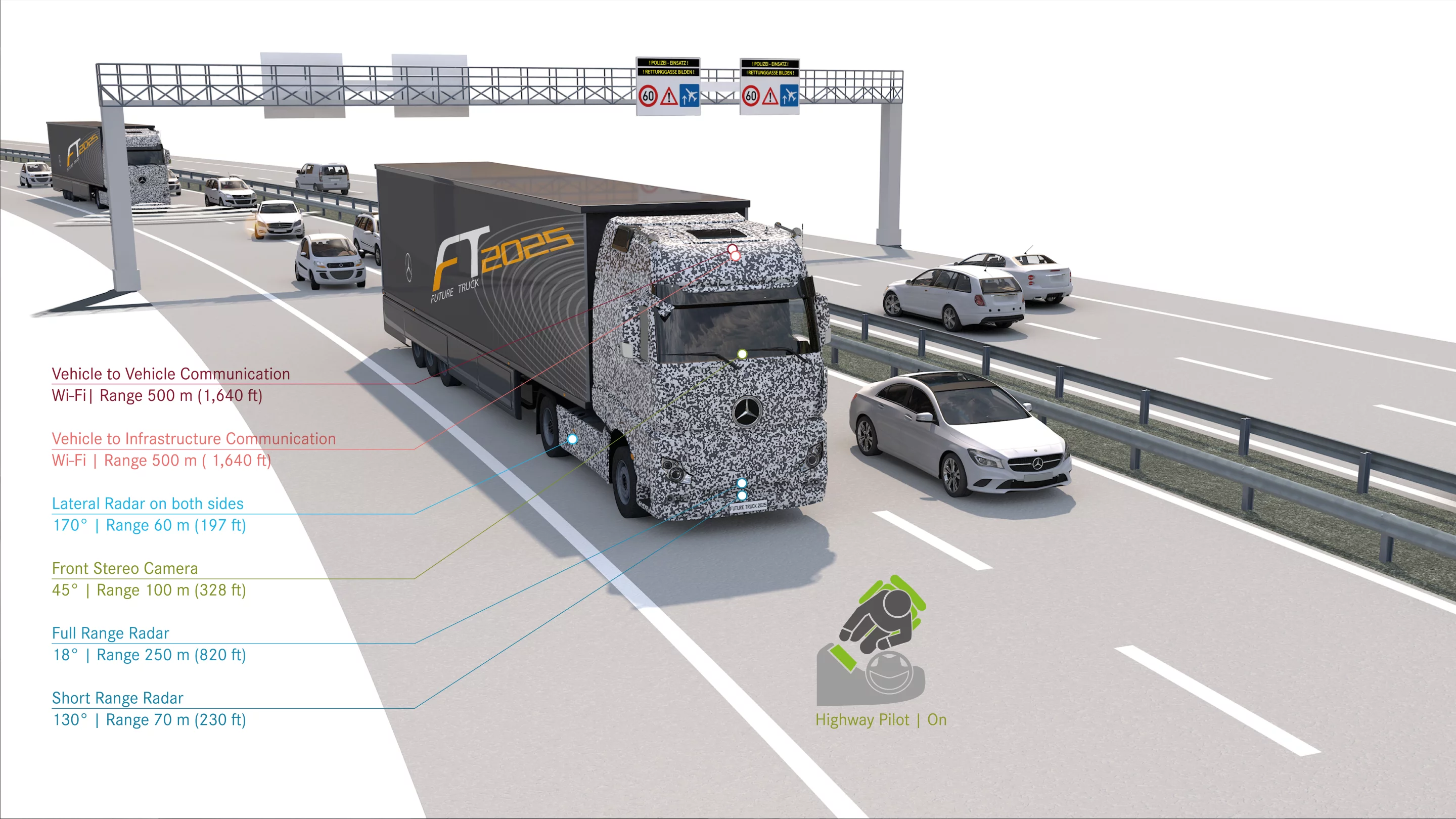

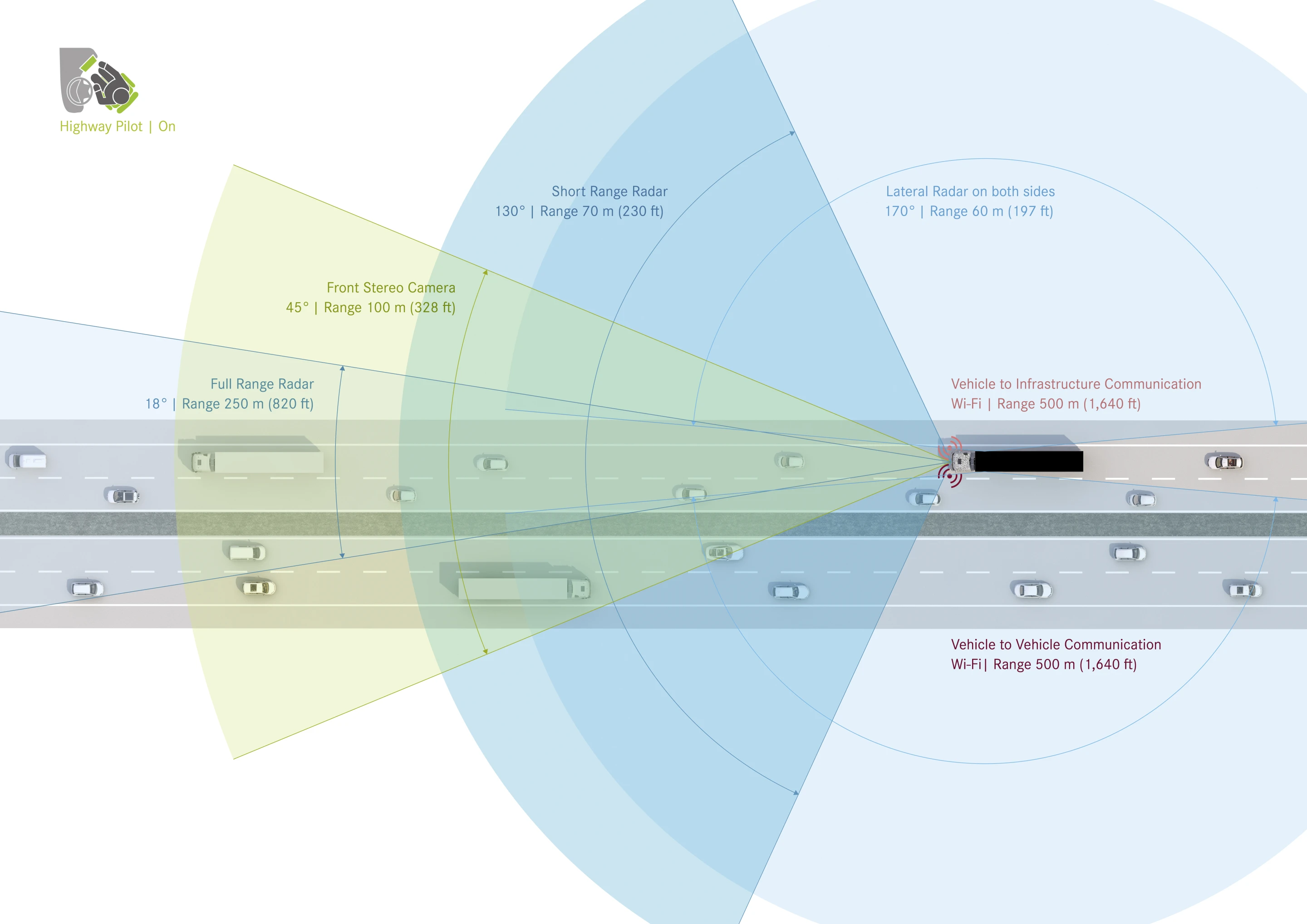

Diagram of the Highway Pilot system sensors
24/25
Diagram of the Highway Pilot system sensors
Diagram of the Highway Pilot system sensors
25/25
Diagram of the Highway Pilot system sensors

Self-driving cars are the next big thing, but with all the talk of sipping latte and reading the morning paper while our cars drive us to work, it's easy to forget about the huge impact this technology will have on other road transport segments such as freight distribution. As part of the Mercedes-Benz Future Truck 2025 program, Daimler Trucks has taken the most advanced of its autonomous trucks for a spin on a section of the A14 autobahn near Magdeburg, Germany. Daimler says the vehicle drove itself in "completely realistic driving situations" in front of the media, government officials, business representatives, market analysts, and investors.

According to a study commissioned by Daimler, between 2008 and 2025 the EU will see a 20 percent increase in freight traffic, with trucks carrying 70 percent of road freight. During this time, fuel prices and road tolls will rise, government regulations will increase, and experienced drivers will be at a premium. Daimler sees the key to the future in reducing costs by means of autonomous systems, such as the Future Truck 2025, which aims at making safer, greener, and more efficient robotic trucks that are also more attractive to prospective drivers.

The core of Future Truck 2025 is Daimler’s Highway Pilot system, which is an autonomous driving system designed for production vehicles. Based on Mercedes Benz’s previous work on driver assist and autonomous systems for upmarket passenger cars, it allows trucks to operate with complete autonomy on public roads at speeds up to 53 mph (85 km/h).

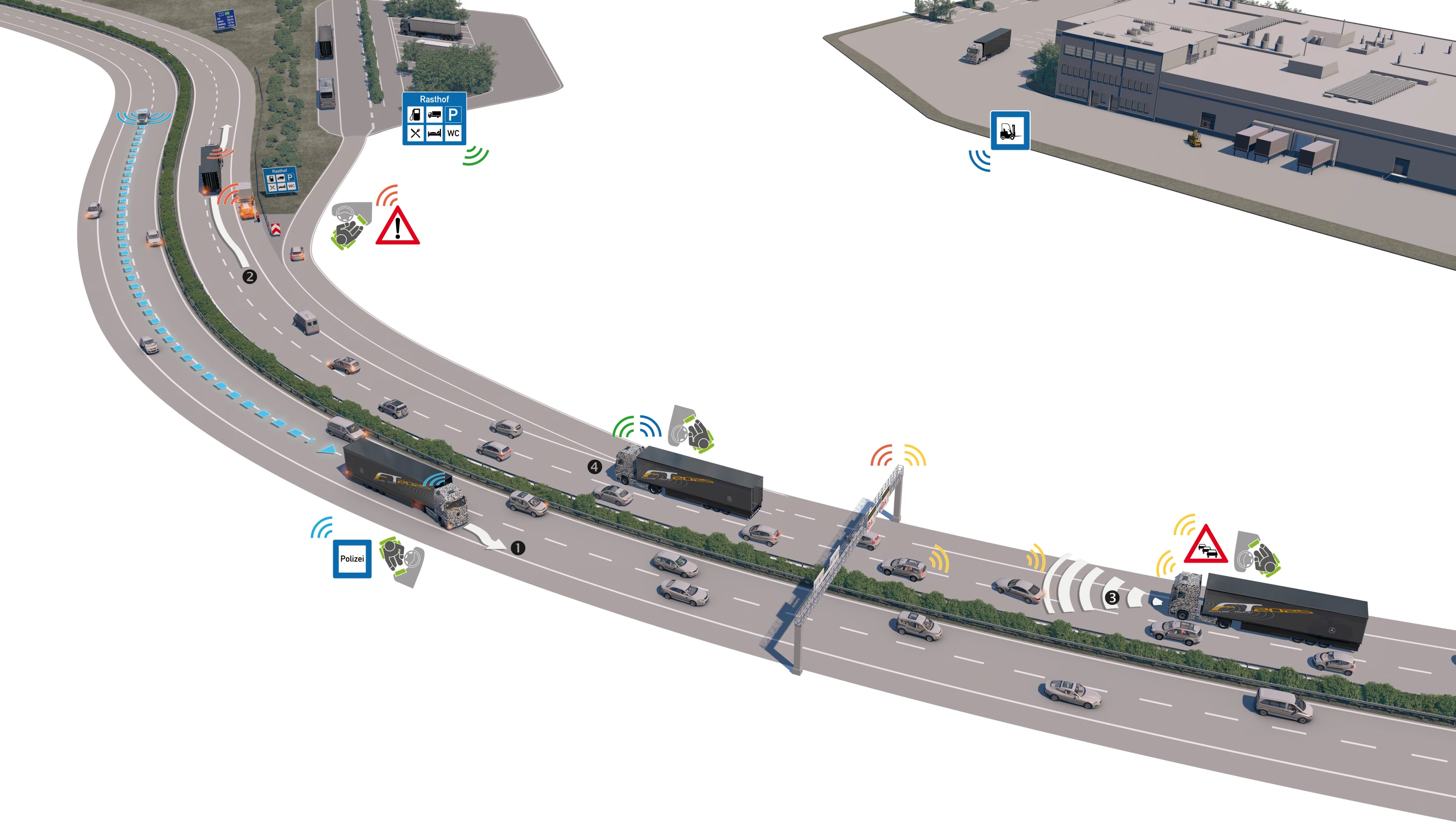

Diagram of the Highway Pilot system in operation
Diagram of the Highway Pilot system in operation

The system uses four radar sensors and a 3D camera to assess the area within 60 m (200 ft) of the lorry, with wireless connections to other vehicles and the road infrastructure providing additional information. This, along with traffic and topographic data, allow the vehicle to operate autonomously when the driver passes over control to the system. This allows the driver to relax or work on other tasks while the system provides updates on a touchscreen tablet.

Daimler sees an advanced version of the system in service by 2025, when it could serve to increase traffic flow as vehicles communicate with one another; reducing accidents and traffic jams. It would work by coordinating acceleration and braking, reducing spacing intervals, and eliminating human error. The company says that this would produce savings not only in operation, but in insurance premiums as well. It would also allow drivers to act more like managers, making the position more attractive and improving chances of promotion.

“If the legislative framework for autonomous driving can be created quickly, the launch of the Highway Pilot is conceivable by the middle of the next decade,” says Dr. Wolfgang Bernhard, the member of Daimler’s Board of Management responsible for Daimler Trucks and Buses. “That’s why Daimler Trucks is committed to maintain a dialogue with government officials and authorities, and with all other parties affected by this development. We believe the chances of success are good, because autonomous driving combines the ability to achieve business and technology objectives with the creation of benefits for society and the environment.”

Source: Daimler
