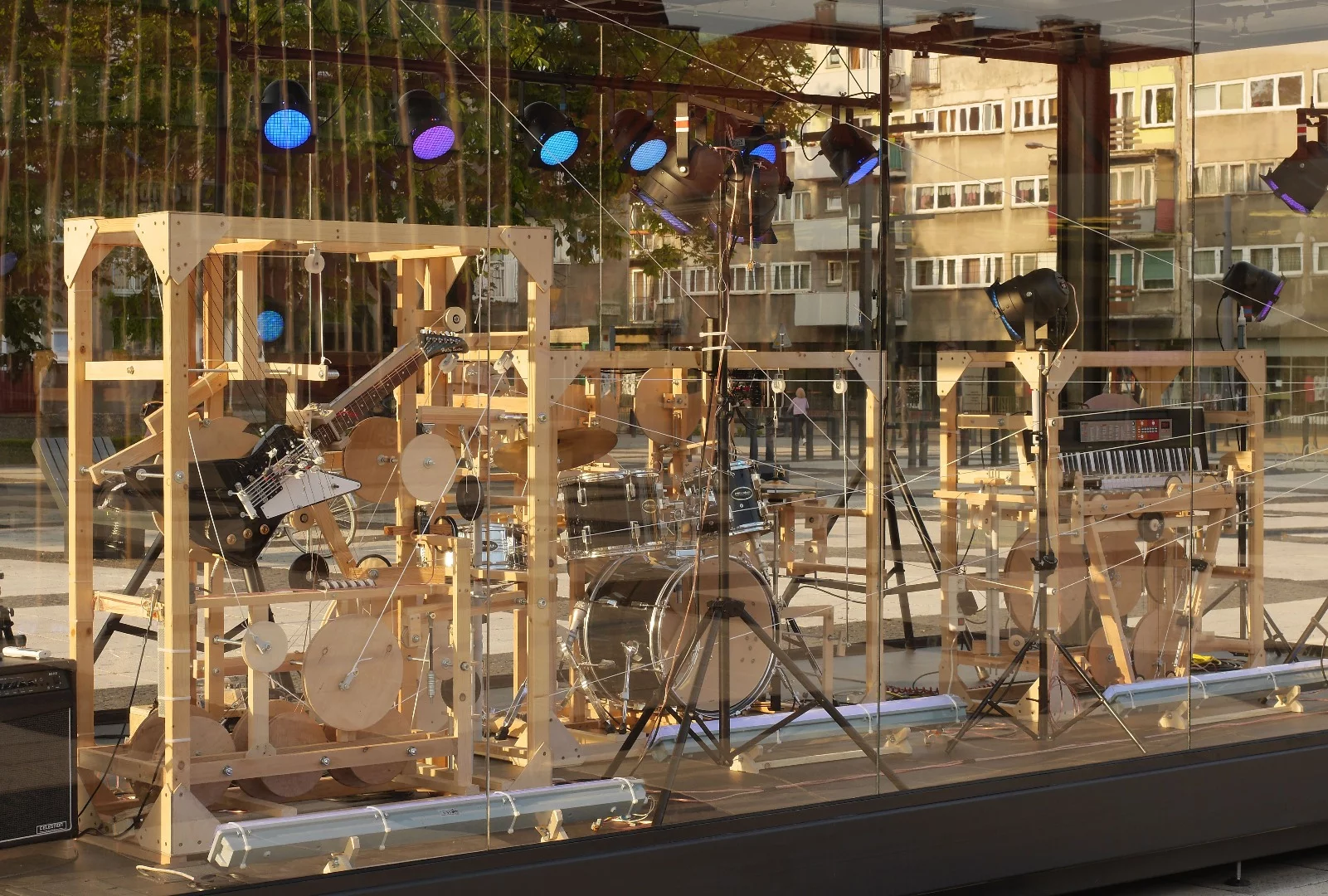

The Music Construction Machine is made up of three instruments, each housed in their own wooden cage
6/16
The Music Construction Machine is made up of three instruments, each housed in their own wooden cage

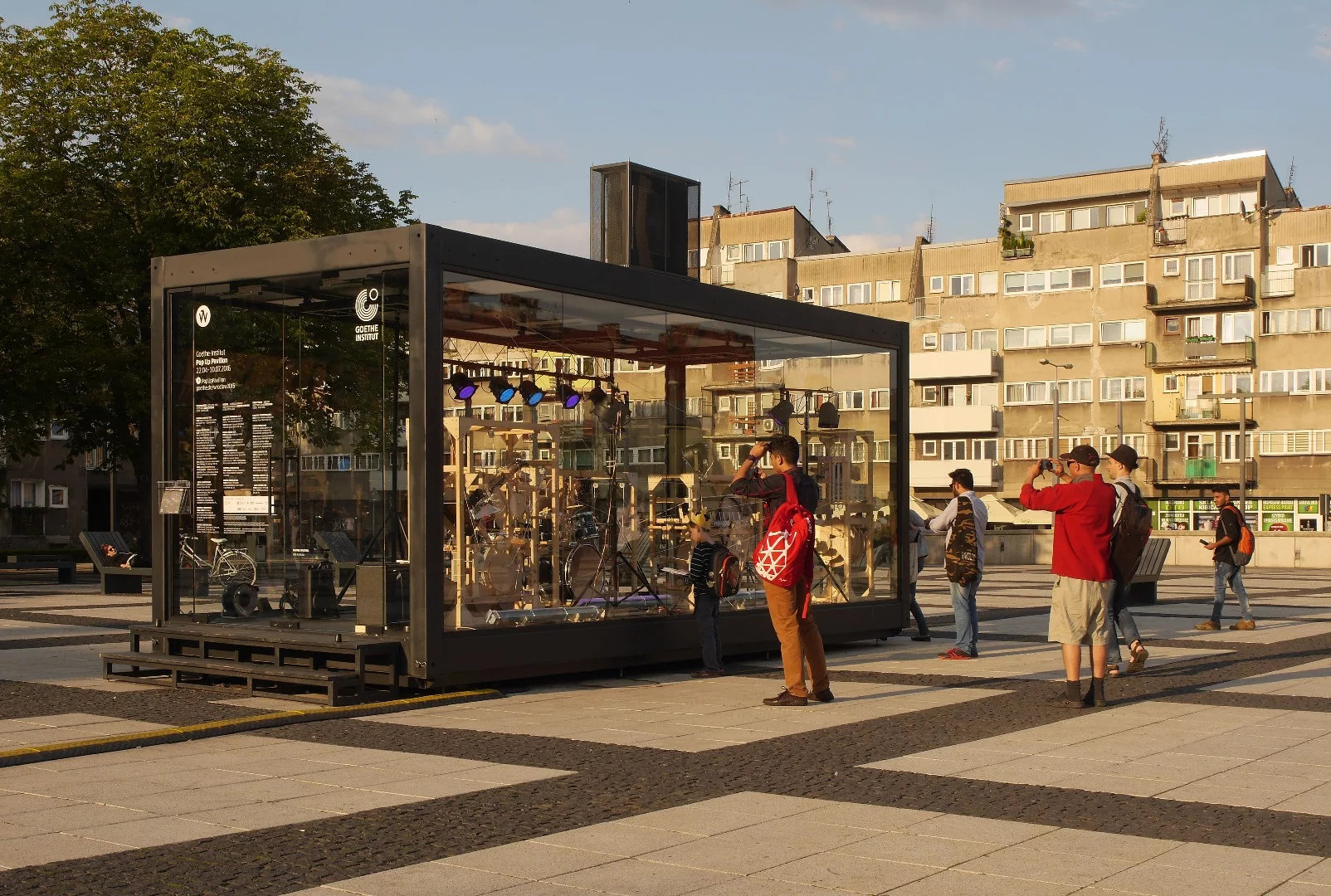

The Music Construction Machine looks better than it sounds
7/16
The Music Construction Machine looks better than it sounds
As the sun goes down, the inside of the glass case is brought to life thanks to donated lighting
8/16
As the sun goes down, the inside of the glass case is brought to life thanks to donated lighting
Taking stage center in the installation is a full acoustic drum kit, with toms, a snare, cymbals and a kick drum
9/16
Taking stage center in the installation is a full acoustic drum kit, with toms, a snare, cymbals and a kick drum
Pulleys are said to produce two different sinewave oscillations which drive the mechanisms and move a pair of "hands" mounted to carriages
10/16
Pulleys are said to produce two different sinewave oscillations which drive the mechanisms and move a pair of "hands" mounted to carriages
The Music Construction Machine was installed in the Goethe-Institut Pop Up Pavillion in Wroclaw, Poland
11/16
The Music Construction Machine was installed in the Goethe-Institut Pop Up Pavillion in Wroclaw, Poland

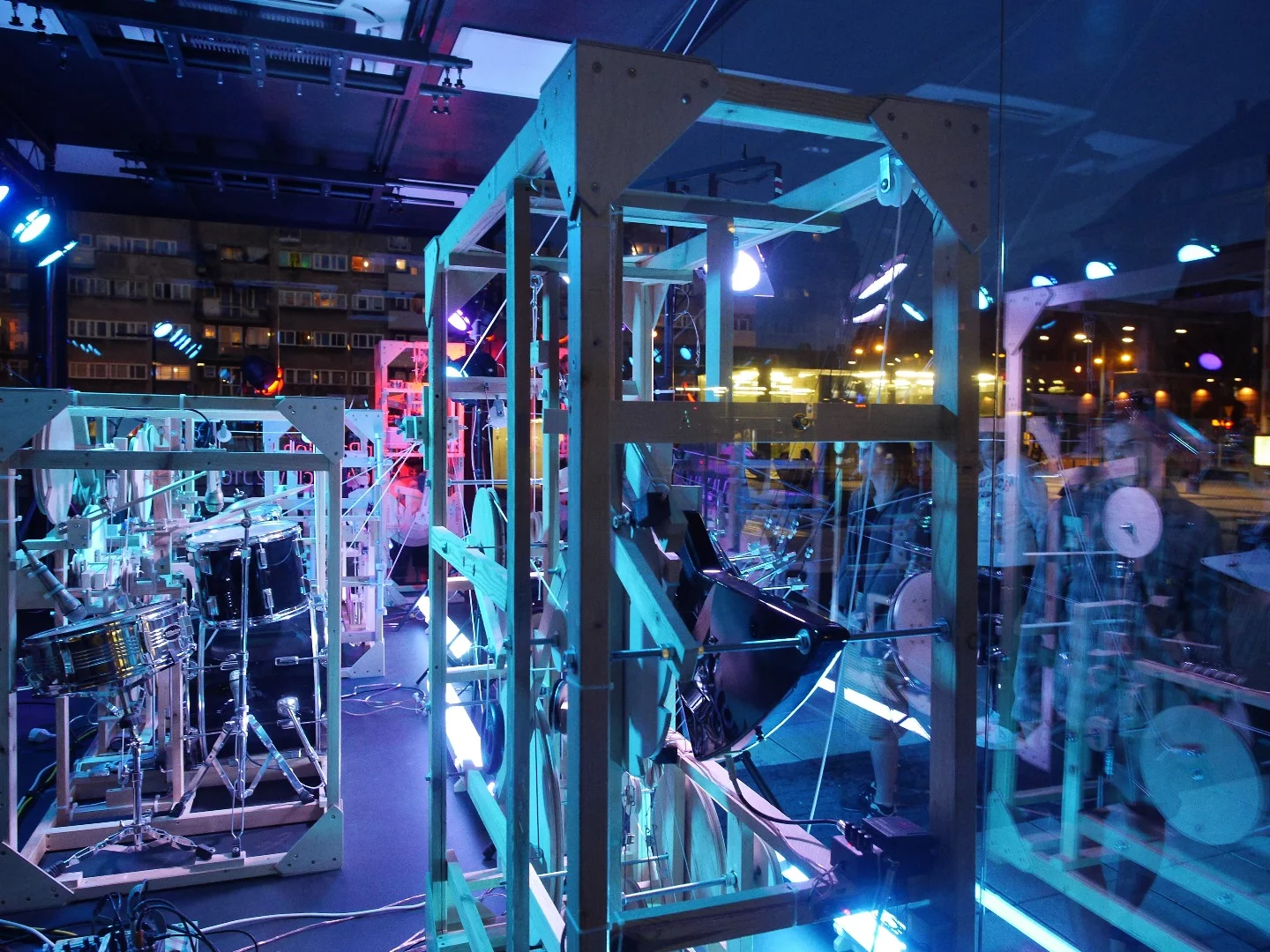

The band in a box makes use of real instruments to play constantly changing tunes
12/16
The band in a box makes use of real instruments to play constantly changing tunes
The Music Construction Machine looks mighty impressive, but sounds pretty awful
13/16
The Music Construction Machine looks mighty impressive, but sounds pretty awful
Across the neck is a steel bar that slides up and down to fret a note picked by one or more mechanical "fingers"
14/16
Across the neck is a steel bar that slides up and down to fret a note picked by one or more mechanical "fingers"
The musical cacophony is activated by a huge hand crank to the right of the transparent glass case
15/16
The musical cacophony is activated by a huge hand crank to the right of the transparent glass case
A seemingly endless web of thin ropes activate pulleys, springs, weights and levers
16/16
A seemingly endless web of thin ropes activate pulleys, springs, weights and levers

If your idea of a music box is a tabletop tinkler where pins on a revolving cylinder pluck the teeth of a comb to produce chirpy tunes, think again. Niklas Roy's Music Construction Machine is a monster. This band in a box makes use of real instruments to play constantly changing tunes when the huge hand crank is turned. Though "tunes" is perhaps being a little generous.

Roy's creation is a sight to behold, just as mesmerizing as Martin Molin's Musical Marble Machine. It's made up of three instruments, each housed in their own wooden cage with wooden wheels and cogs placed in and around, and a seemingly endless web of thin ropes that activate pulleys, springs, weights and levers when a member of the public cranks the handle. The resulting sounds, though, are not so pleasant – being something like the caterwaul you might get if Sonic Youth got in a fight with a very drunk freeform jazz trio.

"As we all have different tastes in music, I decided to abandon the traditional concept of a music box, which would play a pre-programmed melody repeatedly," says Roy. "That would satisfy the musical taste of only a small fraction of the crankers and listeners. So instead, the music is generated by an algorithm, which is implemented entirely in mechanical hardware, and which iterates through all kinds of possible sequences of beats and tones."

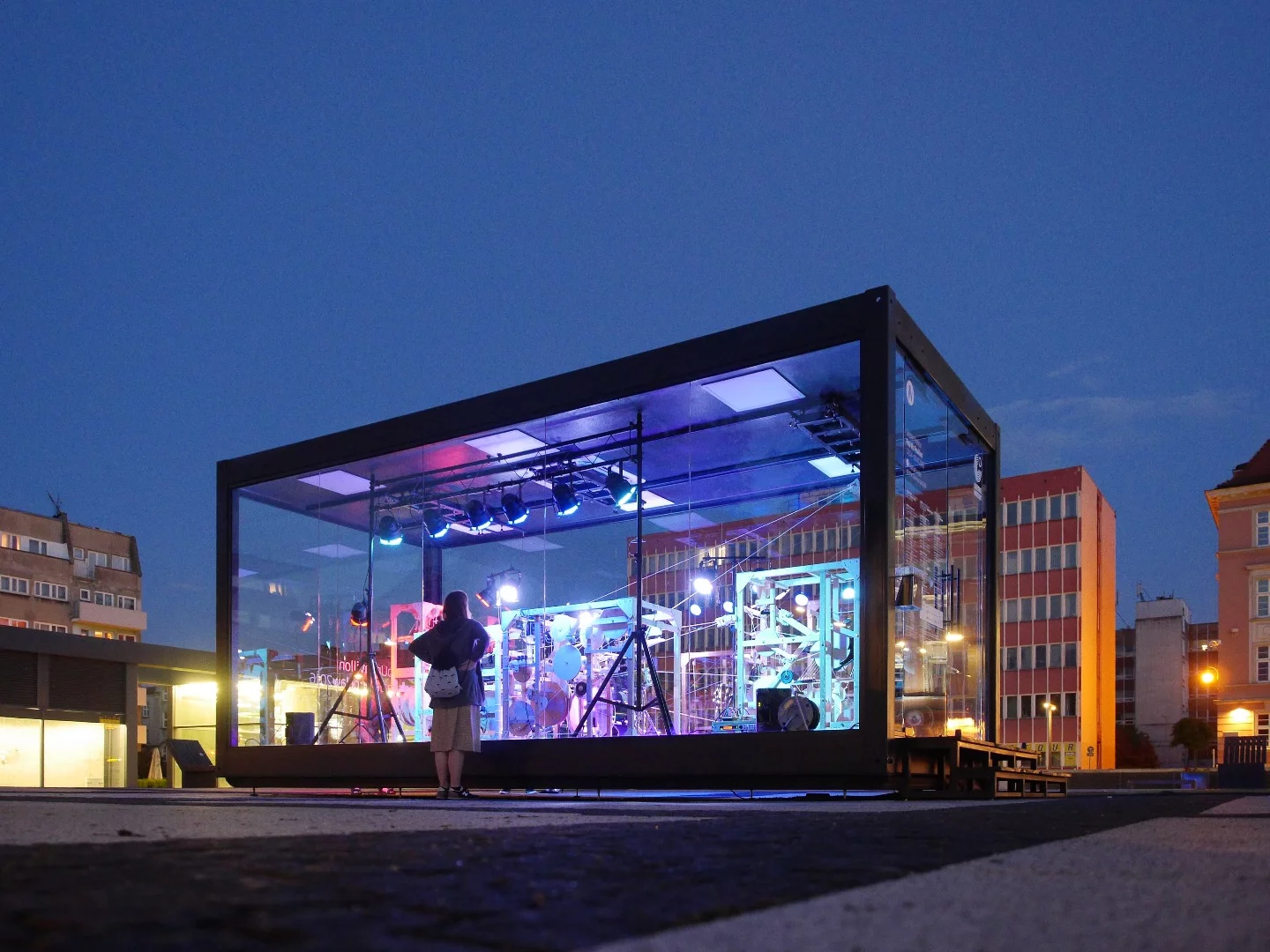

The Music Construction Machine looks mighty impressive, but sounds pretty awful
The Music Construction Machine looks mighty impressive, but sounds pretty awful

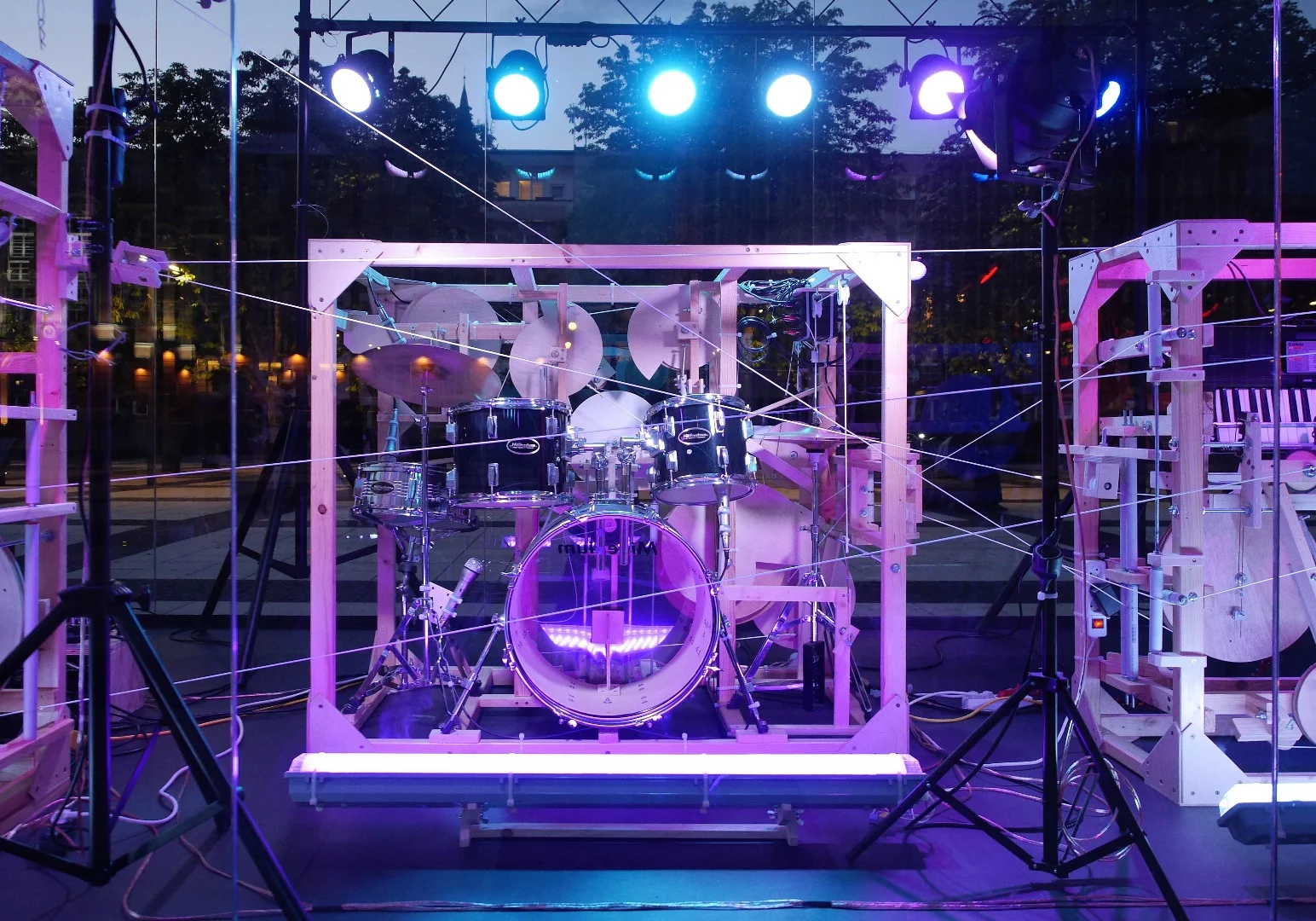

Taking stage center in the installation is a full acoustic drum kit, with toms, a snare, cymbals and a kick drum. Drumsticks hit the various kit components when a pulley system turns shaped wooden discs. Cogs raise the sticks and then release with a snap when the cutaway is reached.

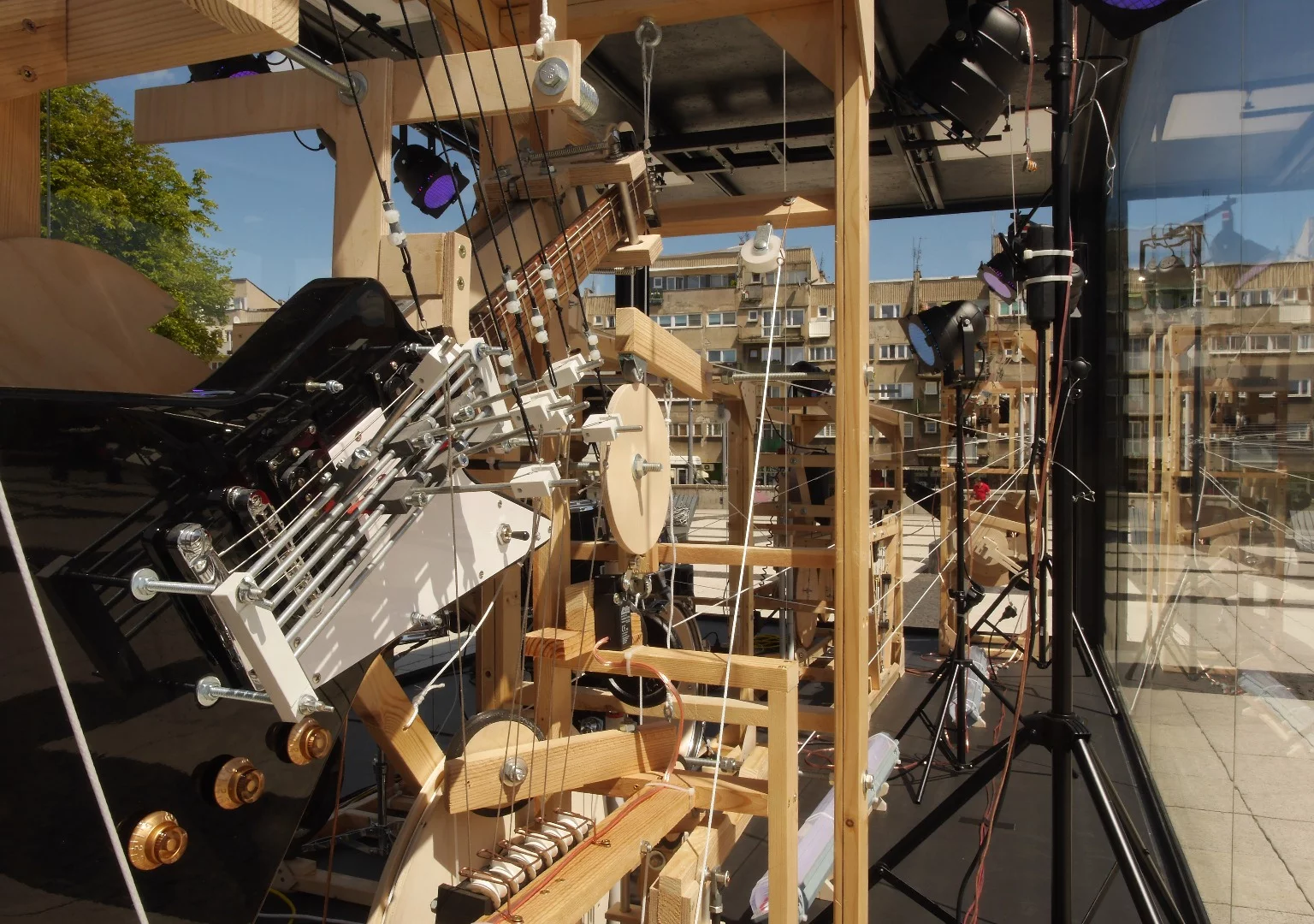

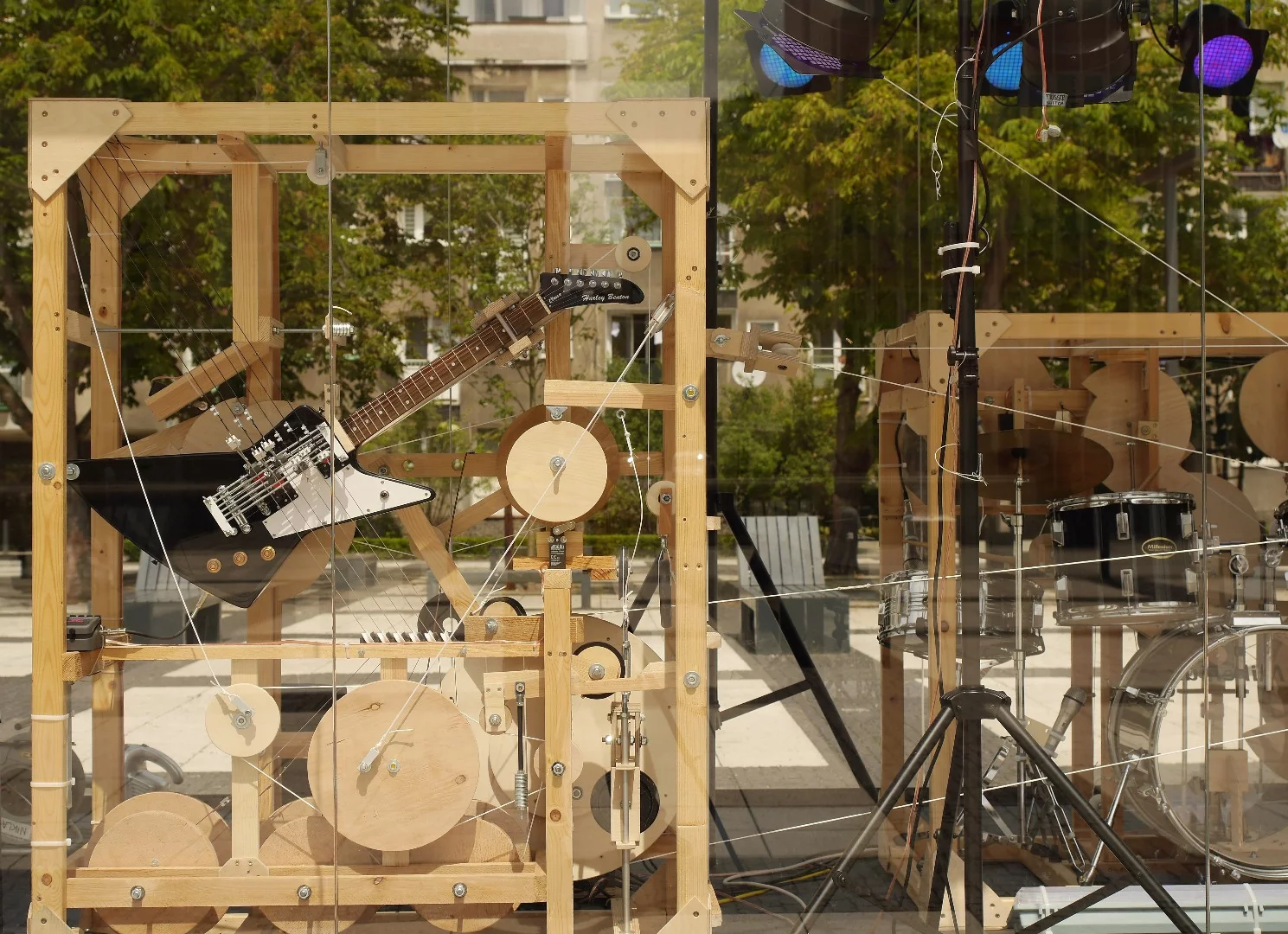

To the left of the drums is an angled Explorer-shaped electric guitar. There's a steel bar across the neck that slides up and down to fret a note picked by one or more mechanical "fingers" attached to a six-bar rack bolted to the body. The six levers holding the plectrums constantly move up and down, striking the strings in a manner determined by the different-sized pulleys attached to them.

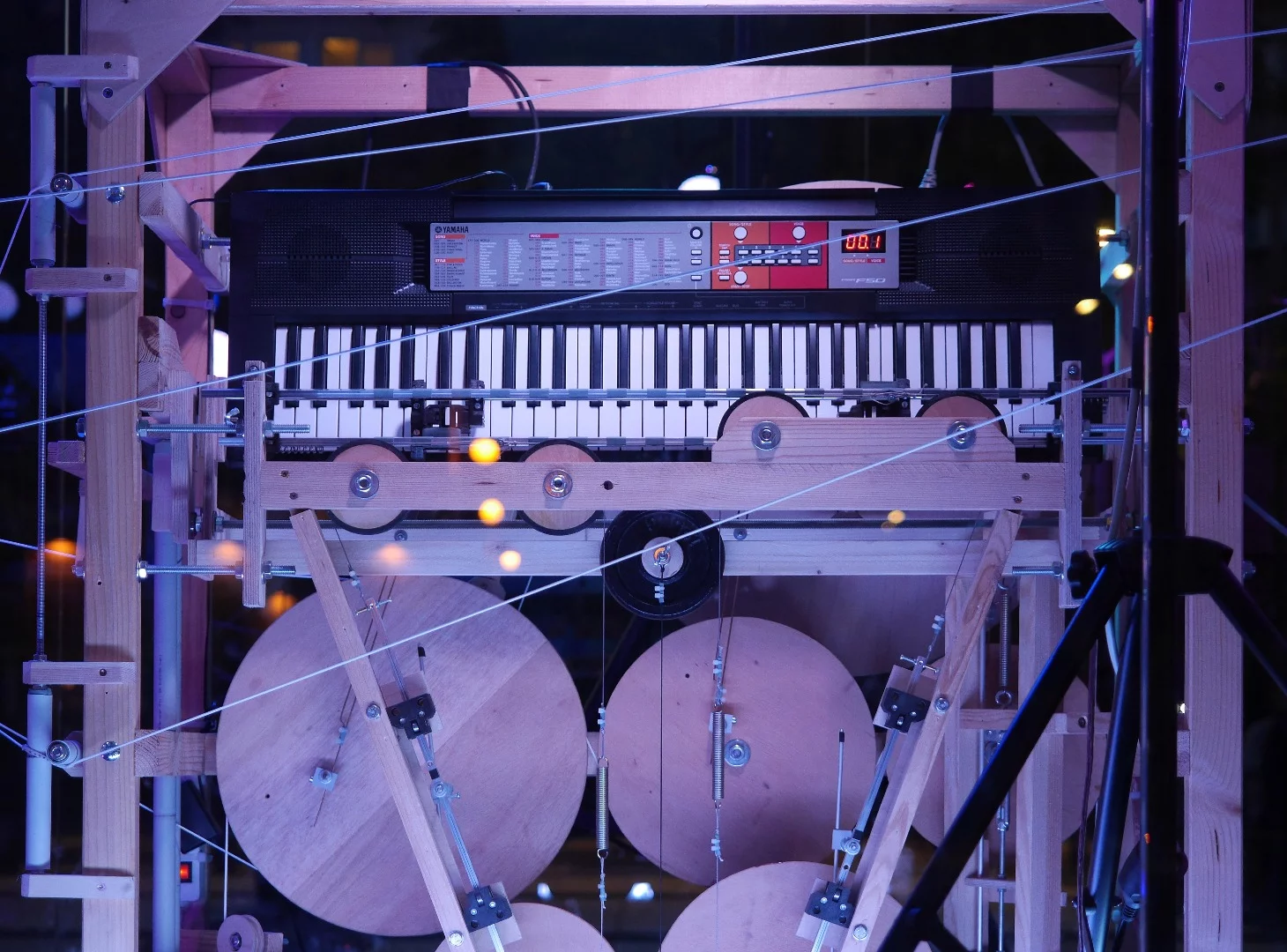

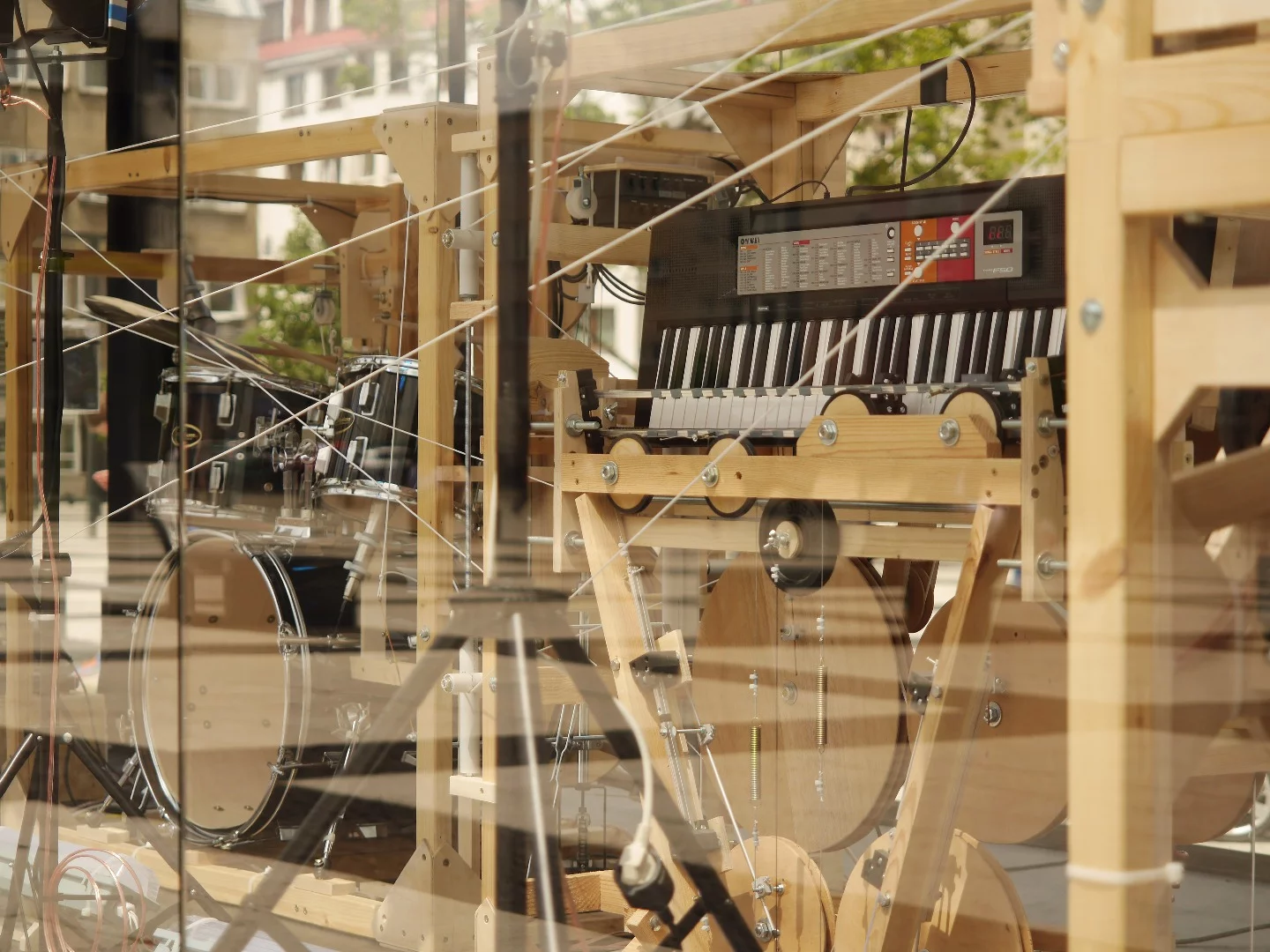

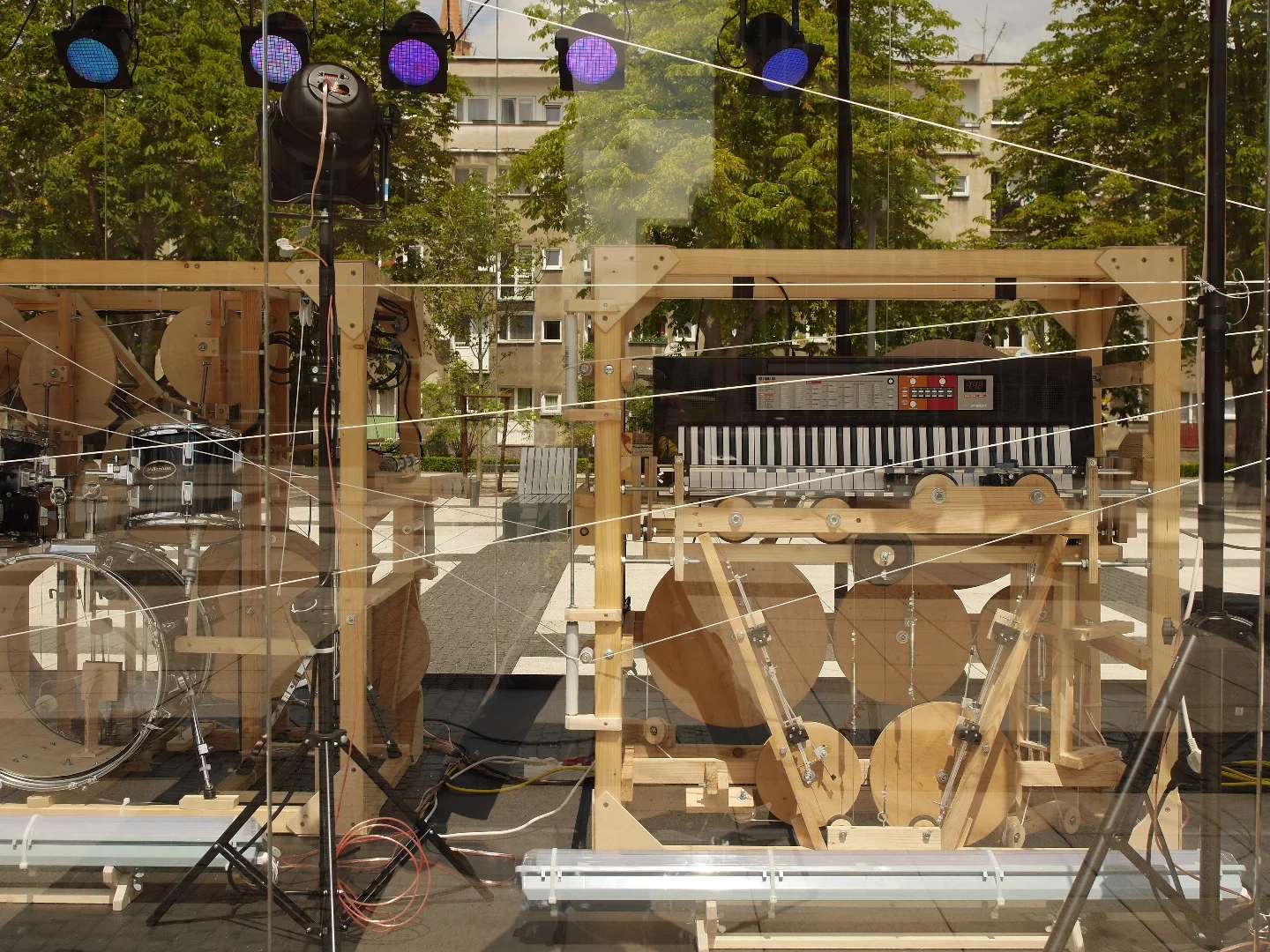

On the right of the bin basher is a digital piano. One thin rope loop drives two different-sized pulleys. These pulleys are said to produce two different sinewave oscillations which drive the mechanisms and move a pair of "hands" mounted to carriages. Every so often the carriages will be pushed toward the keys, playing two tones simultaneously. "The result is a melody which is sometimes harmonic, sometimes not, but it definitely has a lot of variation," Roy explains.

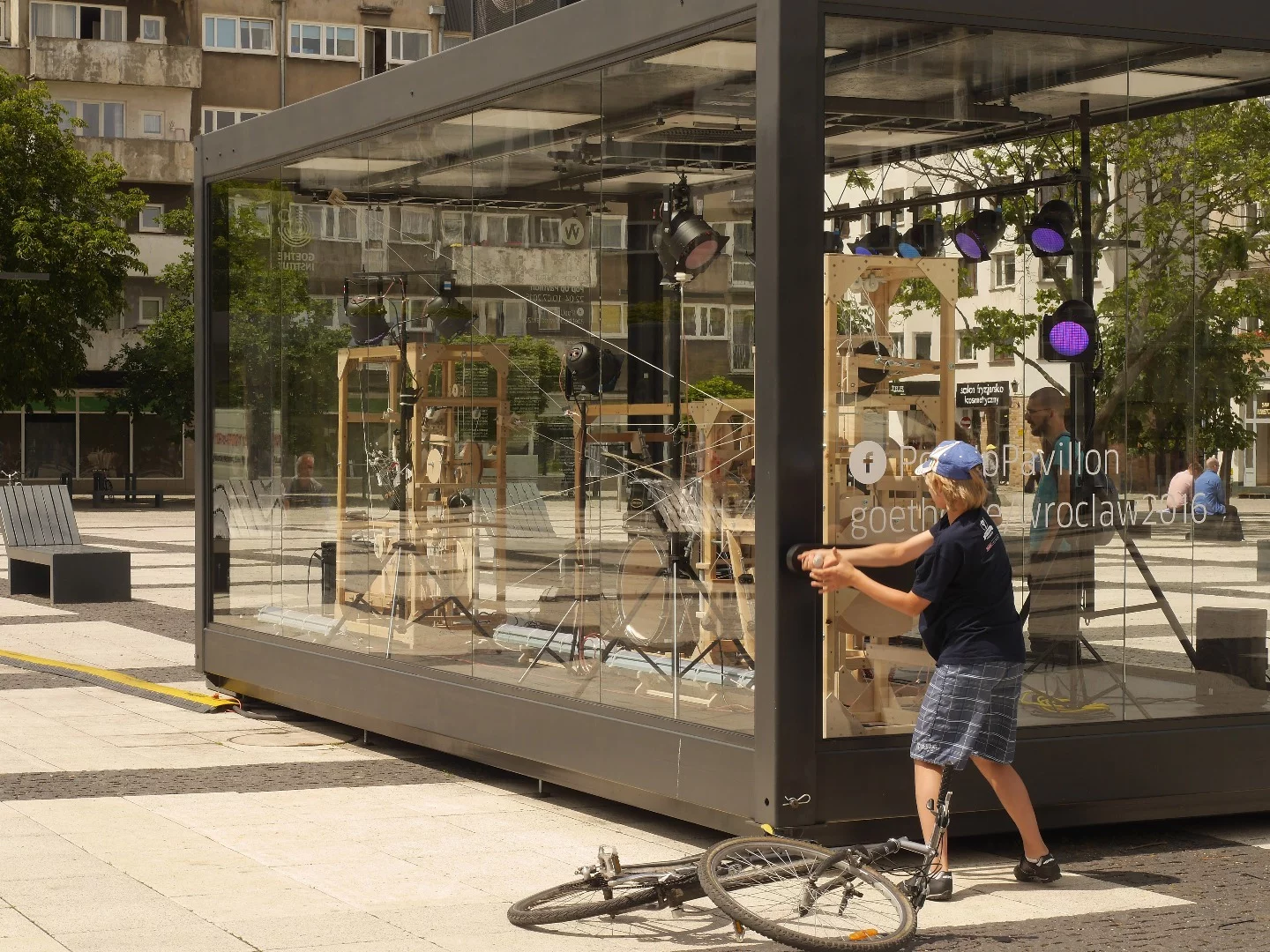

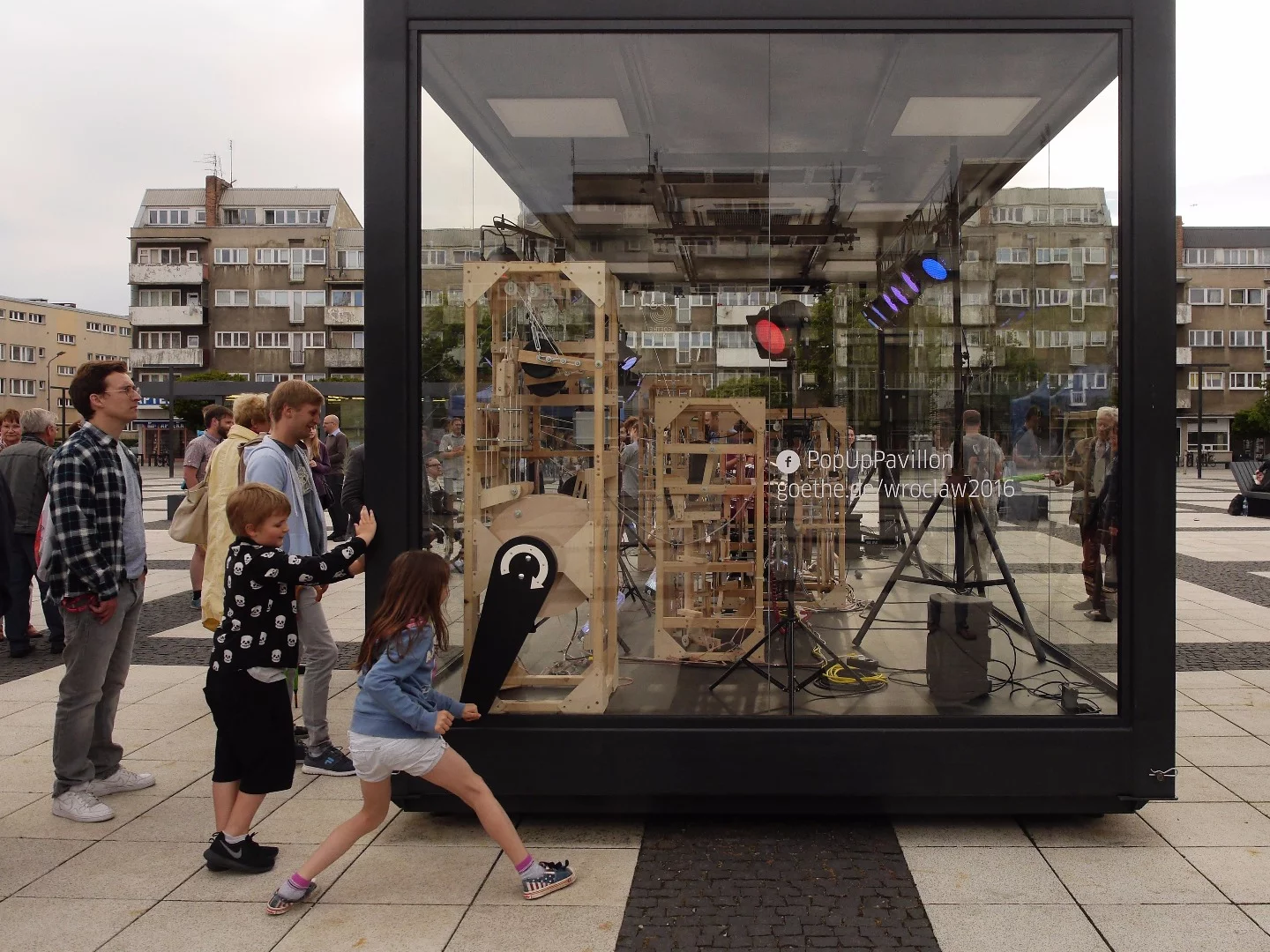

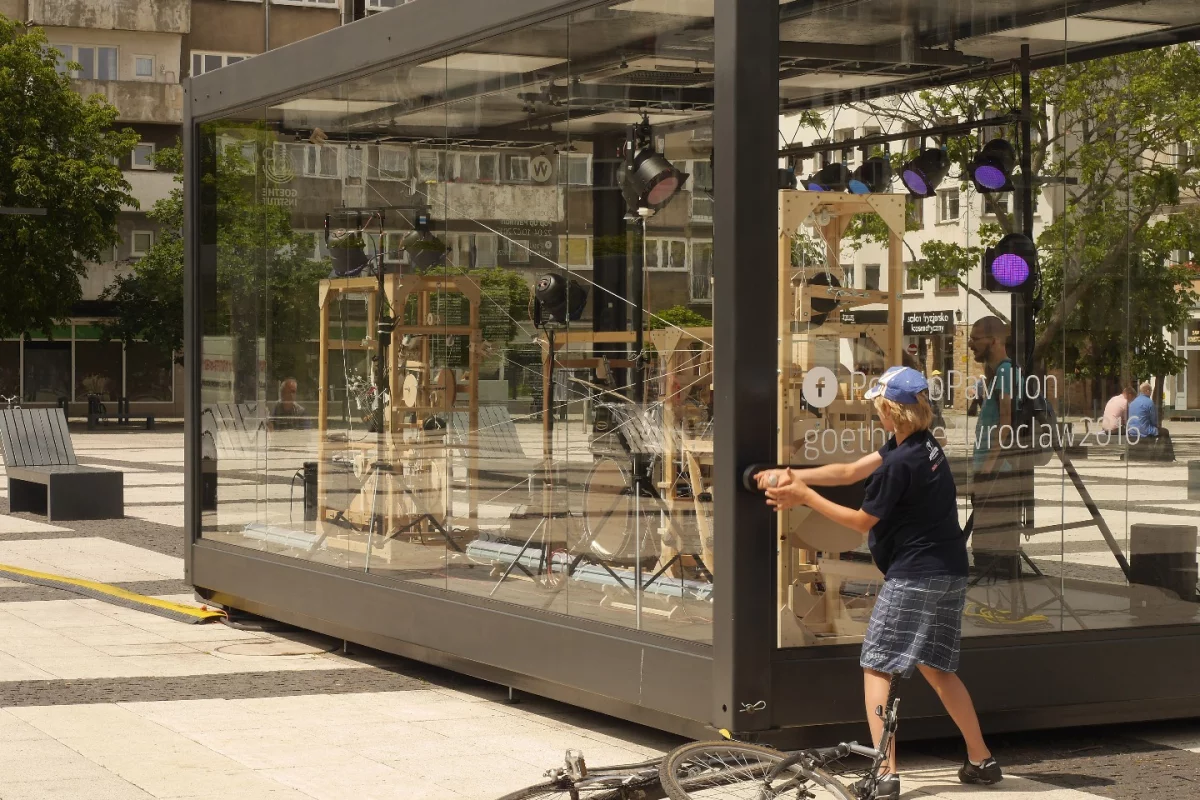

The musical cacophony is activated by a huge hand crank to the right of the transparent glass case
The musical cacophony is activated by a huge hand crank to the right of the transparent glass case

The musical cacophony is activated by a huge hand crank to the right of the transparent glass case containing the intriguing (but frankly awful-sounding) mechanical band, with the tempo at the mercy of the cranker.

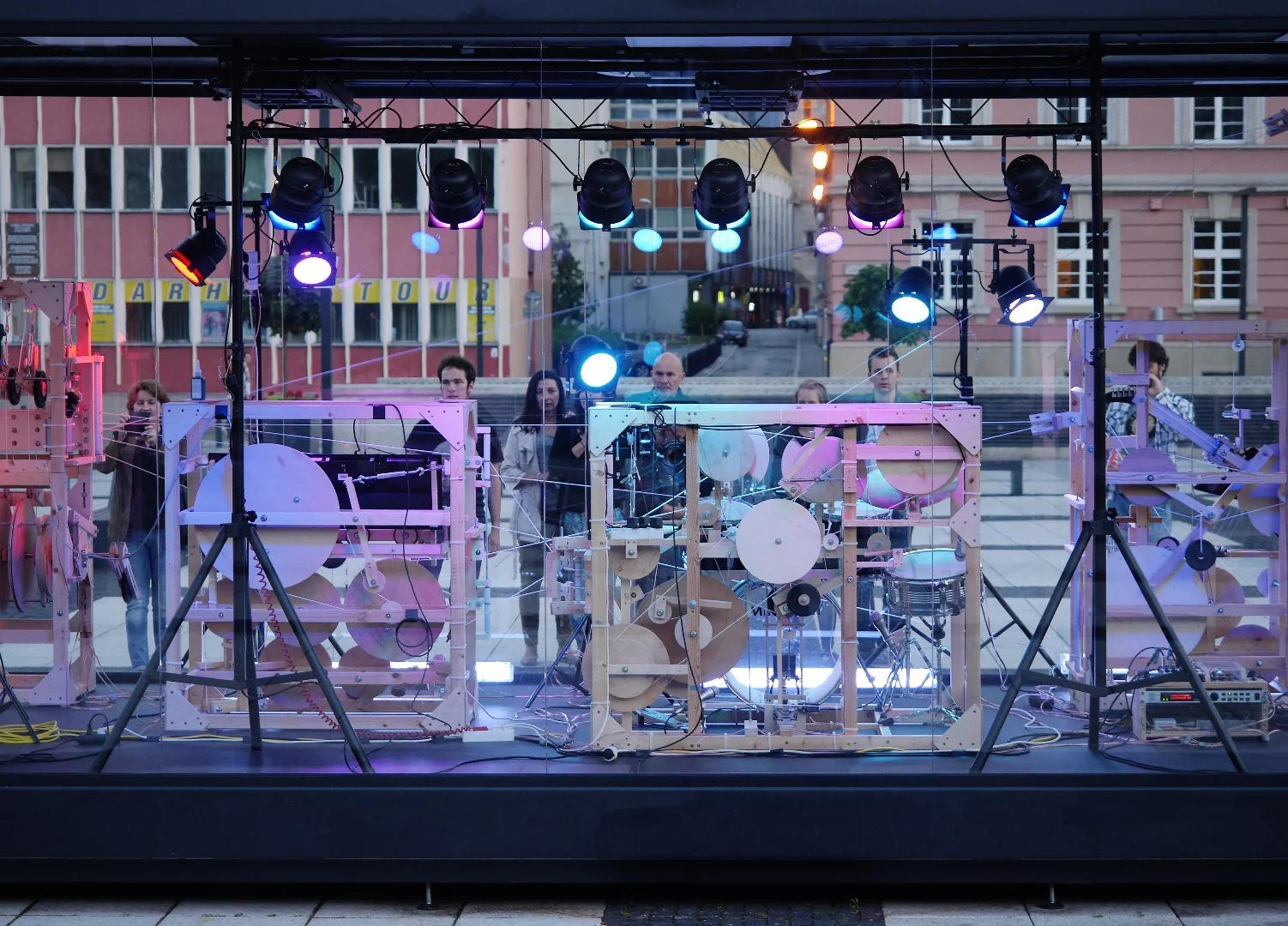

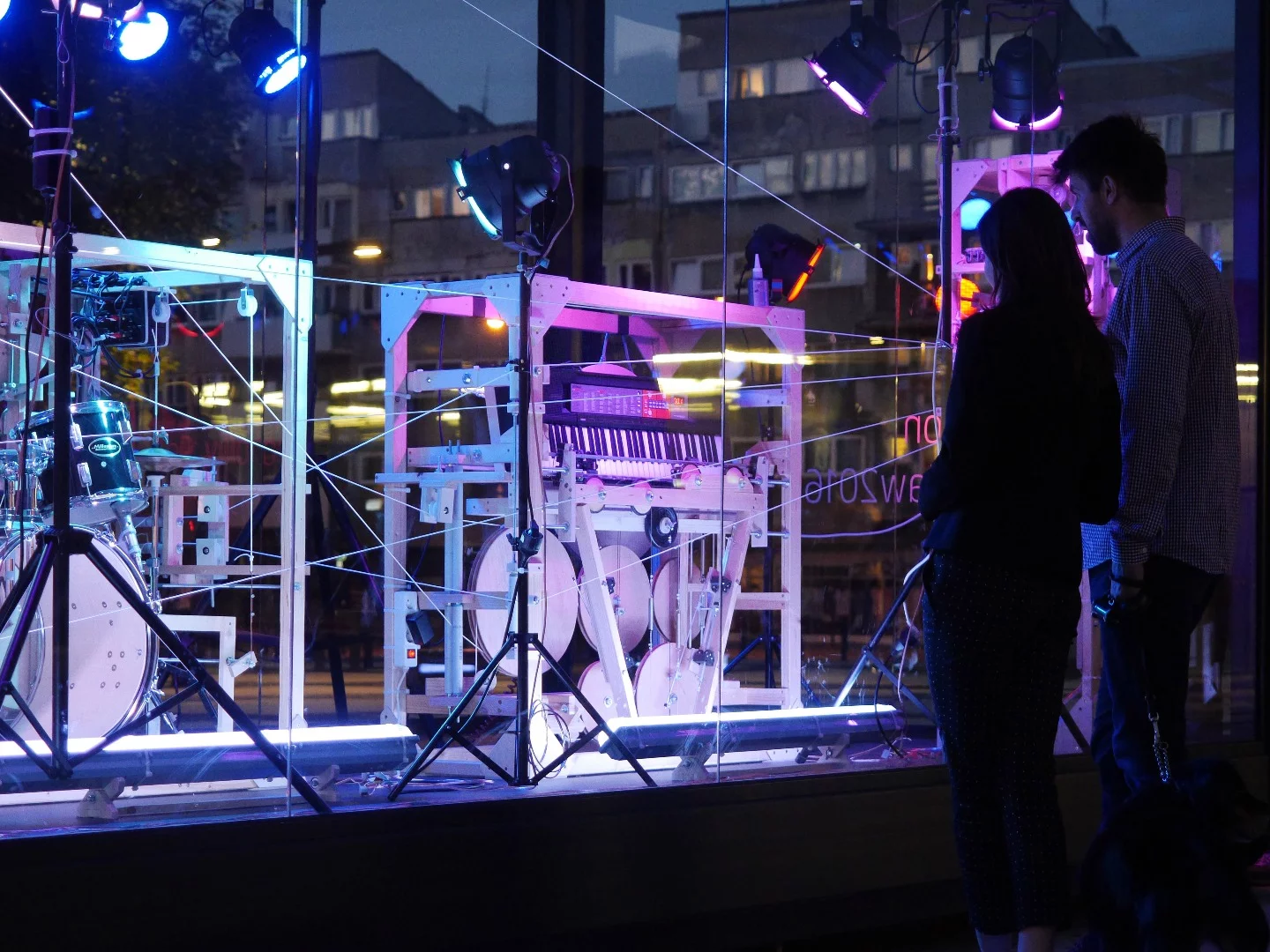

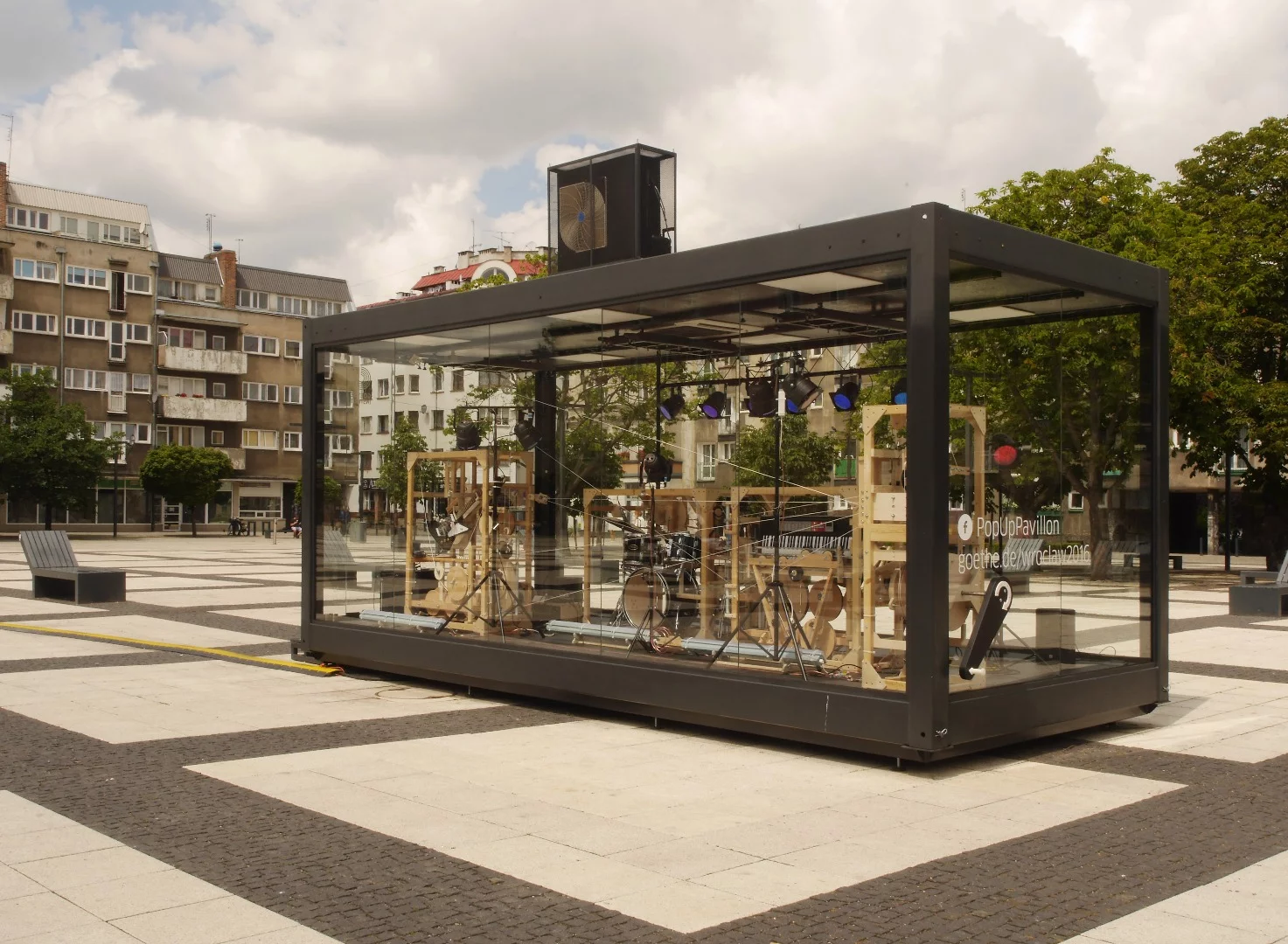

All of the instruments for the project, as well a light and sound equipment, were donated by German music retailer Thomann. The Music Construction Machine is on 24-hour display in the Goethe-Institut Pop Up Pavillion in Wroclaw, Poland, until July 12. Roy told us that he expects to take it to Belgium later in the year.

Lovers of fine music or those with a delicate ear should probably not watch the video below, which shows the impressive creation in action.
