Rolls-Royce is building robot roaches and snakes to repair airplane engines

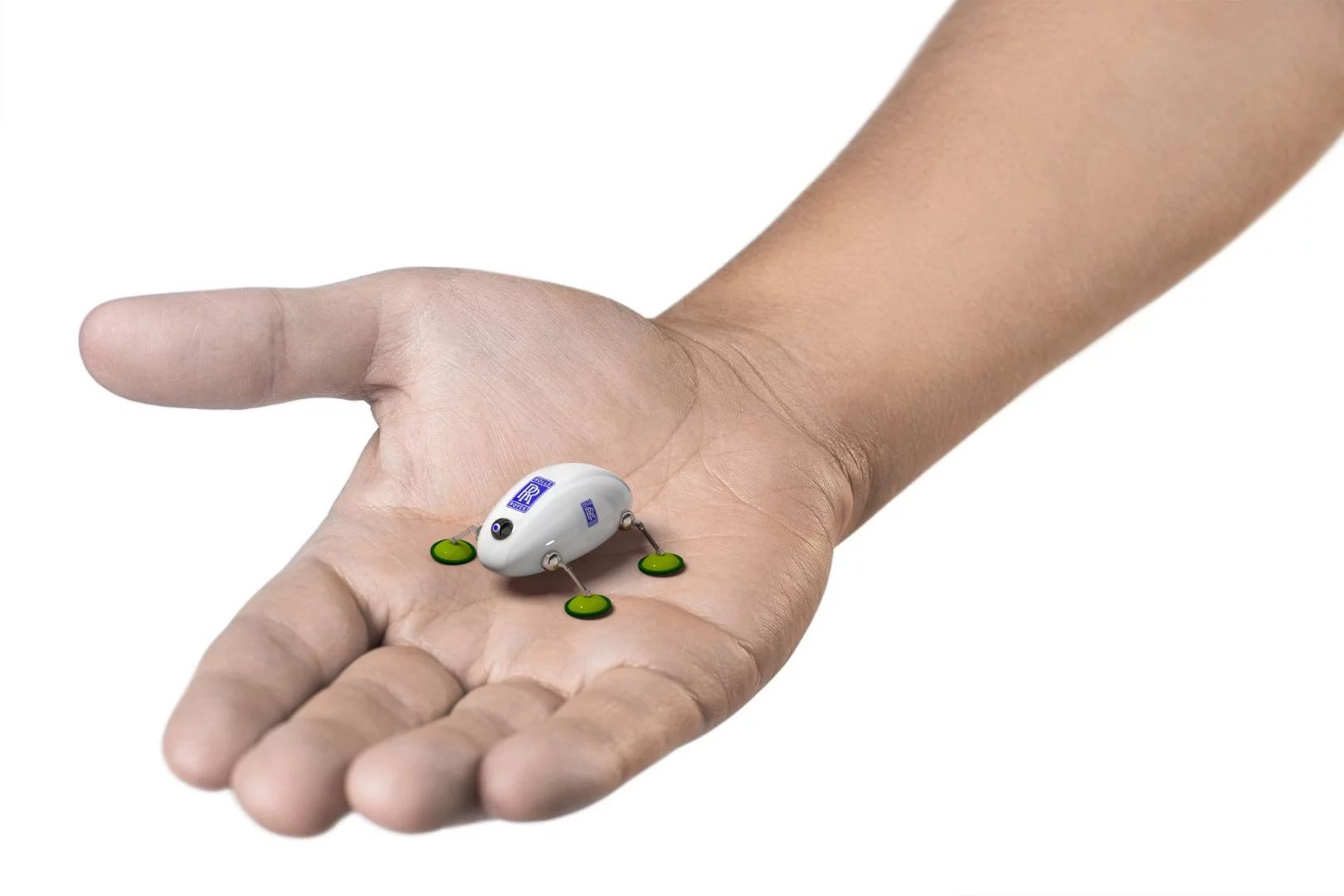

An artist's impression of a Swarm robot that could crawl through aircraft engines to perform inspections
An artist's impression of a Swarm robot that could crawl through aircraft engines to perform inspections
View 5 Images
An artist's impression of a Swarm robot that could crawl through aircraft engines to perform inspections
1/5
An artist's impression of a Swarm robot that could crawl through aircraft engines to perform inspections

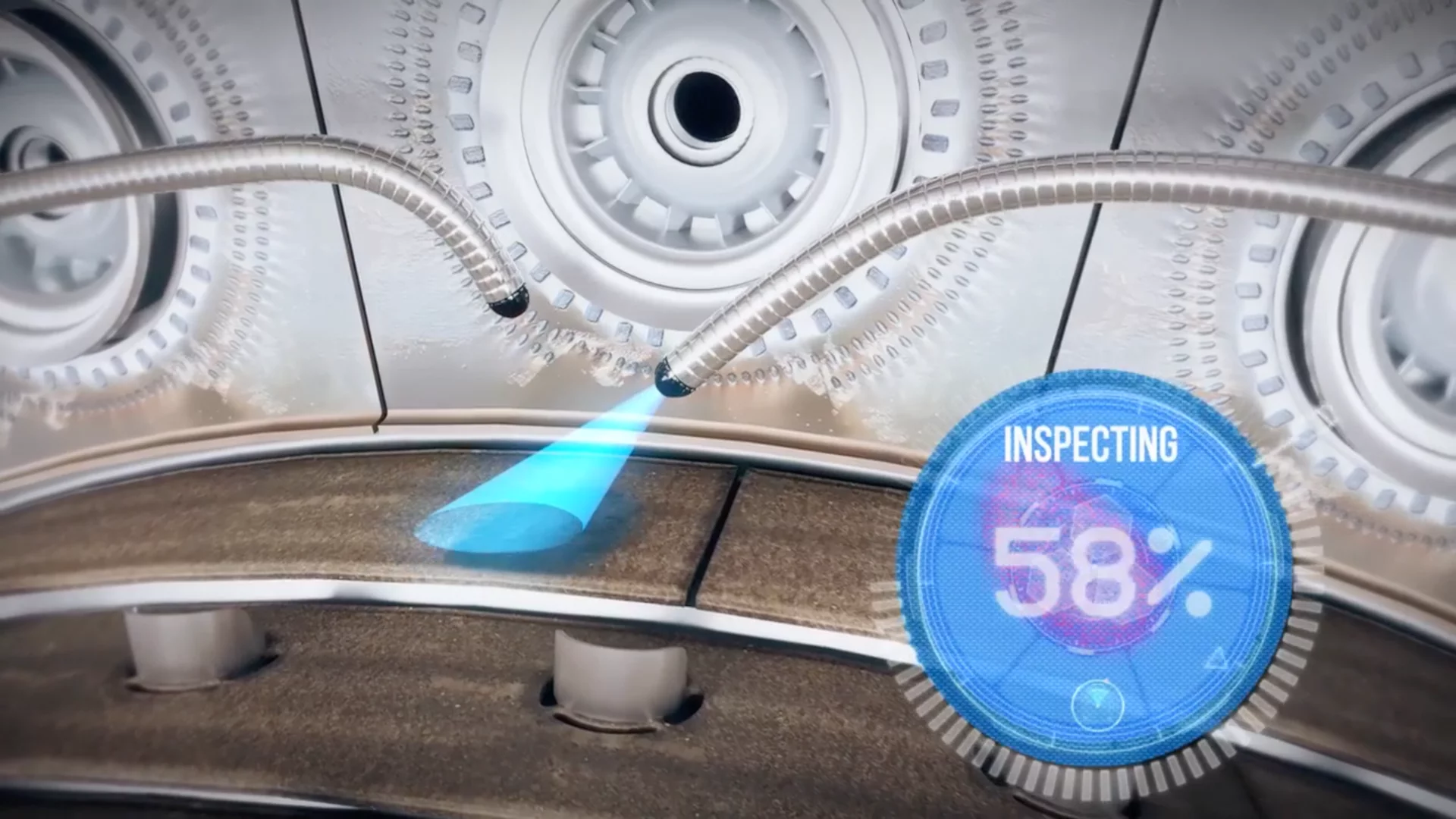

Rolls-Royce is working on a snake-like robot that can slither through an aircraft engine environment like an endoscope, teaming up with other snakes to patch up damaged thermal barrier coatings
2/5
Rolls-Royce is working on a snake-like robot that can slither through an aircraft engine environment like an endoscope, teaming up with other snakes to patch up damaged thermal barrier coatings

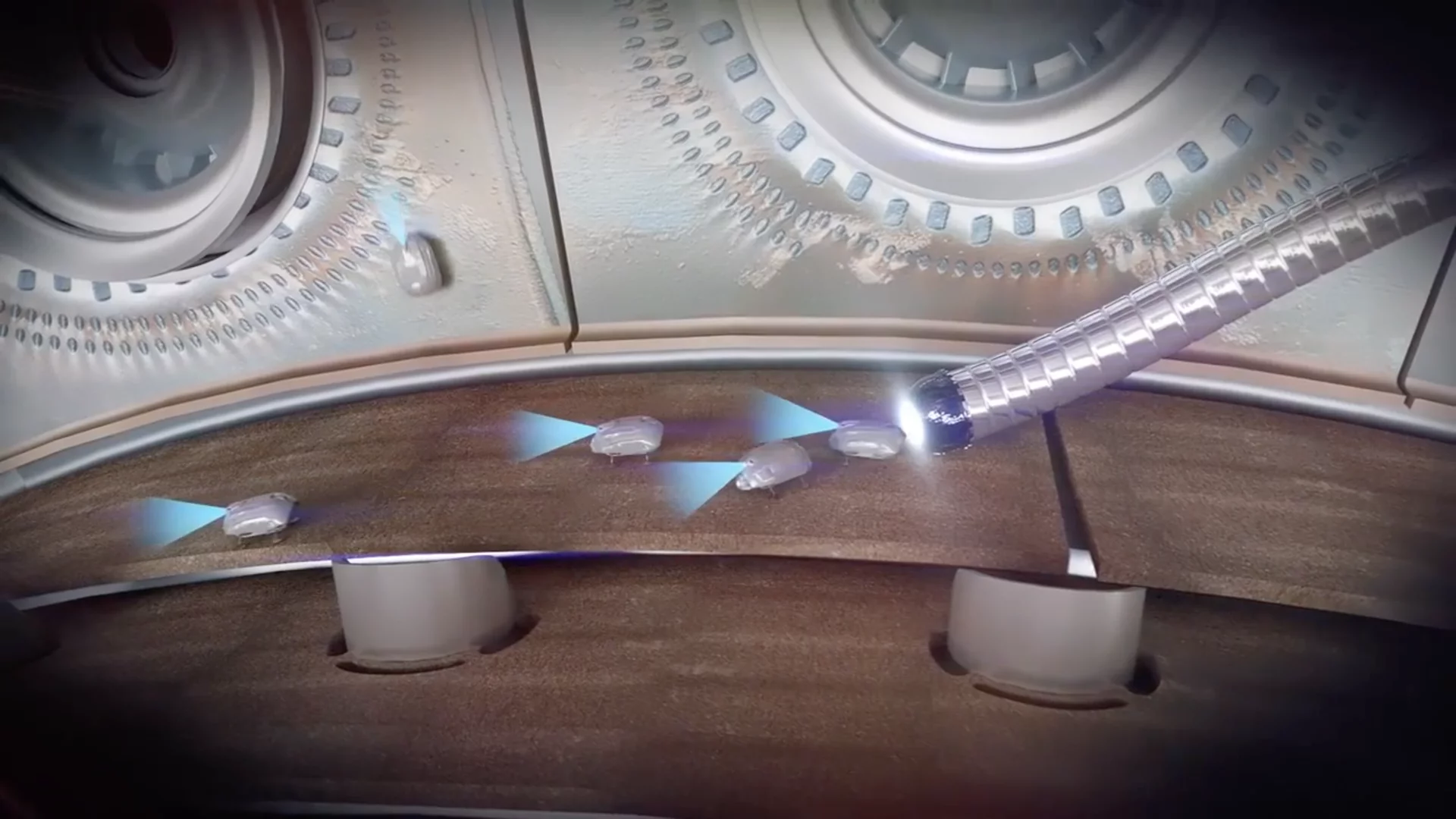

"Flare" would take the form of a snake-like robot that can wind through the engine environment like an endoscope
3/5
"Flare" would take the form of a snake-like robot that can wind through the engine environment like an endoscope

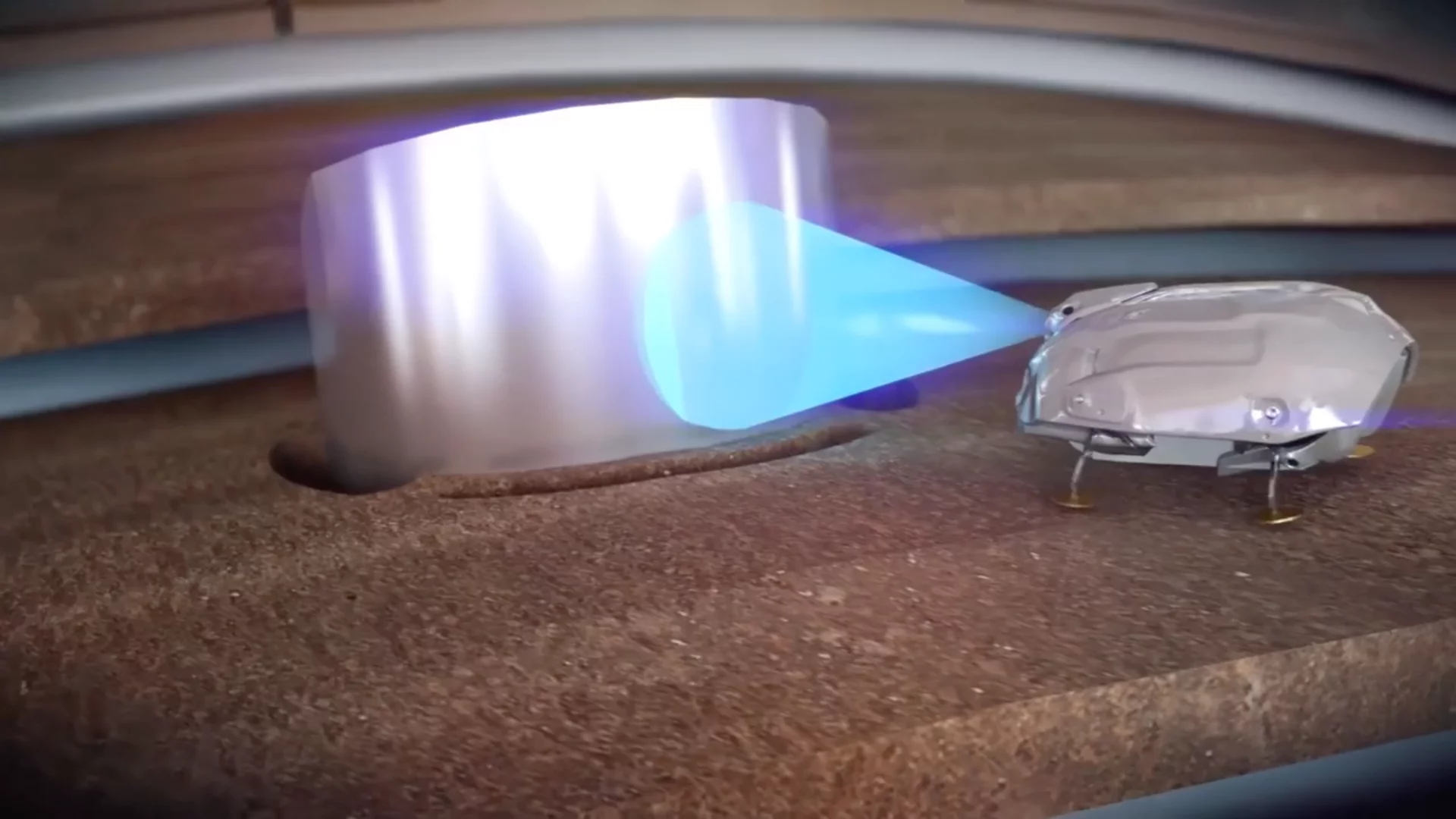

Rolls-Royce is working on cockroach-like robots that can roam around aircraft engines and carry out maintenance tasks
4/5
Rolls-Royce is working on cockroach-like robots that can roam around aircraft engines and carry out maintenance tasks

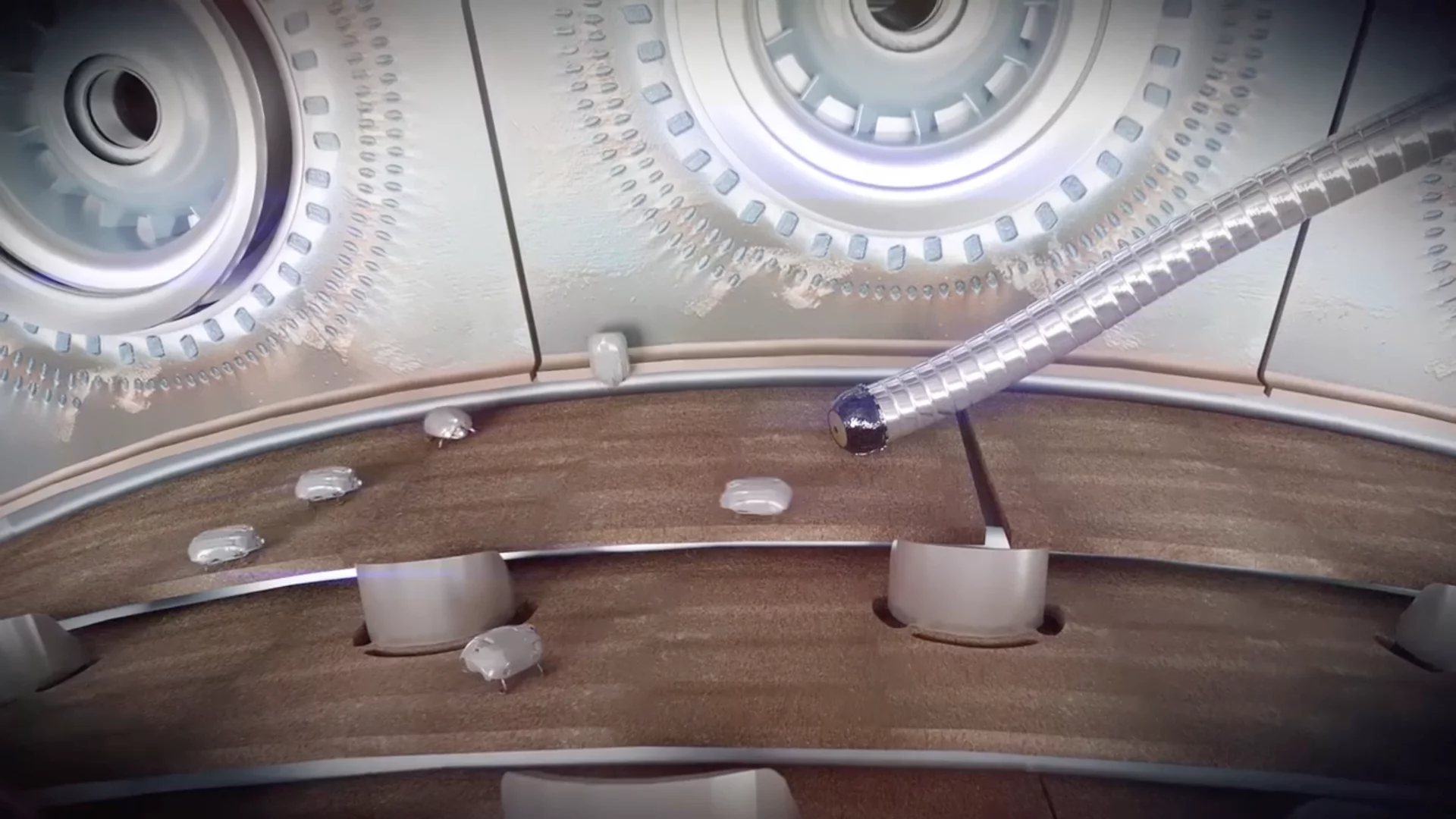

The future of aircraft engine maintenance, as Rolls-Royce sees it, could involve deploying different kinds of of robots that quickly nip any problems in the bud
5/5
The future of aircraft engine maintenance, as Rolls-Royce sees it, could involve deploying different kinds of of robots that quickly nip any problems in the bud

The engines of an airplane are complicated machines with plenty of hard-to-reach places, and keeping them in working order requires a lot of time and maintenance. The future of this task, as Rolls-Royce sees it, could involve deploying different kinds of of robots that patrol these aircraft parts and quickly nip any problems in the bud.

These robots are part of Rolls-Royce's IntelligentEngine project, a venture announced earlier in the year aimed at developing connected engines with the potential to repair themselves. The robots would help by first carrying out inspections, which could eliminate the need to remove an entire engine from an aircraft. The hope is that they can then actually perform some minor maintenance tasks at the same time.

"Flare" would take the form of a snake-like robot that can wind through the engine environment like an endoscope, teaming up with other snakes to patch up damaged thermal barrier coatings.

These snake robots would also perform the important role of spitting out smaller cockroach-like "Swarm" robots in the center of the engine. These 10-mm-long (0.4 in) critters would be armed with small cameras and stream a live feed back to the operator who can carry out visual inspections much more efficiently.

The future of aircraft engine maintenance, as Rolls-Royce sees it, could involve deploying different kinds of of robots that quickly nip any problems in the bud
The future of aircraft engine maintenance, as Rolls-Royce sees it, could involve deploying different kinds of of robots that quickly nip any problems in the bud

Also part of the mix would be pencil-thin periscope-like "Inspect" robots permanently built into the engine. These are thermally protected to withstand the extreme heat and would pop up as required to make sure everything is in working order, beaming any relevant data back to the operations center.

Rolls-Royce says it is also working on robotic boreblending robots, which would enable specialist engineers to carry out important tasks, such as grinding replacement parts, remotely. Like the other robots in the pipeline, this would hasten the job of engine maintenance and cut down on costs.

Rolls-Royce worked with researchers from the University of Nottingham and Harvard University on the development of the robots. And although some are further along than others, it is at the Farnborough International Airshow in the UK this week demonstrating their capabilities.

"While some of these technologies, such as the Swarm robots, are still a long way from becoming an everyday reality, others, such as the remote boreblending robot, are already being tested and will begin to be introduced over the next few years," said Dr James Kell, Rolls-Royce On-Wing Technology Specialist. "We have a great network of partners who support our work in this field and it is clear that this is an area with the potential to revolutionise how we think about engine maintenance."

Source: Rolls-Royce

1 comment
Expanded Viewpoint
Doing actual repairs?!?! I'll believe it when I see it. I've been a mechanic working on engines since I was about 12 years old, working on transmissions and differentials since I was 19, there's hardly a kind of machine made that I haven't worked on or at least studied to the point where I could repair it, and this sounds like balderdash to me. I've also been a machinist and welder since I was 19. I don't see any kind of benefit from this other than knowing exactly what a problem is and where it is. The machine STILL will have to come apart to fix it at the least 99 times out of 100.
