World's second-tallest skyscraper completed in Shanghai

The tower features 128 floors and 420,000 sq m (4,520,842 sq ft) of floorspace
The tower features 128 floors and 420,000 sq m (4,520,842 sq ft) of floorspace
View 14 Images
Following six years of construction, work has officially been completed on the world's second-tallest skyscraper, the Shanghai Tower
1/14
Following six years of construction, work has officially been completed on the world's second-tallest skyscraper, the Shanghai Tower
The Shanghai Tower rises an incredible 632 m (2,073 ft) over the Lujiazui Financial Center in Shanghai, China
2/14
The Shanghai Tower rises an incredible 632 m (2,073 ft) over the Lujiazui Financial Center in Shanghai, China
The mixed-use tower sports a distinctive twisting form that reduces the effects of the wind
3/14
The mixed-use tower sports a distinctive twisting form that reduces the effects of the wind
The project was led by international design firm Gensler and is split, from bottom to top, into 9 zones
4/14
The project was led by international design firm Gensler and is split, from bottom to top, into 9 zones
The scope of the engineering achievement encourages superlatives
5/14
The scope of the engineering achievement encourages superlatives
The tower features 128 floors, 106 elevators, 258 hotel rooms, and comprises 420,000 sq m (4,520,842 sq ft) of floorspace
6/14
The tower features 128 floors, 106 elevators, 258 hotel rooms, and comprises 420,000 sq m (4,520,842 sq ft) of floorspace
Its tapering form twists 120 degrees from bottom to top
7/14
Its tapering form twists 120 degrees from bottom to top
The facade sports 270 wind turbines that provide the power needed for all external lighting
8/14
The facade sports 270 wind turbines that provide the power needed for all external lighting
Its double-layered glass skin improves insulation and allows plenty of natural light to permeate inside
9/14
Its double-layered glass skin improves insulation and allows plenty of natural light to permeate inside
Inside the Shanghai Tower
10/14
Inside the Shanghai Tower
Inside the Shanghai Tower
11/14
Inside the Shanghai Tower
The building's funnel shaped parapet channels rainwater into large tanks
12/14
The building's funnel shaped parapet channels rainwater into large tanks
According to Gensler, the Shanghai Tower's tapering form reduces wind loads by 24 percent
13/14
According to Gensler, the Shanghai Tower's tapering form reduces wind loads by 24 percent
The tower features 128 floors and 420,000 sq m (4,520,842 sq ft) of floorspace
14/14
The tower features 128 floors and 420,000 sq m (4,520,842 sq ft) of floorspace

Following six years of construction, work was recently completed on the world's second-tallest skyscraper, the Shanghai Tower. Rising an impressive 632 m (2,073 ft) over Shanghai, China, the US$2.4 billion mixed-use project features an interesting design that twists 120 degrees from bottom to top, in order to mitigate the effects of wind on the structure.

Designed by international firm Gensler, the Shanghai Tower is officially recognized as the world's second-tallest building by the CTBUH (Council on Tall Buildings and Urban Habitat), after Dubai's Burj Khalifa. However, it is certain to slip to third position once the Jedah Tower is completed in 2020.

The size of the project boggles the mind. Located in the Lujiazui Financial Center in Shanghai, which was still farmland a mere two decades ago, the clay-based soil the tower rests upon required 1,079 concrete and steel piles to be driven into the ground for use as supports. Laying the foundation involved a fleet of trucks pouring concrete for 63 straight hours.

The tower features 128 floors and comprises 420,000 sq m (4,520,842 sq ft) of floorspace. Its highest occupied point is at 561.3 m (1,841 ft) and to get there, occupants make use of one of 106 Mitsubishi-designed elevators, which travel at a speed of 40 mph (64 km/h).

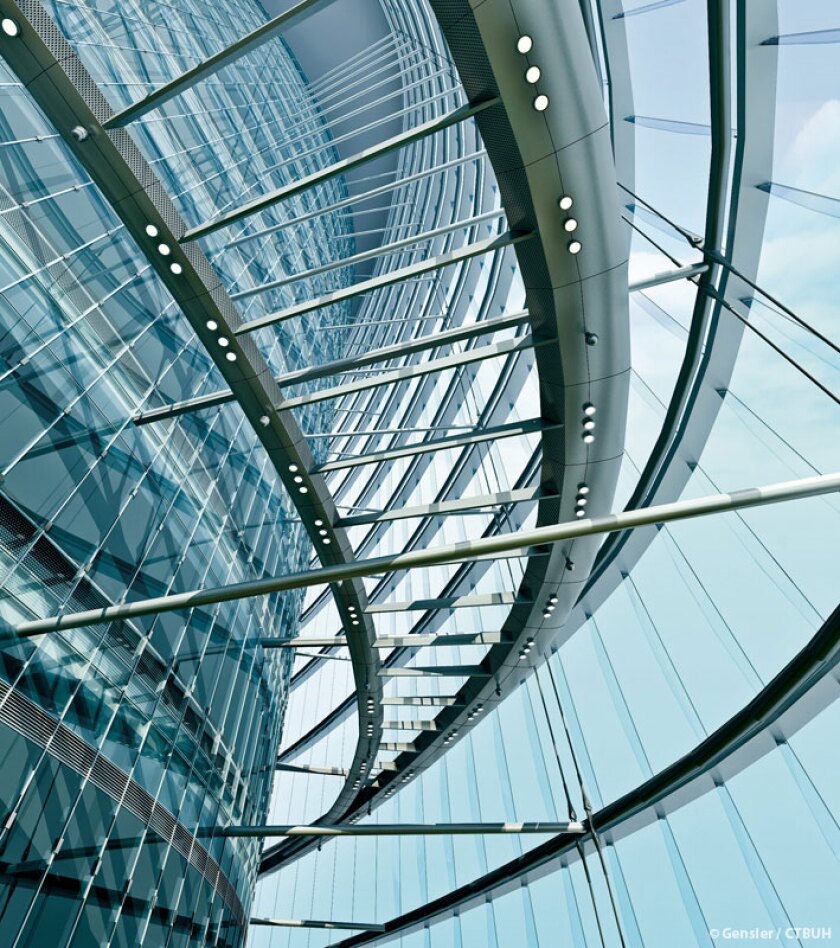

Its double-layered glass skin improves insulation and allows plenty of natural light to permeate inside
Its double-layered glass skin improves insulation and allows plenty of natural light to permeate inside

According to Gensler, the building's tapering form reduces wind loads by 24 percent. Furthermore, the reduction in materials that this allowed saved $58 million from the total budget of the project.

The interior of the building is mostly taken up by high-end office space, with some retail areas and hotel rooms, plus an observation point/cultural area at the top. It's also rated LEED Gold (a green building standard) and features some energy-saving design and technology.

A double-layered glass skin improves insulation and allows natural light to permeate inside, while the facade sports a total of 270 wind turbines that provide the power needed for external lighting. The building's funnel-shaped parapet channels rainwater into large tanks, which is used for air-conditioning and heating systems. A graywater system is also installed, but operable windows were decided against on account of the poor local air quality.
