The radical open chamber Sonic Wind guitar

Instrument designer and builder Hector Trevino has created a radical open chamber guitar that he claims offers more resonance and natural sustain than traditional solid-body electric guitar designs
Instrument designer and builder Hector Trevino has created a radical open chamber guitar that he claims offers more resonance and natural sustain than traditional solid-body electric guitar designs
View 21 Images
Hector Trevino with a bare-bones version of his Sonic Wind guitar
1/21
Hector Trevino with a bare-bones version of his Sonic Wind guitar
Hector Trevino with his open chamber No1 and No2 Sonic Wind guitars
2/21
Hector Trevino with his open chamber No1 and No2 Sonic Wind guitars

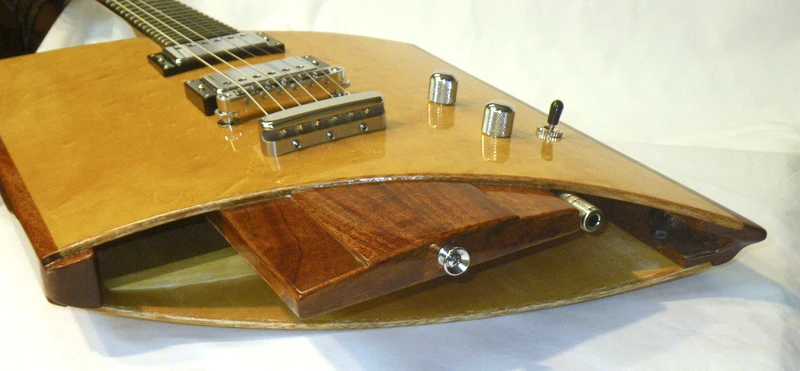

The through neck doesn't come into contact with the player's body, offering more natural sustain and note clarity
3/21
The through neck doesn't come into contact with the player's body, offering more natural sustain and note clarity
The Sonic Wind guitar - a guitar with air vents
4/21
The Sonic Wind guitar - a guitar with air vents

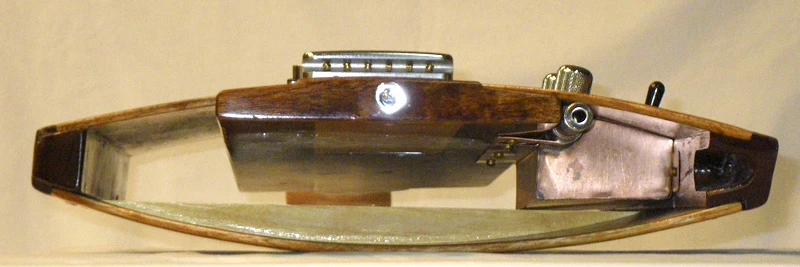

Trevino says that the Sonic Wind guitar is all about resonance
5/21
Trevino says that the Sonic Wind guitar is all about resonance

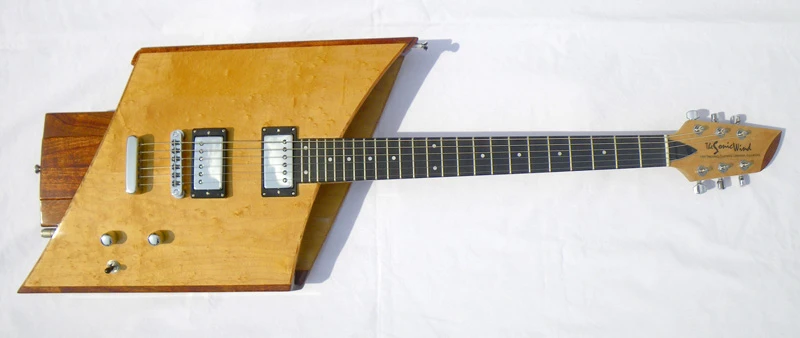

The maple through neck is topped with a 1.7-inch wide (at the nut) ebony fingerboard with 24 jumbo frets
6/21
The maple through neck is topped with a 1.7-inch wide (at the nut) ebony fingerboard with 24 jumbo frets
The radical Sonic Wind guitar is said to offer players more resonance and natural sustain
7/21
The radical Sonic Wind guitar is said to offer players more resonance and natural sustain

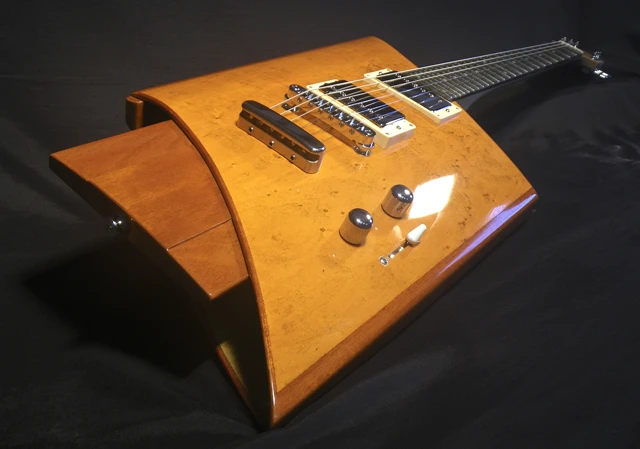

There's a Seymour Duncan Custom 5 pickup at the bridge position and a Jazz neck pickup - and a 5-way switch offers either humbucker or single coil functionality
8/21
There's a Seymour Duncan Custom 5 pickup at the bridge position and a Jazz neck pickup - and a 5-way switch offers either humbucker or single coil functionality

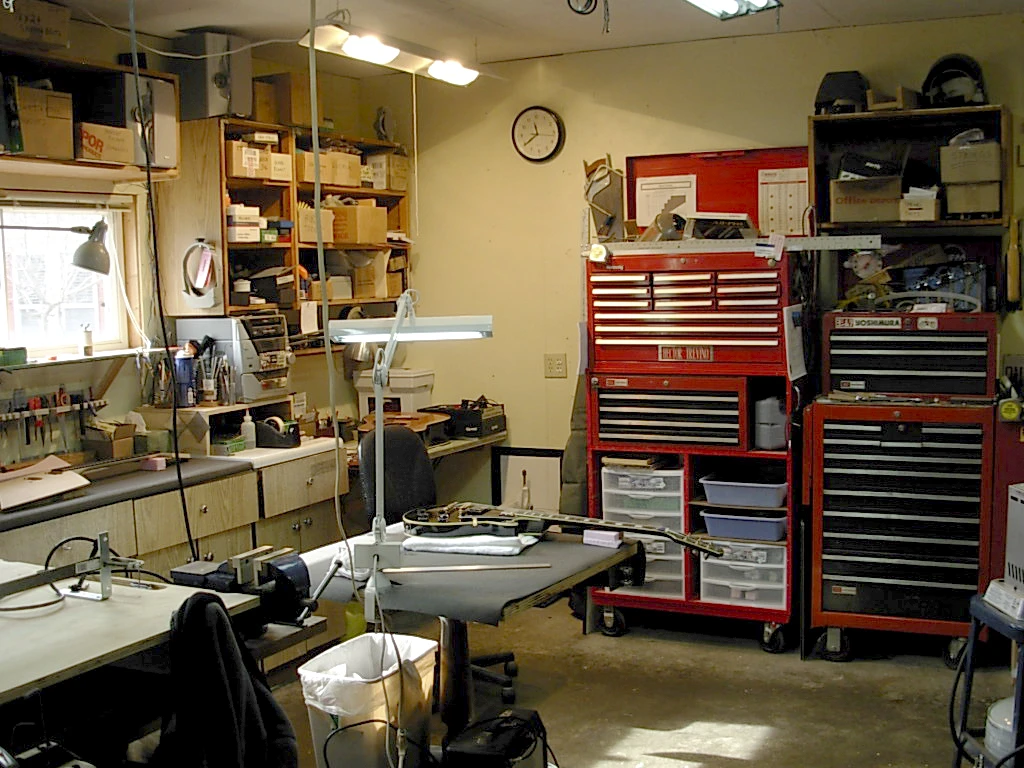

Hector Trevino's workshop
9/21
Hector Trevino's workshop

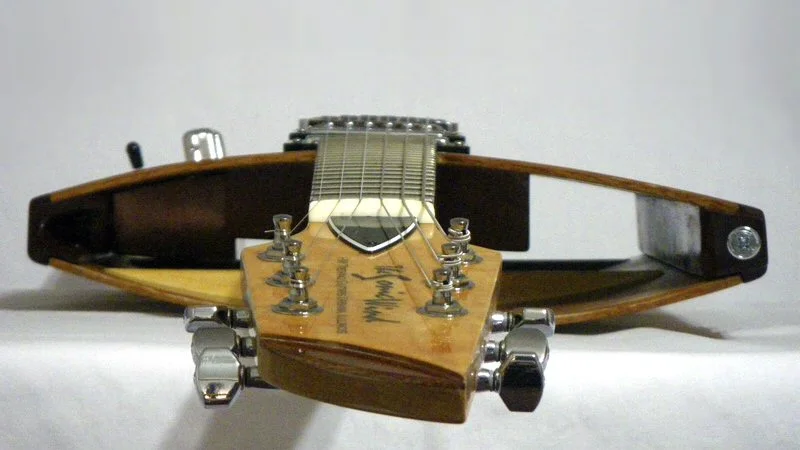

Instrument designer and builder Hector Trevino has created a radical open chamber guitar that he claims offers more resonance and natural sustain than traditional solid-body electric guitar designs
10/21
Instrument designer and builder Hector Trevino has created a radical open chamber guitar that he claims offers more resonance and natural sustain than traditional solid-body electric guitar designs

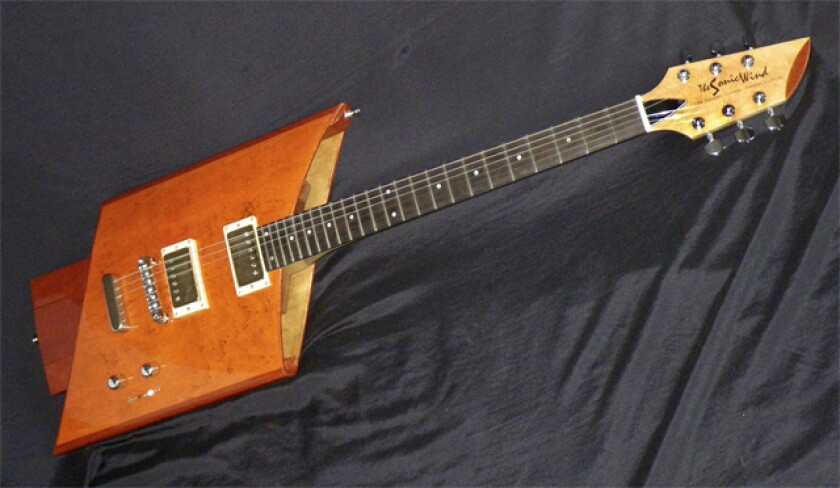

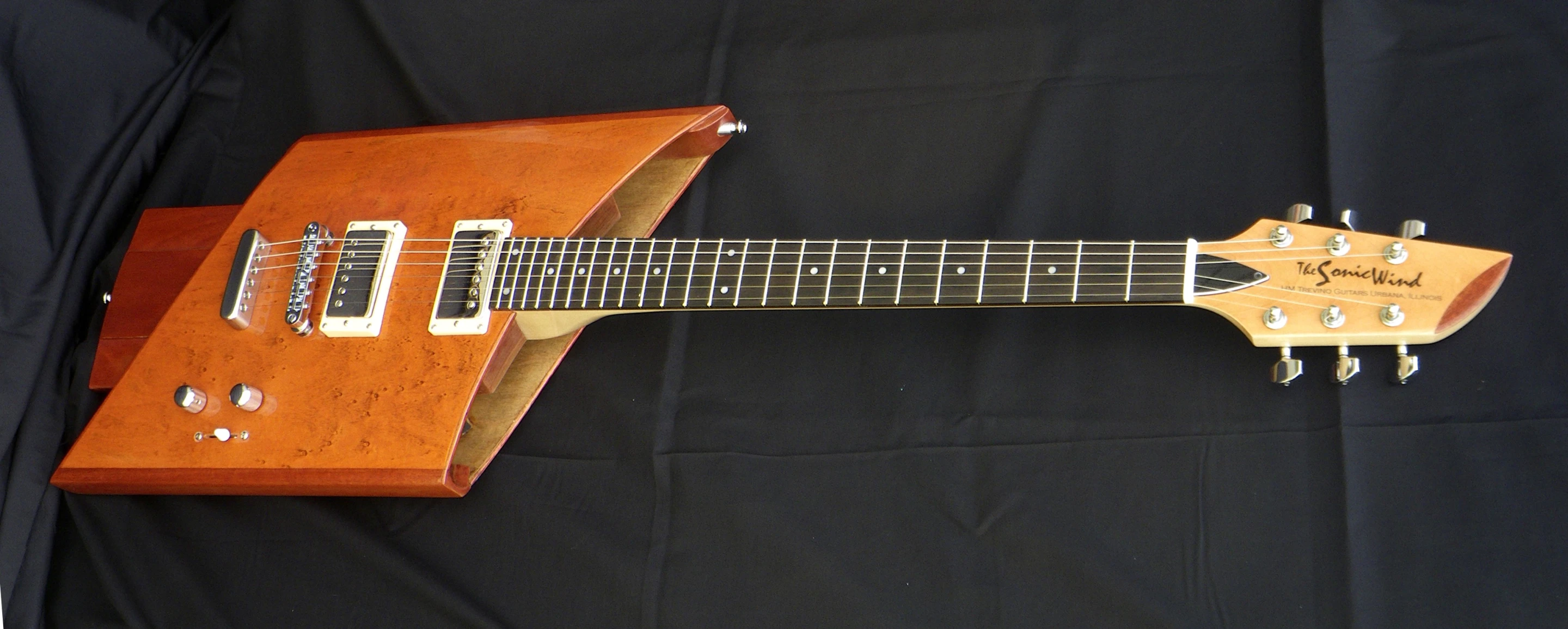

The Sonic Wind guitar by Hector Trevino
11/21
The Sonic Wind guitar by Hector Trevino
Hector Trevino with a more traditional model
12/21
Hector Trevino with a more traditional model
Guitar player Dave Cooper puts the Sonic Wind through its paces at a recent guitar show
13/21
Guitar player Dave Cooper puts the Sonic Wind through its paces at a recent guitar show
With its rear panel removed, the shielded electronics and through neck are shown
14/21
With its rear panel removed, the shielded electronics and through neck are shown

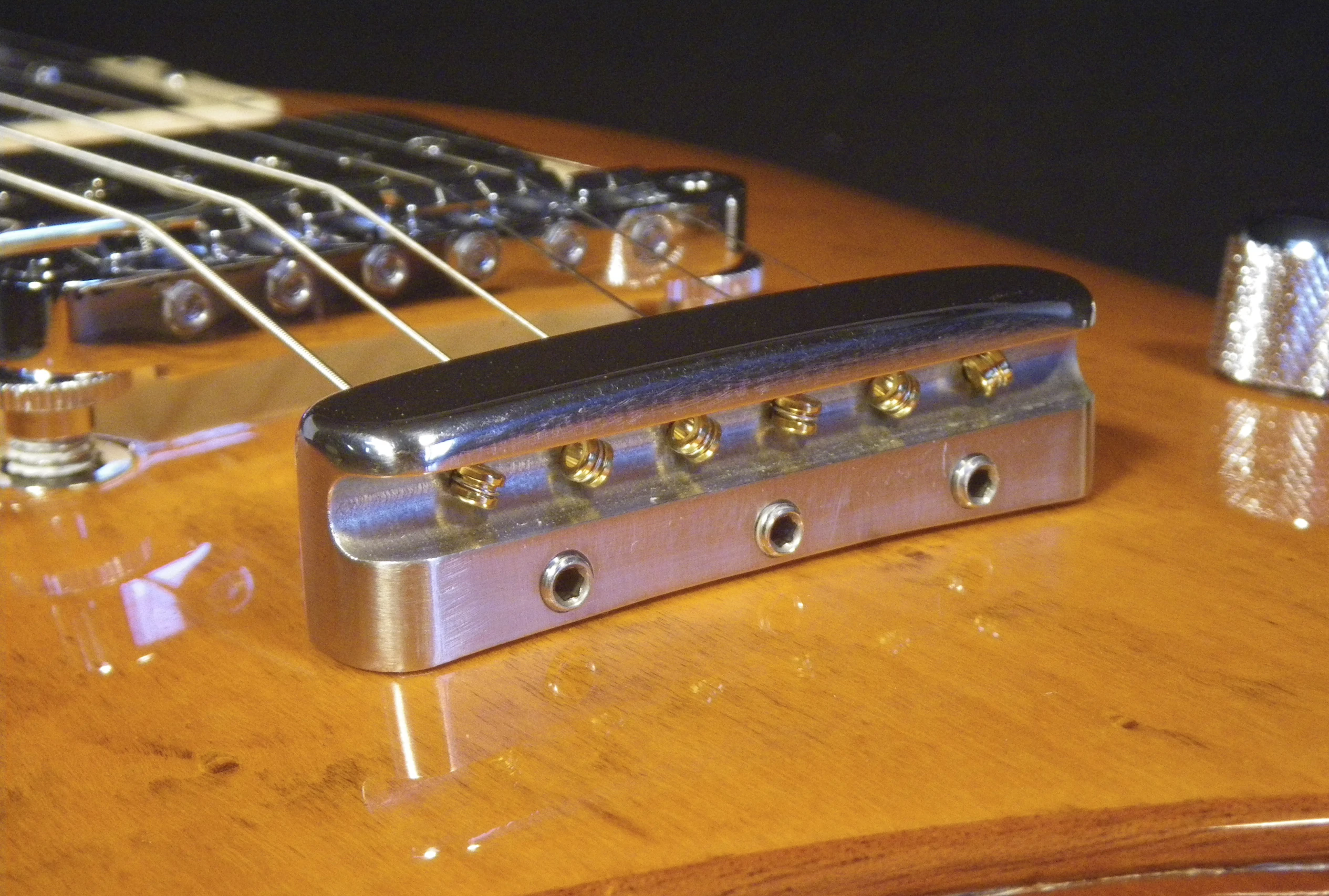

The stainless steel tailpiece was designed specifically for the Sonic Wind guitar
15/21
The stainless steel tailpiece was designed specifically for the Sonic Wind guitar
The guitar jack and specially-made stainless steel tailpiece of the Sonic Wind guitar
16/21
The guitar jack and specially-made stainless steel tailpiece of the Sonic Wind guitar
The Sonic Wind guitar by Hector Trevino
17/21
The Sonic Wind guitar by Hector Trevino
There's a Seymour Duncan Custom 5 pickup at the bridge position and a Jazz neck pickup, and a stainless steel tailpiece specially designed for the Sonic Wind guitar
18/21
There's a Seymour Duncan Custom 5 pickup at the bridge position and a Jazz neck pickup, and a stainless steel tailpiece specially designed for the Sonic Wind guitar
The Sonic Wind guitar by Hector Trevino
19/21
The Sonic Wind guitar by Hector Trevino
Close up of the Sonic Wind's headstock
20/21
Close up of the Sonic Wind's headstock
The Sonic Wind guitar by Hector Trevino
21/21
The Sonic Wind guitar by Hector Trevino

Walk into any guitar shop in any city center and you'll be faced with rows and rows of "me-too" guitars, all built around the same few tried and trusted templates. Instrument designer and builder Hector Trevino has spent the last three years trying to break away from traditional electric guitar design and has now produced what he calls an open chamber guitar. The radical Sonic Wind guitar is said to offer players more resonance and natural sustain than more familiar solid-body electric guitar designs.

Trevino says that the Sonic Wind guitar is both well balanced and comfortable and he is currently taking his hand-built, limited edition creation to guitar shows and exhibitions around the U.S. - giving notoriously conservative players the chance to try it out.

The guitar features slightly curved maple body panels that come together to form an open chamber, and in addition to the much-touted resonance, the design is also said to negate any damping effect that the body might have on sustain and note clarity by keeping the through maple neck away from the player's body.

The radical Sonic Wind guitar is said to offer players more resonance and natural sustain
The radical Sonic Wind guitar is said to offer players more resonance and natural sustain

The neck has a 2-way adjustable truss rod and is topped with a 1.7-inch wide (at the nut) ebony fingerboard with 24 jumbo frets. All the electronics are shielded to keep down annoying hum, there's a Seymour Duncan Custom 5 pickup at the bridge position and a Jazz neck pickup. A 5-way switch offers either humbucker or single coil functionality. Strings are secured at the body end by a stainless steel tailpiece specially designed for the Sonic Wind Guitar, which then travel over a Tune-o-matic bridge on their way to the headstock.

Sadly, we've not been able to find an audio demo of the guitar in action. A video overview is currently being produced which will allow potential buyers to see (and hear) whether this new design lives up to expectations.

Trevino says that his first limited production run of 20 will be priced at US$3,000 a piece, including a custom hard case and limited lifetime warranty.
