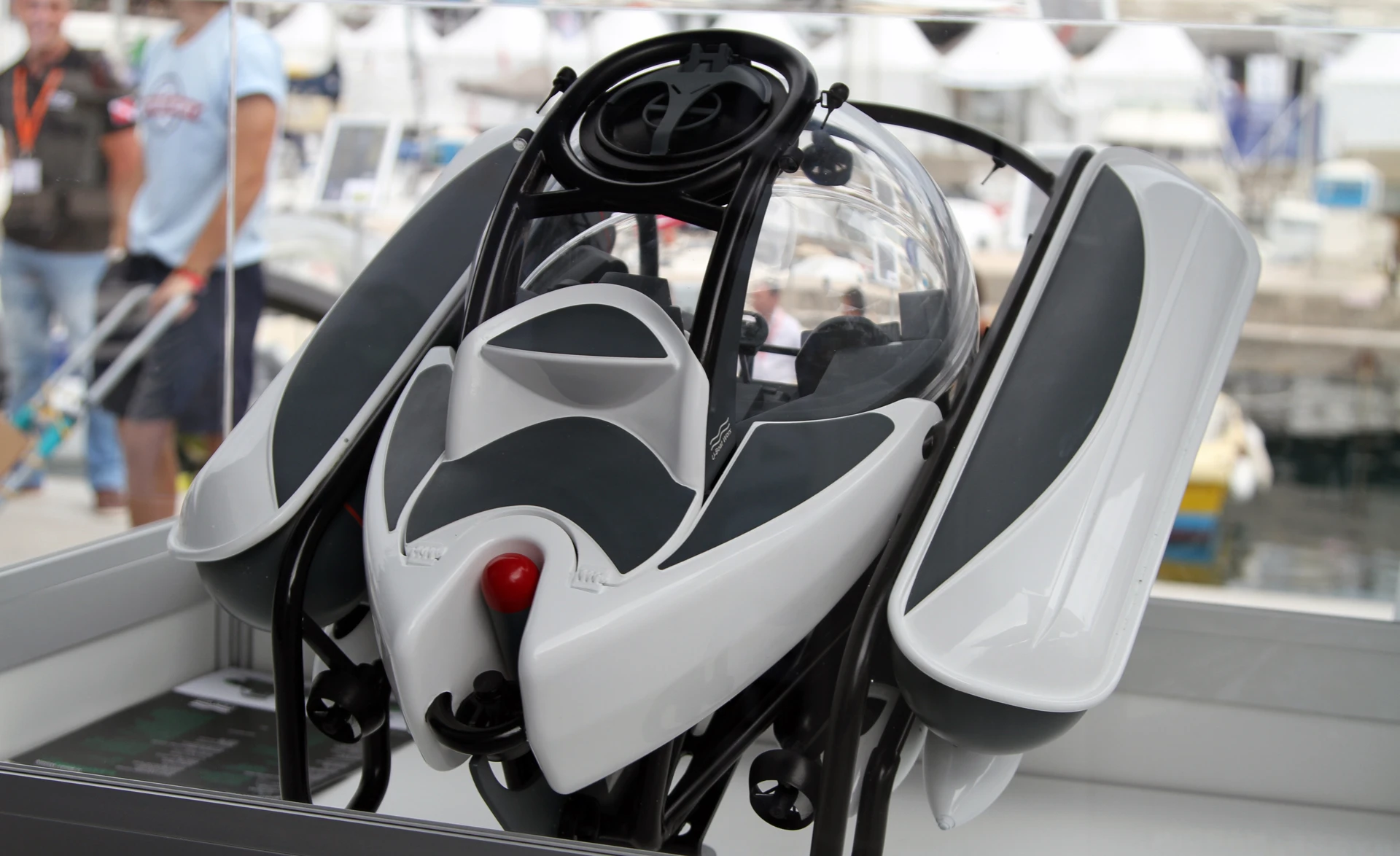

Rear view of the C-Explorer 3 (Photo: Gizmag)
2/20
Rear view of the C-Explorer 3 (Photo: Gizmag)
Side view of the C-Explorer 3 (Photo: Gizmag)
3/20
Side view of the C-Explorer 3 (Photo: Gizmag)
The C-Explorer 3 centrally locates the pilot behind the two passengers (Photo: Gizmag)
4/20
The C-Explorer 3 centrally locates the pilot behind the two passengers (Photo: Gizmag)
The controls of the C-Explorer 3, seen here attached to a pole, can be handed around to the passengers (Photo: Gizmag)
5/20
The controls of the C-Explorer 3, seen here attached to a pole, can be handed around to the passengers (Photo: Gizmag)
Side angle view of the C-Explorer 3 (Photo: Gizmag)
6/20
Side angle view of the C-Explorer 3 (Photo: Gizmag)
The C-Explorer 3 will dive to depths of up to 1,000 m (3,300 ft) (Photo: Gizmag)
7/20
The C-Explorer 3 will dive to depths of up to 1,000 m (3,300 ft) (Photo: Gizmag)
A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)
8/20
A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)
The C-Explorer 7 is essentially a stretch C-Explorer 5 (Photo: Gizmag)
9/20
The C-Explorer 7 is essentially a stretch C-Explorer 5 (Photo: Gizmag)
The C-Explorer 7 is a C-Explorer 5 with an additional two-seater segment (Photo: Gizmag)
10/20
The C-Explorer 7 is a C-Explorer 5 with an additional two-seater segment (Photo: Gizmag)
The final design for the C-Explorer 3 revealed in Monaco (Photo: Gizmag)
11/20
The final design for the C-Explorer 3 revealed in Monaco (Photo: Gizmag)
Rear view of the C-Explorer 3 (Photo: Gizmag)
12/20
Rear view of the C-Explorer 3 (Photo: Gizmag)
Side view of the C-Explorer 3 (Photo: Gizmag)
13/20
Side view of the C-Explorer 3 (Photo: Gizmag)
The C-Explorer 3 centrally locates the pilot behind the two passengers (Photo: Gizmag)
14/20
The C-Explorer 3 centrally locates the pilot behind the two passengers (Photo: Gizmag)
The controls of the C-Explorer 3, seen here attached to a pole, can be handed around to the passengers (Photo: Gizmag)
15/20
The controls of the C-Explorer 3, seen here attached to a pole, can be handed around to the passengers (Photo: Gizmag)
Side angle view of the C-Explorer 3 (Photo: Gizmag)
16/20
Side angle view of the C-Explorer 3 (Photo: Gizmag)
The C-Explorer 3 will dive to depths of up to 1,000 m (3,300 ft) (Photo: Gizmag)
17/20
The C-Explorer 3 will dive to depths of up to 1,000 m (3,300 ft) (Photo: Gizmag)
A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)
18/20
A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)
The C-Explorer 7 is essentially a stretch C-Explorer 5 (Photo: Gizmag)
19/20
The C-Explorer 7 is essentially a stretch C-Explorer 5 (Photo: Gizmag)
The C-Explorer 7 is a C-Explorer 5 with an additional two-seater segment (Photo: Gizmag)
20/20
The C-Explorer 7 is a C-Explorer 5 with an additional two-seater segment (Photo: Gizmag)
View gallery - 20 images

This was the seventh year exhibiting at the Monaco Yacht Show for U-Boat Worx where the Netherlands-based company is making a habit of unveiling new models. Last year it was the C-Explorer 5 and this year the covers have been thrown off the final design for the C-Explorer 3. But the company may not be done yet, with a layout design for a C-Explorer 7 having also been completed.

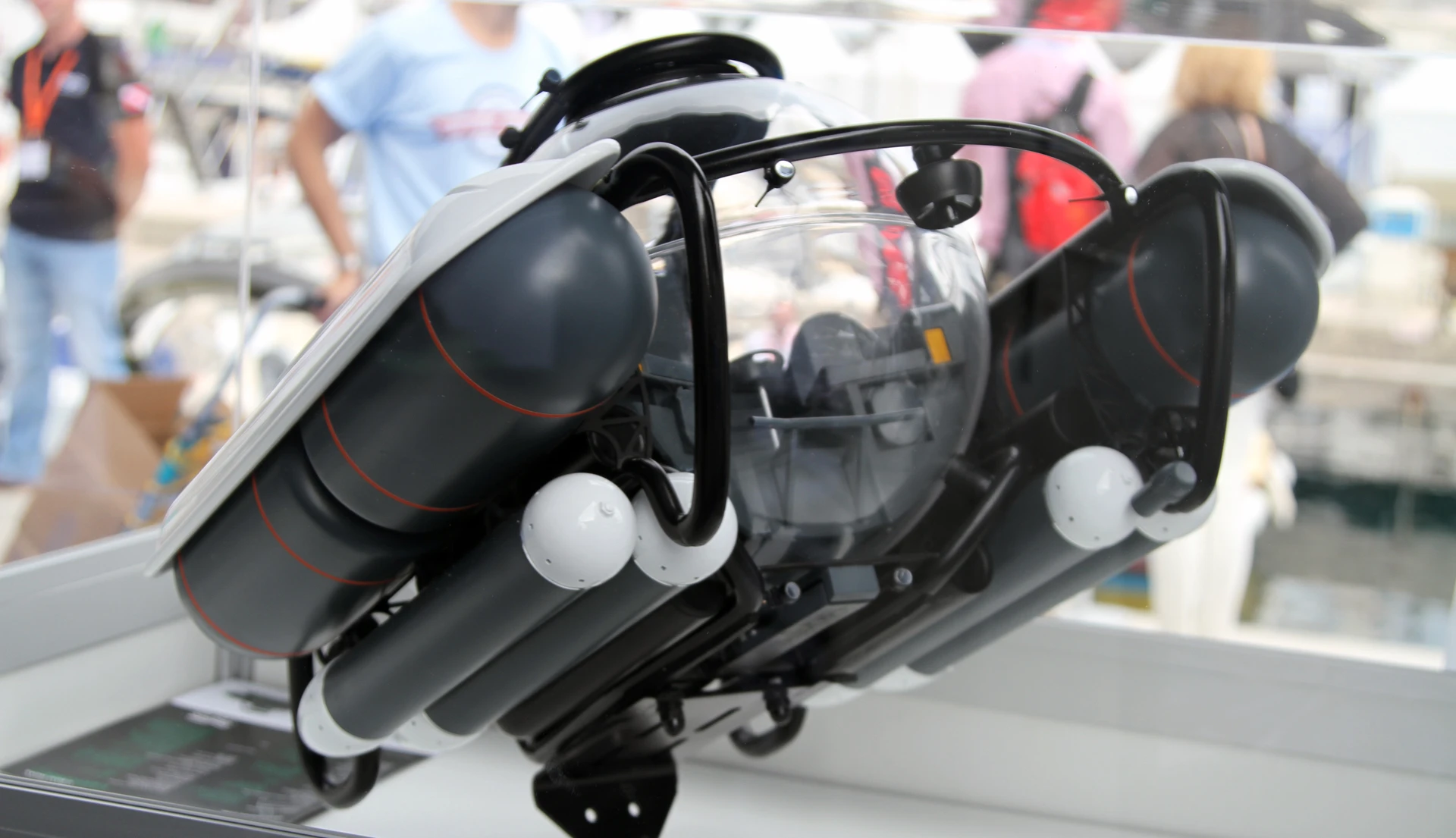

Joining the C-Explorer 2 (which our own James Holloway recently took for a test drive) and 5 models, U-Boat Worx has begun production on six C-Explorer 3 submersibles, the first two of which have already been sold and are set to hit the water in April 2014. U-Boat Worx has managed to keep the size down while accommodating an extra passenger with dimensions starting from 385 x 375 x 210 cm (152 x 148 x 83 in). The two passengers are seated next to each other at the front of the submersible, while the pilot is centrally placed behind them.

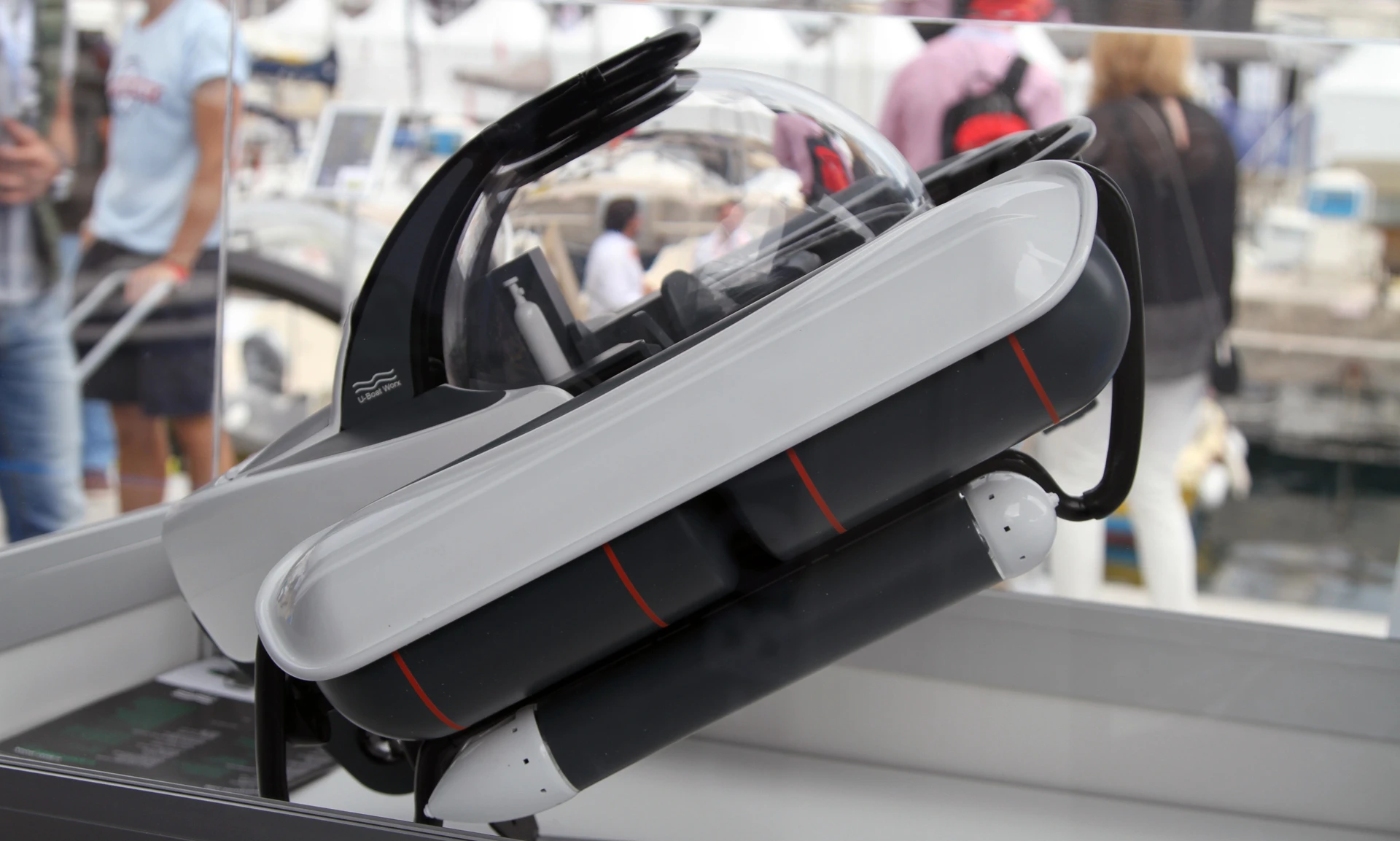

Side view of the C-Explorer 3 (Photo: Gizmag)
Side view of the C-Explorer 3 (Photo: Gizmag)

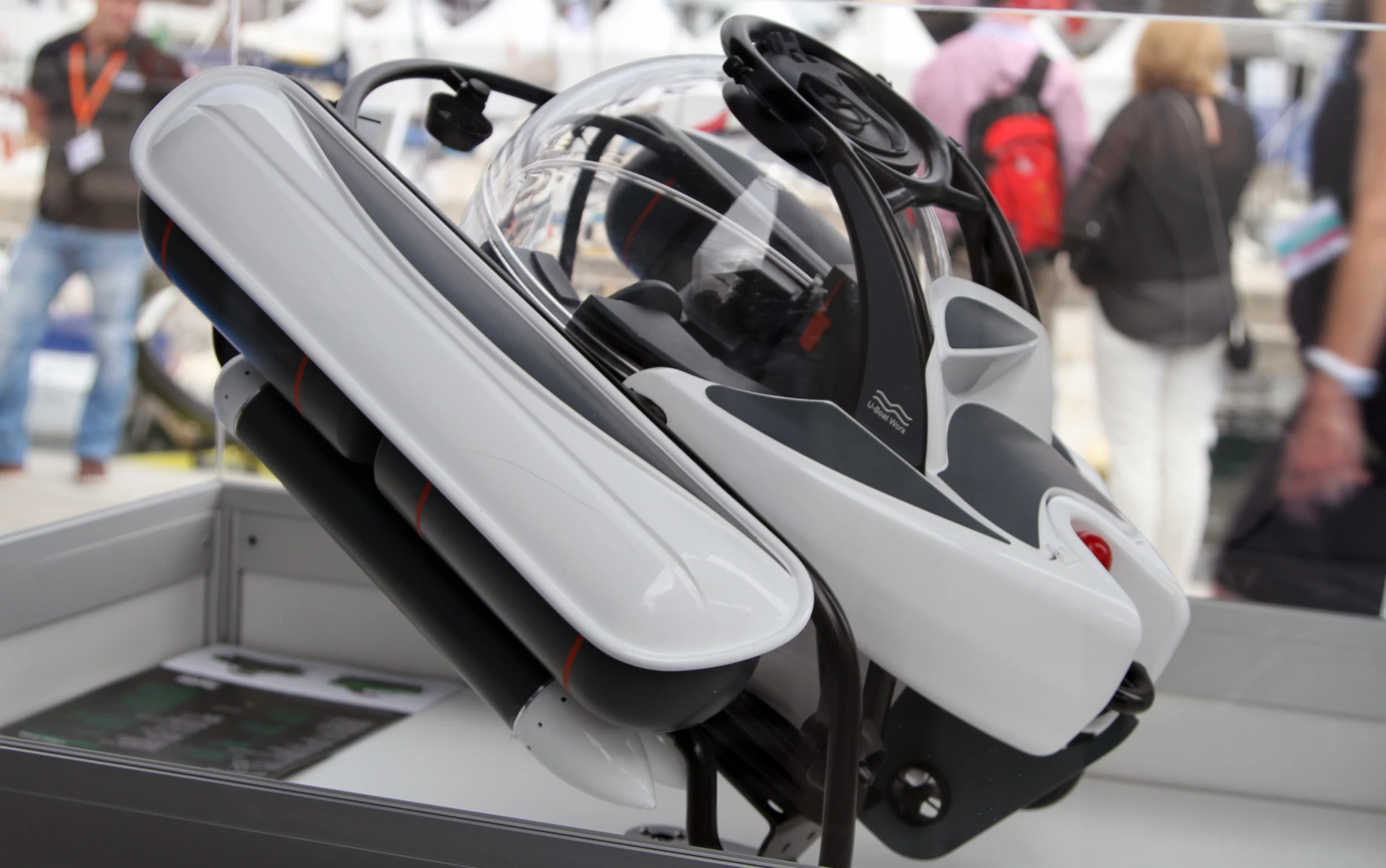

Like the C-Explorer 2, the 3 can dive to depths of up to 1,000 m (3,300 ft) for periods of up to 8 hours, with an option of 16 hours also available. The standard model is propelled by four 2-kW thrusters (two vertical and two horizontal) powered by a 15.6 kWh lithium-ion battery pack, with an upgrade to 5 kW thrusters and a 31.2 kWh battery pack available as an option.

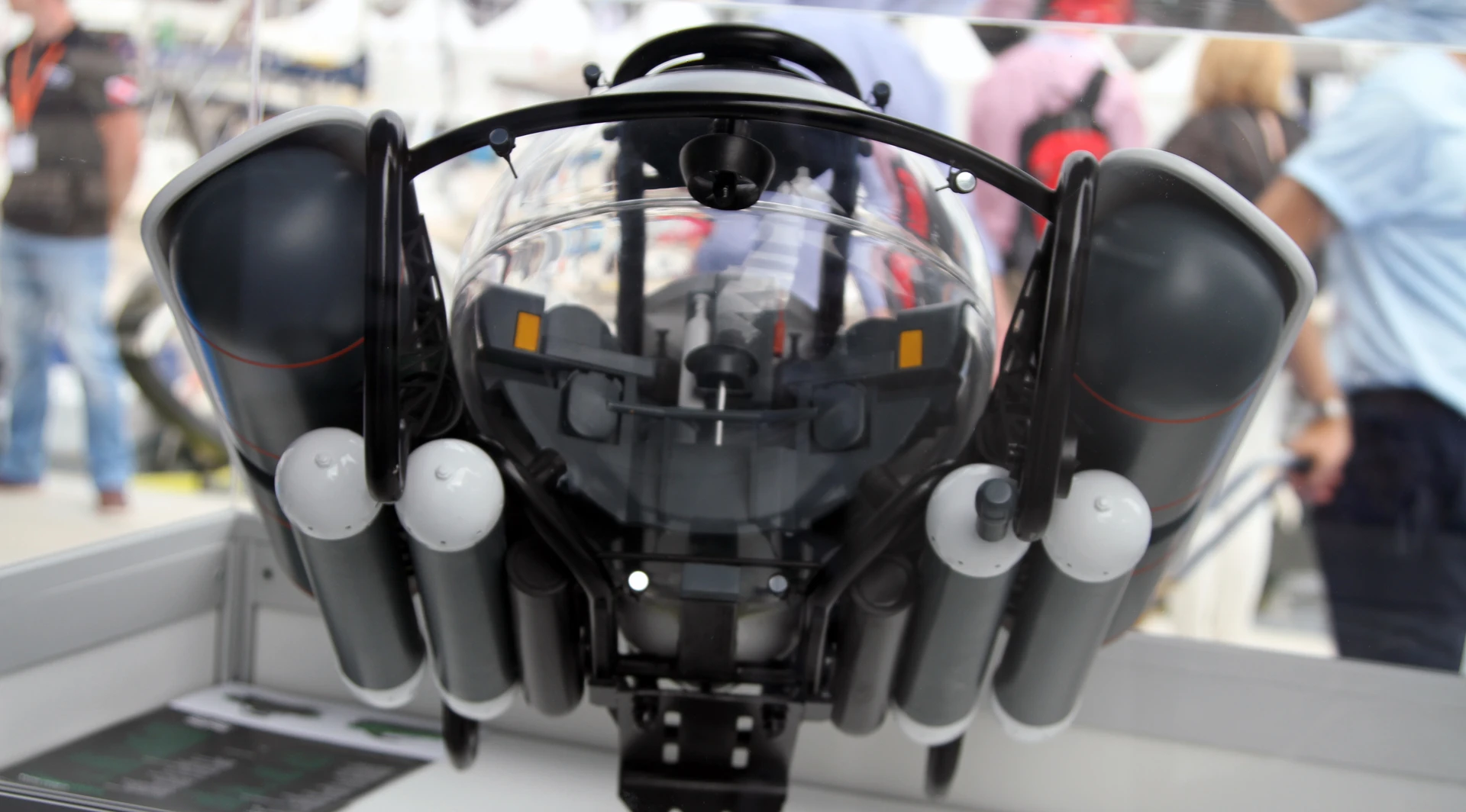

The scale model of the C-Explorer 3 U-Boat Worx is displaying in Monaco shows a pole supporting the controls in front of the pilot's chair but, although wired, the controls are detachable. This allows them to be handed to the passengers who can take the wheel while the pilot keeps a close eye over their shoulders and does some back seat driving.

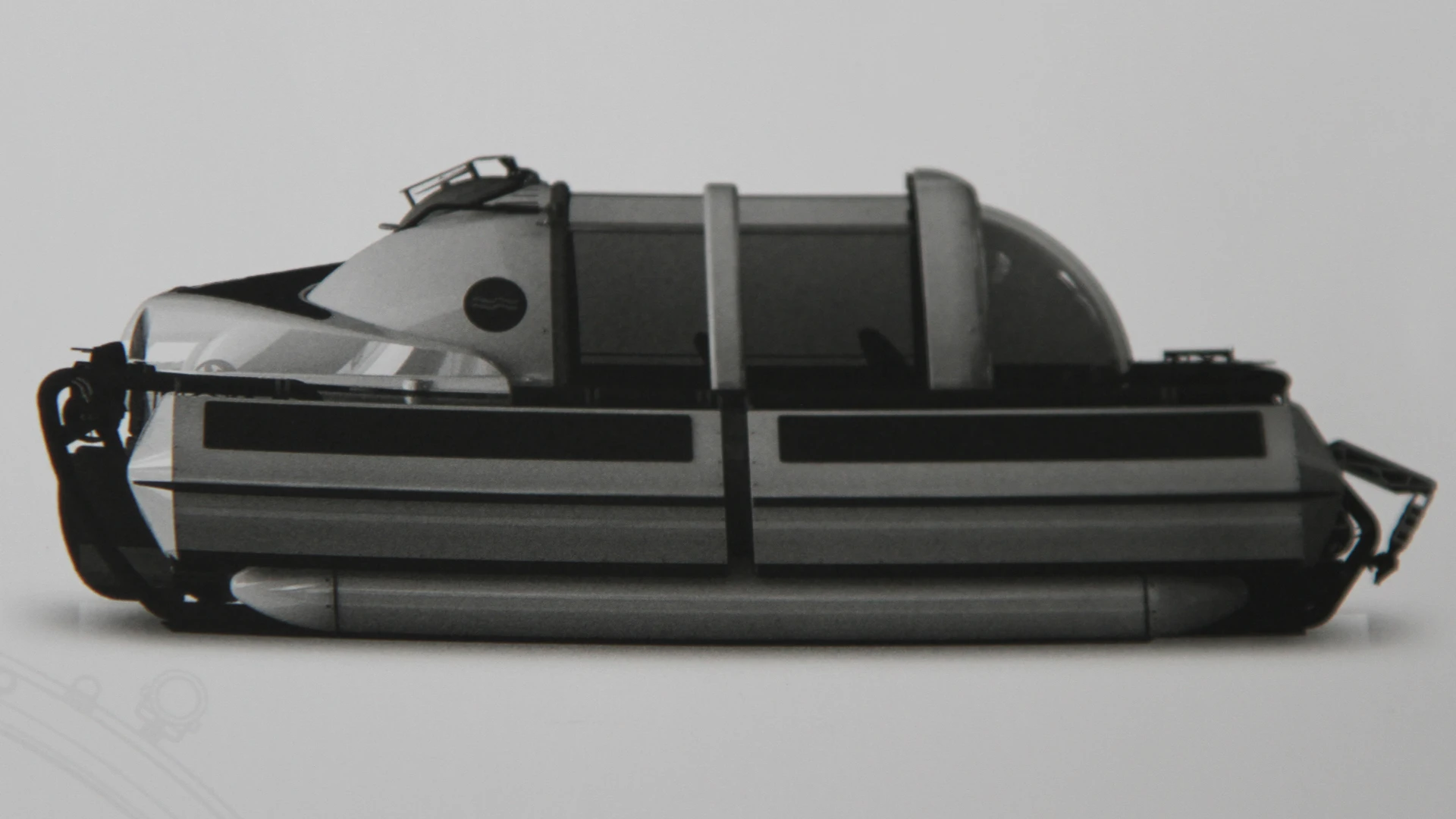

A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)
A layout design has been completed for a C-Explorer 7 model (Photo: Gizmag)

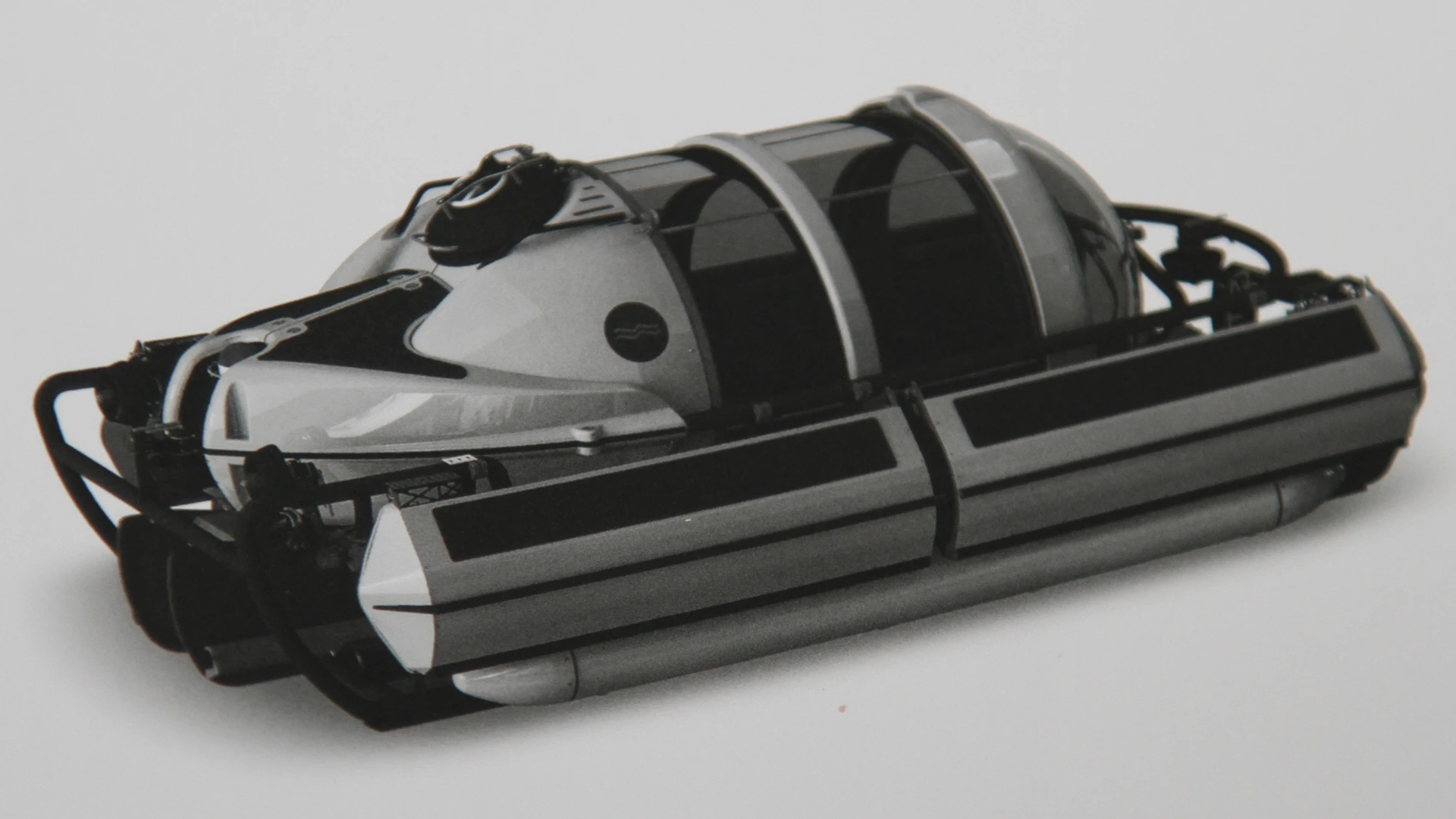

Although there was no scale model on display, a company engineer did reveal that a design layout for a C-Explorer 7 model has been completed and showed us some illustrations. This is essentially a C-Explorer 5 that has been stretched to accommodate another two-seater segment. The company doesn't currently have any plans to build the C-Explorer 7, but the company engineer said that if someone ordered it, it would be built.

There's no price on the C-Explorer 7, but the C-Explorer 3 starts at around €1.8 million (US$2.4 million).
