March 9, 2009 Super light structural materials such as carbon fiber and Kevlar have incredible natural strength in tension but are much weaker in compression. A good example of this is how the carbon fiber suspension on a formula one car can resist several tons of downforce but explodes when crashed into a barrier. The concept of tension has been a familiar sight in large engineered structures such as suspension bridges and now the same concept has been applied to a bike frame.

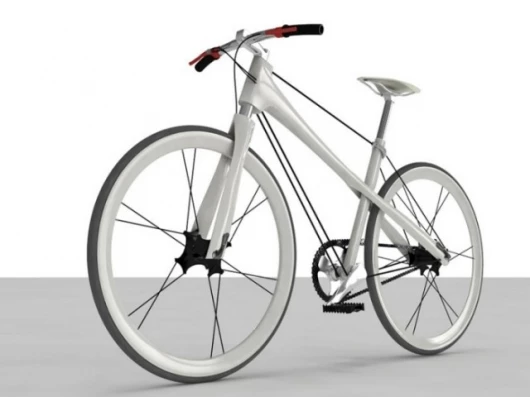

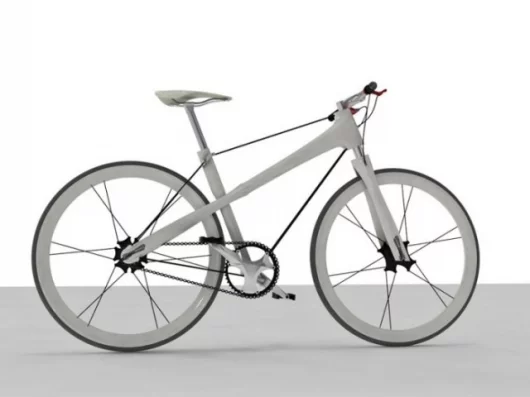

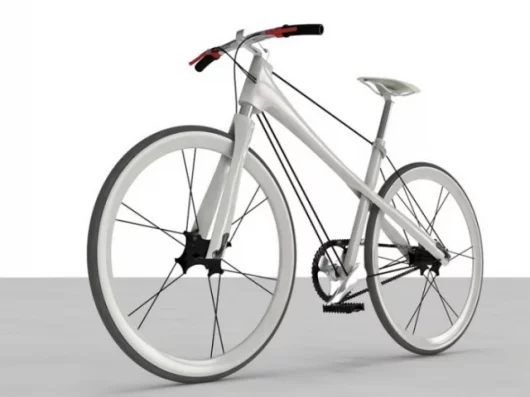

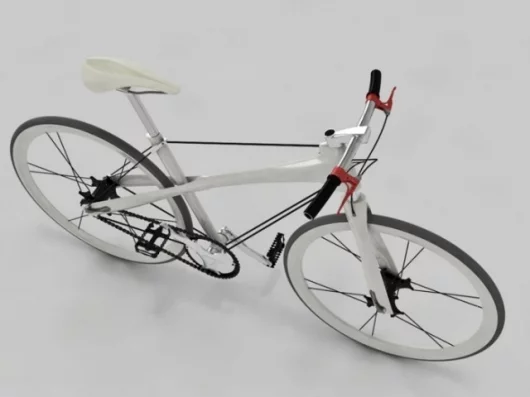

We have seen the down tube on a bike frame replaced by a steel cable in the Slingshot bike, now Romanian industrial designer Ionut Predescu has come up with a concept bike frame that uses just two carbon fiber tubes and takes advantage of the tensile strength of Kevlar wire to replace all other tubes usually found in a bike frame. He calls it a Tensegrity frame, a term invented by Buckminster Fuller of Geodesic dome fame which is a portmanteau of Tensional Integrity.
UPGRADE TO NEW ATLAS PLUS
More than 1,500 New Atlas Plus subscribers directly support our journalism, and get access to our premium ad-free site and email newsletter. Join them for just US$19 a year.UPGRADE
The idea is similar in concept to the spokes in a wheel where it’s actually tension on the spokes that holds the wheel together, not compression. The result is a super light, high strength frame where "elements seem to float one against the other", although as the designer himself admits, there may be issues with lateral stability. A prototype will tell the tale - we'd love to see one.
Source: ionut predescu (Coroflot).View gallery - 3 images
