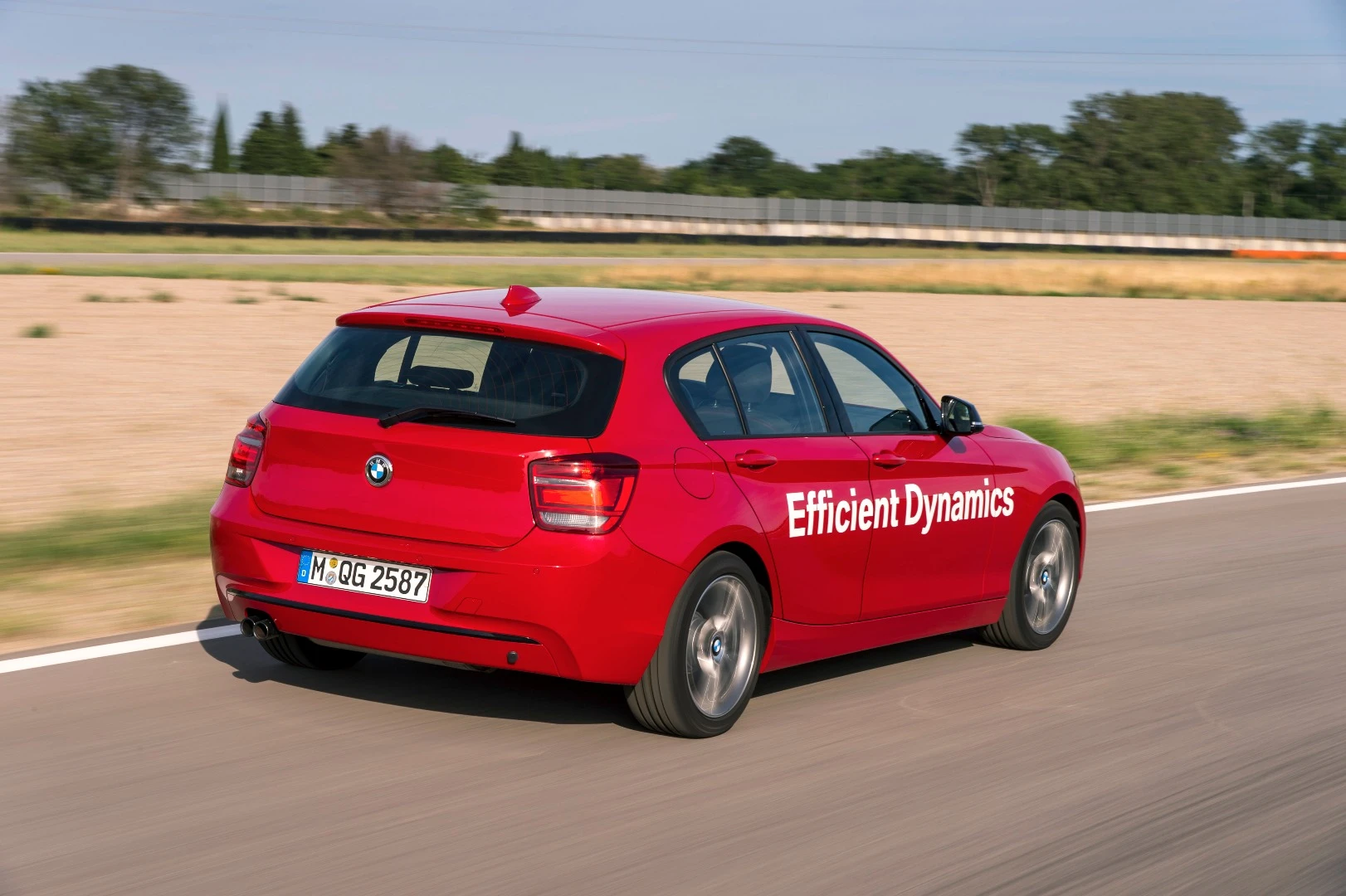

The water cooling system collects water from the air conditioning system
4/12
The water cooling system collects water from the air conditioning system

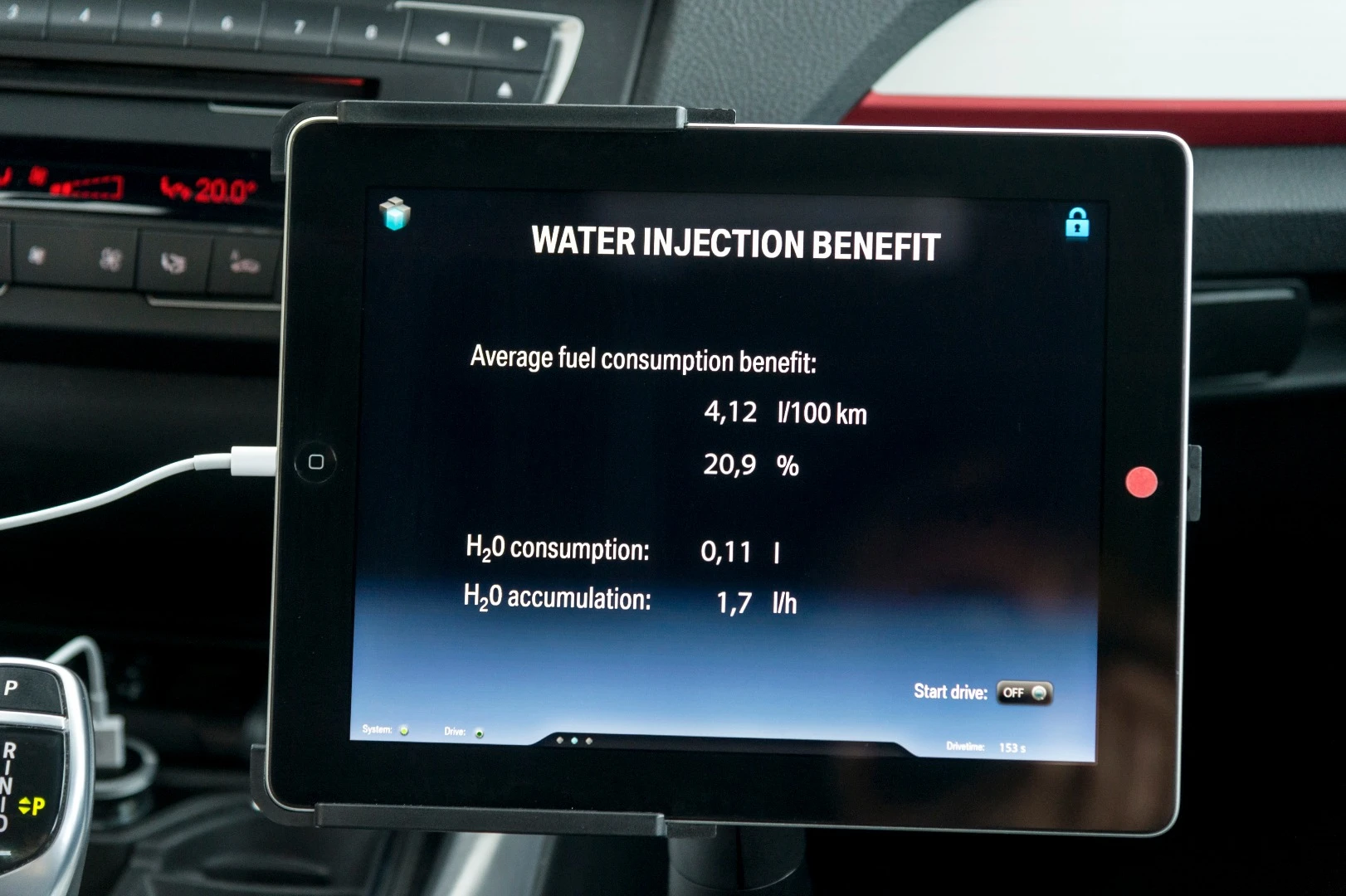

BMW has tested the water cooling system in its MotoGP safety car
5/12
BMW has tested the water cooling system in its MotoGP safety car

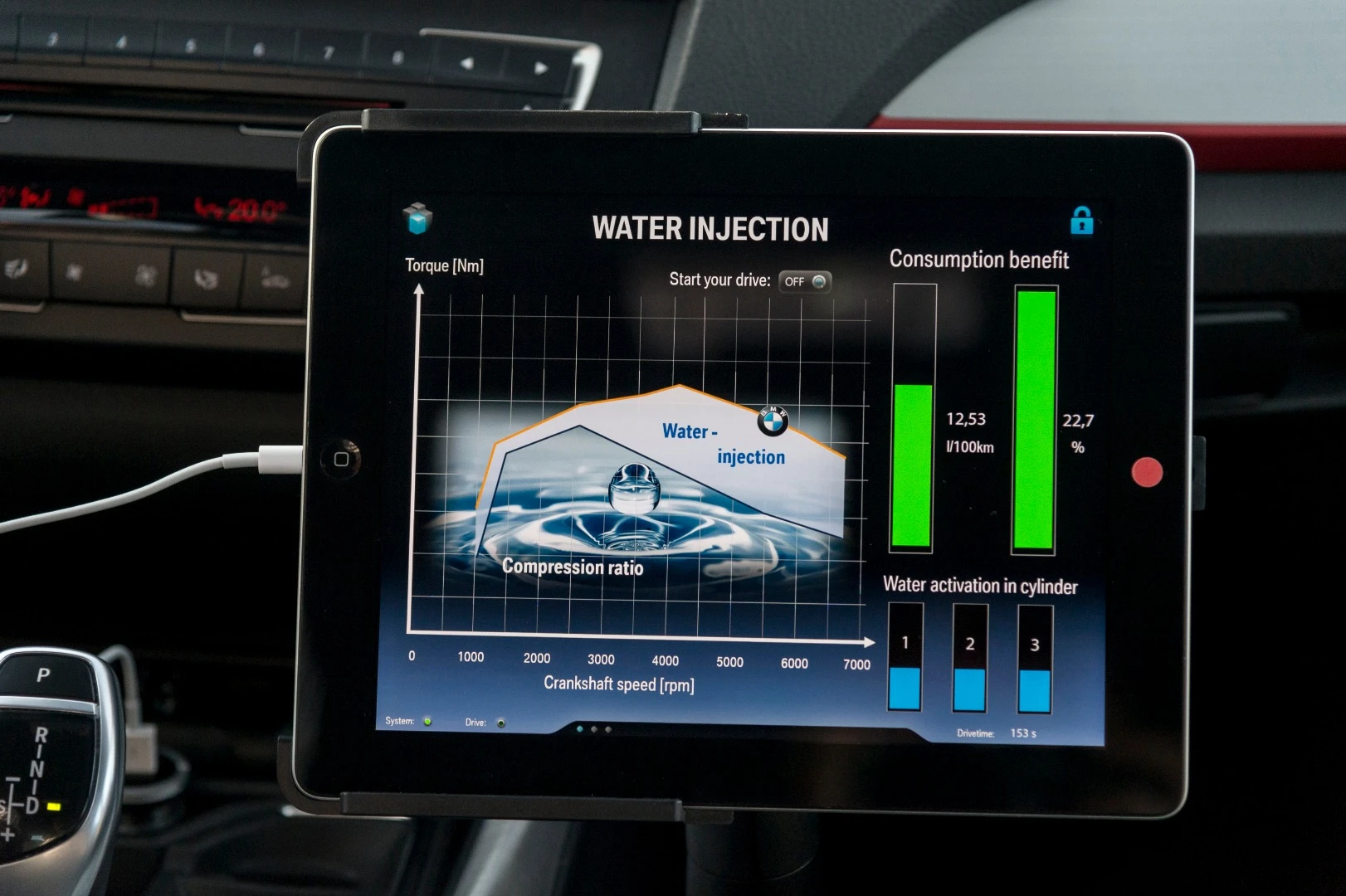

Water injection allows BMW to run a higher compression ratio
6/12
Water injection allows BMW to run a higher compression ratio
The system is currently in use on the M4 MotoGP safety car
7/12
The system is currently in use on the M4 MotoGP safety car

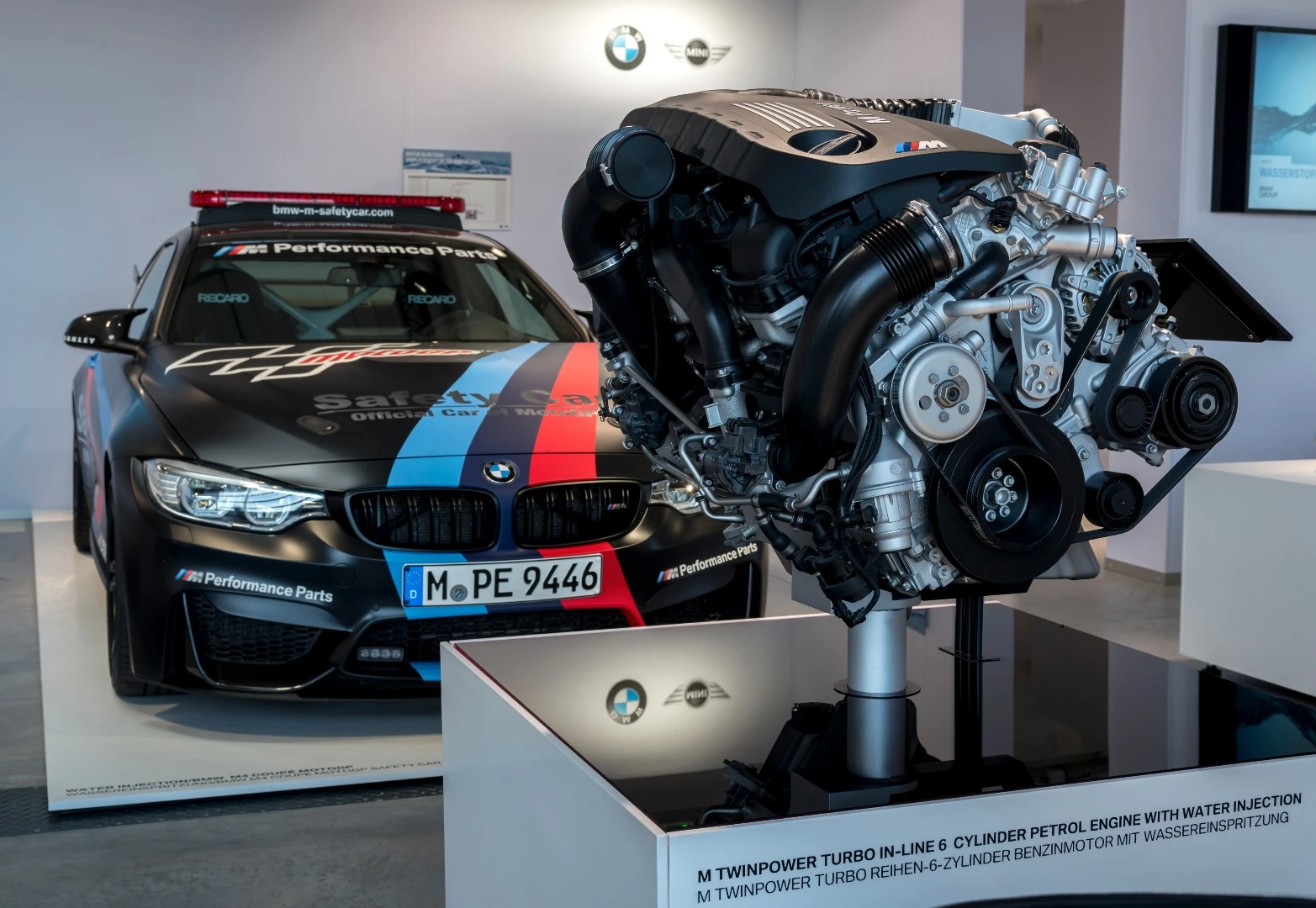

Whereas the M4's system is fed by a manually refuelled tank, the 1 Series self replenishes
8/12
Whereas the M4's system is fed by a manually refuelled tank, the 1 Series self replenishes

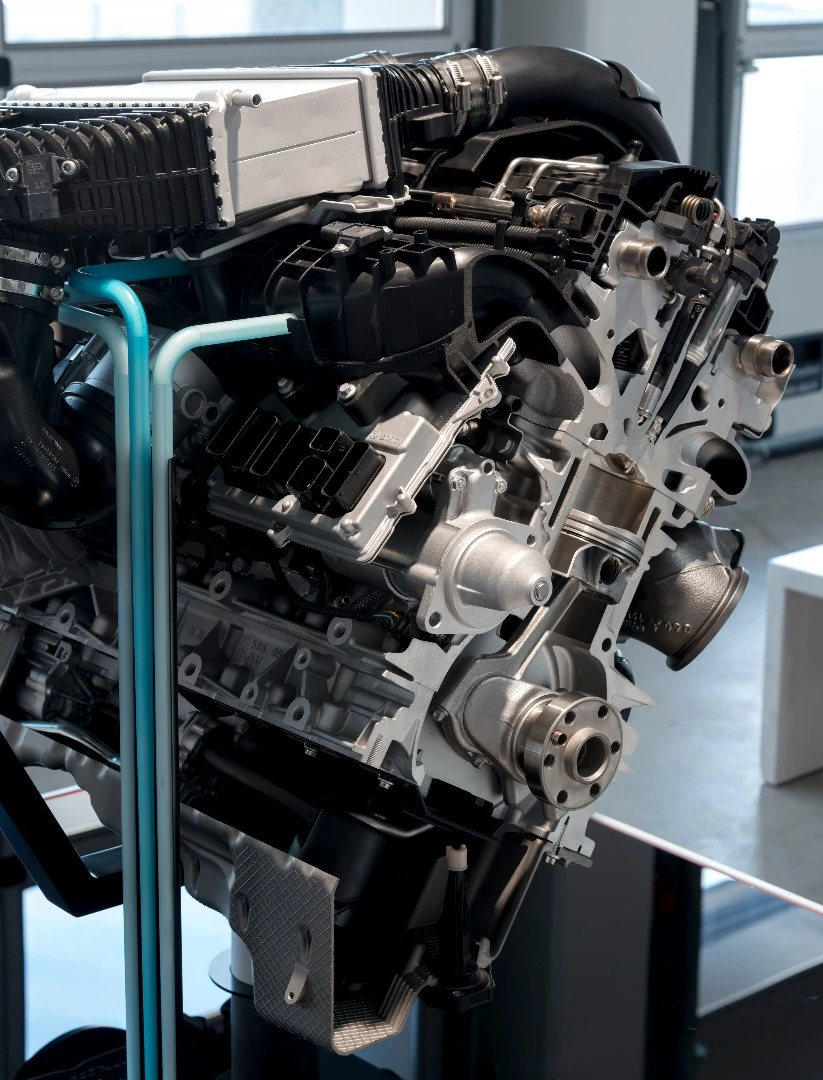

The system sprays a fine mist of water into the combustion chamber
9/12
The system sprays a fine mist of water into the combustion chamber

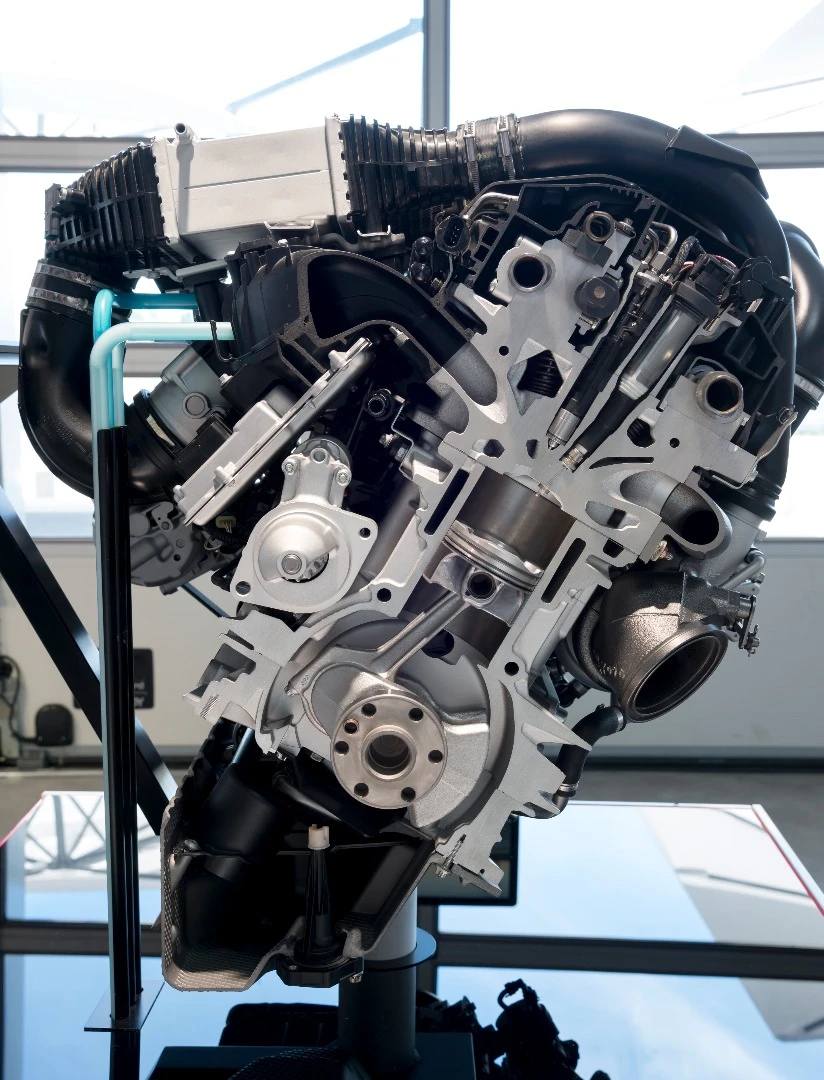

Combustion temperatures are reduced by 25 degrees celsius
10/12
Combustion temperatures are reduced by 25 degrees celsius

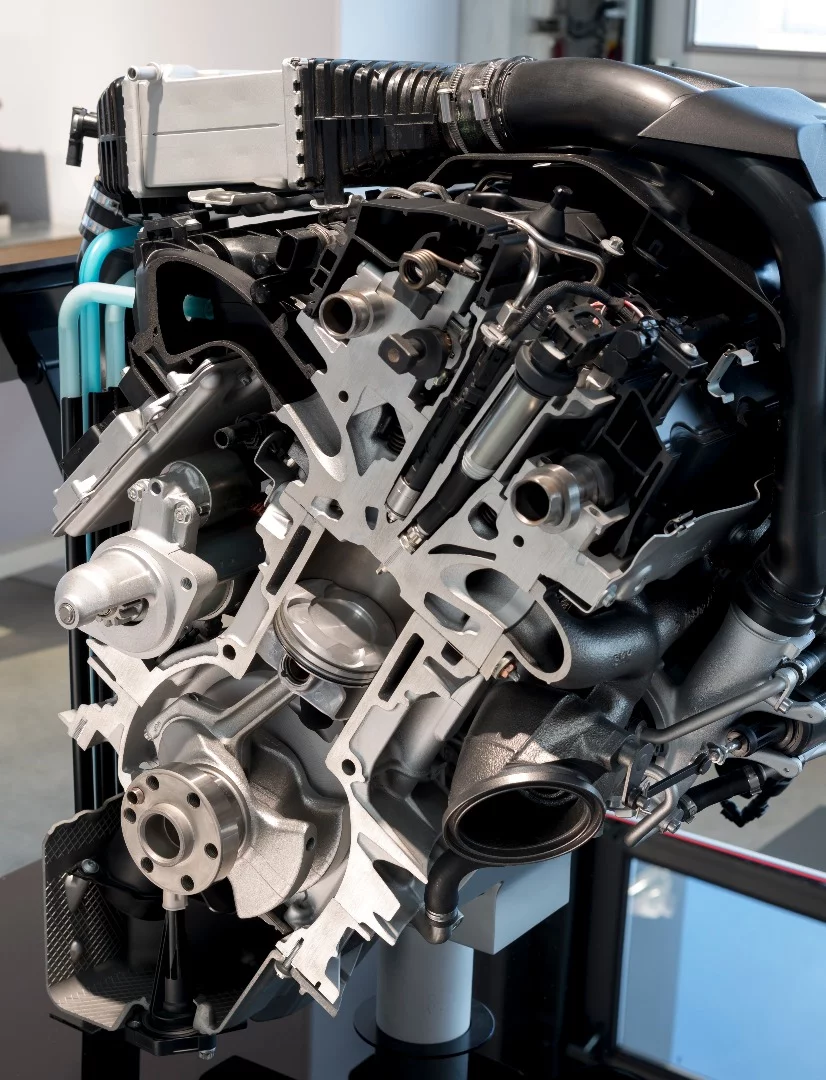

Reducing combustion temperature also reduces the thremal strain on the engine's components
11/12
Reducing combustion temperature also reduces the thremal strain on the engine's components

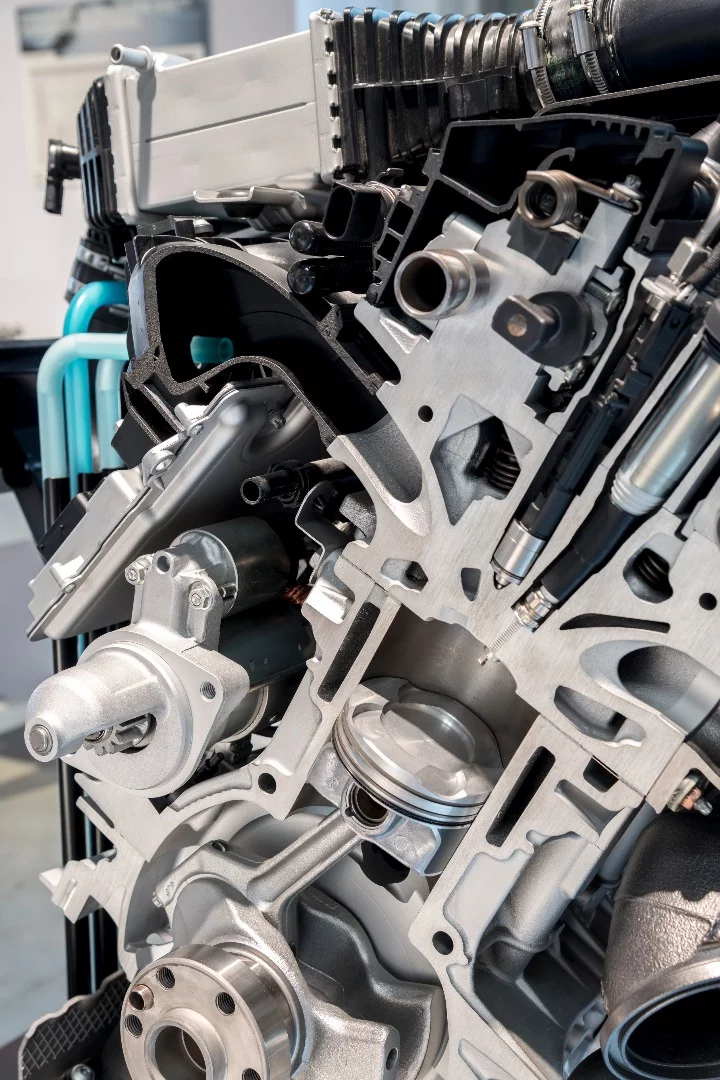

Water injection reduces the risk of knock in the engine, allowing a higher compression ratio
12/12
Water injection reduces the risk of knock in the engine, allowing a higher compression ratio
View gallery - 12 images

Water and fuel aren't usually a good mix, but BMW has turned to water injection technology in its ever-continuing quest for improved fuel economy and power. Its latest 1 Series prototype is fitted with such a system to help create lower combustion temperatures, which brings fuel economy benefits of up to 8 percent on the road.

Central to the benefit of water cooling is its ability to cut down on combustion temperatures. With lower combustion temperatures comes improved economy and a reduced risk of "knock", which allows BMW to run a compression ratio of 11:1 instead of the lower 9.5:1 it usually uses in its three cylinder engine. This higher compression ratio brings about better fuel efficiency on low and medium throttle applications, contributing to the improved economy offered by a water-cooled engine.

Water injection allows BMW to run a higher compression ratio
Water injection allows BMW to run a higher compression ratio

BMW's system draws water from a small tank and sprays a fine mist into the intake manifold plenum where it evaporates, reducing combustion temperatures by around 25° C (45° F).

As well as offering instant economy and performance benefits, the lower temperatures that water cooling creates reduces the strain on everything from the engine's pistons and valves to its catalytic converter and turbocharger, potentially improving the longevity of those components.

Thanks to the earlier ignition point and the increased boost it allows, the water cooling system in the 1 Series frees up 10 percent more torque and power than offered in the standard car.

The new 1 Series tester isn't the first time BMW has fitted one of its cars with a water injection system. The BMW M4 MotoGP safety car is fitted with a similar system. Whereas the MotoGP M4 draws its water from a manually filled tank in the boot, however, BMW's latest water-cooled prototype is fitted with a water recovery system that constantly tops itself up with condensed water from the air conditioning system.

Combustion temperatures are reduced by 25 degrees celsius
Combustion temperatures are reduced by 25 degrees celsius

As is the case with the M4's system, the 1 Series drains all of the water from the system's hoses back to the freeze proof tank when the car is turned off to ensure it doesn't freeze up or cause corrosion.

BMW has not announced a timeline for full-scale production, but when the MotoGP M4 car was launched the brand said "following intense testing within the MotoGP World Championship, the water injection system will also be employed in a BMW M production model in the near future."

Source: BMW
