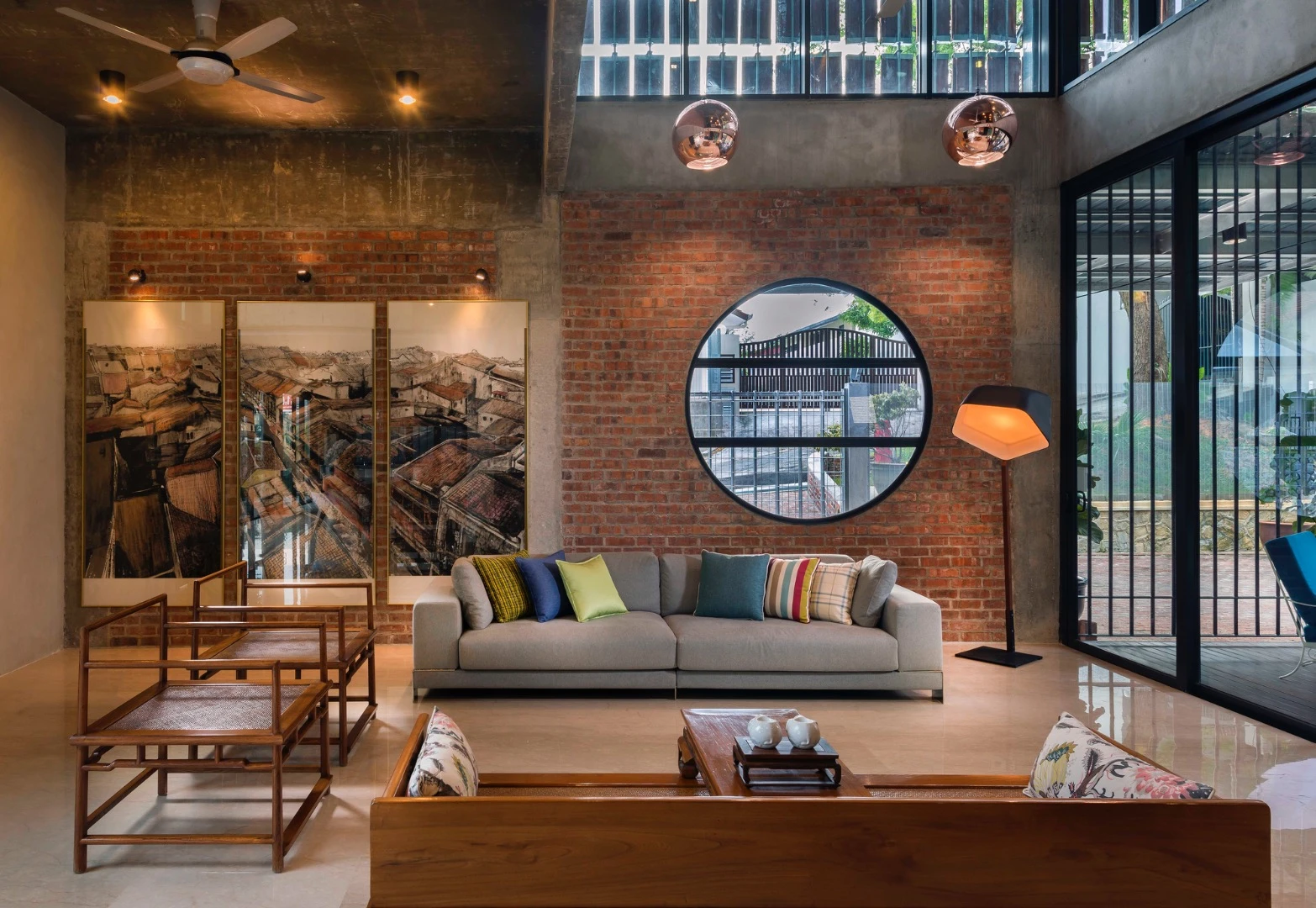

Clay Roof House was completed in 2015
Clay Roof House was completed in 2015
View 19 Images

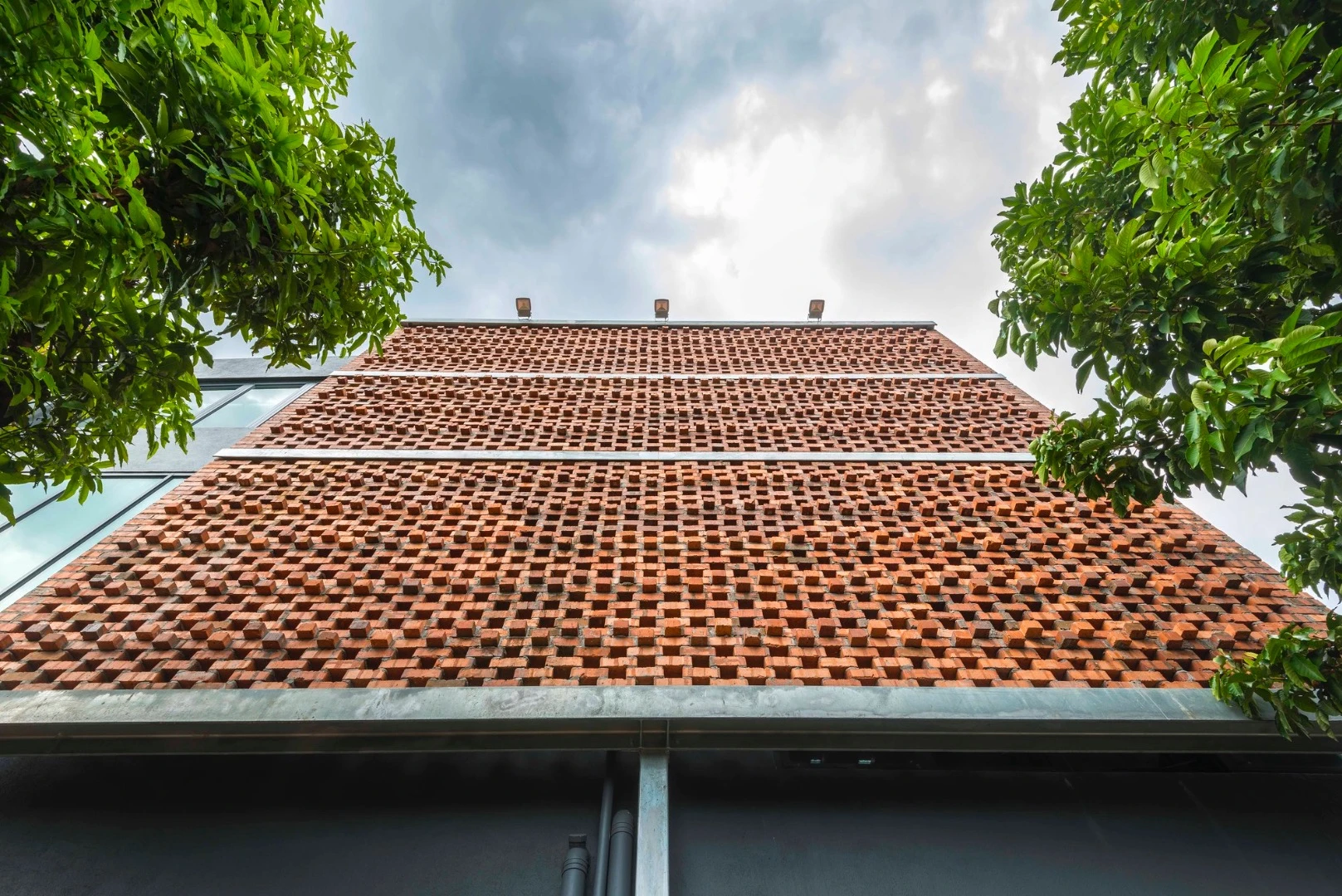

The firm also added a lattice brick screen
1/19
The firm also added a lattice brick screen

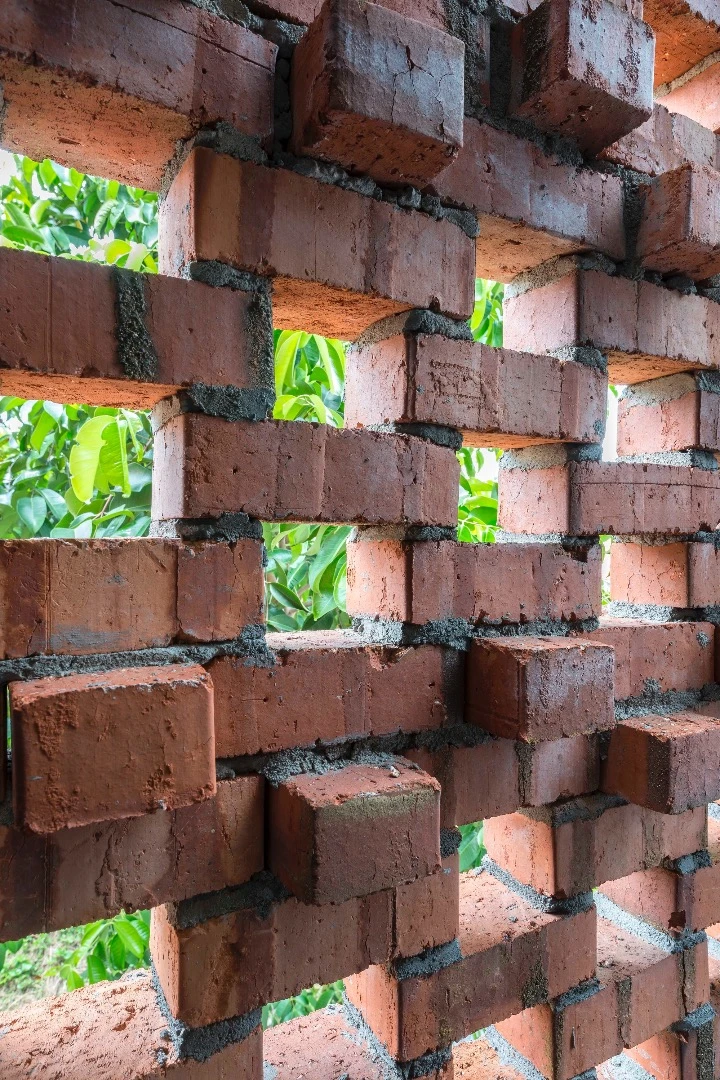

The rough lattice brick screen closeup
2/19
The rough lattice brick screen closeup

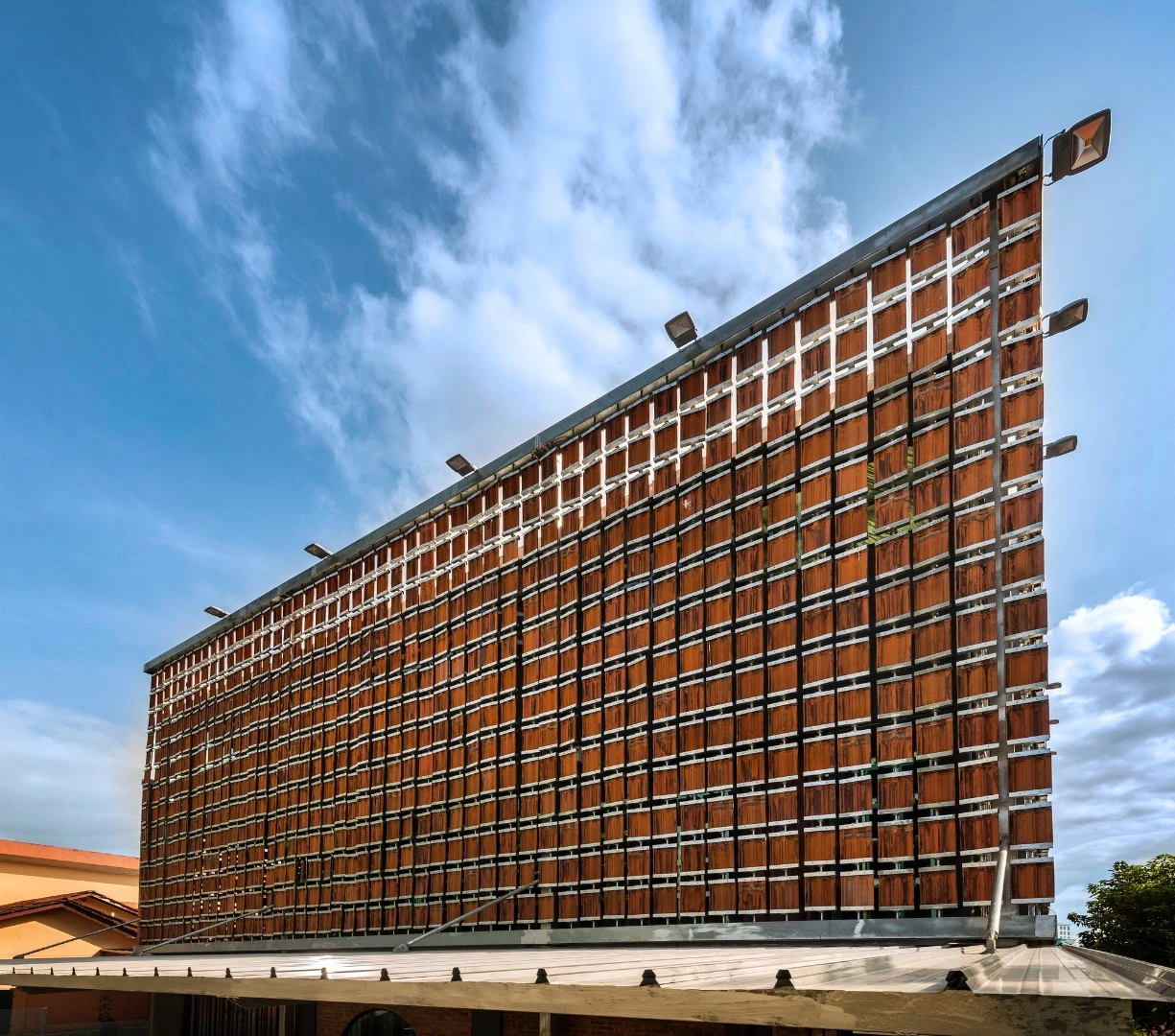

The terracotta tiles reduce solar heat gain
3/19
The terracotta tiles reduce solar heat gain

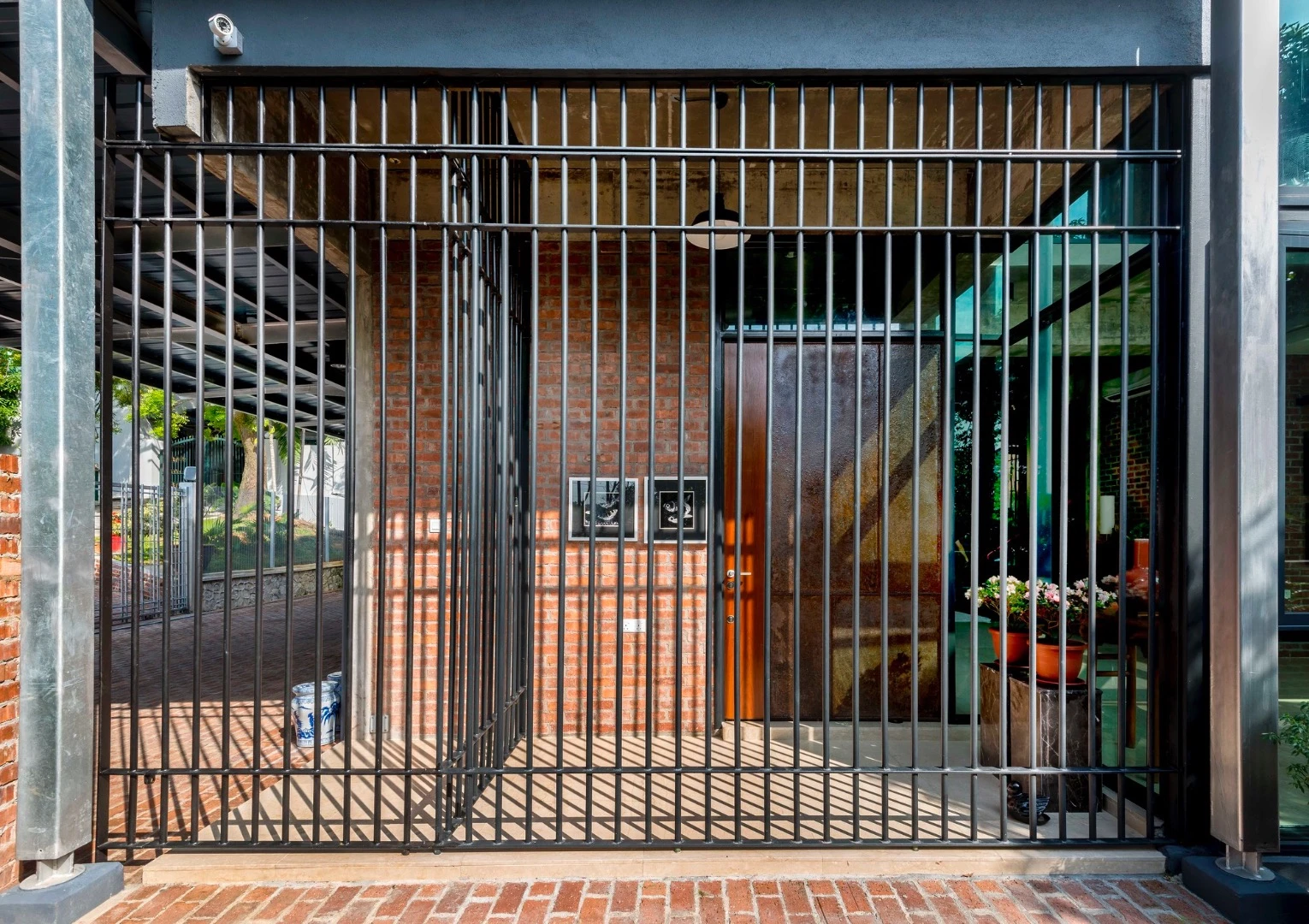

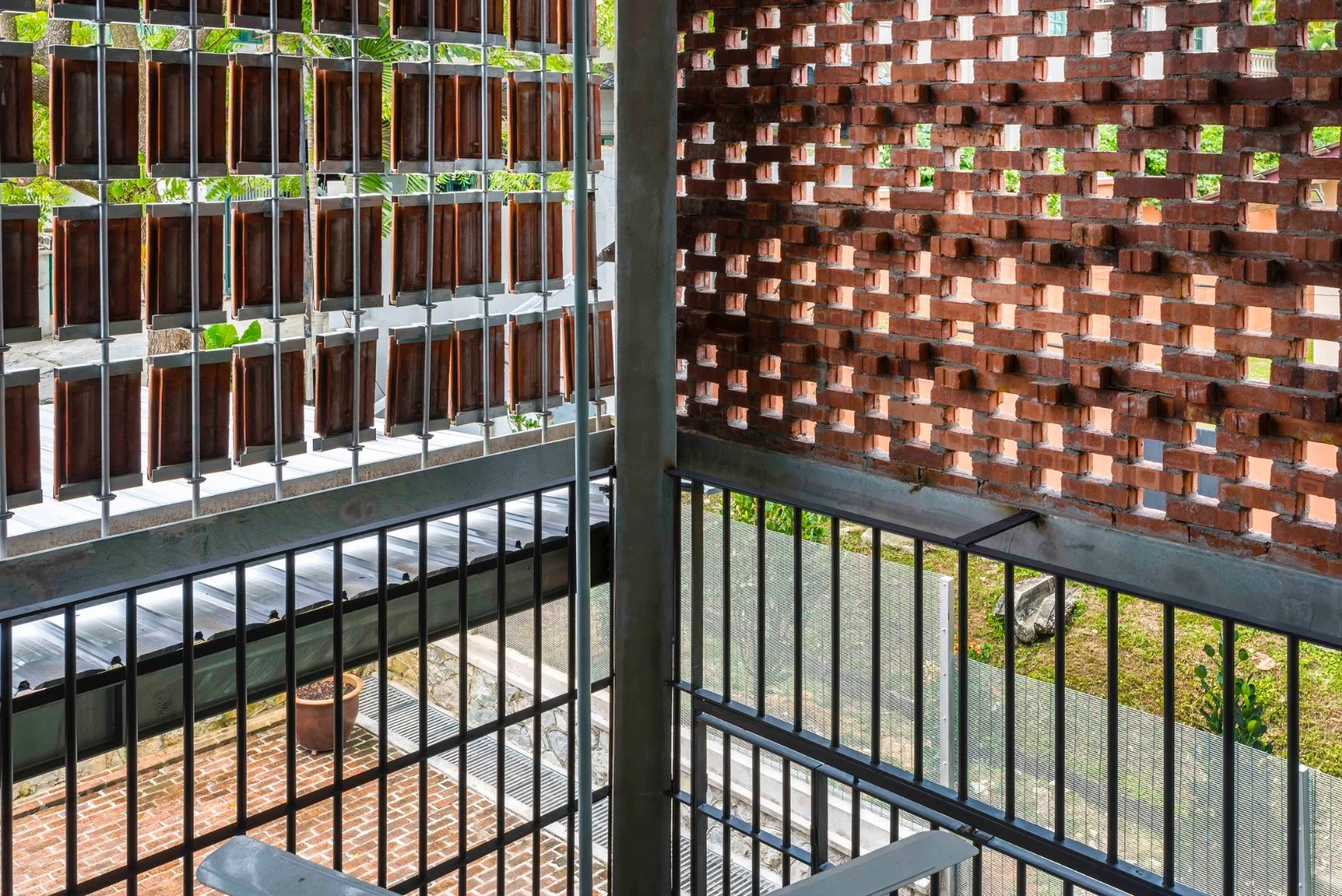

The interior layout is very open to the breeze
4/19
The interior layout is very open to the breeze

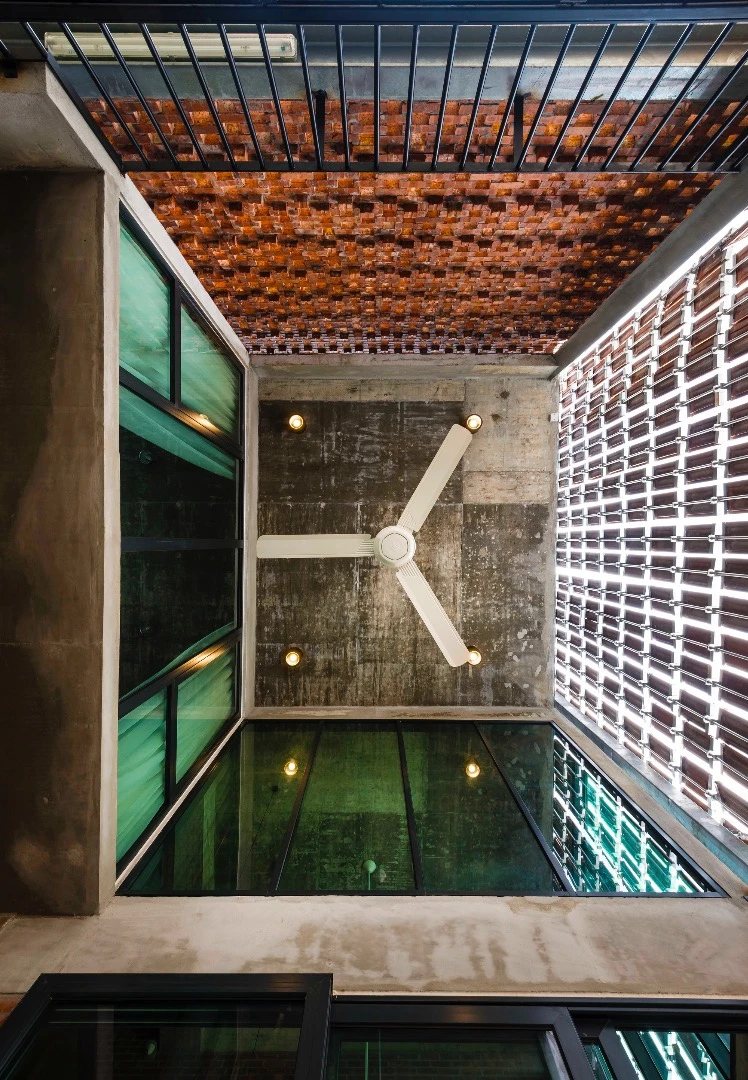

Detail shot of the Clay Roof House's interior
5/19
Detail shot of the Clay Roof House's interior

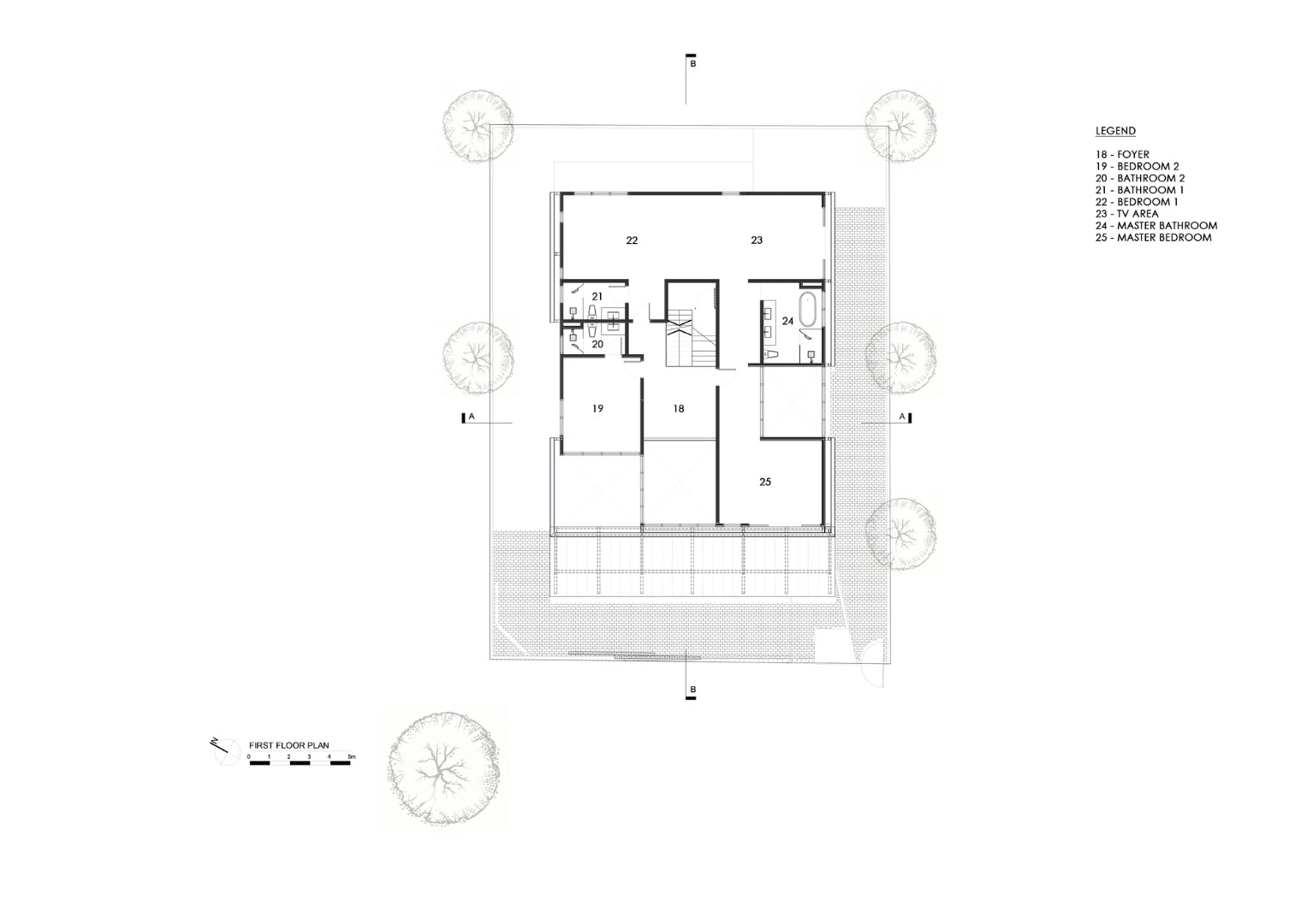

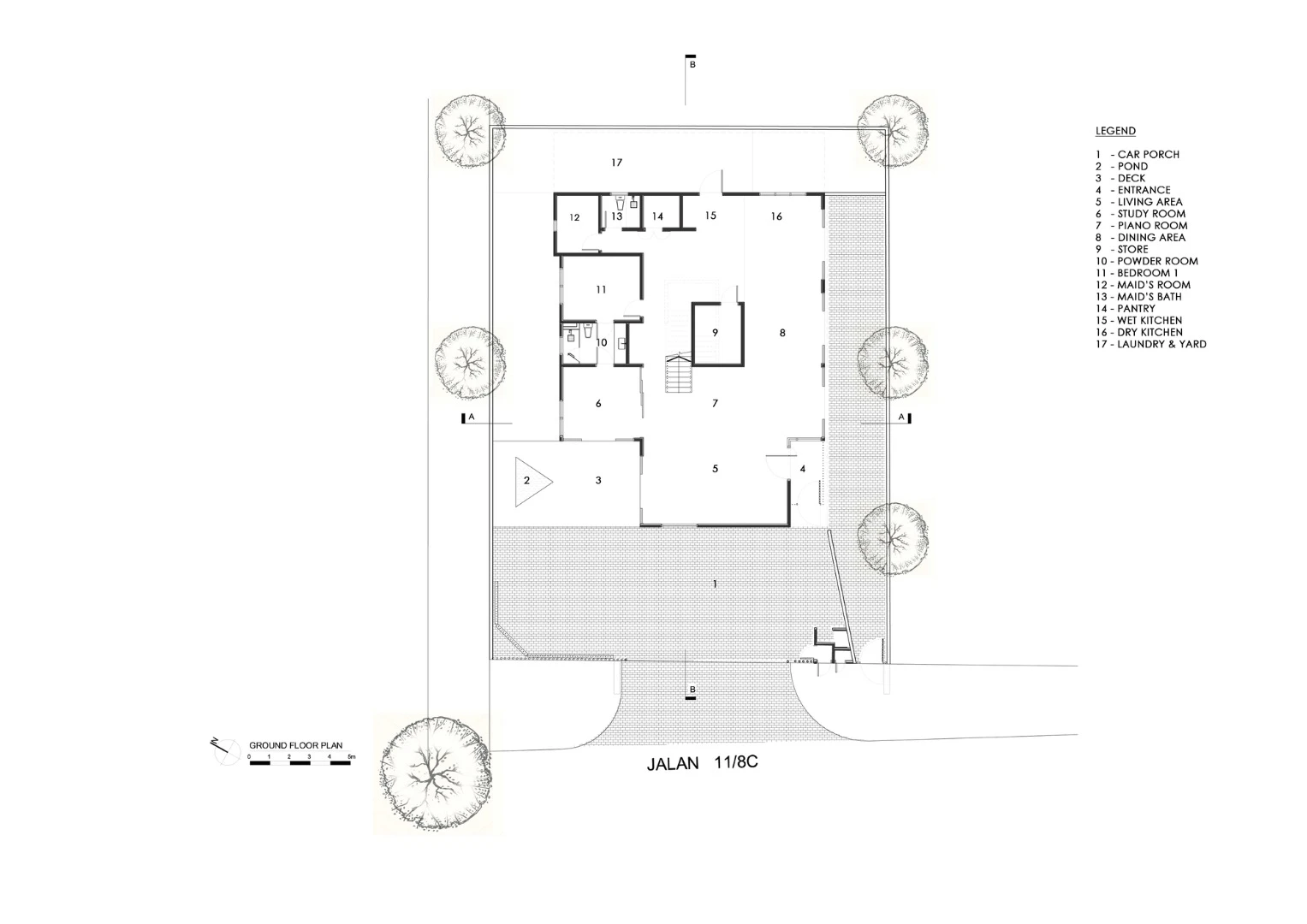

Architectural drawing of the Clay Roof House
6/19
Architectural drawing of the Clay Roof House
The interior layout is very open to the breeze
7/19
The interior layout is very open to the breeze

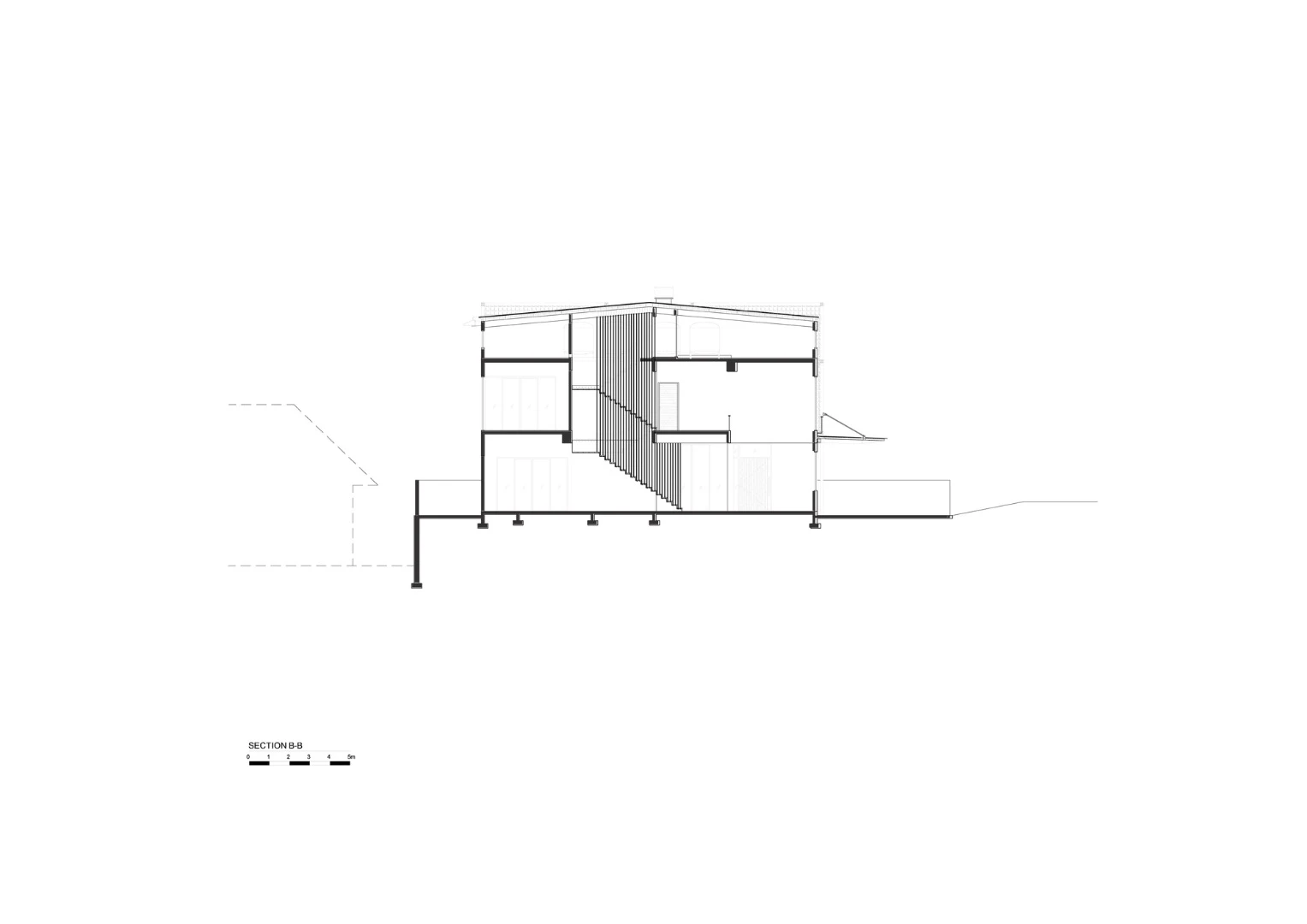

Architectural drawing of the Clay Roof House
8/19
Architectural drawing of the Clay Roof House

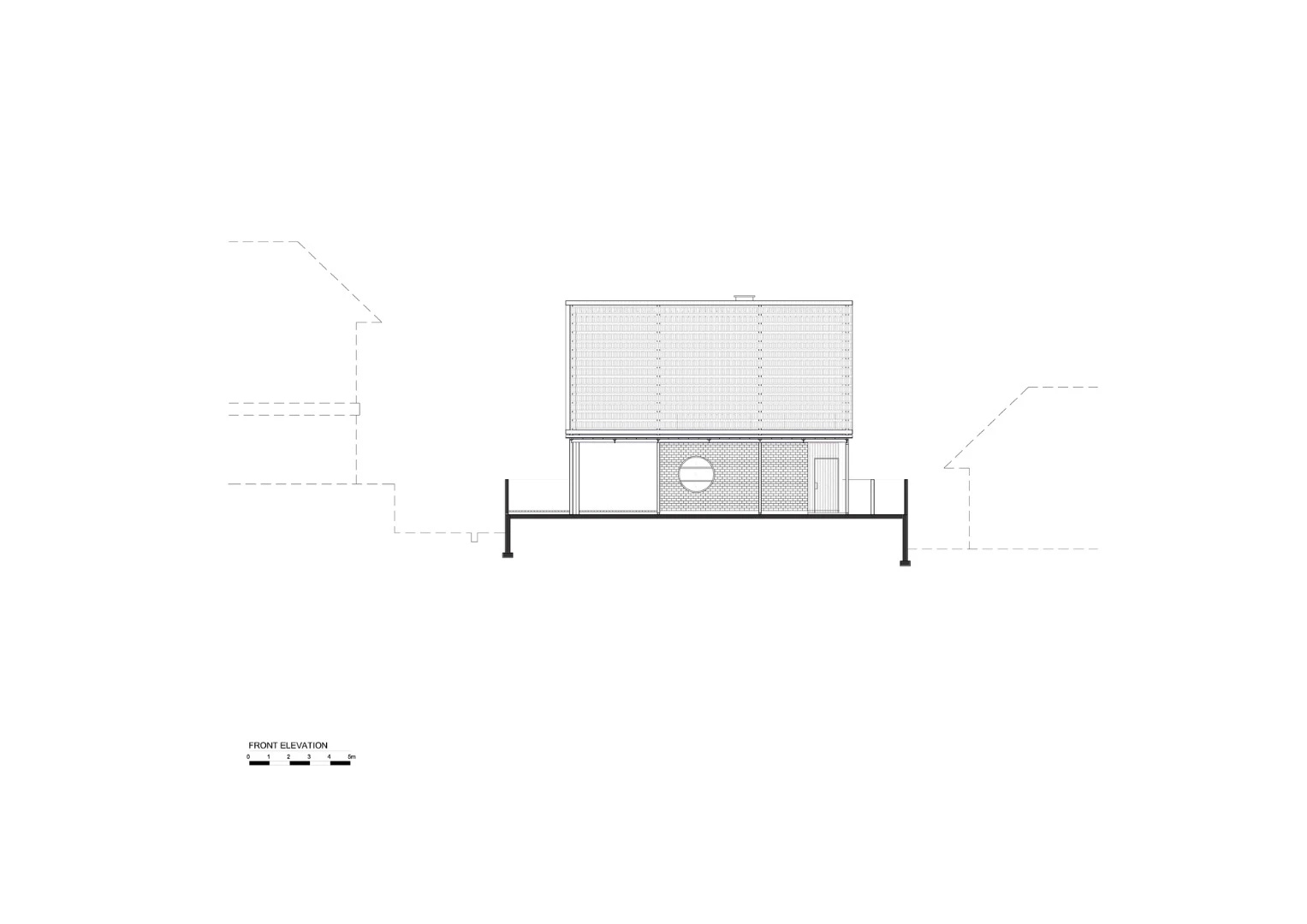

Architectural drawing of the Clay Roof House
9/19
Architectural drawing of the Clay Roof House

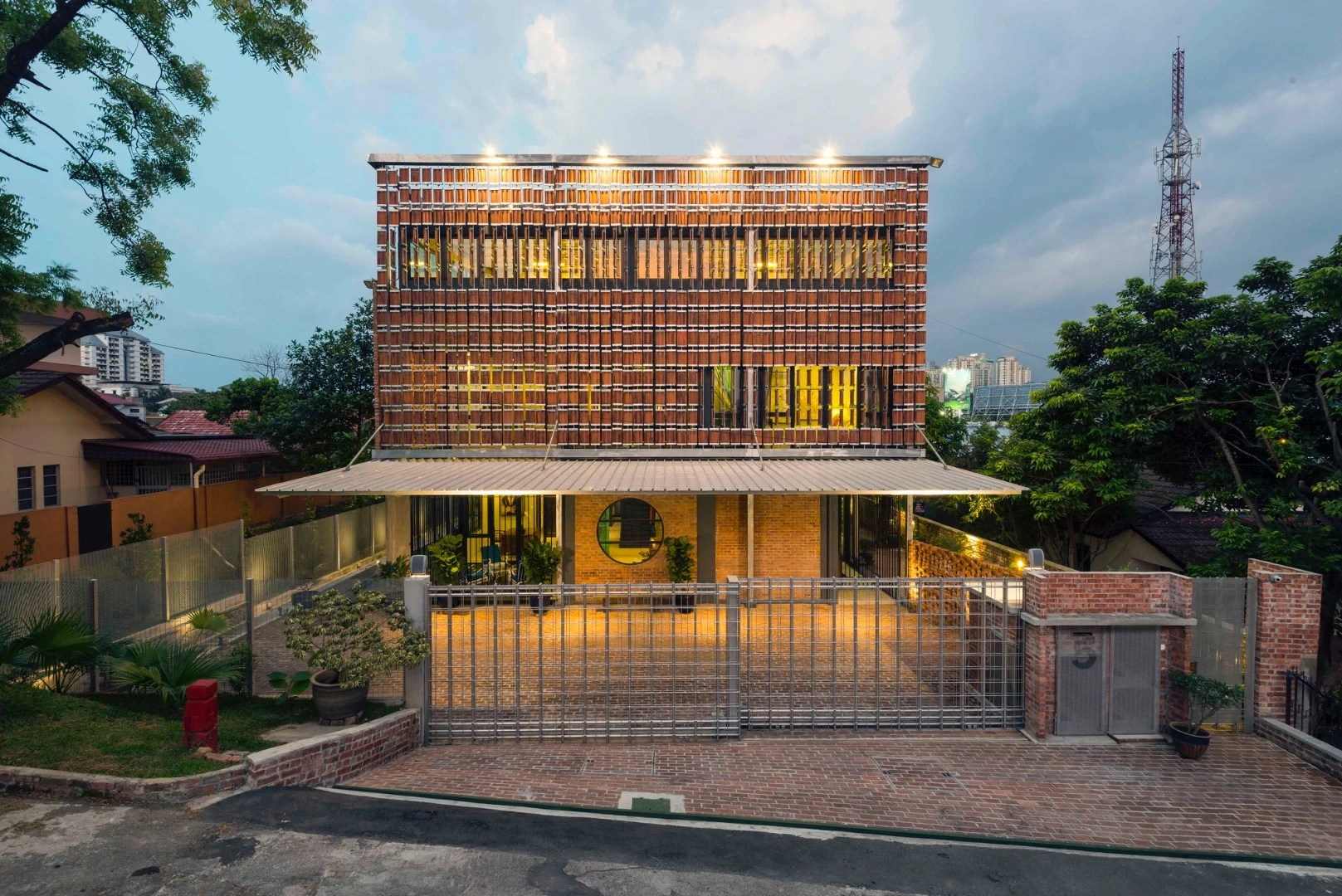

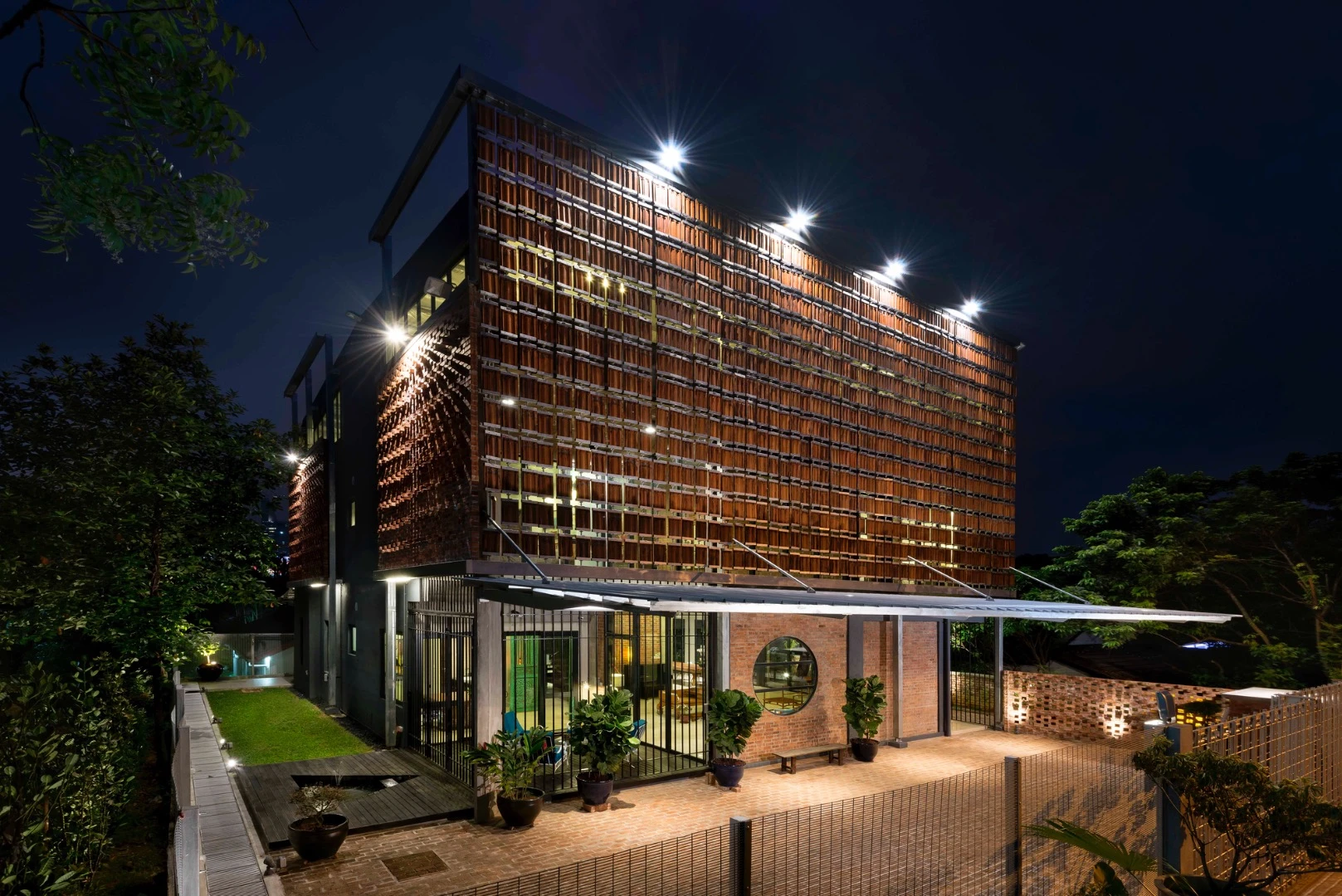

At night the home glows like a terracotta lantern
10/19
At night the home glows like a terracotta lantern
Architectural drawing of the Clay Roof House
11/19
Architectural drawing of the Clay Roof House

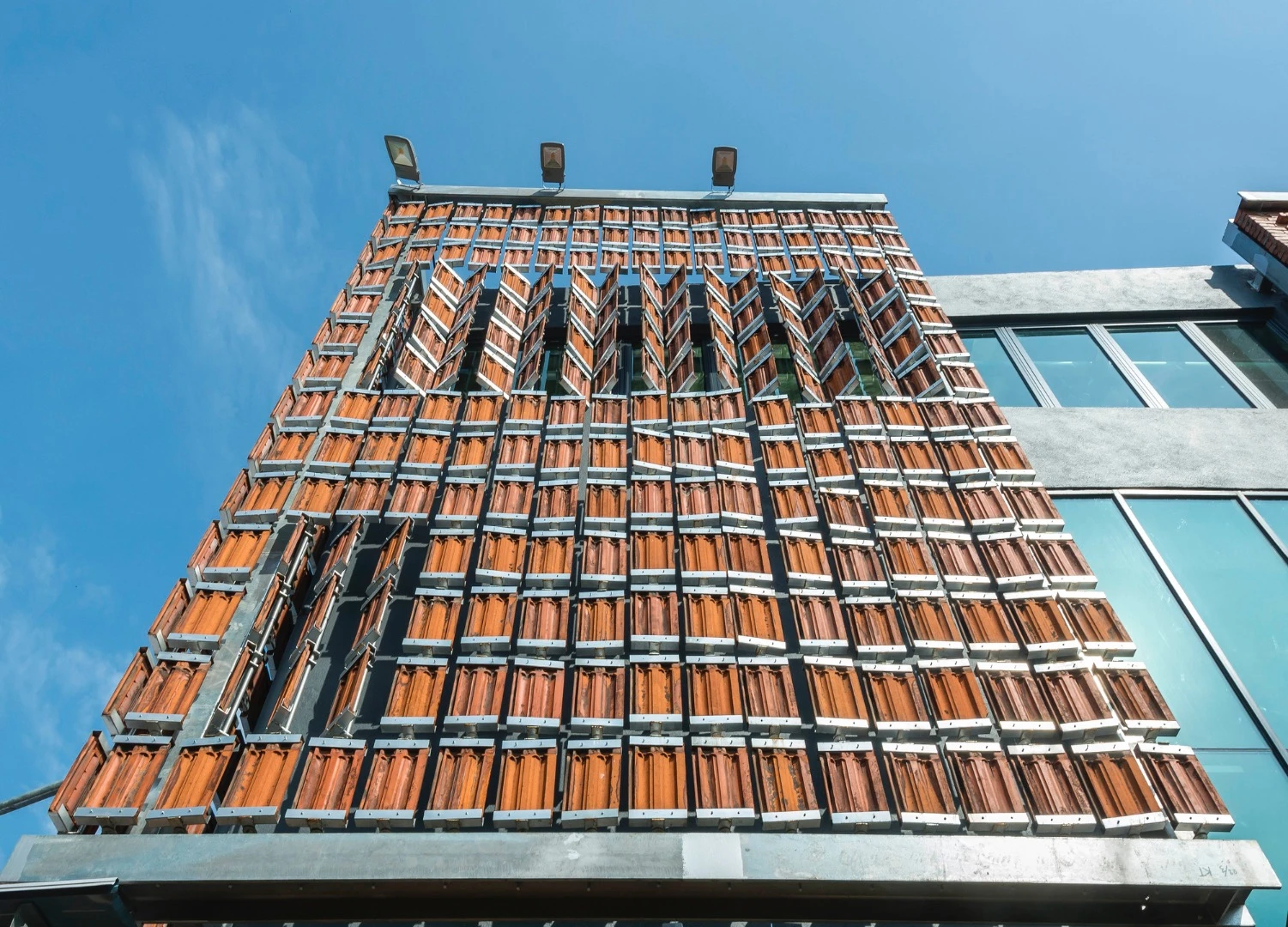

The terracotta tiles enable the breeze to permeate within
12/19
The terracotta tiles enable the breeze to permeate within

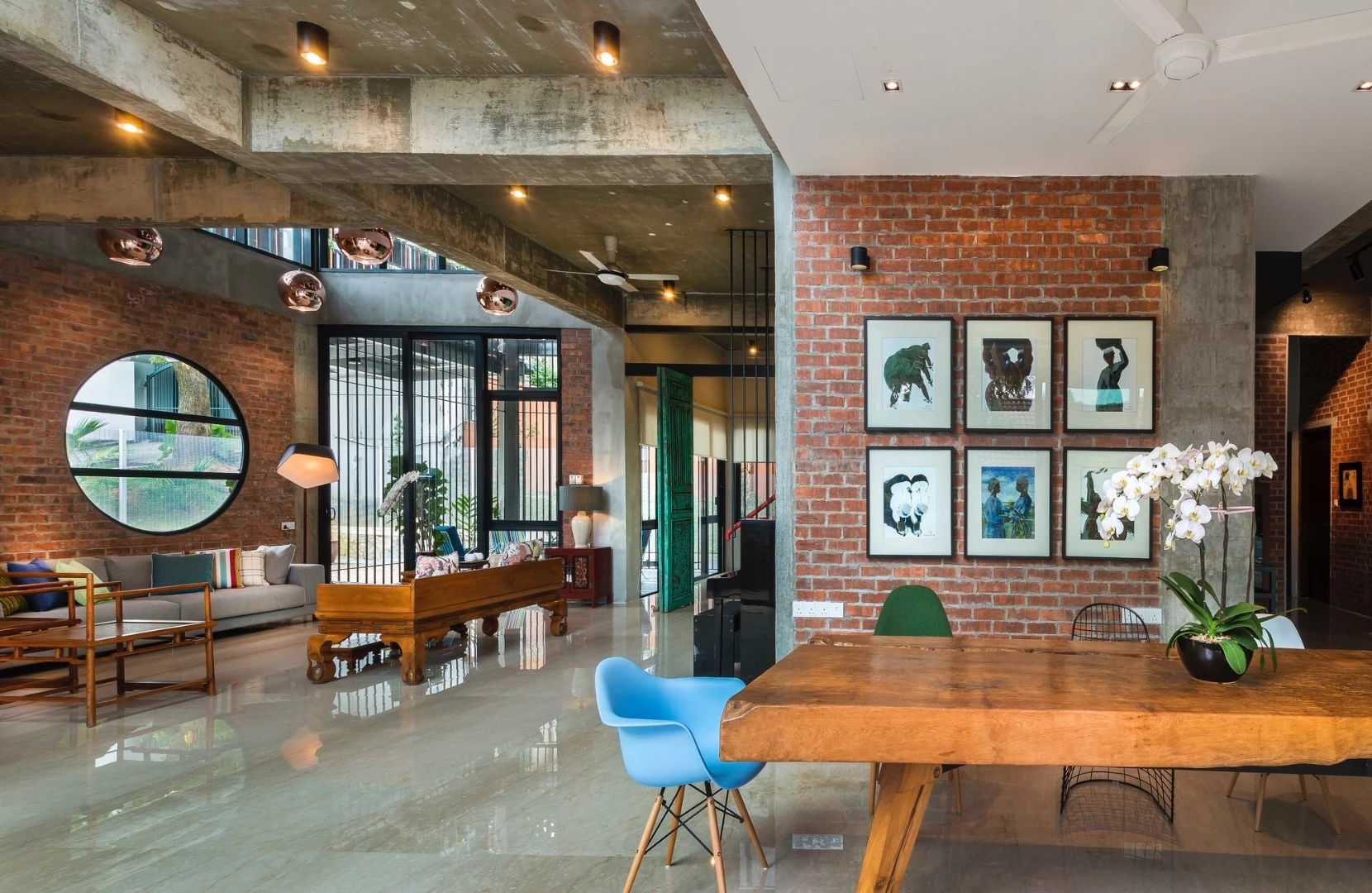

The home is based in Jaya Petaling Jaya, Selangor, Malaysia
13/19
The home is based in Jaya Petaling Jaya, Selangor, Malaysia
Clay Roof House was completed in 2015
14/19
Clay Roof House was completed in 2015

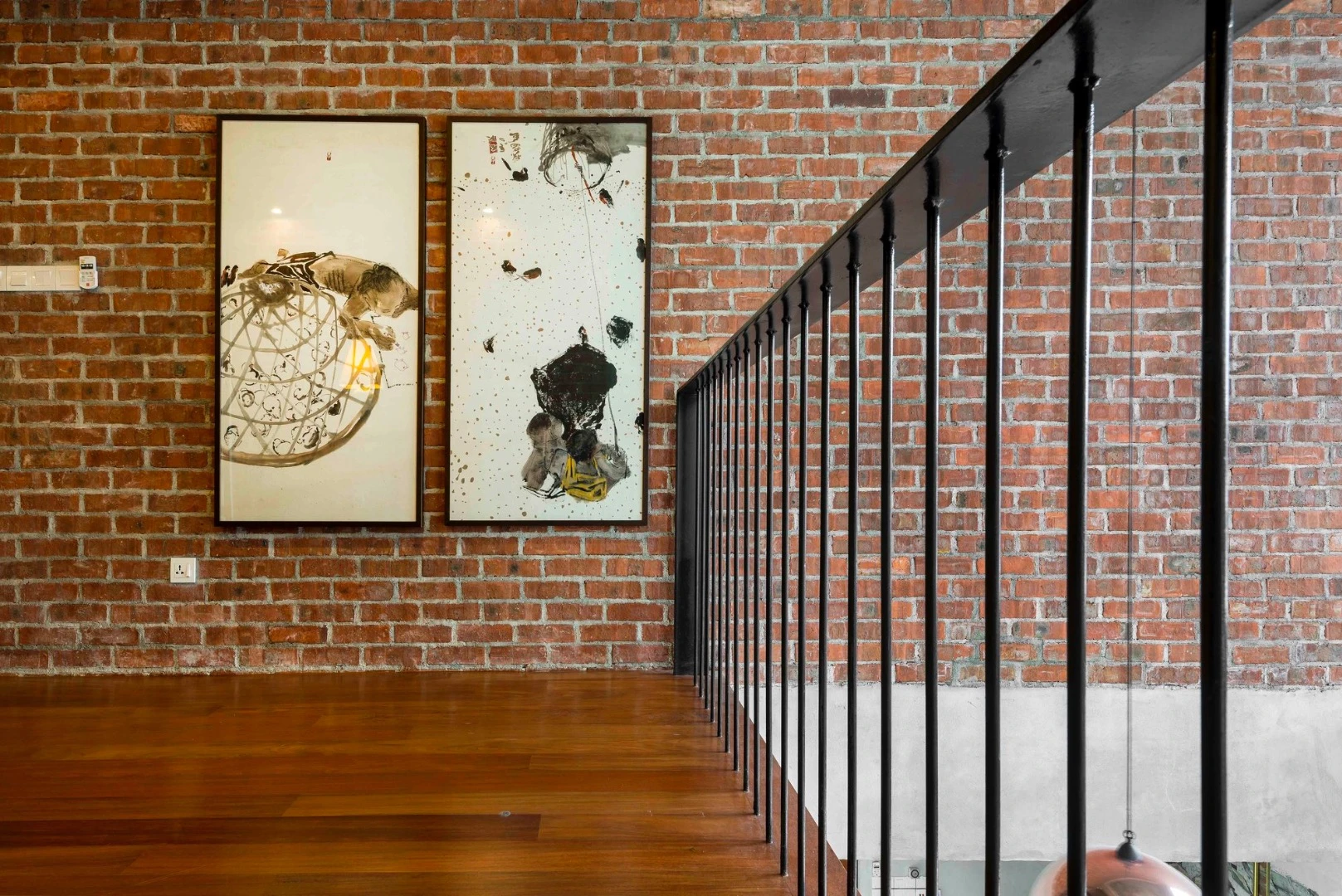

Inside, the home is finished with brick, wood, rough concrete and metal
15/19
Inside, the home is finished with brick, wood, rough concrete and metal

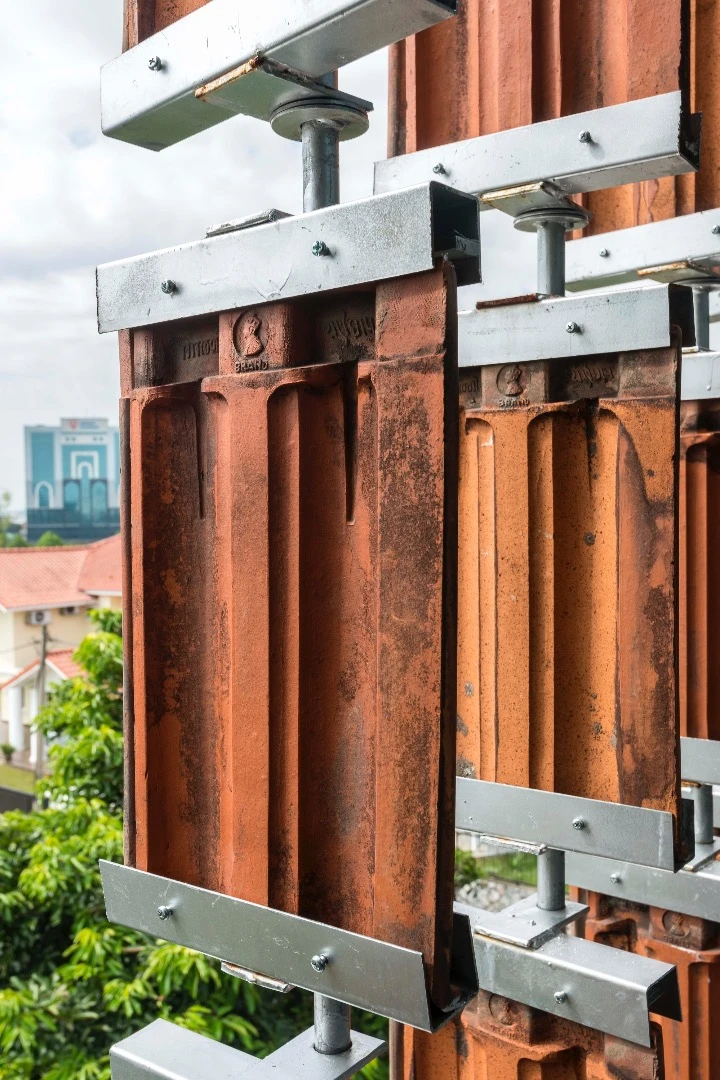

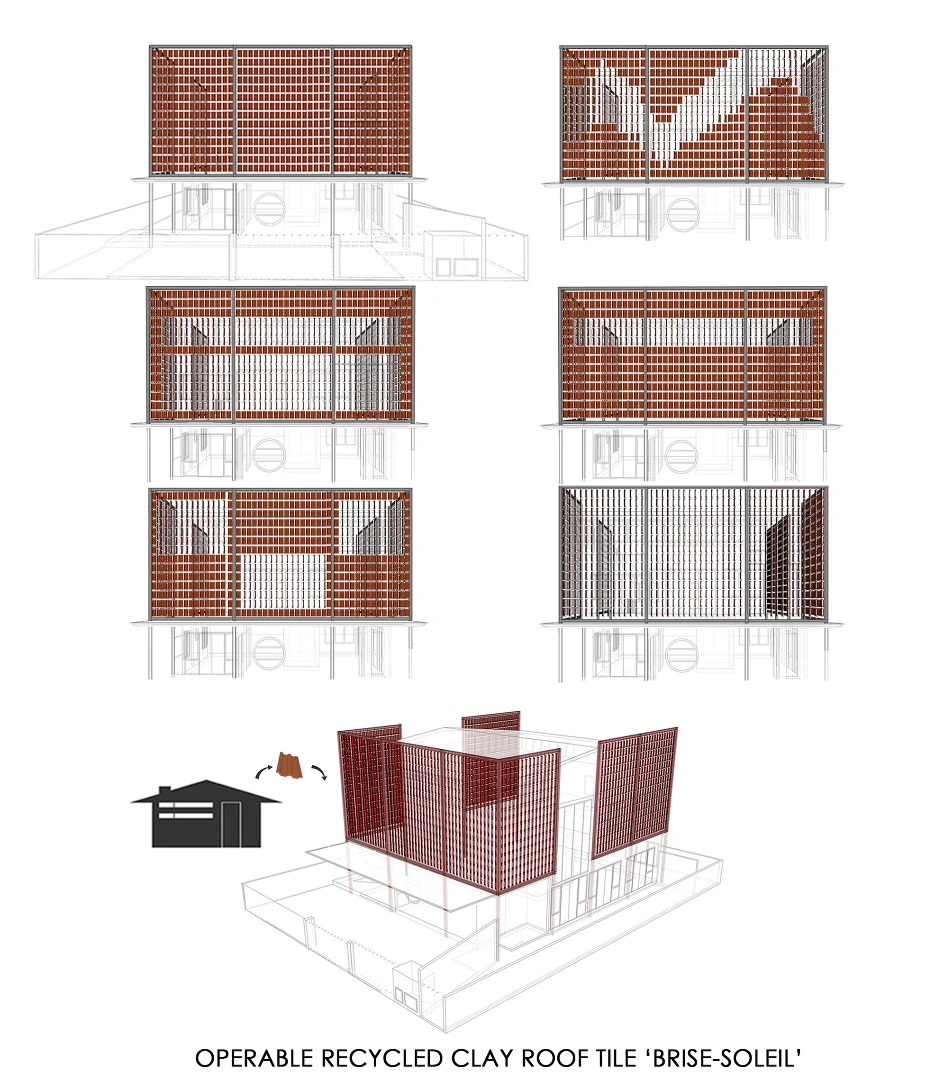

Vertical steel rods hold the clay tiles while still allowing free movement to swivel and turn
16/19
Vertical steel rods hold the clay tiles while still allowing free movement to swivel and turn
Clay Roof House was completed in 2015
17/19
Clay Roof House was completed in 2015

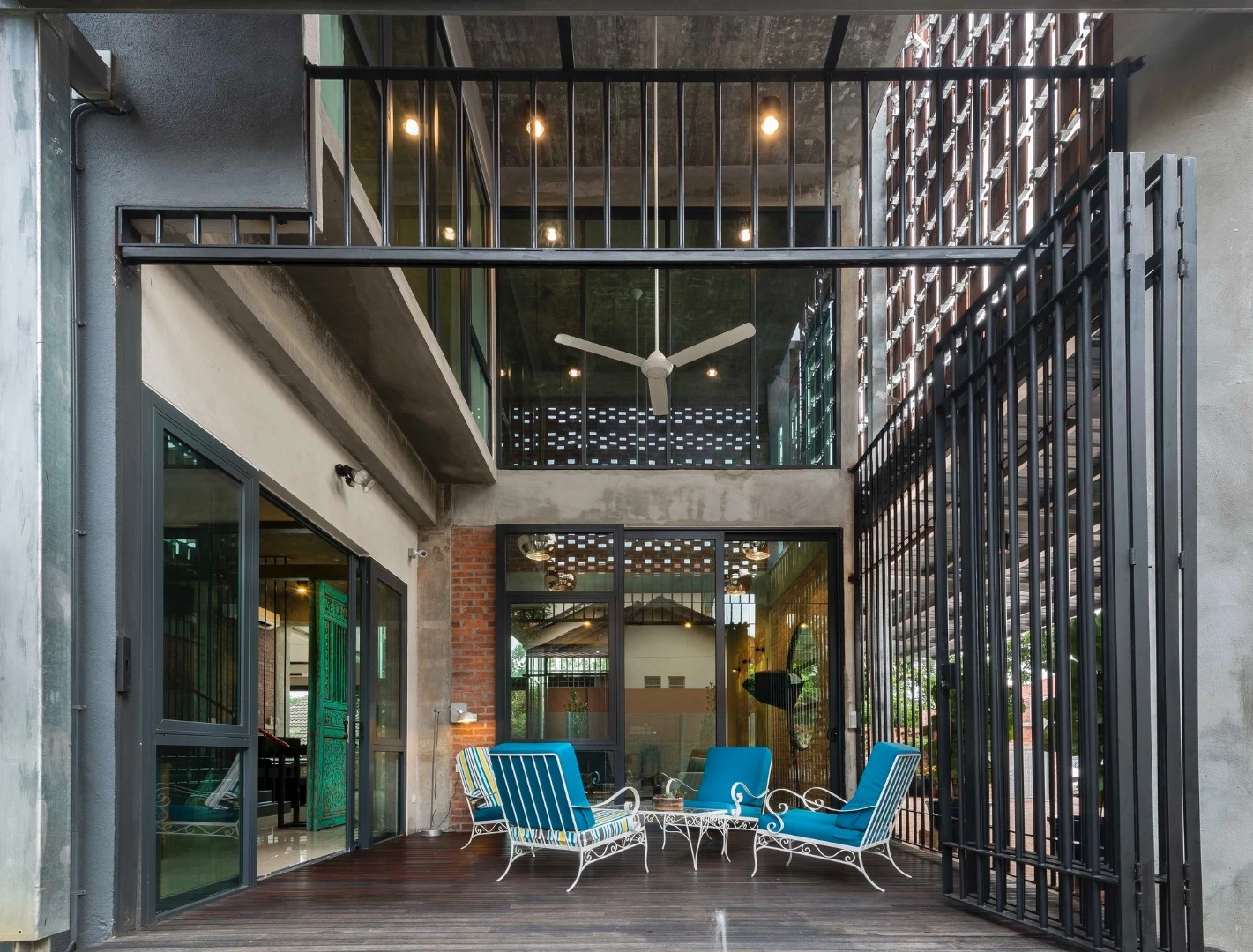

Inside the home
18/19
Inside the home
Architectural drawing of the Clay Roof House
19/19
Architectural drawing of the Clay Roof House

Malaysia's Drtan Lm Architect was recently commissioned to undertake an extensive renovation of an old dilapidated house. The firm quickly found that the home contained a large number of intact terracotta tiles and the decision was made to recycle them into a sun-shading brise soleil.

The home, dubbed Clay Roof House, faces due west in Petaling Jaya, Selango, Malaysia, and is subject to harsh sunlight in the mornings and afternoon. Therefore, Drtan Lm Architect used the high-quality Indian-made tiles found on the old home to create a terracotta brise soleil, along with a second brick lattice brise soleil, both of which help to reduce solar heat gain and reduce the glare inside.

The terracotta tile shading mechanism can also be operated to channel the prevailing breeze inside the home. In addition, the tiles also produce an attractive lighting effect inside.

Clay Roof House was completed in 2015
Clay Roof House was completed in 2015

"The roof tiles were carefully removed, stored and reused," explains Drtan Lm Architect. "Vertical steel rods were designed to hold the clay tiles whilst allowing free movement to swivel and turn. This reduces the solar gain through the house's fenestration of windows and glass doors and lends a soft tremulous lighting effect when viewed with internal lights switched on at night from the outside. In the sun the terracotta glows a warm orange."

The interior is decorated in exposed brick, concrete and wood, and in addition to the home's shared living spaces and bedrooms, includes a piano room, study, two kitchens, and a maid's quarters.

Clay Roof House was completed in 2015.

Source: Drtan Lm Architect via Arch Daily
