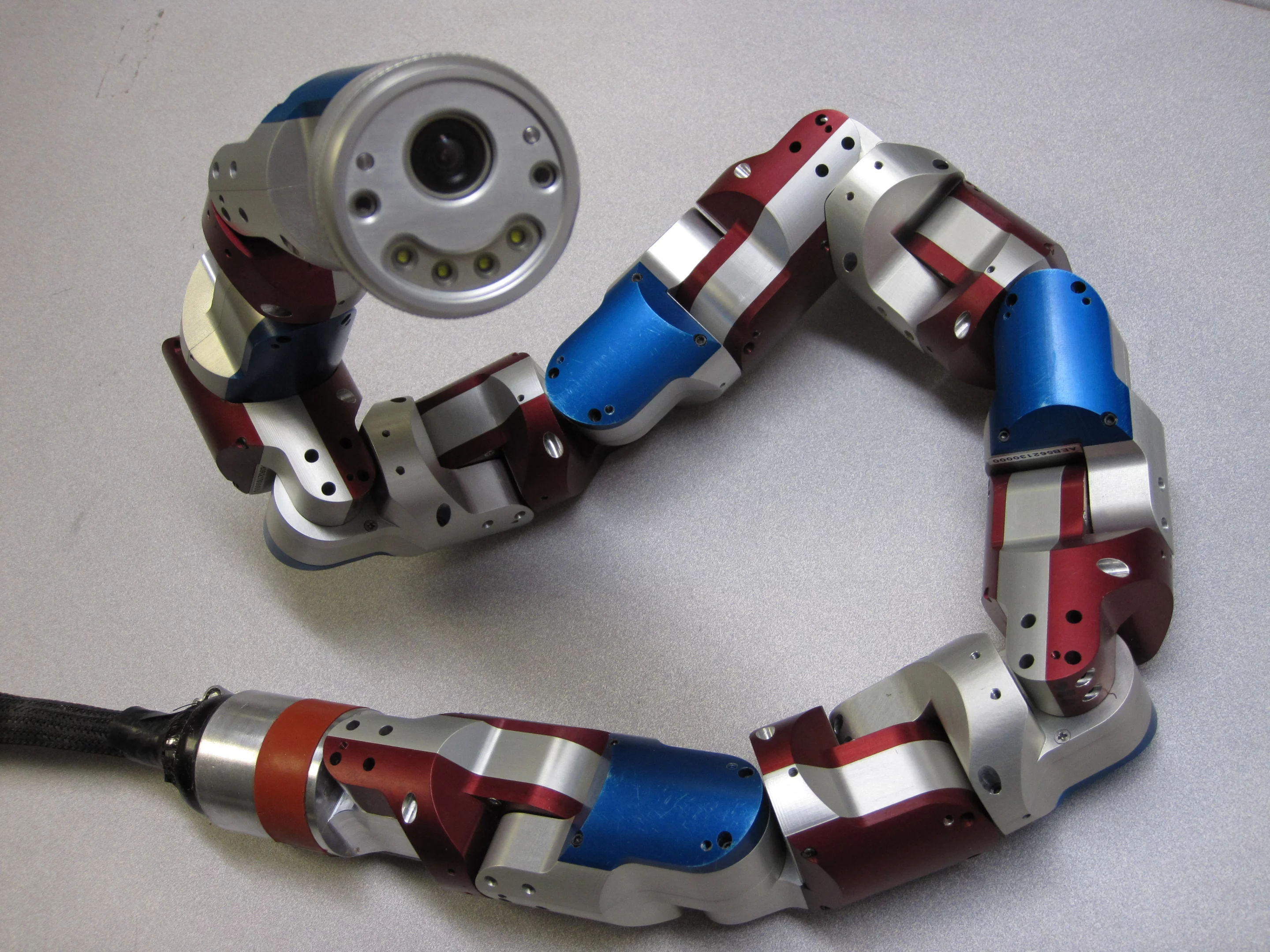

Carnegie Mellon University's Biorobotics Lab developed this modular snake robot to perform inspections and search-and-rescue operations
Carnegie Mellon University's Biorobotics Lab developed this modular snake robot to perform inspections and search-and-rescue operations
View 12 Images

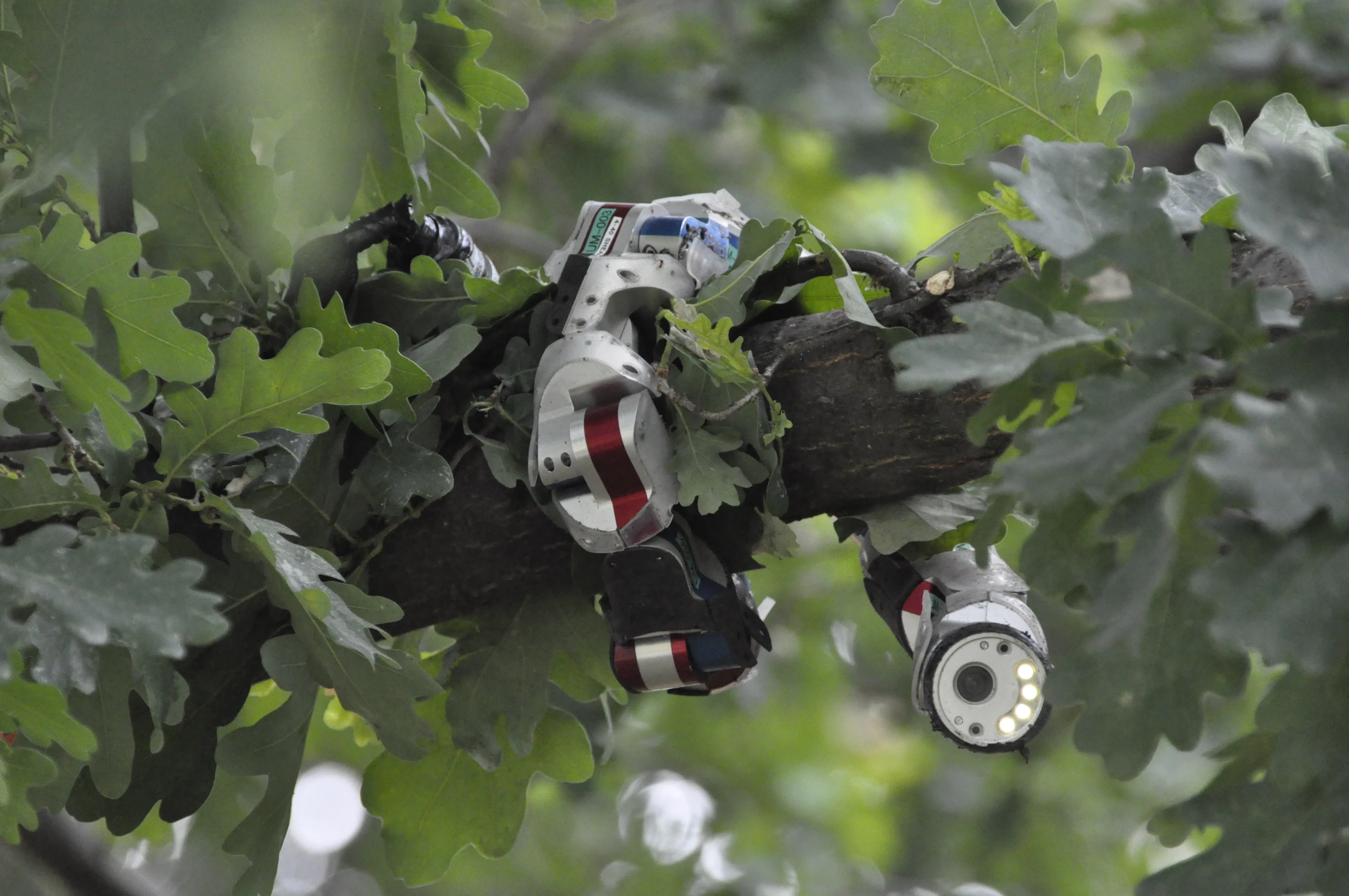

CMU's Biorobotics Lab built a modular snake robot that can climb trees or explore pipes
1/12
CMU's Biorobotics Lab built a modular snake robot that can climb trees or explore pipes

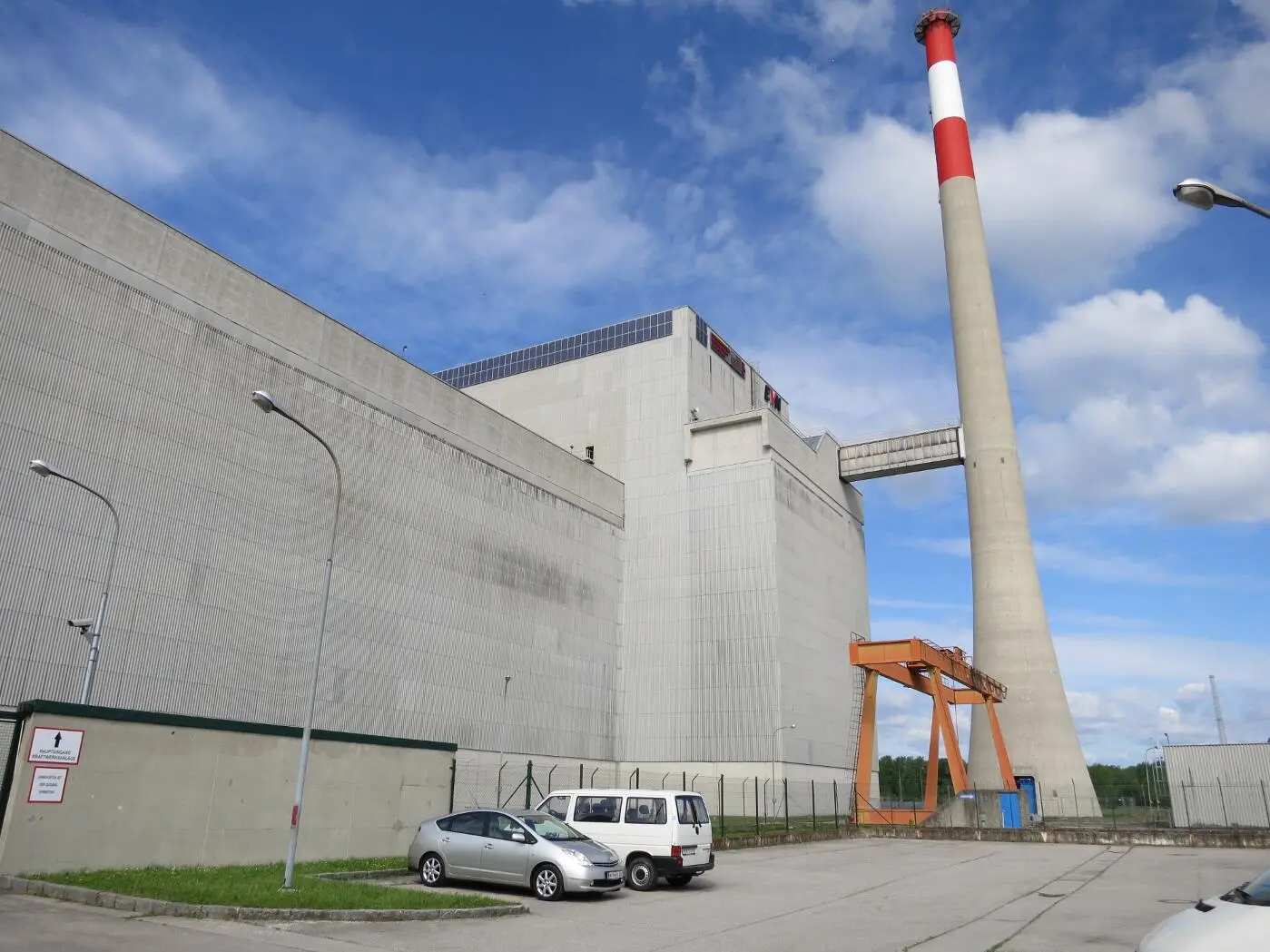

The Zwentendorf nuclear power plant was never operational, making it the perfect testing ground for inspection robots
2/12
The Zwentendorf nuclear power plant was never operational, making it the perfect testing ground for inspection robots

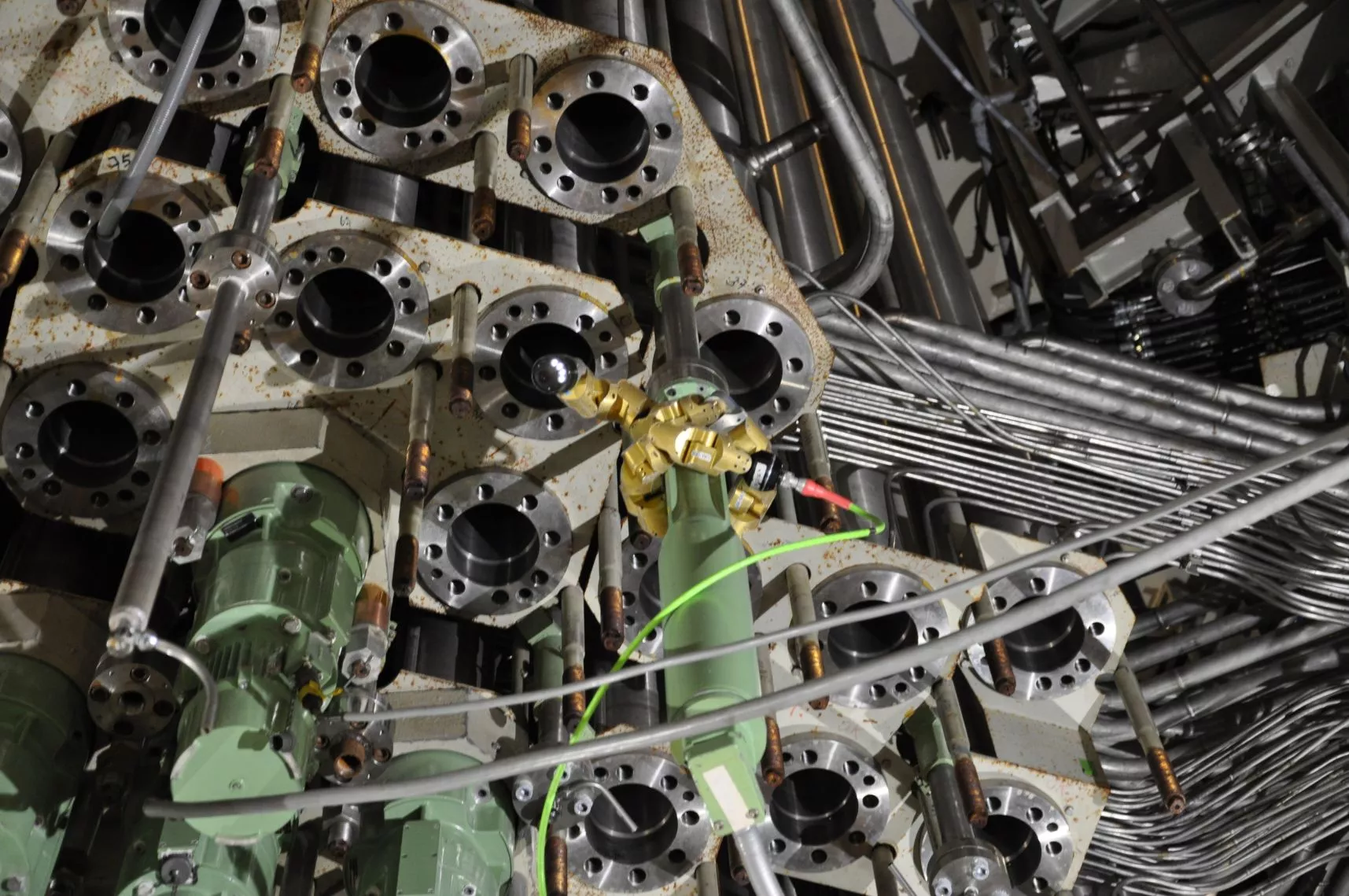

The modular snake robot proved more capable than standard borescopes when exploring the dizzying array of pipes
3/12
The modular snake robot proved more capable than standard borescopes when exploring the dizzying array of pipes

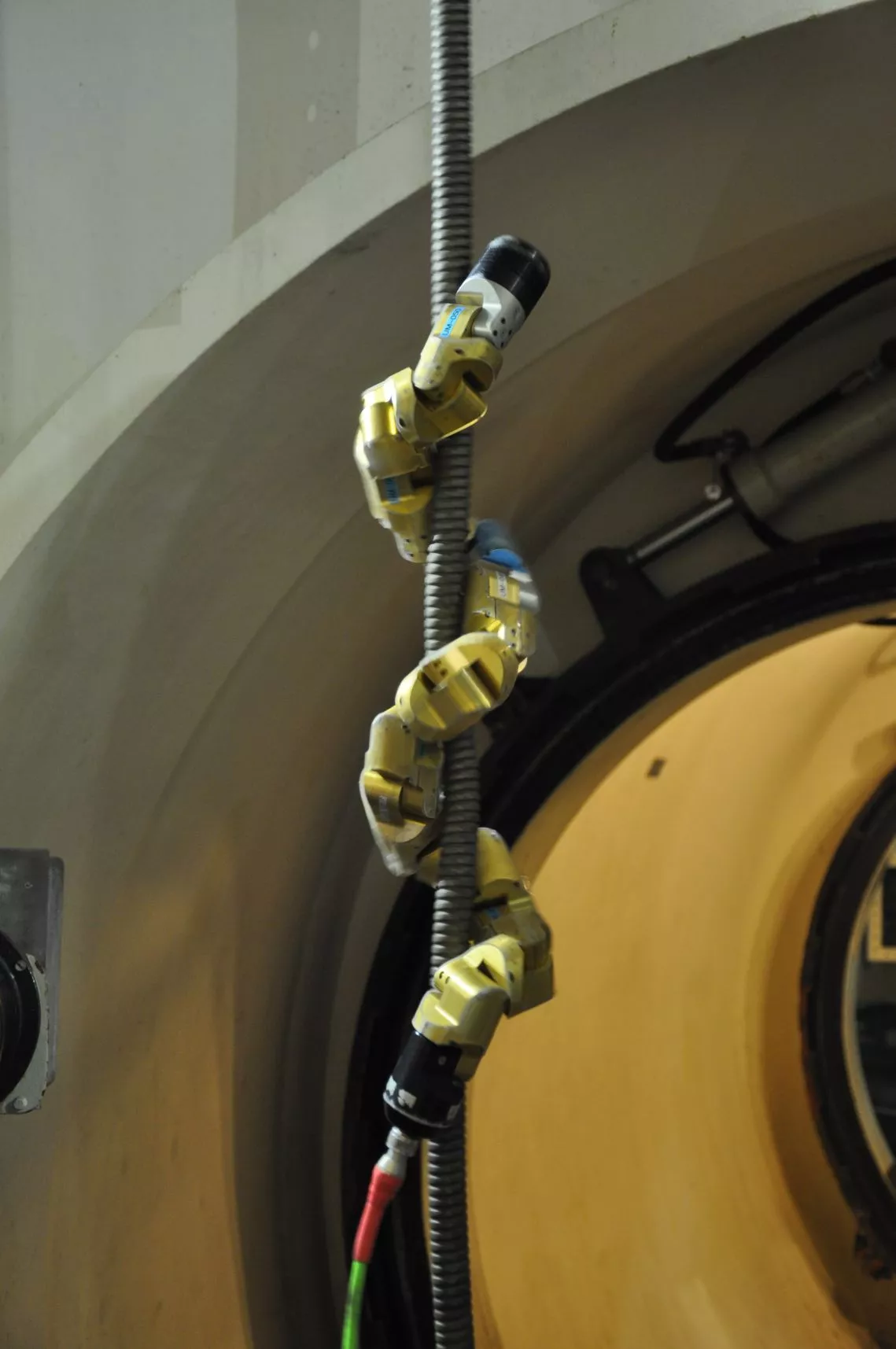

The modular snake robot climbs a pipe inside the Zwentendorf nuclear power plant
4/12
The modular snake robot climbs a pipe inside the Zwentendorf nuclear power plant

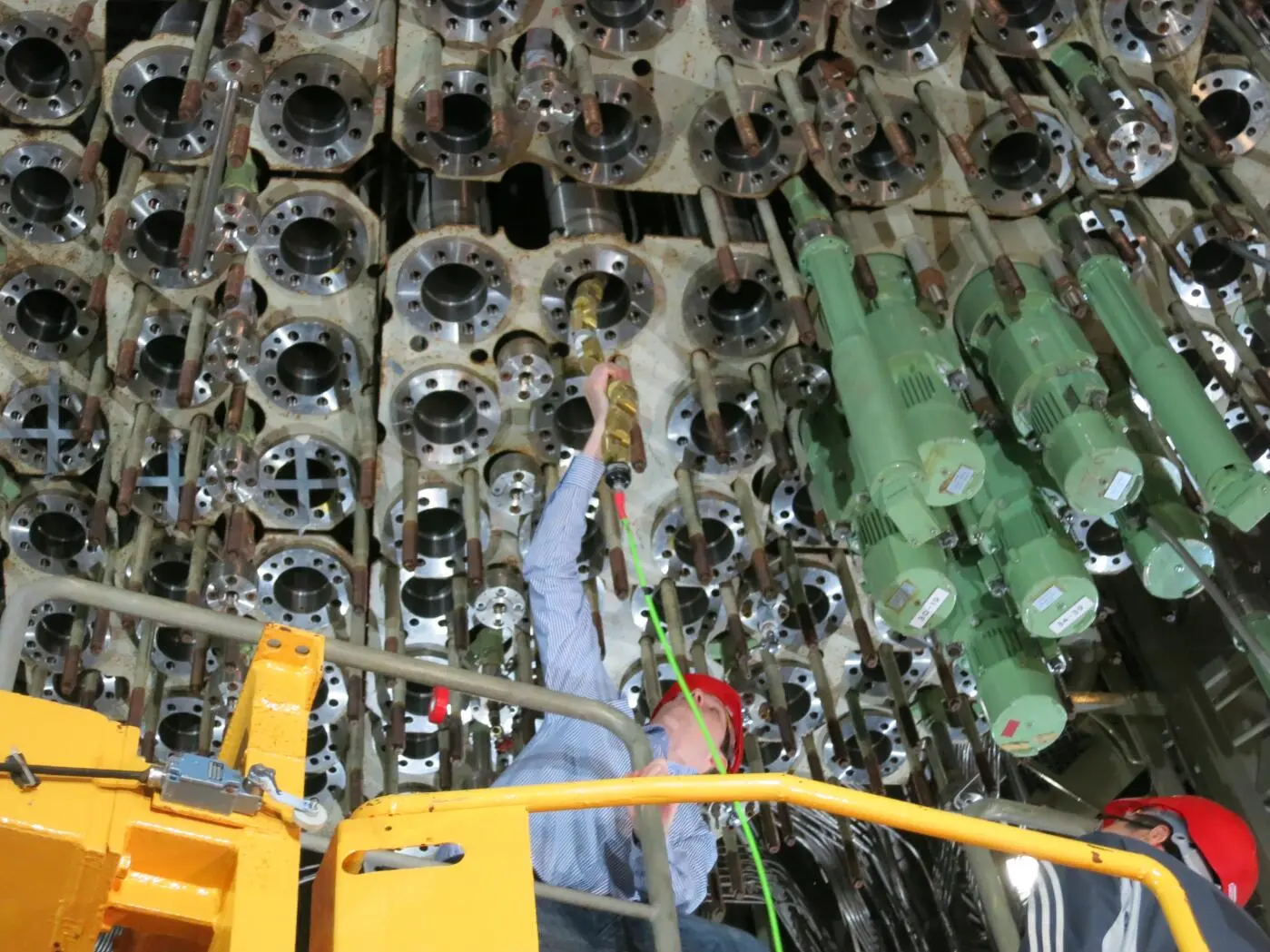

Nuclear power plants contain miles of pipes that are difficult to inspect
5/12
Nuclear power plants contain miles of pipes that are difficult to inspect

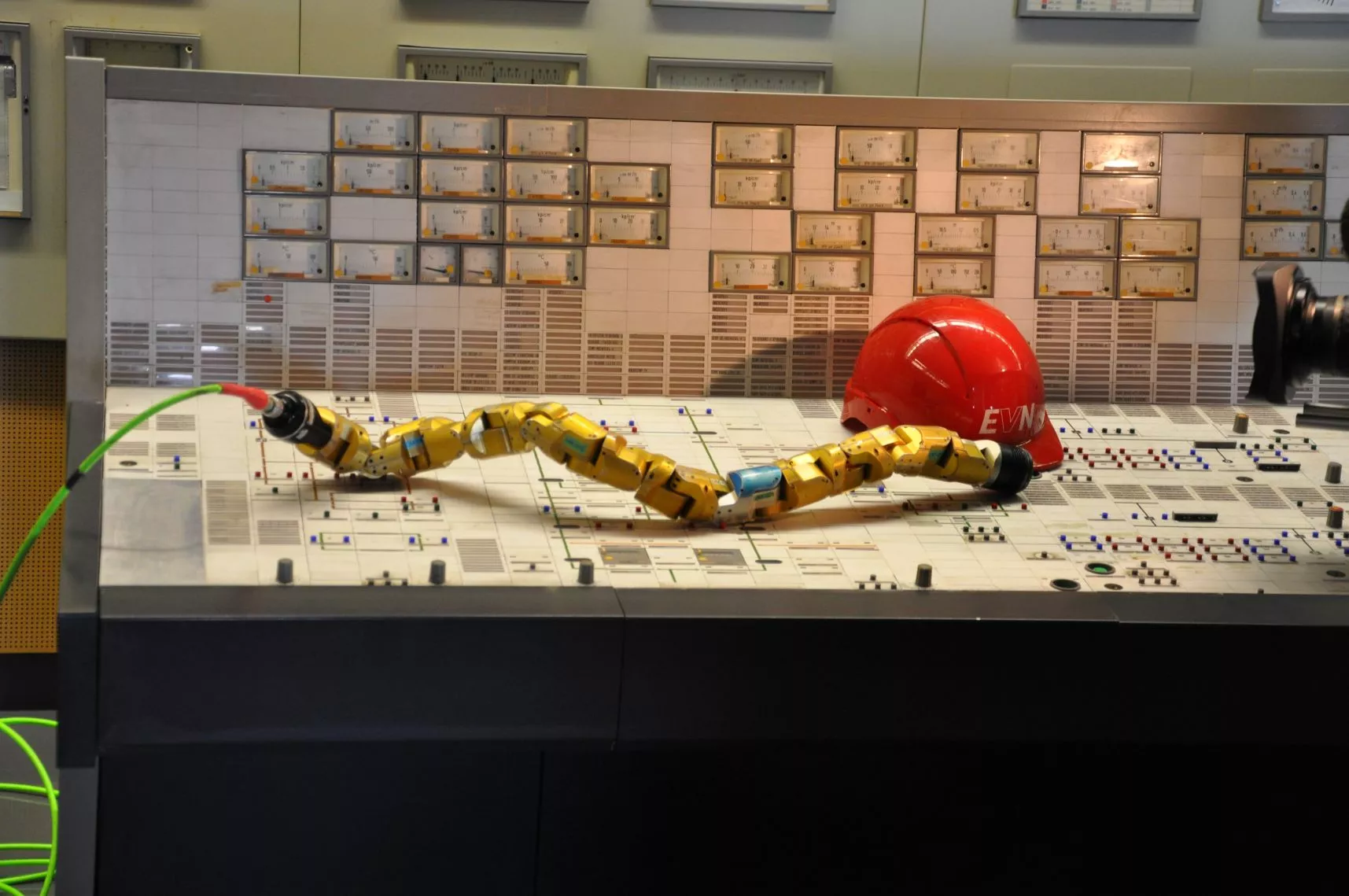

The modular snake robot contains 16 joints allowing it to bend, twist, and move in many ways
6/12
The modular snake robot contains 16 joints allowing it to bend, twist, and move in many ways

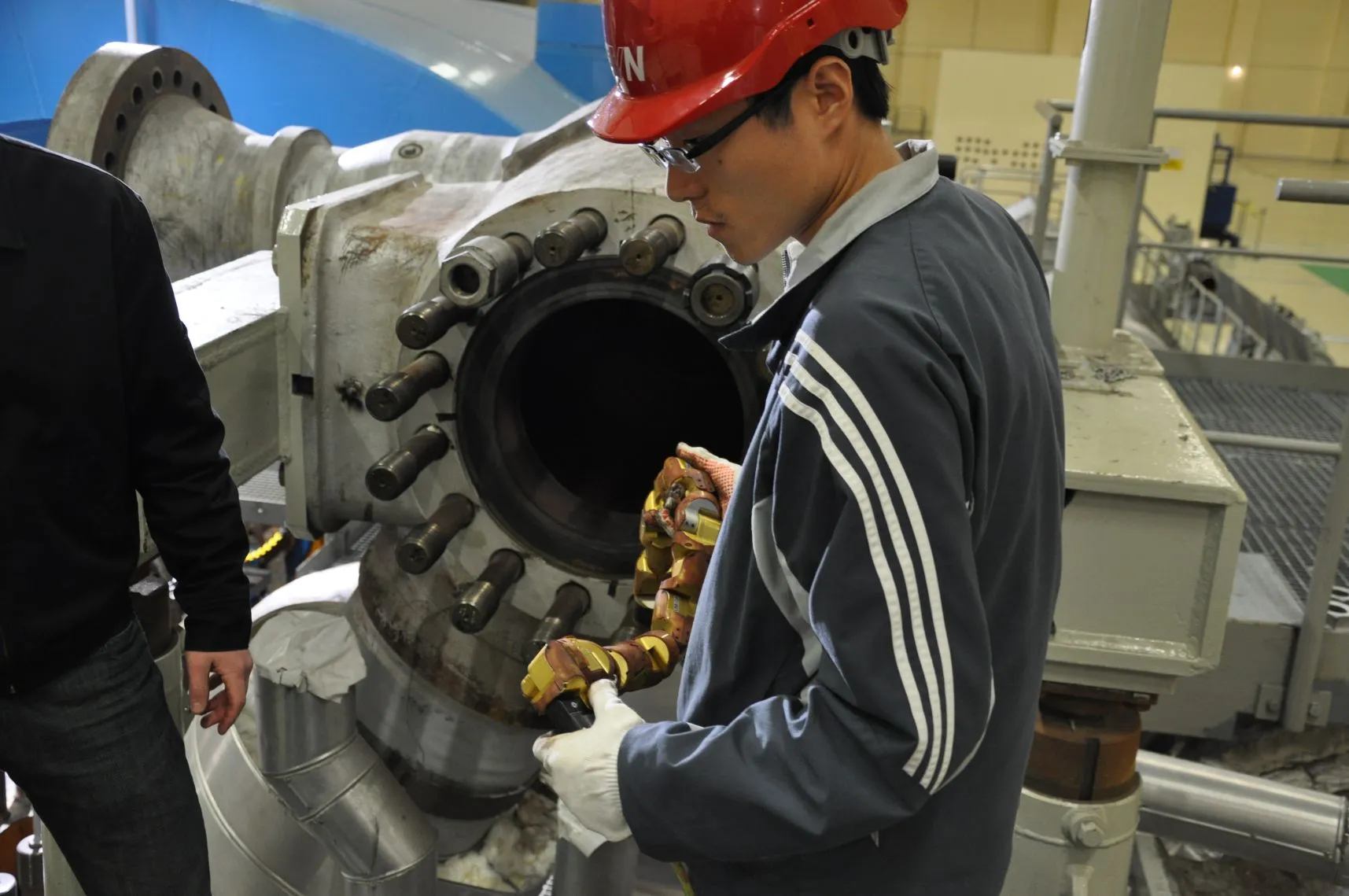

Researchers worked with representatives of the plant owner, EVN Group to test the modular snake robot's capabilities
7/12
Researchers worked with representatives of the plant owner, EVN Group to test the modular snake robot's capabilities

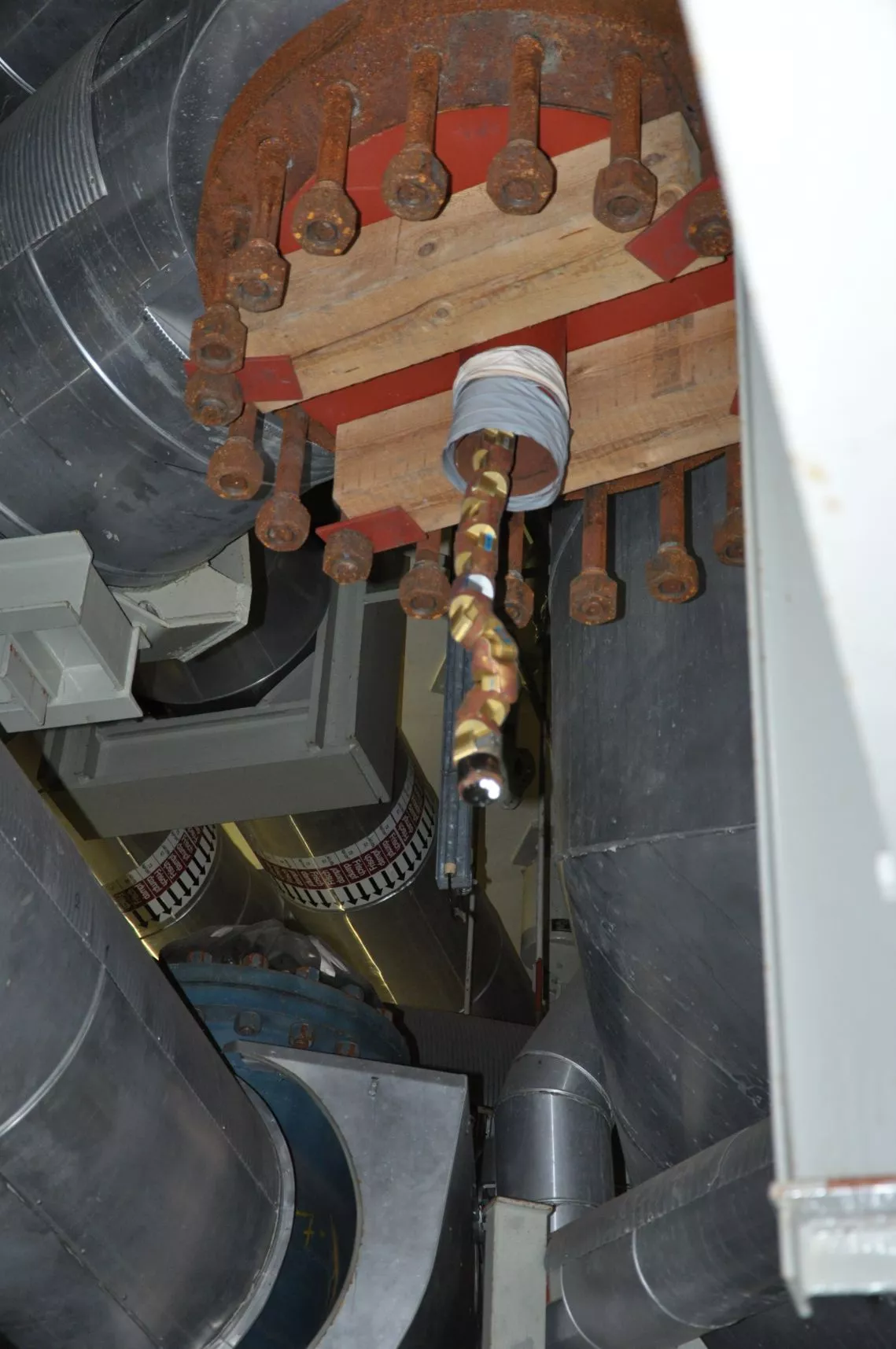

The modular snake robot peeks out of a pipe inside the Zwentendorf nuclear power plant
8/12
The modular snake robot peeks out of a pipe inside the Zwentendorf nuclear power plant

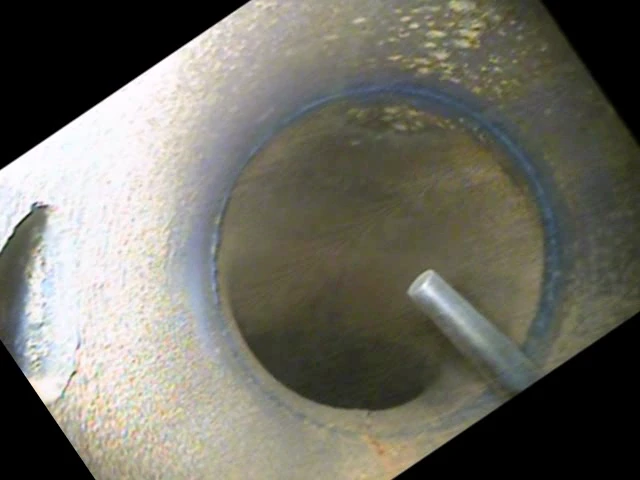

Camera images are automatically rotated to counterbalance the modular snake robot's corkscrew motion
9/12
Camera images are automatically rotated to counterbalance the modular snake robot's corkscrew motion

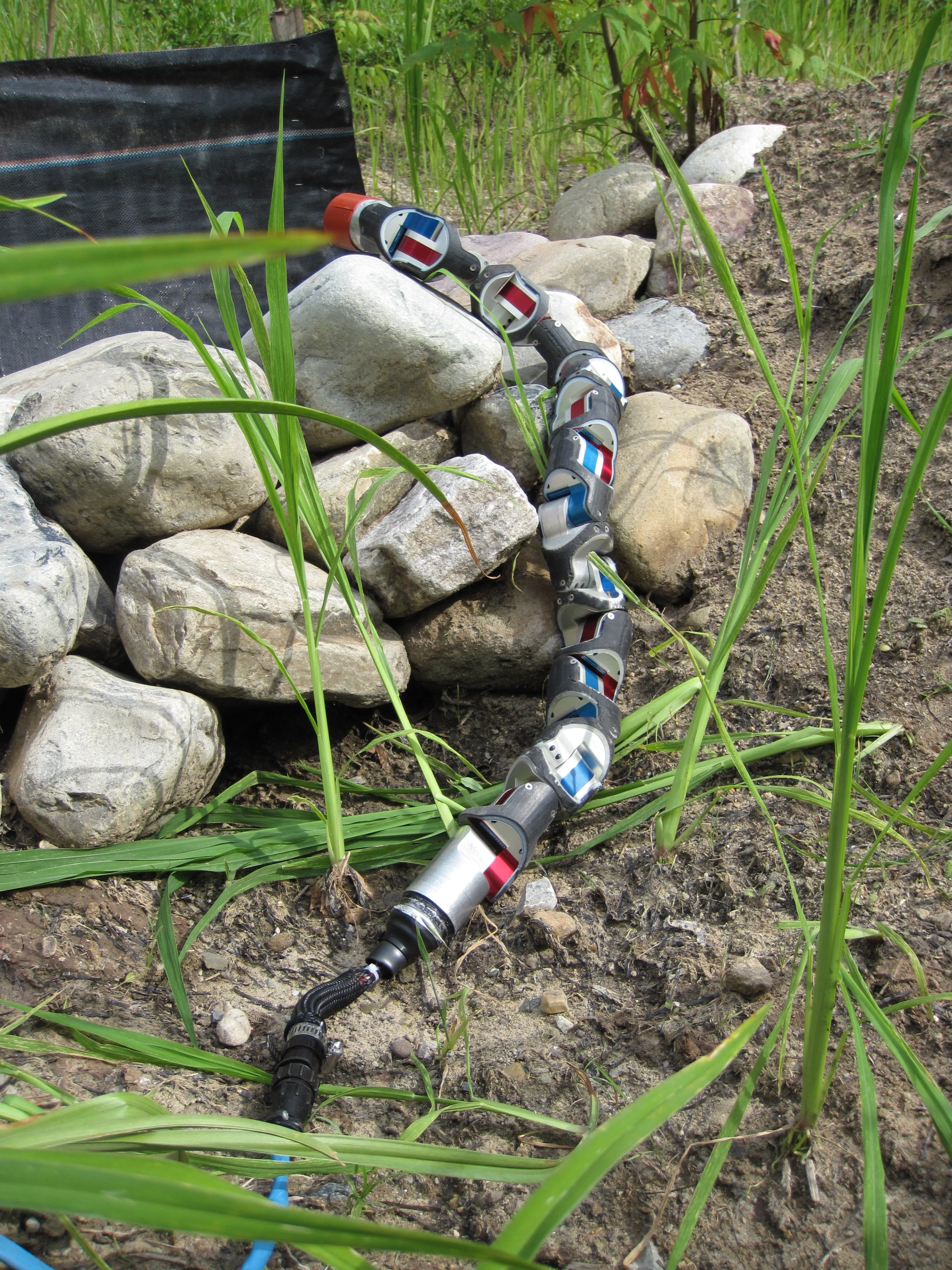

The modular snake robot can easily crawl over debris
10/12
The modular snake robot can easily crawl over debris

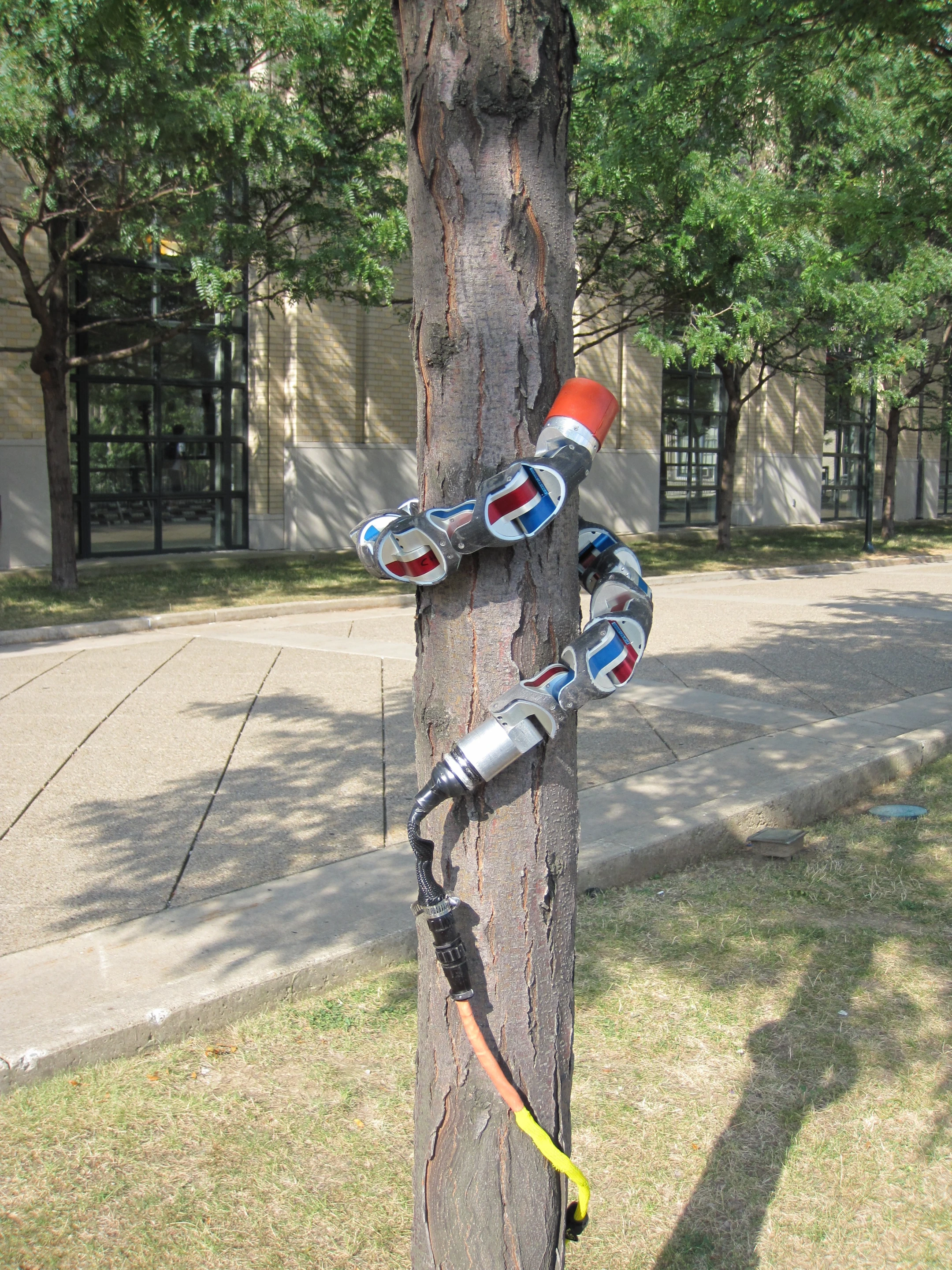

The modular snake robot is able to climb up and down by wrapping itself around cylindrical objects
11/12
The modular snake robot is able to climb up and down by wrapping itself around cylindrical objects

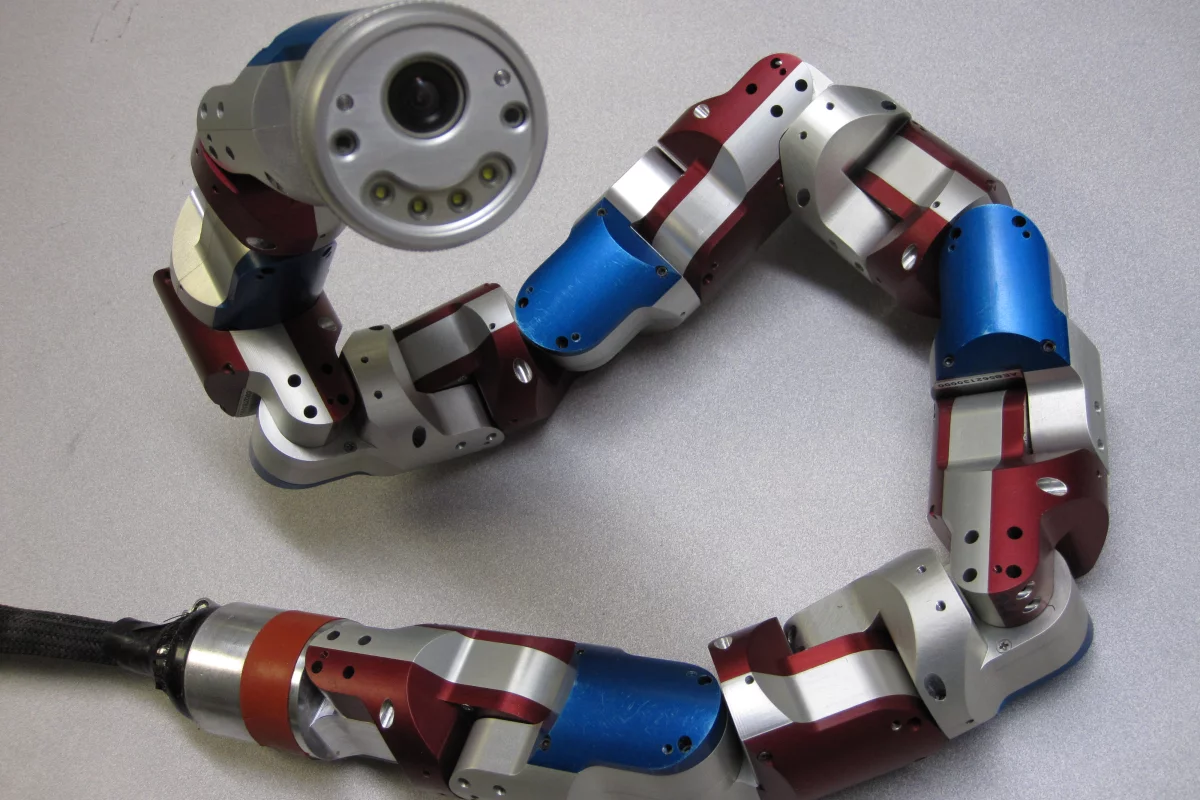

Carnegie Mellon University's Biorobotics Lab developed this modular snake robot to perform inspections and search-and-rescue operations
12/12
Carnegie Mellon University's Biorobotics Lab developed this modular snake robot to perform inspections and search-and-rescue operations
View gallery - 12 images

Several snake-like robots have been developed around the world, and while we keep hearing about their potential applications few have managed to slither outside of their research labs. Earlier this year Carnegie Mellon University's Biorobotics Lab put its modular snake robot's practicality to the test in an abandoned nuclear power plant, where it provided clear, well-lit images from the inside of pipes.

Austria's Zwentendorf nuclear power plant is the perfect testing ground for inspection robots. The plant was built in the 1970s but was never turned on, so there's no radiation to worry about. That makes it the next best thing to an operational plant, with a multitude of tricky pipes to explore.

Recently, several robots have been developed to help explore the Fukushima Daiichi nuclear plant, which was damaged in the 2011 earthquake and tsunami. However, most plants contain miles of pipes, which other robots can't adequately inspect. The snake robot, which has a camera and LEDs on its head, crawled into 15 cm (6 in) wide steam pipes, providing operators with a clear view of what was inside. The robot moves by rolling itself in a corkscrew pattern, so the resulting video feed is automatically corrected in software to align with gravity.

CMU's Biorobotics Lab built a modular snake robot that can climb trees or explore pipes
CMU's Biorobotics Lab built a modular snake robot that can climb trees or explore pipes

"Our robot can go places people can’t, particularly in areas of power plants that are radioactively contaminated," explains Robotics Professor Howie Choset. "It can go up and around multiple bends, something you can’t do with a conventional borescope, a flexible tube that can only be pushed through a pipe like a wet noodle."

The robot, which is just 2 in (5 cm) in diameter and 37 in (97 cm) long, has 16 joints allowing it to move a bit like a snake. The body can twist around a cylindrical shape, such a leg, to climb up and down. The only problem is it's tethered by a power and control cable. In this experiment the team was hesitant to explore much beyond 18 meters (60 ft), but it could go much further.

Already the robot has investigated rubble in mock search-and-rescue missions, and in the future the team plans to make it water-proof. Another possible enhancement would allow the snake to map a nuclear plant's pipe network as it explores it.

You can see how the robot works, including what the operators see, in the following video.

Source: CMU Biorobotics Lab
