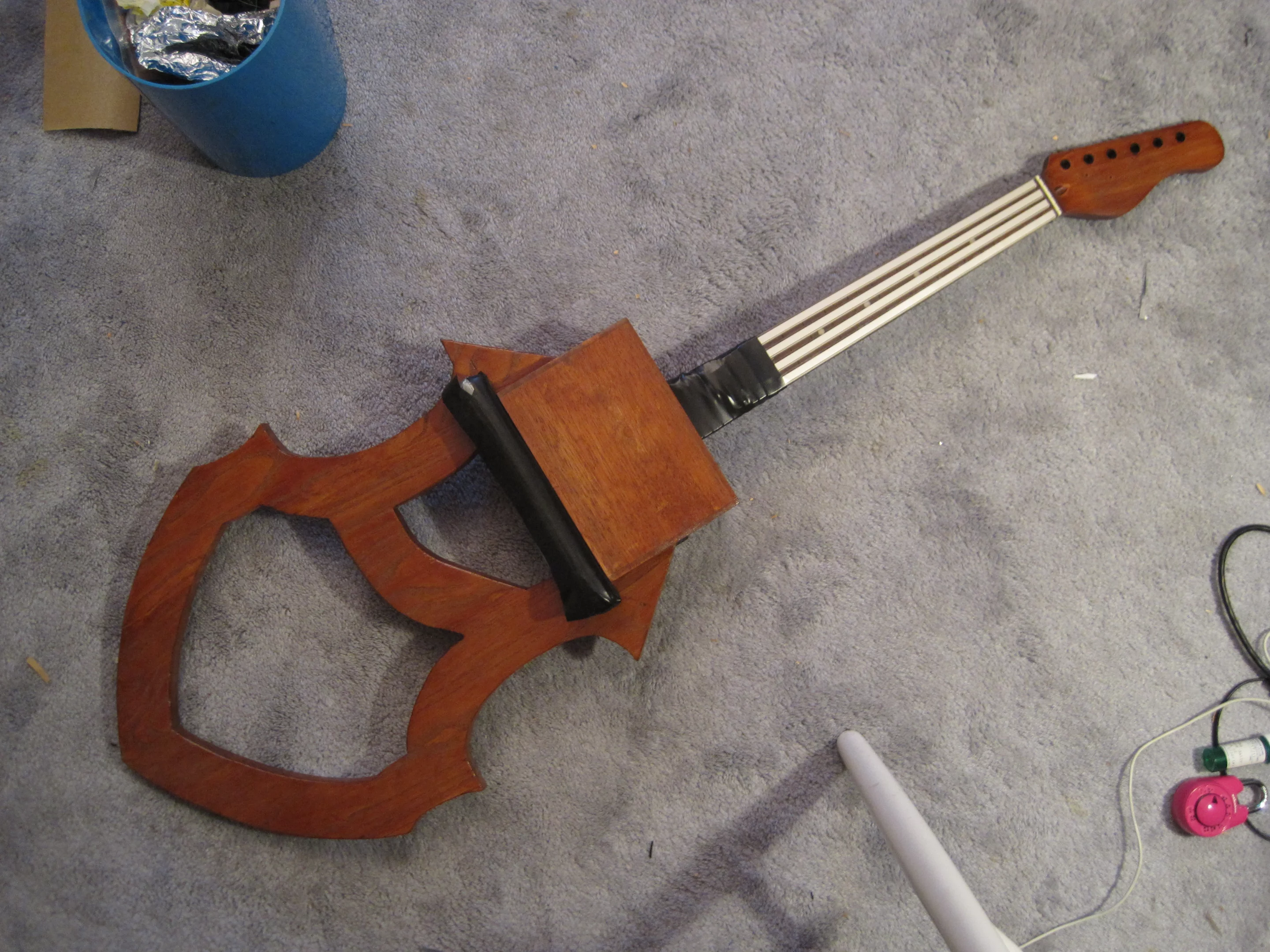

Early prototype of the Magnetic Cello, with four resistive ribbons on the neck
1/26
Early prototype of the Magnetic Cello, with four resistive ribbons on the neck

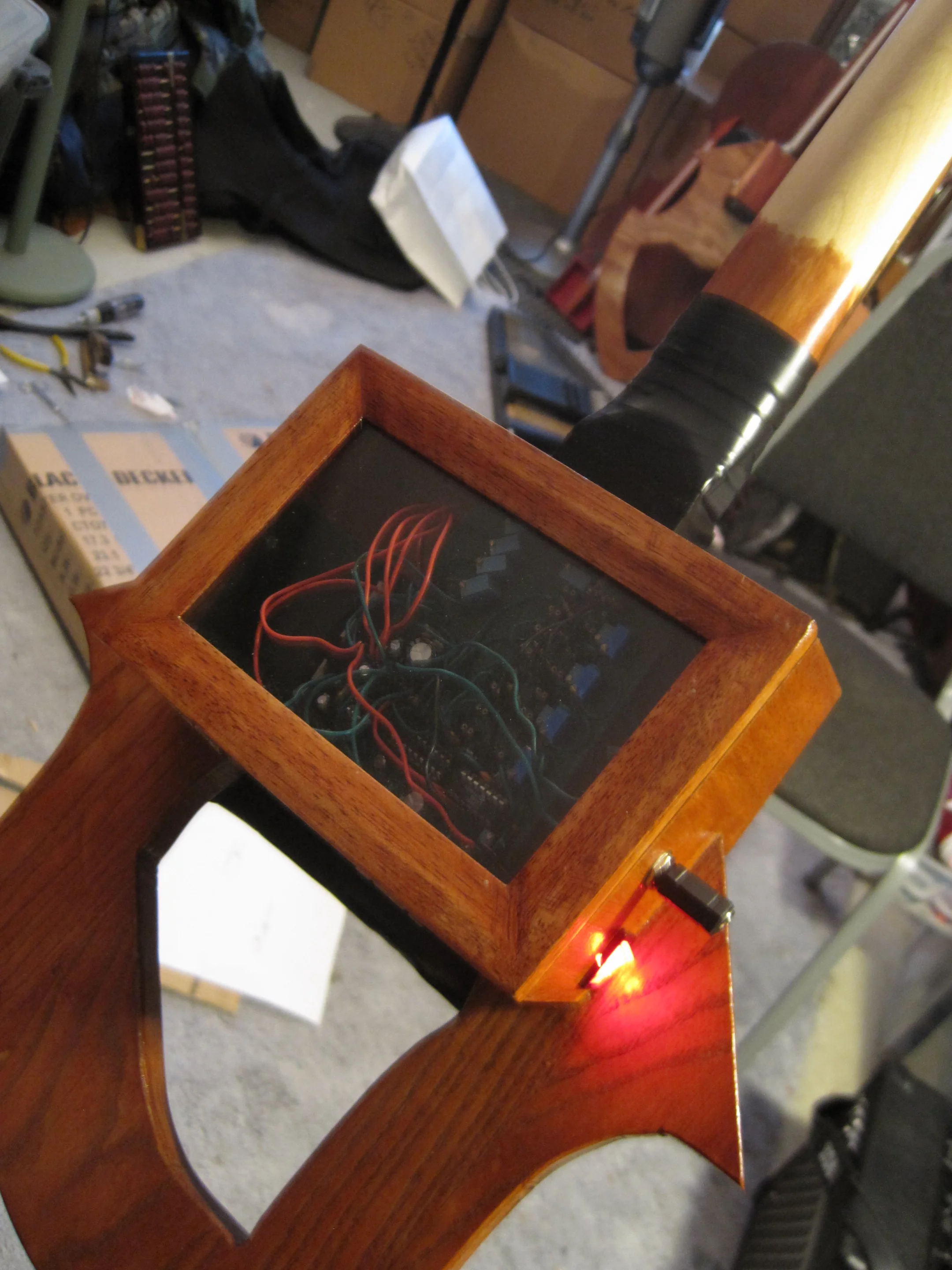

The rear of the early prototype, with transparent box to view the circuitry
2/26
The rear of the early prototype, with transparent box to view the circuitry

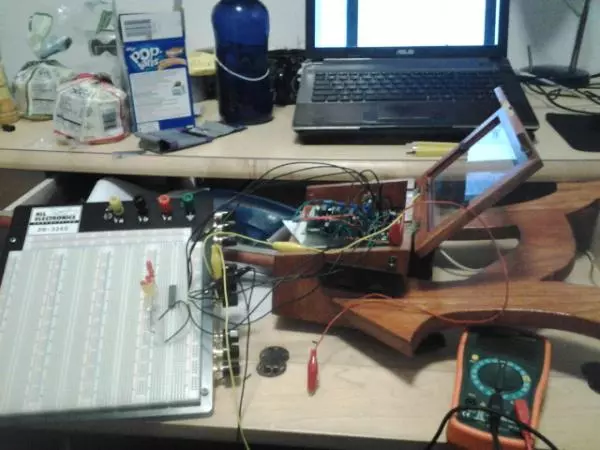

Bringing it all together - what else is there to do on a Wednesday evening?
3/26
Bringing it all together - what else is there to do on a Wednesday evening?

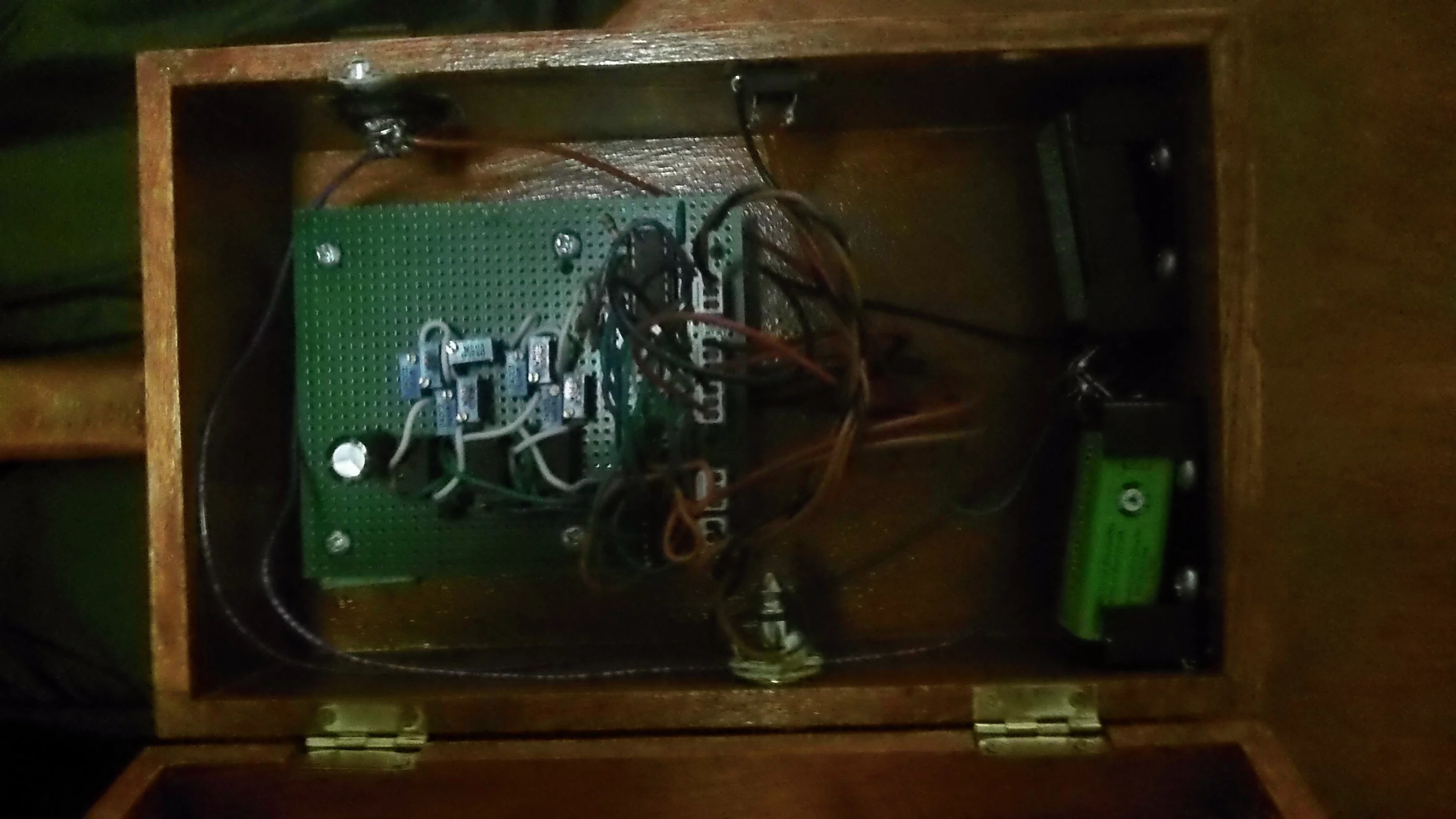

Powered and ready to rock
4/26
Powered and ready to rock

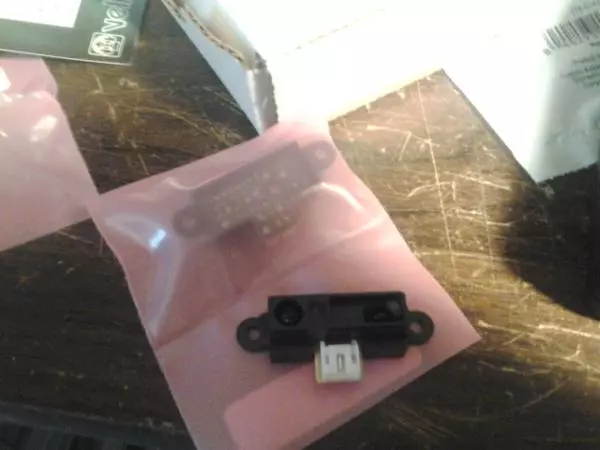

Analog output distance sensors
5/26
Analog output distance sensors

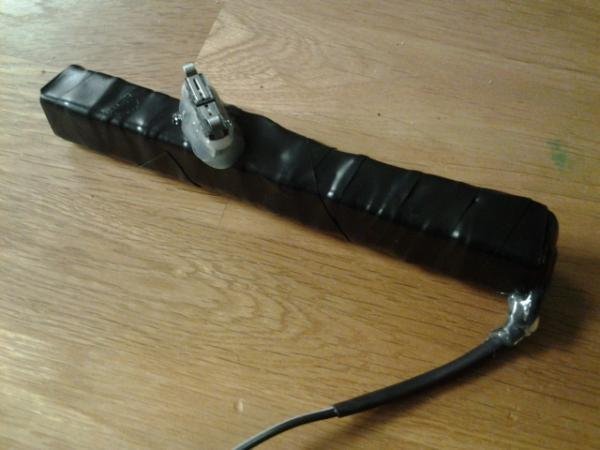

The bow now has dual lever switches to select strings
6/26
The bow now has dual lever switches to select strings

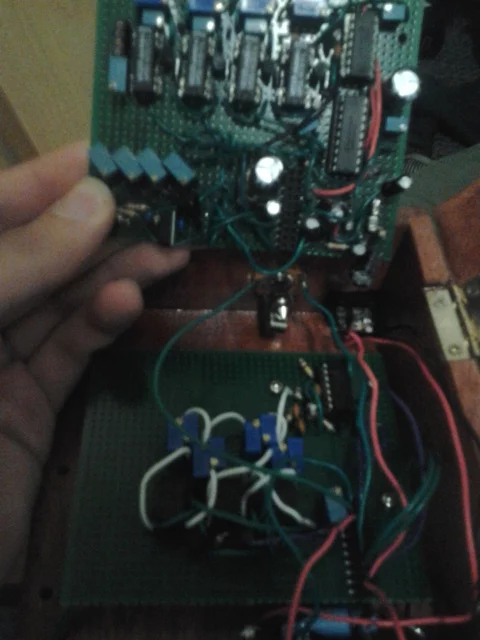

Circuit board now installed
7/26
Circuit board now installed

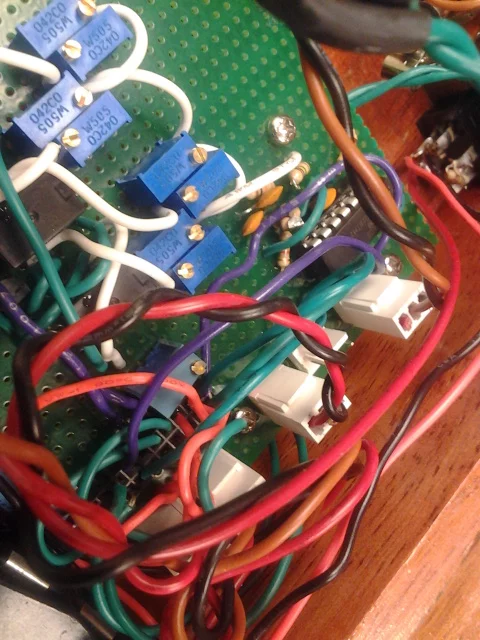

Using new plugs means less time chasing stray wires
8/26
Using new plugs means less time chasing stray wires
Tools of the trade - getting to grips with installing and testing the electronics
9/26
Tools of the trade - getting to grips with installing and testing the electronics
The Magnetovore Magnetic Cello is loosely based on the Theremin Cello developed by Leon Theremin himself, and first appearing on stage in 1932
10/26
The Magnetovore Magnetic Cello is loosely based on the Theremin Cello developed by Leon Theremin himself, and first appearing on stage in 1932

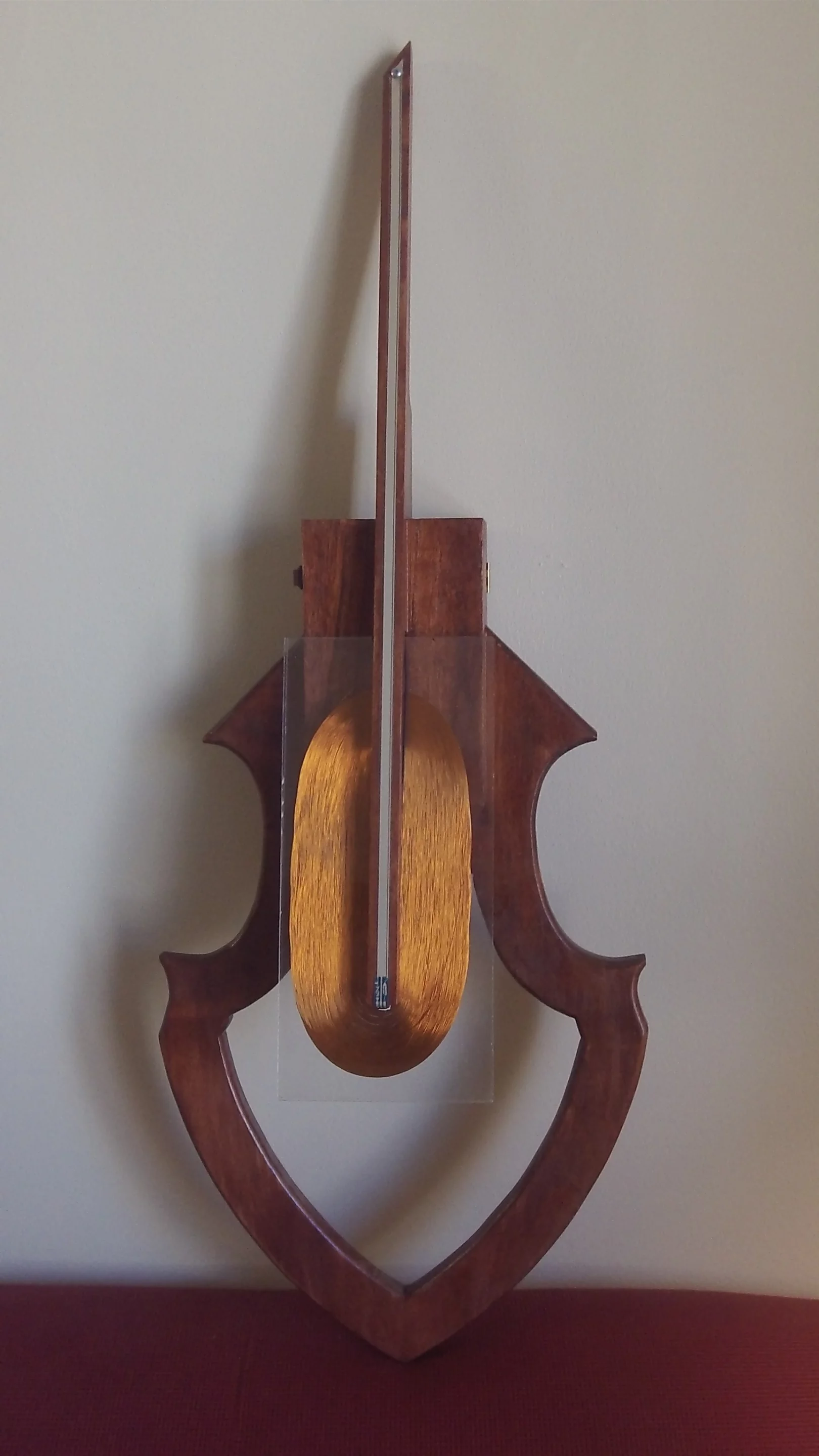

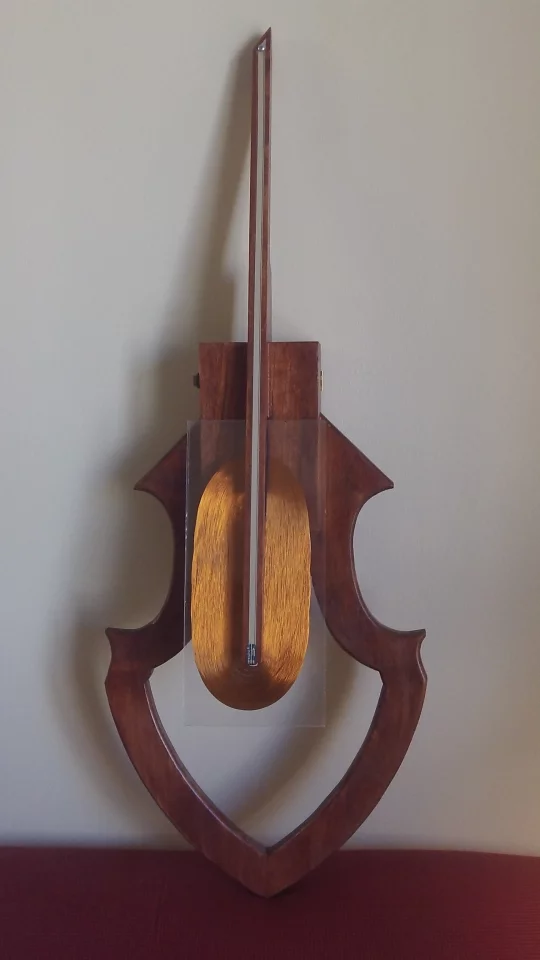

Posing for the camera, the V.6 prototype Magnetic Cello
11/26
Posing for the camera, the V.6 prototype Magnetic Cello

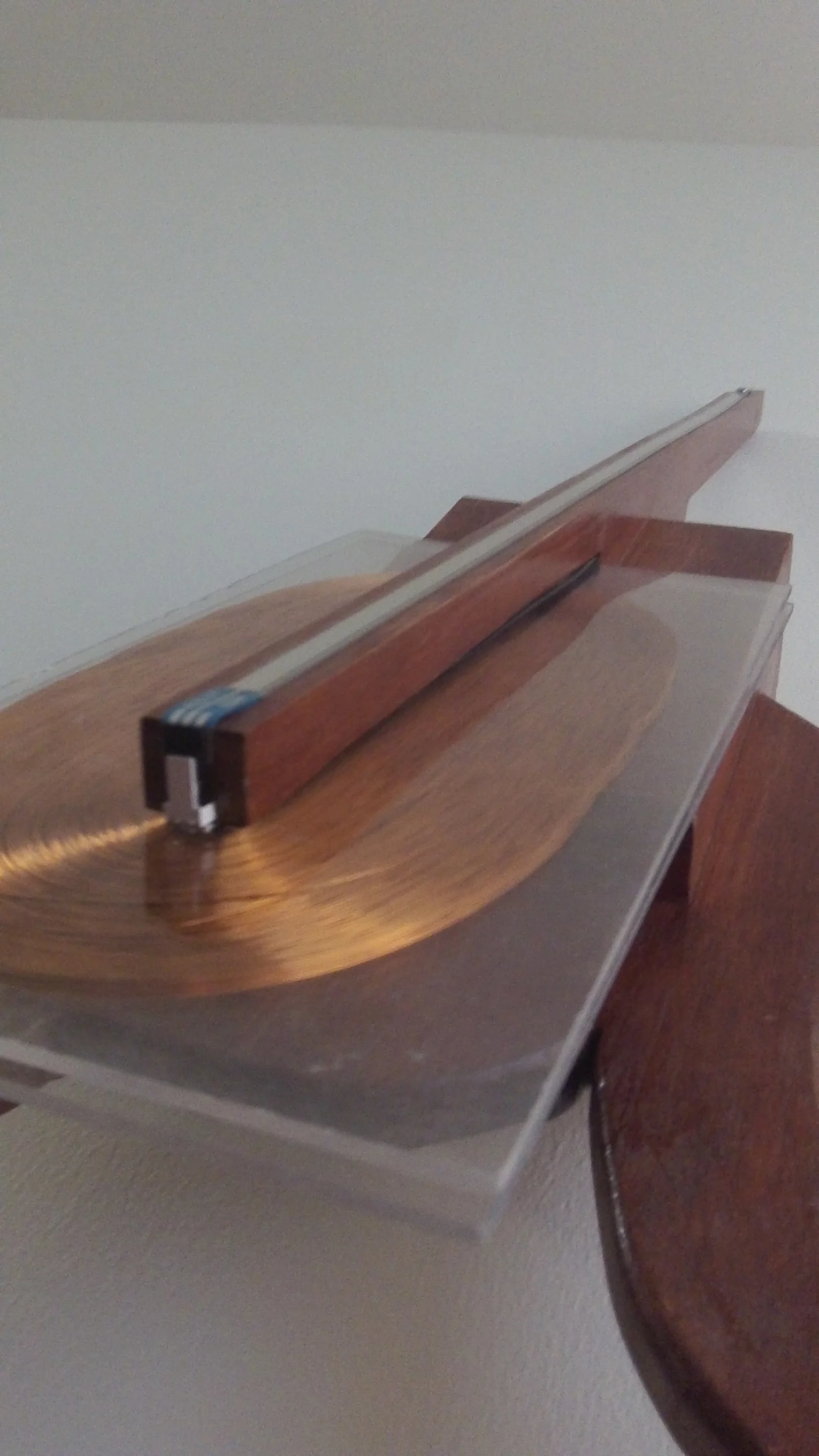

The bow switches select a tuning for the instrument, and pressing down on the resistive ribbon in different places along its length changes its output voltage
12/26
The bow switches select a tuning for the instrument, and pressing down on the resistive ribbon in different places along its length changes its output voltage

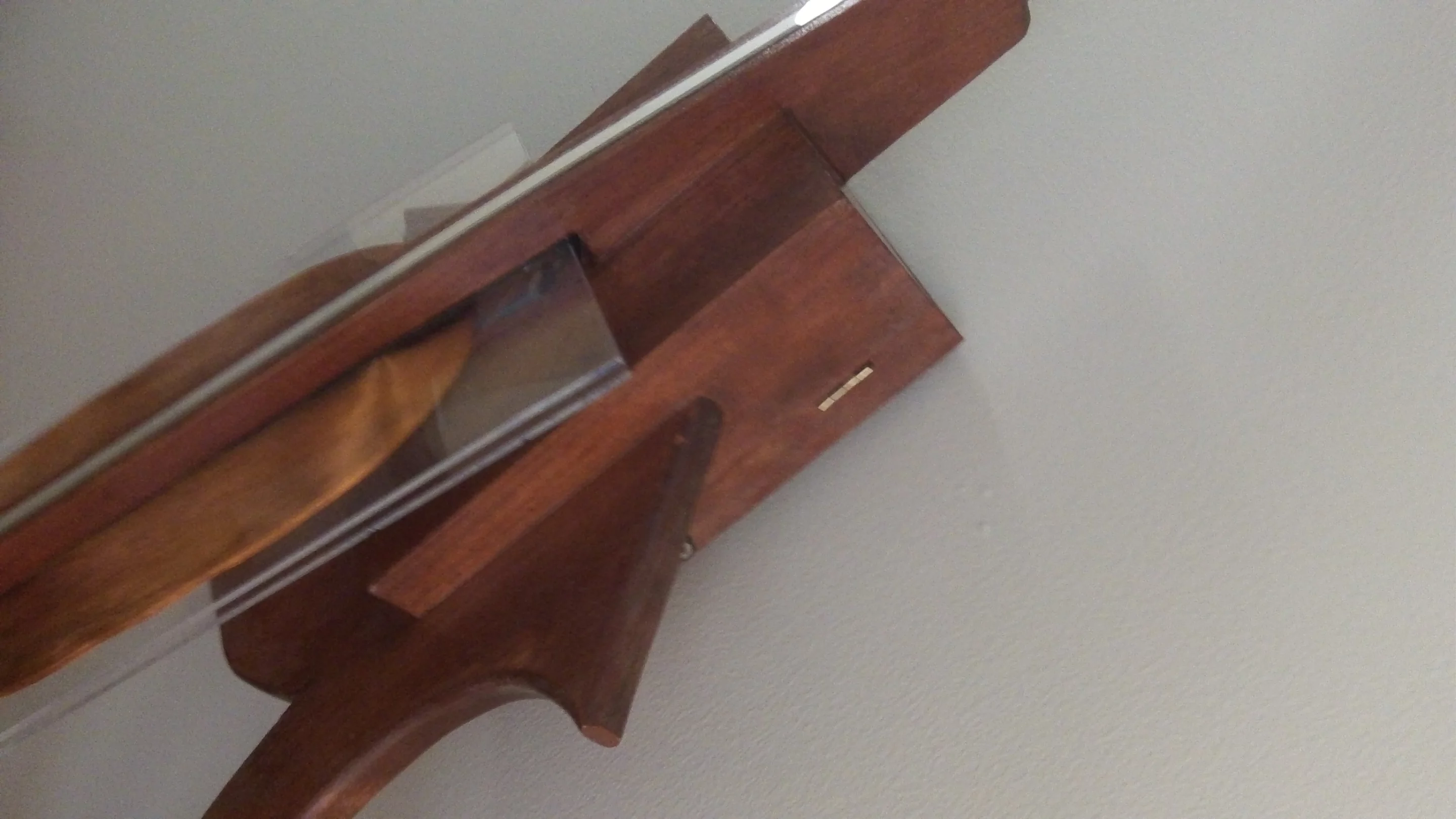

V.6 of the Magnetic Cello features a single resistive ribbon on the neck with a huge coil at the bridge end
13/26
V.6 of the Magnetic Cello features a single resistive ribbon on the neck with a huge coil at the bridge end
Electrical engineering student David Levi is about to embark on the first production run of his Magnetic Cello
14/26
Electrical engineering student David Levi is about to embark on the first production run of his Magnetic Cello

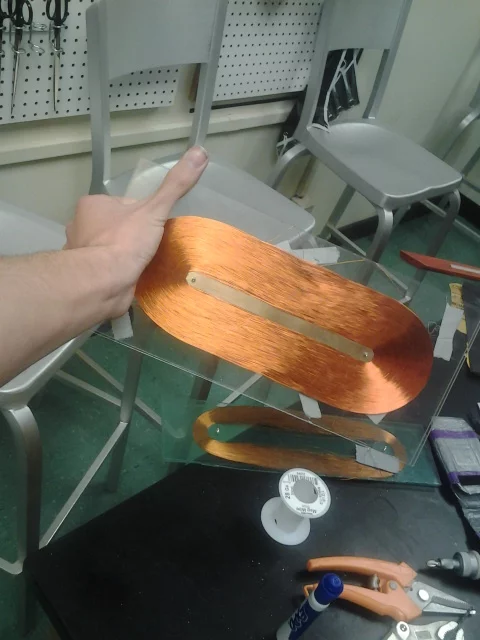

Three football fields of wire to make the coil, which sits between two plastic sheets
15/26
Three football fields of wire to make the coil, which sits between two plastic sheets
Using Google Sktchup to CAD the design
16/26
Using Google Sktchup to CAD the design

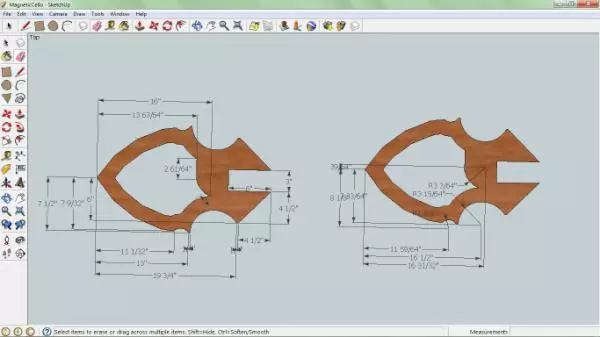

Designing the templates for V.6 of the Magnetic Cello
17/26
Designing the templates for V.6 of the Magnetic Cello

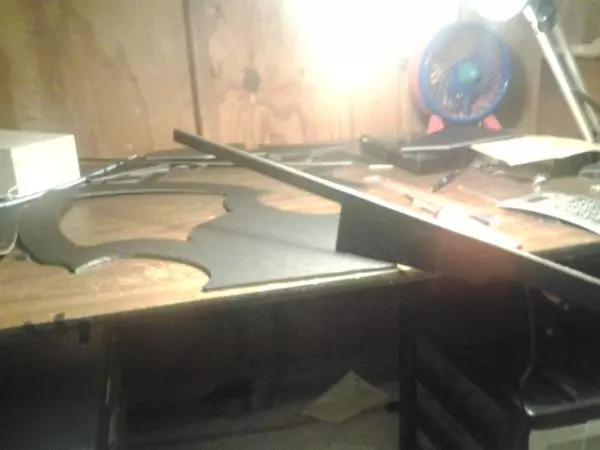

Foam stencil of the components makes for easy reproduction
18/26
Foam stencil of the components makes for easy reproduction

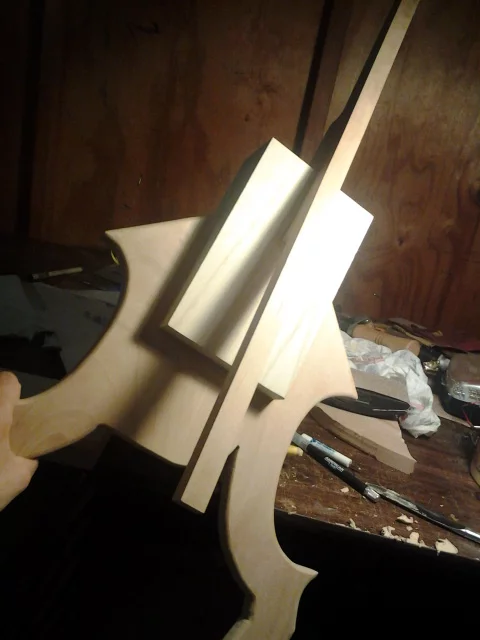

Wood filler smooths over the imperfections, then sand, glue and dry ahead of staining
19/26
Wood filler smooths over the imperfections, then sand, glue and dry ahead of staining

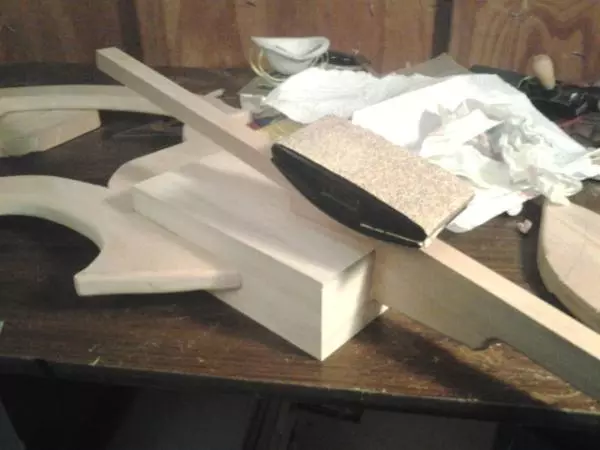

Gluing, sanding and filling the V.6 prototype
20/26
Gluing, sanding and filling the V.6 prototype

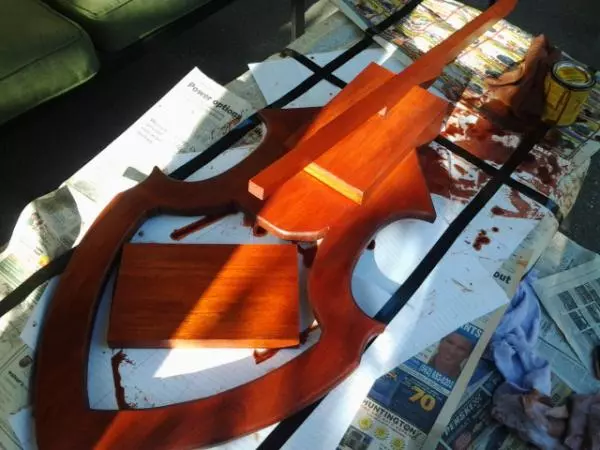

Staining the wooden frame
21/26
Staining the wooden frame

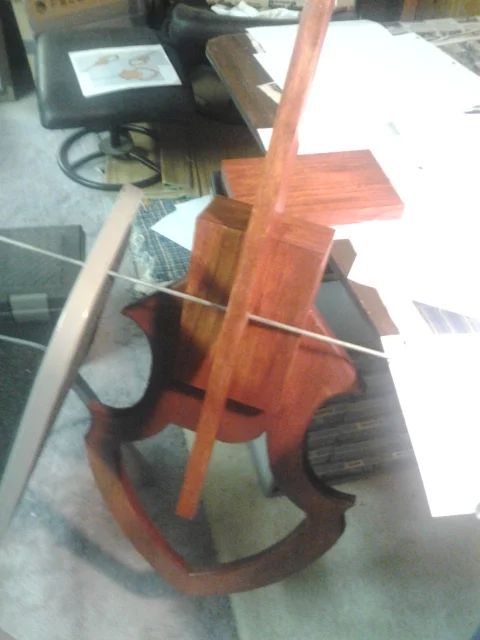

After staining, it's time to apply the varnish
22/26
After staining, it's time to apply the varnish

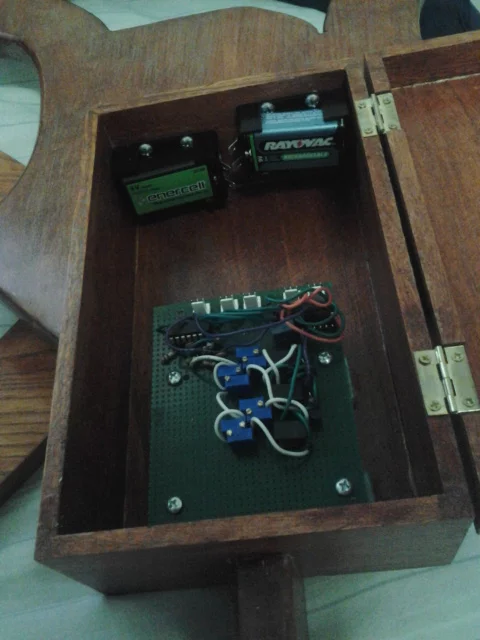

Circuit and batteries installed in the hinged wooden enclosure
23/26
Circuit and batteries installed in the hinged wooden enclosure

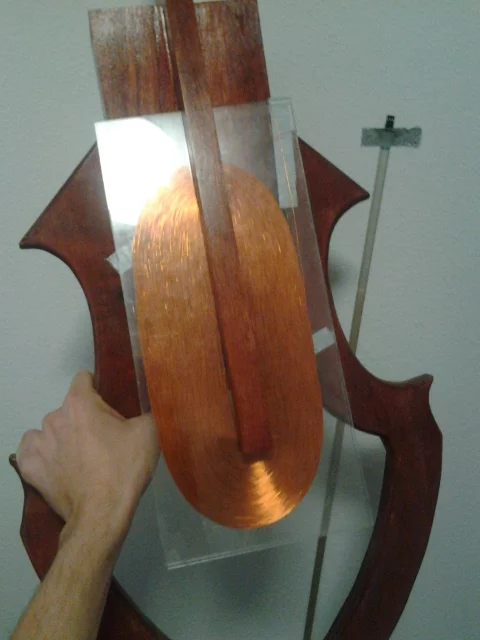

The huge coil between two sheets of plastic is mounted on the neck
24/26
The huge coil between two sheets of plastic is mounted on the neck

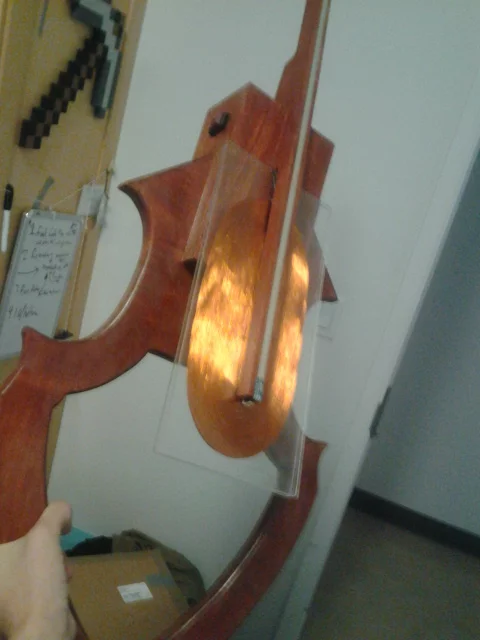

The finished V.6 Magnetic Cello prototype, likely the final revision before production starts in August 2012
25/26
The finished V.6 Magnetic Cello prototype, likely the final revision before production starts in August 2012

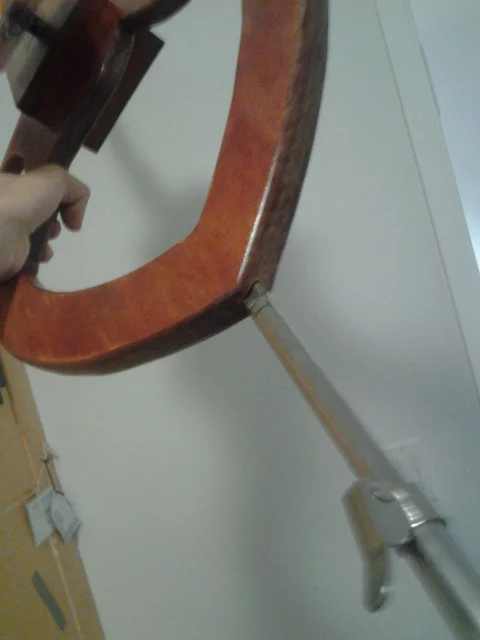

The addition of an end pin makes for comfort and familiarity for seasoned cellists
26/26
The addition of an end pin makes for comfort and familiarity for seasoned cellists

It's taken almost three years and has seen a number of prototype revisions, but David Levi's Magnetic Cello is finally getting ready for its first production run. Looking like a minimalist version of the acoustic instrument on which it is based, the instrument features a single resistive ribbon on the neck to alter the pitch of a note and a huge, visible coil at the bridge end. Instead of a horsehair bow, the player uses a magnetic rod to induce a voltage in the coil, which is then transformed into a frequency and fed through to the unit's voltage-controlled amplifier. The bow has a small switch at the thumb position which allows the player to select virtual strings.

The Magnetovore Magnetic Cello is loosely based on the Theremin Cello developed by Leon Theremin himself and first appearing on stage in 1932. The first version of Levi's creation began to take shape in his junior year of high school and was a plywood outline of an acoustic cello with a guitar neck sporting an individual ribbon for each virtual string. A 555 timer and a coil from a crossover system filled with smaller coils ticked the electronic component boxes.

Early prototype of the Magnetic Cello, with four resistive ribbons on the neck
Early prototype of the Magnetic Cello, with four resistive ribbons on the neck

The second version was the first to draw away from the traditional cello body shape, and featured a dedicated VCO circuit, a neck made from dowel sliced in half, a guitar pickup for a coil and just one ribbon. The player was required to twist the neck to select different strings, but this proved somewhat cumbersome so was dropped for the next prototype, which had a body made from an old cabinet and a second ribbon running down the back of the neck to select string tones.

This method also proved awkward, so the four-ribbon setup from the first instrument made a reappearance to get the Magnetic Cello at least playable, and just in time for the project to go viral. This version also proved to be the make or break prototype.

Had the project not gained quite as much attention as it did, Levi told us that he likely would have moved onto other things. Instead, he decided to make the Magnetic Cello into a truly playable instrument.

The bow now has dual lever switches to select strings
The bow now has dual lever switches to select strings

The string selection problem was finally solved by mounting a system of switches in the magnetic bow, which allowed the player to select a string tone with the roll of a thumb. Improved playability wasn't quite enough to satisfy the electrical engineering student though, and Levi took his invention to some friendly cellists at Cal Poly to ask for opinions and suggestions.

"They gave me suggestions that made their way into V.6, the latest version," Levi told us. "In V.6 I focused on expressiveness of the instrument and ease of manufacture (for example, not using one-off parts from the local thrift store). After talking to an Electrical Engineering professor on campus, I was able to come up with the flat and wide copper coil that is quite visible. I was also more careful with the woodworking; this version actually has the neck become slightly thicker going down, giving cellist the ability to feel how far down they are."

"The instrument is technically very simple. The bow switches select a tuning for the instrument, and pressing down on the resistive ribbon in different places along its length changes its output voltage. This voltage is fed into the VCO, which turns that voltage into a frequency. That frequency is fed through a voltage controlled amplifier. The voltage controlled amplifier is controlled by the voltage induced in the coil when the magnetic bow is moved."

Posing for the camera, the V.6 prototype Magnetic Cello
Posing for the camera, the V.6 prototype Magnetic Cello

Levi has now teamed up with Andrea Kizyma and Fred Wilby to head for a limited first production run by August 2012. Around 20 Magnetic Cellos are going to be made, and the team already has a number of musicians lined up to grab the first few out of the shop.

"I have an idea for a price, but I don't want to commit until I've finished building everything," said Levi. "Right now, I'm saying 'half the price of a standard acoustic cello' - which is somewhere between $600 and $900."

Custom modifications can be designed into the instrument in consultation with the build team, and more tonal expression can be achieved by routing the output signal through effects units or sound processors.

Introducing the Magnetic Cello V.6 Prototype

Source: David Levi
