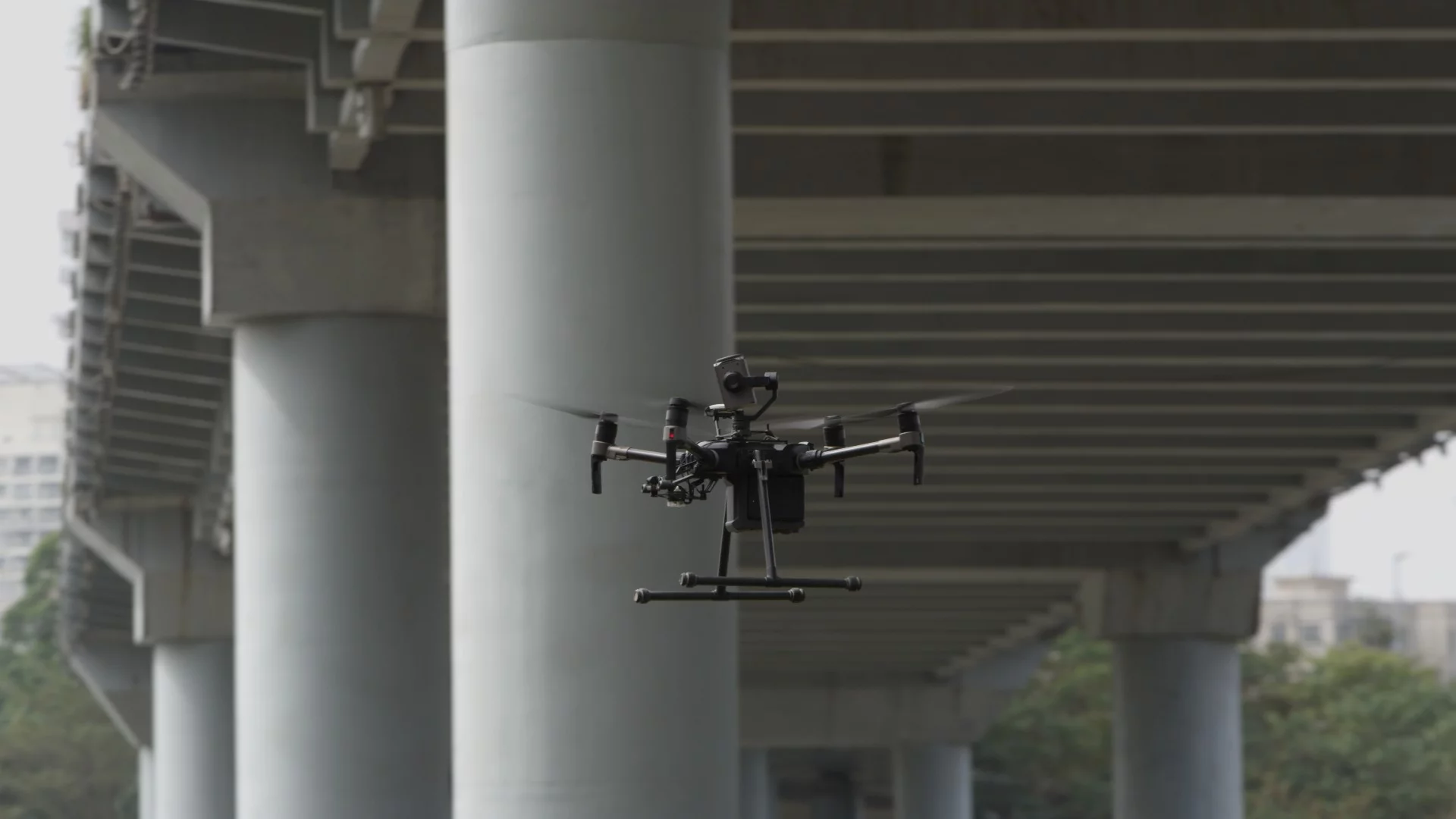

DJI's Matrice 200 series are designed for infrastructure assessment
2/21
DJI's Matrice 200 series are designed for infrastructure assessment
DJI's Matrice 200 series is designed for industrial asset inspection
3/21
DJI's Matrice 200 series is designed for industrial asset inspection
DJI's new Matrice 200 series packs heated batteries to allow it to fly in sub-zero temperatures
4/21
DJI's new Matrice 200 series packs heated batteries to allow it to fly in sub-zero temperatures
DJI Matrice 200 series: designed for aerial asset inspection and other industrial uses
5/21
DJI Matrice 200 series: designed for aerial asset inspection and other industrial uses
DJI Matrice 200 series: controller is very similar to the DJI Phantom/Inspire series units
6/21
DJI Matrice 200 series: controller is very similar to the DJI Phantom/Inspire series units
7/21
DJI Matrice 200 series: heavy duty carry case
8/21
DJI Matrice 200 series: heavy duty carry case
DJI Matrice 200 series: heavy duty carry case
9/21
DJI Matrice 200 series: heavy duty carry case
DJI Matrice 200 series: industrial grade functionality that works with an enterprise level system
10/21
DJI Matrice 200 series: industrial grade functionality that works with an enterprise level system
DJI Matrice 200 series: forward facing FPV camera
11/21
DJI Matrice 200 series: forward facing FPV camera
DJI Matrice 200 series: a chunky bird in flight
12/21
DJI Matrice 200 series: a chunky bird in flight

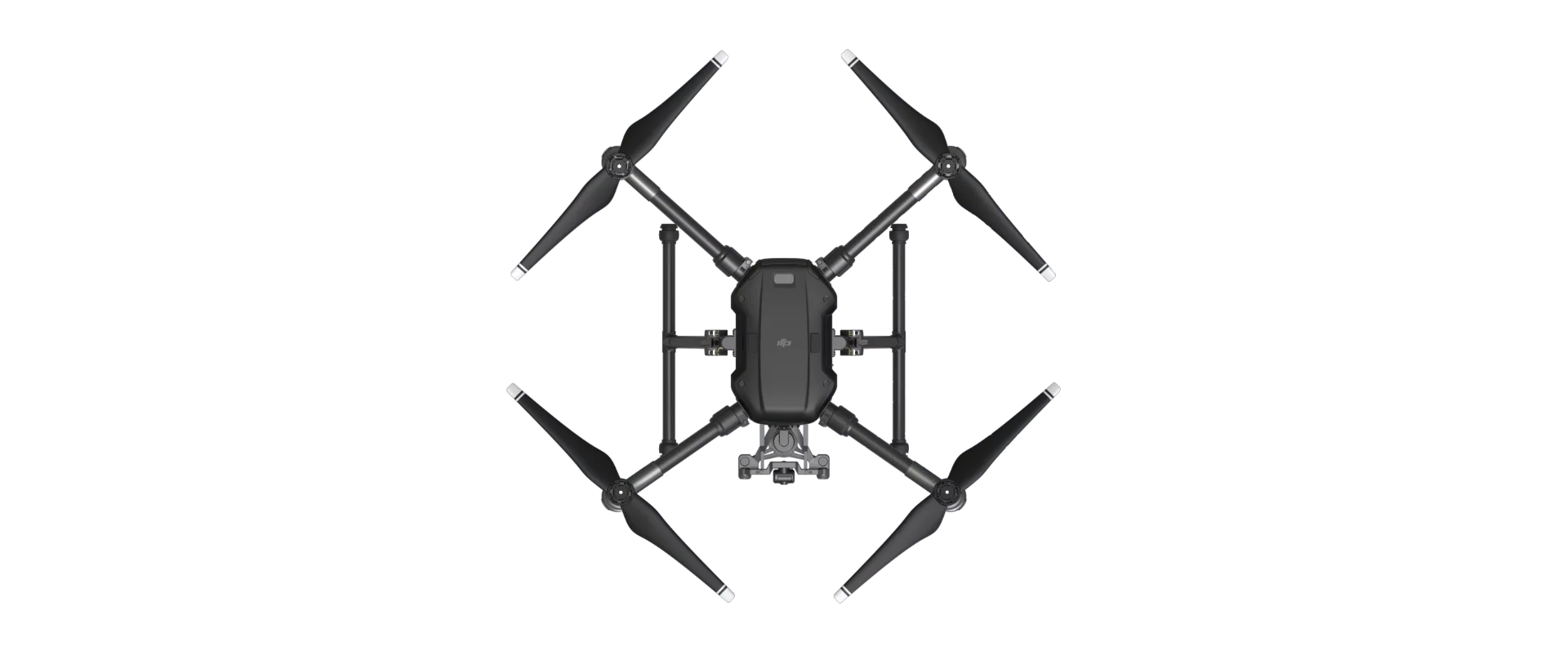

DJI Matrice 200 series: top view
13/21
DJI Matrice 200 series: top view

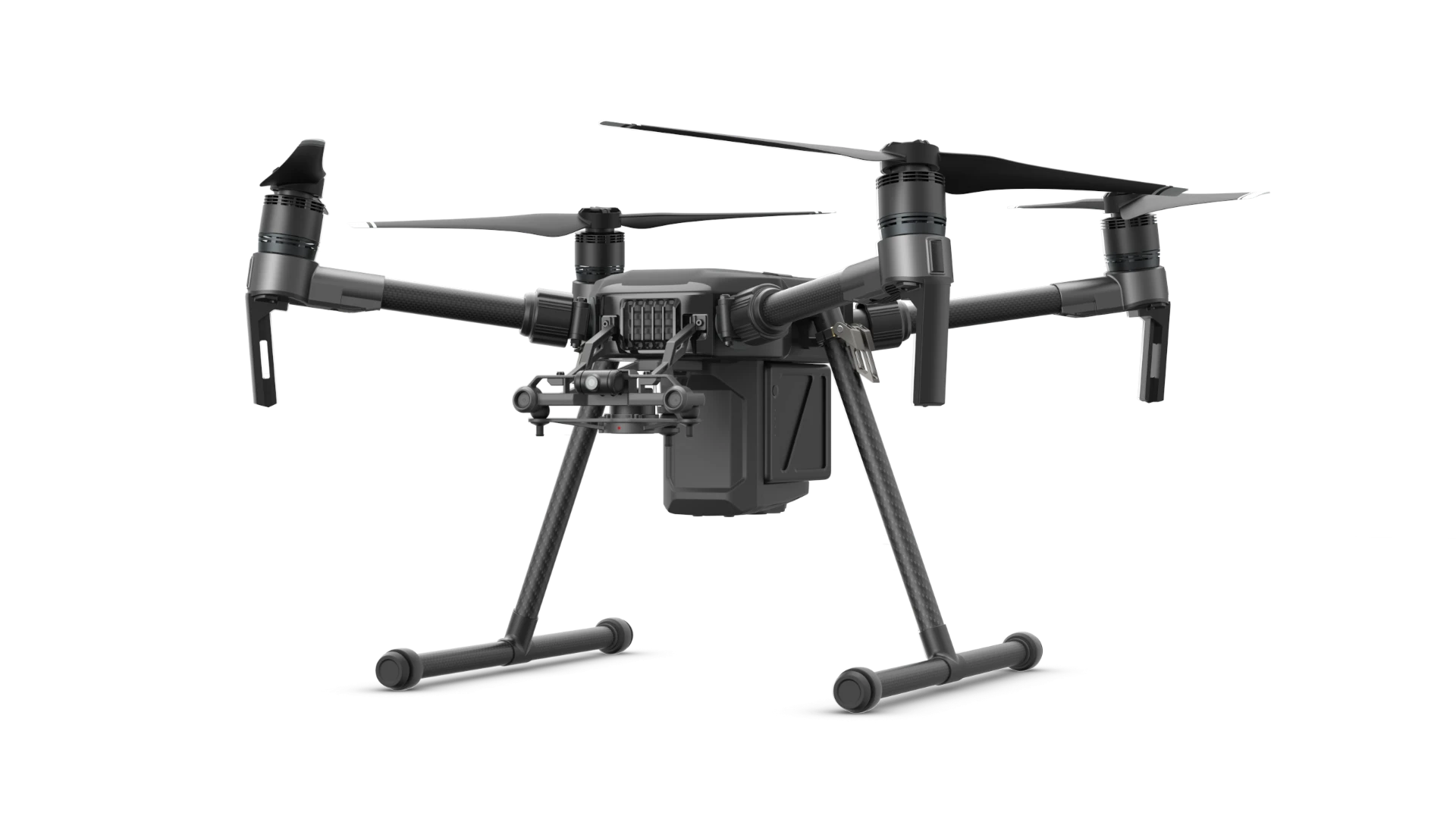

DJI Matrice 200 series: enterprise level aerial camera platform
14/21
DJI Matrice 200 series: enterprise level aerial camera platform

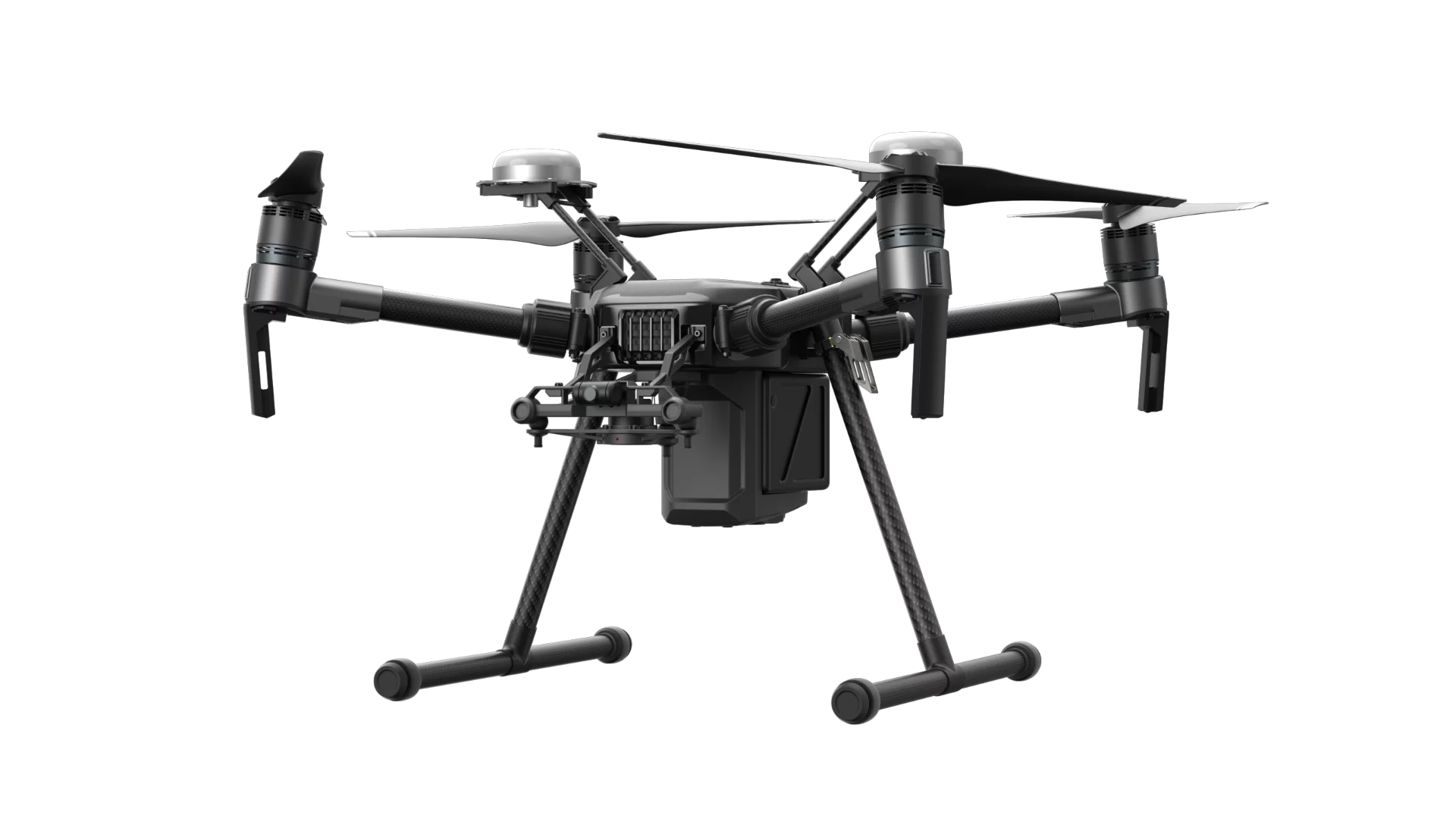

DJI Matrice 200 RTK: centimetre-perfect positioning precision
15/21
DJI Matrice 200 RTK: centimetre-perfect positioning precision

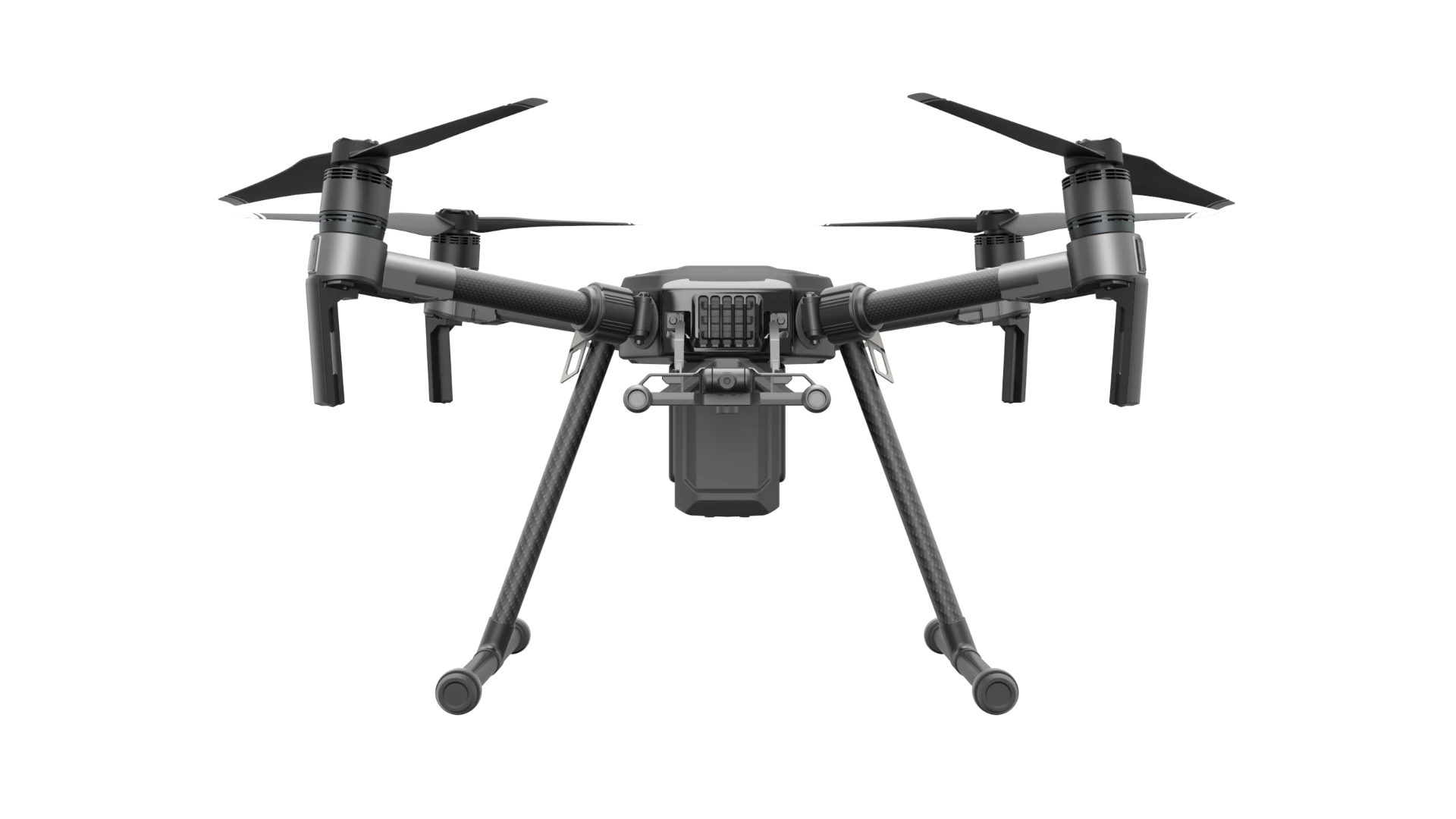

DJI Matrice 200 series: front view
16/21
DJI Matrice 200 series: front view
DJI Matrice 200 series: front view from above
17/21
DJI Matrice 200 series: front view from above

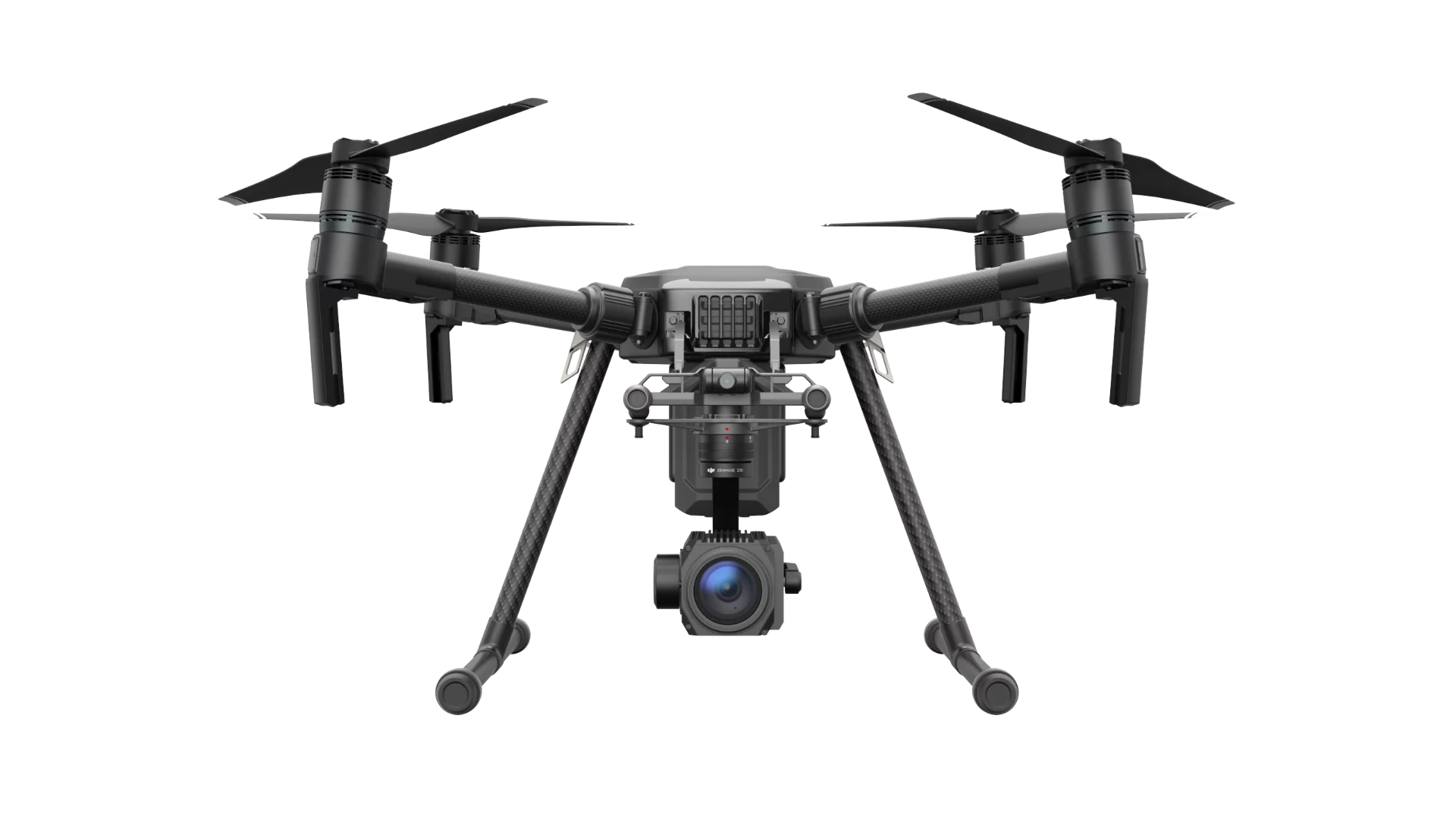

DJI Matrice 200 series: single lower gimbal attached
18/21
DJI Matrice 200 series: single lower gimbal attached
DJI Matrice RTK: single lower gimbal attached
19/21
DJI Matrice RTK: single lower gimbal attached

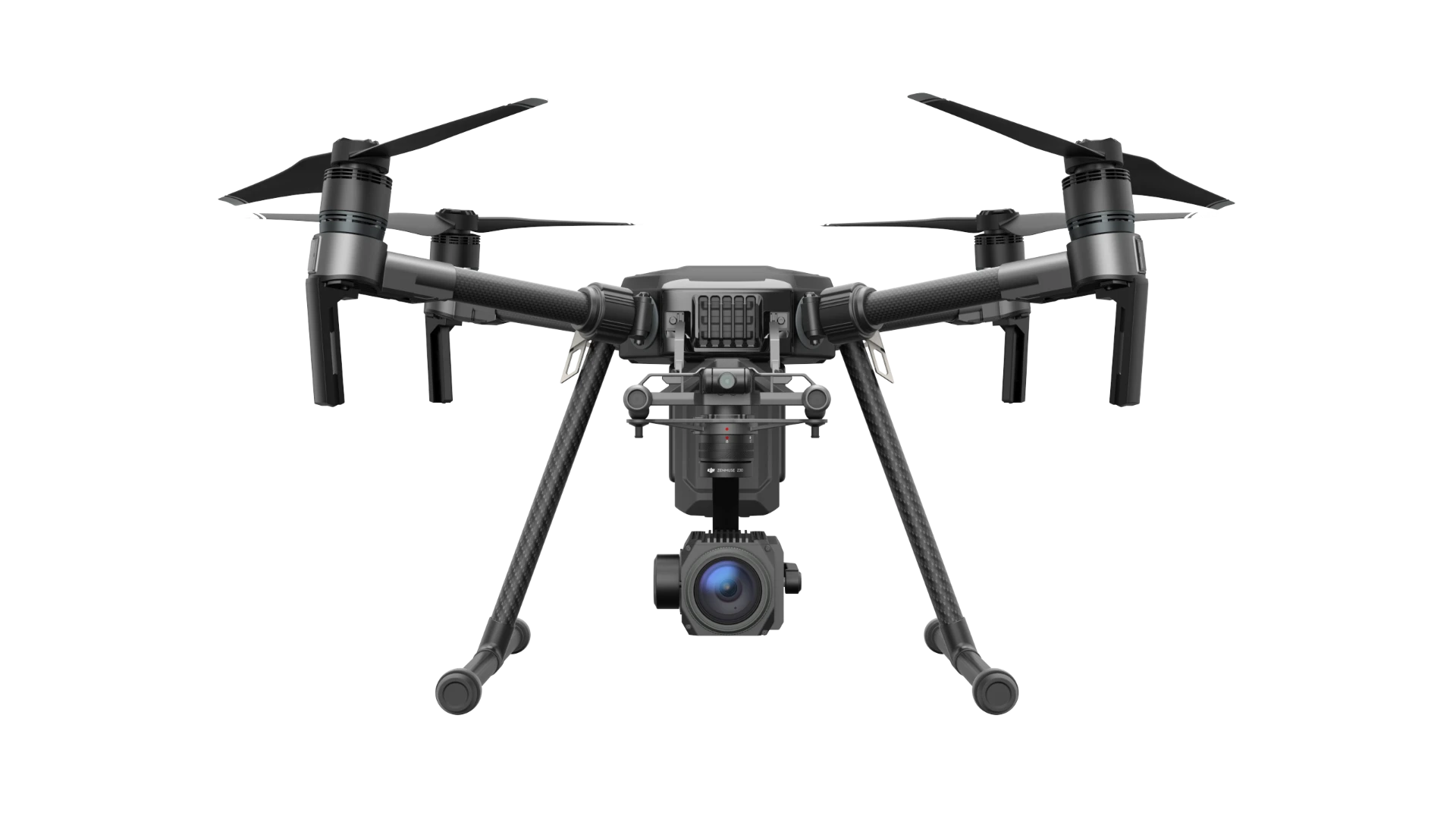

DJI Matrice 200 series: single lower gimbal attached
20/21
DJI Matrice 200 series: single lower gimbal attached
The Matrice 210 and RTK models can carry two additional cameras
21/21
The Matrice 210 and RTK models can carry two additional cameras

Waterproof, industrial-grade and ready to fly in all sorts of conditions, DJI's Matrice 200 series drones have just launched. Capable of carrying twin high-grade cameras in addition to the built-in FPV camera, they're aimed at enterprise-level industrial inspection, mapping and surveying, and search and rescue applications in challenging weather.

DJI used this year's Mobile World Congress to unveil its new enterprise-grade Matrice 200 series drones, with a focus on aerial inspection and data collection. As an industrial tool, they're IP43 rated as waterproof and happy to fly in the rain. They also fly in sub-zero temperatures, with a heating system that kicks in to keep the batteries and sensors warm when it's freezing outside.

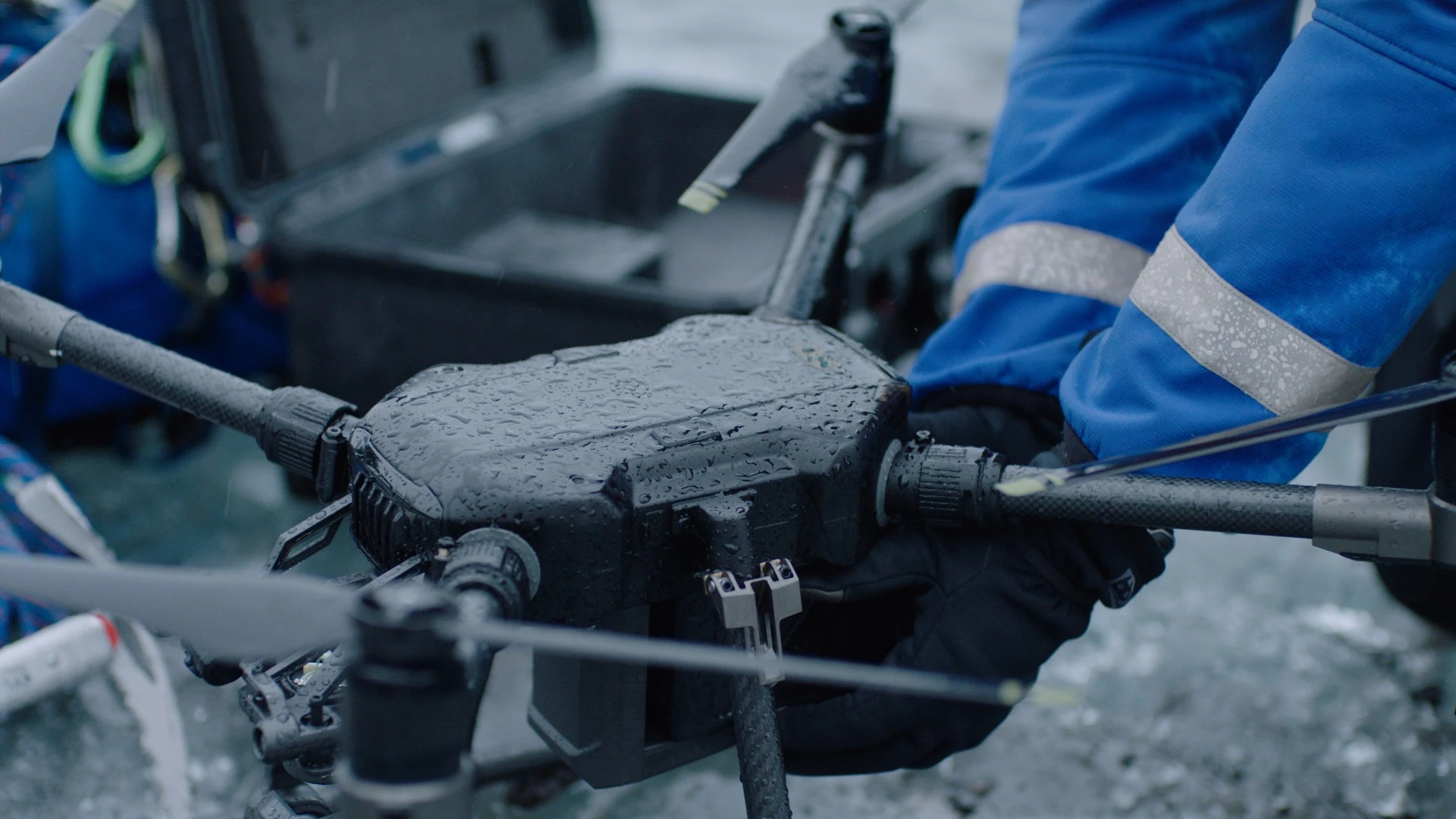

DJI Matrice 200 series is IP47 waterproof rated for flying in wet weather
DJI Matrice 200 series is IP47 waterproof rated for flying in wet weather

A suite of 20 sensor units includes dual inertial measurement units (IMUs) for redundancy, plus an ADS-B receiver, which keeps the drone and its pilots informed about any manned aircraft activity in the area. With just the inbuilt FPV camera, total flight time is a meaty 38 minutes, but attaching a payload beneath lowers that to around 35 minutes when you're running two TB55 batteries.

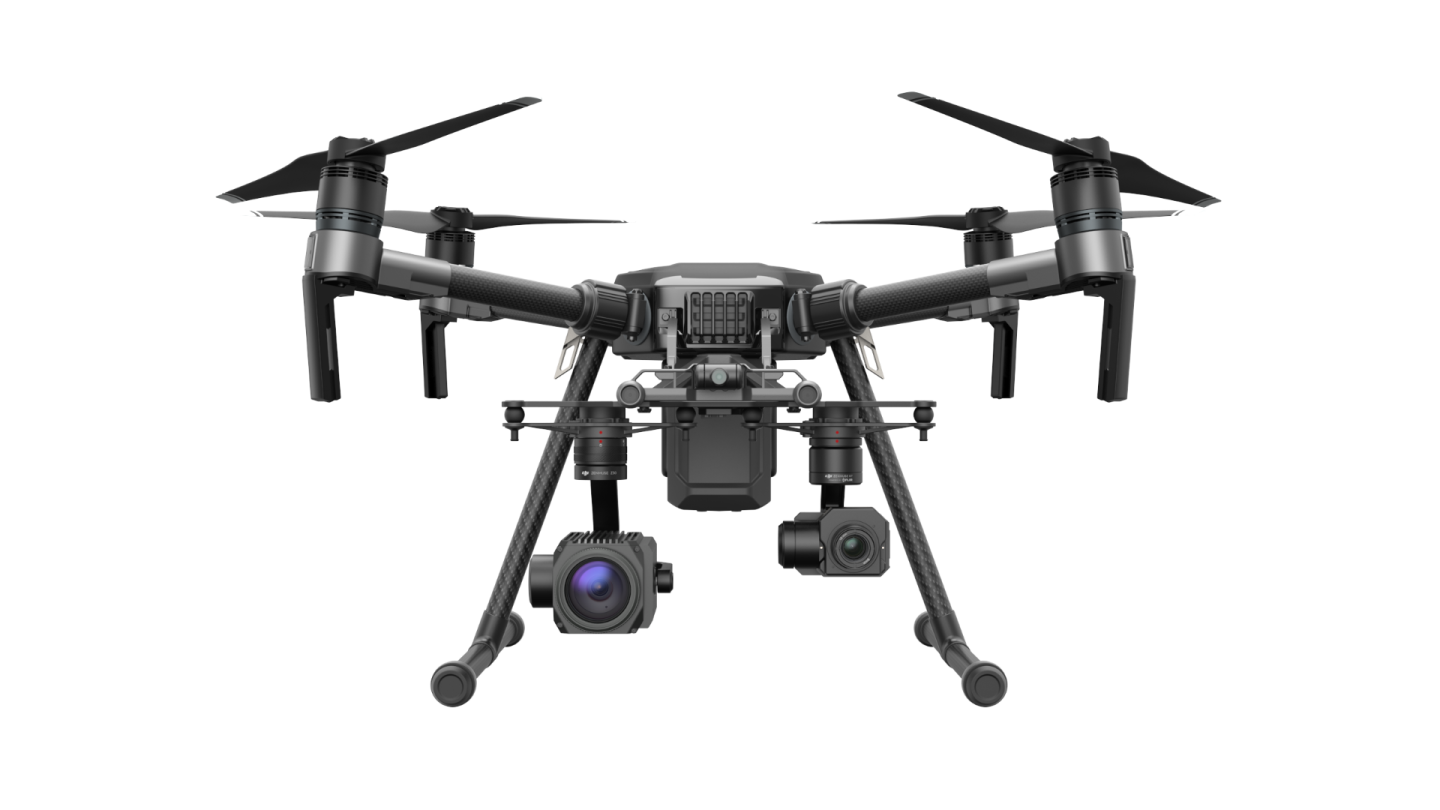

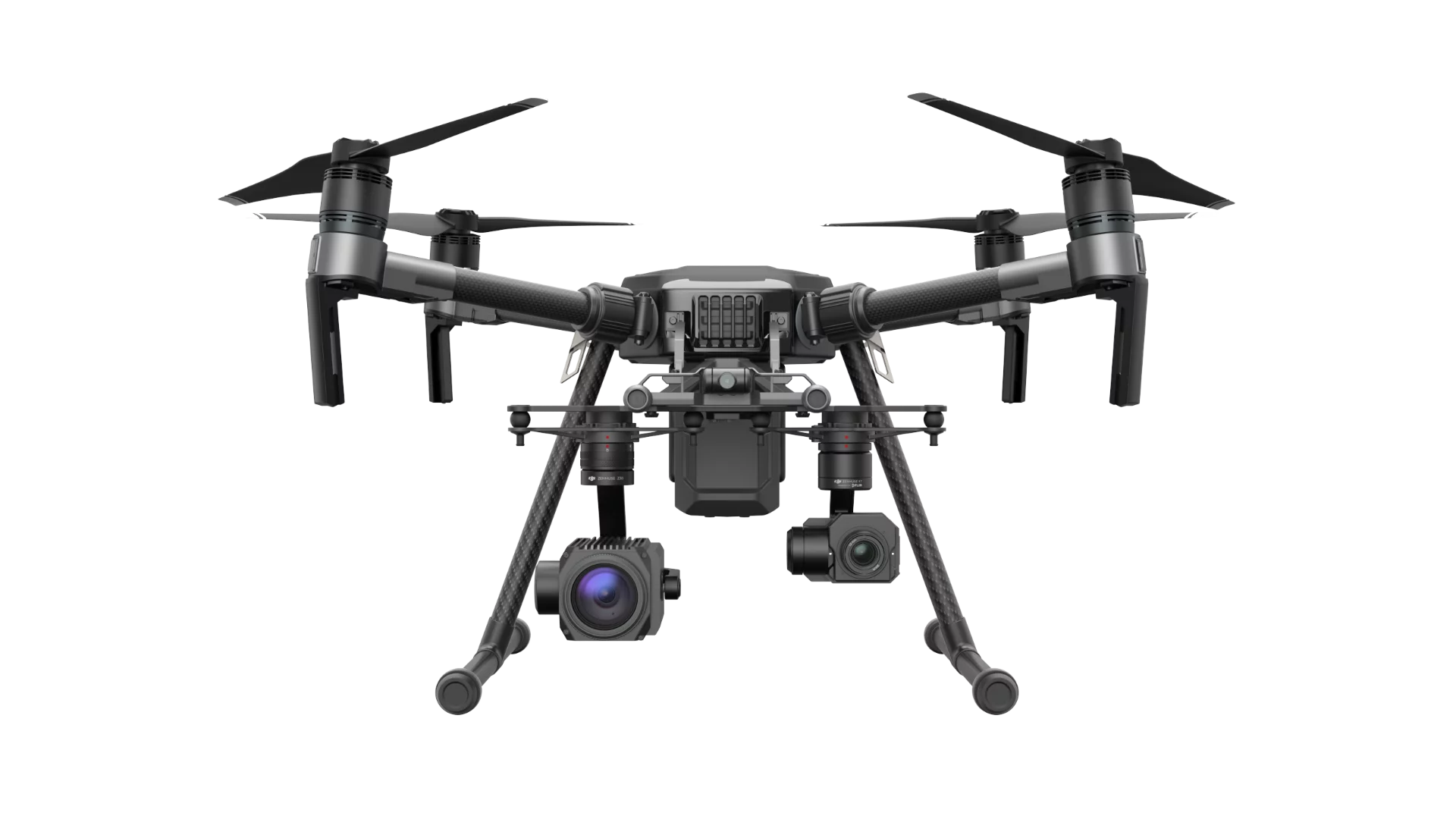

The Matrice 210 and RTK models can carry two additional cameras
The Matrice 210 and RTK models can carry two additional cameras

The Matrice 200 offers a single lower gimbal for a larger camera, such as the Zenmuse X4S, X5S, the XT thermal imaging camera that's accurate to 0.5° C (0.9° F), and the Z30 aerial zoom camera, that lets you view millimeter-level images from up to 40 m (131 ft) away.

One step up is the Matrice 210, which lets you swap out that single lower gimbal for either a double gimbal carrying two cameras below, or a single gimbal on top of the airframe to check out the underside of bridges and other structures.

The Matrice 210 RTK is for applications that require the maximum possible precision, and includes a built-in RTK (real-time kinetic) positioning system that can deliver centimeter-level precision. Like the standard 210, the RTK can carry a choice of upper, lower or dual lower gimbals.

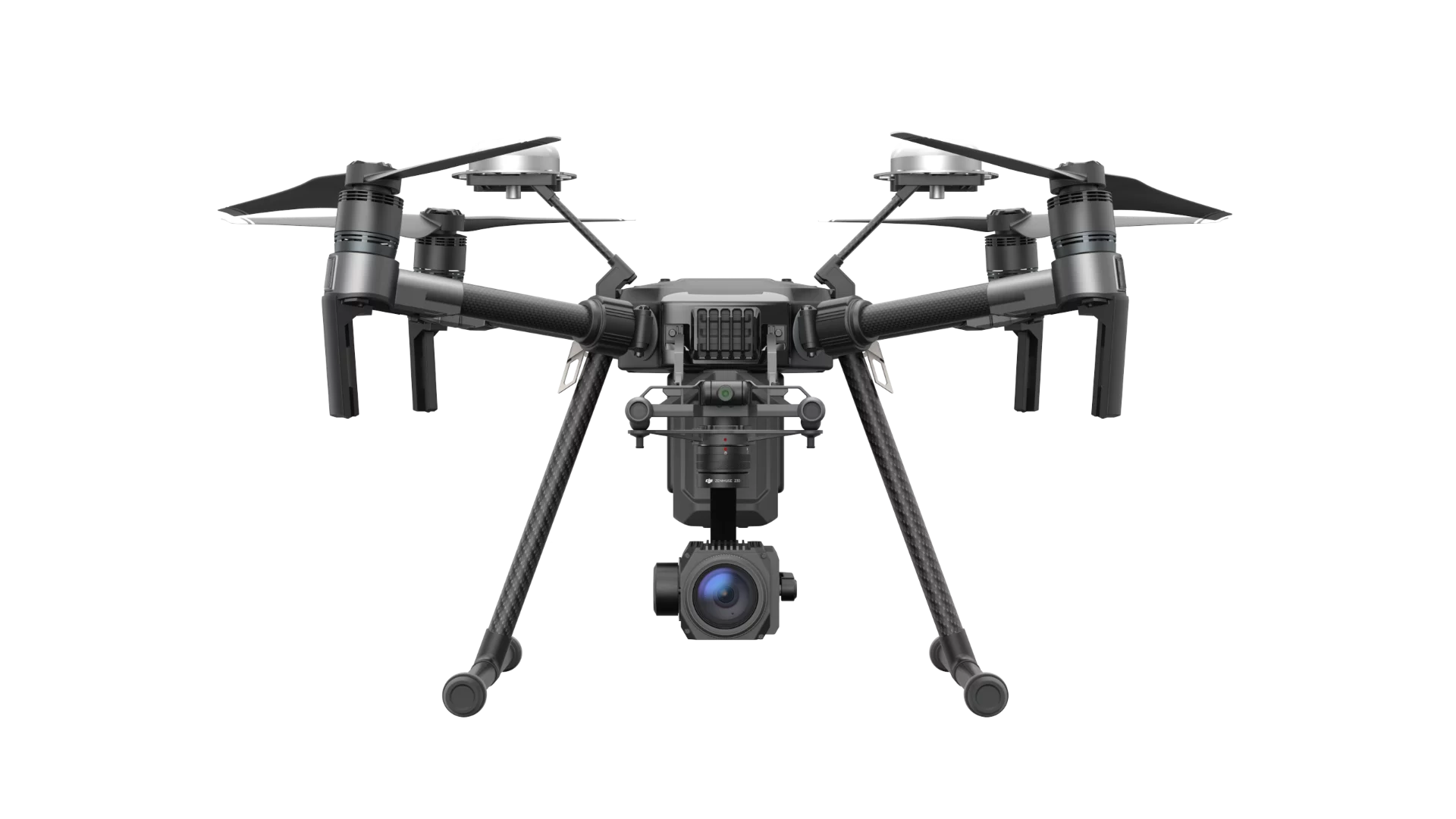

DJI Matrice RTK: single lower gimbal attached
DJI Matrice RTK: single lower gimbal attached

All will eventually work with DJI's upcoming Flighthub software, which takes data and images from the drones and streams it all back to the office, letting a supervisor oversee aerial operations from a number of drones in real time.

These are chunky old birds at 3.8 kg (8.4 lb) before up to 2 kg (4.4 lb) of payload is added, but this adds stability in windy skies, as we're finding out on our flight tests of the lightweight DJI Mavic right now.

The Matrice 200 series is available for pre-order now and will ship from Q2 this year.
