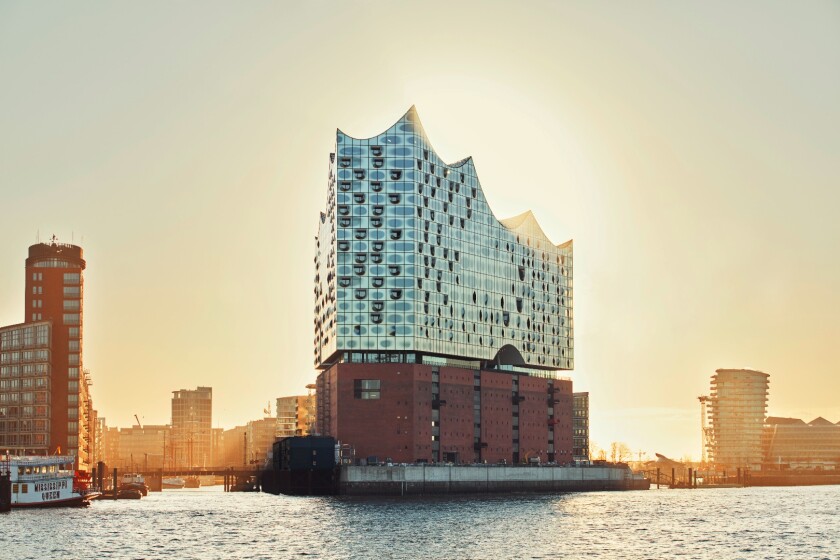

An existing former warehouse, known as the Kaispeicher A, acts as a plinth, atop which a "glass corpus" with shimmering facades has been constructed
2/23
An existing former warehouse, known as the Kaispeicher A, acts as a plinth, atop which a "glass corpus" with shimmering facades has been constructed
The design seeks to mix old and new
3/23
The design seeks to mix old and new
Around 1,700 concrete piles reinforce the building to accommodate the extra weight of the new upper section
4/23
Around 1,700 concrete piles reinforce the building to accommodate the extra weight of the new upper section
The building houses three auditoriums, a hotel, 45 private apartments and a public viewing area with 360-degree views of the city
5/23
The building houses three auditoriums, a hotel, 45 private apartments and a public viewing area with 360-degree views of the city
The building is crowned with a dramatic angled roof comprising eight spherical, concavely bent sections
6/23
The building is crowned with a dramatic angled roof comprising eight spherical, concavely bent sections
The roof covers 7,000 sq m (75,300 sq ft) and is replete with 6,000 "shimmering giant sequins."
7/23
The roof covers 7,000 sq m (75,300 sq ft) and is replete with 6,000 "shimmering giant sequins."
Around 1,100 panes of glass cover 16,000 sq m (172,200 sq ft) of the building, each measuring 4-5 m (13-16 ft) wide and over 3-m (10-ft) high
8/23
Around 1,100 panes of glass cover 16,000 sq m (172,200 sq ft) of the building, each measuring 4-5 m (13-16 ft) wide and over 3-m (10-ft) high
The "small basalt grey reflective dots" that cover the panes are aimed at preventing sunlight from overheating the building and also create a striking shimmering effect
9/23
The "small basalt grey reflective dots" that cover the panes are aimed at preventing sunlight from overheating the building and also create a striking shimmering effect
The configuration of the dots was computer-calculated for each glass pane based on its position within the building
10/23
The configuration of the dots was computer-calculated for each glass pane based on its position within the building
The Elbphilharmonie is built in the Sandtorhafen, where the first warehouse in Hamburg Docks was built
11/23
The Elbphilharmonie is built in the Sandtorhafen, where the first warehouse in Hamburg Docks was built
Between the glass section and the original warehouse building is a seam in which the publicly accessible plaza is located
12/23
Between the glass section and the original warehouse building is a seam in which the publicly accessible plaza is located
The building and its roof have reshaped the Hamburg skyline
13/23
The building and its roof have reshaped the Hamburg skyline

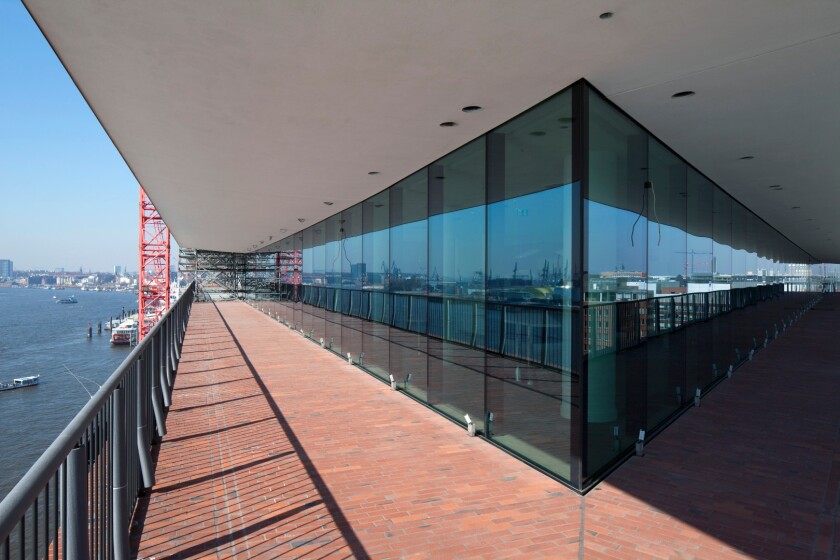

The plaza has a walkway around its edges that encircles the whole building
14/23
The plaza has a walkway around its edges that encircles the whole building
The public plaza
15/23
The public plaza
The 37-m (121-ft) high plaza provides 360-degree panoramic views of the city
16/23
The 37-m (121-ft) high plaza provides 360-degree panoramic views of the city
The Plaza is scheduled to be publicly accessible from November 2016
17/23
The Plaza is scheduled to be publicly accessible from November 2016
The Recital Hall is a conventional concert auditorium that seats up to 550 people
18/23
The Recital Hall is a conventional concert auditorium that seats up to 550 people

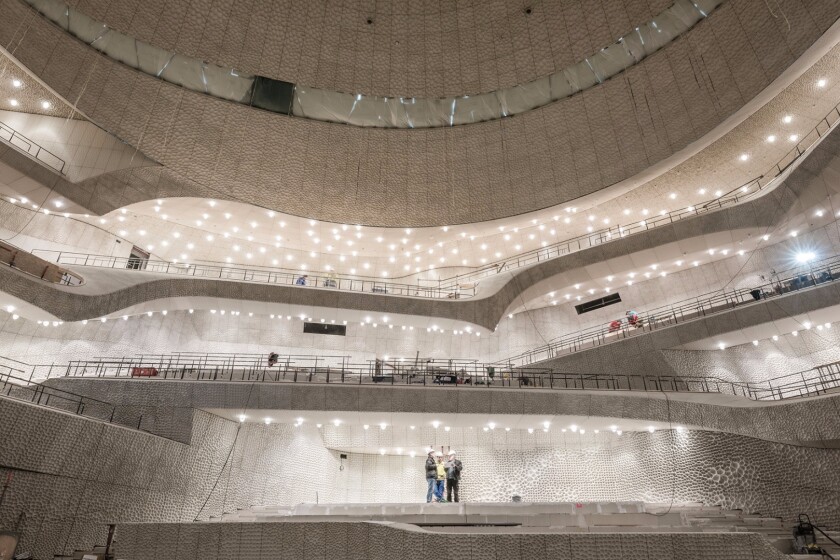

The Grand Hall is a 50-m (164-ft) high auditorium designed with the aim of being a world-class concert hall
19/23
The Grand Hall is a 50-m (164-ft) high auditorium designed with the aim of being a world-class concert hall
The Grand Hall will seat 2,100, with the orchestra pit in the middle
20/23
The Grand Hall will seat 2,100, with the orchestra pit in the middle
A rendering of the plaza imagining it when populated
21/23
A rendering of the plaza imagining it when populated
A rendering of the view from the back of the Recital Hall
22/23
A rendering of the view from the back of the Recital Hall
A rendering of a view from within the Grand Hall
23/23
A rendering of a view from within the Grand Hall

It's not long now until the new Elbphilharmonie concert hall in Hamburg, Germany, will be completed. When it opens, visitors will have the run of three auditoriums, a hotel, 45 private apartments and a public plaza, but the building's spectacular architecture is already very much open to the public.

Located on the banks of the river Elbe in the HafenCity quarter of the Hamburg-Mitte district, the Elbphilharmonie has been designed by Herzog & de Meuron — whose lighting installation adorns the Allianz Arena in Munich — to mix old and new. It was topped out in 2010, its shell completed in 2013 and its façade finished in 2014.

An existing former warehouse known as the Kaispeicher A acts as a plinth, atop which a "glass corpus" with shimmering façades has been constructed. To accommodate the extra weight, around 1,700 concrete piles reinforce the structure.

Around 1,100 panes of glass cover 16,000 sq m (172,200 sq ft) of the building, each measuring 4-5 m (13-16 ft) wide and over 3-m (10-ft) high. Most of the panes are said to have been shaped "with millimeter precision" at 600-degrees Celsius (1,112-degrees Fahrenheit) and then marked with "small basalt grey reflective dots." This is aimed at preventing sunlight from overheating the building and also creates its striking shimmering look.

The roof covers 7,000 sq m (75,300 sq ft) and is replete with 6,000 "shimmering giant sequins."
The roof covers 7,000 sq m (75,300 sq ft) and is replete with 6,000 "shimmering giant sequins."

The configuration of the dots on each pane was computer-calculated based on the position of the pane within the building. Likewise, the curvature of each pane is location dependent.

The glass corpus is crowned with a dramatic angled roof comprising eight spherical, concave sections. Covering an area of 7,000 sq m (75,300 sq ft), its sweeping curves have already reshaped the Hamburg skyline.

Between the glass section and the original warehouse building is a seam in which the publicly accessible plaza is located. The 37-m (121-ft) high space provides 360-degree panoramic views of the city and has a walkway around its edges that encircles the whole building.

The plaza has a walkway around its edges that encircles the whole building
The plaza has a walkway around its edges that encircles the whole building

The warehouse itself will house a 500-space multi-storey car-park, spa facilities and conference rooms for the hotel, a music education area, backstage rooms, and the 170-seat Kaistudio 1 auditorium. The smallest of the three halls, this is said to be an ideal venue for contemporary and experimental music.

Slightly larger than the Kaistudio 1 is the Recital Hall, a conventional auditorium that seats up to 550 people. The Recital Hall is located in the glass section of the building and rests on 56 spring assemblies for acoustic decoupling.

The "centerpiece" of the Elbphilharmonie, though, is the Grand Hall. Designed specifically with the aim of being a world-class concert hall, the 50-m (164-ft) high auditorium seats 2,100, with the orchestra pit in the middle and tiered seating rising steeply upwards.

The Grand Hall is a 50-m (164-ft) high auditorium designed with the aim of being a world-class concert hall
The Grand Hall is a 50-m (164-ft) high auditorium designed with the aim of being a world-class concert hall

Like the Recital Hall, the Grand Hall is decoupled from the rest of the building for acoustic independence, but on a more ambitious scale. Indeed, the configuration is described as "one of the most exciting structural challenges in Europe at the moment," with the 12,500-tonne (13,778-ton) volume resting on 362 giant spring assemblies.

Acoustic perfection is further pursued with the use of a material that was specially developed for the project. The "White Skin," as it is called, consists of 10,000 gypsum fiber panels made of natural plaster and recycled paper. The panels are modeled and produced to highly specified 3D dimensions, with their shape and size differing depending on their location within the hall, and are used to clad the 6,500 sq m (70,000 sq ft) of walls and ceiling. They are said to provide "optimal and targeted sound distribution."

Construction of the Elbphilharmonie began in 2007 and it is due to open its doors in January next year.

The video below provides an introduction to the Elbphilharmonie.
